Page 1793 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 12 Install Clutch Pack Retainer Fig. 13 Adjusting Clutch Pack Snap Ring Position Fig. 14 Checking Direct Clutch Assembled Height JAW-4 TRANSMISSION OVERHAUL 21 - 231

Page 1794 of 2158

JEEP WRANGLER 1995 Owners Manual

Page 1795 of 2158

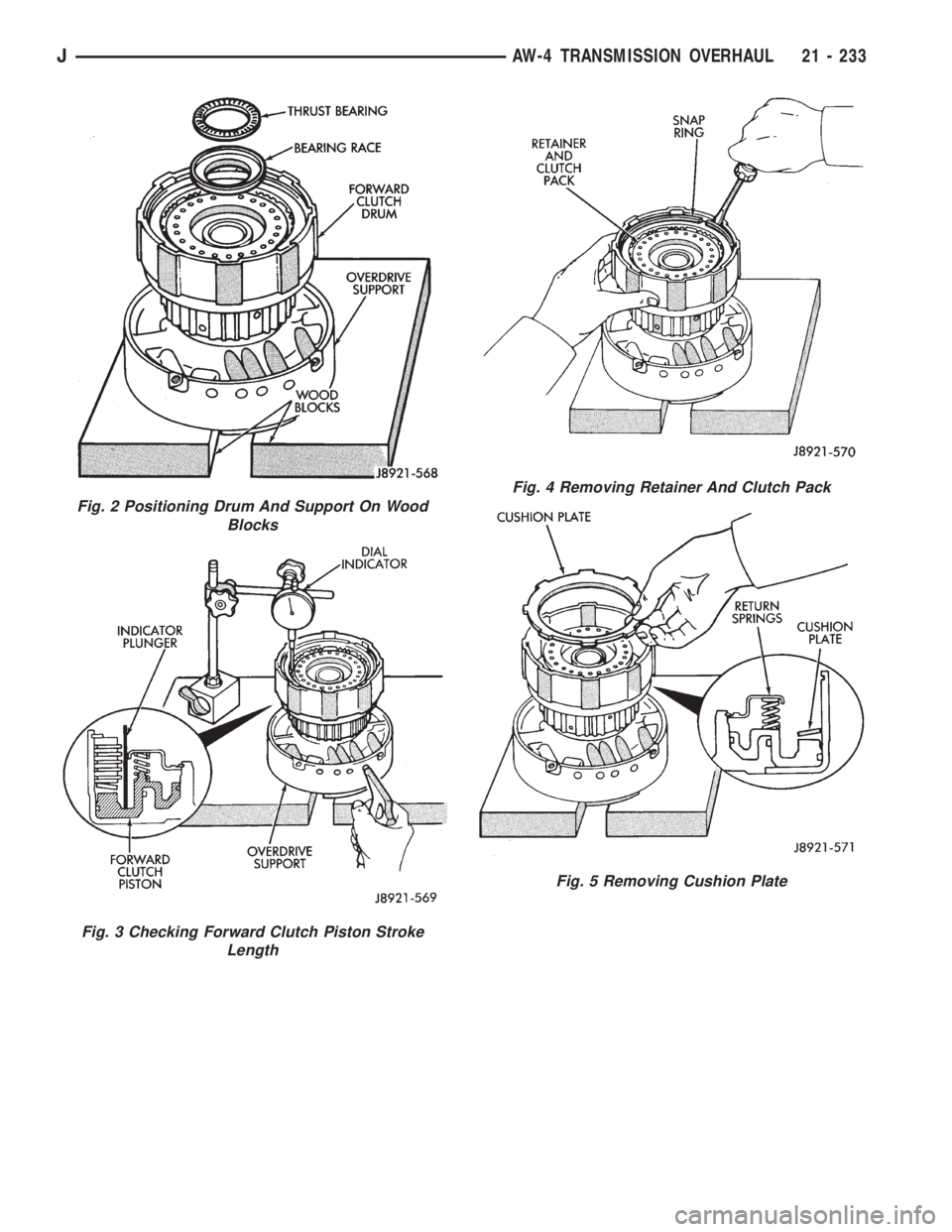

JEEP WRANGLER 1995 Owners Manual Fig. 3 Checking Forward Clutch Piston Stroke Length Fig. 4 Removing Retainer And Clutch Pack Fig. 5 Removing Cushion Plate JAW-4 TRANSMISSION OVERHAUL 21 - 233

Page 1796 of 2158

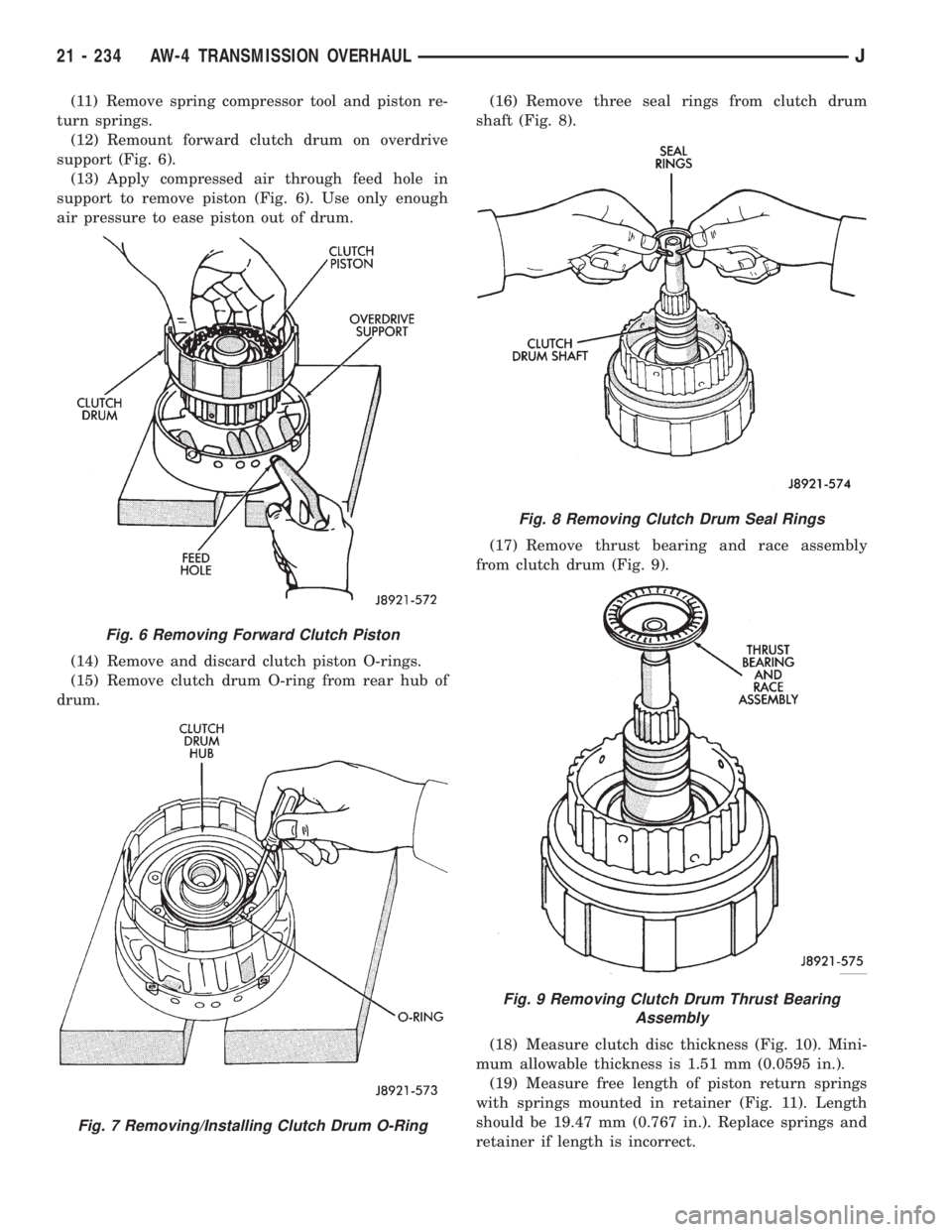

JEEP WRANGLER 1995 Owners Manual Fig. 7 Removing/Installing Clutch Drum O-Ring Fig. 8 Removing Clutch Drum Seal Rings Fig. 9 Removing Clutch Drum Thrust Bearing Assembly 21 - 234 AW-4 TRANSMISSION OVERHAULJ

Page 1797 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 11 Checking Return Spring Length Fig. 12 Testing Piston Check Ball Fig. 13 Installing Thrust Bearing And Race JAW-4 TRANSMISSION OVERHAUL 21 - 235

Page 1798 of 2158

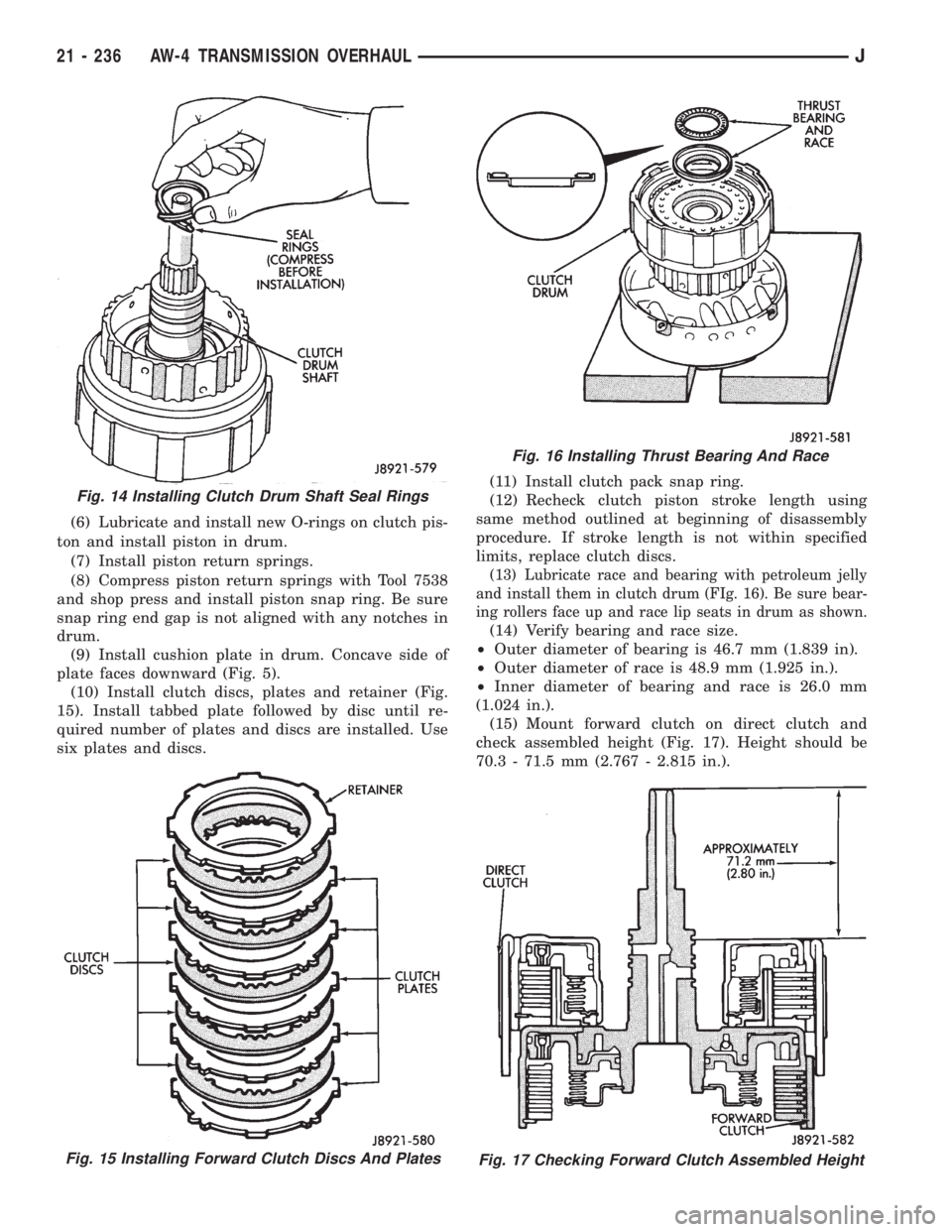

JEEP WRANGLER 1995 Owners Manual Fig. 16 Installing Thrust Bearing And Race Fig. 17 Checking Forward Clutch Assembled Height Fig. 14 Installing Clutch Drum Shaft Seal Rings 21 - 236 AW-4 TRANSMISSION OVERHAULJ

Page 1799 of 2158

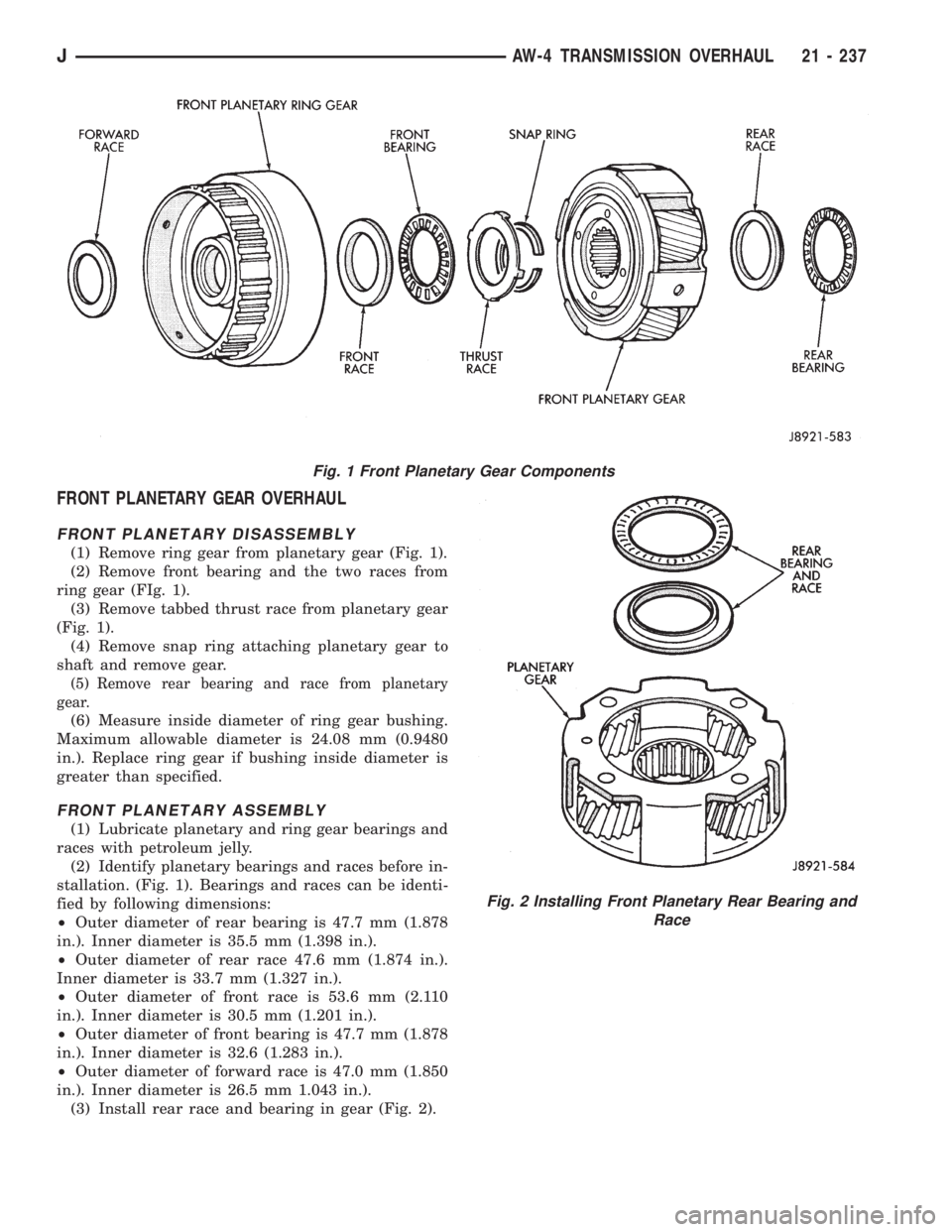

JEEP WRANGLER 1995 Owners Manual Fig. 2 Installing Front Planetary Rear Bearing and Race JAW-4 TRANSMISSION OVERHAUL 21 - 237

Page 1800 of 2158

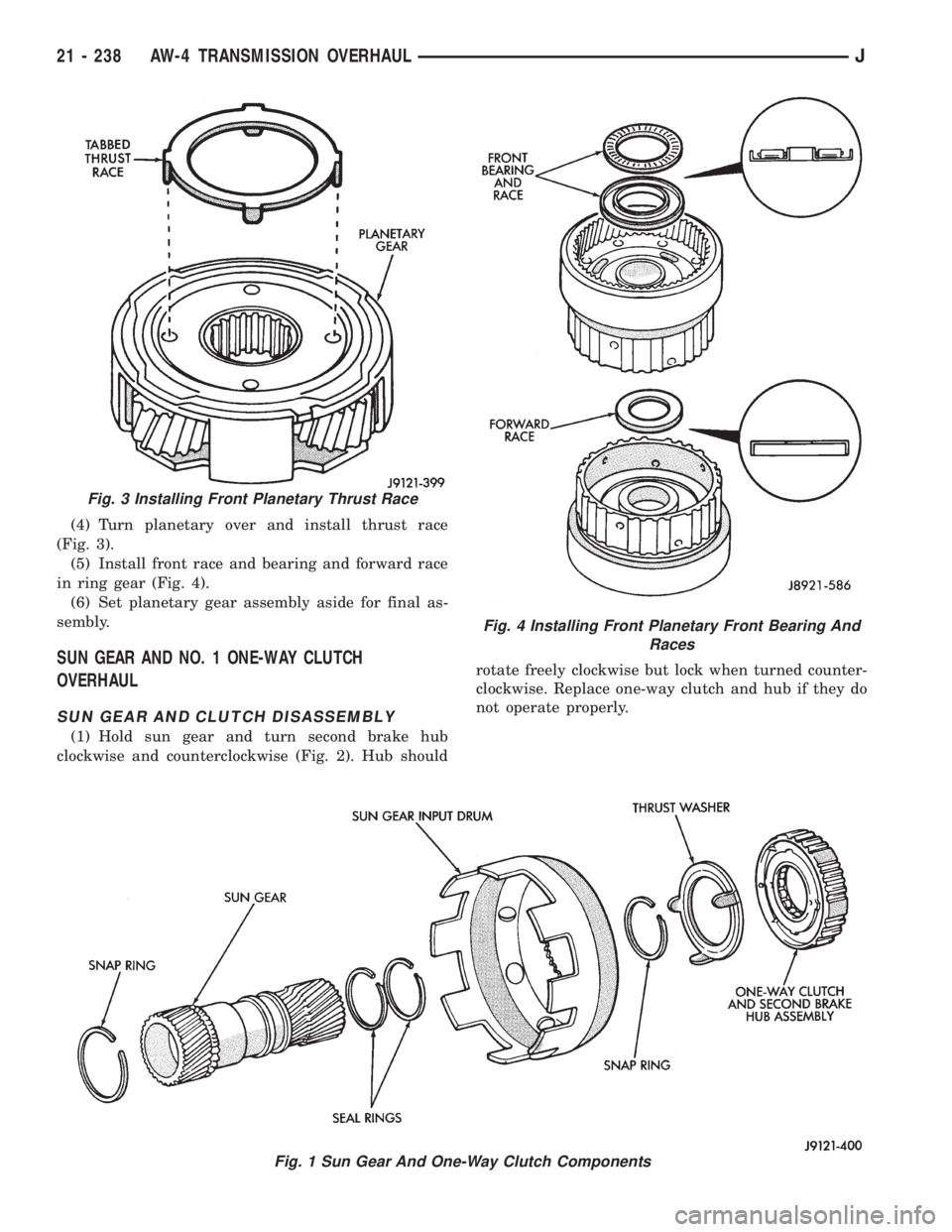

JEEP WRANGLER 1995 Owners Manual Fig. 1 Sun Gear And One-Way Clutch Components Fig. 4 Installing Front Planetary Front Bearing And Races 21 - 238 AW-4 TRANSMISSION OVERHAULJ
