Page 1785 of 2158

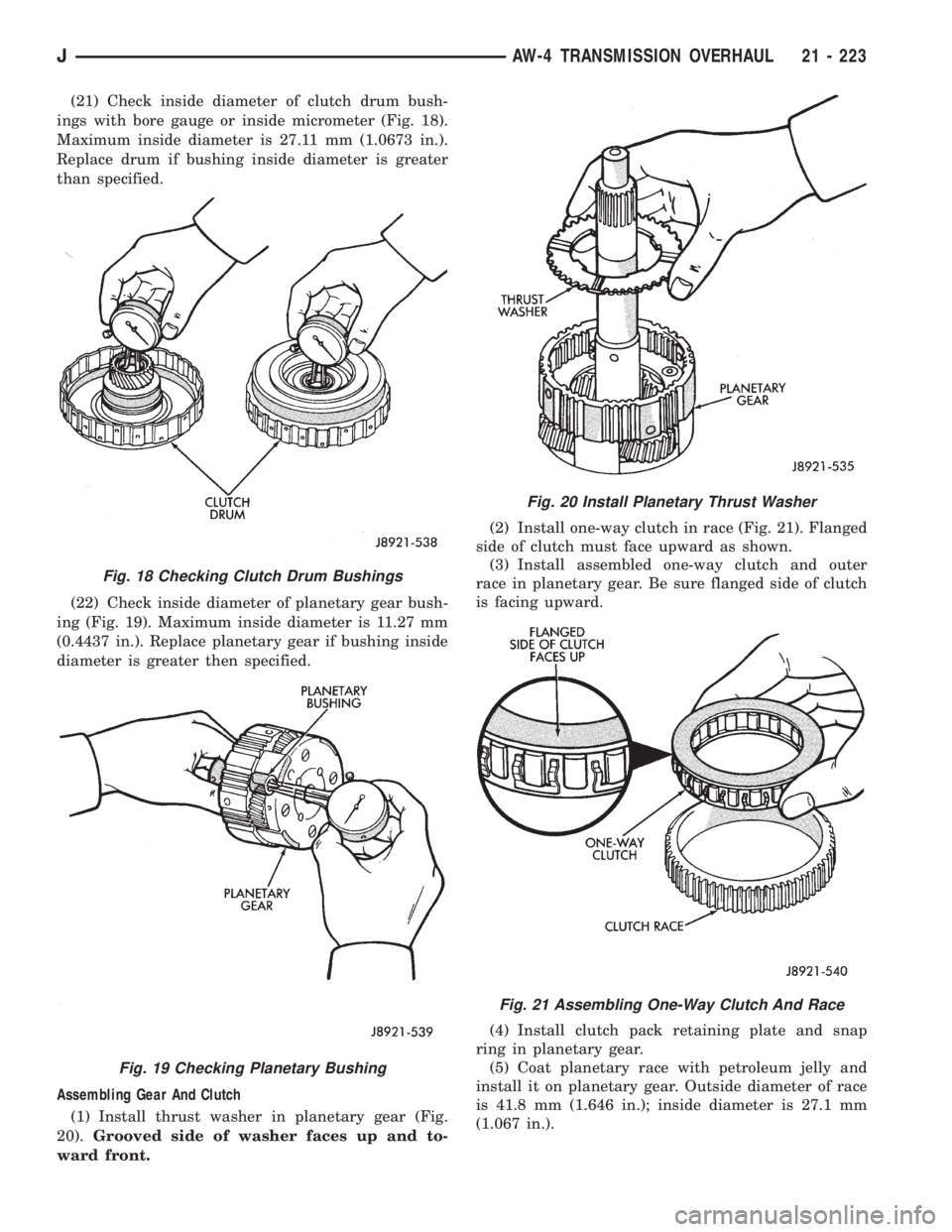

JEEP WRANGLER 1995 Owners Manual Fig. 19 Checking Planetary Bushing Fig. 20 Install Planetary Thrust Washer Fig. 21 Assembling One-Way Clutch And Race JAW-4 TRANSMISSION OVERHAUL 21 - 223

Page 1786 of 2158

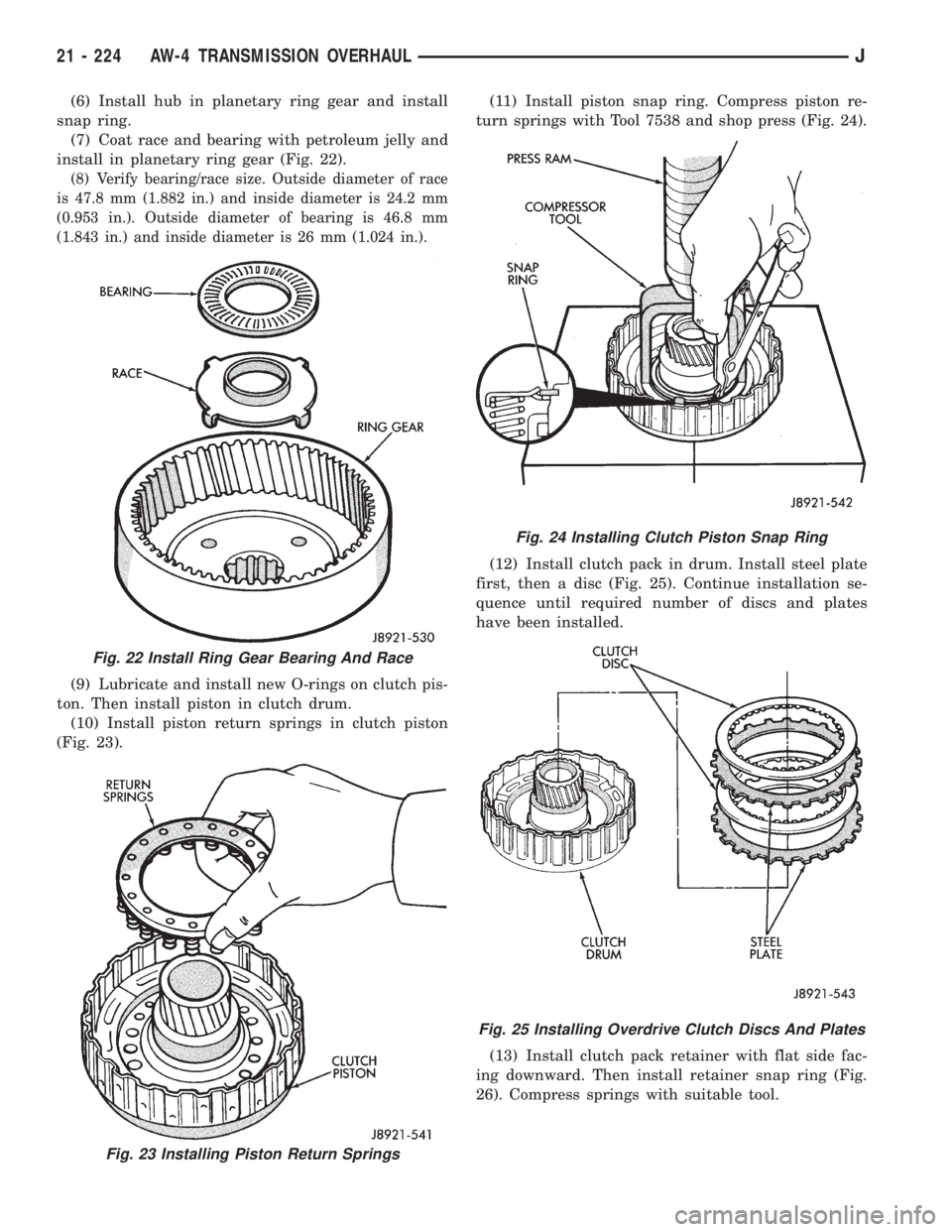

JEEP WRANGLER 1995 Owners Manual Fig. 23 Installing Piston Return Springs Fig. 24 Installing Clutch Piston Snap Ring Fig. 25 Installing Overdrive Clutch Discs And Plates 21 - 224 AW-4 TRANSMISSION OVERHAULJ

Page 1787 of 2158

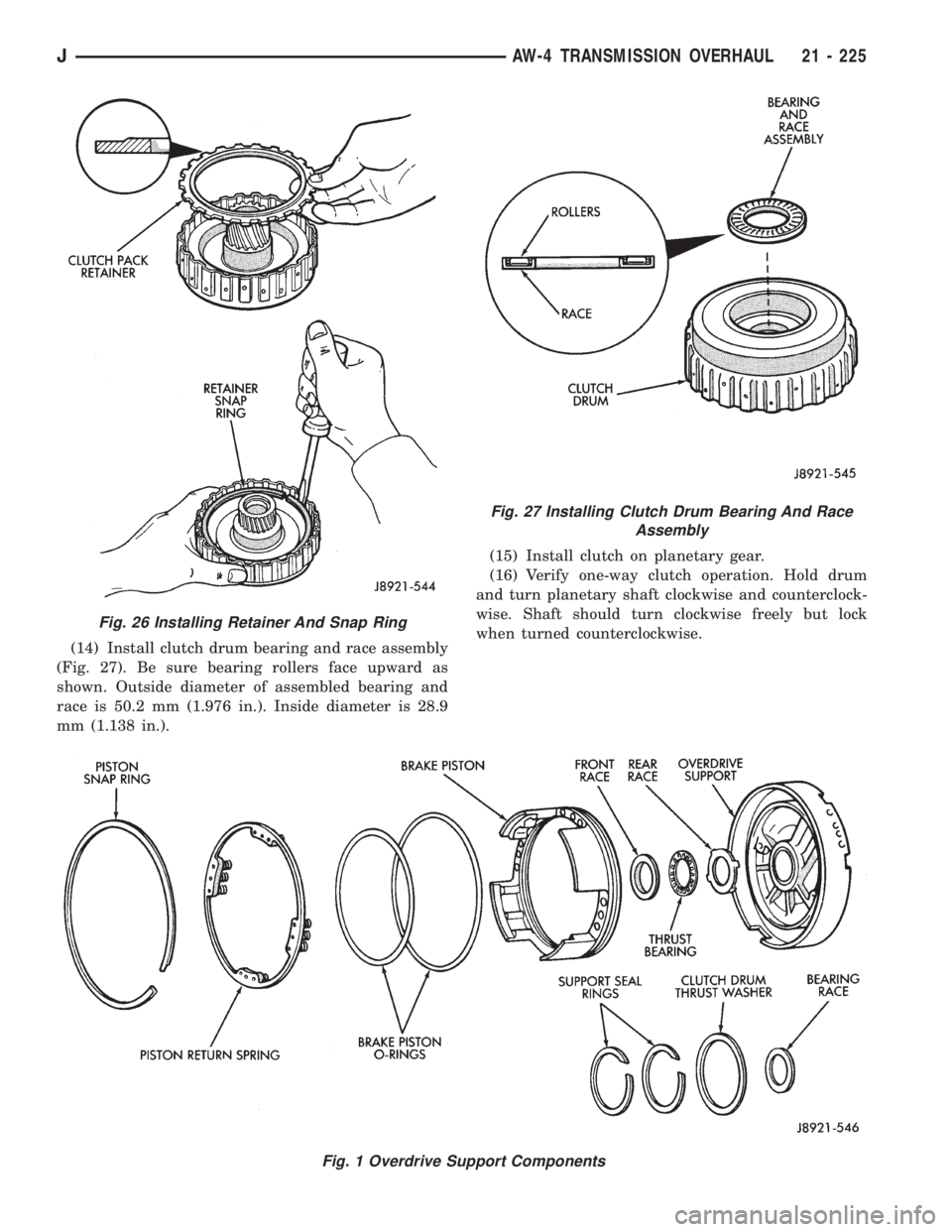

JEEP WRANGLER 1995 Owners Manual Fig. 26 Installing Retainer And Snap Ring Fig. 27 Installing Clutch Drum Bearing And Race Assembly JAW-4 TRANSMISSION OVERHAUL 21 - 225

Page 1788 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 3 Removing Support Thrust Bearing And Races Fig. 4 Removing Clutch Drum Thrust Washer And Race Fig. 5 Removing/Installing Piston Snap Ring 21 - 226 AW-4 TRANSMISSION OVERHAULJ

Page 1789 of 2158

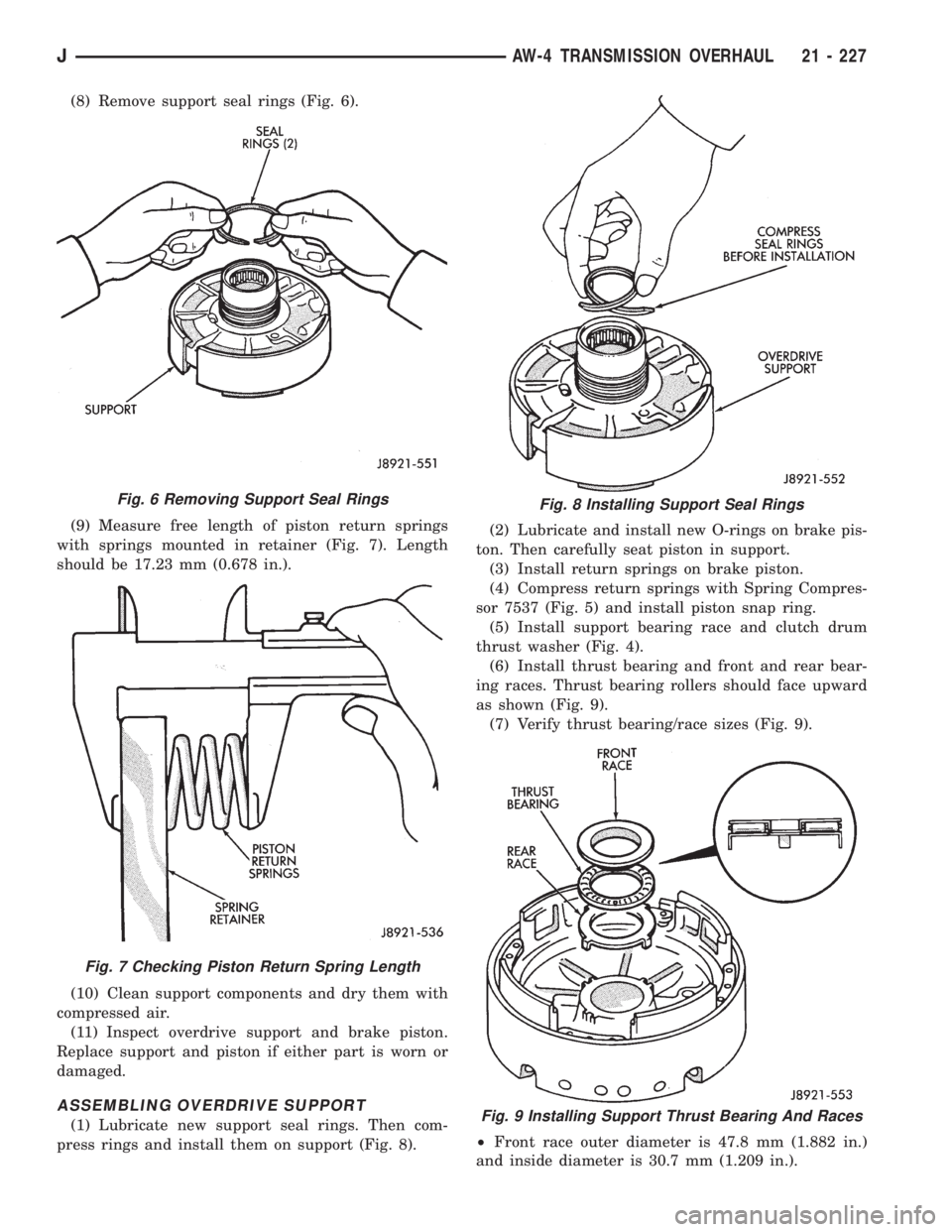

JEEP WRANGLER 1995 Owners Manual Fig. 7 Checking Piston Return Spring Length Fig. 8 Installing Support Seal Rings Fig. 9 Installing Support Thrust Bearing And Races JAW-4 TRANSMISSION OVERHAUL 21 - 227

Page 1790 of 2158

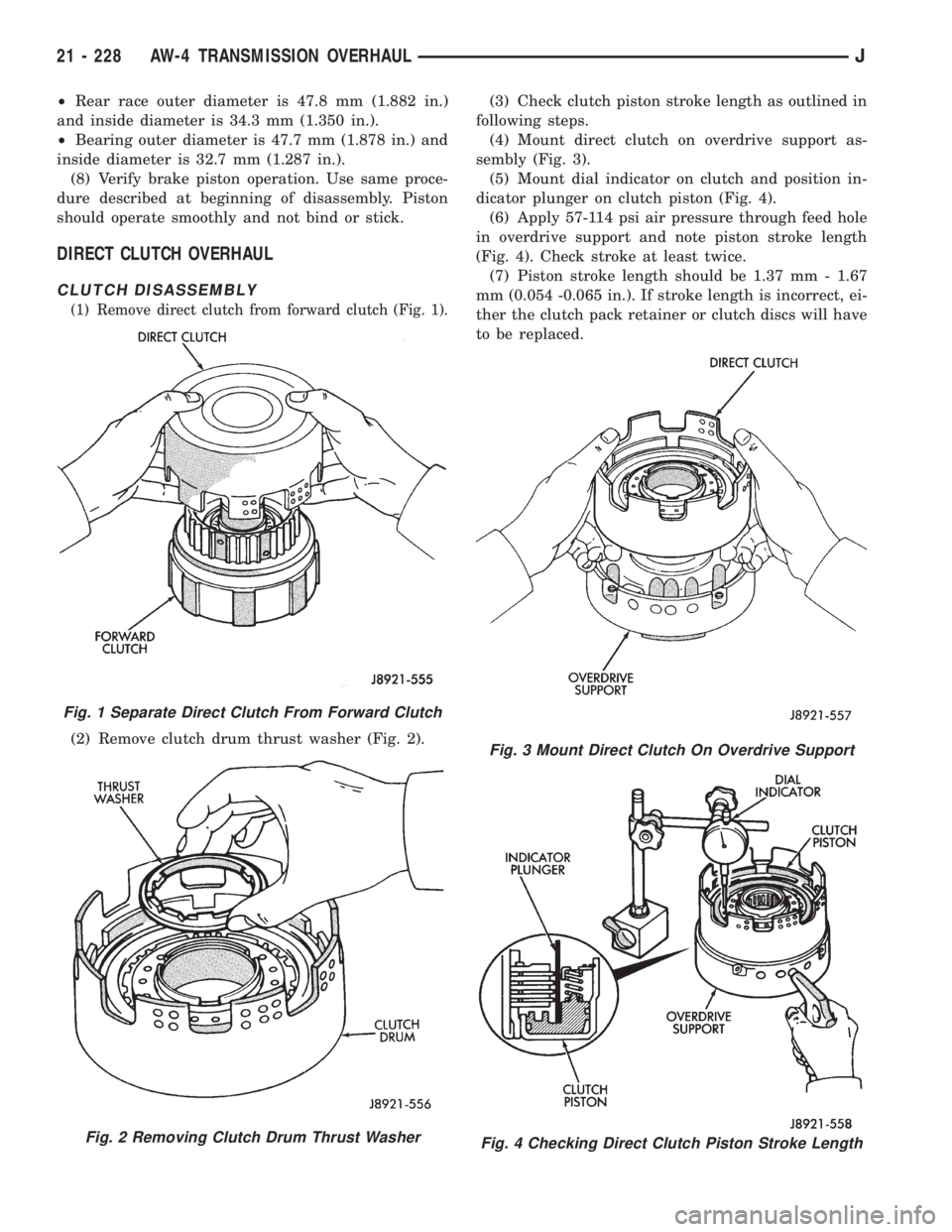

JEEP WRANGLER 1995 Owners Manual Fig. 2 Removing Clutch Drum Thrust Washer Fig. 3 Mount Direct Clutch On Overdrive Support Fig. 4 Checking Direct Clutch Piston Stroke Length 21 - 228 AW-4 TRANSMISSION OVERHAULJ

Page 1791 of 2158

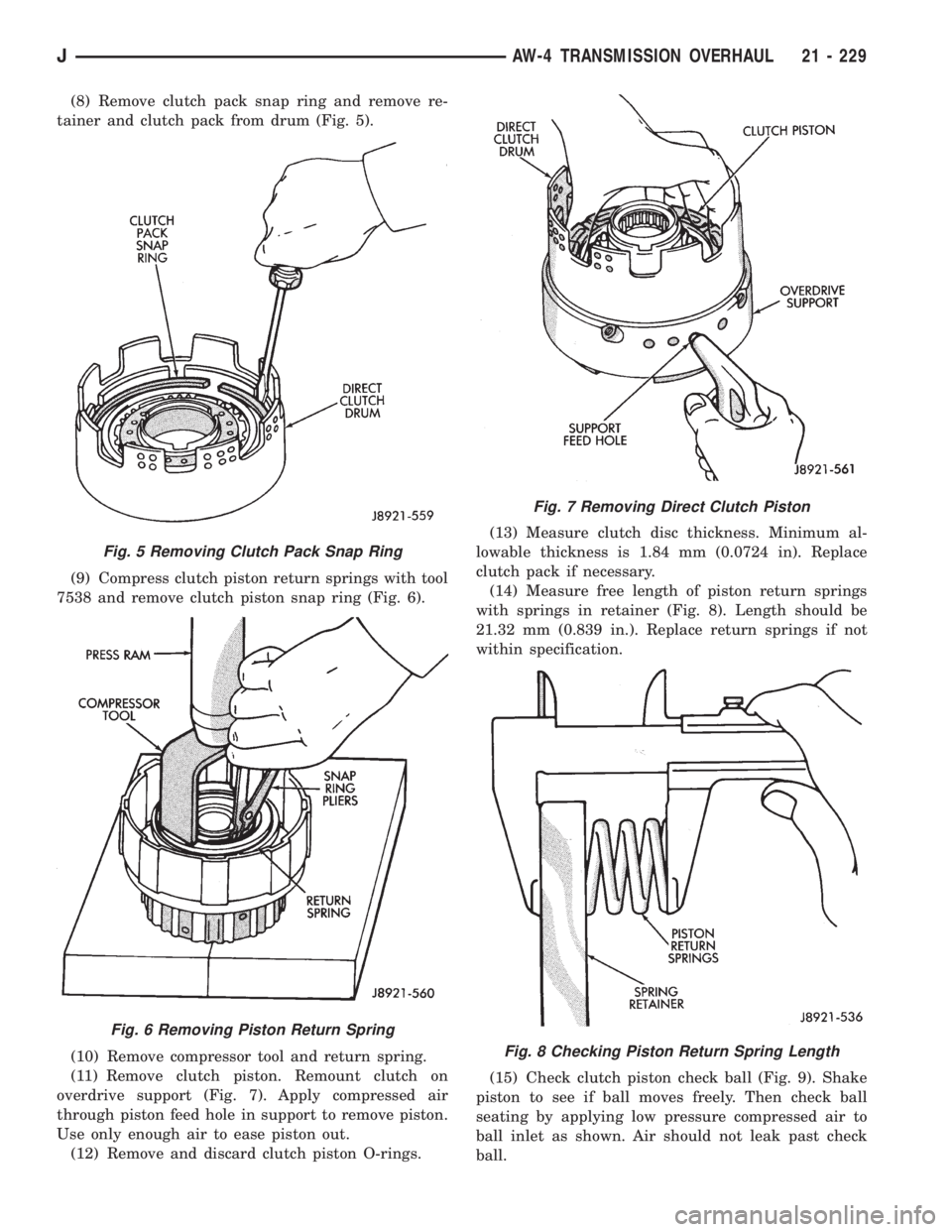

JEEP WRANGLER 1995 Owners Manual Fig. 6 Removing Piston Return Spring Fig. 7 Removing Direct Clutch Piston Fig. 8 Checking Piston Return Spring Length JAW-4 TRANSMISSION OVERHAUL 21 - 229

Page 1792 of 2158

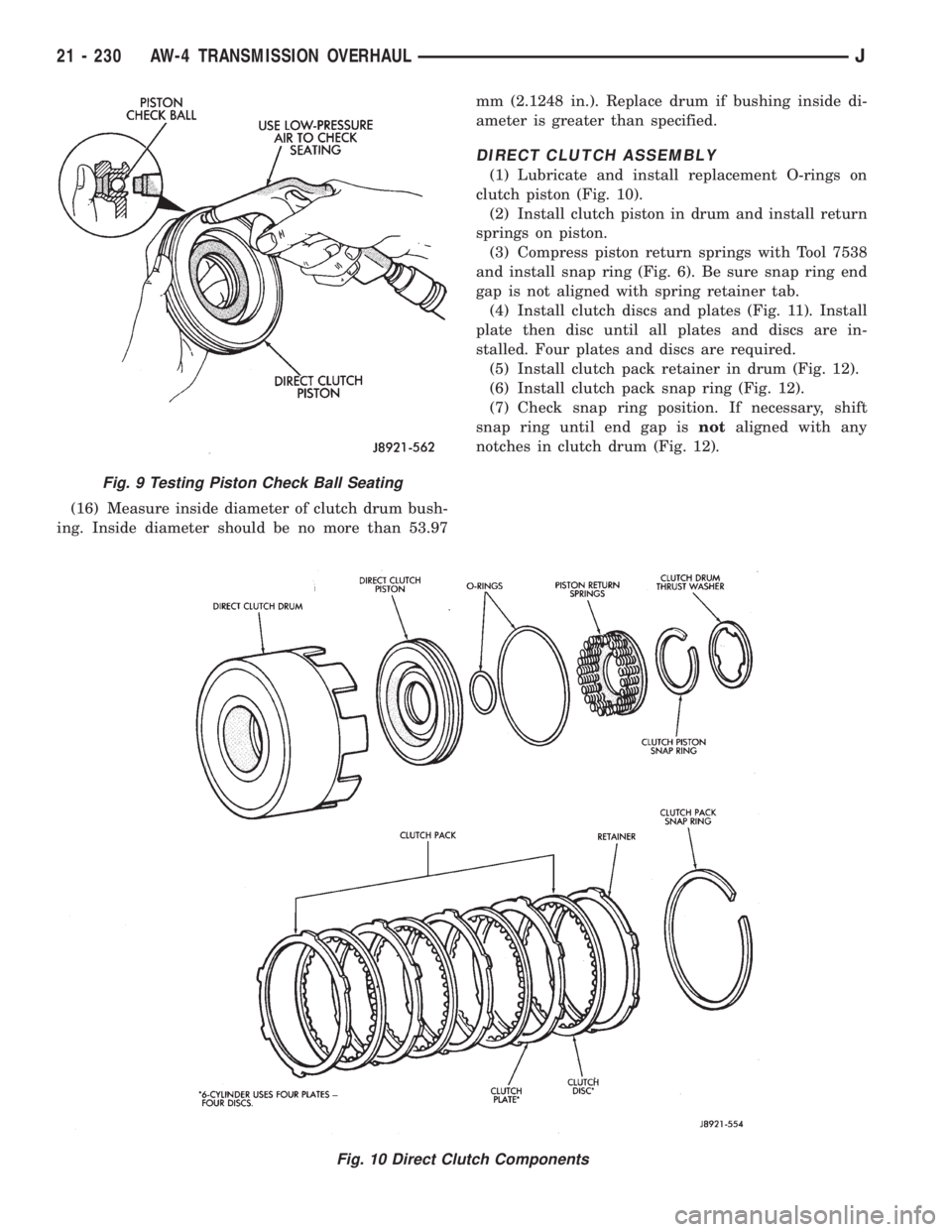

JEEP WRANGLER 1995 Owners Manual Fig. 9 Testing Piston Check Ball Seating 21 - 230 AW-4 TRANSMISSION OVERHAULJ
