Page 1601 of 2158

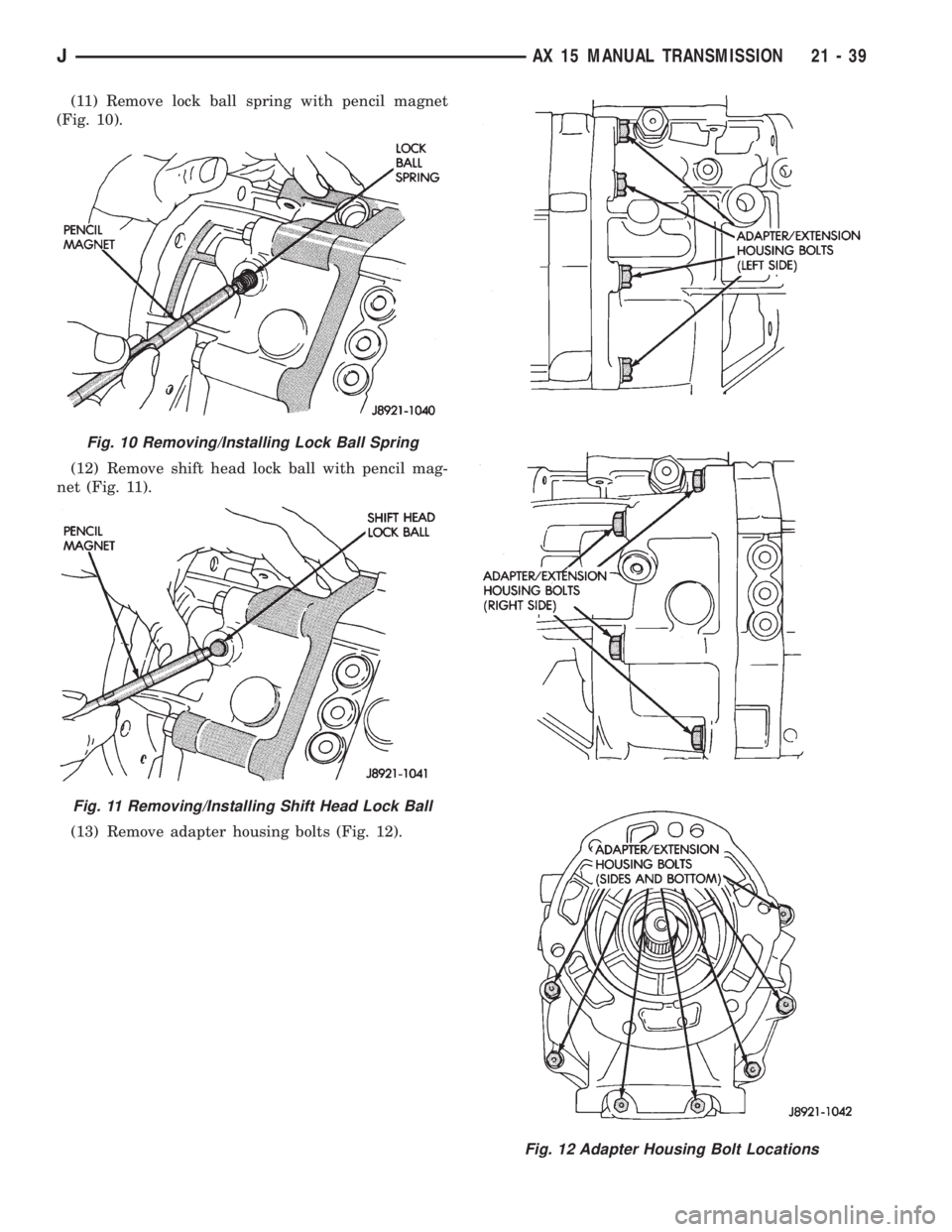

JEEP WRANGLER 1995 Owners Manual Fig. 11 Removing/Installing Shift Head Lock Ball Fig. 12 Adapter Housing Bolt Locations JAX 15 MANUAL TRANSMISSION 21 - 39

Page 1602 of 2158

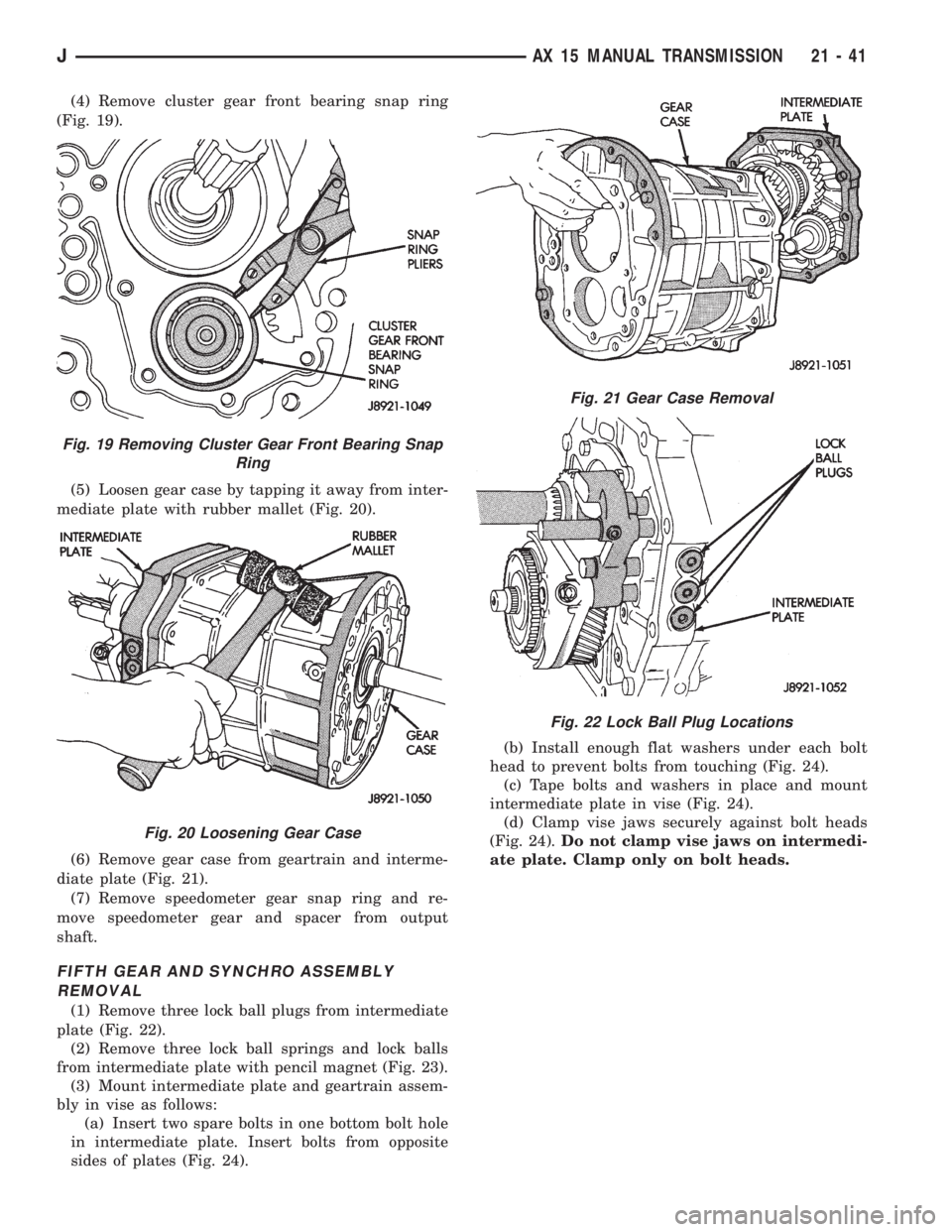

JEEP WRANGLER 1995 Owners Manual Fig. 13 Loosening Adapter Housing Fig. 14 Adapter Housing Removal Fig. 16 Front Bearing Retainer Removal Fig. 17 Front Bearing Retainer Seal Location Fig. 18 Removing Input Shaft Bearing Snap Ring 21

Page 1603 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 20 Loosening Gear Case Fig. 21 Gear Case Removal Fig. 22 Lock Ball Plug Locations JAX 15 MANUAL TRANSMISSION 21 - 41

Page 1604 of 2158

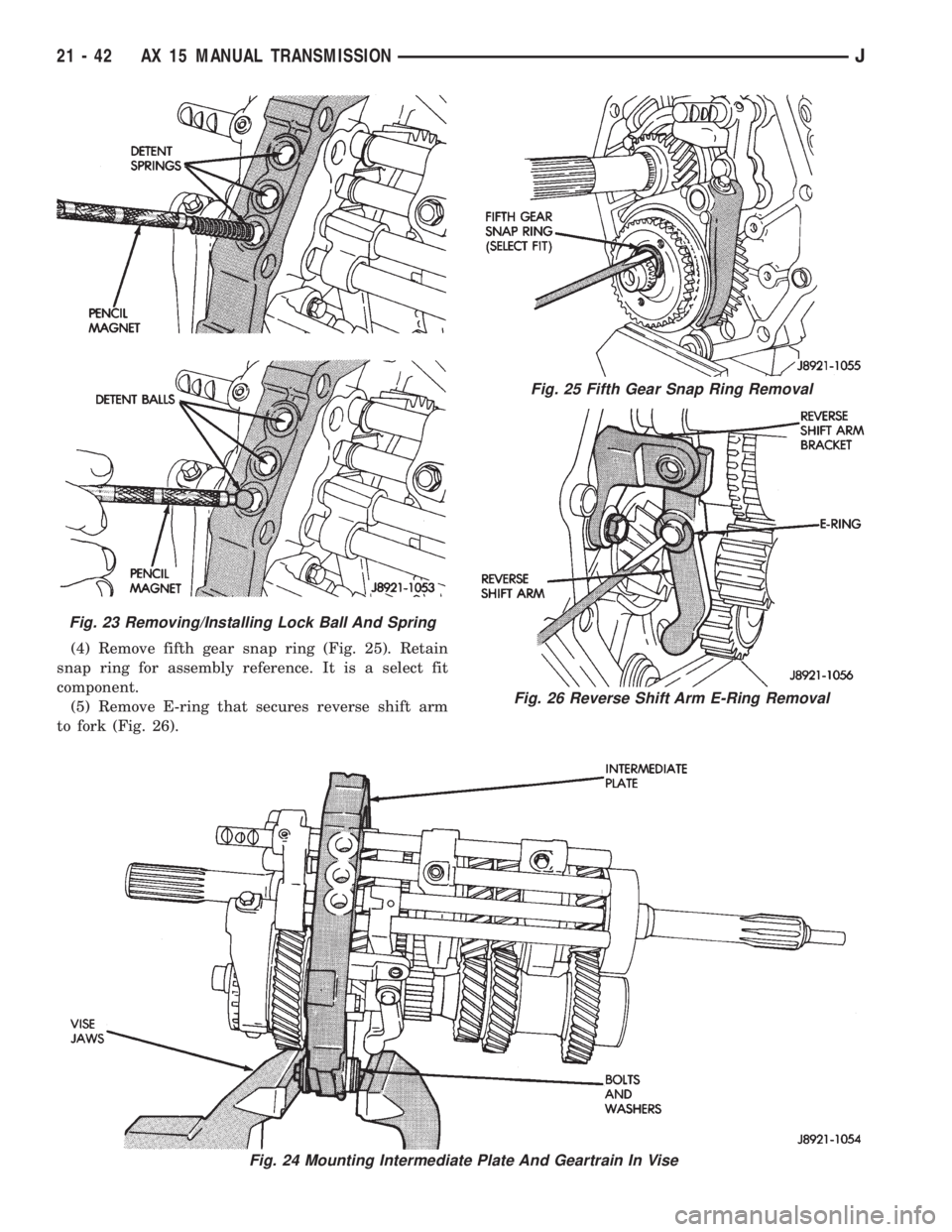

JEEP WRANGLER 1995 Owners Manual Fig. 23 Removing/Installing Lock Ball And Spring Fig. 25 Fifth Gear Snap Ring Removal Fig. 26 Reverse Shift Arm E-Ring Removal 21 - 42 AX 15 MANUAL TRANSMISSIONJ

Page 1605 of 2158

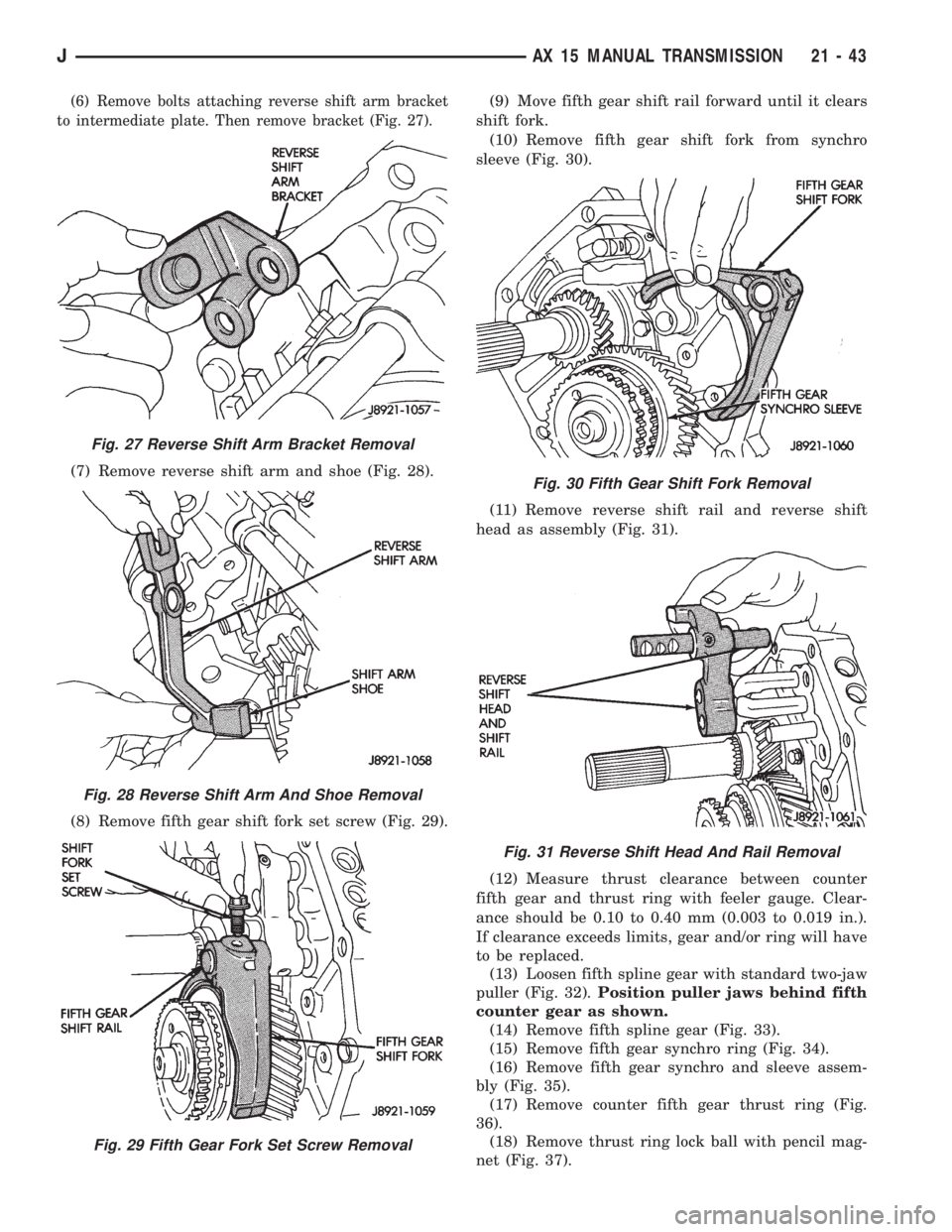

JEEP WRANGLER 1995 Owners Manual Fig. 28 Reverse Shift Arm And Shoe Removal Fig. 29 Fifth Gear Fork Set Screw Removal Fig. 30 Fifth Gear Shift Fork Removal Fig. 31 Reverse Shift Head And Rail Removal JAX 15 MANUAL TRANSMISSION 21 - 4

Page 1606 of 2158

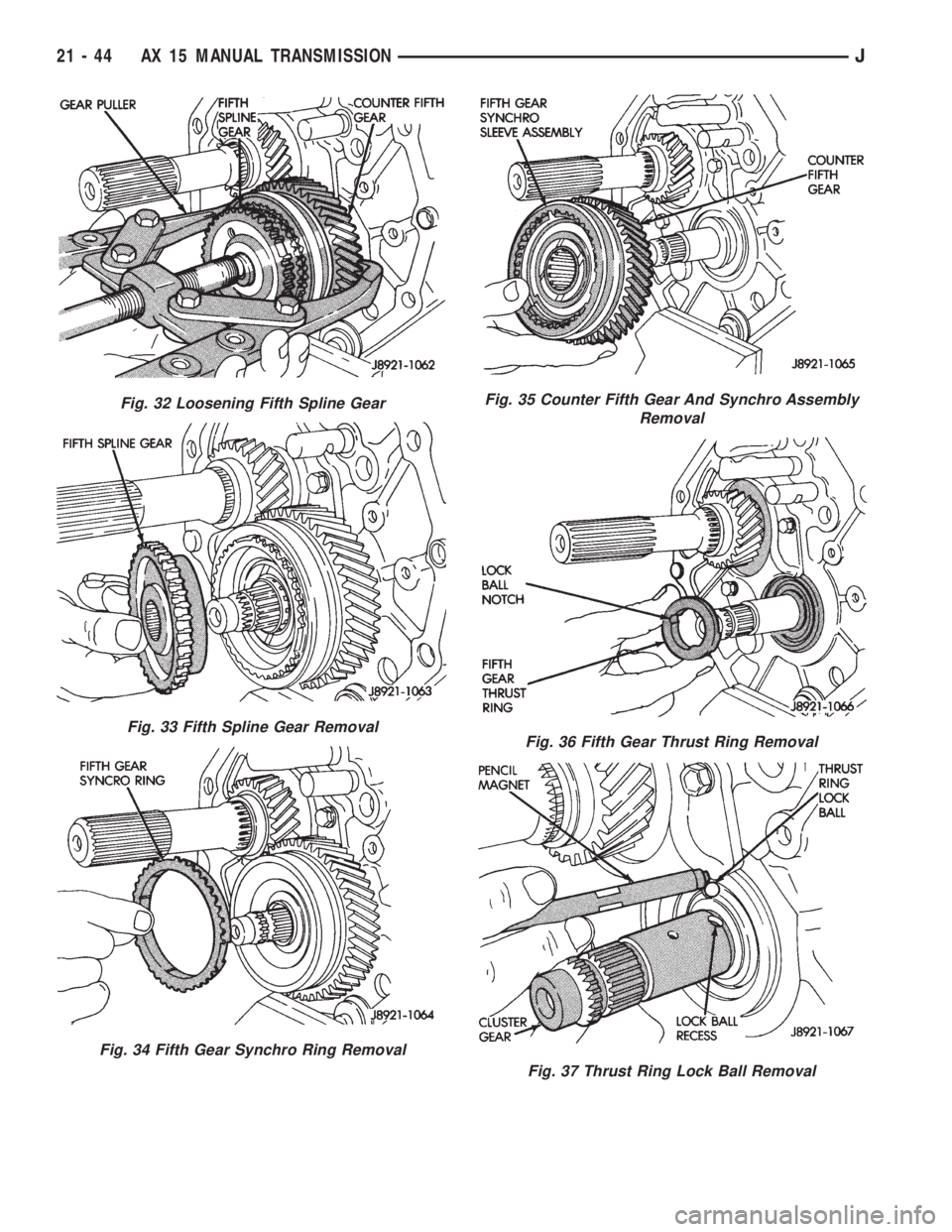

JEEP WRANGLER 1995 Owners Manual Fig. 33 Fifth Spline Gear Removal Fig. 34 Fifth Gear Synchro Ring Removal Fig. 35 Counter Fifth Gear And Synchro Assembly Removal Fig. 36 Fifth Gear Thrust Ring Removal Fig. 37 Thrust Ring Lock Ball R

Page 1607 of 2158

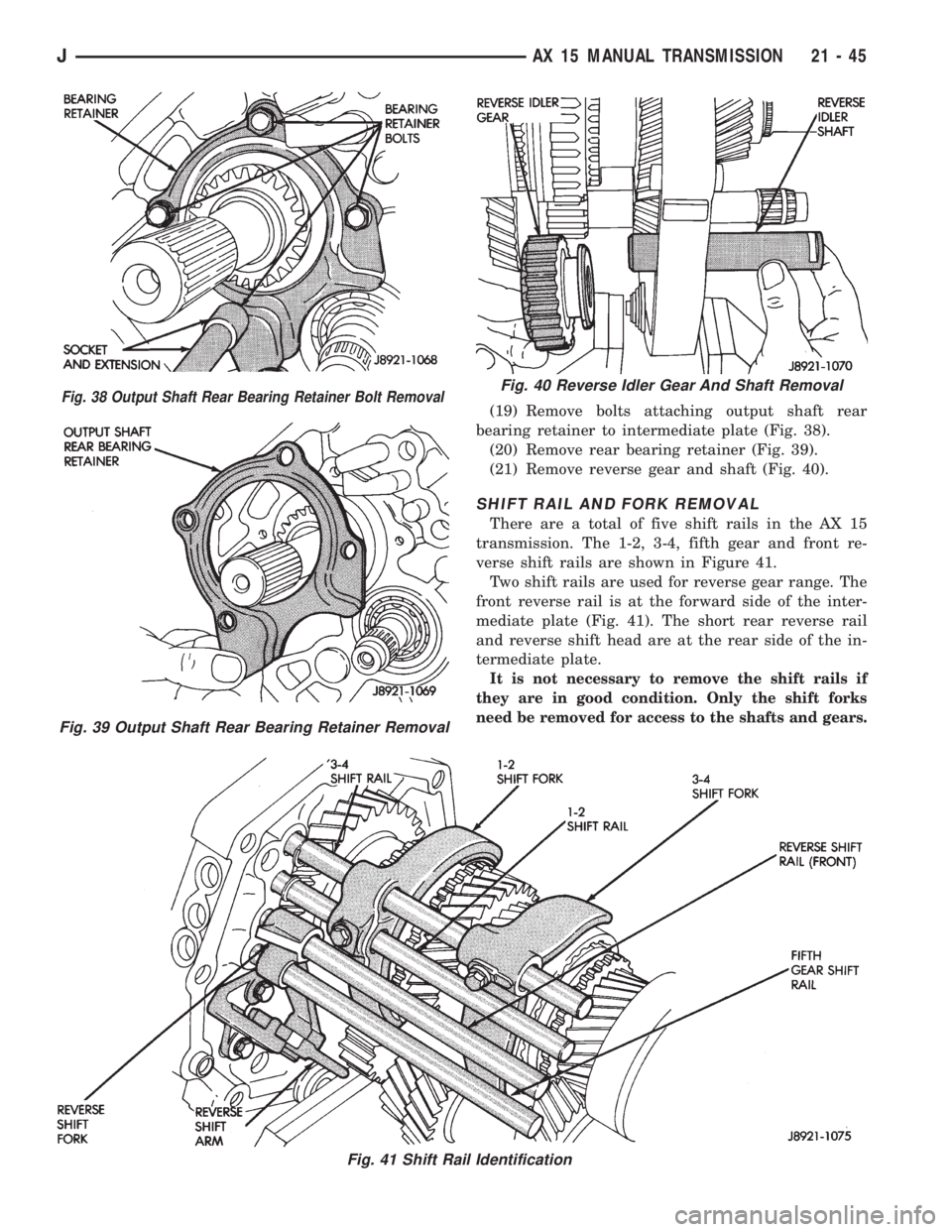

JEEP WRANGLER 1995 Owners Manual Fig. 39 Output Shaft Rear Bearing Retainer Removal Fig. 40 Reverse Idler Gear And Shaft Removal Fig. 41 Shift Rail Identification JAX 15 MANUAL TRANSMISSION 21 - 45

Page 1608 of 2158

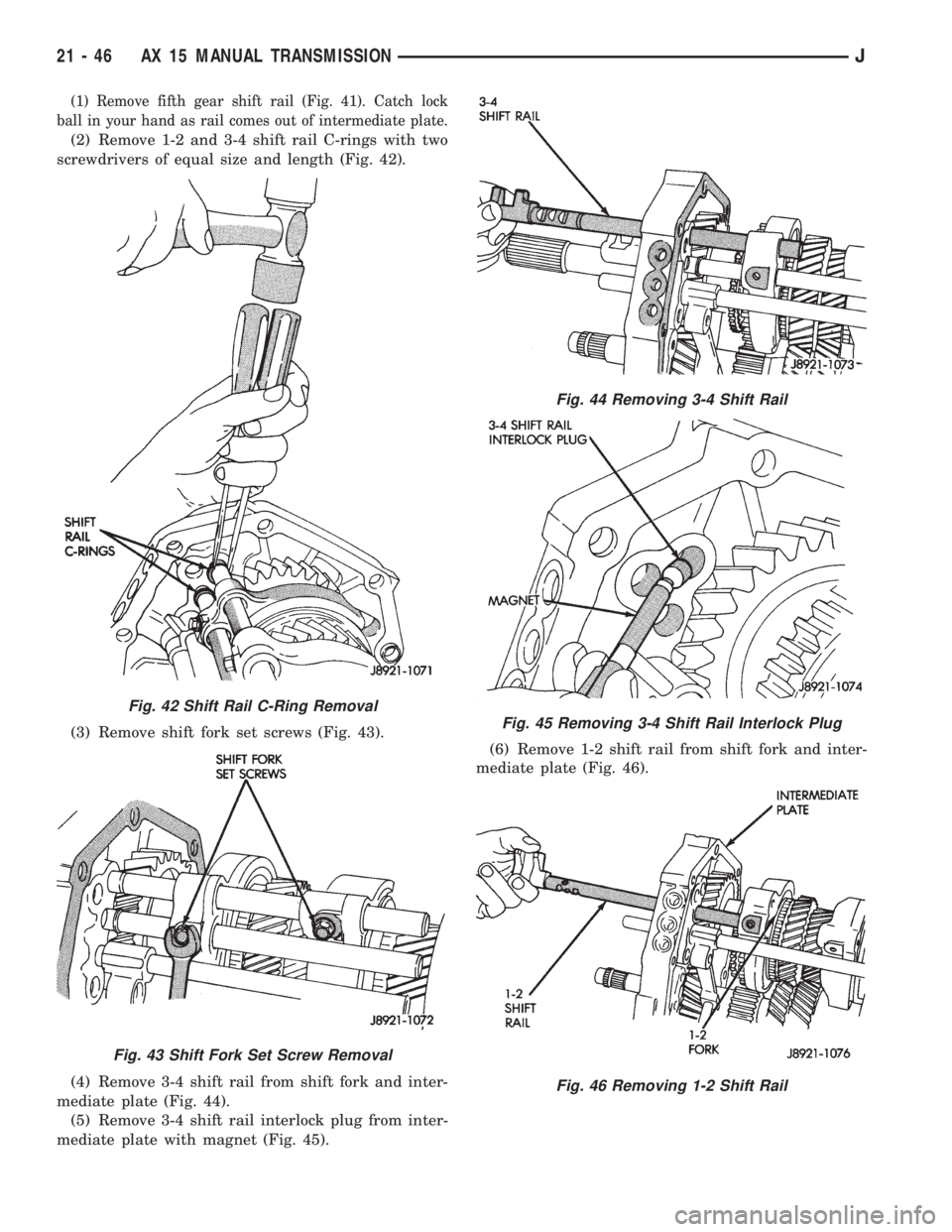

JEEP WRANGLER 1995 Owners Manual Fig. 43 Shift Fork Set Screw Removal Fig. 44 Removing 3-4 Shift Rail Fig. 45 Removing 3-4 Shift Rail Interlock Plug Fig. 46 Removing 1-2 Shift Rail 21 - 46 AX 15 MANUAL TRANSMISSIONJ
