Page 1705 of 2158

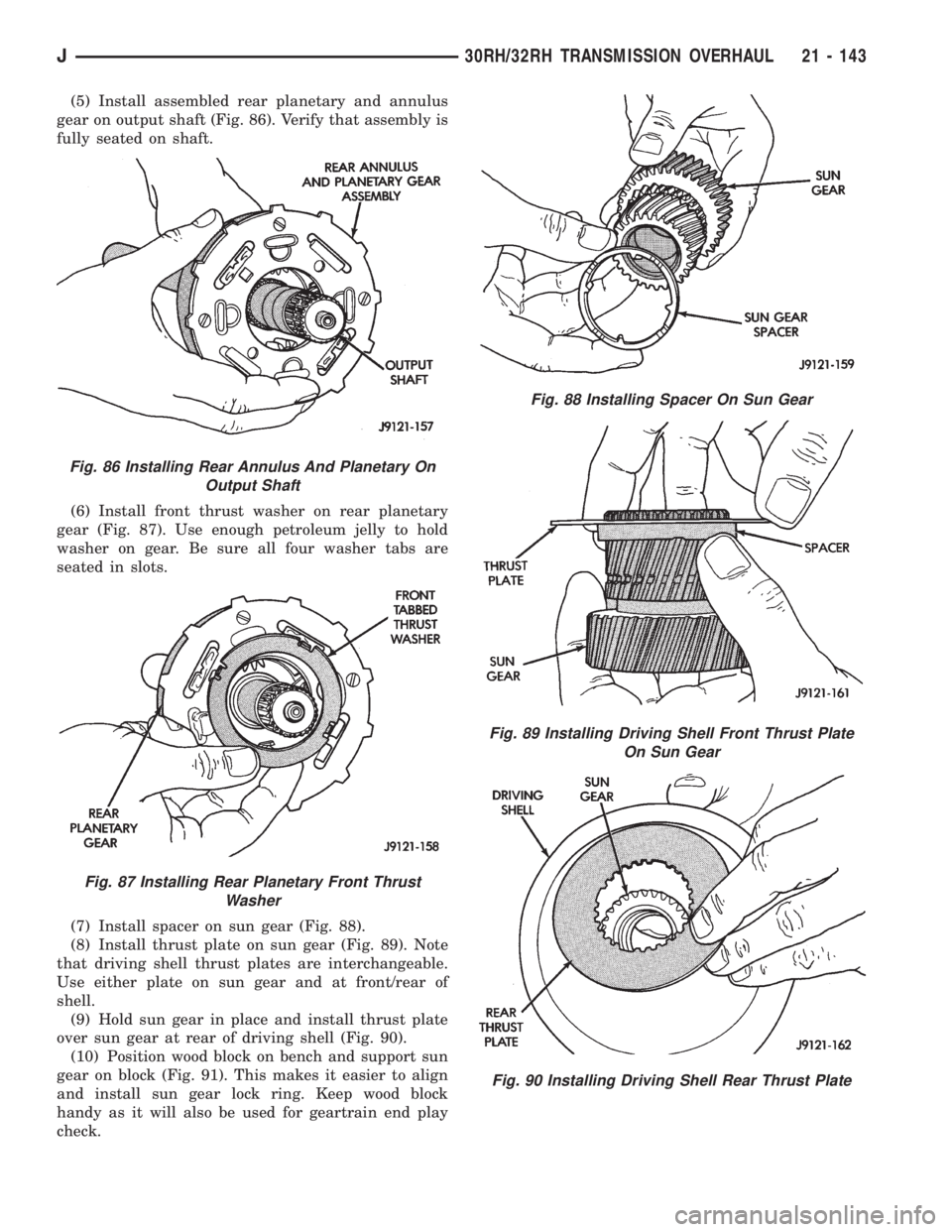

JEEP WRANGLER 1995 Owners Manual Fig. 87 Installing Rear Planetary Front Thrust Washer Fig. 88 Installing Spacer On Sun Gear Fig. 89 Installing Driving Shell Front Thrust Plate On Sun Gear Fig. 90 Installing Driving Shell Rear Thrust

Page 1706 of 2158

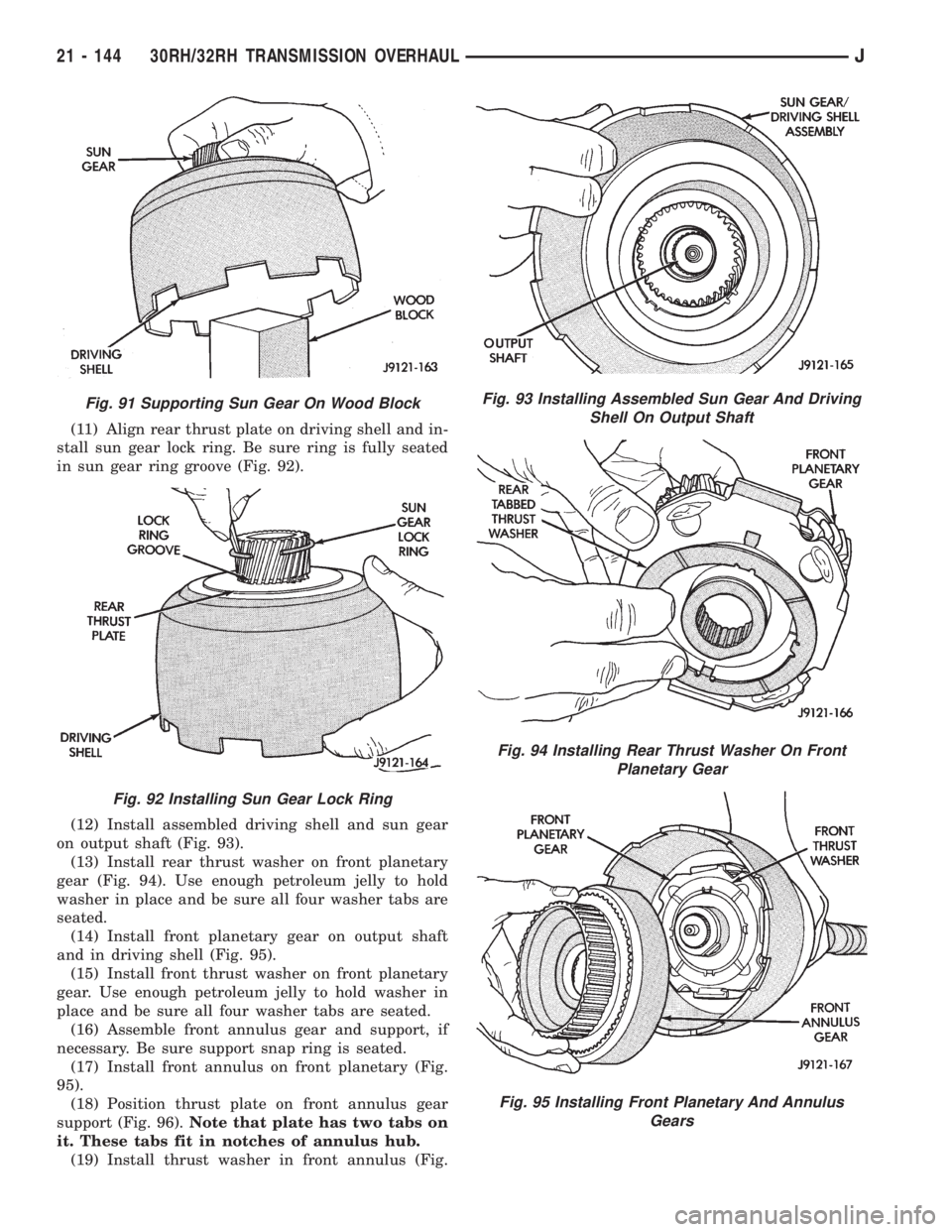

JEEP WRANGLER 1995 Owners Manual Fig. 92 Installing Sun Gear Lock Ring Fig. 93 Installing Assembled Sun Gear And Driving Shell On Output Shaft Fig. 94 Installing Rear Thrust Washer On Front Planetary Gear Fig. 95 Installing Front Pla

Page 1707 of 2158

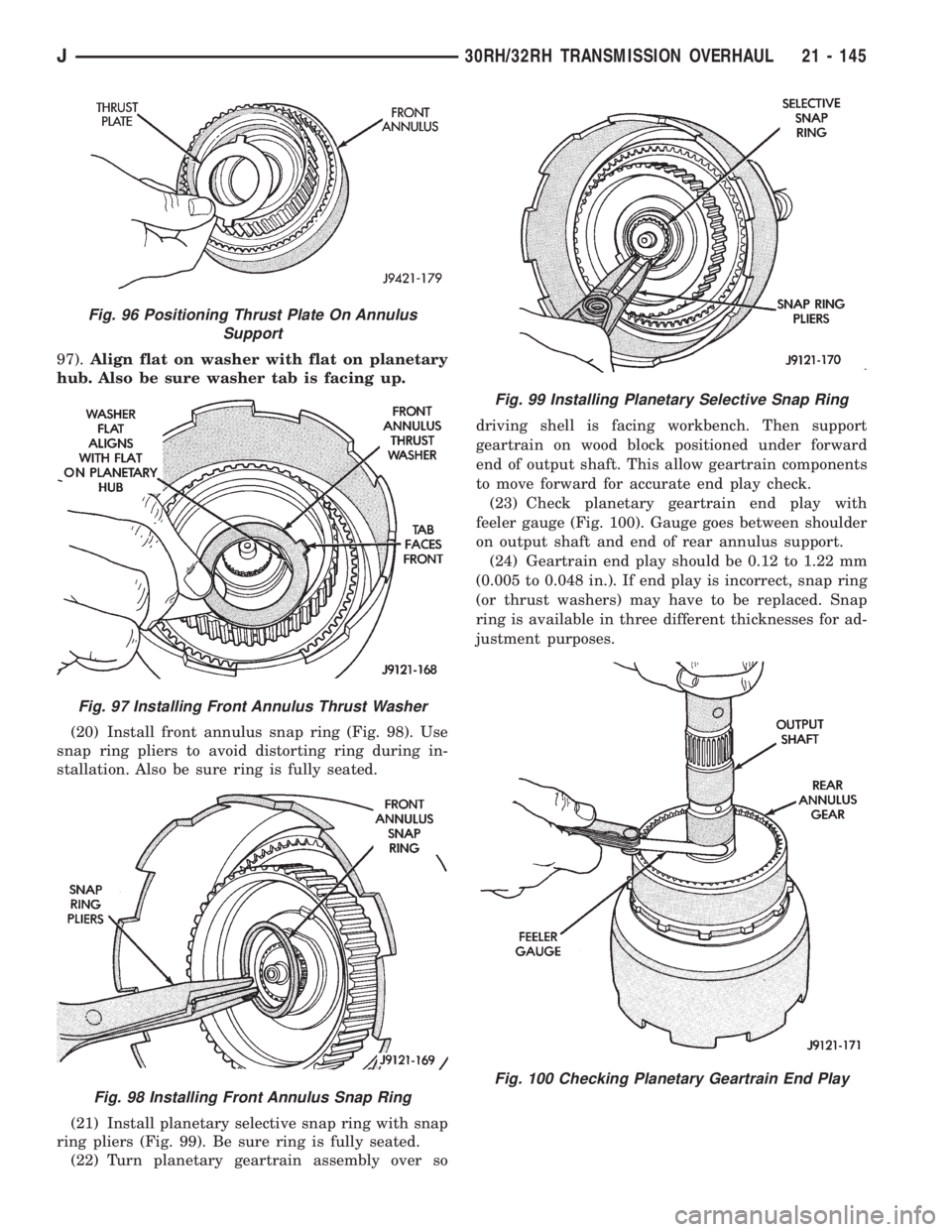

JEEP WRANGLER 1995 Owners Manual Fig. 97 Installing Front Annulus Thrust Washer Fig. 98 Installing Front Annulus Snap Ring Fig. 99 Installing Planetary Selective Snap Ring Fig. 100 Checking Planetary Geartrain End Play J30RH/32RH TRA

Page 1708 of 2158

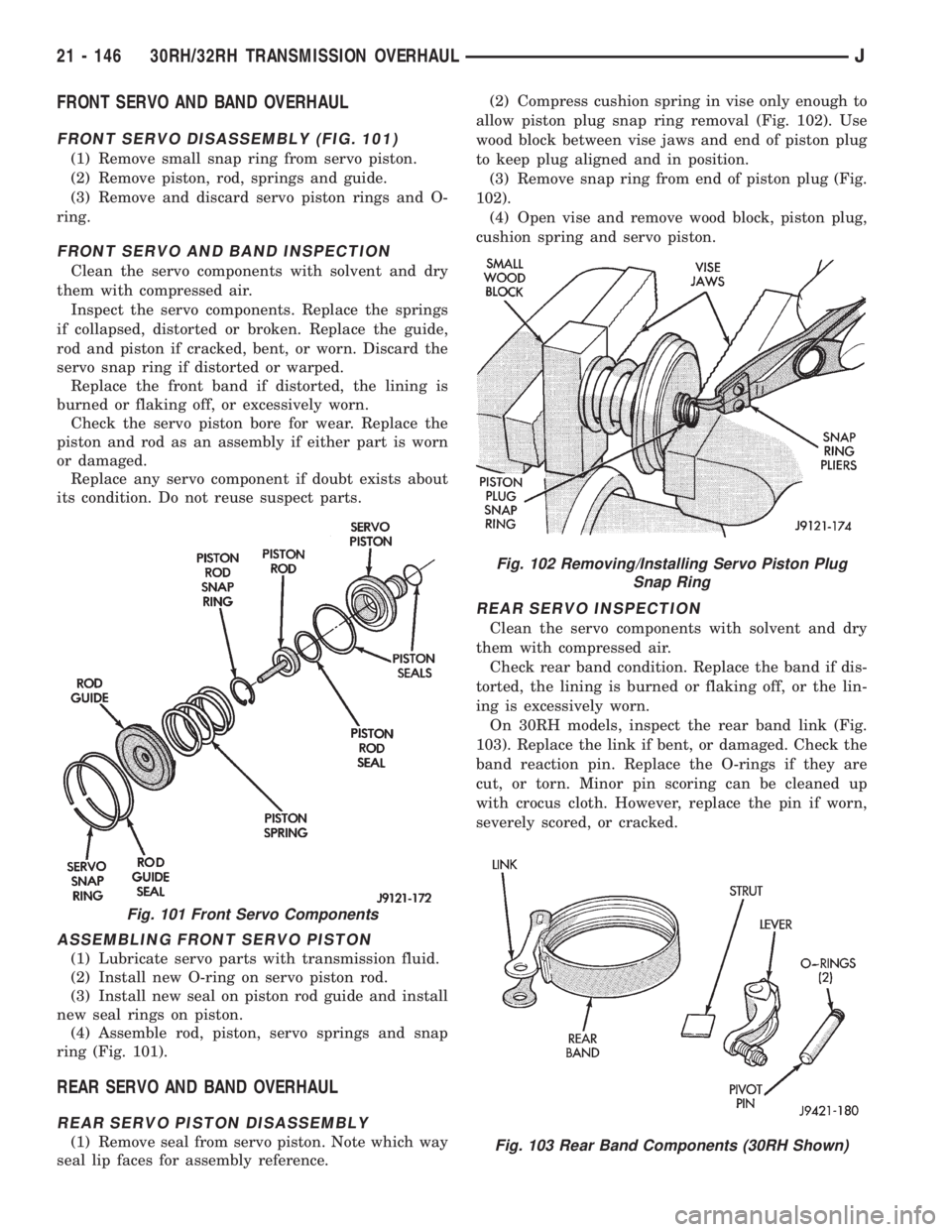

JEEP WRANGLER 1995 Owners Manual Fig. 102 Removing/Installing Servo Piston Plug Snap Ring Fig. 103 Rear Band Components (30RH Shown) 21 - 146 30RH/32RH TRANSMISSION OVERHAULJ

Page 1709 of 2158

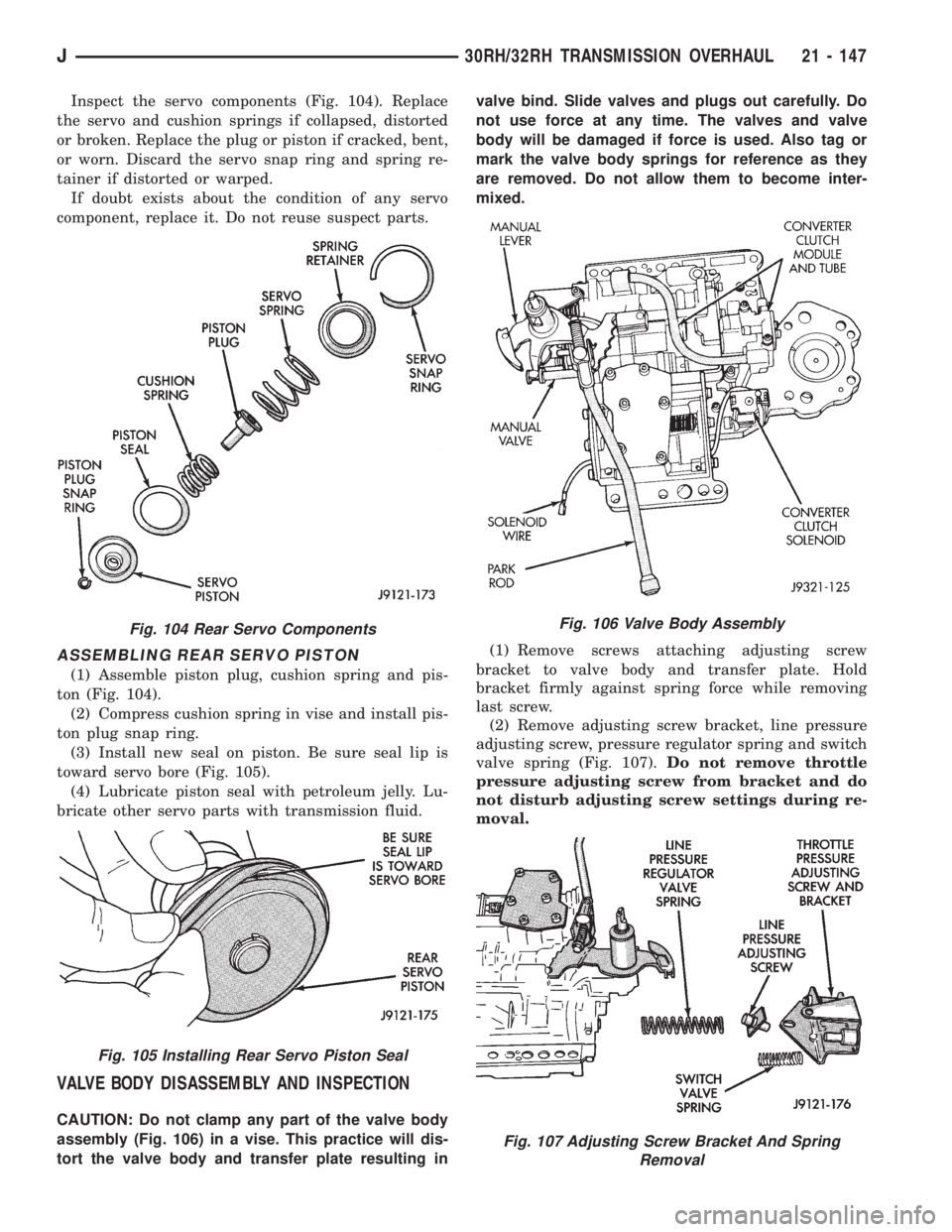

JEEP WRANGLER 1995 Owners Manual Fig. 105 Installing Rear Servo Piston Seal Fig. 106 Valve Body Assembly Fig. 107 Adjusting Screw Bracket And Spring Removal J30RH/32RH TRANSMISSION OVERHAUL 21 - 147

Page 1710 of 2158

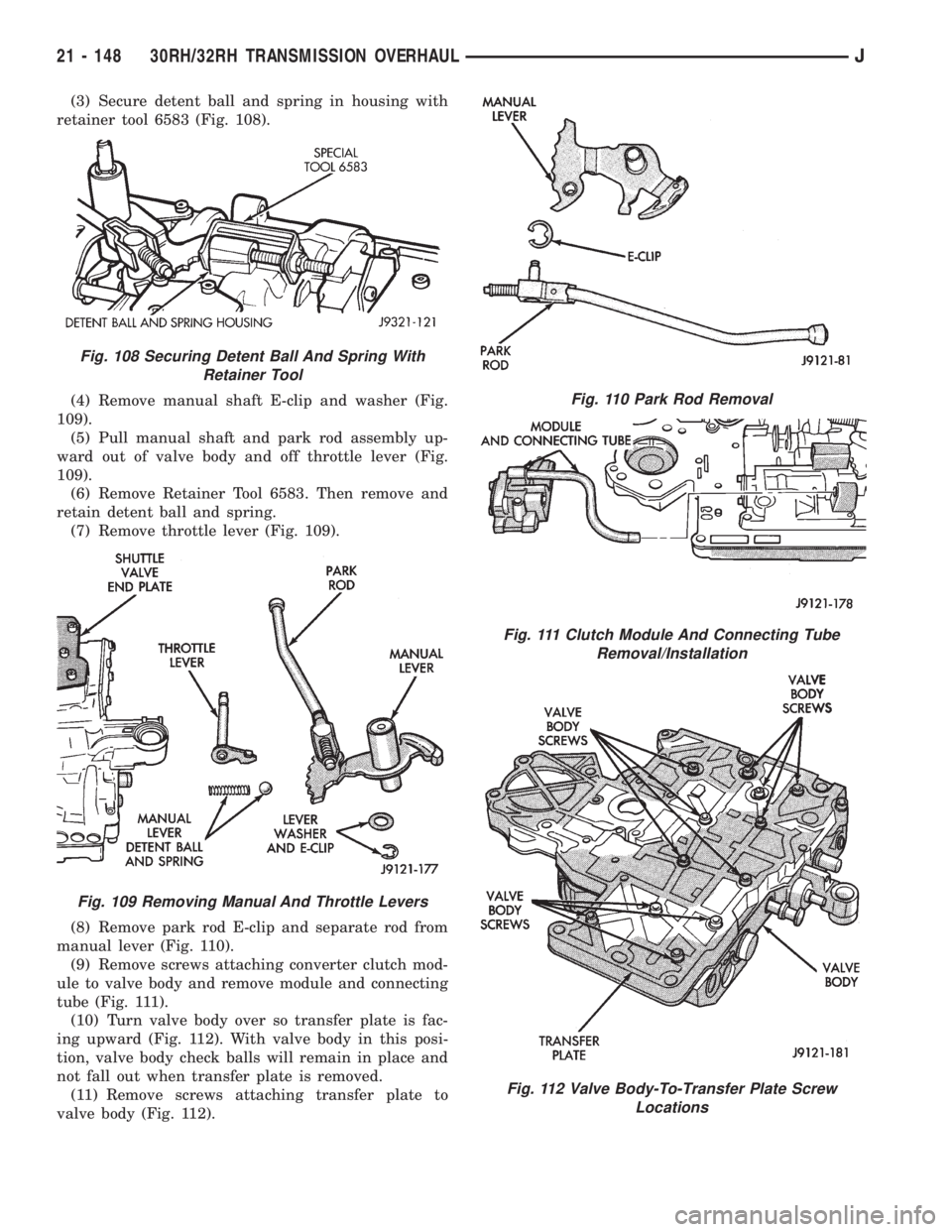

JEEP WRANGLER 1995 Owners Manual Fig. 109 Removing Manual And Throttle Levers Fig. 110 Park Rod Removal Fig. 111 Clutch Module And Connecting Tube Removal/Installation Fig. 112 Valve Body-To-Transfer Plate Screw Locations 21 - 148 30

Page 1711 of 2158

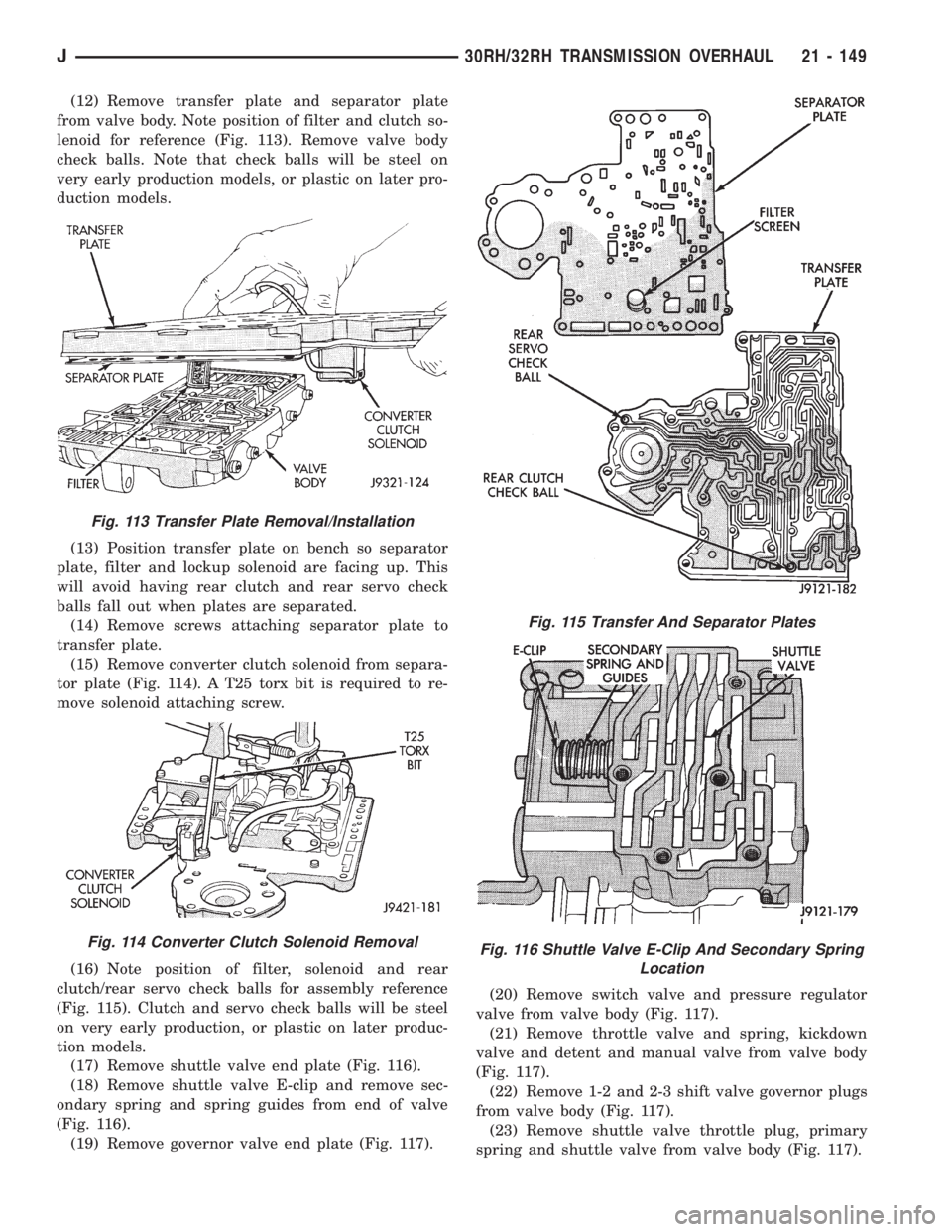

JEEP WRANGLER 1995 Owners Manual Fig. 114 Converter Clutch Solenoid Removal Fig. 115 Transfer And Separator Plates Fig. 116 Shuttle Valve E-Clip And Secondary Spring Location J30RH/32RH TRANSMISSION OVERHAUL 21 - 149

Page 1712 of 2158

JEEP WRANGLER 1995 Owners Manual
