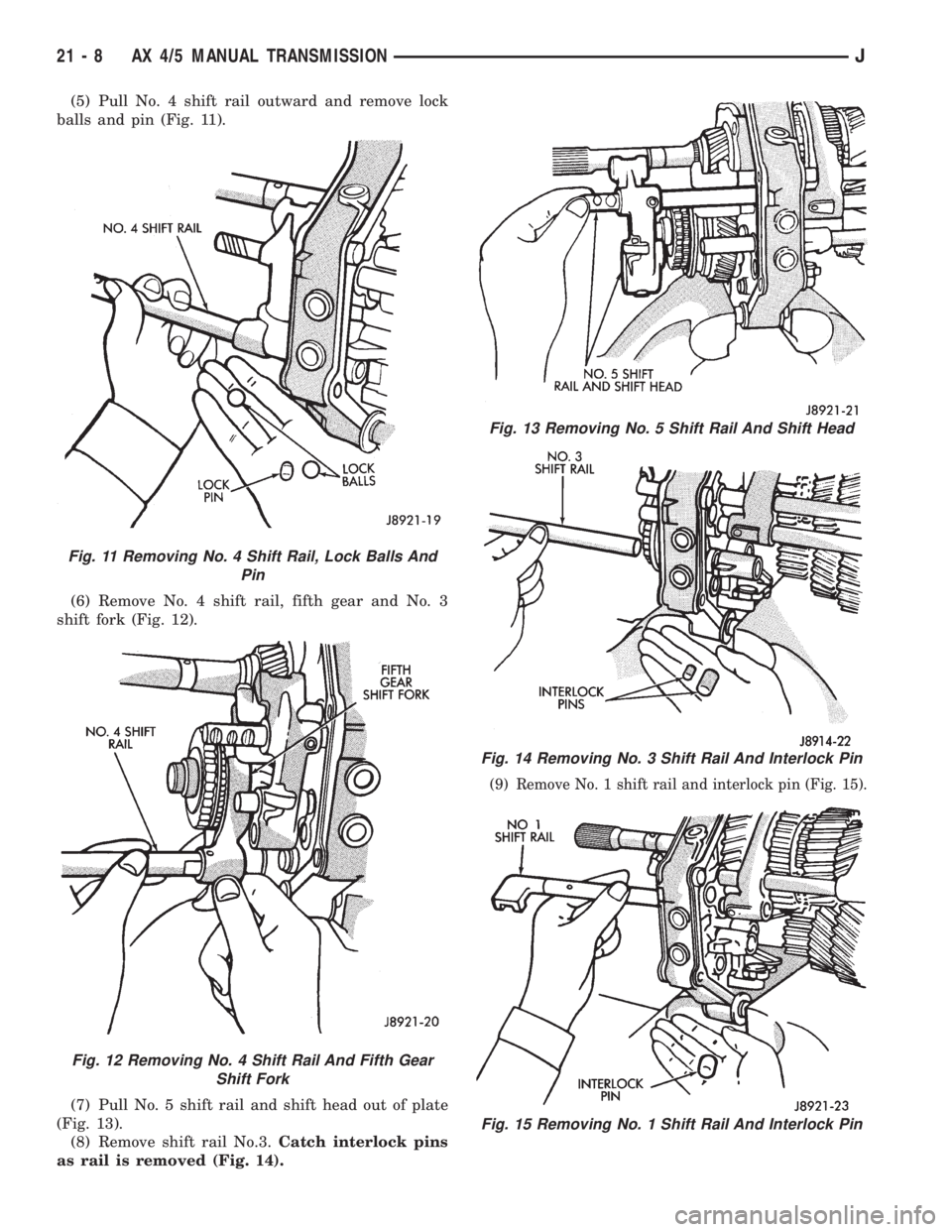

JEEP WRANGLER 1995 Owners Manual Fig. 8 Lock Ball And Spring Removal Fig. 9 Removing Shift Fork Pin Fig. 10 Shift Rail C-Ring Removal JAX 4/5 MANUAL TRANSMISSION 21 - 7

Page 1570 of 2158

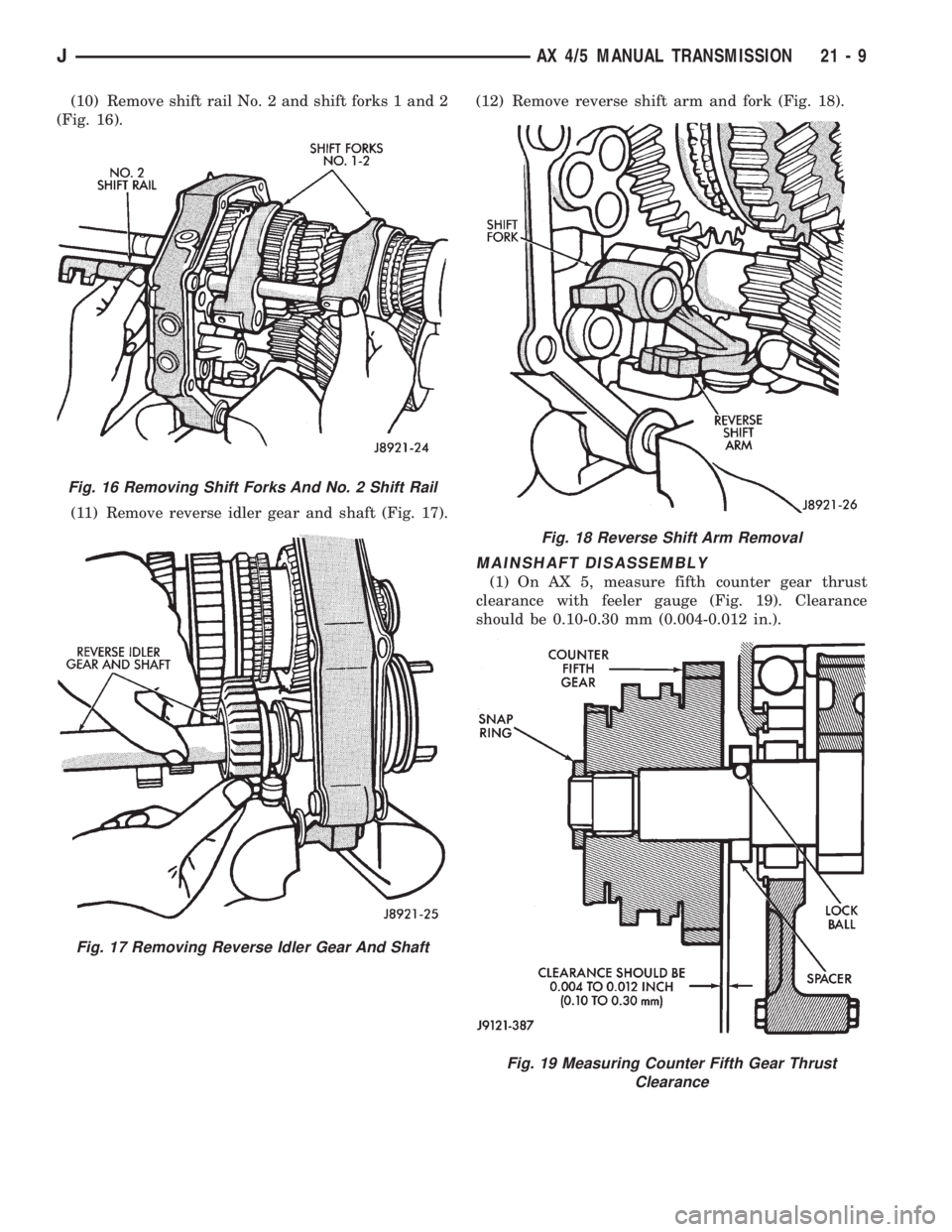

JEEP WRANGLER 1995 Owners Manual Fig. 12 Removing No. 4 Shift Rail And Fifth Gear Shift Fork Fig. 13 Removing No. 5 Shift Rail And Shift Head Fig. 14 Removing No. 3 Shift Rail And Interlock Pin Fig. 15 Removing No. 1 Shift Rail And I

Page 1571 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 17 Removing Reverse Idler Gear And Shaft Fig. 18 Reverse Shift Arm Removal Fig. 19 Measuring Counter Fifth Gear Thrust Clearance JAX 4/5 MANUAL TRANSMISSION 21 - 9

Page 1572 of 2158

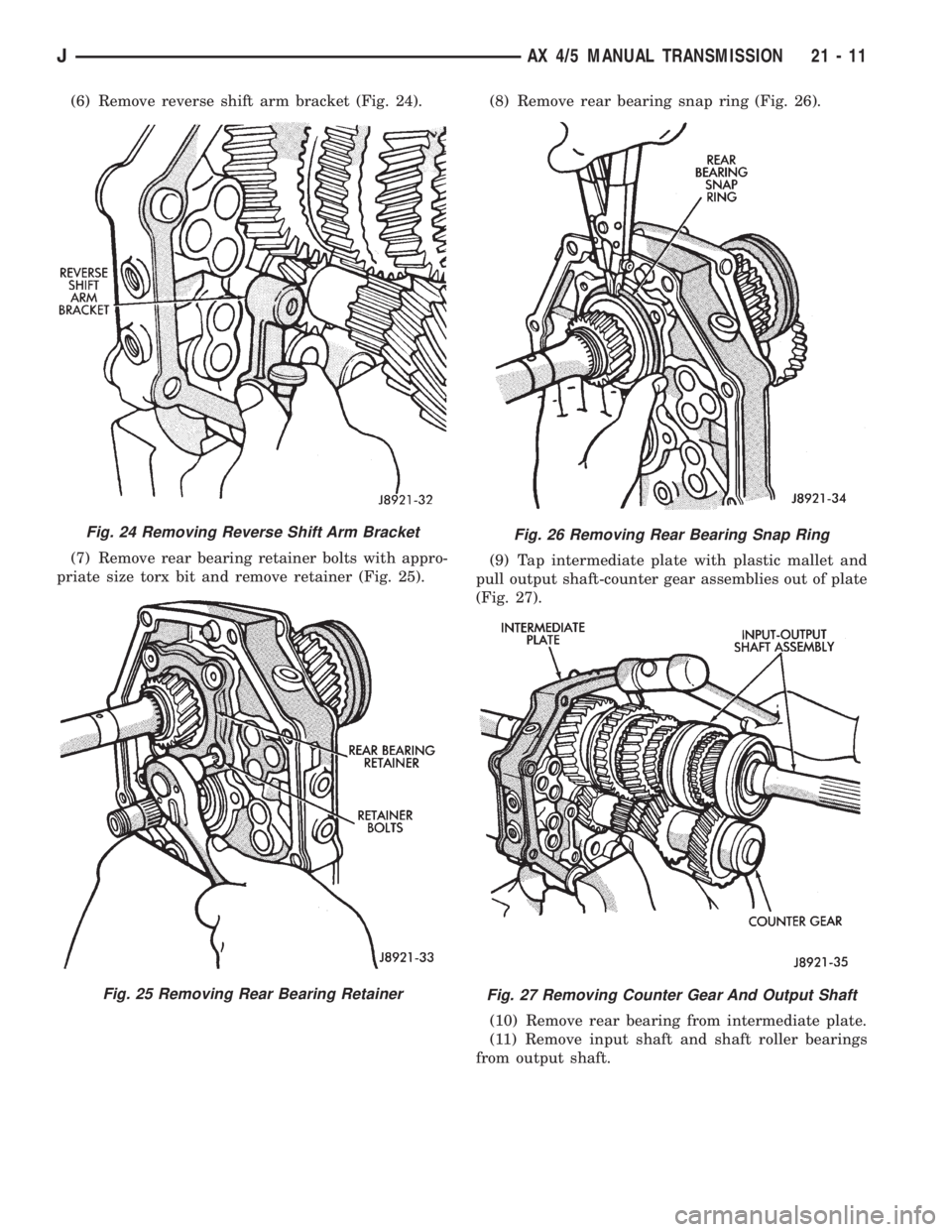

JEEP WRANGLER 1995 Owners Manual Fig. 21 Removing Fifth Gear Snap Ring Fig. 22 Removing Fifth Gear Assembly Fig. 23 Spacer And Lock Ball Removal 21 - 10 AX 4/5 MANUAL TRANSMISSIONJ

Page 1573 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 25 Removing Rear Bearing Retainer Fig. 26 Removing Rear Bearing Snap Ring Fig. 27 Removing Counter Gear And Output Shaft JAX 4/5 MANUAL TRANSMISSION 21 - 11

Page 1574 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 29 Removing Fifth Gear Snap Ring Fig. 30 Removing Fifth Gear And First Gear Bearing And Race Fig. 31 Synchronizer Lock Ball Removal 21 - 12 AX 4/5 MANUAL TRANSMISSIONJ

Page 1575 of 2158

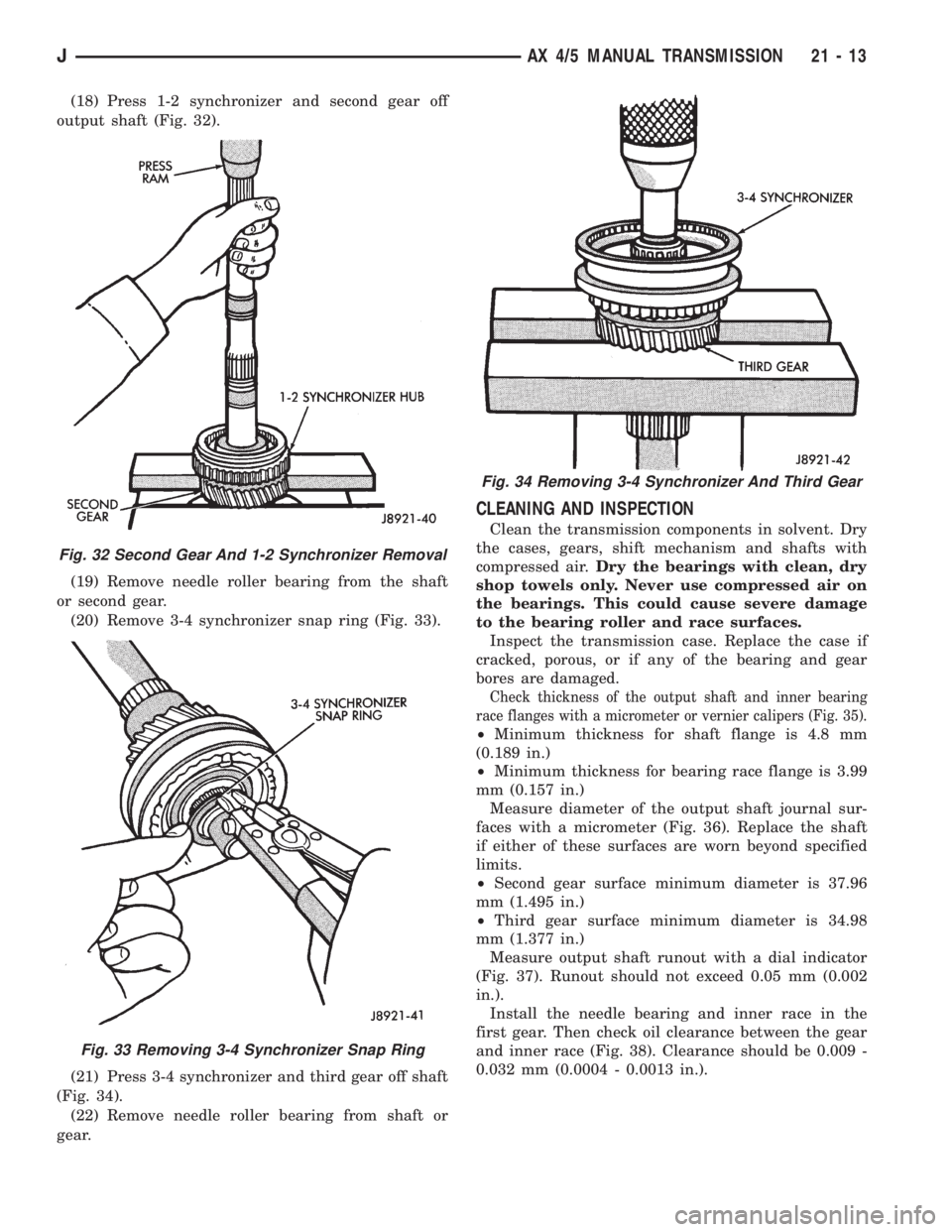

JEEP WRANGLER 1995 Owners Manual Fig. 33 Removing 3-4 Synchronizer Snap Ring Fig. 34 Removing 3-4 Synchronizer And Third Gear JAX 4/5 MANUAL TRANSMISSION 21 - 13

Page 1576 of 2158

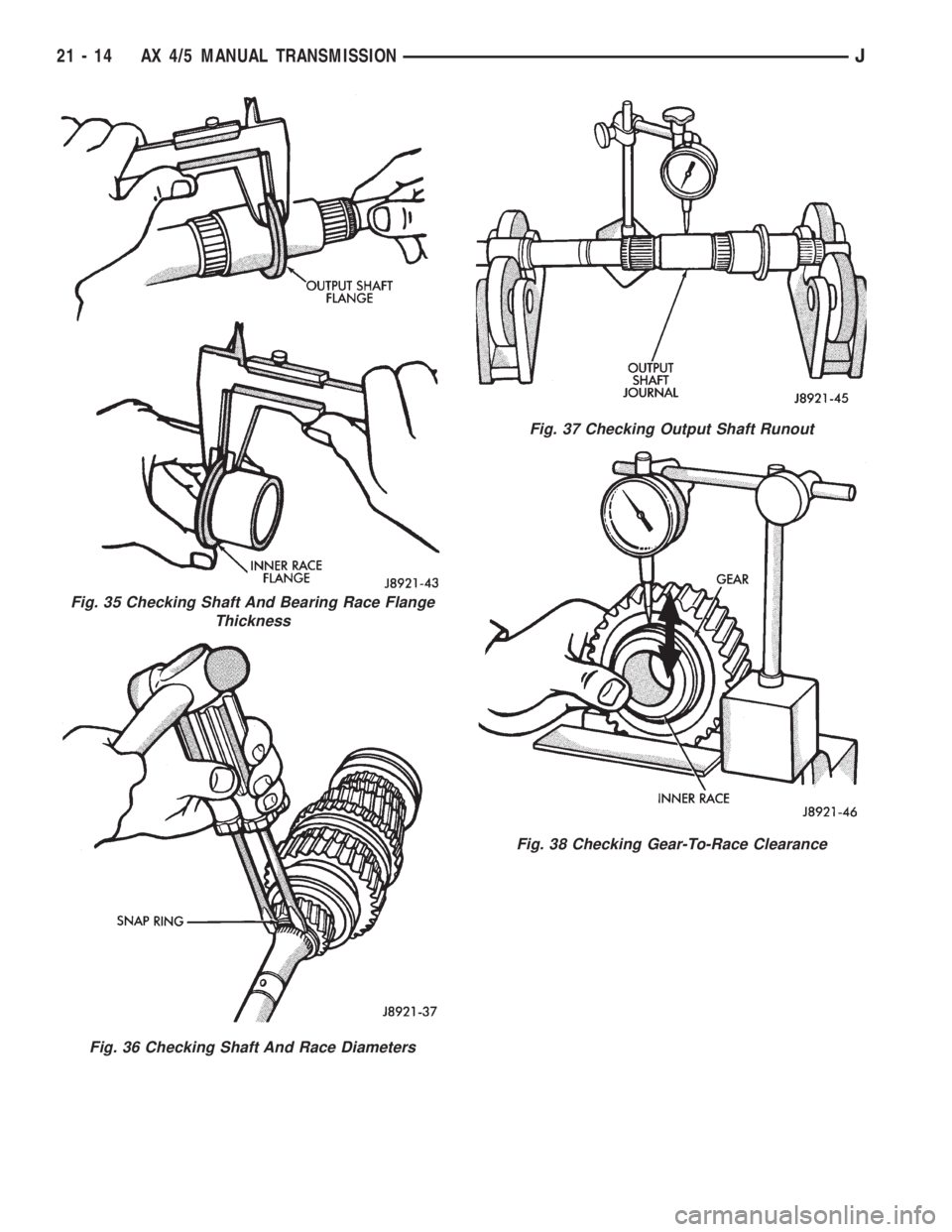

JEEP WRANGLER 1995 Owners Manual Fig. 36 Checking Shaft And Race Diameters Fig. 37 Checking Output Shaft Runout Fig. 38 Checking Gear-To-Race Clearance 21 - 14 AX 4/5 MANUAL TRANSMISSIONJ
