Page 193 of 2158

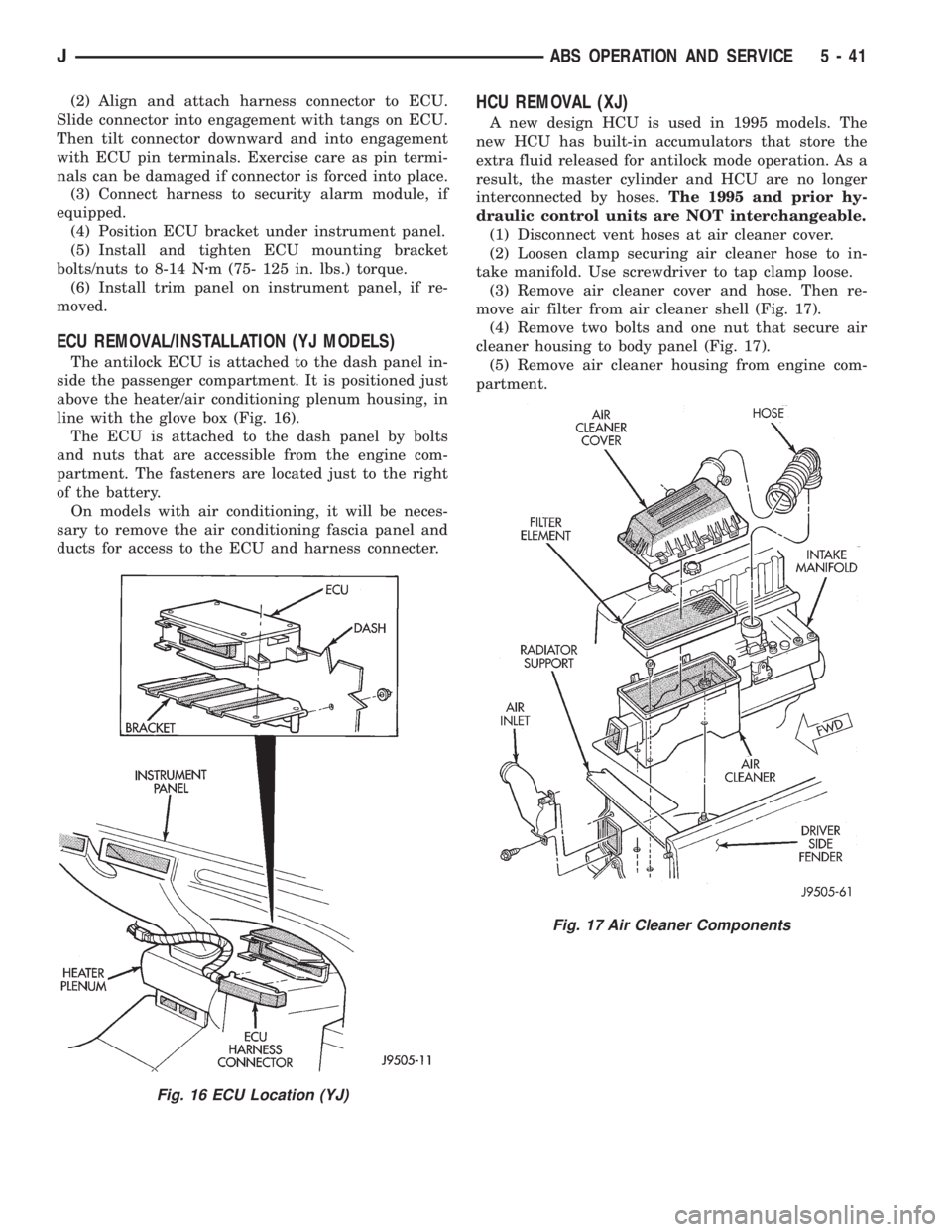

JEEP WRANGLER 1995 Owners Manual Fig. 17 Air Cleaner Components JABS OPERATION AND SERVICE 5 - 41

Page 194 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 19 Disconnecting HCU Solenoid Harness Fig. 20 Disconnecting HCU Pump Harness Fig. 21 HCU Front/Rear Brakeline Connections Fig. 22 HCU Assembly 5 - 42 ABS OPERATION AND SERVICEJ

Page 195 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 24 Installing HCU Rear Shoulder Bolts Fig. 25 HCU And Bracket Mounting (RHD Models) Fig. 26 Starting Brakelines In HCU (By Hand) JABS OPERATION AND SERVICE 5 - 43

Page 196 of 2158

JEEP WRANGLER 1995 Owners Manual

Page 197 of 2158

JEEP WRANGLER 1995 Owners Manual

Page 198 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 3 Bottoming Caliper Piston With C-Clamp Fig. 4 Removing/Installing Caliper Mounting Bolts Fig. 5 Tilting Caliper Outward Fig. 6 Caliper Removal 5 - 46 DISC BRAKESJ

Page 199 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 8 Removing Inboard Brakeshoe Fig. 9 Caliper Dust Boots And Bushing Locations Fig. 10 Caliper Lubrication Points JDISC BRAKES 5 - 47

Page 200 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 12 Installing Outboard Brakeshoe Fig. 13 Caliper Installation Fig. 14 Caliper Mounting Bolt Dimensions 5 - 48 DISC BRAKESJ
