Page 1697 of 2158

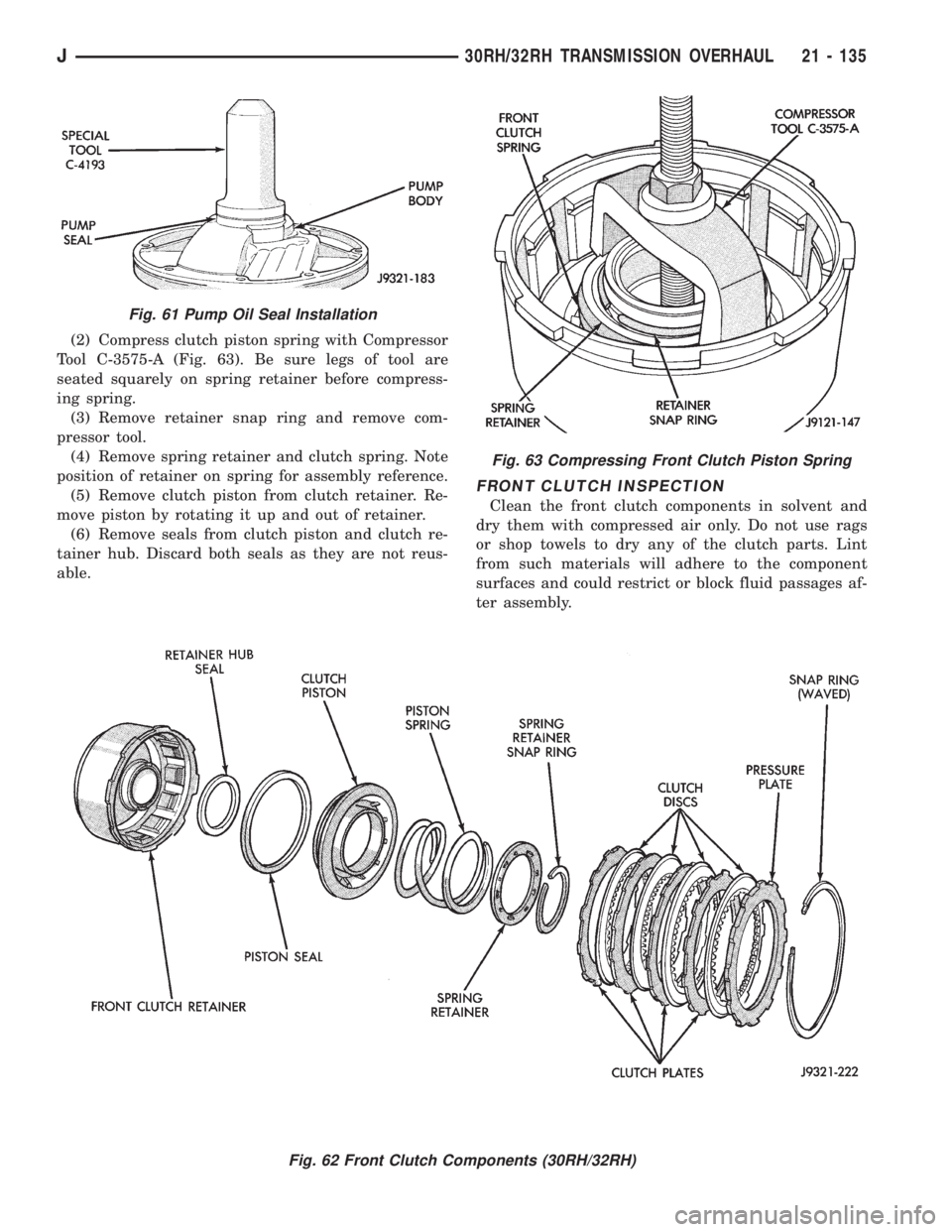

JEEP WRANGLER 1995 Owners Manual Fig. 62 Front Clutch Components (30RH/32RH) Fig. 61 Pump Oil Seal Installation J30RH/32RH TRANSMISSION OVERHAUL 21 - 135

Page 1698 of 2158

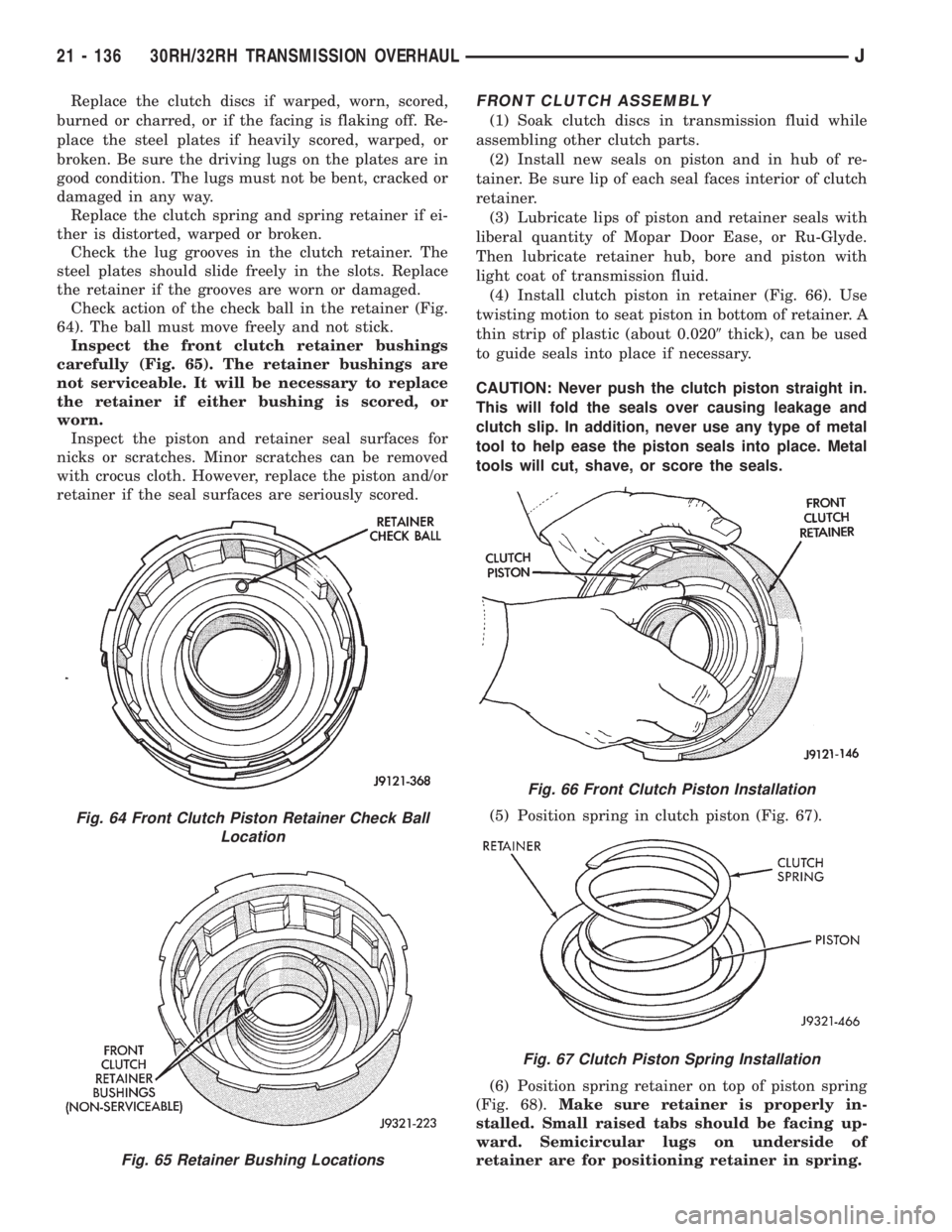

JEEP WRANGLER 1995 Owners Manual Fig. 65 Retainer Bushing Locations Fig. 66 Front Clutch Piston Installation Fig. 67 Clutch Piston Spring Installation 21 - 136 30RH/32RH TRANSMISSION OVERHAULJ

Page 1699 of 2158

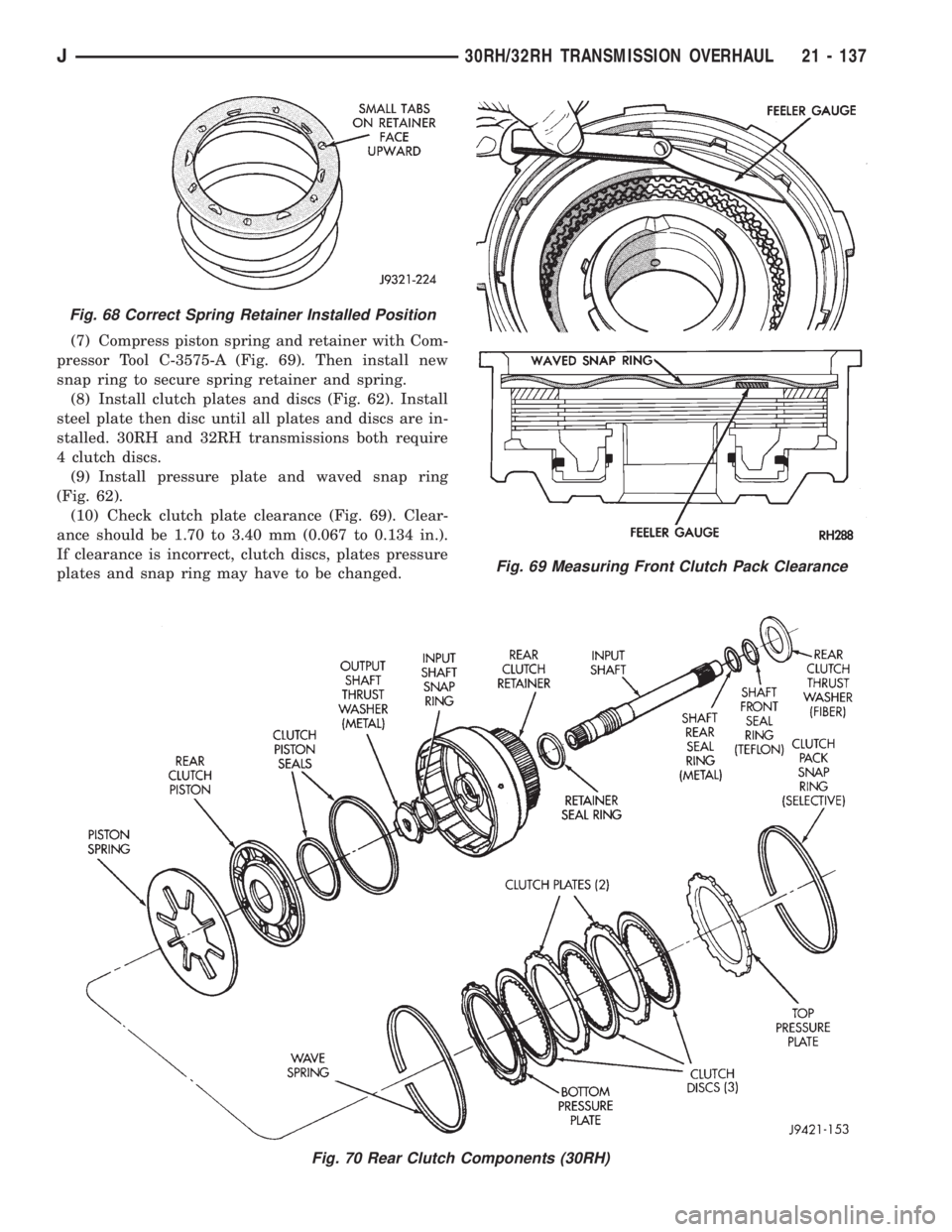

JEEP WRANGLER 1995 Owners Manual Fig. 68 Correct Spring Retainer Installed Position Fig. 69 Measuring Front Clutch Pack Clearance J30RH/32RH TRANSMISSION OVERHAUL 21 - 137

Page 1700 of 2158

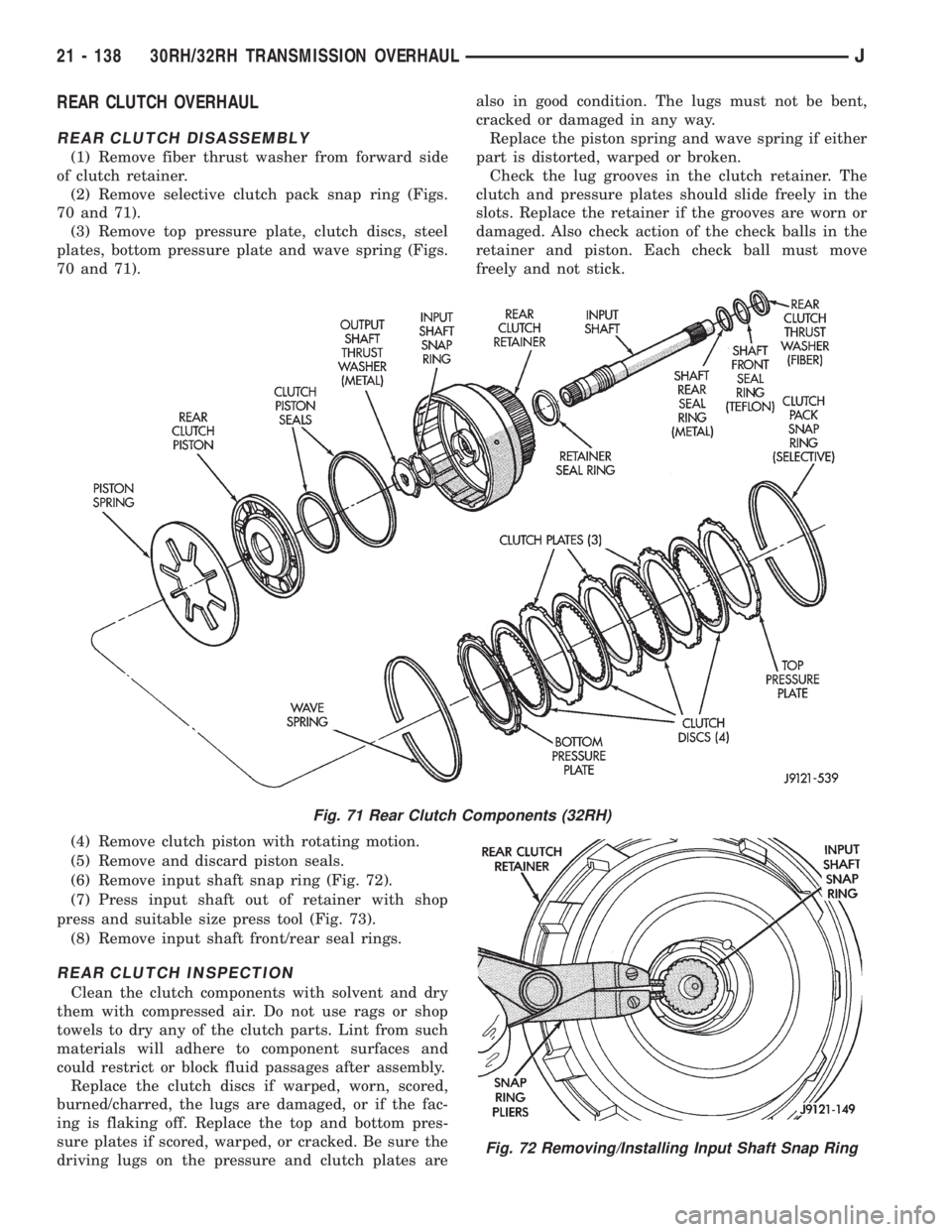

JEEP WRANGLER 1995 Owners Manual Fig. 72 Removing/Installing Input Shaft Snap Ring 21 - 138 30RH/32RH TRANSMISSION OVERHAULJ

Page 1701 of 2158

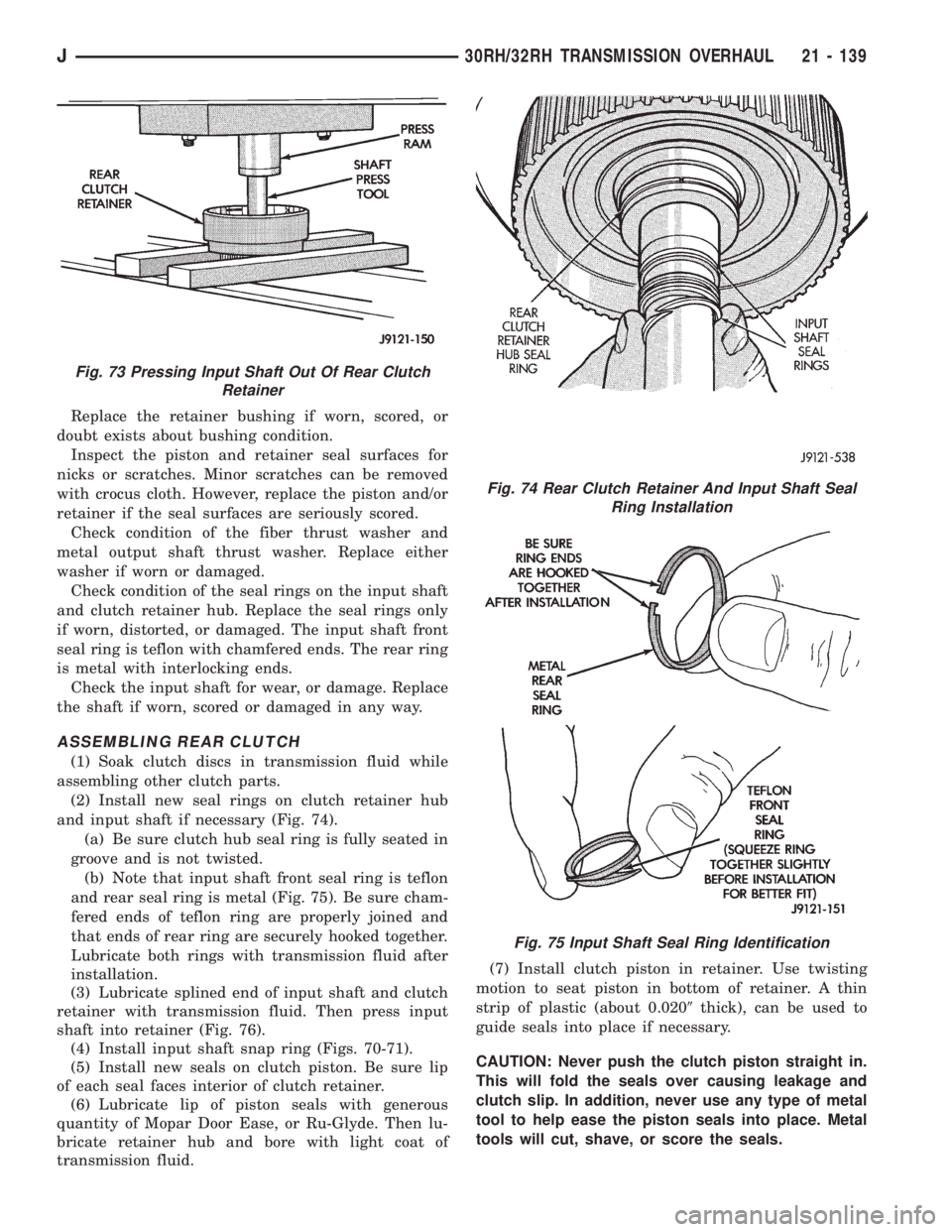

JEEP WRANGLER 1995 Owners Manual Fig. 73 Pressing Input Shaft Out Of Rear Clutch Retainer Fig. 74 Rear Clutch Retainer And Input Shaft Seal Ring Installation Fig. 75 Input Shaft Seal Ring Identification J30RH/32RH TRANSMISSION OVERHA

Page 1702 of 2158

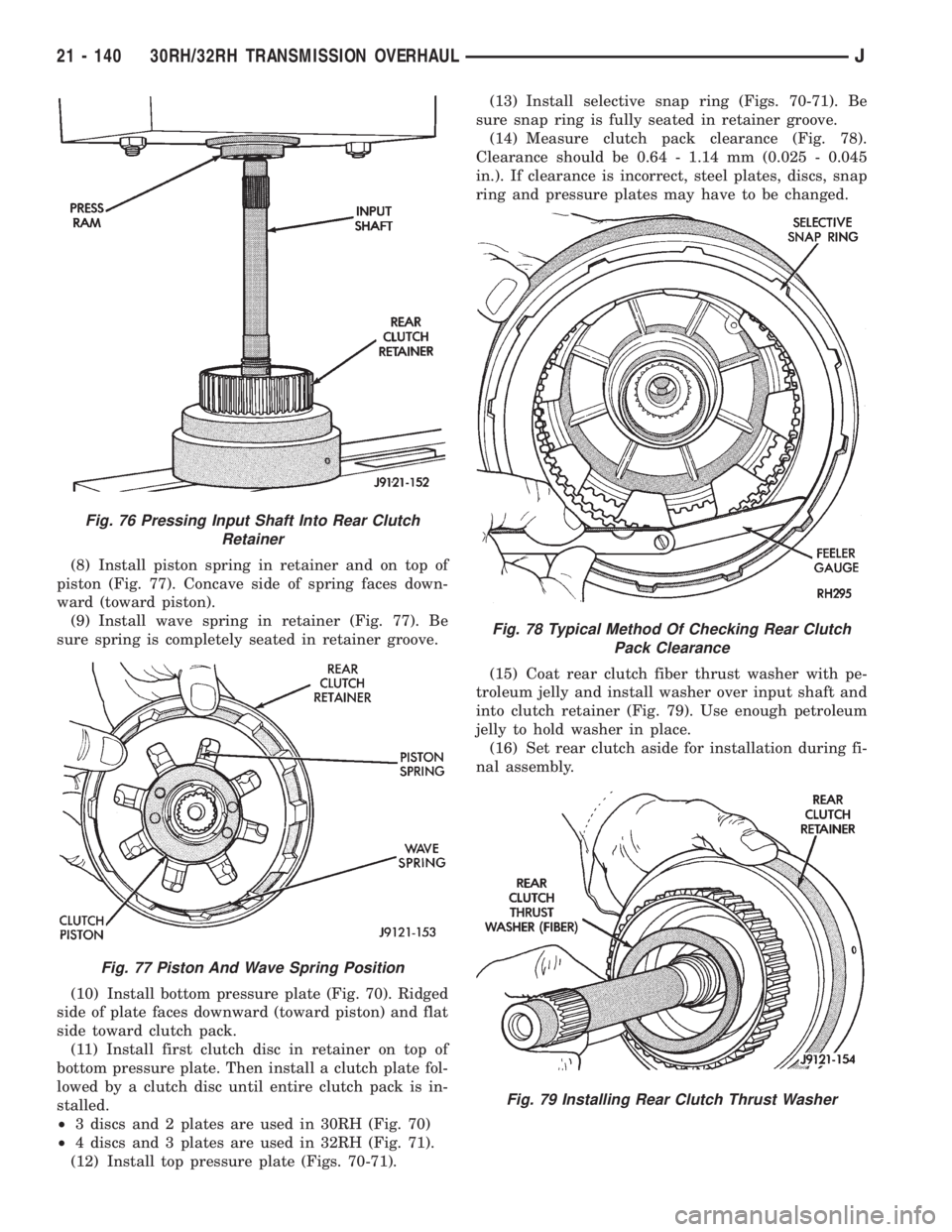

JEEP WRANGLER 1995 Owners Manual Fig. 77 Piston And Wave Spring Position Fig. 78 Typical Method Of Checking Rear Clutch Pack Clearance Fig. 79 Installing Rear Clutch Thrust Washer 21 - 140 30RH/32RH TRANSMISSION OVERHAULJ

Page 1703 of 2158

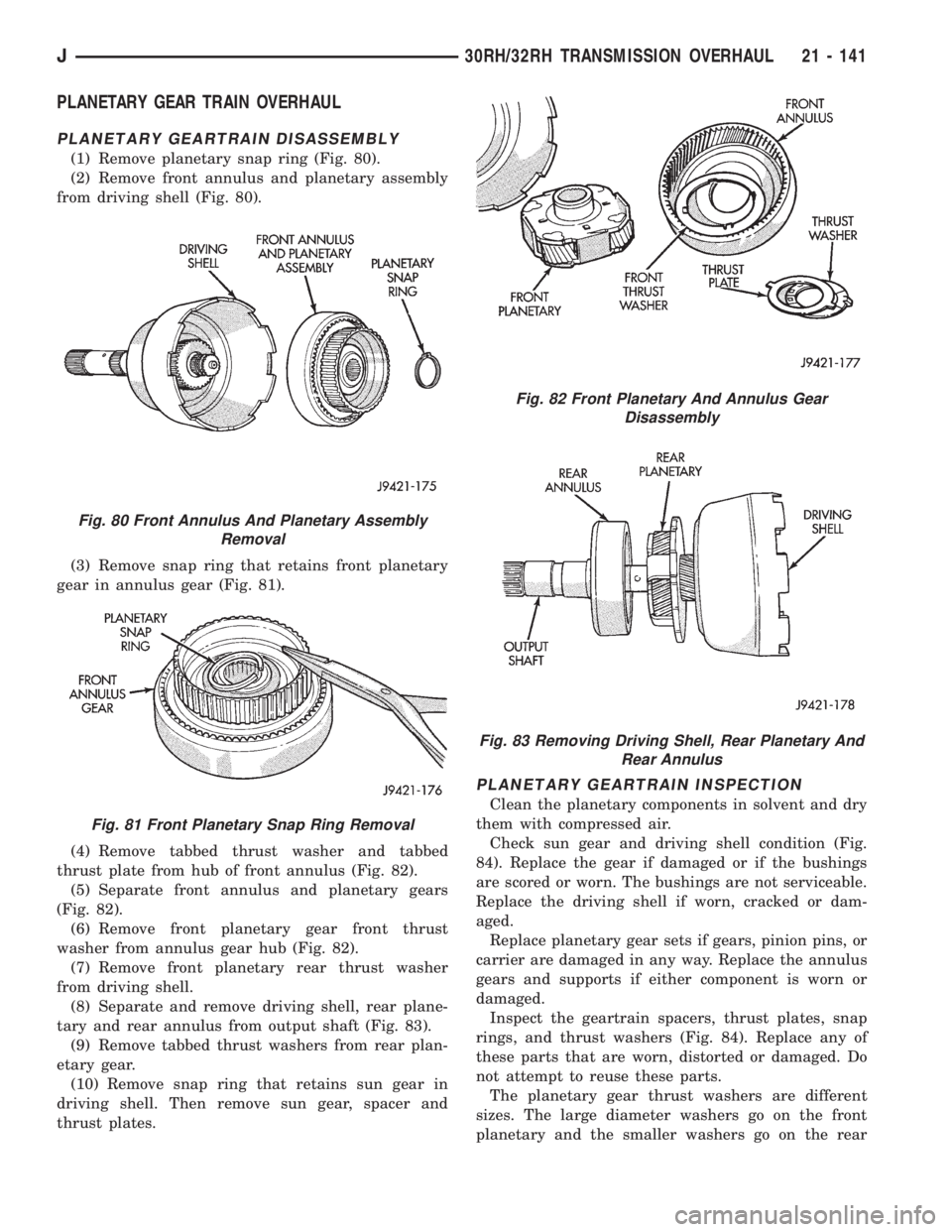

JEEP WRANGLER 1995 Owners Manual Fig. 81 Front Planetary Snap Ring Removal Fig. 82 Front Planetary And Annulus Gear Disassembly Fig. 83 Removing Driving Shell, Rear Planetary And Rear Annulus J30RH/32RH TRANSMISSION OVERHAUL 21 - 141

Page 1704 of 2158

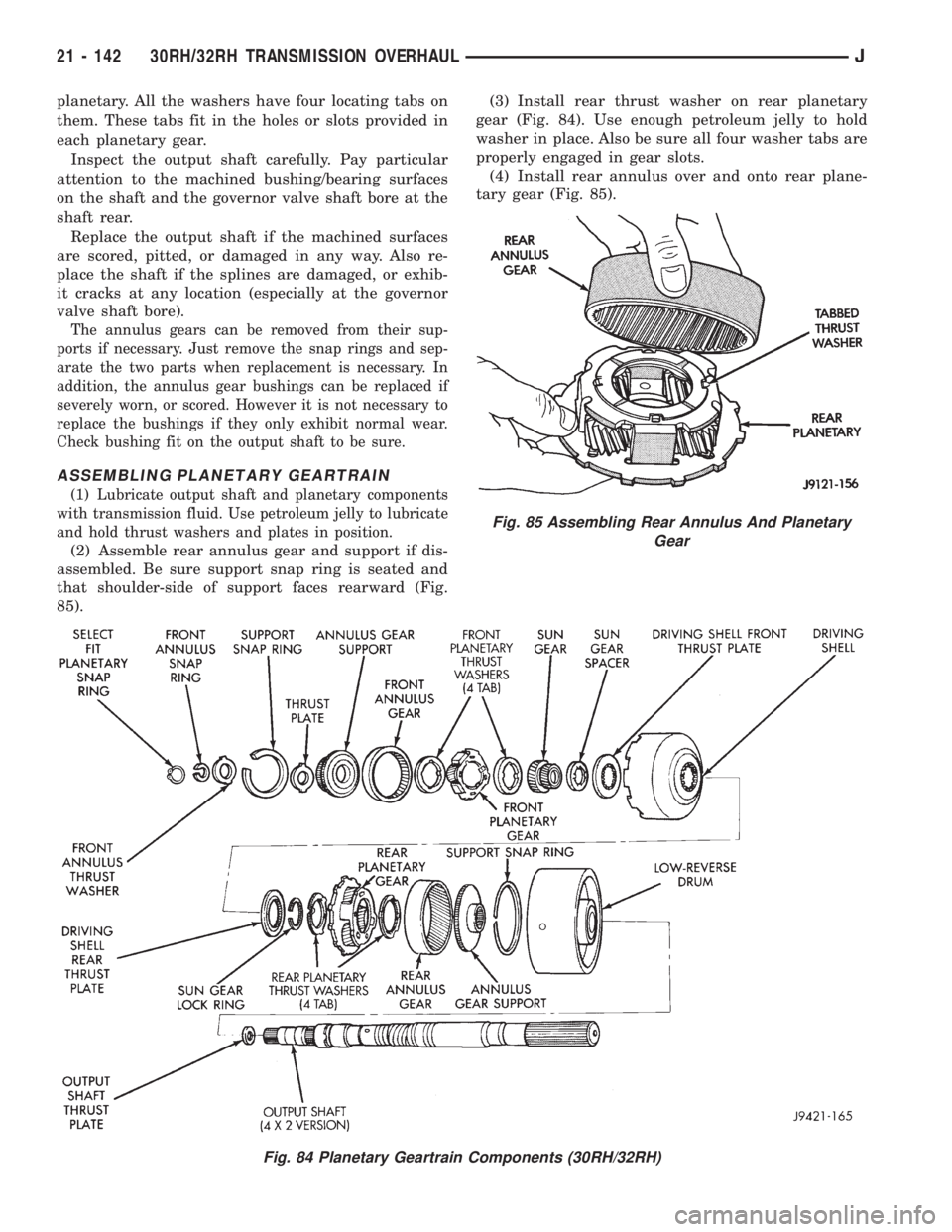

JEEP WRANGLER 1995 Owners Manual Fig. 85 Assembling Rear Annulus And Planetary Gear 21 - 142 30RH/32RH TRANSMISSION OVERHAULJ
