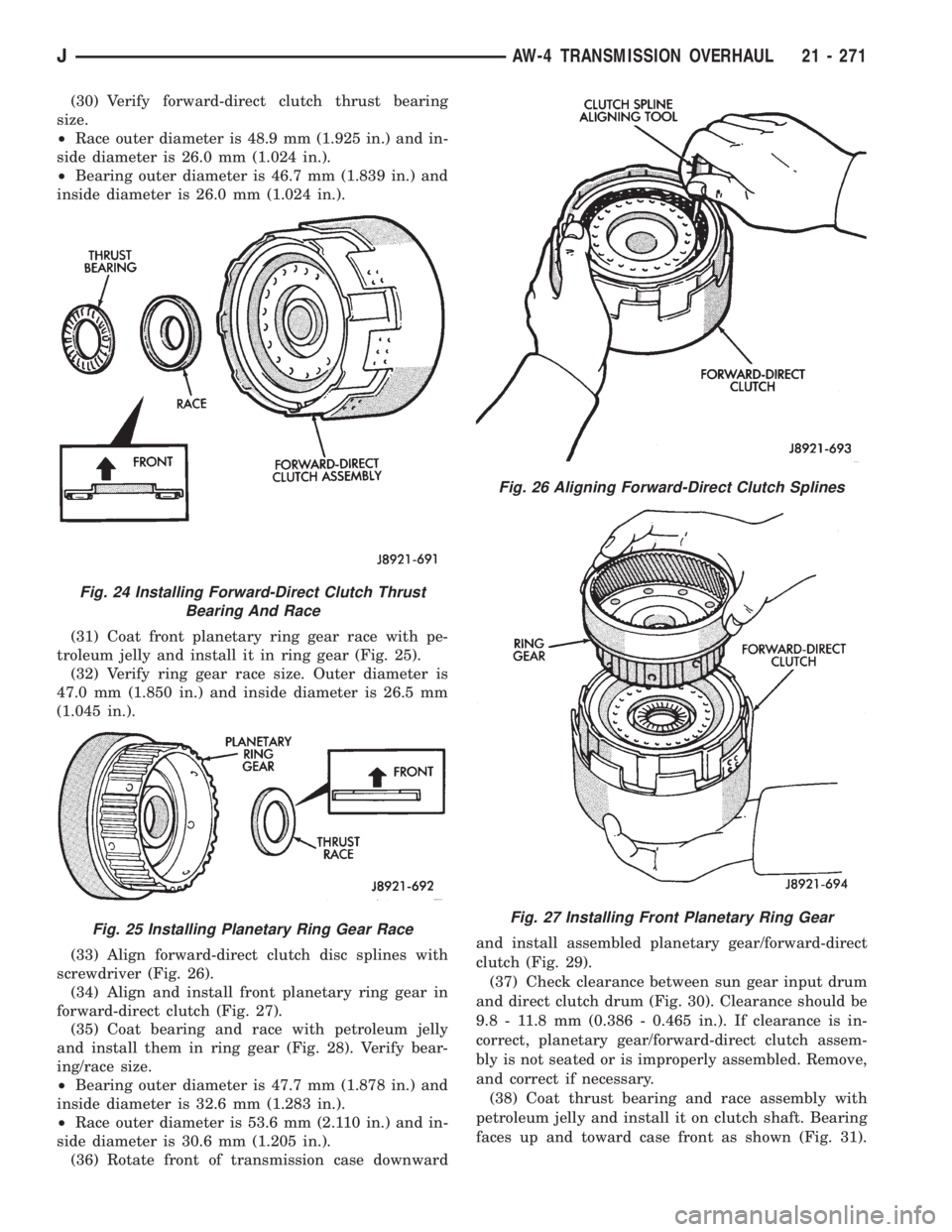

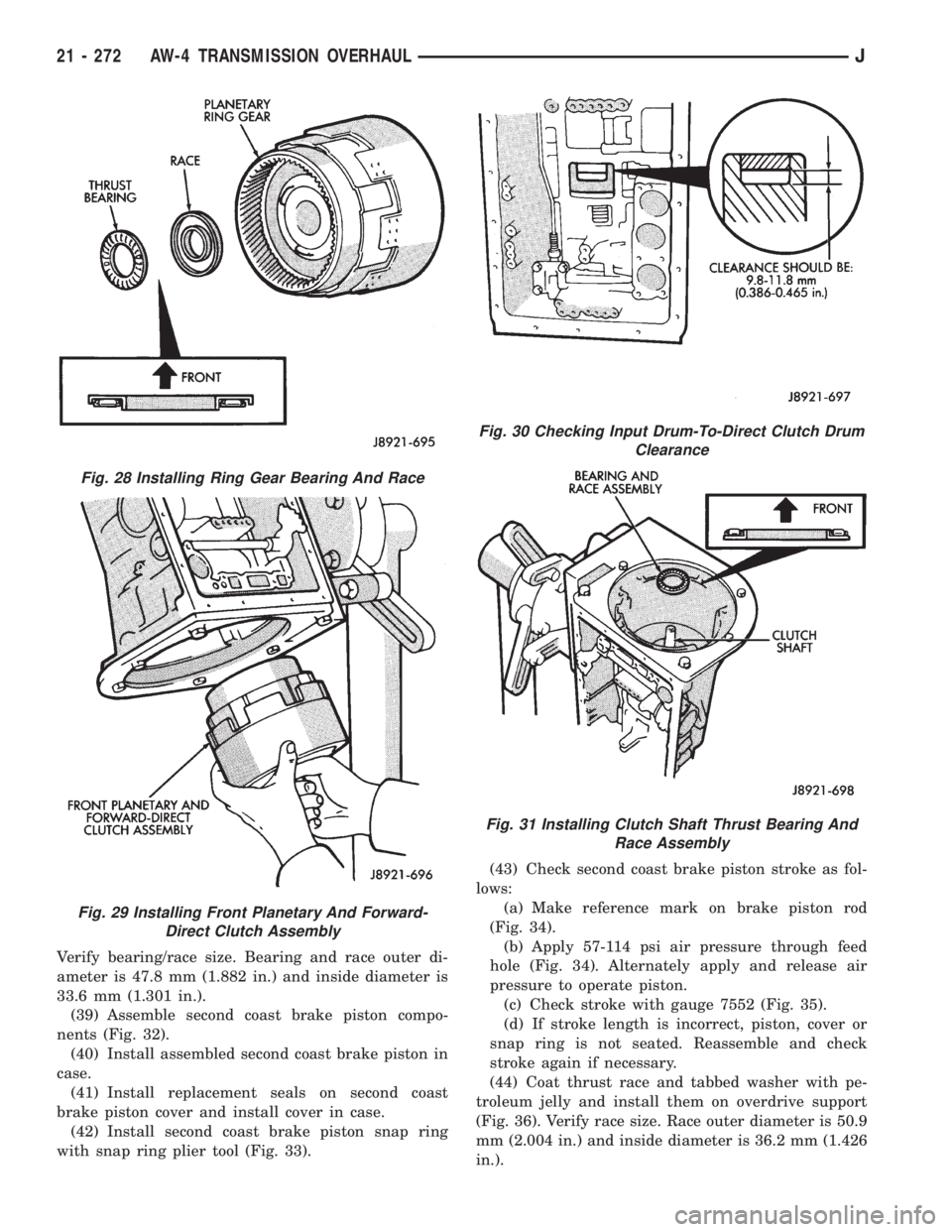

JEEP WRANGLER 1995 Owners Manual Fig. 25 Installing Planetary Ring Gear Race Fig. 26 Aligning Forward-Direct Clutch Splines Fig. 27 Installing Front Planetary Ring Gear JAW-4 TRANSMISSION OVERHAUL 21 - 271

Page 1834 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 29 Installing Front Planetary And Forward- Direct Clutch Assembly Fig. 30 Checking Input Drum-To-Direct Clutch Drum Clearance Fig. 31 Installing Clutch Shaft Thrust Bearing And Race Assembly 21 -

Page 1835 of 2158

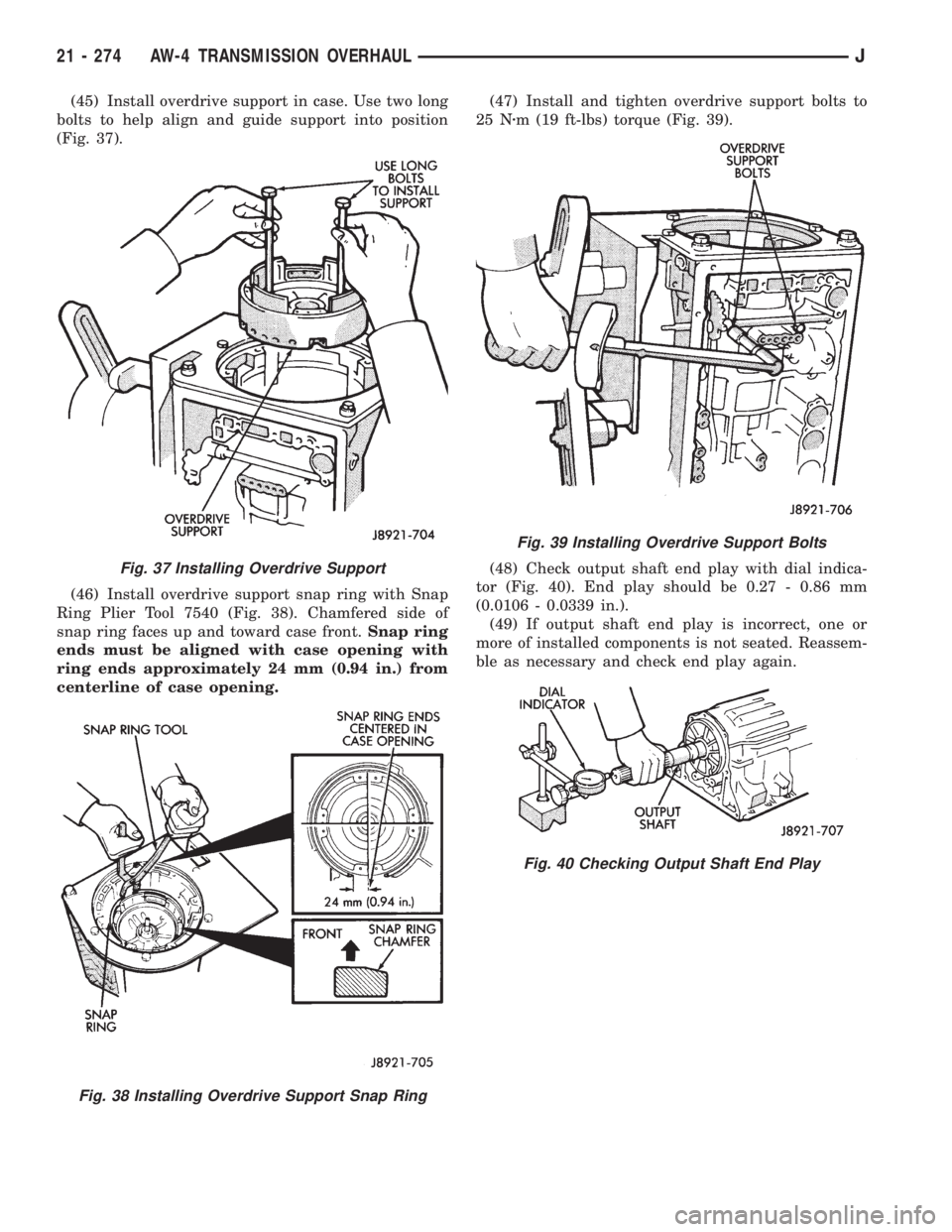

JEEP WRANGLER 1995 Owners Manual Fig. 33 Installing Second Coast Brake Piston Snap Ring Fig. 34 Marking Brake Piston Rod Fig. 35 Checking Second Coast Brake Piston Stroke Fig. 36 Installing Overdrive Support Thrust Race And Washer JA

Page 1836 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 38 Installing Overdrive Support Snap Ring Fig. 39 Installing Overdrive Support Bolts Fig. 40 Checking Output Shaft End Play 21 - 274 AW-4 TRANSMISSION OVERHAULJ

Page 1837 of 2158

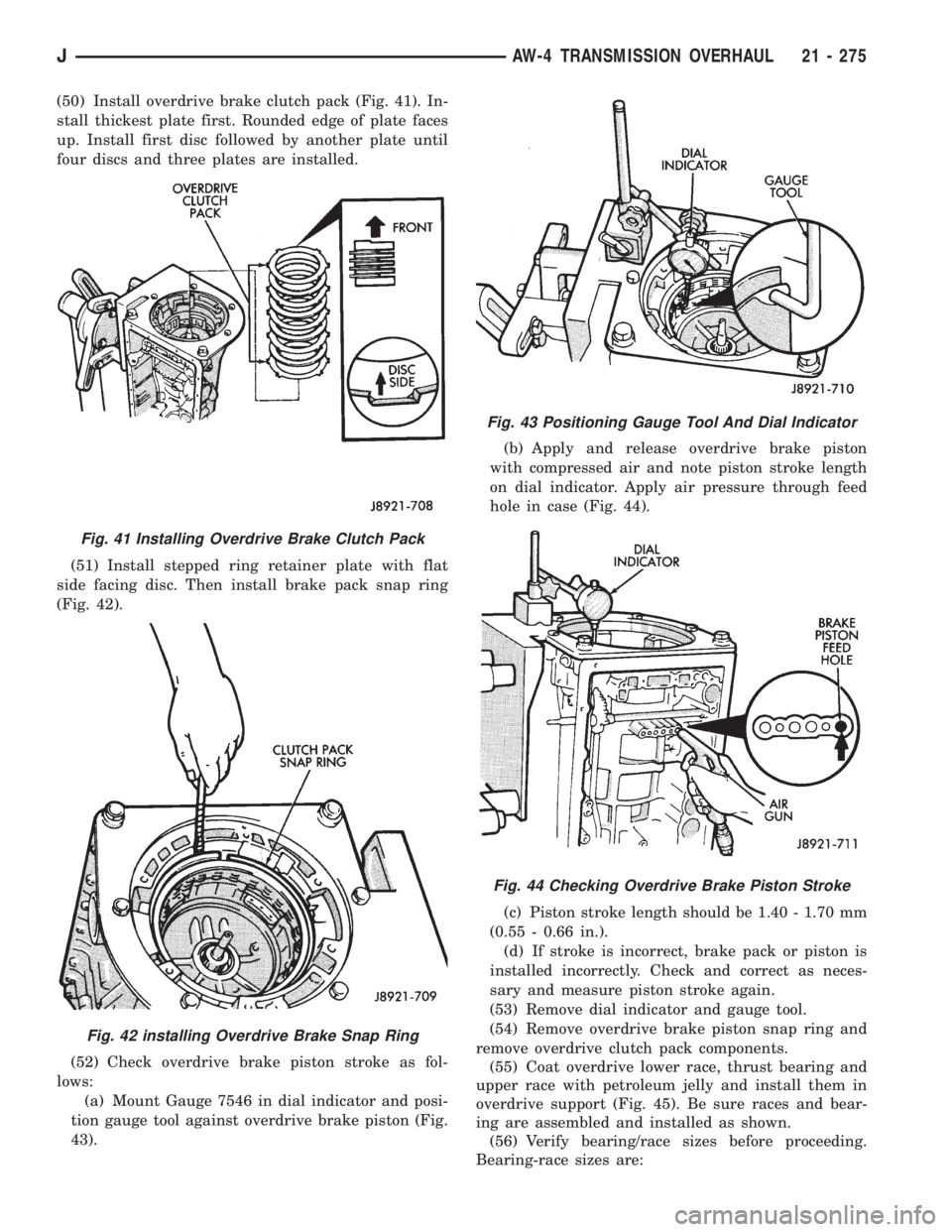

JEEP WRANGLER 1995 Owners Manual Fig. 42 installing Overdrive Brake Snap Ring Fig. 43 Positioning Gauge Tool And Dial Indicator Fig. 44 Checking Overdrive Brake Piston Stroke JAW-4 TRANSMISSION OVERHAUL 21 - 275

Page 1838 of 2158

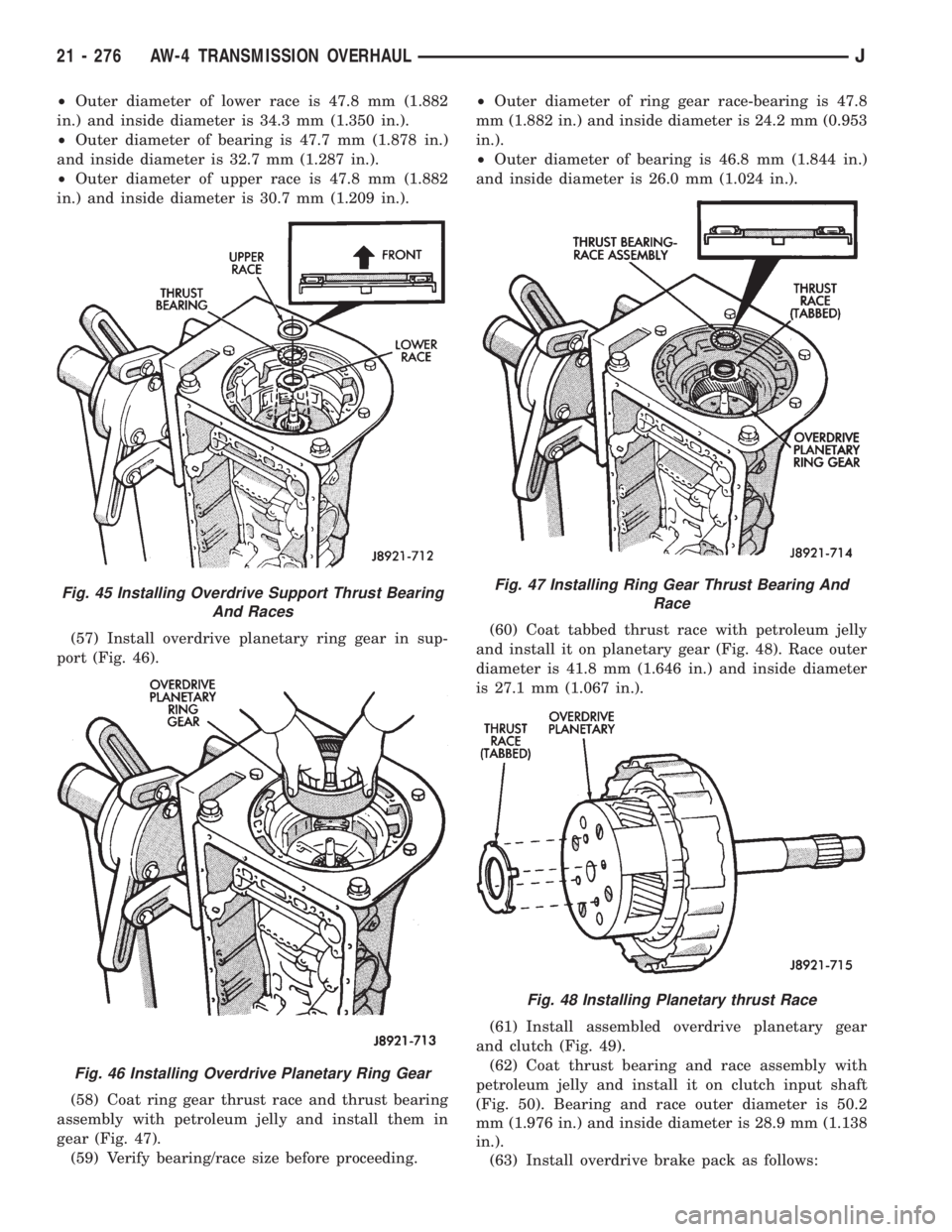

JEEP WRANGLER 1995 Owners Manual Fig. 46 Installing Overdrive Planetary Ring Gear Fig. 47 Installing Ring Gear Thrust Bearing And Race Fig. 48 Installing Planetary thrust Race 21 - 276 AW-4 TRANSMISSION OVERHAULJ

Page 1839 of 2158

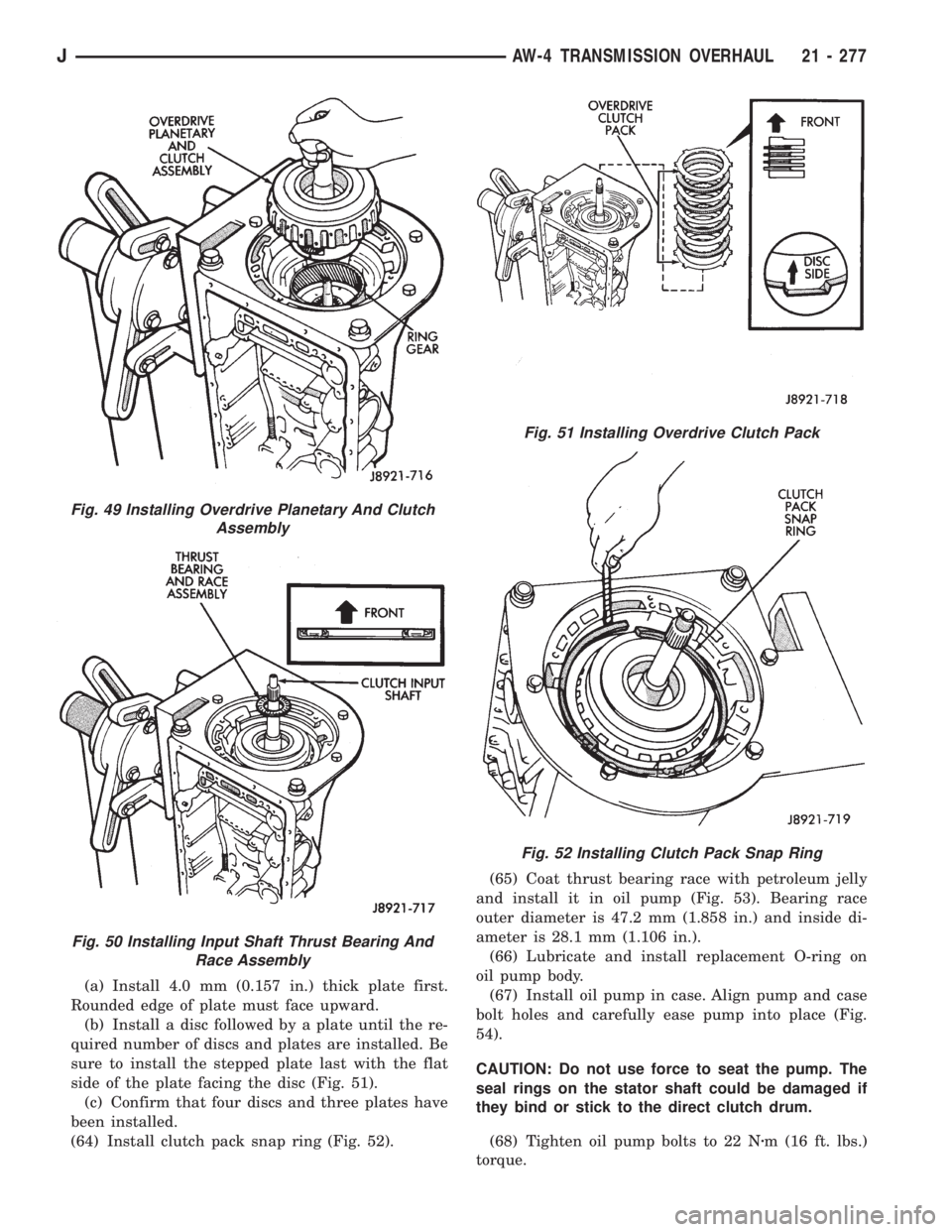

JEEP WRANGLER 1995 Owners Manual Fig. 50 Installing Input Shaft Thrust Bearing And Race Assembly Fig. 51 Installing Overdrive Clutch Pack Fig. 52 Installing Clutch Pack Snap Ring JAW-4 TRANSMISSION OVERHAUL 21 - 277

Page 1840 of 2158

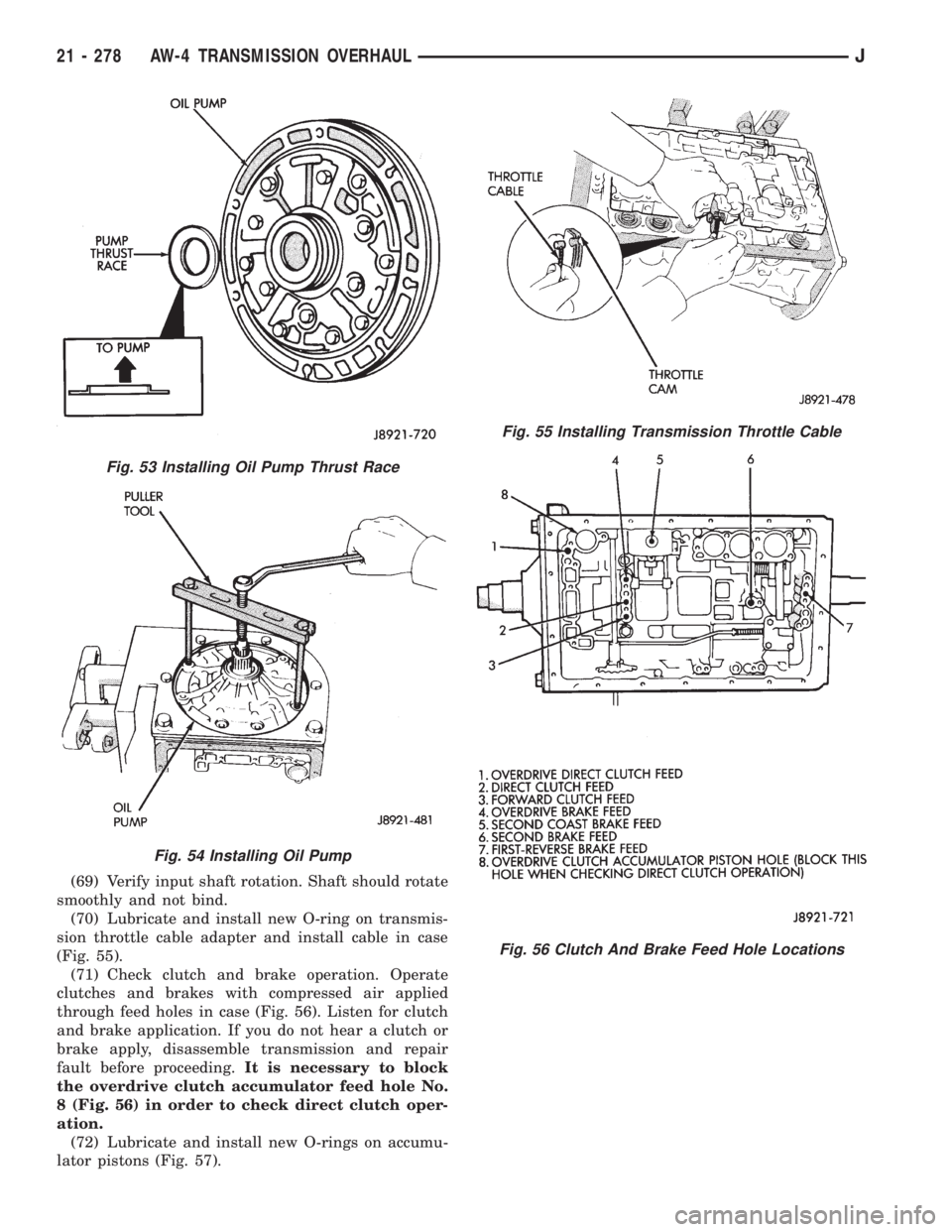

JEEP WRANGLER 1995 Owners Manual Fig. 54 Installing Oil Pump Fig. 55 Installing Transmission Throttle Cable Fig. 56 Clutch And Brake Feed Hole Locations 21 - 278 AW-4 TRANSMISSION OVERHAULJ
