LUBRICATION
AND
MAINTENANCE

• MAINTENANCE SCHEDULE
A crankcase ventilation system must be clean to
provide good operation and durability. Periodic main­
tenance is necessary. Replace the PCV valve. Re­
move residual combustion deposits from the hoses and throttle body/intake manifold passages.
The PCV valve should be replaced and the system
should be serviced at the interval specified in main­
tenance schedule. If a vehicle is routinely used for short trips, the crankcase ventilation system could
possibly require more maintenance.
CRANKCASE AIR INLET FILTER
MAINTENANCE SCHEDULE Replace or clean, the air inlet filter at the interval
specified in maintenance schedule.
More frequent PCV system maintenance could be
required for:
• Vehicles routinely used for short trips
• Vehicles routinely involved in stop and go traffic
operation
• Vehicles routinely involved in extended periods of
engine idle
MAINTENANCE Clean and lubricate the crankcase air inlet filter
according to the following procedure. (1) Disconnect the fresh air hose from the port on
the crankcase air inlet filter housing (Fig. 8).
(2) Remove the air filter housing from the cylinder
head cover (Fig. 8). Clean the filter in kerosene or a similar solvent.
(3) Lubricate the filter by inverting the housing
and filling it with SAE 30 viscosity engine oil.
(4) Insert the air filter housing nipple in the cylin­
der head cover grommet. Connect the fresh air hose
to the upper port (Fig. 8).
J9000-52

Fig.
8
Crankcase
Air Inlet
Filter
THROTTLE CONTROL LINKAGE

Transmission linkage pivot pin areas (Fig. 9),
should be serviced. The areas lubricated every second
oil change with a multi-purpose lubricant (NLGI GC-
LB).

PIVOT
AREAS
Fig.
9
Transmission
Linkage
Pivot Areas

FUEL
SYSTEM

INSPECTION The fuel system filler cap, nozzle, tubes, hoses, and
connections should be inspected periodically.
FUEL FILTER The fuel filter requires service only when a fuel
contamination problem is suspected. For proper diag­
nosis and service procedures refer to Group 14, Fuel
System.
GASOLINE ENGINE FUEL REQUIREMENTS All gasoline engines require fuel that has a mini­
mum octane rating of 87 determined by the (R +
M)/2 calculation method.
The use of a brand of unleaded gasoline that con­
tains additives is recommended. Gasoline with addi­
tives will improve fuel economy and reduce emissions.

ALCOHOL/GASOLINE
BLENDS
Many brands of blended unleaded gasoline am now
available. Unleaded gasoline is blended with oxygenated-type
fuels to produce a clean air gasoline in many areas.
The use of this type of blended fuel is recommended.
ETH ANOL—Unleaded gasoline and ethanol
blended fuels are a mixture of 10 percent ethanol and 90 percent unleaded gasoline. This is an accept­
able blend of fuel.
MTBE— MTBE blended fuels are a mixture of un­
leaded gasoline and up to 15 percent MTBE (Methyl
Tertiary Butyl Ether). Unleaded gasoline blended
with MTBE is acceptable.

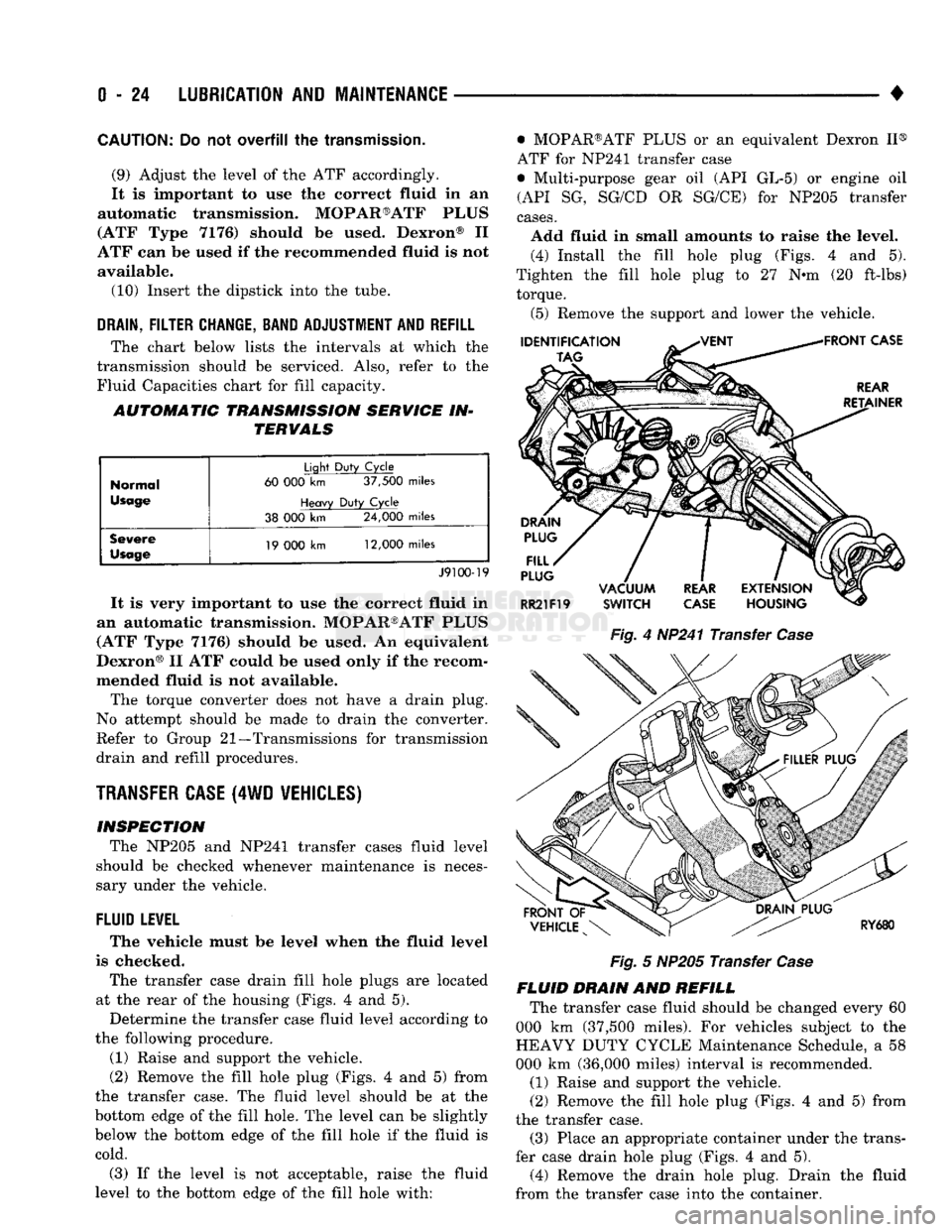

0
- 24
LUBRICATION
AND
MAINTENANCE

•
CAUTION:
Do not
overfill
the
transmission.
(9) Adjust
the
level
of the ATF
accordingly.
It
is
important
to use the
correct fluid
in an

automatic transmission. MOPAR®ATF PLUS
(ATF Type
7176)
should
be
used. Dexron®
II

ATF
can be
used
if the
recommended fluid
is not
available,
(10) Insert
the
dipstick into
the
tube.

DRAIN, FILTER CHANGE, BAND ADJUSTMENT AND REFILL
The chart below lists
the
intervals
at
which
the

transmission should
be
serviced. Also, refer
to the

Fluid Capacities chart
for
fill capacity.
AUTOMATIC TRANSMISSION SERVICE
IN-
TERVALS

Normal

Usage
Light
Duty
Cycle

60 000
km
37,500
miles

Heavy
Duty
Cycle

38
000 km 24,000
miles

Severe
Usage
19 000 km 12,000
miles

J9100-19

It
is
very important
to use the
correct fluid
in

an automatic transmission. MOPAR®ATF PLUS
(ATF Type
7176)
should
be
used.
An
equivalent
Dexron®
II ATF
could
be
used only
if the
recom­
mended fluid
is not
available.
The torque converter does
not
have
a
drain plug.
No attempt should
be
made
to
drain
the
converter.
Refer
to
Group
21
—Transmissions
for
transmission
drain
and
refill procedures.

TRANSFER
CASE
(4WD
VEHICLES)
INSPECTION The NP205
and
NP241 transfer cases fluid level
should
be
checked whenever maintenance
is
neces­
sary under
the
vehicle.

FLUID
LEVEL
The vehicle must
be
level when
the
fluid level
is checked.
The transfer case drain fill hole plugs
are
located
at
the
rear
of the
housing (Figs.
4 and 5).

Determine
the
transfer case fluid level according
to

the following procedure.
(1) Raise
and
support
the
vehicle.
(2) Remove
the
fill hole plug (Figs.
4 and 5)
from
the transfer case.
The
fluid level should
be at the

bottom edge
of the
fill hole.
The
level
can be
slightly
below
the
bottom edge
of the
fill hole
if the
fluid
is
cold.
(3)
If the
level
is not
acceptable, raise
the
fluid
level
to the
bottom edge
of the
fill hole with: • MOPAR®ATF PLUS
or an
equivalent Dexron
II®

ATF
for
NP241 transfer case
• Multi-purpose gear
oil (API GL-5) or
engine
oil

(API
SG,
SG/CD
OR
SG/CE)
for
NP205 transfer

cases.

Add fluid
in
small amounts
to
raise
the
level. (4) Install
the
fill hole plug (Figs.
4 and 5).

Tighten
the
fill hole plug
to 27 N-m (20
ft-lbs) torque.
(5) Remove
the
support
and
lower
the
vehicle.

Fig.
4
HP241 Transfer
Case
Fig.
5
NP205 Transfer
Case

FLUID DRAIN
AND
REFILL The transfer case fluid should
be
changed every
60

000
km
(37,500 miles).
For
vehicles subject
to the

HEAVY DUTY CYCLE Maintenance Schedule,
a 58

000
km
(36,000 miles) interval
is
recommended.
(1) Raise
and
support
the
vehicle.
(2) Remove
the
fill hole plug (Figs.
4 and 5)
from
the transfer case. (3) Place
an
appropriate container under
the
trans­
fer case drain hole plug (Figs.
4 and 5).
(4) Remove
the
drain hole plug. Drain
the
fluid
from
the
transfer case into
the
container.

•

LUBRICATION
AND
MAINTENANCE
0 - 25
CAUTION:
Do not
over-tighten
the
drain
and fill
hole

plugs.
Over-tightening
can strip the
hole
threads

and/or crack
the
aluminum housing.

(5) Install the drain hole plug (Figs. 4 and 5) in
the transfer case. Tighten the drain hole plug to 27 N*m (20 ft-lbs) torque. (6) Fill the transfer case to the bottom edge of the
fill hole (Figs. 4 and 5) with: • MOPAR®ATF PLUS or an equivalent Dexron II®
ATF for NP241 transfer cases
• Multi-purpose gear oil (API GL-5) or engine oil (API SG, SG/CD or SG/CE) for NP205 transfer cases. (7) Install the fill hole plug (Figs. 4 and 5) in the
transfer case. Tighten the plug to 27 N«m (20 ft-lbs) torque.
(8) Remove the support and lower the vehicle.
FLUID SPECIFICATION
• MOPAR®ATF PLUS or an equivalent Dexron II®
ATF for NP241 transfer cases • Multi-purpose gear oil (API GL-5) or engine oil (API SG, SG/CD or SG/CE) for NP205 transfer cases
NP20I
MULTI-PURPOSE GEAR OIL/ENGINE
OIL
SELECTION

MULTI-PURPOSE GEAR OIL-if the anticipated
minimum temperature will: • Be above 32°C (90°F)-use SAE 140, API GL-5;
• Decrease to as low as -23°C (-10°F)-use SAE 90,
API GL-5; and • Be below -23°C (-10°F)-use SAE 80, API GL-5. ENGINE OIL—if the anticipated minimum tem­
perature will be: ® Above 0°C (32°F)-use SAE 50, API SG, SG/CD or
SG/CE;
• Below 0°C (32°F)-use SAE 30, API SG, SG/CD or SG/CE.
SHIFT MECHANISM-NP241 AND NP205 The transfer case shift mechanism should be
cleaned and lubricated as necessary.
Lubricate the pivot, the sliding contact areas and
the shift linkage pivot ends with light-weight engine oil (Figs. 6 and 7).

AXLES
INSPECTION/LUBRICANT LEVEL For normal vehicle operation, periodic axle lubri­
cant level checks are not necessary. The exterior of
the axle housing should be inspected for leakage. Check the lubricant level to confirm the leakage.

LUBRICANT LEVEL
(1) Raise the vehicle with an axle or wheel type
hoist. Support the vehicle.
(2) The rear axle differential housings have a rub­
ber, PRESS-IN type fill plug (Fig. 8). Pry the fill
TRANSMISSION

ASSEMBLY
GEARSHIFT
MECHANISM TRANSFER CASE

SCREWS
(2)
50
FT. LBS.
(68 N*m)
CLAMP
SHIFT
ROD

SCREW

80 IN.
LBS.

(9 N*m)
RP1091
Fig.
6 Shift
Mechanism
Lubrication—NP241 Transfer
Case

Fig.
RY682
7 Shift
Mechanism
Lubrication—NP205 Transfer

Case

plug from the differential housing. The front axle (4WD vehicles)*differential housings have a thread­
ed-type fill plug (Fig. 9). Un-thread the fill plug from
the differential housing.
(3) The lubricant level should be within 12 mm
(1/2 in) of the fill hole for the 8.25 and 9.25 rear ax­

les.
The lubricant level should be between 12mm (1/2
in) and 24mm (1 in.) of the fill hole for the Dana ax­

les.

(4) If necessary, add lubricant to raise the level to
the acceptable position.
(5) Install the fill hole plug in the differential
housing (Figs. 8 and 9).

DRAIN
AND
REFILL
Periodic axle lubricant change for normal vehicle
operation is not necessary. Refer to the chart below-

0
- 28
LUBRICATION
AND
MAINTENANCE

•
CHASSIS AND BODY

page

Body
Component Mechanisms
32
Front
Suspension
Ball
Joints
28

Front
Wheel Bearings
29

Headlamps
32

Lower
and
Upper Suspension
Arm
Bushings
.... 30

Manual
Steering Gear
28

STEERING
LINKAGE

INSPECTION When
a
vehicle
is
raised
for
maintenance under
the vehicle,
all
steering components should
be
checked.
LUBRICATION SCHEDULE The steering linkage
is
lubricated with
a
chassis
lubricant. However,
it is
recommended that
the
link­
age
be
inspected
and
lubricated after each:
•
24 000 km
(15,000 miles) interval
or
every
6

months,
for 2WD
vehicles subject
to the
LIGHT
DUTY CYCLE Maintenance Schedule
•
9 600 km
(6,000 miles) interval
or
every
6
months,
for
2WD
vehicles subject
to the
HEAVY DUTY
CY­
CLE Maintenance Schedule
•
12 000 km
(7,500 miles) interval
or
every
6

months,
for 4WD
vehicles subject
to the
LIGHT DUTY CYCLE Maintenance Schedule
•
9 600 km
(6,000 miles) interval
or
every
6
months,
for
4WD
vehicles subject
to the
HEAVY DUTY
CY­
CLE Maintenance Schedule.
LUBRICATION (1) Inspect
the
steering linkage
for
looseness
and

excessive wear. (2) Replace,
all
ruptured seals
and
damaged steer­
ing linkage components. Damaged seals should
be re­

placed
to
prevent leakage
and
contamination
of the
lubricant.

CAUTION:
Use
care
to
prevent lubricant from
con­

tacting
the
brake rotors.

(3) Lubricate
the
steering linkage:
• Clean
the
Zerk type lubrication fittings
on the tie-

rod
and
center link ball-stud ends
• Lubricate
the
ball studs with MOPAR®Multi-Mile- age Lubricant
• Wipe
the
excess lubricant from
the
exterior sur­
faces
of the
ball joints
page

Power
Brake System
30
Power
Steering System
. . 29

Rear
Wheel Bearings
30

Speedometer Cable
33

Steering Linkage
28

Tires
32

FRONT
SUSPENSION
BALL JOINTS

INSPECTION When
a
vehicle
is
raised
for
lubrication/general
maintenance,
the
ball joints should
be
inspected.
LUBRICATION SCHEDULE The front suspension ball joints
are
lubricated dur­
ing manufacture with
a
long-life chassis lubricant.
However,
it is
recommended that
the
ball joints
be

inspected
and the
studs lubricated:
•
At
each
36 000 km
(22,500 miles) interval
or
every
2 years,
for
vehicles subject
to the
LIGHT DUTY
CY­
CLE Maintenance Schedule
•
At
each
9 600 km
(6,000 miles) interval
or
every
2

years,
for
vehicles subject
to the
HEAVY DUTY
CY­
CLE Maintenance Schedule.
4WD vehicles that
are
frequently driven
off-

road should
be
lubricated
at
every engine
oil
change.
LUBRICATION (1) Inspect
the
front suspension. Examine
the
ball
studs
for
looseness
and
excessive wear. (2) Replace
all
torn ball-stud seals
and
damaged
ball joints. Damaged seals should
be
replaced
to
pre­ vent leakage
and
contamination.

CAUTION:
Use
care
to
prevent lubricant from
con­

tacting
the
brake rotors.

(3) Lubricate
the
ball studs:
• Clean
the
Zerk type lubrication fittings
on the

ball-stud ends
• Lubricate
the
ball studs with MOPAR®Multi-Mile-age Lubricant
• Wipe
the
excess lubricant from
the
exterior sur­
faces
of the
ball joints

MANUAL
STEERING
GEAR

LUBRICATION Manual steering gears
are
permanently lubricated
during manufacture. Periodic lubrication
is not
nec­
essary.

•

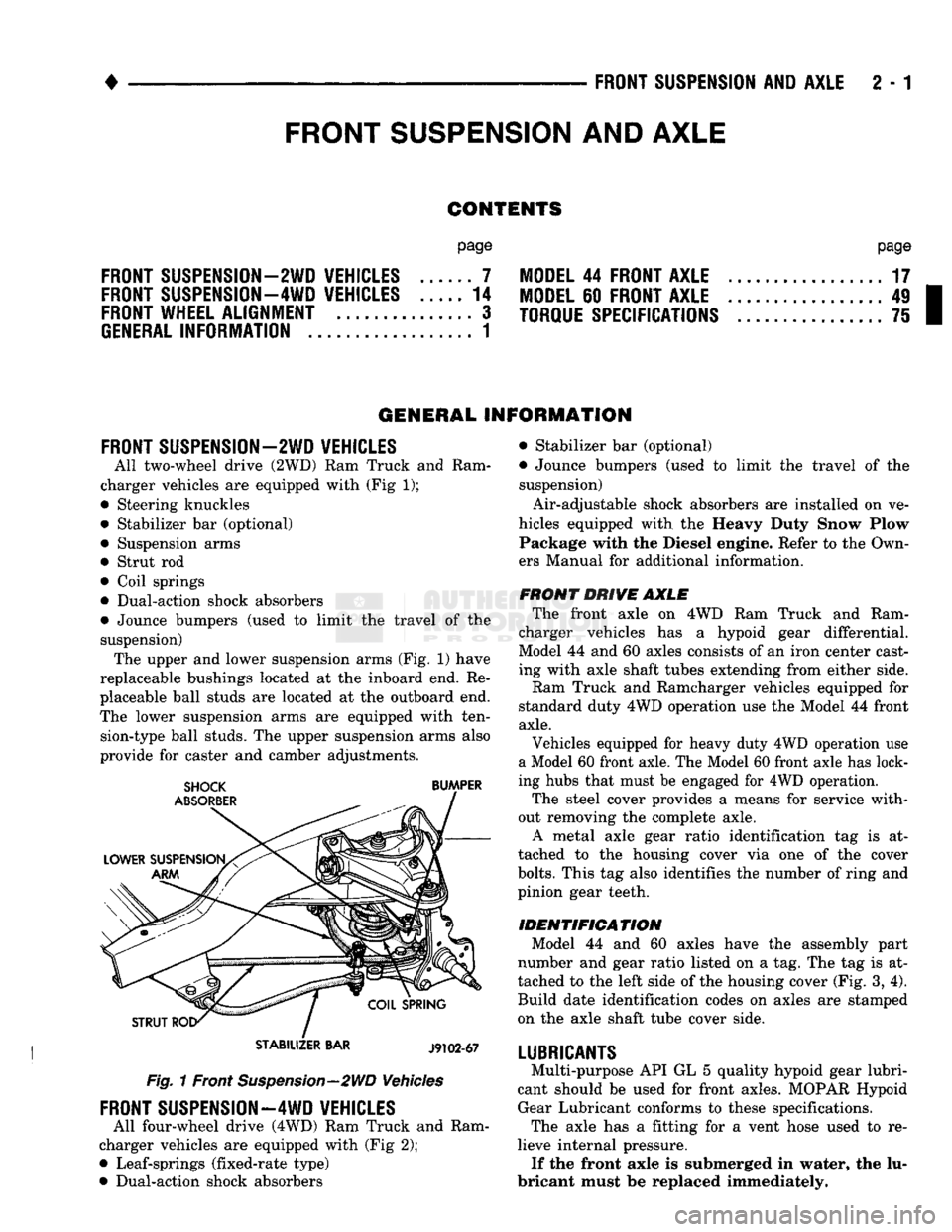

FRONT SUSPENSION
AND
AXLE
2 - 1
CONTENTS

page

FRONT SUSPENSION—2WD VEHICLES
......
7

FRONT SUSPENSION—4WD VEHICLES
14

FRONT WHEEL
ALIGNMENT
...............
3

GENERAL INFORMATION
1
page

MODEL
44
FRONT AXLE
17

MODEL
80
FRONT AXLE
49

TORQUE SPECIFICATIONS
75

GENERAL
INFORMATION

FRONT SUSPENSION—2WD VEHICLES
All two-wheel drive (2WD)
Ram
Truck
and
Ram­
charger vehicles
are
equipped with (Fig
1);

• Steering knuckles
• Stabilizer
bar
(optional) • Suspension arms
• Strut
rod

• Coil springs
• Dual-action shock absorbers
• Jounce bumpers (used
to
limit
the
travel
of the

suspension) The upper and lower suspension arms (Fig.
1)
have
replaceable bushings located
at the
inboard end.
Re­

placeable ball studs
are
located
at
the
outboard end.
The lower suspension arms
are
equipped with ten­ sion-type ball studs. The upper suspension arms also
provide
for
caster
and
camber adjustments.
STABILIZER
BAR
J9102-67

Fig. 1 Front Suspension—2WD Vehicles

FRONT SUSPENSION—4WD VEHICLES
All four-wheel drive (4WD) Ram Truck
and
Ram­
charger vehicles
are
equipped with (Fig
2);
• Leaf-springs (fixed-rate type)
• Dual-action shock absorbers • Stabilizer
bar
(optional)
• Jounce bumpers (used
to
limit
the
travel
of the

suspension)
Air-adjustable shock absorbers
are
installed
on
ve­

hicles equipped with
the
Heavy Duty Snow Plow Package with
the
Diesel engine. Refer
to
the Own­
ers Manual
for
additional information.
FRONT DRIVE AXLE The front axle
on 4WD Ram
Truck
and
Ram­
charger vehicles
has a
hypoid gear differential.
Model
44
and
60
axles consists
of
an iron center cast­
ing with axle shaft tubes extending from either side.
Ram Truck
and
Ramcharger vehicles equipped
for

standard duty 4WD operation use
the
Model
44
front
axle.
Vehicles equipped
for
heavy duty 4WD operation
use

a Model 60 front axle. The Model 60 front axle has lock­
ing hubs that must
be
engaged
for
4WD operation.
The steel cover provides
a
means
for
service with­
out removing
the
complete axle. A metal axle gear ratio identification
tag is at­

tached
to the
housing cover
via one of the
cover

bolts.
This
tag
also identifies
the
number
of
ring and
pinion gear teeth.
IDENTIFICATION Model
44 and 60
axles have
the
assembly part
number
and
gear ratio listed
on a
tag. The
tag
is at­

tached
to
the
left side
of
the housing cover (Fig.
3,
4).
Build date identification codes
on
axles
are
stamped
on
the
axle shaft tube cover side.

LUBRICANTS
Multi-purpose API
GL
5
quality hypoid gear lubri­
cant should
be
used
for
front axles. MOPAR Hypoid Gear Lubricant conforms
to
these specifications. The axle
has a
fitting
for a
vent hose used
to re­

lieve internal pressure. If the front axle
is
submerged
in
water,
the
lu­

bricant must
be
replaced immediately.

FRONT
SUSPENSION
AND
AXLE

•

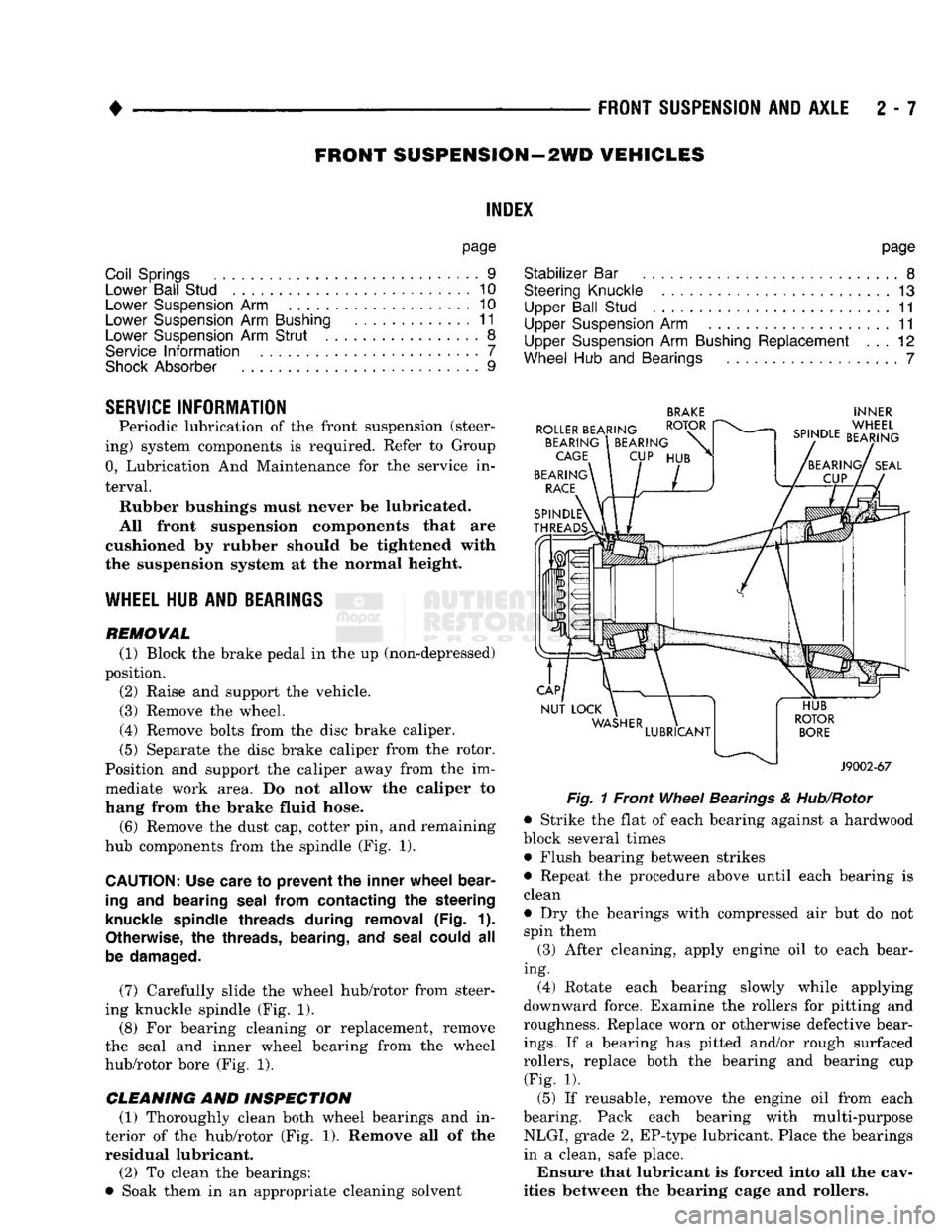

FRONT
SUSPENSION
AND
AXLE
2 • 7
FRONT SUSPENSION
—2WD
VEHICLES

INDEX

page

Coil Springs
9
Lower Ball Stud
. 10

Lower Suspension
Arm 10

Lower Suspension
Arm
Bushing
11

Lower Suspension
Arm
Strut
8

Service
Information
7

Shock
Absorber
9
page

Stabilizer
Bar 8

Steering Knuckle
13
Upper Ball Stud
11

Upper Suspension
Arm 11

Upper Suspension
Arm
Bushing Replacement
. . . 12

Wheel
Hub and
Bearings
7

SERVICE
INFORMATION
Periodic lubrication of the front suspension (steer­
ing) system components is required. Refer to Group 0, Lubrication And Maintenance for the service in­
terval.
Rubber bushings must never be lubricated.
All front suspension components that are
cushioned by rubber should be tightened with
the suspension system at the normal height.

WHEEL
HUB
AND
BEARINGS

REMOVAL (1) Block the brake pedal in the up (non-depressed)
position.
(2) Raise and support the vehicle.
(3) Remove the wheel.
(4) Remove bolts from the disc brake caliper.
(5) Separate the disc brake caliper from the rotor.
Position and support the caliper away from the im­
mediate work area. Do not allow the caliper to
hang from the brake fluid hose.
(6) Remove the dust cap, cotter pin, and remaining
hub components from the spindle (Fig. 1).

CAUTION:
Use care
to
prevent
the
inner wheel bear­
ing
and
bearing seal from contacting
the
steering
knuckle spindle threads during removal
(Fig. 1).

Otherwise,
the
threads, bearing,
and
seal could
all
be damaged.

(7) Carefully slide the wheel hub/rotor from steer­
ing knuckle spindle (Fig. 1).
(8) For bearing cleaning or replacement, remove
the seal and inner wheel bearing from the wheel
hub/rotor bore (Fig. 1).
CLEANING AND INSPECTION (1) Thoroughly clean both wheel bearings and in­
terior of the hub/rotor (Fig. 1). Remove all of the residual lubricant.
(2) To clean the bearings:
• Soak them in an appropriate cleaning solvent
BRAKE
INNER
Fig.
1 Front
Wheel
Bearings
&
Hub/Rotor

• Strike the flat of each bearing against a hardwood
block several times • Flush bearing between strikes
• Repeat the procedure above until each bearing is
clean
• Dry the bearings with compressed air but do not spin them
(3) After cleaning, apply engine oil to each bear­
ing. (4) Rotate each bearing slowly while applying
downward force. Examine the rollers for pitting and
roughness. Replace worn or otherwise defective bear­
ings.
If a bearing has pitted and/or rough surfaced
rollers, replace both the bearing and bearing cup (Fig. 1).
(5) If reusable, remove the engine oil from each
bearing. Pack each bearing with multi-purpose NLGI, grade 2, EP-type lubricant. Place the bearings
in a clean, safe place.
Ensure that lubricant is forced into all the cav­
ities between the bearing cage and rollers.

•

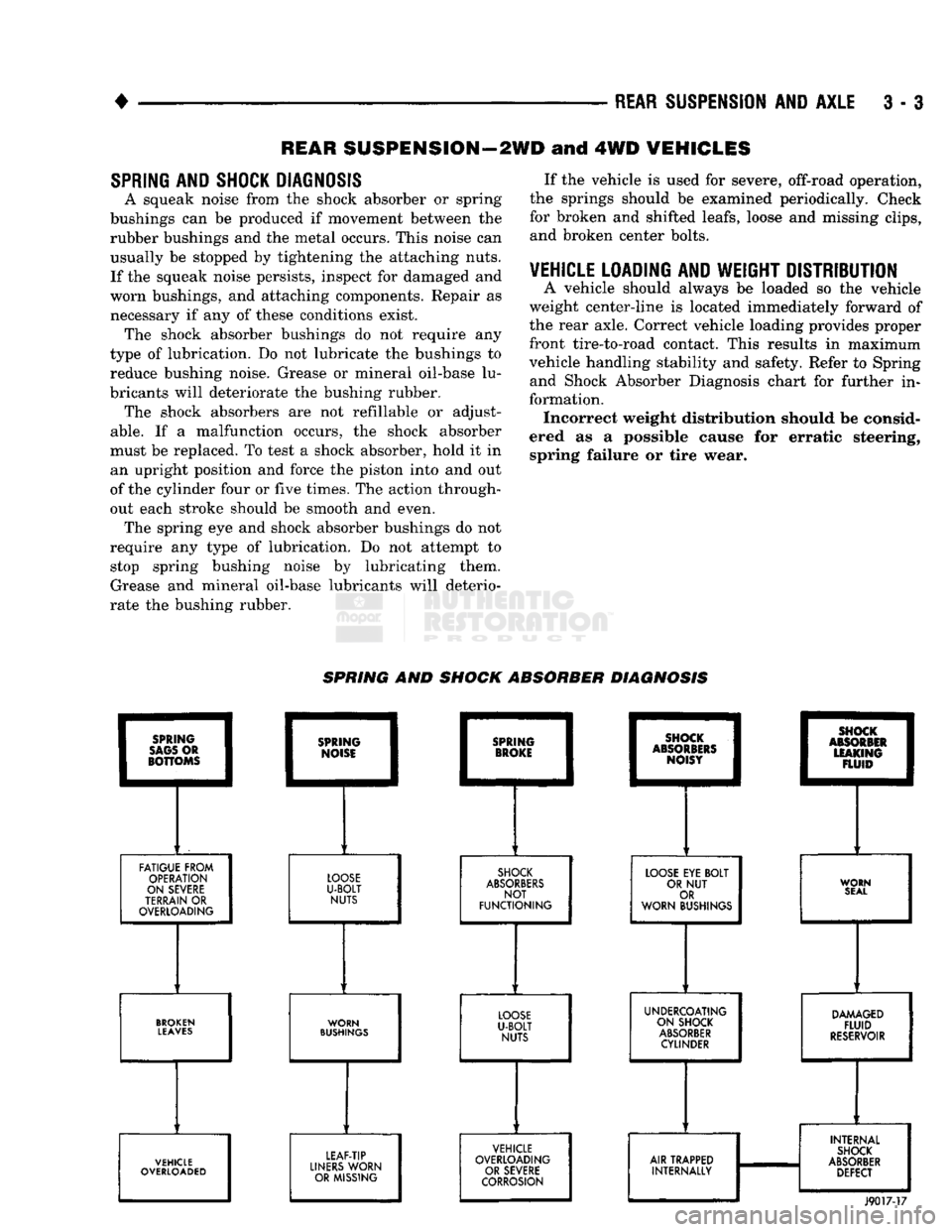

REAR
SUSPENSION
AND
AXLE
3 - 3
REAR SUSPENSION—2WD
and 4WD
VEHICLES

SPRING
AND
SHOCK DIAGNOSIS
A squeak noise from the shock absorber or spring
bushings can be produced if movement between the
rubber bushings and the metal occurs. This noise can usually be stopped by tightening the attaching nuts.
If the squeak noise persists, inspect for damaged and
worn bushings, and attaching components. Repair as
necessary if any of these conditions exist. The shock absorber bushings do not require any
type of lubrication. Do not lubricate the bushings to reduce bushing noise. Grease or mineral oil-base lu­
bricants will deteriorate the bushing rubber. The shock absorbers are not reflllable or adjust­

able.
If a malfunction occurs, the shock absorber
must be replaced. To test a shock absorber, hold it in an upright position and force the piston into and out
of the cylinder four or five times. The action through­
out each stroke should be smooth and even. The spring eye and shock absorber bushings do not
require any type of lubrication. Do not attempt to stop spring bushing noise by lubricating them.
Grease and mineral oil-base lubricants will deterio­
rate the bushing rubber. If the vehicle is used for severe, off-road operation,
the springs should be examined periodically. Check for broken and shifted leafs, loose and missing clips, and broken center bolts.

VEHICLE LOADING
AND
WEIGHT DISTRIBUTION
A vehicle should always be loaded so the vehicle
weight center-line is located immediately forward of
the rear axle. Correct vehicle loading provides proper
front tire-to-road contact. This results in maximum
vehicle handling stability and safety. Refer to Spring and Shock Absorber Diagnosis chart for further in­
formation. Incorrect weight distribution should be consid­
ered as a possible cause for erratic steering, spring failure or tire wear. SPRING AND SHOCK ABSORBER DIAGNOSIS

FATIGUE FROM
OPERATION
ON SEVERE
TERRAIN
OR

OVERLOADING
LOOSE

U-BOLT
NUTS
SHOCK

ABSORBERS
NOT

FUNCTIONING
LOOSE
EYE
BOLT
OR
NUT
OR
WORN BUSHINGS WORN

SEAL

BROKEN
LEAVES
WORN

BUSHINGS
UNDERCOATING
ON SHOCK
ABSORBER
CYLINDER
DAMAGED

FLUID

RESERVOIR

VEHICLE
OVERLOADED LEAF-TIP

LINERS
WORN OR MISSING VEHICLE
OVERLOADING OR SEVERE

CORROSION
AIR TRAPPED
INTERNALLY INTERNAL

SHOCK

ABSORBER
DEFECT

J9017-17

3
- 28
REAR
SUSPENSION
AND
AXLE

•
SURE-GRIP
DIFFERENTIAL
SERVICE

GENERAL
INFORMATION
The Sure-Grip differential
is an
option available
in

the
8 1/4 and 9 1/4
inch rear axles
(Fig. 1).
EXCITER
RING RING

GEAR
DIFFERENTIAL

CASE

BEARING BEARING

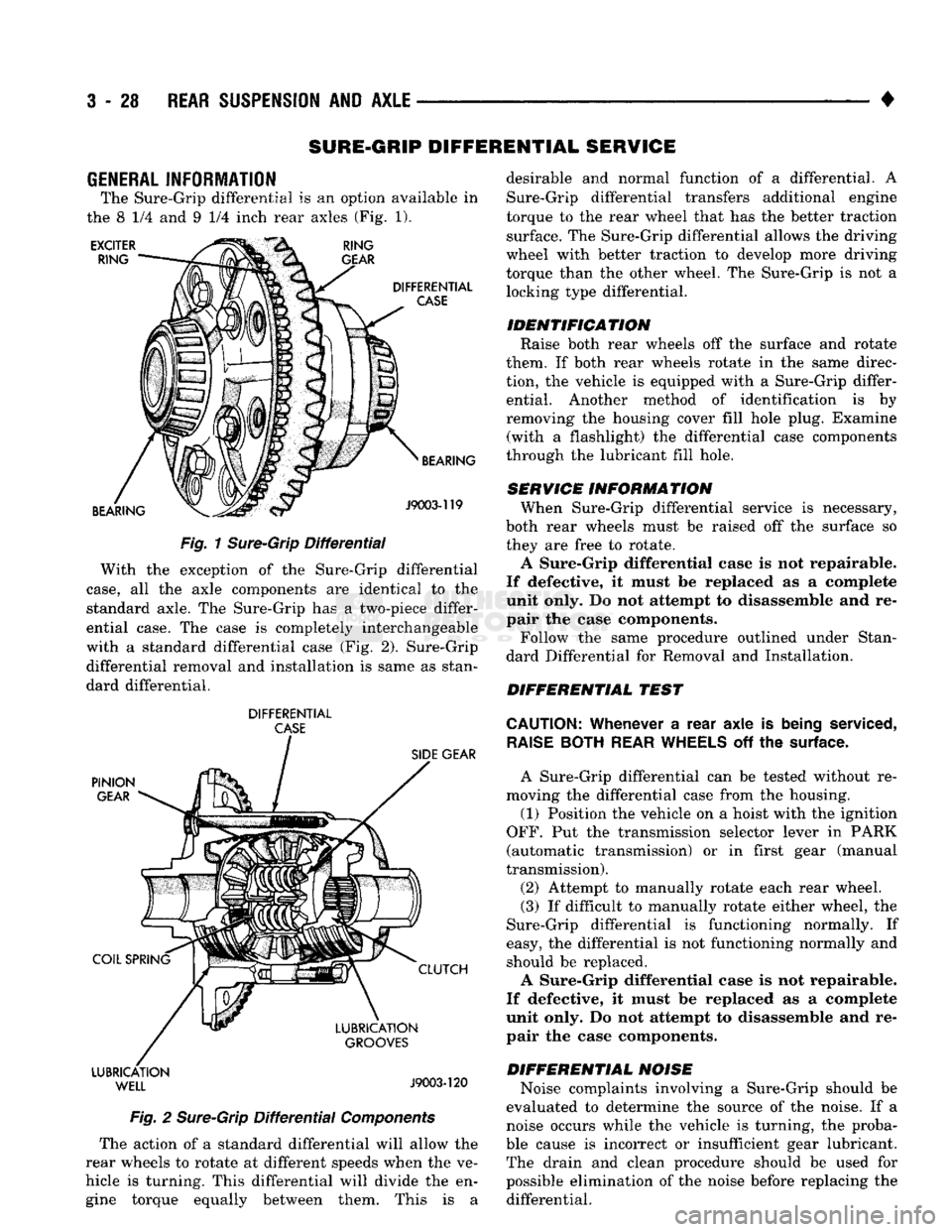

J9003-119
Fig.
1
Sure-Grip
Differential

With
the
exception
of the
Sure-Grip differential

case,
all the
axle components
are
identical
to the

standard axle.
The
Sure-Grip
has a
two-piece differ­
ential case.
The
case
is
completely interchangeable
with
a
standard differential case
(Fig. 2).
Sure-Grip differential removal
and
installation
is
same
as
stan­
dard differential.
DIFFERENTIAL

CASE

PINION
GEAR

COIL SPRING LUBRICATION
WELL
SIDE
GEAR

CLUTCH

LUBRICATION
GROOVES

J9003-120

Fig.
2
Sure-Grip
Differential
Components
The action
of a
standard differential will allow
the

rear wheels
to
rotate
at
different speeds when
the ve­

hicle
is
turning. This differential will divide
the en­
gine torque equally between them. This
is a
desirable
and
normal function
of a
differential.
A

Sure-Grip differential transfers additional engine
torque
to the
rear wheel that
has the
better traction surface.
The
Sure-Grip differential allows
the
driving
wheel with better traction
to
develop more driving
torque than
the
other wheel.
The
Sure-Grip
is not a
locking type differential.
IDENTIFICATION Raise both rear wheels
off the
surface
and
rotate
them.
If
both rear wheels rotate
in the
same direc­
tion,
the
vehicle
is
equipped with
a
Sure-Grip differ­ ential. Another method
of
identification
is by

removing
the
housing cover fill hole plug. Examine (with
a
flashlight)
the
differential case components
through
the
lubricant fill hole.
SERVICE INFORMATION When Sure-Grip differential service
is
necessary,
both rear wheels must
be
raised
off the
surface
so
they
are
free
to
rotate.
A Sure-Grip differential case
is not
repairable.
If defective,
it
must
be
replaced
as a
complete
unit only.
Do not
attempt
to
disassemble
and re­

pair
the
case components.
Follow
the
same procedure outlined under Stan­
dard Differential
for
Removal
and
Installation.
DIFFERENTIAL TEST

CAUTION:
Whenever
a
rear axle
is
being
serviced,
RAISE
BOTH
REAR
WHEELS
off the
surface.
A Sure-Grip differential
can be
tested without
re­

moving
the
differential case from
the
housing.
(1) Position
the
vehicle
on a
hoist with
the
ignition

OFF.
Put the
transmission selector lever
in
PARK
(automatic transmission)
or in
first gear (manual
transmission).
(2) Attempt
to
manually rotate each rear wheel.
(3)
If
difficult
to
manually rotate either wheel,
the

Sure-Grip differential
is
functioning normally.
If

easy,
the
differential
is not
functioning normally
and
should
be
replaced.
A Sure-Grip differential case
is not
repairable.
If defective,
it
must
be
replaced
as a
complete
unit only.
Do not
attempt
to
disassemble
and re­

pair
the
case components.
DIFFERENTIAL NOISE Noise complaints involving
a
Sure-Grip should
be

evaluated
to
determine
the
source
of the
noise.
If a

noise occurs while
the
vehicle
is
turning,
the
proba­
ble cause
is
incorrect
or
insufficient gear lubricant. The drain
and
clean procedure should
be
used
for

possible elimination
of the
noise before replacing
the
differential.
