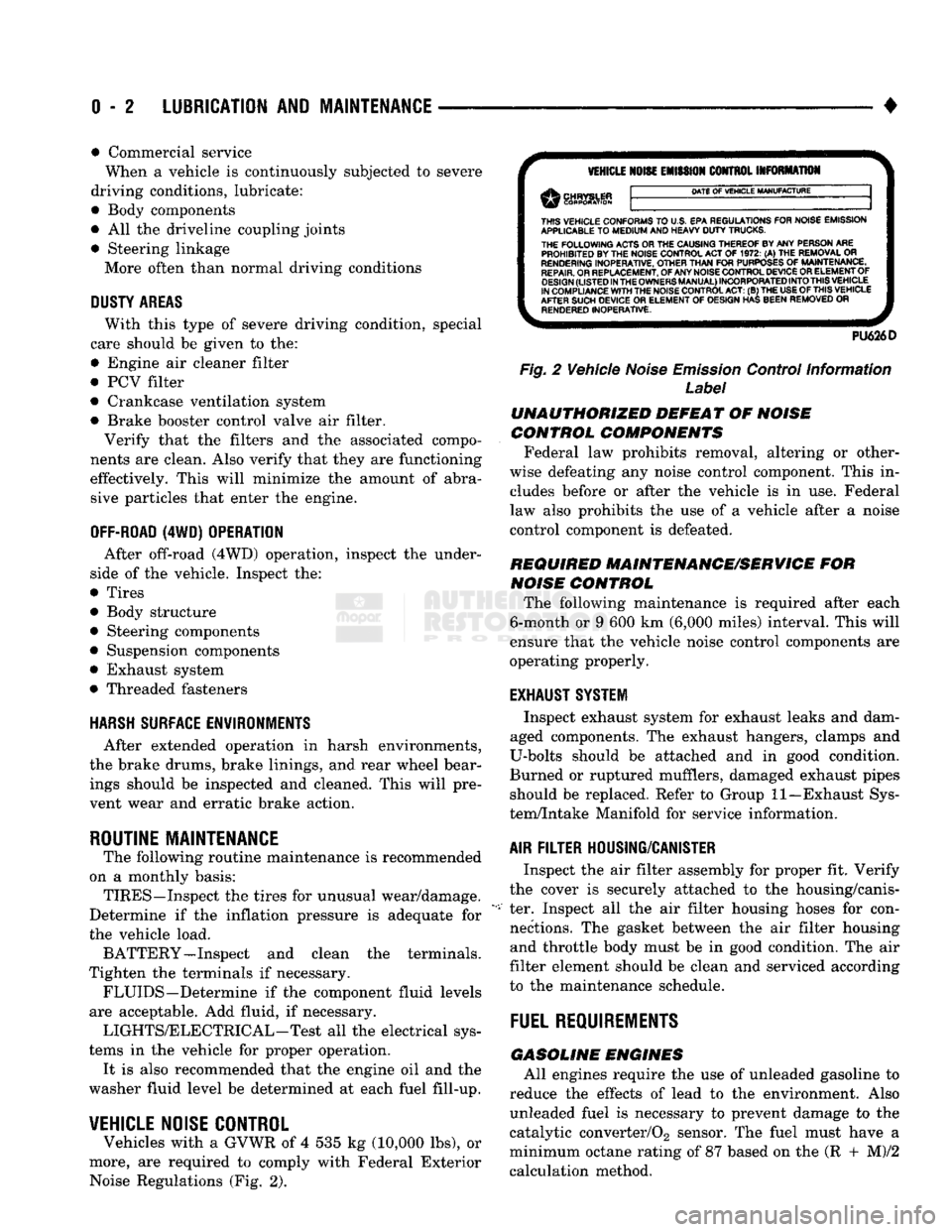

0 - 2
LUBRICATION
AND
MAINTENANCE

• Commercial service
When a vehicle is continuously subjected to severe
driving conditions, lubricate:
• Body components
• All the driveline coupling joints
• Steering linkage More often than normal driving conditions

DUSTY
AREAS
With this type of severe driving condition, special
care should be given to the:
• Engine air cleaner filter
• PCV filter
• Crankcase ventilation system
• Brake booster control valve air filter. Verify that the filters and the associated compo­
nents are clean. Also verify that they are functioning
effectively. This will minimize the amount of abra­ sive particles that enter the engine.

OFF-ROAD
(4WD)
OPERATION
After off-road (4WD) operation, inspect the under­
side of the vehicle. Inspect the:
• Tires
• Body structure
• Steering components
• Suspension components • Exhaust system
• Threaded fasteners

HARSH
SURFACE ENVIRONMENTS
After extended operation in harsh environments,
the brake drums, brake linings, and rear wheel bear­ ings should be inspected and cleaned. This will pre­
vent wear and erratic brake action.

ROUTINE MAINTENANCE
The following routine maintenance is recommended
on a monthly basis: TIRES—Inspect the tires for unusual wear/damage.
Determine if the inflation pressure is adequate for
the vehicle load. BATTERY—Inspect and clean the terminals.
Tighten the terminals if necessary. FLUIDS—Determine if the component fluid levels
are acceptable. Add fluid, if necessary. LIGHTS/ELECTRICAL—Test all the electrical sys­
tems in the vehicle for proper operation. It is also recommended that the engine oil and the
washer fluid level be determined at each fuel fill-up.

VEHICLE
NOISE CONTROL
Vehicles with a GVWR of 4 535 kg (10,000 lbs), or
more, are required to comply with Federal Exterior Noise Regulations (Fig. 2).
VEHICLE
NOISE
EMISSION
CONTROL INFORMATION

DATE
OF
VEHICLE
MANUFACTURE

THIS
VEHICLE CONFORMS
TO
U.S. EPA REGULATIONS FOR NOISE EMISSION

APPLICABLE
TO
MEDIUM
AND HEAVY
DUTY
TRUCKS. THE
FOLLOWING
ACTS OR THE CAUSING THEREOF BY ANY PERSON ARE PROHIBITED BY THE NOISE CONTROL ACT
OF 1972. (A) THE
REMOVAL
OR

RENDERING
INOPERATIVE, OTHER
THAN
FOR
PURPOSES
OF
MAINTENANCE,
REPAIR.
OR REPLACEMENT, OF ANY NOISE CONTROL DEVICE OR ELEMENT OF
DESIGN
(LISTED
IN
THE
OWNERS
MANUAL)
INCORPORATED
INTO
THIS
VEHICLE
IN COMPLIANCE
WITH
THE NOISE CONTROL
ACT:
(B) THE
USE
OF
THIS
VEHICLE
AFTER SUCH DEVICE
OR
ELEMENT
OF
DESIGN HAS BEEN REMOVED
OR
RENDERED
INOPERATIVE.

PU626D

Fig.
2 Vehicle
Noise
Emission
Control Information
Label

UNAUTHORIZED
DEFEAT
OF
NOISE
CONTROL COMPONENTS
Federal law prohibits removal, altering or other­
wise defeating any noise control component. This in­
cludes before or after the vehicle is in use. Federal
law also prohibits the use of a vehicle after a noise
control component is defeated.

REQUIRED MAINTENANCE/SERVICE
FOR
NOISE
CONTROL

The following maintenance is required after each
6-month or 9 600 km (6,000 miles) interval. This will
ensure that the vehicle noise control components are
operating properly.

EXHAUST SYSTEM
Inspect exhaust system for exhaust leaks and dam­
aged components. The exhaust hangers, clamps and
U-bolts should be attached and in good condition.
Burned or ruptured mufflers, damaged exhaust pipes should be replaced. Refer to Group 11—Exhaust Sys­
tem/Intake Manifold for service information.

AIR
FILTER
HOUSING/CANISTER
Inspect the air filter assembly for proper fit. Verify
the cover is securely attached to the housing/canis­
ter. Inspect all the air filter housing hoses for con­ nections. The gasket between the air filter housing and throttle body must be in good condition. The air
filter element should be clean and serviced according
to the maintenance schedule.

FUEL
REQUIREMENTS
GASOLINE
ENGINES
All engines require the use of unleaded gasoline to
reduce the effects of lead to the environment. Also unleaded fuel is necessary to prevent damage to the
catalytic converter/02 sensor. The fuel must have a
minimum octane rating of 87 based on the (R + M)/2
calculation method.

•

LUBRICATION AND MAINTENANCE
0 - 3
CAUTION: UNLEADED FUEL ONLY must
be
used
in

vehicles equipped
with
a
catalyst emission
control

system.
All
vehicles have reminders
printed
on the
instrument
panel below
the
fuel
gauge
and on the

fuel
filler
door.
The
vehicles also have
fuel
filler

tubes
that
are
specially designed
to
accept only
the
small-diameter nozzles.
It is
illegal
to
bypass
the

design
of an
unleaded
fuel
filler
tube.

DIESEL ENGINES All
Ram
Truck
and Ram
Cab/Chassis Diesel
en­

gines normally
can use
number
2D
Diesel fuel
for

most year-round operations.
A
fuel conforming
to

ASTM Specification D-975
is
recommended.
For ex­

treme cold-weather, number
ID
Diesel fuel
is
recom­ mended.

CLASSIFICATION
OF
LUBRICANTS
Lubricating fluids
and
chassis lubricants
are
clas­
sified according
to
standards recommended
by the:
• Society
of
Automotive Engineers
(SAE)

• American Petroleum Institute
(API)

• National Lubricating Grease Institute (NLGI)
ENGINE
OIL

SAE
VISCOSITY
GRADE
An
SAE
viscosity grade
is
used
to
specify
the
vis­
cosity
of
engine
oil. SAE 30
specifies
a
single viscos­
ity engine
oil.

Engine oils also have multiple viscosities. These
are specified with
a
dual
SAE
viscosity grade which
indicates
the
cold-to-hot temperature viscosity range (Fig.
3).

API
SERVICE
GRADE
The
API
Service Grade specifies
the
type
of
perfor­
mance
the
engine
oil is
intended
to
provide.
The API
Service Grade specifications also apply
to
energy con­
serving engine oils
(Fig. 3).

For maximum gasoline engine protection,
use API

Service Grade
SG,
SG/CD
or
SG/CE engine
oil.

For maximum Diesel engine protection,
use

API Service
CE or
SG/CE engine
oil.

GEAR LUBRICANTS A dual grade
is
also used
to
specify
the
viscosity
of

multi-purpose gear lubricants.
The
API
grade designation identifies gear lubri­
cants
in
terms
of
recommended usage.
OIL

QUALITY

SAE

VISCOSITY
GRADE

FUEL

ECONOMY

NOTATION
J91004

Fig.
3 SAE Oil
Viscosity Grade
& API
Service
Grade
CHASSIS COMPONENT
AND
WHEEL BEARING
LUBRICANTS The chassis
and
wheel bearing lubricants
are
iden­
tified
by the
NLGI Certification Symbol.
The
symbol
contains
a
coded designation. This identifies
the us­
age
and
quality
of the
lubricant.
The letter
G
within
the
symbol designates wheel
bearing lubricant.
The
letter
L
designates chassis
lu­

bricant. When
the
letters
are
combined,
the
lubricant can
be
used
for
dual applications.
Use
only lubricants
that display
the
NLGI Certification Symbol.

NATIONAL LUBRICATING
GREASE
INSTITUTE
NLGI

AUTOMOTIVE
WHEEL BEARING
&
CHASSIS LUBRICANT
GC-LB

-CERTIFICATION

SYMBOL
—
USAGE
AND

QUALITY
DESIGNATION
J920W7

Fig.
4
NLGI
Lubricant Container
Certification/
Identification
Symbol
LUBRICATION
AND
REPLACEMENT
PARTS

RECOMMENDATION
Ram Trucks
are
engineered
to
provide many years
of dependable operation. However, lubrication service
and maintenance
are
required
for
each vehicle. When
necessary, MOPAR®brand lubricants
and
genuine
re­

placement parts
are
recommended.

0 - 6
LUBRICATION
AND
MAINTENANCE
GASOLINE ENGINE MAINTENANCE SCHEDULE

HEAVY
DUTY
CYCLE

Inspection and service is also necessary anytime
a
malfunction is observed or suspected.
When both
time
and mileage
are
Miles (Thousand)

shewn,
follow
the
interval

which occurs first. Kilometers (Thousand) 6
12 18 24
30 36 42 48 54
60 66 72

78
82V2
84 90
96
102 108
When both
time
and mileage
are
Miles (Thousand)

shewn,
follow
the
interval

which occurs first. Kilometers (Thousand) 9.6 19 29
38 48 58 67 77
85 96 106 116
125 132
135
145
154 164
174

Coolant
Condition, Coolant
Hoses/Clamps
X
X X X
X X X X
X X X X
X X X
X X X

Exhaust
System
—
Check
X X X X X X X X X X X
X X X X X
X X

Oil
—
Change
(6
Months)
X X X X X X X
X X

X
X
X

X X X

X X
X

Oil
Filter
—
Change (2nd
Oil
Change)
X X X X
X X
X X
X

Drive Belt Tension
—
Inspect
&
Adjust
X' X
X1

X X' X

Drive Belts (V-Type)
—
Replace
X

Air
Filter/Air
Pump
Air
Filter
—
Replace
X X X
X

Crankcase
Inlet
Air
Filter
(6 &
8
Cyl.
Eng.
Only)
—
Clean
X X
X X

Spark
Plug
—
Replace
X X X

Fuel
Filter
—
Replace as necessary

Coolant
—
Flush/Replace
(36
months)
& 24
months/48
000 km

(30,000
miles)
thereafter
X
EGR
Valve
&
Tube
—
Replace X2

EGR
Tube
—
Clean Passengers
X2
PCV
Valve
—
Replace X2

Vacuum
Emission
Components
—
Replace
X

Ignition Timing
—
Adjust
to
Specs,
as necessary X
Ignition Cables, Distributor Cap
&
Rotor
—
Replace
X

Manifold Heat Control Valve
—
Lubricate
X

Battery
—
Replace X

Oxygen
Sensor
—
Replace
X2

1 For California vehicles, this maintenance is recommended
by
Chrysler Motors
to the
owner but, is not
required
to
maintain the
warranty
on the
air
pump drive
belt.

2 Requires
Emission
Maintenance Reminder Light.
If
so equipped, these parts
are to be
replaced
at the
indicated mileage,
or
when the
emissions
maintenance reminded light remains on continuously
with
the key in the
"on" position, whichever occurs first.
J9100-20

DIESEL
ENGINE
MAINTENANCE
SCHEDULE
HEAVY
DUTY
CYCLE
Inspection
and
service
is
also
necessary
any
time
a
malfunction
is
observed
or
suspected.

Iff both
time
and distance Miles (Thousand)
are listed, use the
interval

that
ends
first. Kilometers (Thousand) 6
12
18 24
30 36 42

4S
54
60 66
72 78
84 90 96
102 108
Iff both
time
and distance Miles (Thousand)
are listed, use the
interval

that
ends
first. Kilometers (Thousand) 9,6 19
29
38 48 58 67

77

85 96 106
116 125 135 145 154
164 174

Coolant
Condition, Coolant
Hoses/Clamps
(12 months)

Coolant
Flush/Replace (36 months) & 24 months/
48 000 km
(30,000
miles)
thereafter
O

Oil—Change
(6 months)
X X X
X X X
X X X X X
X X X X X X
X

Oil Filter—Replace (Every Oil Change)
X X X
X X X
X X
X X X
X
X X X X
X X

Drive Belts—Replace
As
Necessary
X X
X X X X

Air Filter—Replace
X X
X X

Air Filter—Clean (California Only) e

®

• •
Air
Filter
Canister—Clean
o o o
o

Fuel Filter—Service When Necessary

Injection
Pump
Timing & Engine Idle Speed—

Check
& Adjust
©

• 9 • • •
Underhood Rubber/Plastic Components—Inspect/Replace • • • • •

X
— All vehicles
O
— All
vehicles
except
California.
Recommended
for
California.
•
— California only.
Recommended
for all vehicles.

CHASSIS LUBRICATION

For light
duty
cycle
vehicles
GVW resting
of
3 855 Kg (8,500 lbs ) and
below.
Component
Truck Models
Fittings
Service Interval Lubricant

Center Link
AD1
AD2

AD
4
2

36
000
km
(22,500
miles)
or 2
years Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Mileage Lubricant)

Drag
Link
Bali
joints
AW1 AW 2
AW
8
2

12
000
km
(7,500
miles)
or 6
months Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Mileage Lubricant)

Gearshift
Mechanism
Overdrive
4
AD1
1
36
000
km
(22,500
miles)
or 2
years Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)
Parking Brake Ratio
Lever
Pivot
AD1 AD
2 AD 4

AW1 AW 8
—

36
000
km
(22,500
miles)
or 2
years
Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)
Propeller Shaft
U-joint
AW1
AW2

AW 8
3
(1
Piece

rear

P/shaft)
12
000
km
(7,500
miles)
or 6
months
Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)
Propeller Shaft
Slip
Spline
AD1 AD
2

(2
piece P/shaft)
1

36
000
km
(22,500
miles)
or 2
years. For severe
service,
every
4
800
km
(3,000
miles)
or 3
months. Daily,
if
vehicle is operated in
water
Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)

Suspension
Ball Joints
AD1 AD
2

4
36
000
km
(22,500
miles) or 2 years
—
every
engine
oil change
for
off-highway operation Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Mileage Lubricant)
Tie Rod Ball Joints
AD1
AD2

AD4
AW1 AW
2

AW8 4
2

36
000
km
(22,500
miles)
or 2
years

12
000
km
(7,500
miles)
or 6
months. Daily,
if

vehicle is operated in
water
Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Mileage Lubricant)
NP-241 Transfer
Case
Shift
Lever Pivot
AW1
AW2

AW8
—

As
Required
Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)

Wheel
Stop
AD1 AD
2
AD4
—
36
000
km
(22,500
miles)
or
as
required
Wax Type Lubricant

Constant
Velocity Joint
(Front
P/shaft)
AW1
AW2

AW8 1

12
000
km
(7,500
miles) Multi-purpose grease
-
NGLI
grade
2
EP
(Multi-Purpose Lubricant)
>

J9000-59

>

LUBRICATION
AND
MAINTENANCE
0-11

J
DRIVE-ON
HOIST

I
FRAME
CONTACT
HOIST
TWIN
POST
CHASSIS
HOIST

FLOOR
JACK
RROOD30
Fig.
8 Correct Vehicle Lifting
Locations
An axle tube
A body side sill
A steering linkage component
A drive shaft
The engine or transmission oil pan
The fuel tank
• A front suspension arm Use the correct frame rail lifting locations only
(Fig. 8).
HOIST A vehicle can be lifted with:
• A single-post, frame-contact hoist
• A twin-post, chassis hoist
• A ramp-type, drive-on hoist
When a frame-contact type hoist is used, verify
that the lifting pads are positioned properly (Fig. 8).

WARNING:
WHEN
A
SERVICE
PROCEDURE
RE­
QUIRES
THE
REMOVAL
OF
THE
REAR
AXLE,
FUEL

TANK,
OR
SPARE
TIRE,
EITHER:

• PLACE ADDITIONAL WEIGHT ON THE REAR
END OF THE VEHICLE
« ATTACH THE VEHICLE TO THE HOIST
« PLACE JACK STANDS UNDER THE VEHICLE
FOR SUPPORT TO PREVENT TIPPING WHEN
THE CENTER OF BALANCE CHANGES
4WD VEHICLES A standard hoist can be used to lift a 4WD vehicle.
The hoist should be inspected for adequate clearance. The lift arms, pads or ramps should be adjusted to
ensure that there is adequate clearance (Fig. 9).
ADJUSTMENT
PAD

ii 7
MAINTAIN
CLEARANCE
HOIST
ARM

RK44

Fig.
9 Lifting 4WD Vehicle
With
Single-Post
Hoist—
Typical
When a twin-post hoist is used, a 4 x 4 x 12-inch
wood spacer also could be required. Place the wood spacer under the front axle (opposite the differential
housing). This will maintain balance and level lift­ ing.

CAUTION:
The
block
that
is
used must
be
secured in
a
safe manner. This
will
ensure
that
it
will
not un­

balance
the
vehicle.
VEHICLE
TOWING
RECOMMENDATIONS
When it is necessary to tow a Ram Truck, the rec­
ommended method is either:
• the sling-type, rear-end raised towing method; or
• the wheel-lift towing method with a tow dolly lo­
cated under the front wheels. A vehicle with flat-bed hauling equipment can also
be used to transport a disabled vehicle.

SLING-TYPE
FLAT
BED
RR0OD29
Fig.
10 Tow Vehicles
With
Approved
Equipment

0 - 12
LUBRICATION
AND
MAINTENANCE

• A vehicle equipped with SAE approved sling-type
towing equipment can be used (Fig. 10). However,
many vehicles are equipped with air dams, spoilers, and/or ground effect panels. In this case a wheel-lift
towing vehicle or a flat-bed hauling vehicle is recom­ mended (Fig. 10). If a flat bed device is used, the ap­
proach angle should not exceed 15 degrees.
GROUND CLEARANCE The lifted wheels of the disabled vehicle should be
a minimum of 10 cm (4 in.) off the ground. Make
sure there is enough clearance at the opposite end.
This is critical when towing over rough terrain. If necessary, the rear ground clearance can be in­creased by removing the wheels from the lifted end
and then towing with the lifted end closer to the
ground. If the rear wheels are removed, secure the
brake drums. A 20 cm (8 in.) ground clearance must
be maintained between brake drums or rotors and the ground.
SAFETY PRECAUTIONS The following safety precautions must be consid­
ered when preparing for and during a vehicle towing operation:
• Remove exhaust pipe tips that interfere with the
tow sling and crossbar • Padding should be placed between the tow sling/
crossbar and any painted surfaces
• If the vehicle is damaged, secure the loose and pro­
truding parts
• Always use a safety chain system that is indepen­ dent of the lifting and towing equipment
• When placing tow hooks on the rear axle, position them so they do not damage the brake tubing or
hoses
• Do not allow any of the towing equipment to con­
tact the fuel tank
• Do not tow the vehicle by connecting to the front
or rear shock absorbers
• The operator should not go under a vehicle while
it is lifted by the towing equipment. The vehicle
should first be supported by safety stands
• Do not allow passengers in a vehicle being towed
• Observe all state and local laws involving warning signals, night illumination, speed, etc.
• Do not exceed a towing speed of 48 km/h (30 mph)
• Avoid towing distances of more than 24 km (15
miles) whenever possible • Do not attach tow chains or a tow sling to a
bumper, the steering linkage, the universal joints, or a drive shaft
REAR-END RAISED TOWING It is recommended that the rear-end raised towing
method be used. Vehicles can be towed with the front
wheels on the ground for extended distances at speeds not exceeding 48 km/h (30 mph) (Fig. 11). (1) Attach the J-hooks around the axle shaft tubes
outboard of the rear springs. (2) Position and center the sling under and for­
ward of the rear bumper. (3) Attach safety chains (with pads) at each end of
the rear bumper.
(4) Turn the ignition switch to the OFF position to
unlock the steering wheel. (5) Clamp the steering wheel with the front wheels
in the straight ahead position.

CAUTION:
Do not use the steering
column
lock
to

secure
front
wheel
in the straight-ahead
position.

(6) Shift the transmission to NEUTRAL.

POSITION CENTER BAR FORWARD
OF
BUMPER
-
/
J-HOOKS OUTBOARD
OF
SPRINGS
RN967A

Fig. 11 Rear-End
Raised
Towing
FRONT'END RAISED TOWING If a vehicle cannot be towed from the rear, the
front-end raised towing method normally can be
used (Fig. 12). (1) Center the sling with the bumper and position
it at the frame front crossmember.

CAUTION:
Use tow
chains
with
J-hooks
for
con­
necting
to the
disabled
vehicle's
lower
suspension
arms.
Never use
T-hooks.

(2) Route the J-hooks and tow chains over the
steering linkage outboard of the coil spring.
(3) Attach the J-hooks to the outer end of the
lower suspension arms.
(4) Raise the vehicle.
(5.) Attach the safety chains to the disabled vehicle
at the frame rails.
Vehicles equipped with a MANUAL TRANSMIS­
SION can be towed with the rear wheels on the

0 - 14
LUBRICATION
AND
MAINTENANCE

•
ENGINE
MAINTENANCE

INDEX

page
Air
Injection
Systems/Air Pump
. 17

Air-Conditioner
Compressor
21
Battery
19

Cooling System
15

Crankcase
Ventilation
System
17
Diesel Engine
Air Filter
Canister
17

Drive Belts
20
Engine
Air
Cleaner
Filter
Element
16

Engine Break-In
14

Engine
Oil 14

Engine
Oil
Change
and Filter
Replacement
15

Exhaust Gas
Recirculation
(EGR) System
...... 19
page
Exhaust
Manifold
Heat
Control
Valve
. 17
Exhaust System
, 21

Fuel System
18

Hoses
and
Fittings
16
Ignition
Cables,
Distributor
Cap and
Rotor
...... 19

Ignition
Timing
. 19

Oxygen
(02)
Sensor
19
Rubber/Plastic Components
20

Spark Plugs
. 19

Throttle
Control
Linkage
18

Vacuum Operated, Emission
Control
Components
19

ENGINE BREAK-IN
After first starting a new engine, allow it to idle
for 15 seconds before shifting into a drive gear. Also:
• Drive the vehicle at varying speeds less than 88
km/h (55 mph) for the first 480 km (300 miles).
• Avoid fast acceleration and sudden stops.
• Do not drive at full-throttle for extended periods of
time
• Do not drive at constant speeds
• Do not idle the engine excessively A special break-in engine oil is not required. The
original engine oil installed is a high quality lubri­
cant. New engines tend to consume more fuel and oil un­
til after the break-in period has ended.

ENGINE
OIL SPECIFICATIONS

API SERWICE
GRADE
Use an engine oil that conforms to API Service
Grade S5 SG/CD or SG/CE. MOPAR®provides engine
oils that conform to all of these service grades.

SULFATED ASH—DIESEL ENGINES
Oils that contain an excessive amount of sulfated
ash can cause deposits to develop on Diesel engine
valves. These deposits can result in valve wear.

SAE
WISC0SITY
An SAE viscosity grade is used to specify the vis­
cosity of engine oil. SAE 30 specifies a single viscos­
ity engine oil.
Engine oils also have multiple viscosities. 10W-30

<
5W-30

1
1 1

F
-20 0 10 20 32 60 80 100

C
-29 -18 -12 -7 0 16 27 38
ANTICIPATED
TEMPERATURE RANGE BEFORE
NEXT
OIL
CHANGE
J9000-39

Fig.
1 Temperature/Engine Oil Viscosity—Gasoline
Engines

-12°C
-18°C 10°F
0°F- 15W-40

-23°c(^-10eF

I
10W-30
WITH
WITHOUT
BLOCK HEATER
BLOCK
SYNTHETIC
OIL

HEATER
10W-30 5W-30

J9100-29

Fig.
2 Temperature/Engine Oil Viscosity—Diesel
Engines

ENERGY
G0NSERWING
OIL
An Energy Conserving type oil is recommended for
gasoline engines. They are designated as either EN­
ERGY CONSERVING or ENERGY CONSERVING

II.
OIL
LEVEL
INDICATOR (DIPSTICK)

GASOLINE ENGINES
The engine oil indicator is located at the right
front of the engine.

•

LUBRICATION
AND
MAINTENANCE
0 - 15
DIESEL
ENGINES

The Diesel engine oil level indicator is located at
the left center of the engine, above the
fuel
injection

pump (Fig. 3).

Fig.
3
Diesel
Engine
Oil
Dipstick

ACCEPTABLE
OIL
LEVEL
To maintain proper lubrication of an engine, the
engine oil must be maintained at an acceptable level.
For gasoline engines, the acceptable levels are indi­ cated between the ADD and
FULL
marks on oil
dip­
stick. For Diesel engines, the acceptable levels are
indicated between the L (low) and H
(high) marks
on
oil dipstick. The oil level should be checked periodically. The
vehicle should be on a level surface. Wait for
five
minutes after stopping the engine. For gasoline en­
gines,
add oil only when the level indicated on the
dipstick is at or below the ADD mark. For Diesel en­
gines,
add oil only when the level indicated on the
dipstick is between the L and H marks.
Never oper­
ate a Diesel
engine when
the oil
level
is below
the L mark. The distance between the L and H
marks represents 1.9L (2 Qts) engine oil.

CAUTION:
Do not
overfill
an
engine crankcase
with

oil. This
will
cause
oil
aeration
and
result
in a de­

crease
in the
engine
oil
pressure.
ENGINE
OIL
CHANGE AND FILTER REPLACEMENT

WARNING: PROTECTIVE CLOTHING
AND
GLOVES SHOULD
BE
WORN. EXPOSED SKIN SHOULD
BE

WASHED
WITH
SOAP
AND
WATER
TO
REMOVE
USED
ENGINE
OIL.
DO NOT
USE
GASOLINE, THIN­
NER,
OR
SOLVENTS
TO
REMOVE ENGINE
OIL

FROM
SKIN.
DO NOT
POLLUTE. DISPOSE
OF
USED
ENGINE
OIL
PROPERLY.
ENGINE
OIL
FILTER

All engines are equipped with a throw-away type
oil filter. The same type of filter is recommended
when the filter is changed.

OIL CHANGE
AND
FILTER
REPLACEMENT
Bring engine up to normal operating temperature.
A more complete drainage of oil will result.
(1) Remove the drain hole plug and drain the en­
gine oil from the crankcase.
(2) Install the drain hole plug with a replacement
gasket. For gasoline engines, the oil filter should be
replaced during every second engine oil change.
For Diesel engines, the oil filter should be re­
placed during every engine oil change.
(3) Rotate the oil filter counterclockwise to remove
it.
(4) Clean the engine cylinder block oil filter boss. (5) Apply a light coat of new engine oil to the rub­
ber seal on the oil filter.
(6) Install and hand tighten the oil filter 1/2 to 3/4
of a turn clockwise. (7) Add new engine oil at the fill hole location on
top of the engine cylinder head cover. Wipe off any spilled oil.
(8) Observe the oil level on the dipstick.

CAUTION:
Do not
overfill
the
engine crankcase
with

oil.
(9)
Start the engine. Observe the oil pressure
gauge or warning lamp (as applicable). If the oil
pressure does not increase, stop the engine immedi­ ately. Check oil level.

COOLING SYSTEM

WARNING:
USE
EXTREME CAUTION WHEN
THE
ENGINE
IS
OPERATING.
DO NOT PUT
YOUR
HANDS NEAR
THE
DRIVE BELT(S), PULLEYS
OR
FAN BLADE.
DO NOT
STAND
IN A
DIRECT LINE
WITH
THE FAN
BLADE.

INSPECTION SCHEDULE
Determine the coolant level. Inspect the cooling
system hoses/clamps after each service interval has
elapsed.

COOLANT LEVEL
It is recommended that the engine coolant level be
inspected at least once a month during periods of hot
weather.
With the engine at normal operating temperature,
check the coolant level in the coolant reserve tank.
The coolant level must be at least above the ADD mark. Add coolant to the coolant reserve tank only.
