IGNITION SYSTEMS
80-17
or punctured, there will
be a
noticeable spark jump
from
the
damaged area
to the
test probe.
The
cable
running from
the
ignition coil
to the
distributor
cap

can
be
checked
in the
same manner. Cracked, dam­ aged
or
faulty cables should
be
replaced with resis­
tance type cable. This
can be
identified
by the
words ELECTRONIC SUPPRESSION printed
on the
cable
jacket.
Use
an
ohmmeter
to
test
for
open circuits, exces­
sive resistance
or
loose terminals. Remove
the
dis­
tributor
cap
from
the
distributor.
Do not
remove cables from
cap.
Remove cable from spark plug.
Connect ohmmeter
to
spark plug terminal
end of ca­

ble
and to
corresponding electrode
in
distributor
cap.
Resistance should
be 250 to 1000
Ohms
per
inch
of

cable.
If not,
remove cable from distributor
cap
tower and connect ohmmeter
to the
terminal ends
of
cable.
If resistance
is not
within specifications
as
found
in

the Spark Plug Cable Resistance chart, replace
the
cable. Test
all
spark plug cables
in
this manner.

SPARK
PLUG CABLE RESISTANCE
MINIMUM

MAXIMUM

250
Ohms
Per
Inch
1000
Ohms
Per
Inch

3000
Ohms
Per
Foot
12,000
Ohms
Per
Foot

J908D-43 To test ignition coil-to-distributor
cap
cable,
do not

remove
the
cable from
the cap.
Connect ohmmeter
to

rotor button (center contact)
of
distributor
cap and

terminal
at
ignition coil
end of
cable.
If
resistance
is
not within specifications
as
found
in the
Spark Plug
Cable Resistance chart, remove
the
cable from
the

distributor
cap.
Connect
the
ohmmeter
to the
termi­
nal ends
of the
cable.
If
resistance
is not
within spec­
ifications
as
found
in the
Spark Plug Cable
Resistance chart, replace
the
cable. Inspect
the
igni­
tion coil tower
for
cracks, burns
or
corrosion.
For removal
and
installation
of
spark plug cables,
refer
to
Spark Plug Secondary Cables
in the
Compo­ nent Removal/Installation section.
THROTTLE POSITION
SENSOR
TEST

To perform
a
complete test
of
this sensor
and its

circuitry, refer
to the DRB II
diagnostic scan tool.
Also refer
to the
appropriate Powertrain Diagnostics
Procedures manual.
To
test
the
sensor only, refer
to

the following: The throttle position sensor
can be
tested with
a

digital voltmeter.
The
center terminal
of the
sensor
connector
is the
output terminal
(Fig. 29).
MANIFOLD ABSOLUTE
Fig.
29
Sensor
Testing—Typical With
the
ignition
key in the ON
position
and en­

gine
not
running, check
the
sensor output voltage
at

the center terminal wire
of the
connector. Check this at idle (throttle plate closed)
and at
wide open throt­
tle (WOT).
At
idle, sensor output voltage should
be

greater than
200
millivolts.
At
wide open throttle, sensor output voltage must
be
less than
4,8
volts.
The output voltage should increase gradually
as the

throttle plate
is
slowly opened from idle
to WOT.

OXYGEN
SENSOR
TESTS
For diagnosis, removal
or
installation, refer
to

Group
14,
Fuel Systems
in
this manual.

IGNITION
SYSTEMS
80 - 21

DISTRIBUTOR
J9314-81
Fig.
7 Rotor Alignment Mark Fig. 8 Distributor Holddown Clamp

INSTALLATION
If engine has been cranked while distributor is re­
moved, establish the relationship between distributor shaft and number one piston position as follows:
Rotate crankshaft in a clockwise direction, as
viewed from front, until number one cylinder piston is at top of compression stroke (compression should
be felt on finger with number one spark plug re­ moved). Then continue to slowly rotate engine clock­
wise until indicating mark (Fig. 6) is aligned to 0
degree (TDC) mark on timing chain cover.
(1) Clean top of cylinder block for a good seal be­
tween distributor base and block.
(2) Lightly oil the rubber O-ring seal on the dis­
tributor housing.
(3) Install rotor to distributor shaft.
(4) Position distributor into engine to its original
position. Engage tongue of distributor shaft with slot in distributor oil pump drive gear. Position rotor to
the number one spark plug cable position.
(5) Install distributor holddown clamp and clamp
bolt. Do not tighten bolt at this time. (6) Rotate the distributor housing until rotor is
aligned to CYL. NO. 1 alignment mark on the cam­
shaft position sensor (Fig. 7).
(7) Tighten clamp holddown bolt (Fig. 8) to 22.5
N*m (200 in. lbs.) torque. (8) Connect camshaft position sensor wiring har­
ness to main engine harness. (9) Install distributor cap. Tighten mounting
screws.

IGNITION
COIL
The ignition coil is an epoxy filled type. If the coil
is replaced, it must be replaced with the same type.

REMOVAL
3.9L/5.2L/5.9L LDC-Gas Engines: The coil is
mounted to a bracket that is bolted to the front of
the right engine cylinder head (Fig. 9). This bracket is also used to mount the automatic belt tensioner.
5.9L HDC-Gas Engines: The coil is mounted to a
bracket that is bolted to the automatic belt tensioner mounting bracket (Fig. 10).

Fig.
9 Ignition Coil-3.9U5.2U5.9L
LDC-Gas
Engines
Fig.
10 Ignition Coil—5.9L
HDC-Gas
Engine

•

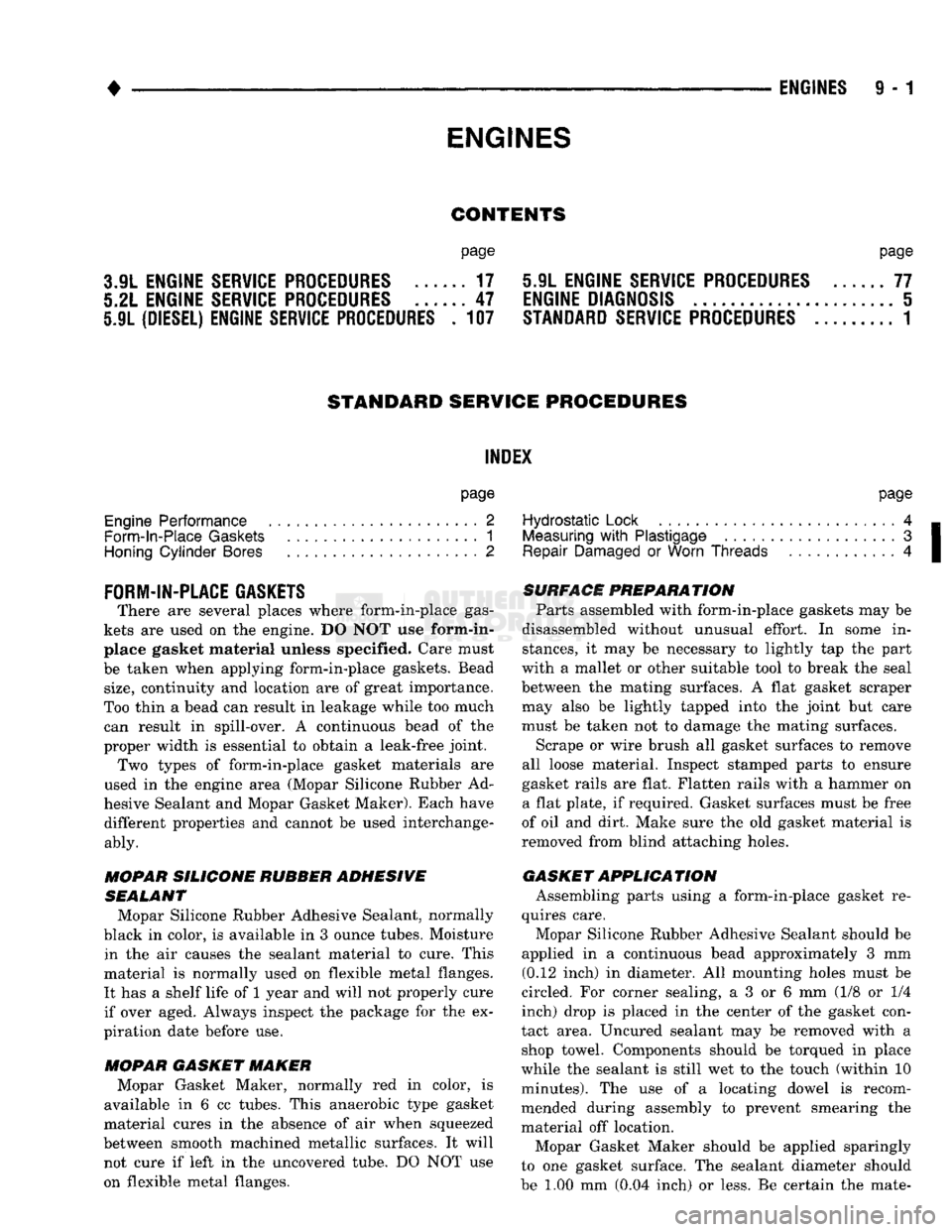

ENGINES ENGINES
9 - 1

CONTENTS

page page

3.9L
ENGINE SERVICE PROCEDURES
17 5.9L
ENGINE SERVICE PROCEDURES
77
5.2L
ENGINE SERVICE PROCEDURES
47
ENGINE DIAGNOSIS
5
5.9L
(DIESEL) ENGINE SERVICE PROCEDURES
. 107
STANDARD SERVICE PROCEDURES
1

STANDARD SERVICE PROCEDURES INDEX

page

Engine
Performance 2

Form-ln-Place
Gaskets
1

Honing
Cylinder
Bores
2

FORM-IN-PLACE GASKETS
There are several places where form-in-place gas­
kets are used on the engine. DO NOT use form-in-
place gasket material unless specified. Care must
be taken when applying form-in-place gaskets. Bead
size,
continuity and location are of great importance.
Too thin a bead can result in leakage while too much can result in spill-over. A continuous bead of the
proper width is essential to obtain a leak-free joint. Two types of form-in-place gasket materials are
used in the engine area (Mopar Silicone Rubber Ad­
hesive Sealant and Mopar Gasket Maker). Each have different properties and cannot be used interchange­ ably.

MOPAR SILICONE RUBBER ADHESIWE
SEALANT
Mopar Silicone Rubber Adhesive Sealant, normally
black in color, is available in 3 ounce tubes. Moisture in the air causes the sealant material to cure. This
material is normally used on flexible metal flanges.
It has a shelf life of 1 year and will not properly cure
if over aged. Always inspect the package for the ex­
piration date before use.

MOPAR
GASKET MAKER Mopar Gasket Maker, normally red in color, is
available in 6 cc tubes. This anaerobic type gasket
material cures in the absence of air when squeezed
between smooth machined metallic surfaces. It will not cure if left in the uncovered tube. DO NOT use on flexible metal flanges.
page

Hydrostatic
Lock
4

Measuring
with
Plastigage 3
Repair
Damaged
or Worn
Threads
. 4

SURFACE PREPARA
TION
Parts assembled with form-in-place gaskets may be
disassembled without unusual effort. In some in­
stances, it may be necessary to lightly tap the part
with a mallet or other suitable tool to break the seal
between the mating surfaces. A flat gasket scraper may also be lightly tapped into the joint but care
must be taken not to damage the mating surfaces.
Scrape or wire brush all gasket surfaces to remove
all loose material. Inspect stamped parts to ensure
gasket rails are flat. Flatten rails with a hammer on a flat plate, if required. Gasket surfaces must be free
of oil and dirt. Make sure the old gasket material is
removed from blind attaching holes.
GASKET
APPLICATION
Assembling parts using a form-in-place gasket re­
quires care.
Mopar Silicone Rubber Adhesive Sealant should be
applied in a continuous bead approximately 3 mm (0.12 inch) in diameter. All mounting holes must be
circled. For corner sealing, a 3 or 6 mm (1/8 or 1/4
inch) drop is placed in the center of the gasket con­
tact area. Uncured sealant may be removed with a shop towel. Components should be torqued in place
while the sealant is still wet to the touch (within 10
minutes). The use of a locating dowel is recom­
mended during assembly to prevent smearing the
material off location.
Mopar Gasket Maker should be applied sparingly
to one gasket surface. The sealant diameter should
be 1.Q0 mm (0.04 inch) or less. Be certain the mate-

9
- 2
ENGINES

rial surrounds each mounting hole. Excess material
can easily be wiped off. Components should be
torqued in place within 15 minutes. The use of a lo­ cating dowel is recommended during assembly to pre­
vent smearing the material off location.

ENGINE PERFORMANCE
To provide best vehicle performance and lowest ve­
hicle emissions, it is most important that the tune-up
be done accurately. Use the specifications listed on
the Vehicle Emission Control Information label found on the engine compartment hood.
(1) Test cranking amperage draw (refer to Group

8B,
Battery/Starter/Generator Service for the proper
procedures).
(2) Tighten the intake manifold bolts (refer to
Group 11, Exhaust System and Intake Manifold for
the proper specifications). (3) Perform cylinder compression test:
(a) Check engine oil level and add oil, if neces­
sary.
(b) Drive the vehicle until engine reaches normal
operating temperature. (c) Select a route free from traffic and other
forms of congestion, observe all traffic laws and
briskly accelerate through the gears several times. The higher engine speed may help clean out valve seat deposits which can prevent accurate compres­
sion readings.

CAUTION:
DO NOT
overspeed
the
engine.
(d) Remove all spark plugs from engine. As
spark plugs are being removed, check electrodes for
abnormal firing indicators - fouled, hot, oily, etc.
Record cylinder number of spark plug for future
reference.
(e) Disconnect coil wire from distributor and se­
cure to good ground to prevent a spark from start­
ing a fire.
(f) Be sure throttle blades are fully open during
the compression check. (g) Insert compression gage adaptor into the
No.l spark plug hole. Crank engine until maxi­
mum pressure is reached on gauge. Record this
pressure as No.l cylinder pressure.
(h) Repeat Step 3g for all remaining cylinders.
(i) Compression should not be less than 689 kPa
(100 psi) and not vary more than 172 kPa (25 psi)
from cylinder to cylinder.
(j) If cylinder(s) have abnormally low compres­
sion pressures, repeat steps 3a through 3h. (k) If the same cylinder(s) repeat an abnormally
low reading, it could indicate the existence of a
problem in the cylinder.
The recommended compression pressures are
to be used only as a guide to diagnosing engine
problems. An engine should NOT be disassem­ bled to determine the cause of low compression
unless some malfunction is present. (4) Clean or replace spark plugs as necessary. Ad­
just gap (refer to Group 8D, Ignition System for gap adjustment and torque).
(5) Test resistance of spark plug cables (refer to
Group 8D, Ignition System.
(6) Inspect the primary wire. Test coil output volt­

age,
primary and secondary resistance. Replace parts as necessary (refer to Group 8D, Ignition System and
make necessary adjustment).
(7) Set ignition timing to specifications (refer to
Specification Label on engine compartment hood).
(8) Perform a combustion analysis.
(9) Test fuel pump for pressure and vacuum (refer
to Group 14, Fuel System for the proper specifica­

tions).

(10) Inspect air filter element (refer to Group 0,
Lubrication and Maintenance for the proper proce­
dure).

(11) Inspect crankcase ventilation system (refer to
Group 0, Lubrication and Maintenance for the proper
procedure).
(12) For emission controls refer to Group 25, Emis­
sion Controls System for service procedures.
(13) Inspect and adjust accessory belt drives (refer
to Group 7, Cooling System for the proper adjust­
ments).

(14) Road test vehicle as a final test.

H0NIN6
CYLINDER
BORES
Before honing, stuff plenty of clean shop towels un­
der the bores and over the crankshaft to keep abra­ sive materials from entering the crankshaft area.
(1) Used carefully, the Cylinder Bore Sizing Hone
C-823 equipped with 220 grit stones, is the best tool
for this job. In addition to deglazing, it will reduce
taper and out-of-round as well as removing light scuffing, scoring or scratches. Usually a few strokes
will clean up a bore and maintain the required lim­
its.

CAUTION:
DO NOT use rigid type
hones
to remove

cylinder
wall
glaze.

(2) Deglazing of the cylinder walls may be done if
the cylinder bore is straight and round. Use a cylin­
der surfacing hone, Honing Tool C-3501, equipped
with 280 grit stones (C-3501-3810). 20-60 strokes, de­
pending on the bore condition, will be sufficient to
provide a satisfactory surface. Using honing oil C-3501-3880 or a light honing oil available from ma­
jor oil distributors.

CAUTION:
DO NOT use engine or
transmission
oil, mineral
spirits
or
kerosene.

9
- 12
ENGINES

•
CONDITION

POSSIBLE
CAUSES
CORRECTION

EXCESSIVE
EXHAUST

SMOKE
(Cont'd)
More
than
one
sealing washer
under an injector.
Check
and remove
extra
washer.
Improperly operating injectors.
Check
and replace inoperative injectors.
Improperly operating or over-
fueled injection pump.
Replace
injection pump.

Piston
rings
not sealing
(blue smoke). Perform blow-by check. Correct as required.

ENGINE
WILL
NOT

SHUT-OFF
Fuel shutoff valve inoperative.

Engine
running on fumes drawn into the air intake.
Stop
the engine mechanically
with
lever on the
fuel
pump.

Check/replace
sealing washer, piston and
spring.

Check
the air intake ducts for the source of the fumes.
WARNING:
In
ease
of engine runaway due to flammable
fumes

from gasoline spills or turbocharger oil leaks
being
sucked
into the
engine,
shut off engine ignition switch first then use a CO* or dry
chemical type
fire
extinguisher
and direct the
spray
under
the
front
bumper to
remove
oxygen
supply. The engine air
intake
is on the

passenger
side
behind the bumper. The
fire
extinguisher
must
bo
directed at this location for emergency shutdown conditions.

COOLANT
TEMPERA­

TURE
ABOVE
NORMAL
Low
coolant level.
(a) Check coolant level. Add coolant, if necessary.
(b) Locate and correct the source of the coolant leak. Refer to
troubleshooting
logic for coolant
loss.

Incorrect/improperly operating

pressure
cap.
Replace
cap
with
the correct rating for the
system.

High
lube oil level.
Check/drain
oil to correct level.

Loose
drive belt on water

pump/fan.
Check/replace
belt or belt tensioner.
Inadequate air flow to the radiator. Check/repair radiator core, fan shroud and fan clutch as
required.

Radiator
fins
plugged.
Blow
debris from fins.

Collapsed
radiator
hose.
Replace
the
hose.

Improperly operating tempera­

ture
sensor/gauge.
Verify
that
the
gauge
and temperature
sensor
are accurate.

Replace
gauge/sensor,
if bad.
Improperly operating, incorrect

or
no thermostat.
Check
and replace the thermostat.

Air
in the cooling
system.
(a) Make sure the
fill
rate
is not being exceeded and the correct
vented thermostat is installed.
(b) Check for loose hose
clamps.
Tighten if
loose.

(c) If aeration continued, check for a
compression
leak through the head gasket.
Inoperative water pump.
Check
and replace the water pump.
incorrect injection pump timing. Verify pump timing marks are aligned. Check/time the injector

pump
(refer
to Group 7,
Cooling
System).
J9209-56
SERVICE DIAGNOSIS (DIESEL ENGINE) - PERFORMANCE (CONT.)

•

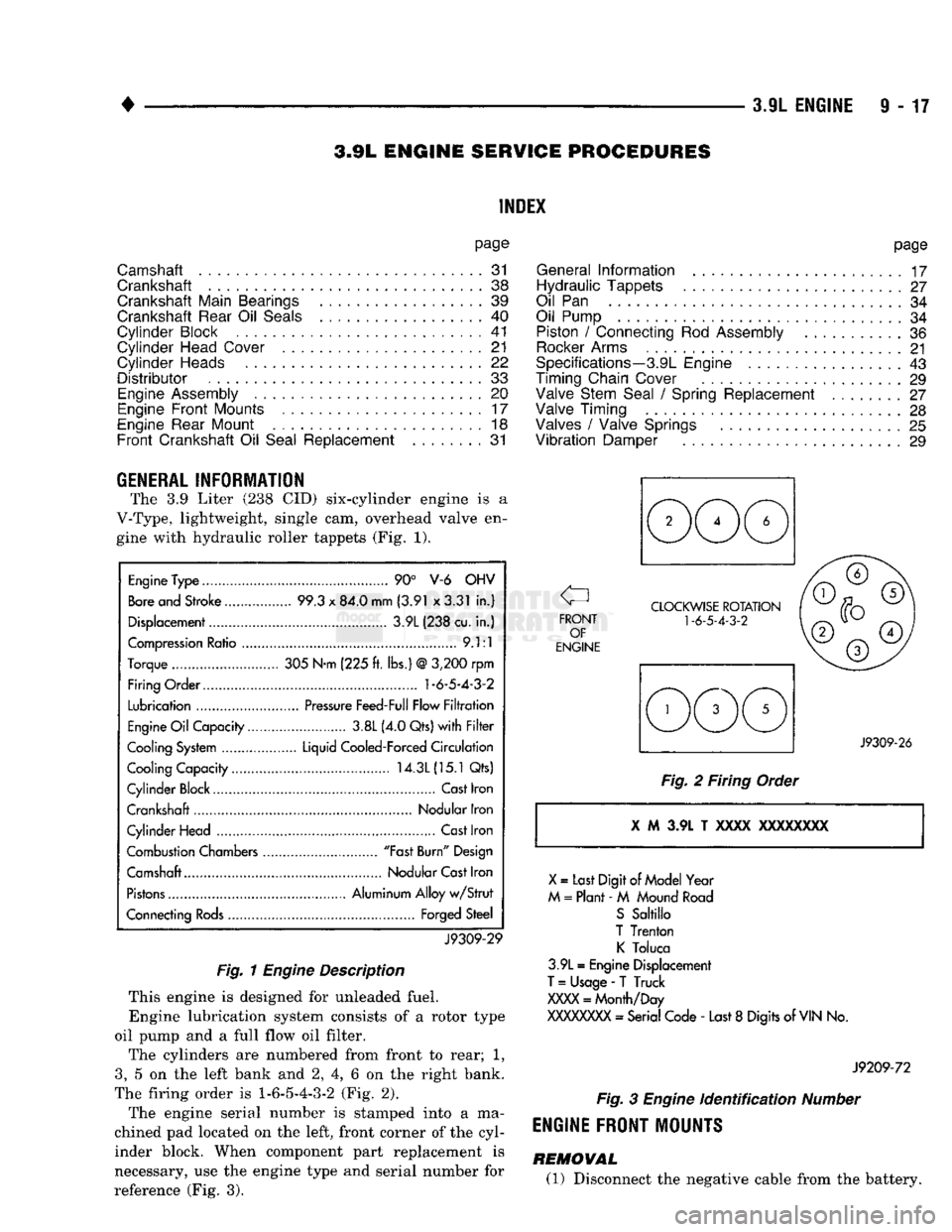

3.9L ENGINE
9 - 17
3.9L
ENGINE SERVICE PROCEDURES
INDEX

page

Camshaft
31

Crankshaft
38

Crankshaft Main Bearings
39

Crankshaft Rear
Oil
Seals
. 40

Cylinder Block
41
Cylinder Head Cover
. , 21

Cylinder Heads
. 22
Distributor
33

Engine
Assembly .........................
20

Engine
Front Mounts
17

Engine
Rear Mount
18

Front Crankshaft
Oil
Seal Replacement ........
31

GENERAL INFORMATION
The 3.9 Liter (238 CID) six-cylinder engine is a
V-Type, lightweight, single cam, overhead valve en­ gine with hydraulic roller tappets (Fig. 1).

Engine
Type
90° V-6 OHV

Bore
and Stroke 99.3
x
84.0 mm (3.91 x3.31
in.)

Displacement 3.9L (238 cu.
in.)

Compression
Ratio
9.1:1

Torque 305 N-m (225
ft.
lbs.)
@
3,200
rpm
Firing Order.... 1-6-5-4-3-2

Lubrication
Pressure
Feed-Full Flow
Filtration

Engine
Oil
Capacity 3.8L (4.0 Qts)
with Filter

Cooling
System
Liquid Cooled-Forced
Circulation

Cooling Capacity 14.3L
(15.1
Qts)

Cylinder Block Cast Iron
Crankshaft Nodular Iron
Cylinder Head
Cast
Iron
Combustion Chambers "Fast
Burn"
Design
Camshaft Nodular
Cast
Iron

Pistons
Aluminum Alloy
w/Strut

Connecting
Rods
Forged Steel

J9309-29

Fig.
1
Engine
Description
This engine is designed for unleaded fuel. Engine lubrication system consists of a rotor type
oil pump and a full flow oil filter.
The cylinders are numbered from front to rear; 1,

3,
5 on the left bank and 2, 4, 6 on the right bank.
The firing order is
1-6-5-4-3-2
(Fig. 2).
The engine serial number is stamped into a ma­
chined pad located on the left, front corner of the cyl­
inder block. When component part replacement is
necessary, use the engine type and serial number for
reference (Fig. 3).
page

General
Information
17
Hydraulic Tappets
27

Oil
Pan 34

Oil Pump
34

Piston
/
Connecting
Rod
Assembly
36
Rocker
Arms
21

Specifications—3.9L Engine
43

Timing Chain Cover
29

Valve Stem Seal
/
Spring Replacement ........
27

Valve Timing
28

Valves
/
Valve Springs
25
Vibration
Damper
29
J9309-26
Fig.
2 Firing Order i M 3.9L T xxxx
XXXXXXXX

X
=
Last Digit
of
Model Year
M
=
Plant -
M
Mound
Road

S
Sabillo
T Trenton
K
Toluca

3.9L
=
Engine Displacement
T
=
Usage
-
T Truck

XXXX
=
Month/Day

XXXXXXXX
- Serial Code -
Last
8
Digits of
VIN
No.

J9209-72

Fig.
3
Engine
identification
Number

ENGINE FRONT MOUNTS

REMOVAL (1) Disconnect the negative cable from the battery.

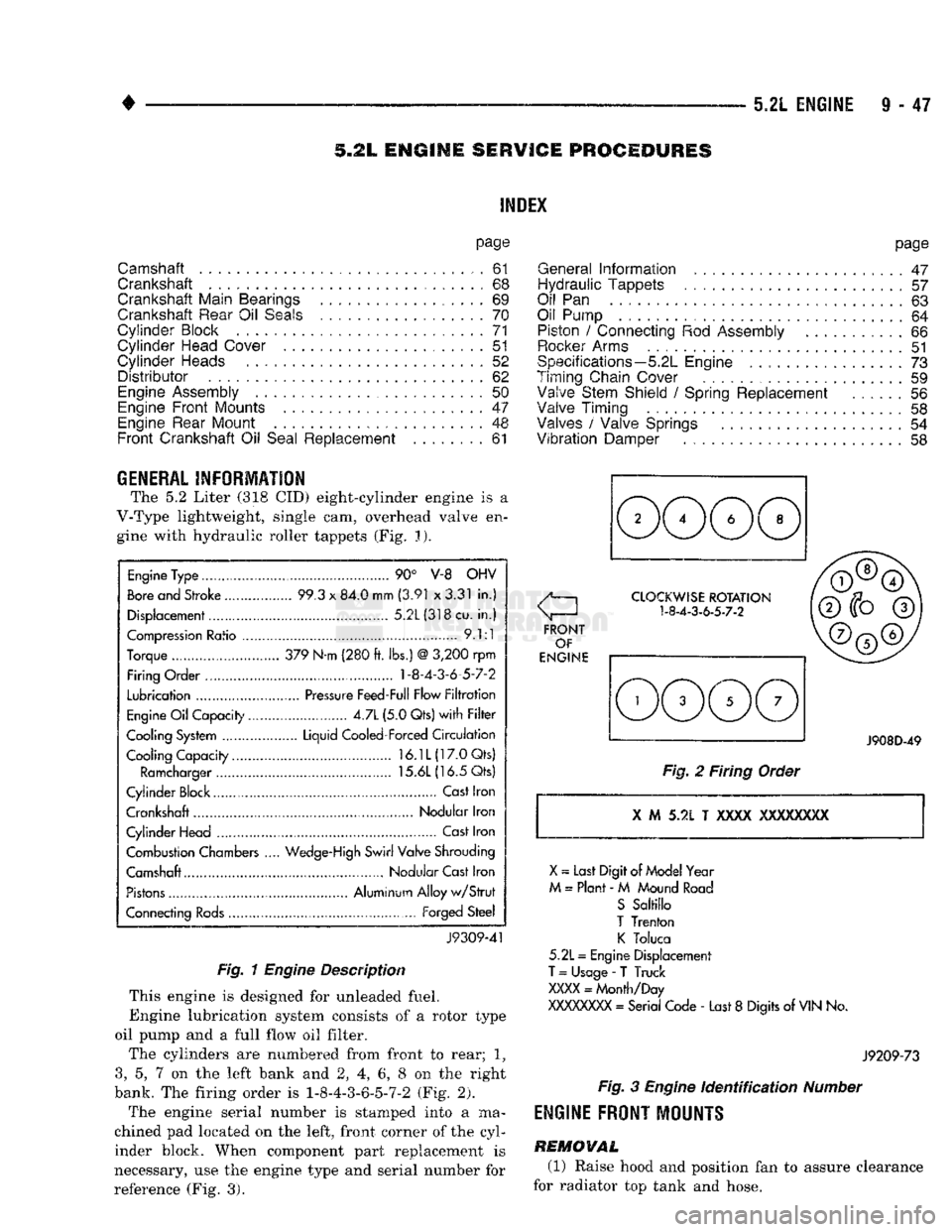

5.2L
ENGINE
9 - 47

S.2L ENGINE
SERVICE
PROCEDURES

INDEX

page

Camshaft
. , . 61

Crankshaft
68

Crankshaft Main Bearings
69

Crankshaft Rear
Oil
Seals
...... ........
70

Cylinder Block ...........................
71

Cylinder Head Cover
. . . . 51

Cylinder Heads
52
Distributor
62

Engine
Assembly
. 50

Engine
Front Mounts
47

Engine
Rear Mount ...............
48

Front Crankshaft
Oil
Seal Replacement
. . 61

GENERAL
INFORMATION
The 5.2 Liter (318 CID) eight-cylinder engine is a
V-Type lightweight, single cam, overhead valve en­ gine with hydraulic roller tappets (Fig. J).

Engine
Type ....
90° V-8 OHV

Bore
and Stroke .....
99.3
x
84.0 mm
(3.91
x
3.31
in.)

Displacement................
5.2L(318cu.
in.)

Compression
Ratio ....... .
9.1:1

Torque .. 379 N-m (280
ft.
lbs.)
@
3,200
rpm

Firing Order .... 1-8-4-3-6-5-7-2

Lubrication
.......
Pressure
Feed-Full Flow
Filtration

Engine
Oil
Capacity......
4.7L
(5.0 Qts)
with Filter

Cooling System ...... Liquid Cooled-Forced
Circulation

Cooling Capacity..........
16.1L(17.0Qts)

Ramcharger
15.6L
(16.5 Qts)
Cylinder Block
,
Cast
Iron
Crankshaft Nodular Iron
Cylinder Head ..............
Cast
Iron
Combustion Chambers
..
Wedge-High
Swirl Valve Shrouding
Camshaft Nodular Cast Iron

Pistons
Aluminum Alloy
w/Strut

Connecting
Rods...........
Forged
Steel

J9309-41

Fig. 1
Engine
Description
This engine is designed for unleaded fuel.
Engine lubrication system consists of a rotor type
oil pump and a full flow oil filter.
The cylinders are numbered from front to rear; 1?

3,
5, 7 on the left bank and 2, 4, 6, 8 on the right
bank. The firing order is 1-8-4-3-6-5-7-2 (Fig. 2).
The engine serial number is stamped into a ma­
chined pad located on the left, front corner of the cyl­
inder block. When component part replacement is
necessary, use the engine type and serial number for
reference (Fig. 3).
page

General
Information
.......................
47
Hydraulic Tappets
57

Oil
Pan . 63

Oil Pump
. 64

Piston
/
Connecting
Rod
Assembly
66

Rocker
Arms
51

Specifications—5.2L Engine
73

Timing Chain Cover ................
59
Valve Stem Shield
/
Spring Replacement
56

Valve Timing
. 58

Valves
/
Valve Springs
54

Vibration
Damper
. . 58
J908D-49
Fig.
2 Firing Order
X
M 5.2L T
XXXX
XXXXXXXX

X
~
Last Digit of
Model
Year
M
=
Plant
- M
Mound
Road
S
Saltillo

T
Trenton

K
Toluca

5.2L
=
Engine Displacement
T
=
Usage
-
T Truck

XXXX
=
Month/Day

XXXXXXXX
=
Serial Code
-
Last
8
Digits
of
VIN
No.

J9209-73

Fig.
3
Engine
Identification
Number

ENGINE
FRONT
MOUNTS

REMOVAL
(1) Raise hood and position fan to assure clearance
for radiator top tank and hose.

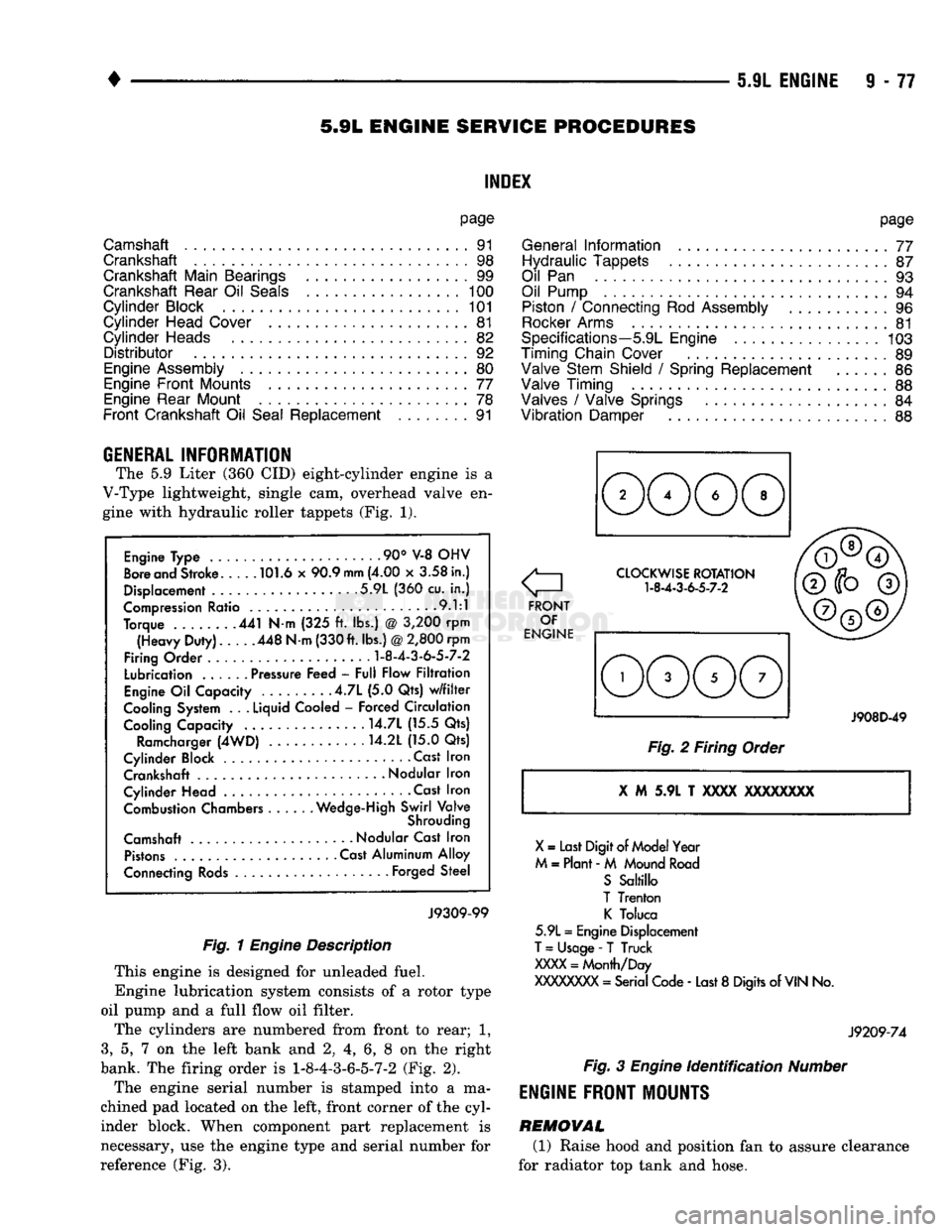

5.9L
ENGINE SERVICE PROCEDURES

INDEX

page
Camshaft
91

Crankshaft
98
Crankshaft Main Bearings
99

Crankshaft Rear
Oil
Seals
100

Cylinder
Block
101

Cylinder
Head Cover
81

Cylinder
Heads
82
Distributor
92

Engine Assembly
80

Engine
Front
Mounts
77

Engine Rear Mount
78

Front
Crankshaft
Oil
Seal Replacement
91
page
General
Information
77
Hydraulic
Tappets
87

Oil
Pan 93

Oil Pump
. 94

Piston
/
Connecting
Rod
Assembly
96

Rocker Arms
81

Specifications—5.9L
Engine
103

Timing
Chain Cover
89

Valve Stem Shield
/
Spring Replacement
86

Valve
Timing
. 88

Valves
/
Valve Springs
84

Vibration
Damper
88

GENERAL
INFORMATION
The 5.9 Liter (360 CID) eight-cylinder engine is a
V-Type lightweight, single cam, overhead valve en­
gine with hydraulic roller tappets (Fig. 1).
Engine Type .90° V-8 OHV
Bore and Stroke 101.6 x 90.9
mm
(4.00 x 3.58 in.)
Displacement 5.9L (360 cu. in.)
Compression Ratio 9.1:1
Torque 441 N-m (325 ft. lbs.) @ 3,200 rpm (Heavy Duty). 448 N-m (330 ft. lbs.)
@
2,800 rpm
Firing Order
1-8-4-3-6-5-7-2

Lubrication ...... Pressure Feed - Full Flow Filtration
Engine Oil Capacity .4.7L (5.0 Qts) w/filter
Cooling System . .
.
Liquid Cooled - Forced Circulation Cooling Capacity ..... . . 14.7L (15.5 Qts)
Ramcharger (4WD) 14.2L (15.0 Qts)
Cylinder Block Cast Iron Crankshaft
-
Nodular Iron
Cylinder Head • . Cast Iron Combustion Chambers Wedge-High Swirl Valve
Shrouding
Camshaft Nodular Cast Iron Pistons Cast Aluminum Alloy
Connecting Rods Forged Steel
J9309-99
Fig. 1
Engine
Description
This engine is designed for unleaded fuel.
Engine lubrication system consists of a rotor type
oil pump and a full flow oil filter.
The cylinders are numbered from front to rear; 1,

3,
5, 7 on the left bank and 2, 4, 6, 8 on the right
bank. The firing order is
1-8-4-3-6-5-7-2
(Fig. 2).
The engine serial number is stamped into a ma­
chined pad located on the left, front corner of the cyl­
inder block. When component part replacement is
necessary, use the engine type and serial number for
reference (Fig. 3).
o
FRONT OF
ENGINE CLOCKWISE ROTATION

1-8-4-3-6-5-7-2
J908D-49

Fig. 2 Firing Order

X
M 5.9L T
XXXX
XXXXXXXX

X
= Last Digit of Model Year
M = Plant - M Mound Road S Saltillo
T Trenton K Toluca
5.9L = Engine Displacement

T
= Usage -
T
Truck
XXXX
= Month/Day

XXXXXXXX
= Serial Code - Last 8 Digits of
VIN
No.
J9209-74

Fig.
3
Engine
identification
Number

ENGINE
FRONT MOUNTS
REMOVAL (1) Raise hood and position fan to assure clearance
for radiator top tank and hose.
