Page 257 of 4087

LEXUS SC300 1991 Service Repair Manual DIAGNOSTIC CHART (Contd) Check front airbag sensor.Replace front airbag sensor. Repair or replace spiral cable.Check spiral cable. Repair or replace harness or connector between center airbag sensor

Page 258 of 4087

LEXUS SC300 1991 Service Repair Manual (1) Disconnect battery negative (±) terminal cable,and wait at least 20 seconds. (2) Remove steering wheel pad (See page AB±16). Check front airbag sensor circuit. (Measure resistance between ter

Page 259 of 4087

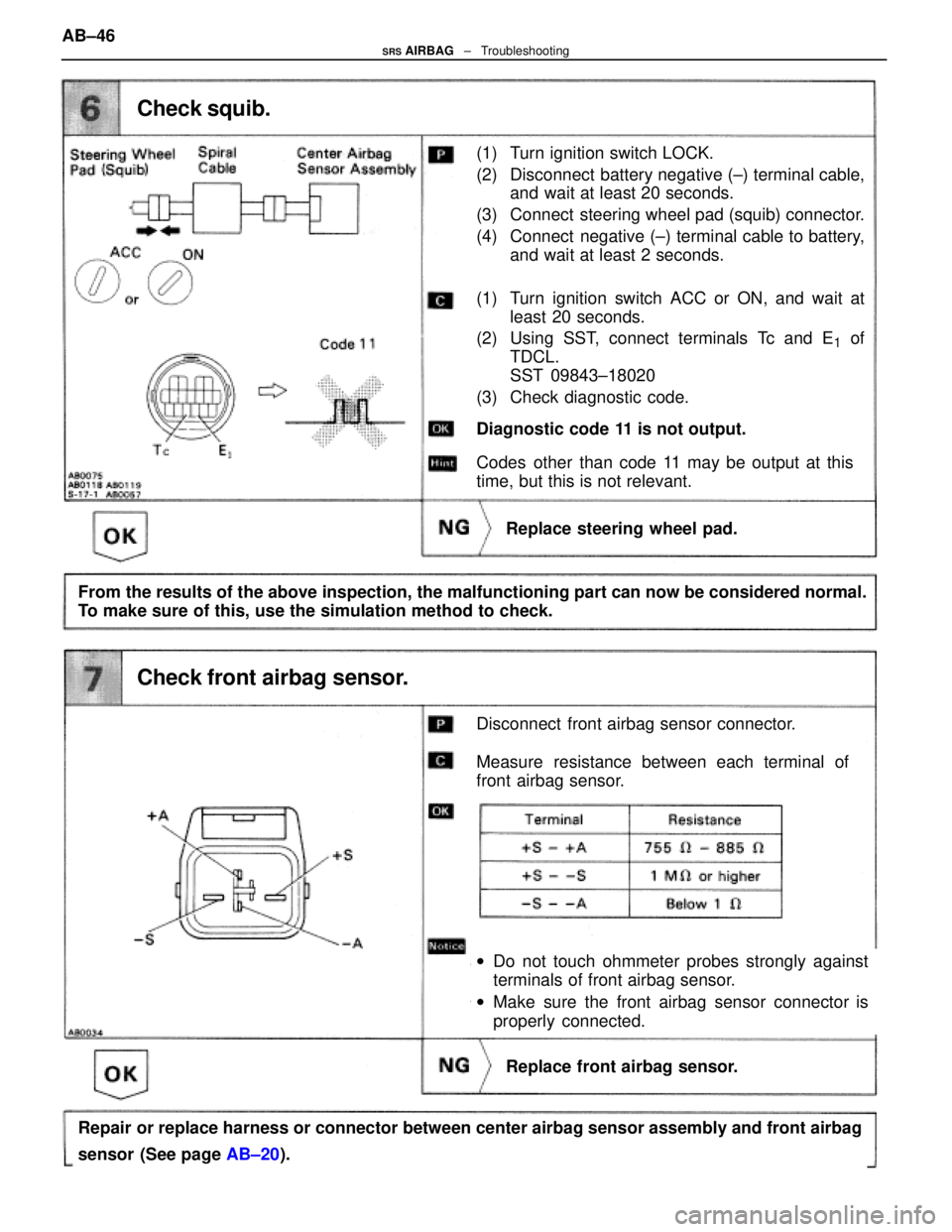

LEXUS SC300 1991 Service Repair Manual (1) Connect connector to center airbag sensorassembly. (2) Using a service wire, connect D +, D± on spiral cable side of connector between spiral cable and steering wheel pad. (3) Connect negative

Page 260 of 4087

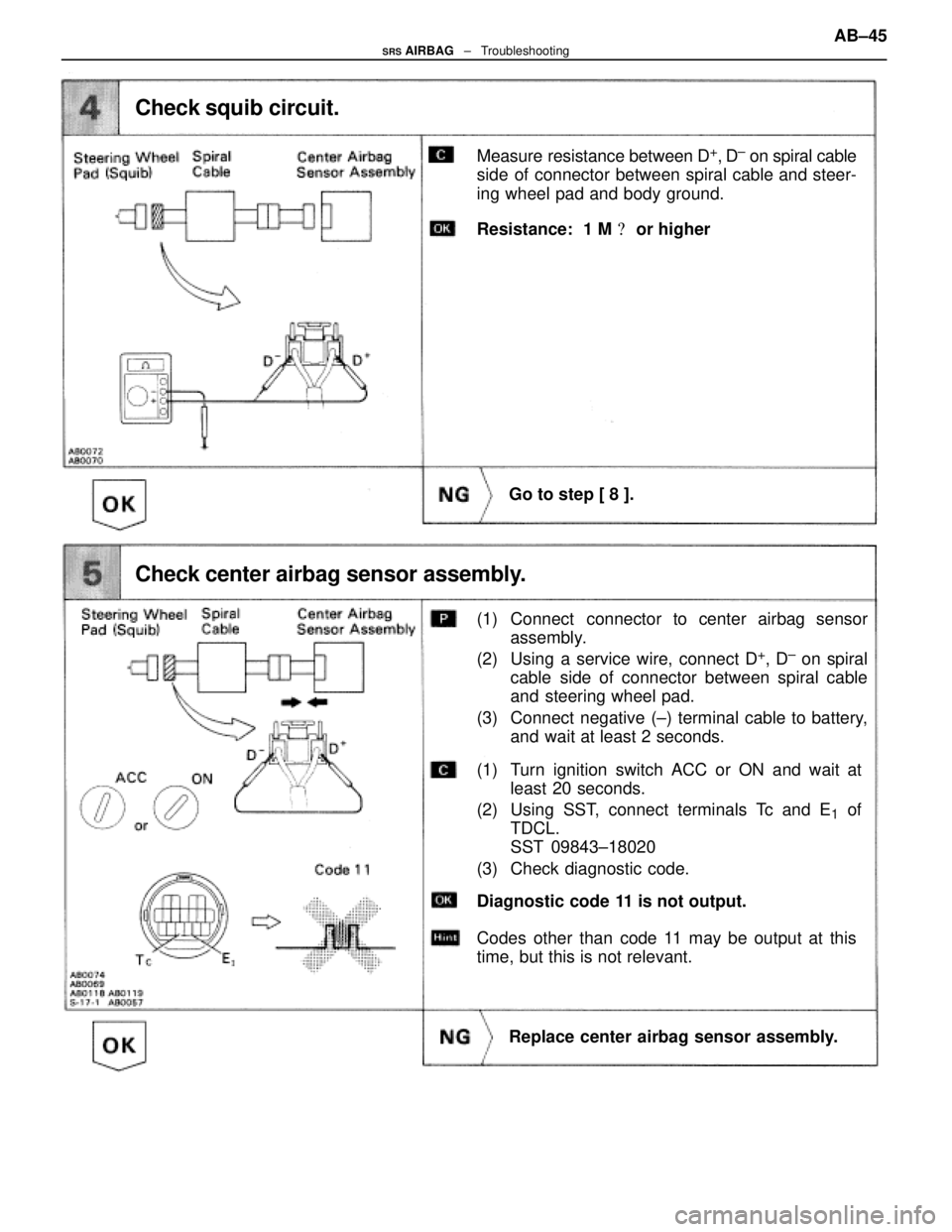

LEXUS SC300 1991 Service Repair Manual (1) Turn ignition switch LOCK. (2) Disconnect battery negative (±) terminal cable,and wait at least 20 seconds. (3) Connect steering wheel pad (squib) connector. (4) Connect negative (±) termina

Page 261 of 4087

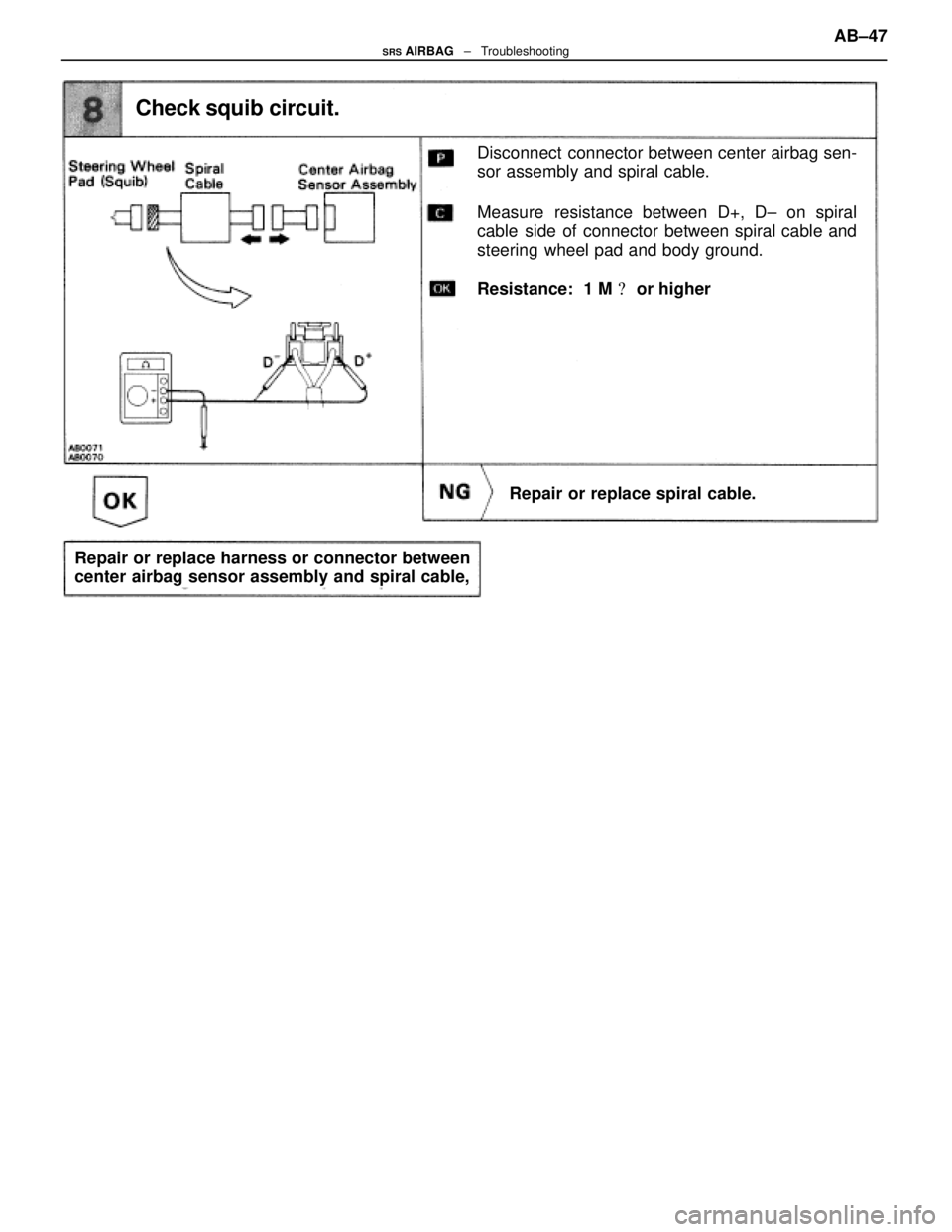

LEXUS SC300 1991 Service Repair Manual Check squib circuit. Disconnect connector between center airbag sen- sor assembly and spiral cable. Measure resistance between D+, D± on spiral cable side of connector between spiral cable and stee

Page 262 of 4087

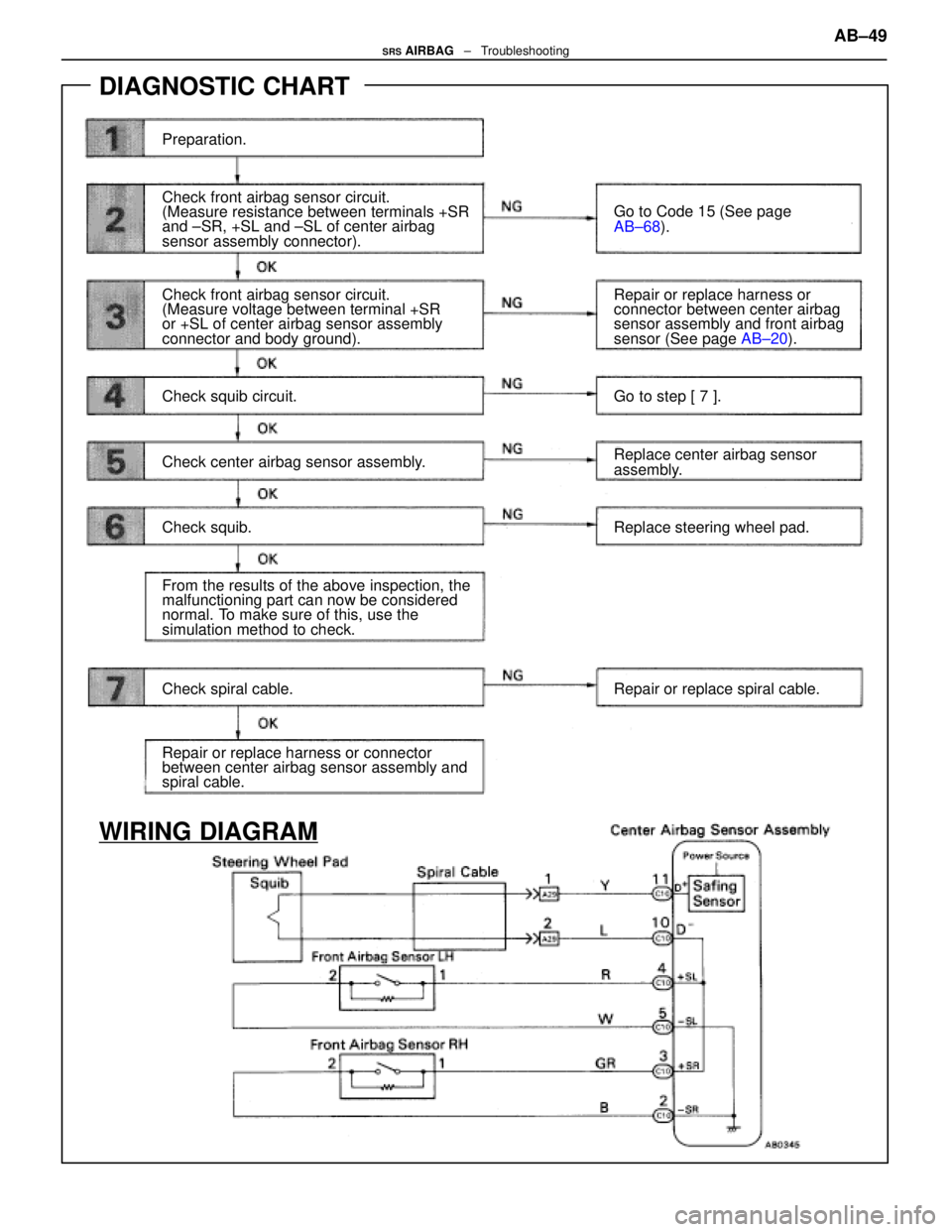

LEXUS SC300 1991 Service Repair Manual Diag. Code 12Short in Squib Circuit or Front Airbag Sensor Circuit (to +B) CIRCUIT DESCRIPTION The squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad

Page 263 of 4087

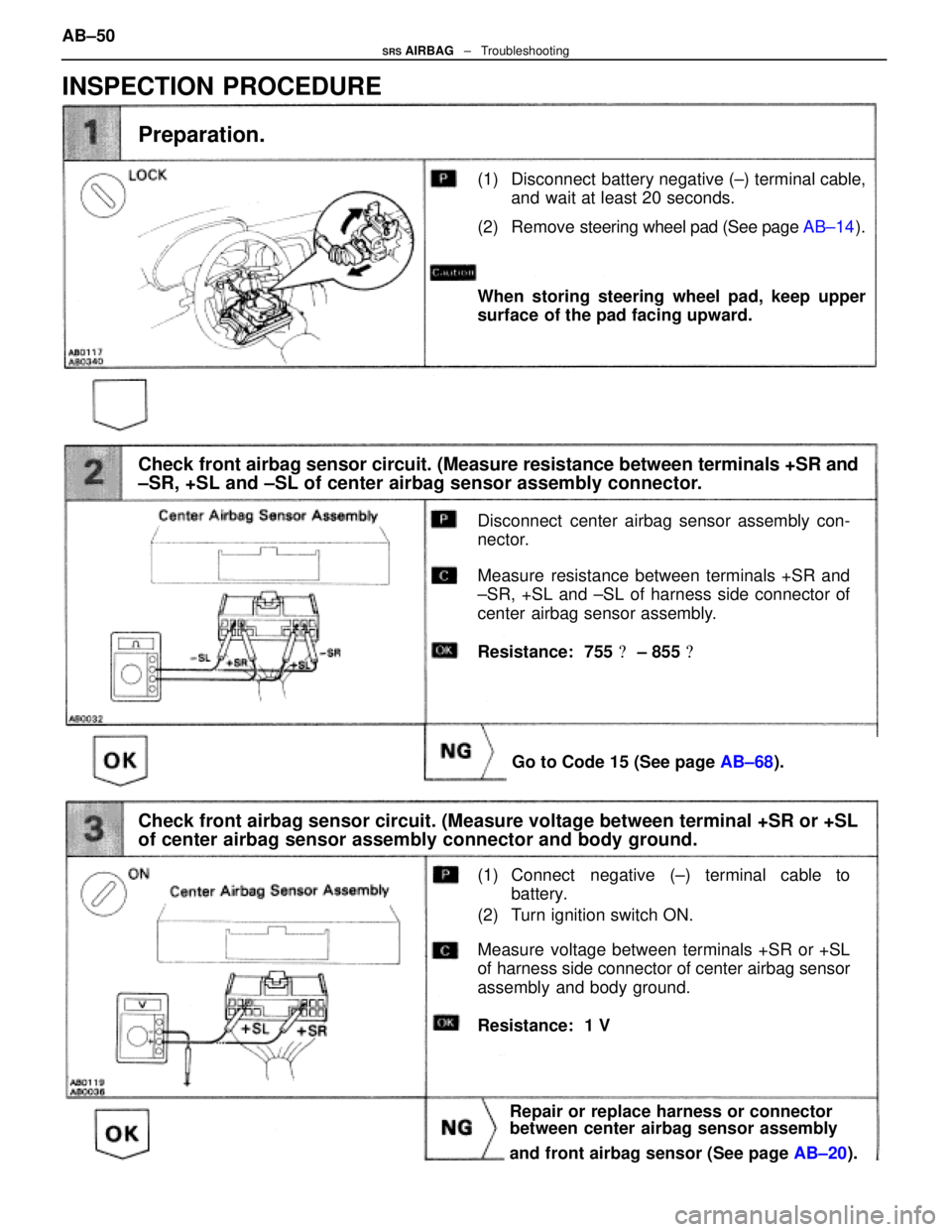

LEXUS SC300 1991 Service Repair Manual DIAGNOSTIC CHART Preparation. Check front airbag sensor circuit. (Measure voltage between terminal +SR or +SL of center airbag sensor assembly connector and body ground). From the results of the abov

Page 264 of 4087

LEXUS SC300 1991 Service Repair Manual (1) Disconnect battery negative (±) terminal cable,and wait at least 20 seconds. (2) Remove steering wheel pad (See page AB±14). Check front airbag sensor circuit. (Measure resistance between ter
