Page 2577 of 4087

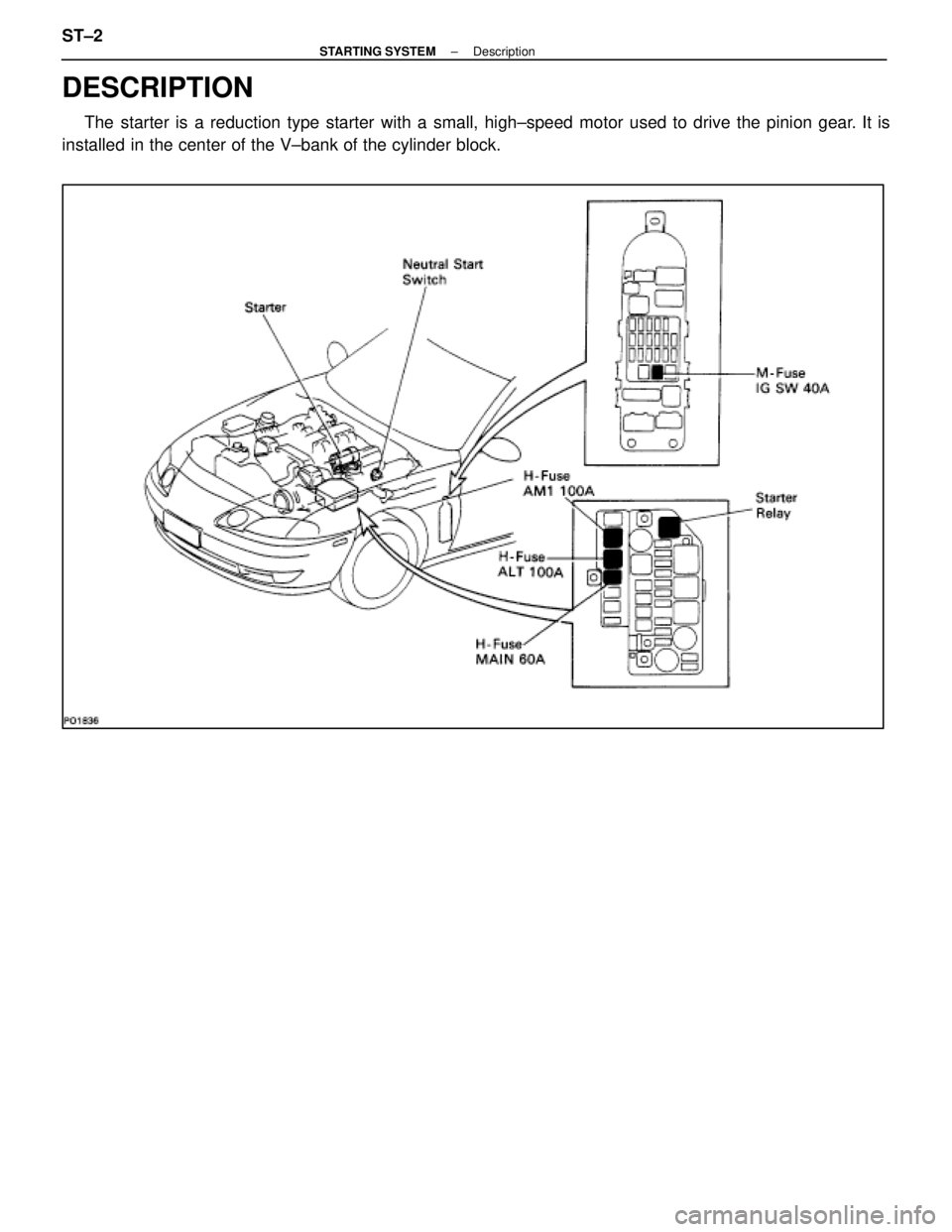

LEXUS SC300 1991 Service Repair Manual DESCRIPTION The starter is a reduction type starter with a small, high±speed motor u\ sed to drive the pinion gear. It is installed in the center of the V±bank of the cylinder block. ST±2 ± START

Page 2578 of 4087

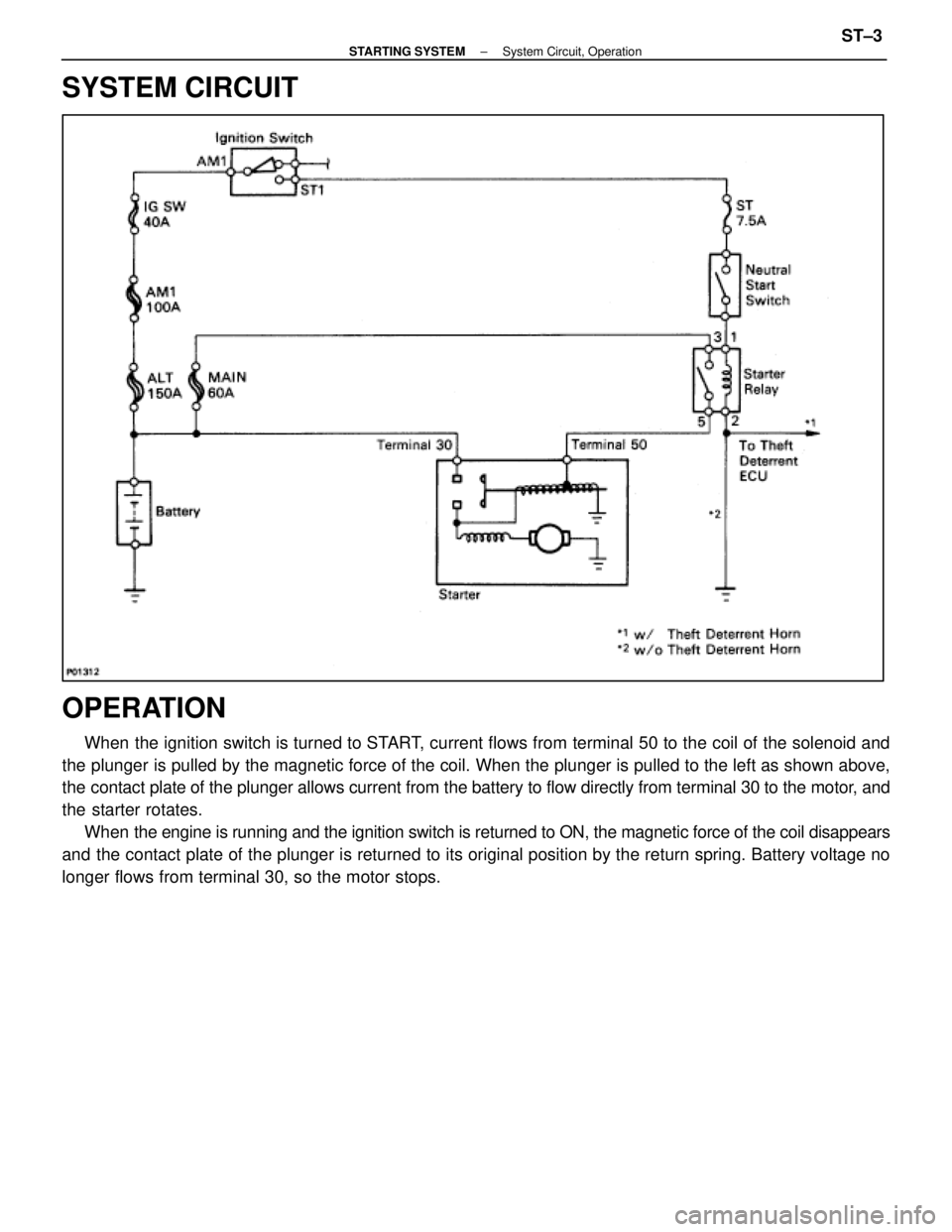

LEXUS SC300 1991 Service Repair Manual SYSTEM CIRCUIT OPERATION When the ignition switch is turned to START, current flows from terminal 50 to the coil of the solenoid and the plunger is pulled by the magnetic force of the coil. When the

Page 2579 of 4087

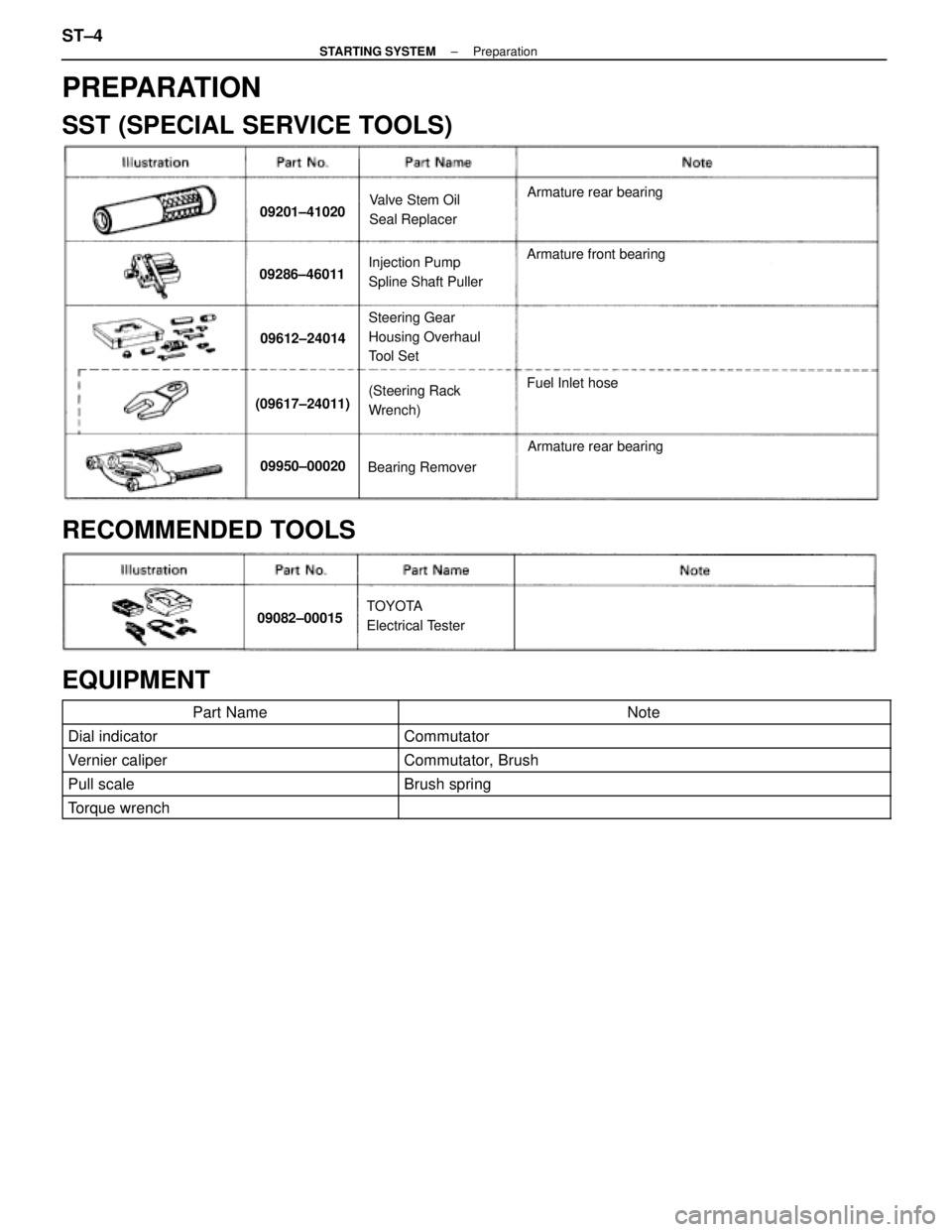

LEXUS SC300 1991 Service Repair Manual PREPARATION SST (SPECIAL SERVICE TOOLS) 09201±41020Valve Stem Oil Seal ReplacerArmature rear bearing 09286±46011Injection Pump Spline Shaft PullerArmature front bearing 09612±24014 Steering Gear H

Page 2580 of 4087

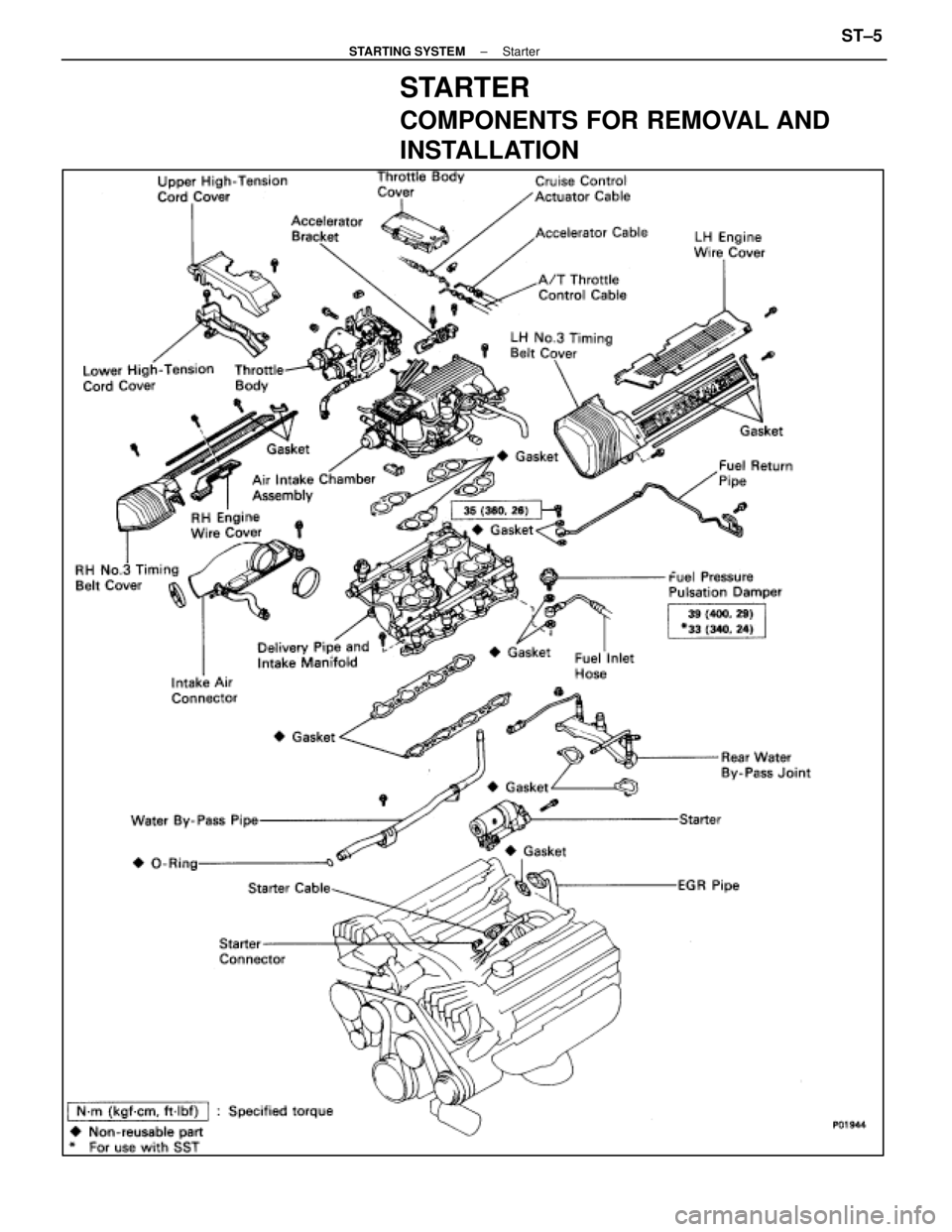

LEXUS SC300 1991 Service Repair Manual STARTER COMPONENTS FOR REMOVAL AND INSTALLATION ± STARTING SYSTEM StarterST±5 WhereEverybodyKnowsYourName

Page 2581 of 4087

LEXUS SC300 1991 Service Repair Manual REMOVAL OF STARTER (See Components on page ST±5) 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY CAUTION: Work must be started after approx. 20 se- conds or longer from the time the ignition

Page 2582 of 4087

LEXUS SC300 1991 Service Repair Manual 6. REMOVE UPPER HIGH±TENSION CORD COVER(a) Remove the two mounting bolts. (b) Disconnect the front side claw groove of the cord coverfrom the claw of the lower cover, and remove the cord cover.

Page 2583 of 4087

LEXUS SC300 1991 Service Repair Manual 11. REMOVE LH NO.3 TIMING BELT COVER(a) Remove the four mounting bolts. (b) Disconnect the cord grommet from the timing belt cover, and remove the timing belt cover. (c) Remove the cord grommet

Page 2584 of 4087

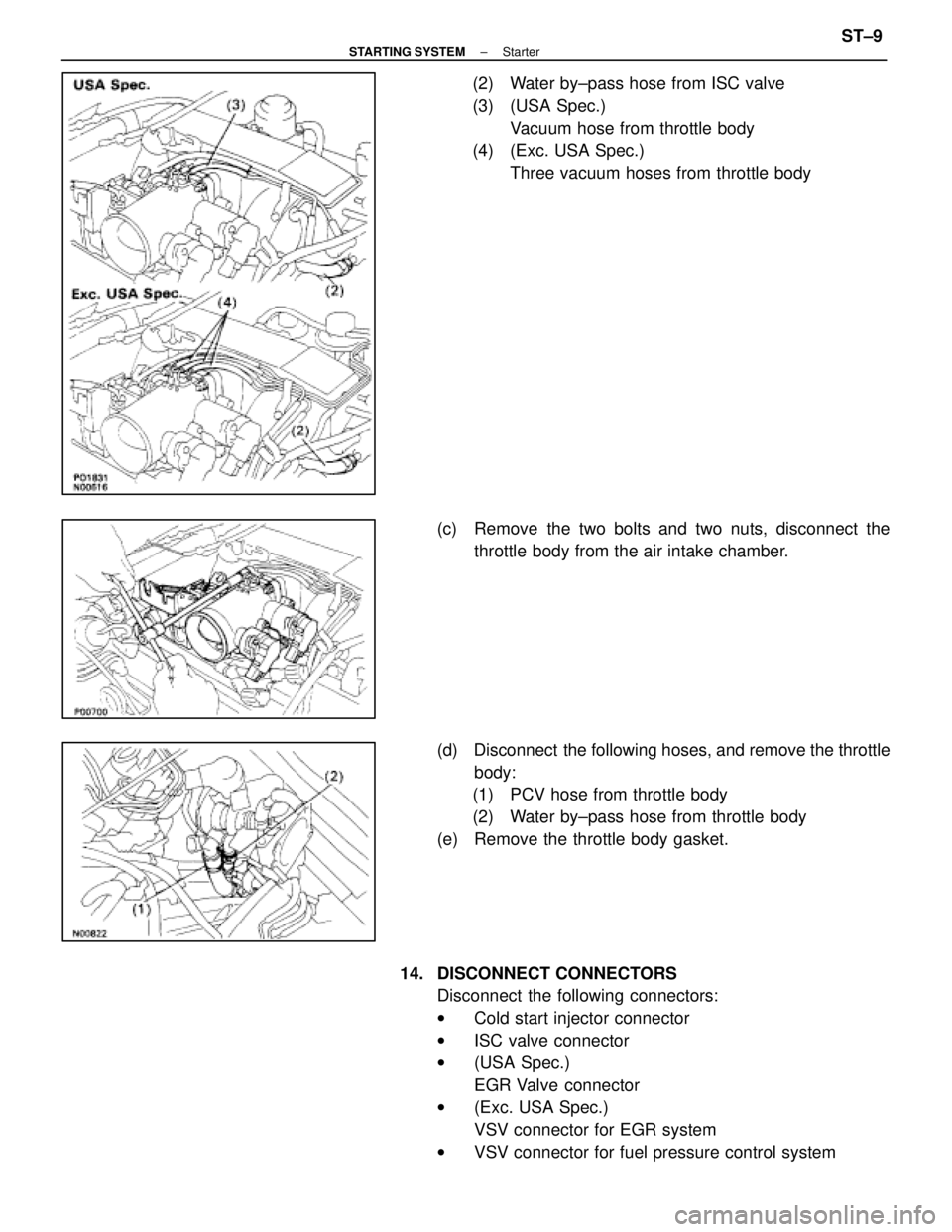

LEXUS SC300 1991 Service Repair Manual (2) Water by±pass hose from ISC valve (3) (USA Spec.)Vacuum hose from throttle body (4) (Exc. USA Spec.) Three vacuum hoses from throttle body (c) Remove the two bolts and two nuts, disconnect th
