INSTALLATION OF THROTTLE BODY
(See Components o page FI±69)

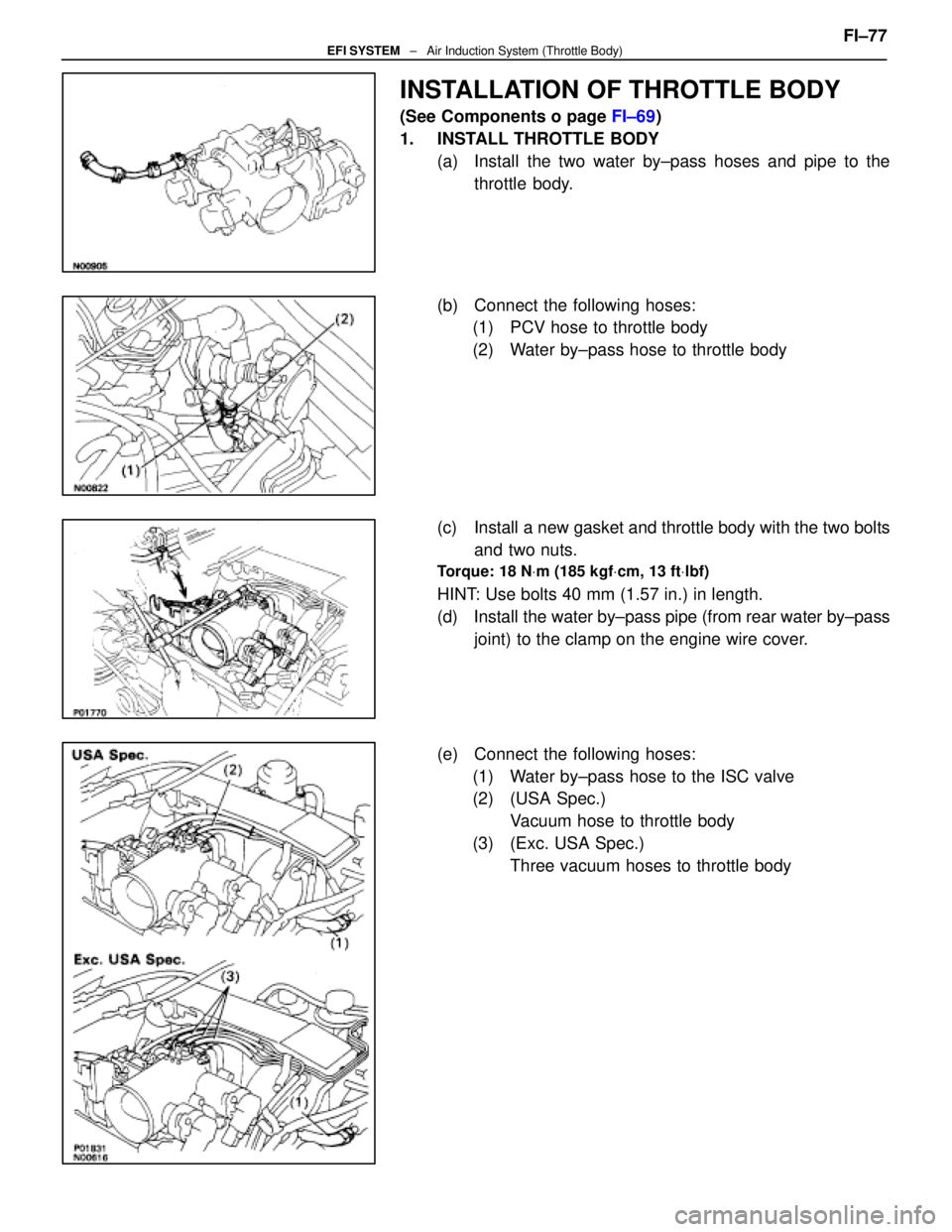

1. INSTALL THROTTLE BODY (a) Install the two water by±pass hoses and pipe to thethrottle body.
(b) Connect the following hoses: (1) PCV hose to throttle body
(2) Water by±pass hose to throttle body
(c) Install a new gasket and throttle body with the two bolts and two nuts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
HINT: Use bolts 40 mm (1.57 in.) in length.
(d) Install the water by±pass pipe (from rear water by±pass
joint) to the clamp on the engine wire cover.
(e) Connect the following hoses: (1) Water by±pass hose to the ISC valve
(2) (USA Spec.) Vacuum hose to throttle body
(3) (Exc. USA Spec.) Three vacuum hoses to throttle body FI±77
EFI SYSTEM
± Air Induction System (Throttle Body)
WhereEverybodyKnowsYourName
Page 2458 of 4087
(4) Heater water hose to heater water valve
(f) Connect the following connectors: (1) Throttle position sensor connector
(2) (w/ TRAC)
Sub±throttle position sensor connector
(3) (w/ TRAC) Sub±throttle actuator connector

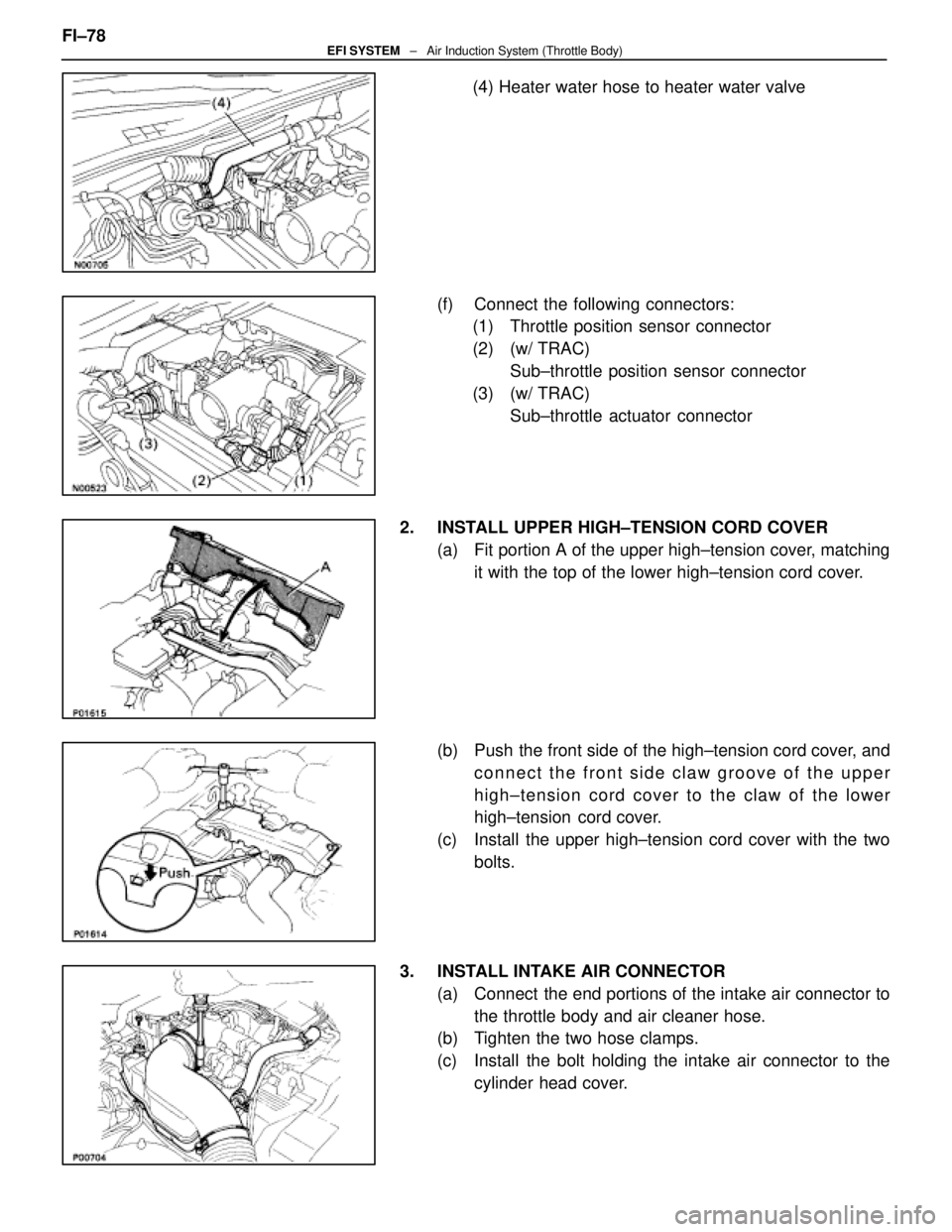

2. INSTALL UPPER HIGH±TENSION CORD COVER (a) Fit portion A of the upper high±tension cover, matchingit with the top of the lower high±tension cord cover.
(b) Push the front side of the high±tension cord cover, and connect the front side claw groove of the upper
high±tension cord cover to the claw of the lower
high±tension cord cover.
(c) Install the upper high±tension cord cover with the two bolts.
3. INSTALL INTAKE AIR CONNECTOR (a) Connect the end portions of the intake air connector tothe throttle body and air cleaner hose.
(b) Tighten the two hose clamps.
(c) Install the bolt holding the intake air connector to the
cylinder head cover.
FI±78
EFI SYSTEM
± Air Induction System (Throttle Body)
WhereEverybodyKnowsYourName
Page 2459 of 4087
(d) Connect the following hoses:(1) Air hose to ISC valve
(2) Air hose (from PS air control valve) to intake air con-
nector
4. CONNECT CONTROL CABLES TO THROTTLE BODY Connect the following cables:(1) Accelerator cable
(2) A/T throttle control cable
(3) (w/ Cruise Control System) Cruise control actuator cable
5. INSTALL THROTTLE BODY COVER Install the throttle body cover and hose clamp with the two
bolts and cap nut.
6. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
7. FILL WITH ENGINE COOLANT (See page CO±7)FI±79
EFI SYSTEM
± Air Induction System (Throttle Body)
WhereEverybodyKnowsYourName
Page 2460 of 4087
Idle Speed Control (ISC) Valve
ON±VEHICLE INSPECTION
INSPECT ISC VALVE FOR OPERATING SOUNDCheck that there is a clicking sound immediately after stop-
ping the engine.
If the rpm operation is not as specified, check the ISC valve,
wiring and ECU.
FI±80
± Air Induction System (Idle Speed Control (ISC\
) Valve)EFI SYSTEM
WhereEverybodyKnowsYourName
Page 2461 of 4087

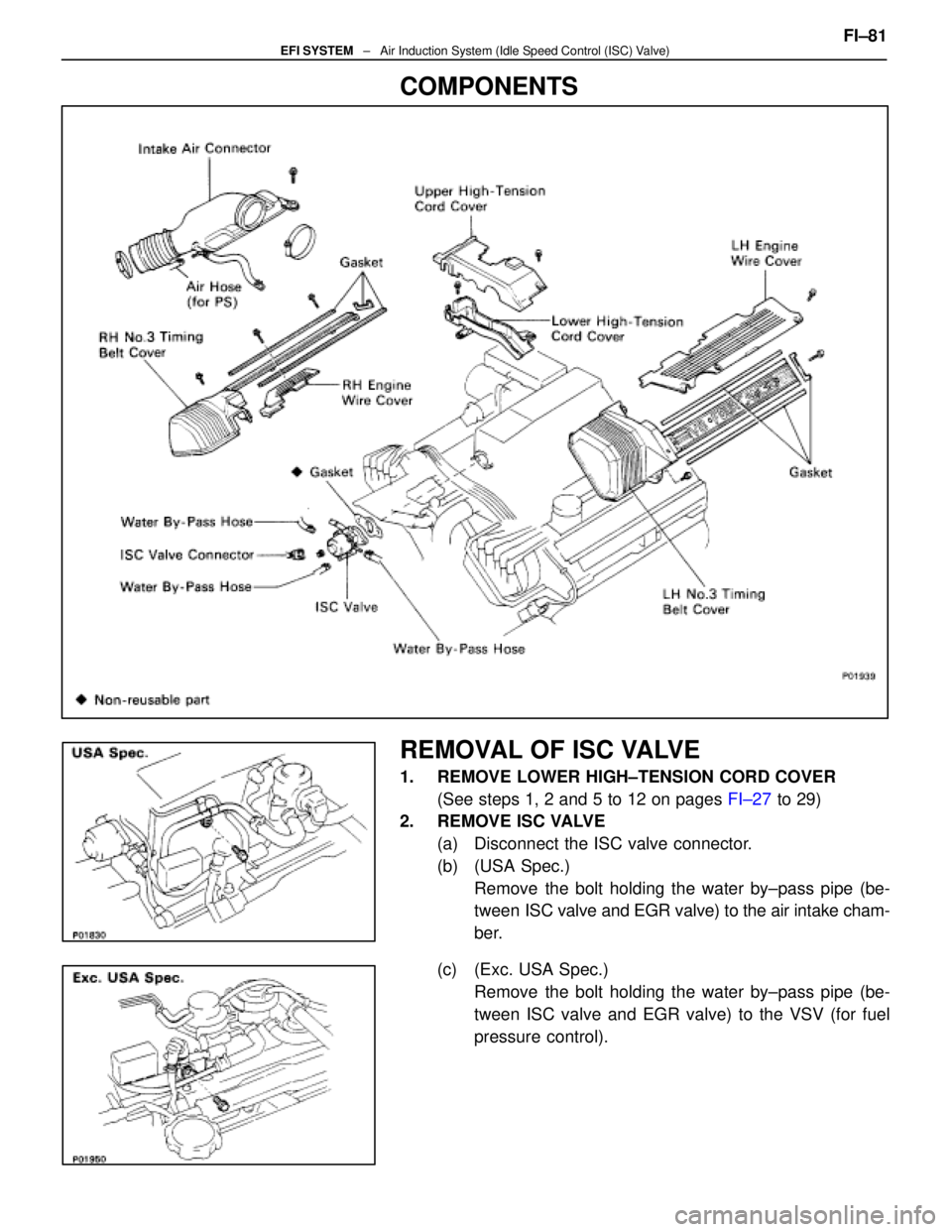

COMPONENTS
REMOVAL OF ISC VALVE
1. REMOVE LOWER HIGH±TENSION CORD COVER(See steps 1, 2 and 5 to 12 on pages FI±27 to 29)
2. REMOVE ISC VALVE
(a) Disconnect the ISC valve connector.
(b) (USA Spec.)Remove the bolt holding the water by±pass pipe (be-
tween ISC valve and EGR valve) to the air intake cham-
ber.
(c) (Exc. USA Spec.) Remove the bolt holding the water by±pass pipe (be-
tween ISC valve and EGR valve) to the VSV (for fuel
pressure control). FI±81
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 2462 of 4087

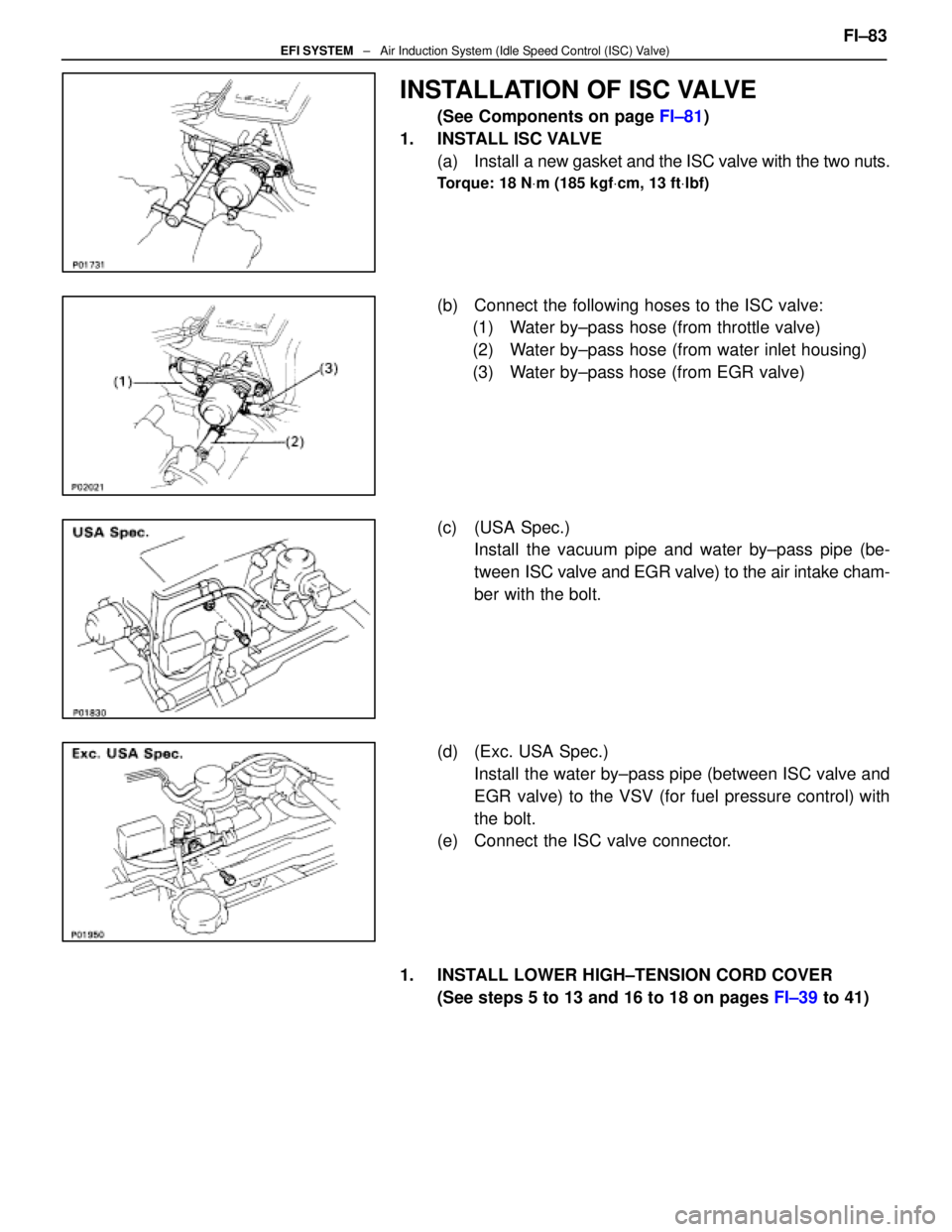

(d) Disconnect the following hoses from the ISC valve:(1) Water by±pass hose (from throttle valve)
(2) Water by±pass hose (from water inlet housing)
(3) Water by±pass hose (from EGR valve)
(e) Remove the two nuts, ISC valve and gasket.
INSPECTION OF ISC VALVE

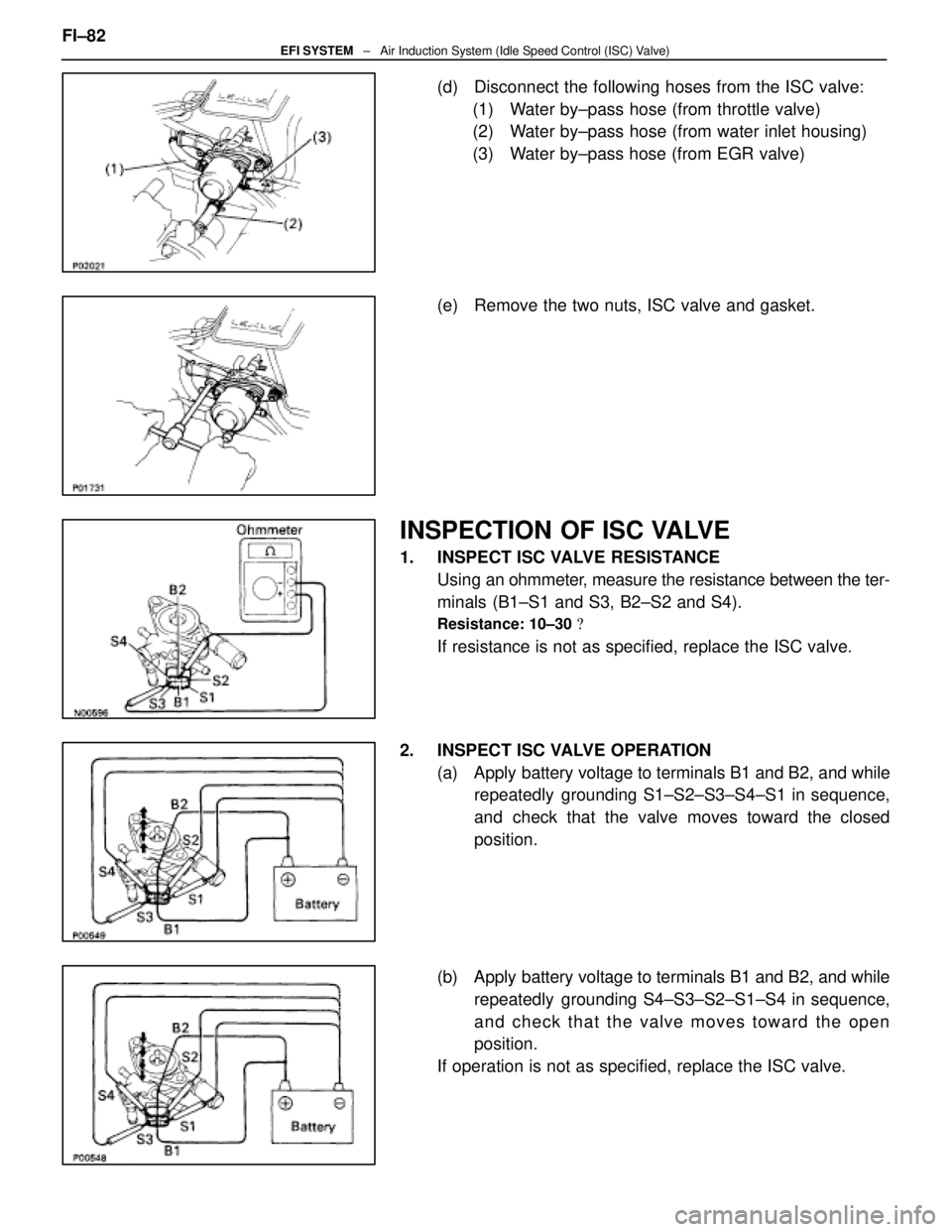

1. INSPECT ISC VALVE RESISTANCE Using an ohmmeter, measure the resistance between the ter-
minals (B1±S1 and S3, B2±S2 and S4).
Resistance: 10±30
If resistance is not as specified, replace the ISC valve.
2. INSPECT ISC VALVE OPERATION (a) Apply battery voltage to terminals B1 and B2, and whilerepeatedly grounding S1±S2±S3±S4±S1 in sequence,
and check that the valve moves toward the closed
position.
(b) Apply battery voltage to terminals B1 and B2, and while repeatedly grounding S4±S3±S2±S1±S4 in sequence,
and check that the valve moves toward the open
position.
If operation is not as specified, replace the ISC valve.
FI±82
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 2463 of 4087
INSTALLATION OF ISC VALVE
(See Components on page FI±81)
1. INSTALL ISC VALVE (a) Install a new gasket and the ISC valve with the two nuts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
(b) Connect the following hoses to the ISC valve:
(1) Water by±pass hose (from throttle valve)
(2) Water by±pass hose (from water inlet housing)
(3) Water by±pass hose (from EGR valve)
(c) (USA Spec.) Install the vacuum pipe and water by±pass pipe (be-
tween ISC valve and EGR valve) to the air intake cham-
ber with the bolt.
(d) (Exc. USA Spec.) Install the water by±pass pipe (between ISC valve and
EGR valve) to the VSV (for fuel pressure control) with
the bolt.
(e) Connect the ISC valve connector.
1. INSTALL LOWER HIGH±TENSION CORD COVER (See steps 5 to 13 and 16 to 18 on pages FI±39 to 41)FI±83
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 2464 of 4087
ELECTRONIC CONTROL SYSTEM
Location of Electronic Control Parts
FI±84 ± Electronic Control\
