Page 3257 of 4087

LEXUS SC300 1991 Service Repair Manual
STABILIZER BAR
COMPONENTS
SA0AJ±04
SA±124±
SUSPENSION AND AXLE REAR SUSPENSION
WhereEverybodyKnowsYourName

Page 3258 of 4087

LEXUS SC300 1991 Service Repair Manual
STABILIZER BAR REMOVAL
SA0WD±01
1. DISCONNECT EXHAUST PIPE
2. REMOVE BOTH SIDE STABILIZER BAR LINKSRemove the nuts and the stabilizer bar links.
3. REMOVE STABILIZER BAR Remove both side the bolts

Page 3259 of 4087

LEXUS SC300 1991 Service Repair Manual
STABILIZER BAR INSTALLATION
SA0WE±02
1. INSTALL BOTH SIDE CUSHIONS AND BRACKET
(a) Install the cushion so as to touch the line painted on thestabilizer bar.
HINT: Install the cushion to the outsid

Page 3260 of 4087

LEXUS SC300 1991 Service Repair Manual
SA1AA±01
SERVICE SPECIFICATIONS
SERVICE DATA
±
SUSPENSION AND AXLE SERVICE SPECIFICATIONSSA±127
WhereEverybodyKnowsYourName

Page 3261 of 4087

LEXUS SC300 1991 Service Repair Manual

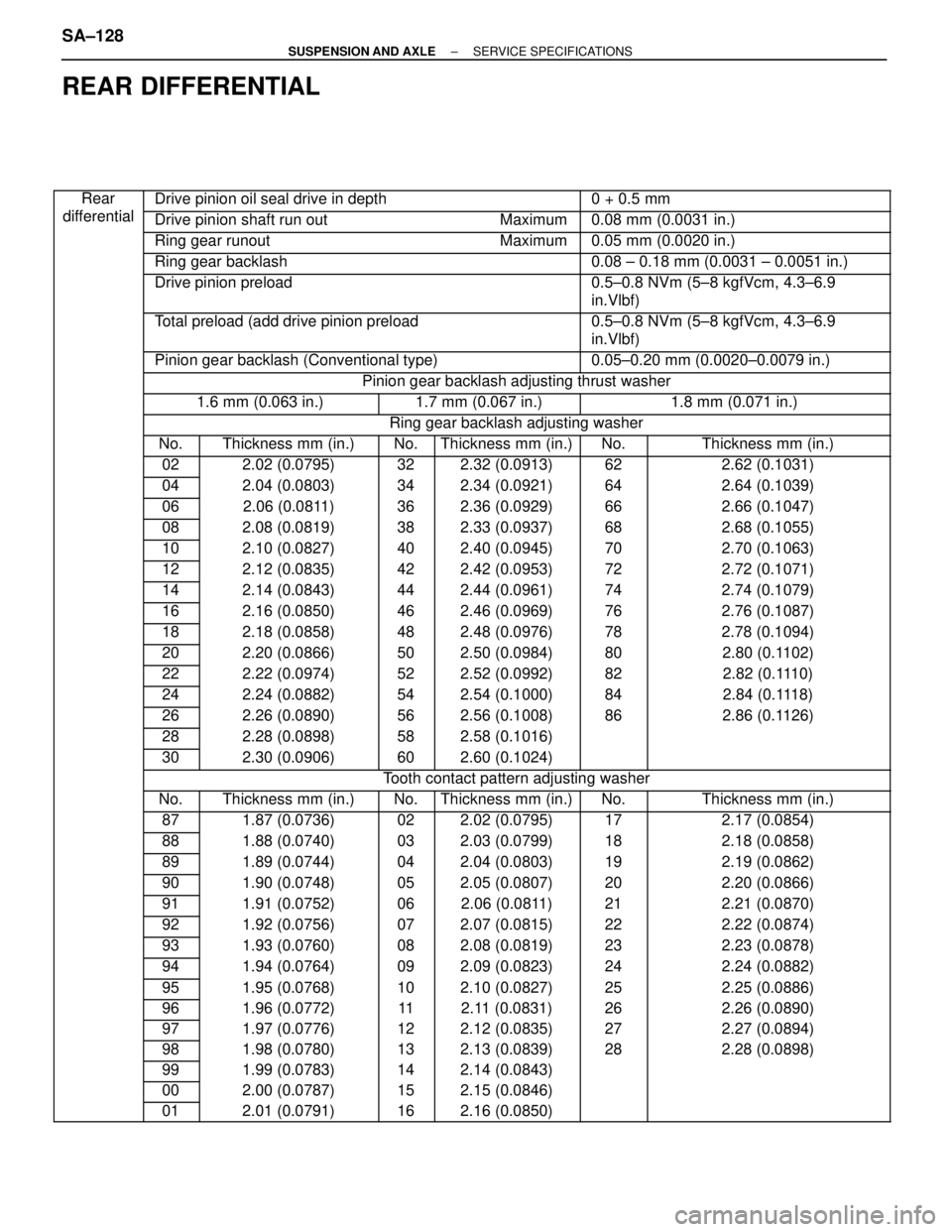

REAR DIFFERENTIAL
Rear
diff ti l
Drive pinion oil seal drive in depth 0 + 0.5 mm differential

REAR DIFFERENTIAL
Rear
diff ti l
Drive pinion oil seal drive in depth 0 + 0.5 mm differential Drive pinion shaft run out Maximum 0.08 mm (0.0031 in.) Ring gear runout Maximum 0.05 mm (0.0020 in.)
Ring gear backlash 0.08 ± 0.18 mm (0.0031 ± 0.0051 in.)

Drive pinion preload

0.5±0.8 NVm (5±8 kgfVcm, 4.3±6.9
in.Vlbf)
Total preload (add drive pinion preload 0.5±0.8 NVm (5±8 kgfVcm, 4.3±6.9
in.Vlbf)
\
\
Pinion gear backlash (Conventional type) 0.05±0.20 mm (0.0020±0.0079 in.)
\
\
Pinion gear backlash adjusting thrust washer
1.6 mm (0.063 in.) 1.7 mm (0.067 in.) 1.8 mm (0.071 in.)
\
\
Ring gear backlash adjusting washer
No. Thickness mm (in.) No. Thickness mm (in.) No. Thickness mm (in.)
022.02 (0.0795)322.32 (0.0913)622.62 (0.1031) 04 2.04 (0.0803) 34 2.34 (0.0921) 64 2.64 (0.1039) 06 2.06 (0.0811) 36 2.36 (0.0929) 66 2.66 (0.1047) 08 2.08 (0.0819) 38 2.33 (0.0937) 68 2.68 (0.1055)
10 2.10 (0.0827) 40 2.40 (0.0945) 70 2.70 (0.1063)
12 2.12 (0.0835) 42 2.42 (0.0953) 72 2.72 (0.1071)
14 2.14 (0.0843) 44 2.44 (0.0961) 74 2.74 (0.1079)
16 2.16 (0.0850) 46 2.46 (0.0969) 76 2.76 (0.1087)
182.18 (0.0858)482.48 (0.0976)782.78 (0.1094) 20 2.20 (0.0866) 50 2.50 (0.0984) 80 2.80 (0.1102) 22 2.22 (0.0974) 52 2.52 (0.0992) 82 2.82 (0.1110) 24 2.24 (0.0882) 54 2.54 (0.1000) 84 2.84 (0.1118)
26 2.26 (0.0890) 56 2.56 (0.1008) 86 2.86 (0.1126)
28 2.28 (0.0898) 58 2.58 (0.1016)
30 2.30 (0.0906) 60 2.60 (0.1024)
\
\
Tooth contact pattern adjusting washer
No.Thickness mm (in.)No.Thickness mm (in.)No.Thickness mm (in.) 87 1.87 (0.0736) 02 2.02 (0.0795) 17 2.17 (0.0854) 88 1.88 (0.0740) 03 2.03 (0.0799) 18 2.18 (0.0858) 89 1.89 (0.0744) 04 2.04 (0.0803) 19 2.19 (0.0862)
90 1.90 (0.0748) 05 2.05 (0.0807) 20 2.20 (0.0866)
91 1.91 (0.0752) 06 2.06 (0.0811) 21 2.21 (0.0870)
92 1.92 (0.0756) 07 2.07 (0.0815) 22 2.22 (0.0874)
93 1.93 (0.0760) 08 2.08 (0.0819) 23 2.23 (0.0878)
941.94 (0.0764)092.09 (0.0823)242.24 (0.0882) 95 1.95 (0.0768) 10 2.10 (0.0827) 25 2.25 (0.0886) 96 1.96 (0.0772) 11 2.11 (0.0831) 26 2.26 (0.0890) 97 1.97 (0.0776) 12 2.12 (0.0835) 27 2.27 (0.0894)
98 1.98 (0.0780) 13 2.13 (0.0839) 28 2.28 (0.0898)
99 1.99 (0.0783) 14 2.14 (0.0843)
00 2.00 (0.0787) 15 2.15 (0.0846)
012.01 (0.0791)162.16 (0.0850)
SA±128±
SUSPENSION AND AXLE SERVICE SPECIFICATIONS
WhereEverybodyKnowsYourName

Page 3262 of 4087

$LEXUS SC300 1991 Service Repair Manual TORQUE SPECIFICATIONS SA0WG±03 (FRONT) \ \ Part tightened NVm kgf Vcm ft Vlbf \ $

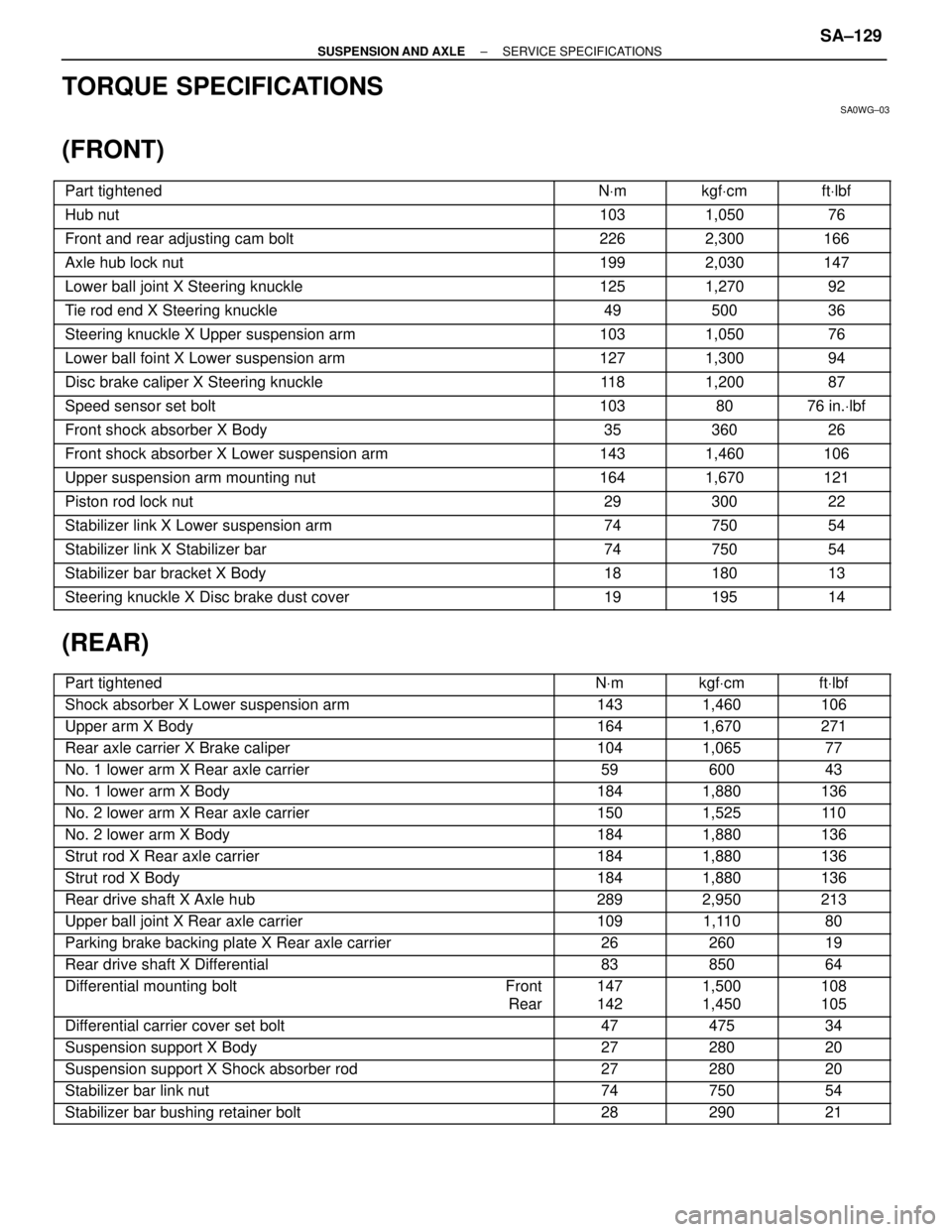

TORQUE SPECIFICATIONS
SA0WG±03
(FRONT)
\
\
Part tightened NVm kgf Vcm ft Vlbf
\
\
Hub nut 103 1,050 76
\
\
Front and rear adjusting cam bolt 226 2,300 166
\
\
Axle hub lock nut 199 2,030 147
\
\
Lower ball joint X Steering knuckle 125 1,270 92
\
\
Tie rod end X Steering knuckle 49 500 36
\
\
Steering knuckle X Upper suspension arm 103 1,050 76
\
\
Lower ball foint X Lower suspension arm 127 1,300 94
\
\
Disc brake caliper X Steering knuckle 11 8 1,200 87
\
\
Speed sensor set bolt 103 80 76 in. Vlbf
\
\
Front shock absorber X Body 35 360 26
\
\
Front shock absorber X Lower suspension arm 143 1,460 106
\
\
Upper suspension arm mounting nut 164 1,670 121
\
\
Piston rod lock nut 29 300 22
\
\
Stabilizer link X Lower suspension arm 74 750 54
\
\
Stabilizer link X Stabilizer bar 74 750 54
\
\
Stabilizer bar bracket X Body 18 180 13
\
\
Steering knuckle X Disc brake dust cover 19 195 14
(REAR)
\
\
Part tightened N Vm kgf Vcm ft Vlbf
\
\
Shock absorber X Lower suspension arm 143 1,460 106\
\
Upper arm X Body 164 1,670 271\
\
Rear axle carrier X Brake caliper 104 1,065 77\
\
No. 1 lower arm X Rear axle carrier 59 600 43\
\
No. 1 lower arm X Body 184 1,880 136
\
\
No. 2 lower arm X Rear axle carrier 150 1,525 11 0
\
\
No. 2 lower arm X Body 184 1,880 136
\
\
Strut rod X Rear axle carrier 184 1,880 136
\
\
Strut rod X Body 184 1,880 136
\
\
Rear drive shaft X Axle hub 289 2,950 213
\
\
Upper ball joint X Rear axle carrier 109 1,110 80
\
Parking brake backing plate X Rear axle carrier2626019\
\
Rear drive shaft X Differential 83 850 64\

\

\
Differential mounting bolt \
Front
Rear

147
142

1,500
1,450

108
105
\
\
Differential carrier cover set bolt 47 475 34
\
\
Suspension support X Body 27 280 20
\
\
Suspension support X Shock absorber rod 27 280 20
\
\
Stabilizer bar link nut 74 750 54
\
\
Stabilizer bar bushing retainer bolt 28 290 21
±
SUSPENSION AND AXLE SERVICE SPECIFICATIONSSA±129
WhereEverybodyKnowsYourName

Page 3263 of 4087

LEXUS SC300 1991 Service Repair Manual
±MEMO±
WhereEverybodyKnowsYourName

Page 3264 of 4087

LEXUS SC300 1991 Service Repair Manual

SUSPENSION AND AXLE
SA±1
