$LEXUS SC300 1991 Service Repair Manual 130 ECT AND A/T INDICATOR THIS SYSTEM, ELECTRICALLY CONTROLS THE LINE PRESSURE, THROTTLE PRESSURE, LOCK±UP PRESSURE AND\ ACCUMULATOR PRESSURE ETC. THROUGH THE SOLENOID VALVE. THE ECT IS A SYSTEM WH$

130
ECT AND A/T INDICATOR
THIS SYSTEM, ELECTRICALLY CONTROLS THE LINE PRESSURE, THROTTLE PRESSURE, LOCK±UP PRESSURE AND\
ACCUMULATOR
PRESSURE ETC. THROUGH THE SOLENOID VALVE. THE ECT IS A SYSTEM WHICH PRECISELY CONTROLS GEAR SHIFT TIMING AND
LOCK±UP TIMING IN RESPONSE TO THE VEHICLE'S DRIVING CONDITIONS AND THE ENGINE OPERATING CONDITIONS DETECTED
BY VARIOUS SENSORS, MAKING SMOOTH DRIVING POSSIBLE BY SHIFT SELECTION FOR EA\
CH GEAR WHICH IS THE MOST
APPROPRIATE TO THE DRIVING CONDITIONS AT THAT TIME, AND CONTROLS THE ENGINE TORQUE DURING SHIFTING TO ACHIEVE
OPTIMUM SHIFT FEELING.
1. GEAR SHIFT OPERATION
WHEN DRIVING, THE ENGINE WARM UP CONDITION IS INPUT AS A SIGNAL TO TERMINAL (B)44 OF THE ECU FROM THE EFI WATER
TEMP. SENSOR AND THE VEHICLE SPEED SIGNAL FROM SPEED SENSOR NO.2 IS INPUT TO TERMINAL (B)23 OF THE ECU. AT THE
SAME TIME, THE THROTTLE VALVE OPENING SIGNAL FROM THE THROTTLE POSITION SENSOR (MAIN) IS INPUT TO TERMINAL
(B)43 OF THE ECU AS ENGINE RPM CONDITION (IDLING, HIGH LOAD AND ACCELERATION CONDITIONS) SIGNAL.
BASED ON THESE SIGNALS, THE ECU SELECTS THE BEST SHIFT POSITION FOR DRIVING C\
ONDITIONS AND SENDS CURRENT TO
THE ECT SOLENOIDS.
WHEN SHIFTING TO 1ST SPEED, THE CURRENT FLOWS FROM TERMINAL (B)10 OF THE ECU " TERMINAL 1 OF ECT SOLENOIDS "
GROUND AND CONTINUITY TO NO.1 SOLENOID CAUSES THE SHIFT (NO.2 SOLENOID DOES NOT HAVE CONTINUITY AT THIS TIME).
FOR 2ND SPEED, THE CURRENT FLOWS SIMULTANEOUSLY FROM TERMINAL (B)9 OF THE ECU " TERMINAL 2 OF ECT SOLENOIDS
" GROUND, AND FROM TERMINAL (B)10 OF THE ECU " TERMINAL 1 OF ECT SOLENOIDS " GROUND, AND CONTINUITY TO NO.1
AND NO.2 SOLENOIDS CAUSES THE SHIFT.
FOR 3RD SPEED, THERE IS NO CONTINUITY TO NO.1 SOLENOID, ONLY TO NO.2 SOLENOID, CAUSING THE SHIFT.
SHIFTING INTO THE 4TH SPEED (OVERDRIVE) OCCURS WHEN NO CURRENT FLOWS TO NO.1 AND NO.2 SOLENOIDS. THE NO.4
SOLENOID (FOR ACCUMULATOR BACK PRESSURE MODULATION) IS INSTALLED TO ADJUST THE BACK PRESSURE ON THE
ACCUMULATOR AND CONTROL THE HYDRAULIC PRESSURE DURING SHIFTING AND LOCK±UP IN \
ORDER TO PROVIDE SMOOTH
SHIFTING WITH LITTLE SHIFT SHOCK.
2. LOCK±UP OPERATION
WHEN THE ECT ECU DECIDES, BASED ON EACH SIGNAL, THAT THE LOCK±UP CONDITION HAS BEEN MET, THE CURRENT FLOWS
FROM " TERMINAL (B)8 OF THE ECU " TERMINAL 3 OF THE ECT SOLENOID " GROUND, CAUSING CONTINUITY TO THE LOCK±UP
SOLENOID AND CAUSING LOCK±UP OPERATION.
3. STOP LIGHT SW CIRCUIT
IF THE BRAKE PEDAL IS DEPRESSED (STOP LIGHT SW ON) WHEN DRIVING IN LOCK±UP CONDITION, A SIGNAL IS INPUT\
TO
TERMINAL (A)4 OF THE ECU. THE ECU OPERATES AND CUTS THE CURRENT TO THE SOLENOID TO RELEASE LOCK±UP.
4. OVERDRIVE CIRCUIT
*O/D MAIN SW ON
WHEN THE O/D MAIN SW IS TURNED ON (SW POINT IS OPEN), A SIGNAL IS INPU\
T TO TERMINAL (A)28 OF THE ECU AND THE ECT
CAUSES SHIFT TO OVERDRIVE WHEN THE CONDITIONS FOR OVERDRIVE ARE MET.
* O/D MAIN SW OFF
WHEN THE O/D MAIN SW IS TURNED OFF (SW POINT IS CLOSED), THE CURRENT FLOWI\
NG THROUGH THE O/D OFF INDICATOR
LIGHT FLOWS TO GROUND BY WAY OF THE O/D MAIN SW AND CAUSES THE O/D OFF INDICATOR LIGHT TO LIGHT UP. AT THE
SAME TIME, A SIGNAL IS INPUT TO TERMINAL (A)28 OF THE ECU AND THE ECT PREVENTS SHIFT INTO OVERDRIVE.
5. ECT PATTERN SELECT SW CIRCUIT
WHEN THE ECT PATTERN SELECT SW IS CHANGED FROM ªNORMALº TO ªPOWERº, THE CURRENT THROUGH THE GAUGE FUSE
FLOWS TO TERMINAL 4 OF ECT PATTERN SELECT SW " TERMINAL 3 " TERMINAL (B)4 OF A/T INDICATOR " TERMINAL (C)23 "
GROUND AND CAUSES THE INDICATOR LIGHT TO LIGHT UP. AT THE SAME TIME, THE CURRENT FLOWS TO TERMINAL (A)18 OF
THE ECU AND THE ECU PERFORMS SHIFT UP AND SHIFT DOWN AT A HIGHER VEHICLE SPEED RANGE COMPARED WITH
ªNORMALº POSITION.
6. KICK DOWN OPERATION
WHEN THE ACCELERATOR IS DEPRESSED FURTHER THAN THE FULL THROTTLE POSITION WHILE DRIVING, THE KICK DOWN SW
TURNS ON AND ITS SIGNAL IS INPUT TO TERMINAL (A)3 OF THE ECU. THEN, THE ECU CONTROLS THE CURRENT WHICH FLOWS
FROM TERMINALS (B)10 AND (B)9 OF THE ECU TO THE NO. 1 AND NO. 2 SOLENOIDS AND SHIFTS DOWN BY TURNING THE
SOLENOIDS ON AND OFF.
7. CRUISE CONTROL
WHEN CRUISE CONTROL OPERATION IS SELECTED A SIGNAL IS INPUT TO TERMINAL (A)12 OF THE ECU FROM CRUISE CONTROL
ECU. AS A RESULT, THE ECU OPERATES AND CONTROLS OVERDRIVE, LOCK±UP AND SO ON FOR SMOOTH DRIVING.
SYSTEM OUTLINE
WhereEverybodyKnowsYourName

Page 3898 of 4087

LEXUS SC300 1991 Service Repair Manual
131
E 1 ECT SOLENOID
1±4 : APPROX. 5.3
2±5 : APPROX. 3.7
3±GROUND : APPROX. 13.2
6±GROUND : APPROX. 13.2
E 2 EFI WATER TEMP. SENSOR
1±2 : APPROX. 16.2K ( ±20 °C ±4 °F)
APPROX

Page 3899 of 4087

LEXUS SC300 1991 Service Repair Manual
132
ECT AND A/T INDICATOR
: PARTS LOCATION
CODESEE PAGECODESEE PAGECODESEE PAGE
A2128E 226S 927
C 326E 828S22B29
C12C28E 9A28S23A29
C13B28E10B28T 227
C14A28N 127T 629
D1326O 529S 327
E 126S 427
: REL

Page 3900 of 4087

LEXUS SC300 1991 Service Repair Manual
133
WhereEverybodyKnowsYourName

Page 3901 of 4087

$LEXUS SC300 1991 Service Repair Manual 66 . ENGINE CONTROL THIS SYSTEM UTILIZES AN ECU AND MAINTAINS OVERALL CONTROL OF THE ENGINE, TRANSMISSION AND SO ON. AN OUTLINE O\ F THE ENGINE CONTROL IS EXPLAINED HERE. 1. INPUT SIGNALS (1) WATER T$

66
.
ENGINE CONTROL
THIS SYSTEM UTILIZES AN ECU AND MAINTAINS OVERALL CONTROL OF THE ENGINE, TRANSMISSION AND SO ON. AN OUTLINE O\
F
THE ENGINE CONTROL IS EXPLAINED HERE.
1. INPUT SIGNALS
(1) WATER TEMP. SIGNAL CIRCUITTHE WATER TEMP. SENSOR DETECTS THE ENGINE COOLANT TEMP. AND HAS A BUILT±IN THERMISTOR WITH A RESISTANCE
WHICH VARIES ACCORDING TO THE WATER TEMP. THE WATER TEMP. IS INPUT INTO TERMINAL THW OF ENGINE CONTROL
ECU AS A CONTROL SIGNAL.
(2) INTAKE AIR TEMP. SIGNAL CIRCUIT THE INTAKE AIR TEMP. SENSOR IS INSTALLED IN THE AIR FLOW METER AND DETECTS THE INTAKE AIR TEMP., WHICH IS INPUT
AS A CONTROL SIGNAL TO TERMINAL THA OF ENGINE CONTROL ECU.
(3) OXYGEN SENSOR SIGNAL CIRCUIT THE OXYGEN DENSITY IN THE EXHAUST EMISSION IS DETECTED AND INPUT AS A CONTR\
OL SIGNAL FROM THE OXYGEN
SENSOR NO. 1 AND NO. 2 TO TERMINALS OX1, OX2 OF THE ECU AND FROM THE OXYGEN SENSOR SUB (FOR CALIFORNIA) TO
TERMINAL OX3 OF THE ECU.
TO STABILIZE DETECTION PERFORMANCE BY THE OXYGEN SENSOR SUB (FOR CALIFORNIA)\
IS WARMED. THIS HEATER IS
ALSO CONTROLLED BY THE ECU (HT).
(4) RPM SIGNAL CIRCUIT CRANKSHAFT POSITION IS DETECTED BY THE PICK±UP COIL INSTALLED INSIDE THE DISTRIBUTOR. CRANKSHAFT POSITION
IS INPUT AS A CONTROL SIGNAL TO TERMINALS G1 AND G2 OF THE ECU, AND RPM IS INPUT TO TERMINAL NE.
(5) THROTTLE SIGNAL CIRCUIT THE THROTTLE POSITION SENSOR DETECTS THE THROTTLE VALVE OPENING ANGLE AS A CONTROL SIGNAL, WHICH IS
INPUT INTO TERMINAL VTA1 OF THE ECU. WHEN THE VALVE IS COMPLETELY CLOSED, THE CONTROL SIGNAL IS INPUT INTO
TERMINAL IDL1 .
(6) VEHICLE SPEED CIRCUIT THE VEHICLE SPEED IS DETECTED BY SPEED SENSOR NO. 1 INSTALLED IN THE TRANSMISSION AND THE SIGNAL IS INPUT TO
TERMINAL SPD OF THE ECU VIA THE COMB. METER.
(7) NEUTRAL START SIGNAL CIRCUIT THE NEUTRAL START SW DETECTS WHETHER THE SHIFT POSITION IS IN NEUTRAL OR NOT, AND THE SIGNAL IS INPUT INTO
TERMINAL NSW OF THE ECU.
(8) AIRCONDITIONING SW SIGNAL CIRCUIT THE OPERATING VOLTAGE OF THE A/C MAGNETIC CLUTCH IS DETECTED AND THE SIGNAL IS INPUT INTO TERMINAL ACMG OF
ECU AS A CONTROL SIGNAL.
(9) BATTERY SIGNAL CIRCUIT VOLTAGE IS CONSTANTLY APPLIED TO TERMINAL BATT OF THE ECU. WITH THE IGNITION SW TURNED ON, THE VOLTAGE FOR
ECU START±UP POWER SUPPLY IS APPLIED TO TERMINALS +B AND +B1 OF ECU VIA EFI MAIN RELAY.
THE CURRENT FLOWING THROUGH THE IGN FUSE FLOWS TO TERMINAL IGSW OF THE ECU.
(10) INTAKE AIR VOLUME SIGNAL CIRCUIT INTAKE AIR VOLUME IS DETECTED BY THE AIR FLOW METER AND THE SIGNAL IS INPUT TO TERMINAL KS OF THE ECU AS A
CONTROL SIGNAL.
(11) STOP LIGHT SW SIGNAL CIRCUIT THE STOP LIGHT SW IS USED TO DETECT WHETHER OR NOT THE VEHICLE IS BRAKING AND THE SIGNAL IS INPUT INTO
TERMINAL STP OF THE ECU AS A CONTROL SIGNAL.
(12) STA SIGNAL CIRCUIT TO CONFIRM WHETHER THE ENGINE IS CRANKING, THE VOLTAGE APPLIED TO THE STARTER MOTOR DURING CRANKING IS
DETECTED AND THE SIGNAL IS INPUT INTO TERMINAL STA OF THE ECU AS A CONTROL SIGNAL.
(13) ENGINE KNOCK SIGNAL CIRCUIT ENGINE KNOCKING IS DETECTED BY KNOCK SENSOR NO. 1 AND NO. 2 AND THE SIGN\
AL IS INPUT INTO TERMINALS KNK1 AND
KNK2 AS A CONTROL SIGNAL.
SYSTEM OUTLINE
WhereEverybodyKnowsYourName

Page 3902 of 4087

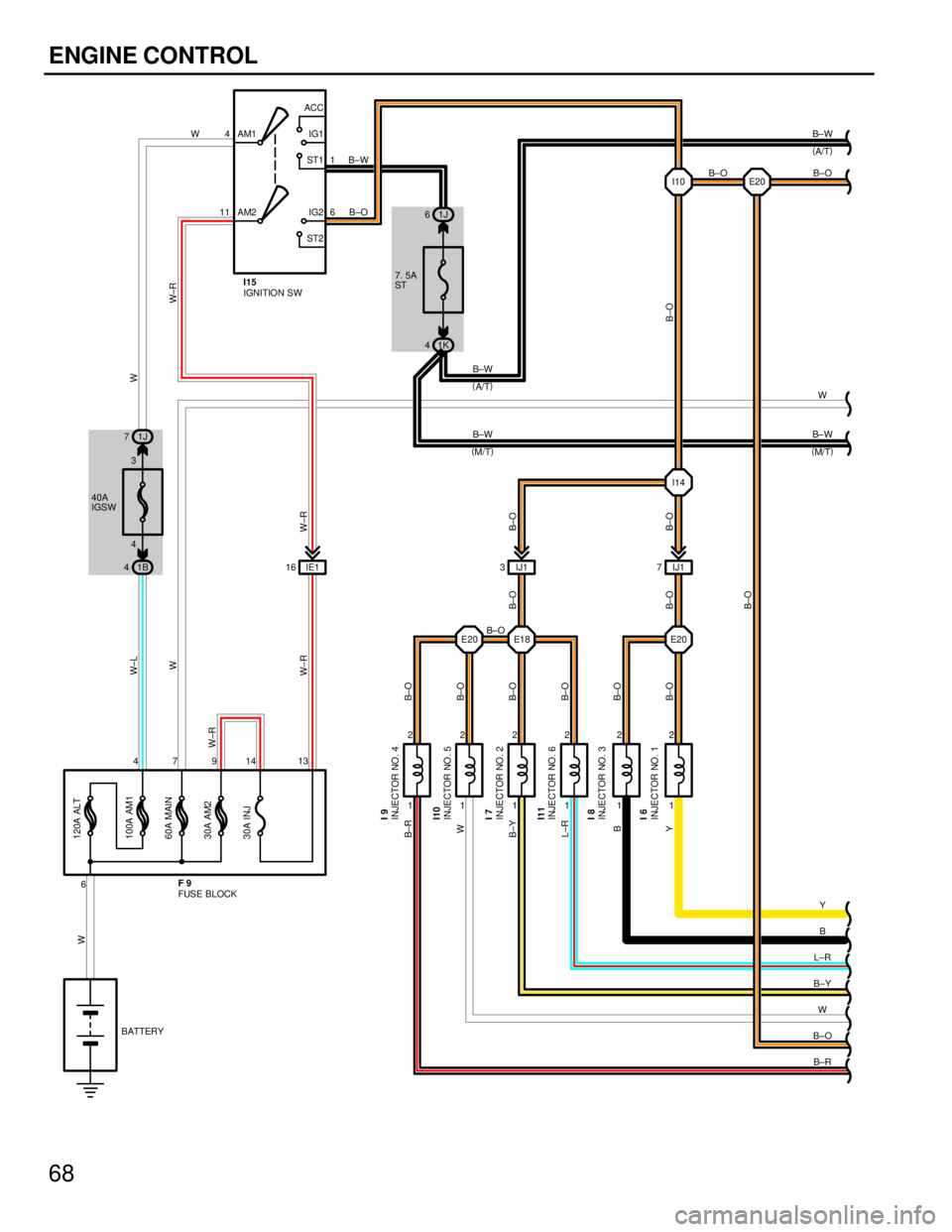

$LEXUS SC300 1991 Service Repair Manual 67 2. CONTROL SYSTEM *EFI (ELECTRONIC FUEL INJECTION) SYSTEM THE EFI SYSTEM MONITORS THE ENGINE CONDITION THROUGH THE SIGNALS INPUT FROM EACH SENSOR (IN\ PUT SIGNALS FROM (1) TO (13) ETC.) TO THE ECU$
