1988 OPEL CALIBRA Service Repair Manual

Wiring diagrams 12•43
12

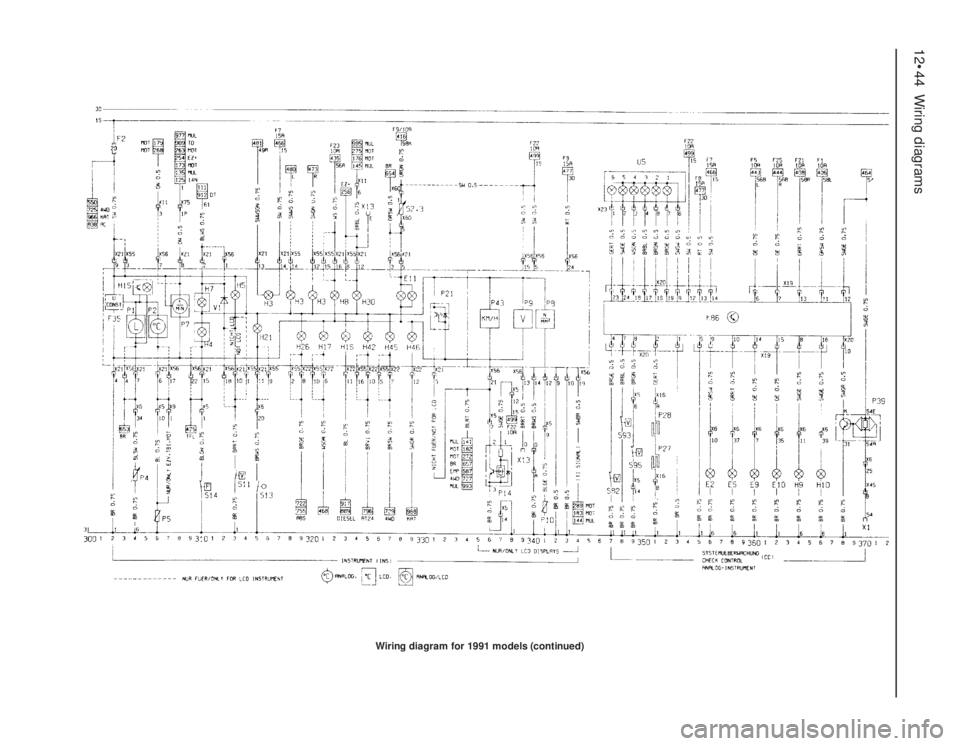

Wiring diagram for 1991 models (continued)

12•44Wiring diagrams
Wiring diagram for 1991 models (continued)

Wiring diagrams 12•45
12
Wiring diagram for 1991 models (continued)

12•46Wiring diagrams
Wiring diagram for 1991 models (continued)

Wiring diagrams 12•47
12
Wiring diagram for 1991 models (continued)

12•48Wiring diagrams

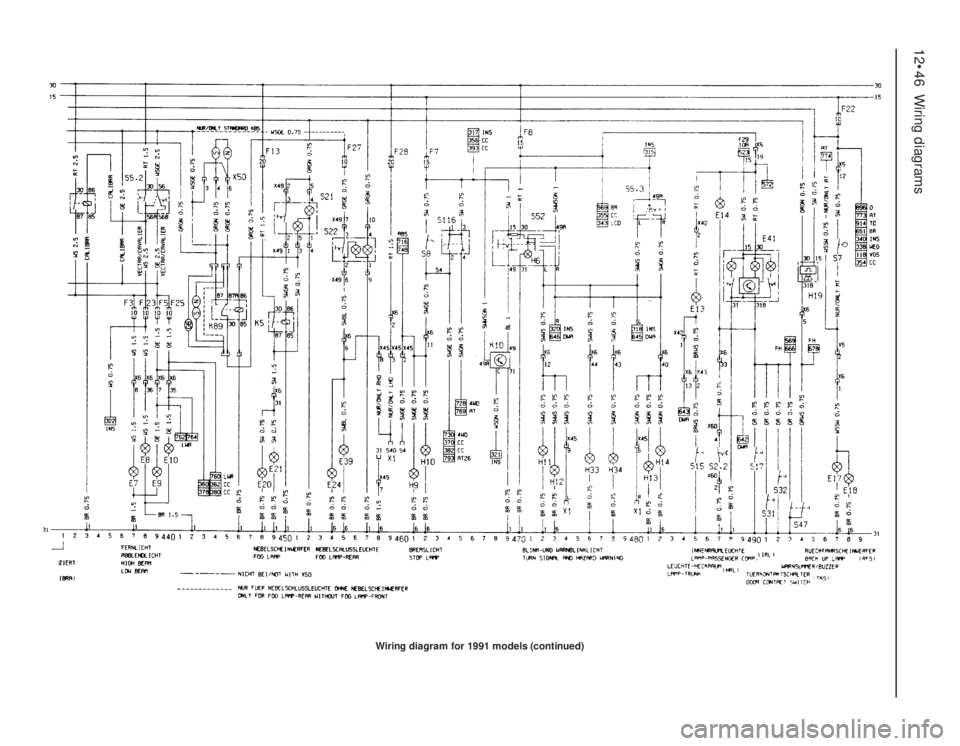

Wiring diagram for 1991 models (continued)

Wiring diagrams 12•49
12
Wiring diagram for 1991 models (continued)

12•50Wiring diagrams

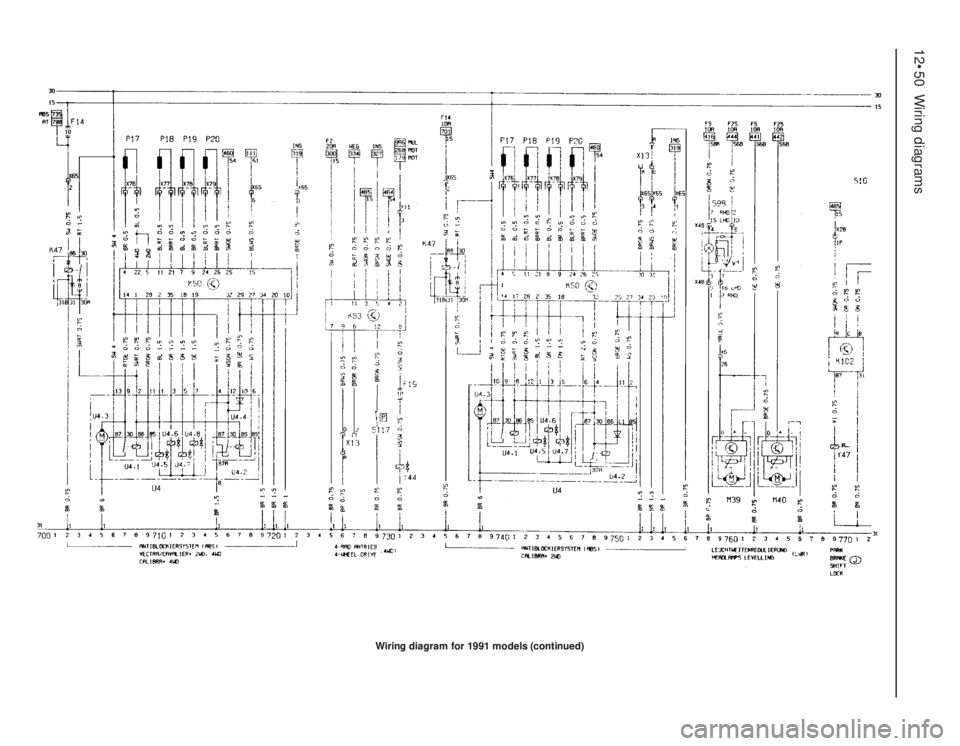

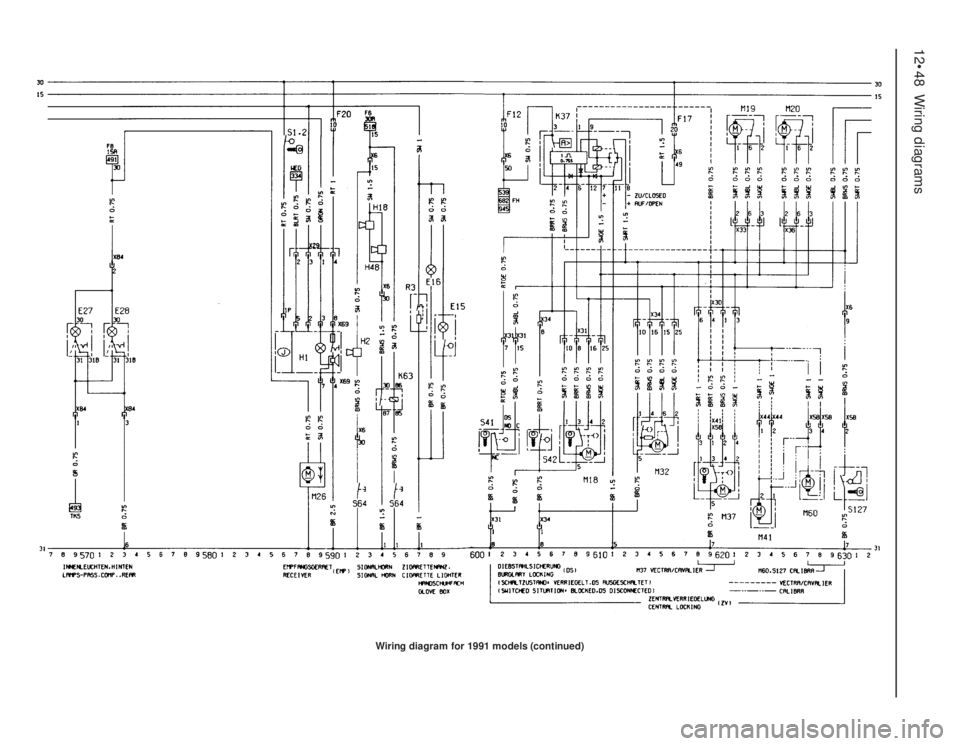

Wiring diagram for 1991 models (continued) Wiring diagram for 1991 models (continued)
