d)Disconnect the fuel pump hose and wiring
as described in Section 12.
e)When releasing the tank mounting straps,
note that the fuel filter must either be
moved aside or removed completely,
whichever is most convenient
f)One of the fuel hoses connects to a pipe
in the side of the tank.
DOHC models
2Disconnect the battery negative lead.
3Siphon out any remaining fuel in the tank
through the filler pipe. Siphon the fuel into a
clean metal container that can be sealed.
4Chock the front wheels, then jack up the
rear of the vehicle, and support on axle stands
placed under the body side members (see
“Jacking and Vehicle Support”).
5Open the fuel filler flap, then pull back the
rubber seal to expose the fuel filler pipe
securing screw (see illustration). Remove the
screw.
6Release the fuel tank vent hoses from the
clips on the underbody.
7Support the weight of the fuel tank on a
jack, with an interposed block of wood.
8Unscrew the securing bolts from the tank
mounting straps. Then remove the straps and
lower the tank sufficiently to enable the fuel
hoses, vent hoses and fuel tank sender unit
wiring to be disconnected (see illustration).
9Disconnect the vent hoses and the fuel tank
sender unit wiring. Note the positions of the
vent hoses as an aid to refitting.
10Disconnect the fuel hoses from the tank and
the fuel tank sender unit, making a note of the
hose positions for use when refitting. Be
prepared for fuel spillage, and take adequate fire
precautions. Plug the open ends of the hoses, to
prevent dirt ingress and further fuel loss.
11Lower the fuel tank, and withdraw it from
under the vehicle.
12If the tank contains sediment or water, it
may be cleaned out using two or three rinses
with clean fuel. Shake vigorously using
several changes of fuel, but before doing so,
remove the fuel tank sender unit, as described
in Section 17. This procedure should be
carried out in a well-ventilated area, and it is
vital to take adequate fire precautions - refer
to the “Safety first!” Section at the beginning
of this manual for further details.
Refitting
13Any repairs to the fuel tank should be
carried out by a professional.
14Refitting is a reversal of removal, ensuring
that all hoses are reconnected to their correct
locations as noted during removal.
15On completion, fill the fuel tank, then run
the engine and check for leaks. If leakage is
evident, stop the engine immediately, and
rectify the problem without delay.
17Fuel tank sender unit -
removal and refitting
3
Note:Refer to Section 2 before proceeding
Removal
SOHC models
1Remove the fuel tank, (refer to Section 16),
if necessary. Note that there is only one hose
connected to the sender unit. This must also
be disconnected from the union on the inside
of the unit before it can be withdrawn
completely from the tank (see illustration).
DOHC models
2Remove the fuel tank, as described in
Section 16.
3Make alignment marks on the sender unit
and the fuel tank so that the sender unit can
be refitted in its original position.
4To remove the sender unit, an improvised
tool must be used which engages with thecut-outs in the sender unit retaining ring. The
Vauxhall special tool KM-673 for this purpose
is shown (see illustration).
5Withdraw the unit carefully, to avoid
bending the float arm.
6Recover the sealing ring.
Refitting
7Refitting is a reversal of removal,
remembering the following points.
8Renew the sealing ring.
9Ensure that the marks made on sender unit
and fuel tank before removal are aligned.
10Refit the fuel tank, (Section 16).
18Fuel flow damper - removal
and refitting
3
Note:Refer to Section 2 before proceeding
Removal
1The fuel flow damper is located on the fuel
pump bracket under the rear of the vehicle, on
the right-hand side of the spare wheel well or
in front of the fuel tank, depending on model
(see illustration). The damper is positioned in
the fuel feed line between the fuel pump and
the fuel filter, and its purpose is to reduce
pressure fluctuations in the fuel return line,
thus reducing noise levels.
2Disconnect the battery negative lead.
3Have a container to hand, to catch the fuel
that will be released as the damper is
removed.
4B•8Fuel and exhaust systems - fuel injection models
16.5 Fuel filler pipe securing screw
(arrowed) - models with semi-trailing arm
rear axles17.1 Fuel level sender unit - models with
semi-independent rear axles
18.1 Fuel flow damper - models with semi-
trailing arm rear axles17.4 Vauxhall special tool KM-673 for
removing fuel level sender units
16.8 Fuel tank mounting - models with
semi-trailing arm rear axles
1 Strap securing bolt 2 Vent hose securing

4B
4Clamp the fuel hoses on either side of the
damper, to minimise fuel loss when the hoses
are disconnected.
5Loosen the clamp screws, and disconnect
the fuel hoses from the damper. Be prepared
for fuel spillage, and take adequate fire
precautions.
6Unscrew the securing nut, and withdraw
the damper from the bracket.
Refitting
7Refitting is a reversal of removal.
8Run the engine and check for leaks on
completion. If leakage is evident; stop the
engine immediately, and rectify the problem
without delay.

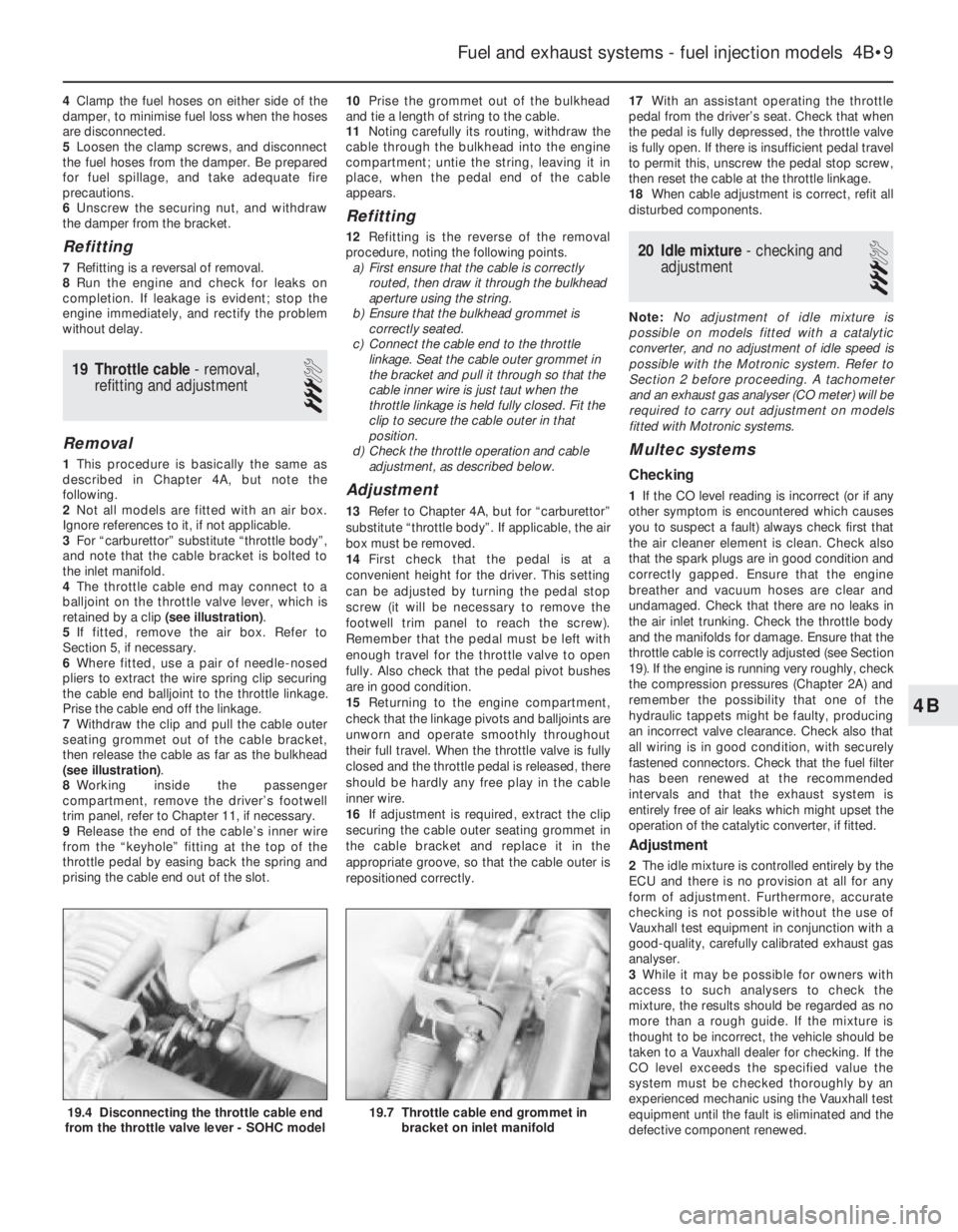

19Throttle cable - removal,
refitting and adjustment
3
Removal
1This procedure is basically the same as
described in Chapter 4A, but note the
following.
2Not all models are fitted with an air box.
Ignore references to it, if not applicable.
3For “carburettor” substitute “throttle body”,
and note that the cable bracket is bolted to
the inlet manifold.
4The throttle cable end may connect to a
balljoint on the throttle valve lever, which is
retained by a clip (see illustration).
5If fitted, remove the air box. Refer to
Section 5, if necessary.
6Where fitted, use a pair of needle-nosed
pliers to extract the wire spring clip securing
the cable end balljoint to the throttle linkage.
Prise the cable end off the linkage.
7Withdraw the clip and pull the cable outer
seating grommet out of the cable bracket,
then release the cable as far as the bulkhead
(see illustration).
8Working inside the passenger
compartment, remove the driver’s footwell
trim panel, refer to Chapter 11, if necessary.
9Release the end of the cable’s inner wire
from the “keyhole” fitting at the top of the
throttle pedal by easing back the spring and
prising the cable end out of the slot.10Prise the grommet out of the bulkhead
and tie a length of string to the cable.
11Noting carefully its routing, withdraw the
cable through the bulkhead into the engine
compartment; untie the string, leaving it in
place, when the pedal end of the cable
appears.
Refitting
12Refitting is the reverse of the removal
procedure, noting the following points.
a)First ensure that the cable is correctly
routed, then draw it through the bulkhead
aperture using the string.
b)Ensure that the bulkhead grommet is
correctly seated.
c)Connect the cable end to the throttle
linkage. Seat the cable outer grommet in
the bracket and pull it through so that the
cable inner wire is just taut when the
throttle linkage is held fully closed. Fit the
clip to secure the cable outer in that
position.
d)Check the throttle operation and cable
adjustment, as described below.
Adjustment
13Refer to Chapter 4A, but for “carburettor”
substitute “throttle body”. If applicable, the air
box must be removed.
14First check that the pedal is at a
convenient height for the driver. This setting
can be adjusted by turning the pedal stop
screw (it will be necessary to remove the
footwell trim panel to reach the screw).
Remember that the pedal must be left with
enough travel for the throttle valve to open
fully. Also check that the pedal pivot bushes
are in good condition.
15Returning to the engine compartment,
check that the linkage pivots and balljoints are
unworn and operate smoothly throughout
their full travel. When the throttle valve is fully
closed and the throttle pedal is released, there
should be hardly any free play in the cable
inner wire.
16If adjustment is required, extract the clip
securing the cable outer seating grommet in
the cable bracket and replace it in the
appropriate groove, so that the cable outer is
repositioned correctly.17With an assistant operating the throttle
pedal from the driver’s seat. Check that when
the pedal is fully depressed, the throttle valve
is fully open. If there is insufficient pedal travel
to permit this, unscrew the pedal stop screw,
then reset the cable at the throttle linkage.
18When cable adjustment is correct, refit all
disturbed components.
20Idle mixture - checking and
adjustment
3
Note: No adjustment of idle mixture is
possible on models fitted with a catalytic
converter, and no adjustment of idle speed is
possible with the Motronic system. Refer to
Section 2 before proceeding. A tachometer
and an exhaust gas analyser (CO meter) will be
required to carry out adjustment on models
fitted with Motronic systems.
Multec systems
Checking
1If the CO level reading is incorrect (or if any
other symptom is encountered which causes
you to suspect a fault) always check first that
the air cleaner element is clean. Check also
that the spark plugs are in good condition and
correctly gapped. Ensure that the engine
breather and vacuum hoses are clear and
undamaged. Check that there are no leaks in
the air inlet trunking. Check the throttle body
and the manifolds for damage. Ensure that the
throttle cable is correctly adjusted (see Section
19). If the engine is running very roughly, check
the compression pressures (Chapter 2A) and
remember the possibility that one of the
hydraulic tappets might be faulty, producing
an incorrect valve clearance. Check also that
all wiring is in good condition, with securely
fastened connectors. Check that the fuel filter
has been renewed at the recommended
intervals and that the exhaust system is
entirely free of air leaks which might upset the
operation of the catalytic converter, if fitted.
Adjustment
2The idle mixture is controlled entirely by the
ECU and there is no provision at all for any
form of adjustment. Furthermore, accurate
checking is not possible without the use of
Vauxhall test equipment in conjunction with a
good-quality, carefully calibrated exhaust gas
analyser.
3While it may be possible for owners with
access to such analysers to check the
mixture, the results should be regarded as no
more than a rough guide. If the mixture is
thought to be incorrect, the vehicle should be
taken to a Vauxhall dealer for checking. If the
CO level exceeds the specified value the
system must be checked thoroughly by an
experienced mechanic using the Vauxhall test
equipment until the fault is eliminated and the
defective component renewed.
Fuel and exhaust systems - fuel injection models 4B•9
19.7 Throttle cable end grommet in
bracket on inlet manifold19.4 Disconnecting the throttle cable end
from the throttle valve lever - SOHC model

4Where applicable, the only test of the
catalytic converter’s efficiency is to check the
level of CO in the exhaust gas. This is
measured at the tailpipe with the engine
running (with no load) at 3000 rpm. If the CO
level exceeds the specified value, the Vauxhall
test equipment must be used to check the
entire fuel injection/ignition system. If the
engine is mechanically sound, once the
system has been eliminated, the fault must lie
in the converter, which must be renewed.
Motronic systems
Checking
5In order to check the idle mixture adjustment,
the following conditions must be met:
a)The engine must be at normal operating
temperature
b)All electrical consumers (cooling fan,
heater blower, headlamps etc.) must be
switched off
c)The spark plug gaps must be correctly
adjusted see Chapter 1
d)The throttle cable free play must be
correctly adjusted - see Section 19
e)The air inlet trunking must be free from
leaks, and the air filter must be clean
Adjustment
6Connect a tachometer and an exhaust gas
analyser to the vehicle in accordance with the
equipment manufacturer’s instructions.
7Start the engine and turn it at 2000 rpm for
approximately 30 seconds, then allow it to
idle. Check that the idle speed is within the
specified limits. No adjustment of idle speed
is possible, and if outside the specified limits,
the problem should be referred to a dealer.
8With the idle speed correct, check the CO
level in the exhaust gas. If it is outside the
specified limits, adjust by means of the idle
mixture adjustment screw in the airflow meter
or air mass meter, as applicable. In
production, the screw is covered by a
tamperproof plug; ensure that no local or
national laws are being broken before
removing the plug.9If the cooling fan cuts in during the
adjustment procedure, stop the adjustments,
and proceed when the cooling fan stops.
10When the idle mixture is correctly set,
stop the engine and disconnect the test
equipment.
Simtec systems
11Adjustment is not possible on these
models.
21Fuel pressure regulator -
removal and refitting
3
Note:Refer to Section 2 before proceeding
Removal
SOHC models (except Multec systems)
1Disconnect the battery negative lead.
2For improved access, remove the idle
speed adjuster as described in Section 22.
Disconnect the wiring harness housing from
the fuel injectors and move it to one side,
taking care not to strain the wiring. Pull up on
the wiring harness housing, and compress the
wiring plug retaining clips to release the
harness housing from the injectors.
3Position a wad of rag beneath the pressure
regulator, to absorb the fuel that will be
released as the regulator is removed.
4Loosen the clamp screws and disconnect
the fuel hoses from the regulator. Be prepared
for fuel spillage, and take adequate fire
precautions.
5Disconnect the vacuum pipe from the top
of the pressure regulator and withdraw the
regulator.
SOHC models (with Multec system)
6Depressurise the fuel system, as described
in Section 8.
7Remove the air box. Refer to Section 5, if
necessary.
8Disconnect the battery earth lead.9Noting the dowels locating the cover,
carefully unscrew the fuel pressure regulator
cover Torx-type screws (size TX 15). Ensure
that the spring does not fly out as the cover is
released. Remove the cover spring seat,
spring and diaphragm, noting how each is
fitted (see illustration).
10The diaphragm must be renewed
whenever the cover is disturbed. If any of the
regulator’s other components are worn or
damaged, they can be renewed only as part
of the throttle body upper section assembly.
DOHC models
11Disconnect the battery negative lead.
12Disconnect the wiring plug from the air
mass meter. Recover the sealing ring.
13Loosen the clamp screw securing the air
trunking to the right-hand end of the air mass
meter.
14Using an Allen key or hexagon bit,
unscrew the four bolts securing the air box to
the throttle body. Lift the air box from the
throttle body and disconnect the hose from
the base of the air box, then withdraw the air
box/air mass meter assembly.
15Disconnect the two breather hoses from
the rear of the camshaft cover, and move
them to one side.
16Disconnect the wiring plug from the
throttle position sensor.
17Disconnect the vacuum pipe from the top
of the pressure regulator (see illustration).
18Position a wad of rag beneath the
regulator, to absorb the fuel that will be
released as the regulator is removed.
19Using a spanner or socket, and working
underneath the regulator, unscrew the four
Torx type securing bolts, then withdraw the
regulator. Be prepared for fuel spillage, and
take adequate fire precautions.
Refitting
20Refitting is a reversal of removal, ensuring
that all wires, pipes and hoses are correctly
reconnected. Note that on DOHC models, the
4B•10Fuel and exhaust systems - fuel injection models
21.17 Fuel pressure regulator (arrowed) - DOHC model21.9 Fuel pressure regulator cover
A Locating dowels B Mounting screws

regulator vacuum pipe should be routed over
the top of the camshaft cover breather hoses.
21On models with the Multec system note
also the following:
a)Fit the new diaphragm so that it locates in
the throttle body groove.
b)Ensure that the spring and spring seat are
correctly engaged with each other and
with the diaphragm and regulator cover.
Then press the cover over its locating
dowels and hold it in place while the
screws are tightened.
c)Tighten the screws carefully to the
specified torque wrench setting.
22On completion, check the regulator for
leaks, pressurising the system by switching
the ignition on and off several times, before
the engine is started.

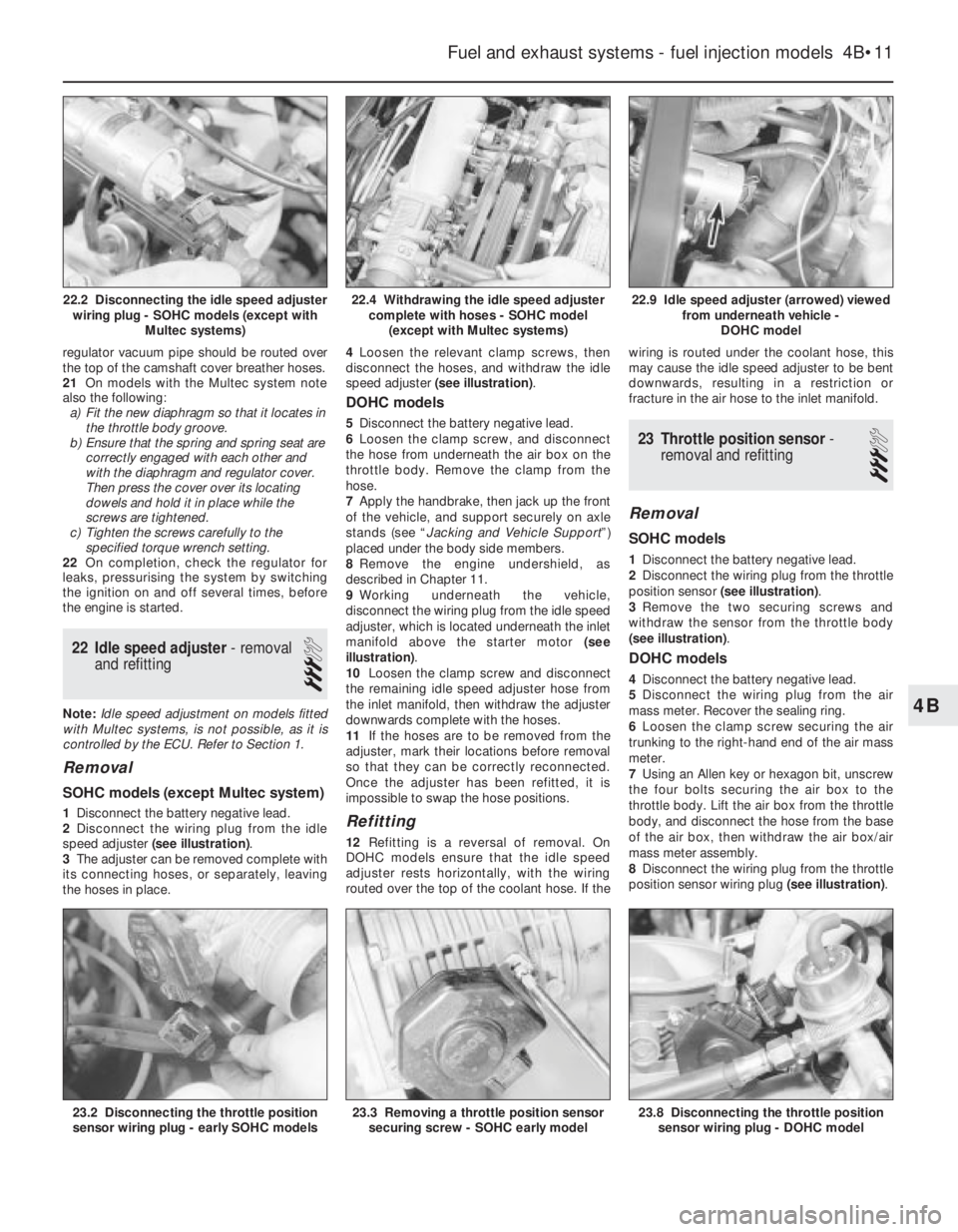

22Idle speed adjuster - removal
and refitting
3
Note:Idle speed adjustment on models fitted
with Multec systems, is not possible, as it is
controlled by the ECU. Refer to Section 1.
Removal
SOHC models (except Multec system)
1Disconnect the battery negative lead.
2Disconnect the wiring plug from the idle
speed adjuster (see illustration).
3The adjuster can be removed complete with
its connecting hoses, or separately, leaving
the hoses in place.4Loosen the relevant clamp screws, then
disconnect the hoses, and withdraw the idle
speed adjuster (see illustration).
DOHC models
5Disconnect the battery negative lead.
6Loosen the clamp screw, and disconnect
the hose from underneath the air box on the
throttle body. Remove the clamp from the
hose.
7Apply the handbrake, then jack up the front
of the vehicle, and support securely on axle
stands (see “Jacking and Vehicle Support”)
placed under the body side members.
8Remove the engine undershield, as
described in Chapter 11.
9Working underneath the vehicle,
disconnect the wiring plug from the idle speed
adjuster, which is located underneath the inlet
manifold above the starter motor (see
illustration).
10Loosen the clamp screw and disconnect
the remaining idle speed adjuster hose from
the inlet manifold, then withdraw the adjuster
downwards complete with the hoses.
11If the hoses are to be removed from the
adjuster, mark their locations before removal
so that they can be correctly reconnected.
Once the adjuster has been refitted, it is
impossible to swap the hose positions.
Refitting
12Refitting is a reversal of removal. On
DOHC models ensure that the idle speed
adjuster rests horizontally, with the wiring
routed over the top of the coolant hose. If thewiring is routed under the coolant hose, this
may cause the idle speed adjuster to be bent
downwards, resulting in a restriction or
fracture in the air hose to the inlet manifold.
23Throttle position sensor -
removal and refitting
3
Removal
SOHC models
1Disconnect the battery negative lead.
2Disconnect the wiring plug from the throttle
position sensor (see illustration).
3Remove the two securing screws and
withdraw the sensor from the throttle body
(see illustration).
DOHC models
4Disconnect the battery negative lead.
5Disconnect the wiring plug from the air
mass meter. Recover the sealing ring.
6Loosen the clamp screw securing the air
trunking to the right-hand end of the air mass
meter.
7Using an Allen key or hexagon bit, unscrew
the four bolts securing the air box to the
throttle body. Lift the air box from the throttle
body, and disconnect the hose from the base
of the air box, then withdraw the air box/air
mass meter assembly.
8Disconnect the wiring plug from the throttle
position sensor wiring plug (see illustration).
Fuel and exhaust systems - fuel injection models 4B•11
22.9 Idle speed adjuster (arrowed) viewed
from underneath vehicle -
DOHC model
23.8 Disconnecting the throttle position
sensor wiring plug - DOHC model23.3 Removing a throttle position sensor
securing screw - SOHC early model23.2 Disconnecting the throttle position
sensor wiring plug - early SOHC models
22.4 Withdrawing the idle speed adjuster
complete with hoses - SOHC model
(except with Multec systems)22.2 Disconnecting the idle speed adjuster
wiring plug - SOHC models (except with
Multec systems)
4B

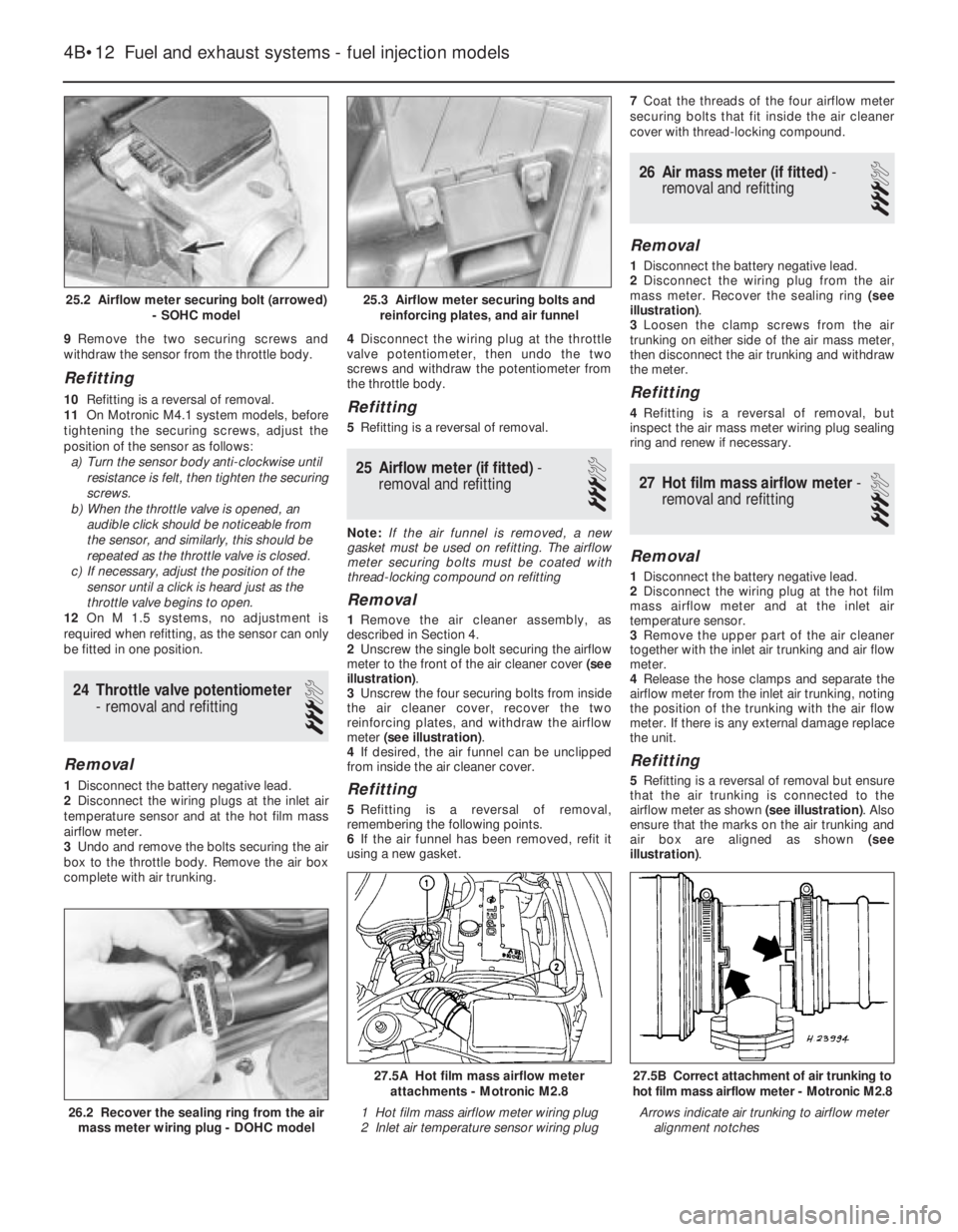

9Remove the two securing screws and
withdraw the sensor from the throttle body.
Refitting
10Refitting is a reversal of removal.
11On Motronic M4.1 system models, before
tightening the securing screws, adjust the
position of the sensor as follows:
a)Turn the sensor body anti-clockwise until
resistance is felt, then tighten the securing
screws.
b)When the throttle valve is opened, an
audible click should be noticeable from
the sensor, and similarly, this should be
repeated as the throttle valve is closed.
c)If necessary, adjust the position of the
sensor until a click is heard just as the
throttle valve begins to open.
12On M 1.5 systems, no adjustment is
required when refitting, as the sensor can only
be fitted in one position.
24Throttle valve potentiometer
- removal and refitting
3
Removal
1Disconnect the battery negative lead.
2Disconnect the wiring plugs at the inlet air
temperature sensor and at the hot film mass
airflow meter.
3Undo and remove the bolts securing the air
box to the throttle body. Remove the air box
complete with air trunking.4Disconnect the wiring plug at the throttle
valve potentiometer, then undo the two
screws and withdraw the potentiometer from
the throttle body.
Refitting
5Refitting is a reversal of removal.
25Airflow meter (if fitted) -
removal and refitting
3
Note: If the air funnel is removed, a new
gasket must be used on refitting. The airflow
meter securing bolts must be coated with
thread-locking compound on refitting
Removal
1Remove the air cleaner assembly, as
described in Section 4.
2Unscrew the single bolt securing the airflow
meter to the front of the air cleaner cover (see
illustration).
3Unscrew the four securing bolts from inside
the air cleaner cover, recover the two
reinforcing plates, and withdraw the airflow
meter (see illustration).
4If desired, the air funnel can be unclipped
from inside the air cleaner cover.
Refitting
5Refitting is a reversal of removal,
remembering the following points.
6If the air funnel has been removed, refit it
using a new gasket.7Coat the threads of the four airflow meter
securing bolts that fit inside the air cleaner
cover with thread-locking compound.
26Air mass meter (if fitted) -
removal and refitting
3
Removal
1Disconnect the battery negative lead.
2Disconnect the wiring plug from the air
mass meter. Recover the sealing ring (see
illustration).
3Loosen the clamp screws from the air
trunking on either side of the air mass meter,
then disconnect the air trunking and withdraw
the meter.
Refitting
4Refitting is a reversal of removal, but
inspect the air mass meter wiring plug sealing
ring and renew if necessary.
27Hot film mass airflow meter -
removal and refitting
3
Removal
1Disconnect the battery negative lead.
2Disconnect the wiring plug at the hot film
mass airflow meter and at the inlet air
temperature sensor.
3Remove the upper part of the air cleaner
together with the inlet air trunking and air flow
meter.
4Release the hose clamps and separate the
airflow meter from the inlet air trunking, noting
the position of the trunking with the air flow
meter. If there is any external damage replace
the unit.
Refitting
5Refitting is a reversal of removal but ensure
that the air trunking is connected to the
airflow meter as shown (see illustration). Also
ensure that the marks on the air trunking and
air box are aligned as shown (see
illustration).
4B•12Fuel and exhaust systems - fuel injection models
25.2 Airflow meter securing bolt (arrowed)
- SOHC model
26.2 Recover the sealing ring from the air
mass meter wiring plug - DOHC model
27.5B Correct attachment of air trunking to
hot film mass airflow meter - Motronic M2.8
Arrows indicate air trunking to airflow meter
alignment notches
27.5A Hot film mass airflow meter
attachments - Motronic M2.8
1 Hot film mass airflow meter wiring plug
2 Inlet air temperature sensor wiring plug
25.3 Airflow meter securing bolts and
reinforcing plates, and air funnel

28Fuel injectors (except Multec
system) - removal and refitting
3
Note:Refer to Section 2 before proceeding.
New O-rings must be used when refitting the
injectors. Where applicable, a tachometer and
an exhaust gas analyser will be required to
check the idle mixture on completion
Removal
SOHC models
1Disconnect the battery negative lead.
2Unscrew the union nut, and disconnect the
brake servo vacuum hose from the inlet
manifold.
3Remove the idle speed adjuster, complete
with hoses, referring to Section 22 if
necessary.4Disconnect the vacuum pipe from the top
of the fuel pressure regulator.
5Disconnect the wiring harness housing from
the fuel injectors, and move it to one side,
taking care not to strain the wiring. Pull up on
the wiring harness housing, and compress the
wiring plug retaining clips to release the
harness housing from the injectors.
6Remove the four bolts from the brackets
securing the fuel rail to the inlet manifold, then
lift the fuel rail complete with fuel injectors
sufficiently to enable the injector(s) to be
removed (see illustrations). Take care not to
strain the fuel hoses.
7To remove an injector from the fuel rail,
prise out the metal securing clip using a
screwdriver, then pull the injector from the fuel
rail (see illustrations).
Refitting
8Overhaul of the fuel injectors is notpossible, as no spares are available. If faulty,
an injector must be renewed.
9Begin refitting by fitting new seals to both
ends of each fuel injector (see illustration).
Even if only one injector has been removed,
new seals should be fitted to all four injectors.
10Refitting is a reversal of removal, ensuring
that all hoses, pipes and wires are correctly
reconnected.
11On completion, where applicable, check
and if necessary adjust the idle mixture, as
described in Section 20.
DOHC models
Removal
12Disconnect the battery negative lead.
13Loosen the clamp screw securing the air
trunking to the left-hand end of the air mass
meter.
14Using an Allen key or hexagon bit, unscrew
the four bolts securing the air box to the throttle
body. Lift the air box from the throttle body,
and disconnect the hose from the base of the
air box, then withdraw the air box.
15Position a wad of rag beneath one of the
fuel hose unions on the fuel rail, to absorb the
fuel that will be released as the union is
disconnected.
16Slowly loosen the fuel hose union to
relieve the pressure in the fuel line, then
disconnect the hose from the fuel rail. Be
prepared for fuel spillage, and take adequate
fire precautions. Plug the end of the fuel hose,
to prevent dirt ingress and further fuel leakage.
17Repeat paragraphs 15 and 16 for the
remaining fuel hose-to-fuel rail union.
18Disconnect the two breather hoses from
the rear of the camshaft cover. Disconnect the
larger hose from the throttle body, and
remove the hose completely.
19Disconnect the vacuum pipe from the top
of the fuel pressure regulator.
20Disconnect the wiring plug from the air
mass meter. Recover the sealing ring.
21Disconnect the wiring plug from the
throttle position sensor.
22Slide the end of the throttle cable from the
throttle valve lever on the throttle body, then
unbolt the cable bracket from the inlet
manifold, and move it to one side (see
illustration).

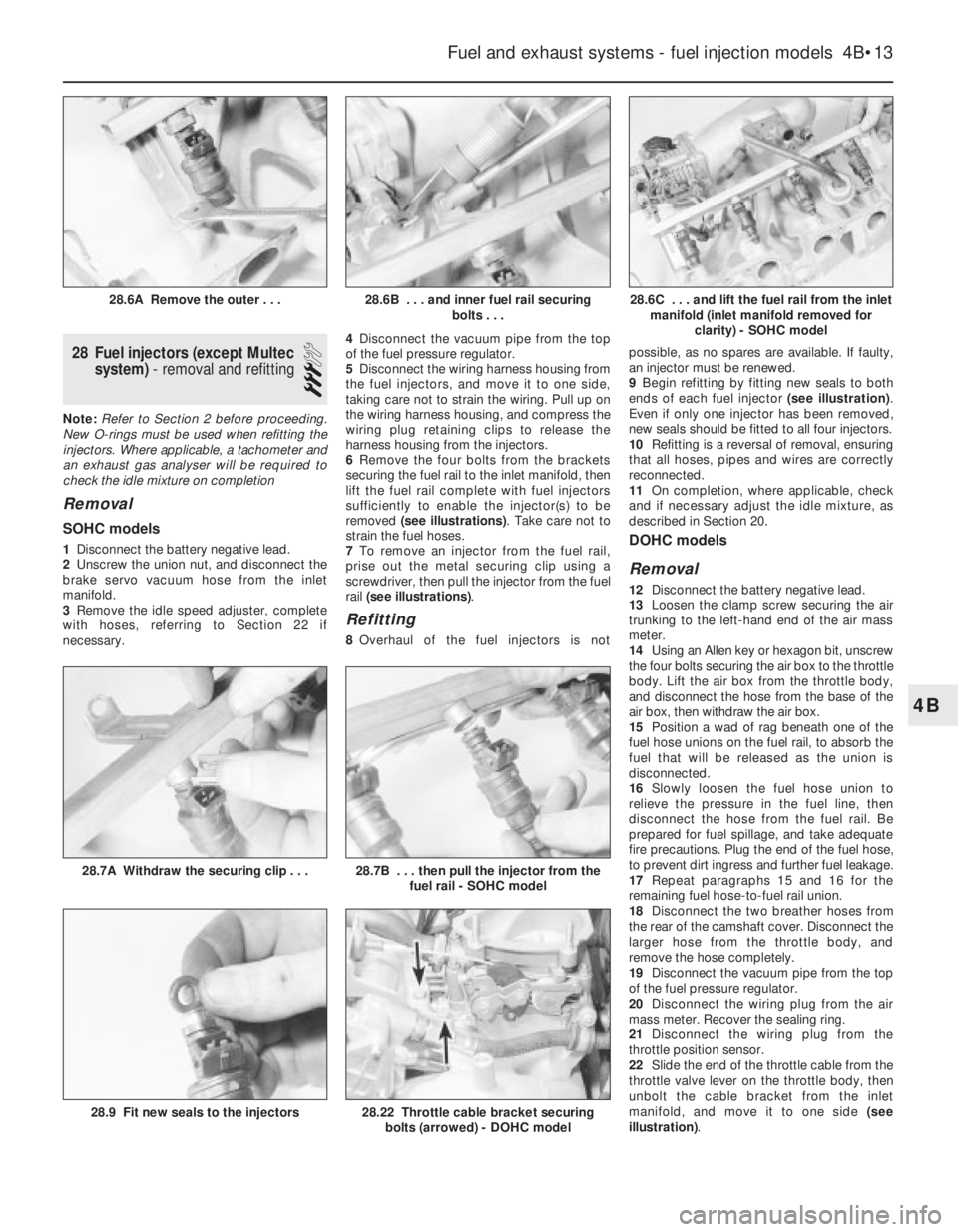

Fuel and exhaust systems - fuel injection models 4B•13
28.6C . . . and lift the fuel rail from the inlet
manifold (inlet manifold removed for
clarity) - SOHC model
28.22 Throttle cable bracket securing
bolts (arrowed) - DOHC model28.9 Fit new seals to the injectors
28.7B . . . then pull the injector from the
fuel rail - SOHC model28.7A Withdraw the securing clip . . .
28.6B . . . and inner fuel rail securing
bolts . . .28.6A Remove the outer . . .
4B

23Disconnect the wiring harness housing
from the fuel injectors, and move it to one
side, taking care not to strain the wiring. Pull
up on the wiring harness housing, and
compress the wiring plug retaining clips to
release the housing from the injectors.
24Unscrew and remove the two fuel rail
securing nuts, and withdraw the fuel rail
complete with fuel injectors from the inlet
manifold. Note the position of the earth leads
on the fuel rail securing studs (see
illustration).
25To remove an injector from the fuel rail,
prise out the metal securing clip using a
screwdriver, then pull the injector from the fuel
rail
Refitting
26Refitting is as described in paragraphs 8
to 11 inclusive.
29Fuel injector (Multec system)
- removal and refitting
3
Removal
1Depressurise the fuel system (see Sec
tion 8).
2Remove the air box (see Section 5).
3Disconnect the battery earth lead.
4Disconnect the wiring plug from the fuel
injector (see illustration).
5Undo the Torx-type screw (size TX 20)
securing the fuel injector retainer to the top ofthe throttle body, remove the retainer and lift
out the injector (see illustration). Remove
and discard the injector sealing rings.
Refitting
6Refitting is the reverse of the removal
procedure, noting the following points.
a)Always renew both sealing rings; apply a
smear of grease to each to ease injector
refitting (see illustration).
b)Refit the injector so that its wiring
terminals point to the rear of the vehicle;
locate the edge of the retainer securely in
the groove at the top of the injector.
c)Apply a few drops of a thread-locking
compound to the screw threads, then
tighten it carefully to the specified torque
wrench setting.
d)Switch on the ignition and check carefully
for signs of fuel leaks; if any signs of
leakage are detected, the problem must
be rectified before the engine is started.
30Fuel injector (Multec system)
- testing
3
1A simple test of the injector’s windings is
possible for those who have a multi-meter of
sufficient sensitivity. First disconnect the
injector wiring plug as described in Section 29,
then connect the meter (set to the appropriate
resistance scale) across the injector’s
terminals and note the reading obtained.
2On C18 NZ engines, the reading should be
within the specified tolerance; similar results
can be expected on C16NZ, C16NZ2, and
X16 SZ engines.
3If the reading differs significantly from the
specified value, indicating either shorted or
open circuit windings, the injector must be
renewed.
4Note that this is only a test of the injector’s
electrical condition; it does not test its spray
pattern or performance. If the injector is
thought to be faulty it is always worth trying a
well known injector-cleaning treatment. If this
fails, the vehicle must be taken to a Vauxhall
dealer for full testing on the special test
equipment.
31Throttle body (except Multec
system) - removal and refitting
3
Note:Refer to Section 2 before proceeding. A
new throttle body gasket must be used on
refitting
SOHC
Removal
1Disconnect the battery negative lead.
2Loosen the clamp screws securing the air
trunking to the throttle body and the airflow
meter, then withdraw the air trunking.
3Loosen the clamp screw, and disconnect
the idle speed adjuster hose from the throttle
body.
4Disconnect the camshaft cover breather
hose from the throttle body.
5Disconnect the coolant hoses from the
throttle body. Be prepared for coolant
spillage, and clamp or plug the open ends of
the hoses, to prevent further coolant loss.
6Disconnect the wiring plug from the throttle
position sensor.
7Release the securing clip, then disconnect
the throttle cable end balljoint from the throttle
valve lever.
8Slide the throttle cable grommet from the
bracket on the inlet manifold, then unhook the
throttle return spring from the bracket (see
illustration).
9Make a final check to ensure that all relevant
hoses and wires have been disconnected and
moved clear of the throttle body.

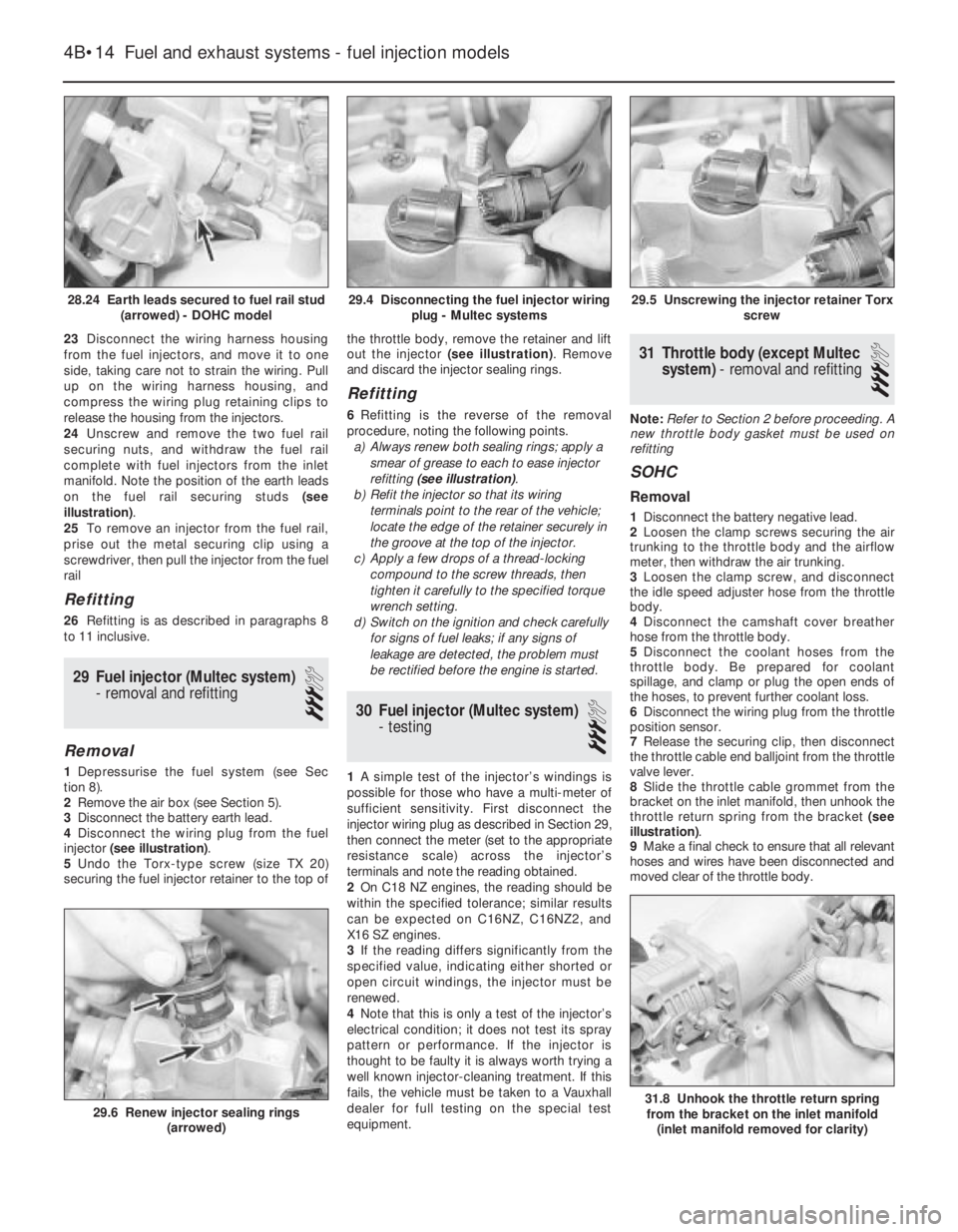

4B•14Fuel and exhaust systems - fuel injection models
28.24 Earth leads secured to fuel rail stud
(arrowed) - DOHC model29.5 Unscrewing the injector retainer Torx
screw
31.8 Unhook the throttle return spring
from the bracket on the inlet manifold
(inlet manifold removed for clarity)29.6 Renew injector sealing rings
(arrowed)
29.4 Disconnecting the fuel injector wiring
plug - Multec systems

4B

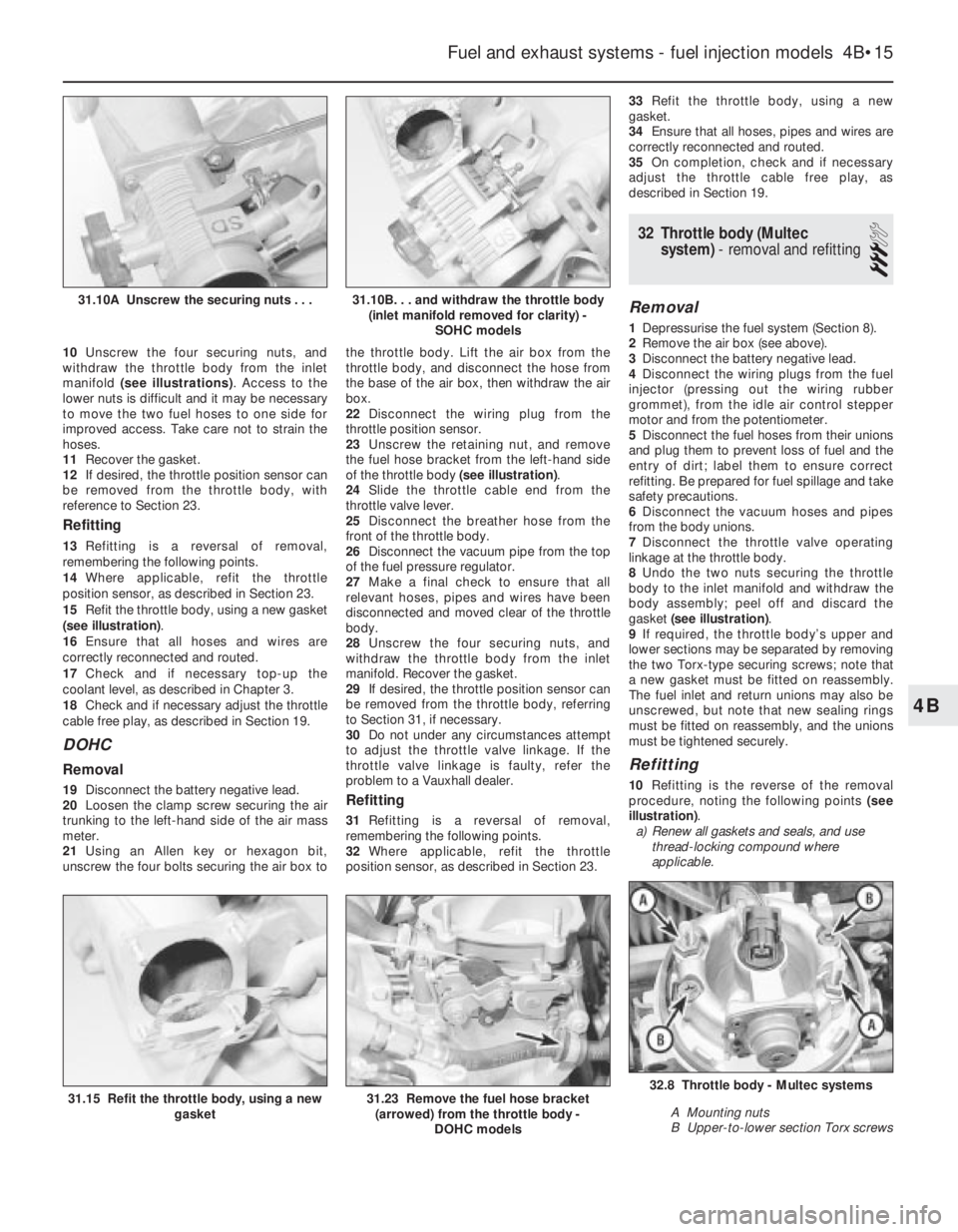

10Unscrew the four securing nuts, and
withdraw the throttle body from the inlet
manifold (see illustrations). Access to the
lower nuts is difficult and it may be necessary
to move the two fuel hoses to one side for
improved access. Take care not to strain the
hoses.
11Recover the gasket.
12If desired, the throttle position sensor can
be removed from the throttle body, with
reference to Section 23.
Refitting
13Refitting is a reversal of removal,
remembering the following points.
14Where applicable, refit the throttle
position sensor, as described in Section 23.
15Refit the throttle body, using a new gasket
(see illustration).
16Ensure that all hoses and wires are
correctly reconnected and routed.
17Check and if necessary top-up the
coolant level, as described in Chapter 3.
18Check and if necessary adjust the throttle
cable free play, as described in Section 19.
DOHC
Removal
19Disconnect the battery negative lead.
20Loosen the clamp screw securing the air
trunking to the left-hand side of the air mass
meter.
21Using an Allen key or hexagon bit,
unscrew the four bolts securing the air box tothe throttle body. Lift the air box from the
throttle body, and disconnect the hose from
the base of the air box, then withdraw the air
box.
22Disconnect the wiring plug from the
throttle position sensor.
23Unscrew the retaining nut, and remove
the fuel hose bracket from the left-hand side
of the throttle body (see illustration).
24Slide the throttle cable end from the
throttle valve lever.
25Disconnect the breather hose from the
front of the throttle body.
26Disconnect the vacuum pipe from the top
of the fuel pressure regulator.
27Make a final check to ensure that all
relevant hoses, pipes and wires have been
disconnected and moved clear of the throttle
body.
28Unscrew the four securing nuts, and
withdraw the throttle body from the inlet
manifold. Recover the gasket.
29If desired, the throttle position sensor can
be removed from the throttle body, referring
to Section 31, if necessary.
30Do not under any circumstances attempt
to adjust the throttle valve linkage. If the
throttle valve linkage is faulty, refer the
problem to a Vauxhall dealer.Refitting
31Refitting is a reversal of removal,
remembering the following points.
32Where applicable, refit the throttle
position sensor, as described in Section 23. 33Refit the throttle body, using a new
gasket.
34Ensure that all hoses, pipes and wires are
correctly reconnected and routed.
35On completion, check and if necessary
adjust the throttle cable free play, as
described in Section 19.
32Throttle body (Multec
system) - removal and refitting
3
Removal
1Depressurise the fuel system (Section 8).
2Remove the air box (see above).
3Disconnect the battery negative lead.
4Disconnect the wiring plugs from the fuel
injector (pressing out the wiring rubber
grommet), from the idle air control stepper
motor and from the potentiometer.
5Disconnect the fuel hoses from their unions
and plug them to prevent loss of fuel and the
entry of dirt; label them to ensure correct
refitting. Be prepared for fuel spillage and take
safety precautions.
6Disconnect the vacuum hoses and pipes
from the body unions.
7Disconnect the throttle valve operating
linkage at the throttle body.
8Undo the two nuts securing the throttle
body to the inlet manifold and withdraw the
body assembly; peel off and discard the
gasket (see illustration).
9If required, the throttle body’s upper and
lower sections may be separated by removing
the two Torx-type securing screws; note that
a new gasket must be fitted on reassembly.
The fuel inlet and return unions may also be
unscrewed, but note that new sealing rings
must be fitted on reassembly, and the unions
must be tightened securely.
Refitting
10Refitting is the reverse of the removal
procedure, noting the following points (see
illustration).
a)Renew all gaskets and seals, and use
thread-locking compound where
applicable.
Fuel and exhaust systems - fuel injection models 4B•15
31.15 Refit the throttle body, using a new
gasket32.8 Throttle body - Multec systems
A Mounting nuts
B Upper-to-lower section Torx screws31.23 Remove the fuel hose bracket
(arrowed) from the throttle body -
DOHC models
31.10B. . . and withdraw the throttle body
(inlet manifold removed for clarity) -
SOHC models31.10A Unscrew the securing nuts . . .
