1988 OPEL CALIBRA Service Repair Manual

Wiring diagrams 12•27
12

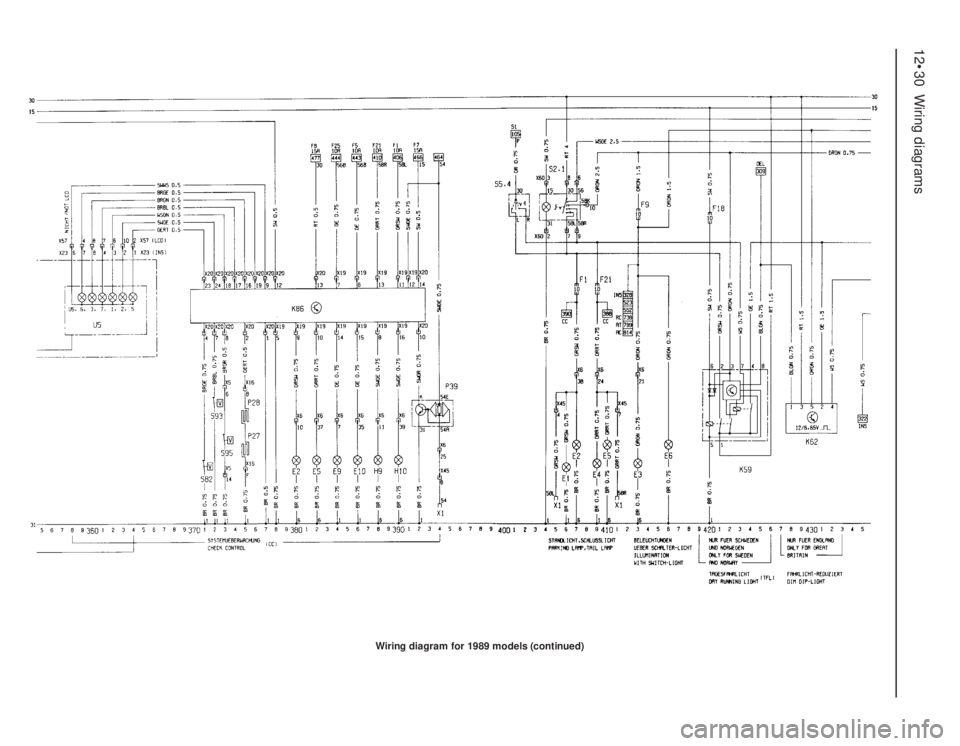

Wiring diagram for 1989 models (continued)

12•28Wiring diagrams

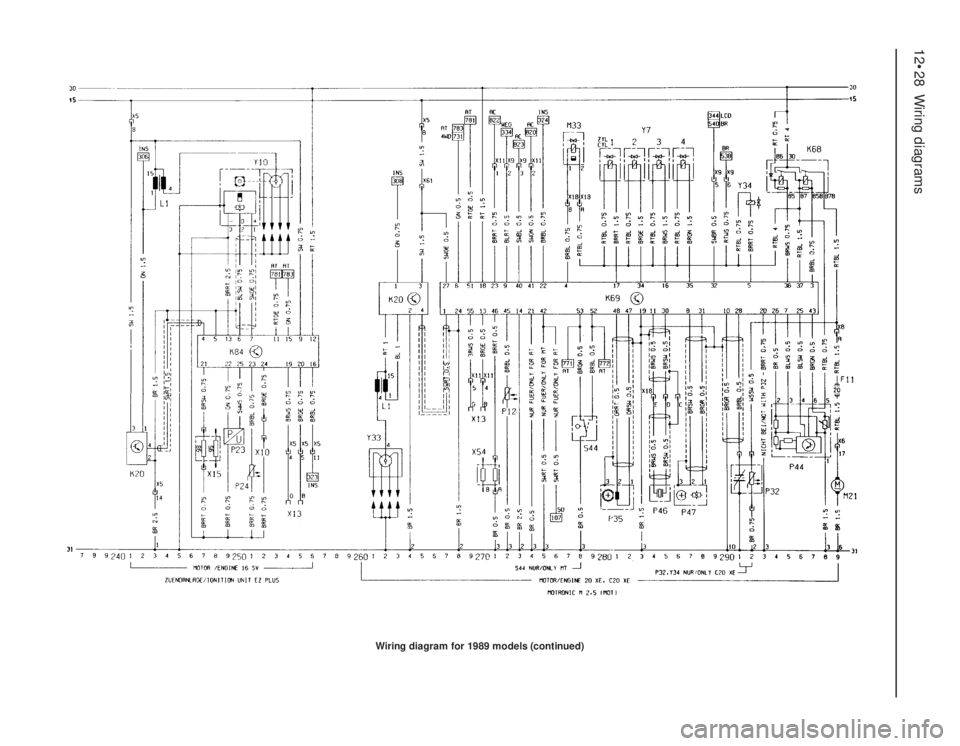

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•29
12

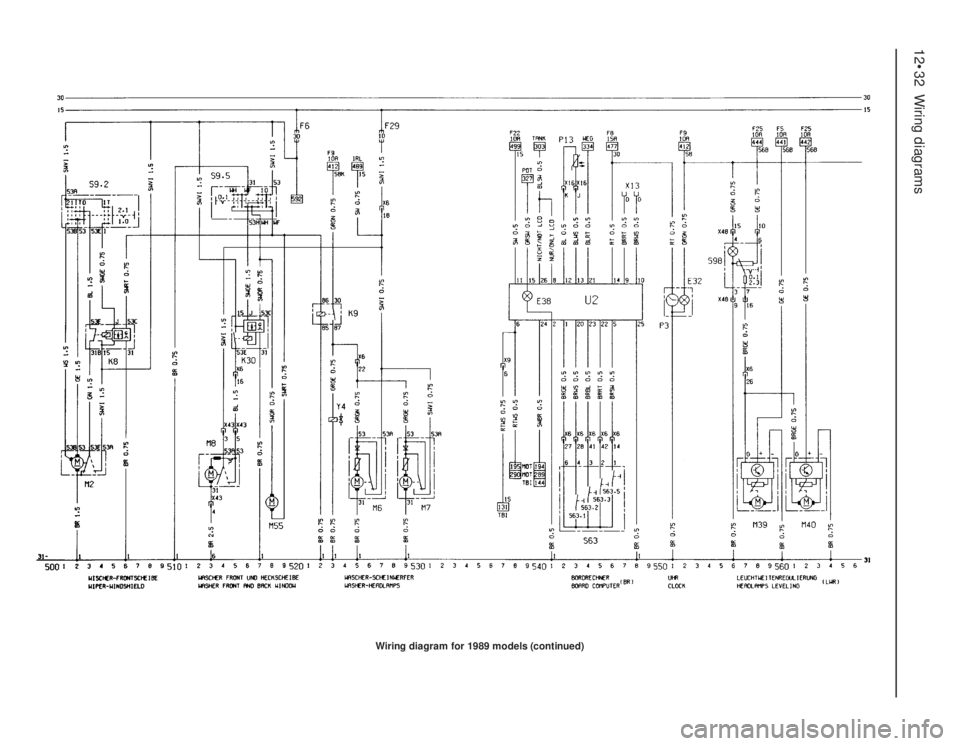

Wiring diagram for 1989 models (continued)

12•30Wiring diagrams

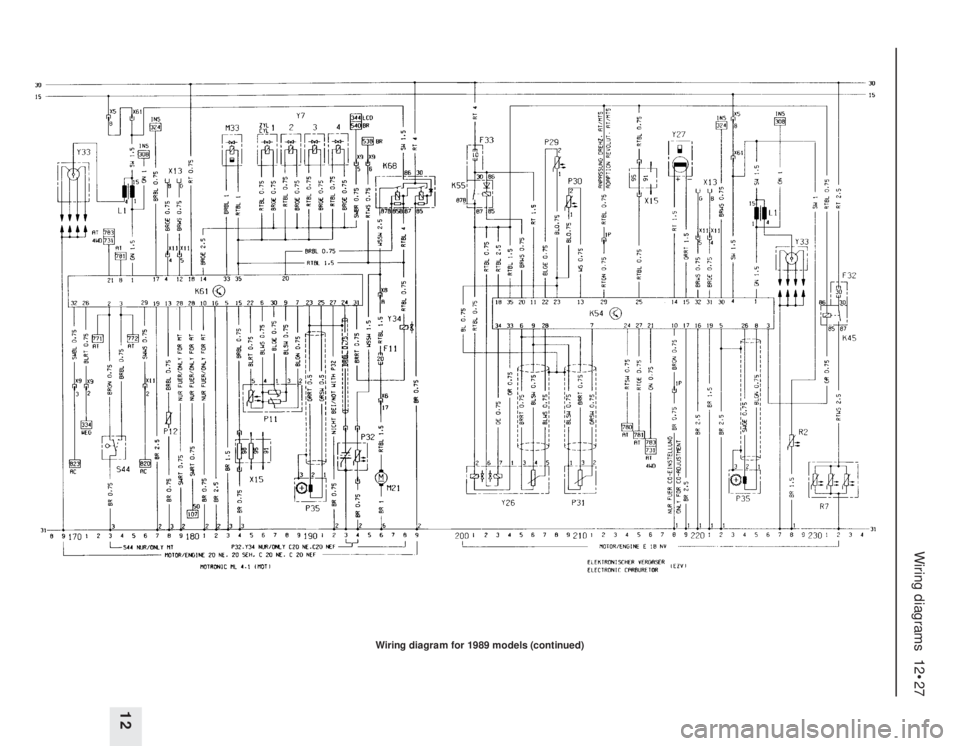

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•31
12

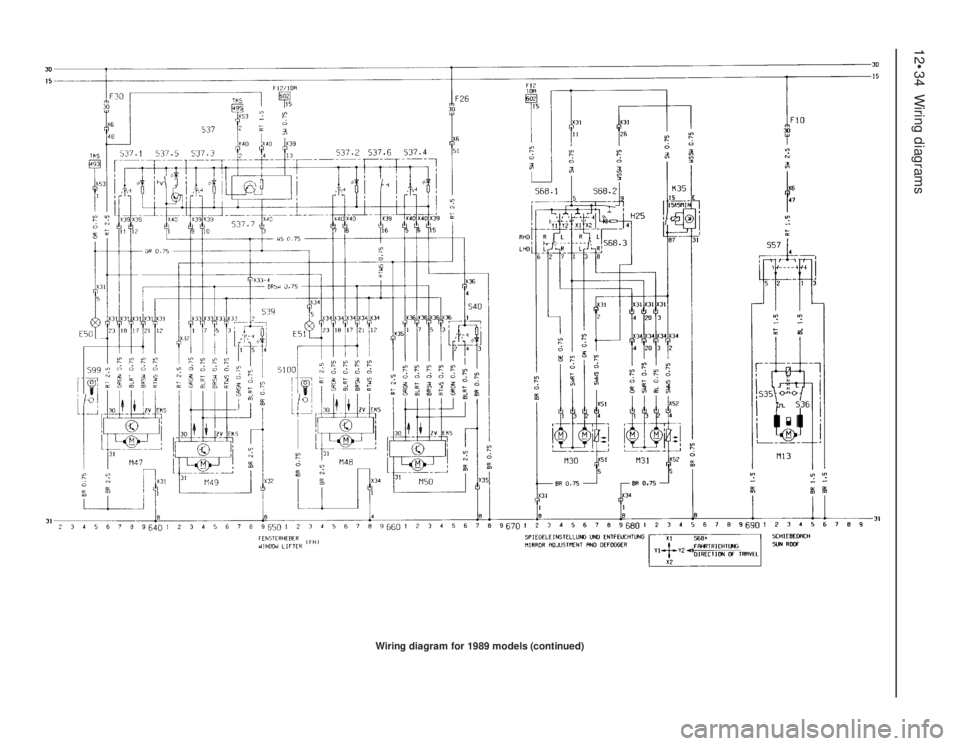

Wiring diagram for 1989 models (continued)

12•32Wiring diagrams

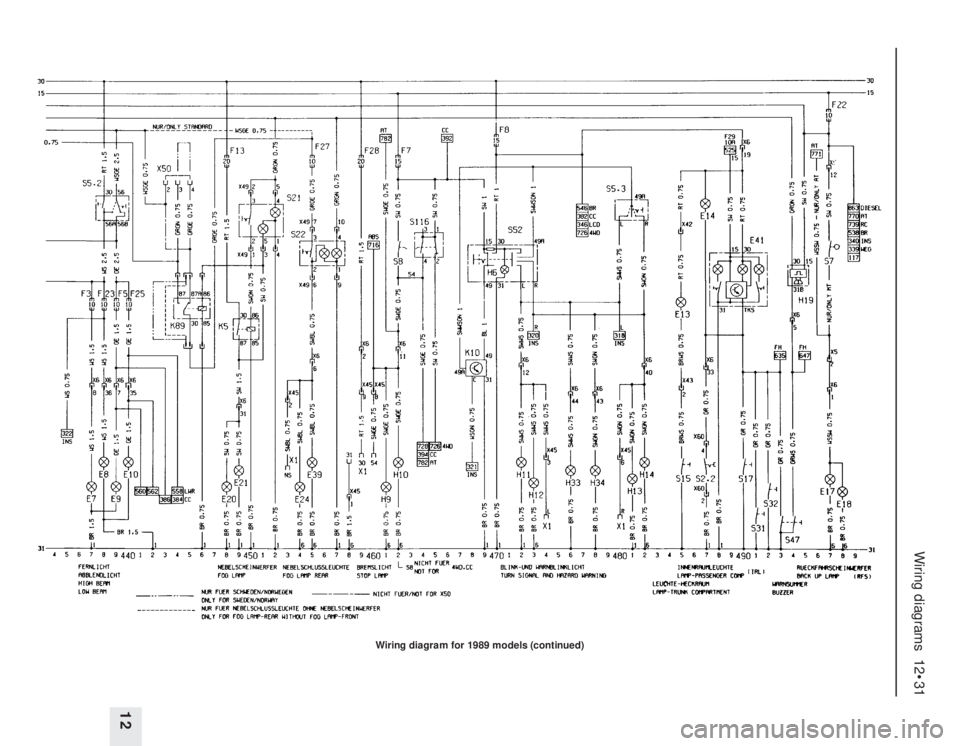

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•33
12

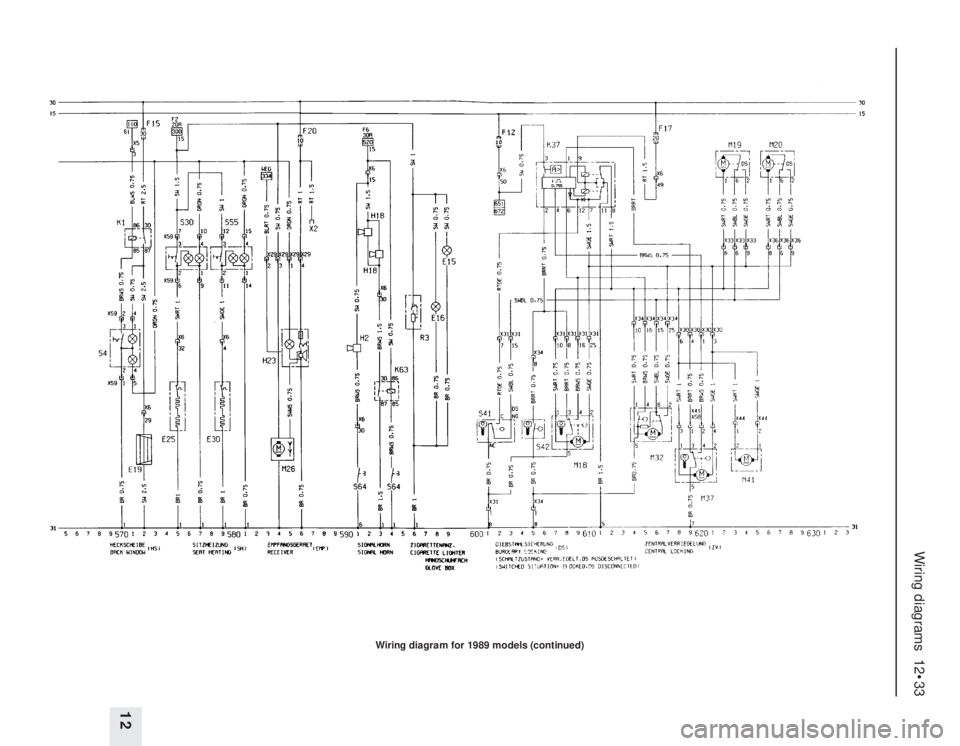

Wiring diagram for 1989 models (continued)

12•34Wiring diagrams

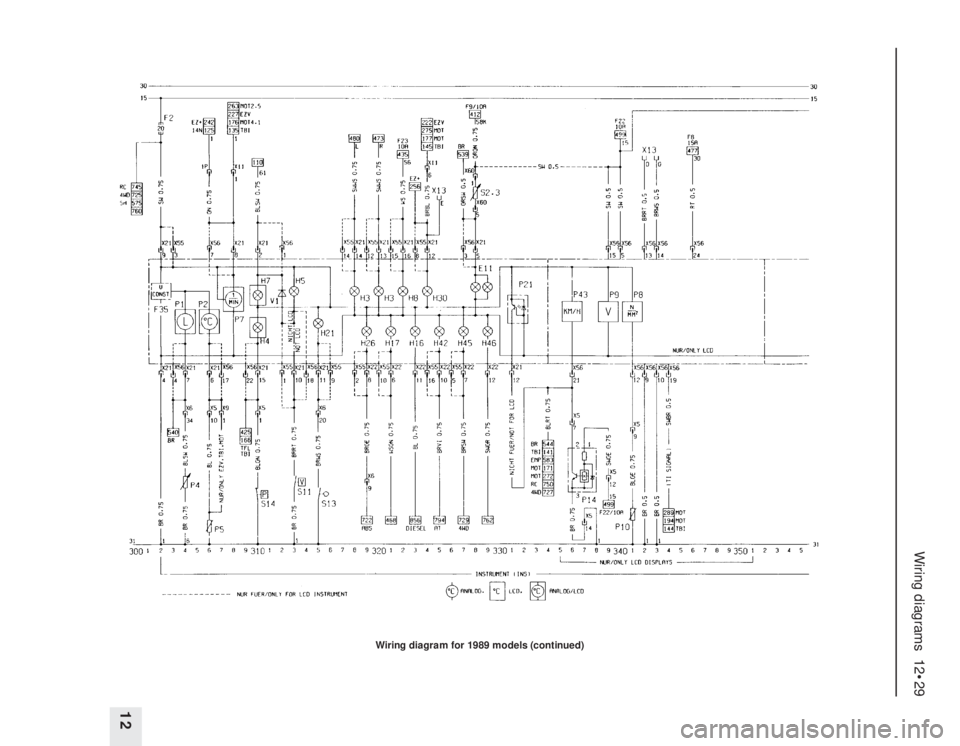

Wiring diagram for 1989 models (continued)
