8-2. Steps to take in an emergency
When trouble arises
■Charging system warning light
■High coolant temperature warning light* (warning buzzer)
*: This light illuminates on the multi-information display with a message.
■Hybrid system overheat warning light* (warning buzzer)
*: This light illuminates on the multi-information display with a message.
■Low engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display with a message.
Warning lightDetails/Actions
Indicates a malfunction in the vehicle’s charging sys-
tem
 Immediately stop the vehicle in a safe place
and contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable
repairer.
Warning lightDetails/Actions
Indicates that the engine is overheating
 Immediately stop the vehicle in a safe place.
Handling method ( P.578)
Warning lightDetails/Actions
Indicates that the hybrid system has overheated
 Stop the vehicle in a safe place.
Handling method ( P.578)
Warning lightDetails/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place
and contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable
repairer.

5368-2. Steps to take in an emergency

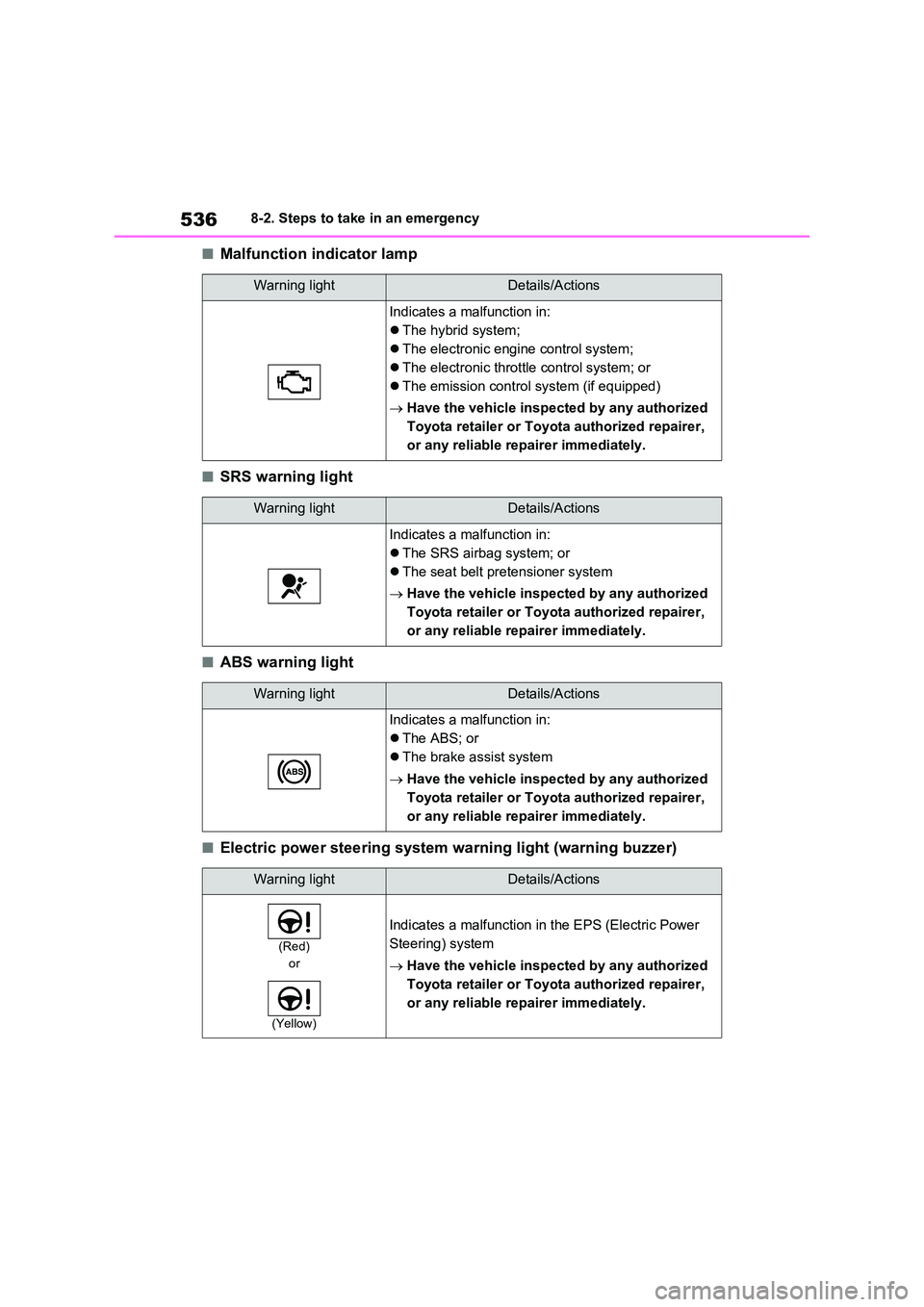

■Malfunction indicator lamp
■SRS warning light
■ABS warning light
■Electric power steering system warning light (warning buzzer)
Warning lightDetails/Actions
Indicates a malfunction in:
 The hybrid system;
 The electronic engine control system;
 The electronic throttle control system; or
 The emission control system (if equipped)
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
Indicates a malfunction in:
 The SRS airbag system; or
 The seat belt pretensioner system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
Indicates a malfunction in:
 The ABS; or
 The brake assist system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
(Red)
or
(Yellow)
Indicates a malfunction in the EPS (Electric Power
Steering) system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.

537
8
8-2. Steps to take in an emergency
When trouble arises
■PCS warning light (warning buzzer)
■LTA indicator (warning buzzer)
Warning lightDetails/Actions
(Flashes or illuminates)
(If equipped)
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS
(Pre-Collision System).
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become tempo-
rarily unavailable, corrective action may be neces-
sary.
 Follow the instructions displayed on the multi-
information display. ( P.341, 544)
If the PCS (Pre-Collision System) or VSC (Vehicle
Stability Control) system is disabled, the PCS warn-
ing light will illuminate.
 P.353
Warning lightDetails/Actions
(Orange) (If equipped)
Indicates a malfunction in the LTA (Lane Tracing
Assist)
 Follow the instructions displayed on the multi-
information display. ( P.363)

5388-2. Steps to take in an emergency
■Toyota parking assist-sensor OFF indicator (warning buzzer)
■PKSB OFF indicator
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in the Toyota parking assist-
sensor function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.397, 544)
Warning lightDetails/Actions
(If equipped)
If “Parking Support Brake Malfunction Visit Your
Dealer” is displayed on the multi-information display:
Indicates a malfunction in the PKSB (Parking Support
Brake) system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
If “Parking Assist Unavailable” is displayed on the
multi-information display:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.407, 544)

539
8
8-2. Steps to take in an emergency
When trouble arises
■BSM OFF indicator (warning buzzer)
■RCTA OFF indicator (warning buzzer)
■Slip indicator light
Warning lightDetails/Actions
Indicates a malfunction in the BSM (Blind Spot Moni-
tor) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.388)
 Follow the instructions displayed on the multi-
information display. ( P.388, 544)
Warning lightDetails/Actions
(If equipped)
Indicates a malfunction in the RCTA (Rear Crossing
Traffic Alert) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.388)
 Follow the instructions displayed on the multi-
information display. ( P.388, 544)
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC/Trailer Sway Control system;
 The TRC system;
 The Trail Mode function; or
 The hill-start assist control system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.

5408-2. Steps to take in an emergency
■Inappropriate pedal operation warning light* (warning buzzer)
*: This light illuminates on the multi-information display with a message.
■Brake hold operated indicator (warning buzzer)
■Parking brake indicator
Warning lightDetails/Actions
When a buzzer sounds:
 Brake Override System is malfunctioning
 Drive-Start Control is malfunctioning
 Drive-Start Control is operating
 Follow the instructions displayed on the multi-
information display.
When a buzzer does not sound:
Brake Override System is operating.
 Release the accelerator pedal and depress the
brake pedal.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
(Flashes)
It is possible that the parking brake is not fully
engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not
released. If the light turns off after the parking brake
is fully released, the system is operating normally.

541
8
8-2. Steps to take in an emergency
When trouble arises
■Tire pressure warning light
■Low fuel level warning light
■Driver’s and front passenger’s seat belt reminder light (warning
buzzer)*
*: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s and front passenger’s seat belt warning buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. If the seat belt
is unfastened, the buzzer sounds intermittently for a certain period of time after
the vehicle reaches a certain speed.
Warning lightDetails/Actions
When the light comes on after blinking for approxi-
mately 1 minute (a buzzer does not sound):
Malfunction in the tire pressure warning system
 Have the system checked by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the light comes on (a buzzer sounds):
Low tire inflation pressure from natural causes
 Adjust the tire inflation pressure to the speci-
fied cold tire inflation pressure level. ( P.590)
Low tire inflation pressure from flat tire
 Immediately stop the vehicle in a safe place.
Handling method ( P.542)
Warning lightDetails/Actions
Indicates that remaining fuel is approximately 8.3 L
(2.2 gal., 1.8 Imp. gal.) or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front passenger to fasten
their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the
front passenger’s seat belt also needs to be
fastened to make the warning light (warning
buzzer) turn off.

5428-2. Steps to take in an emergency

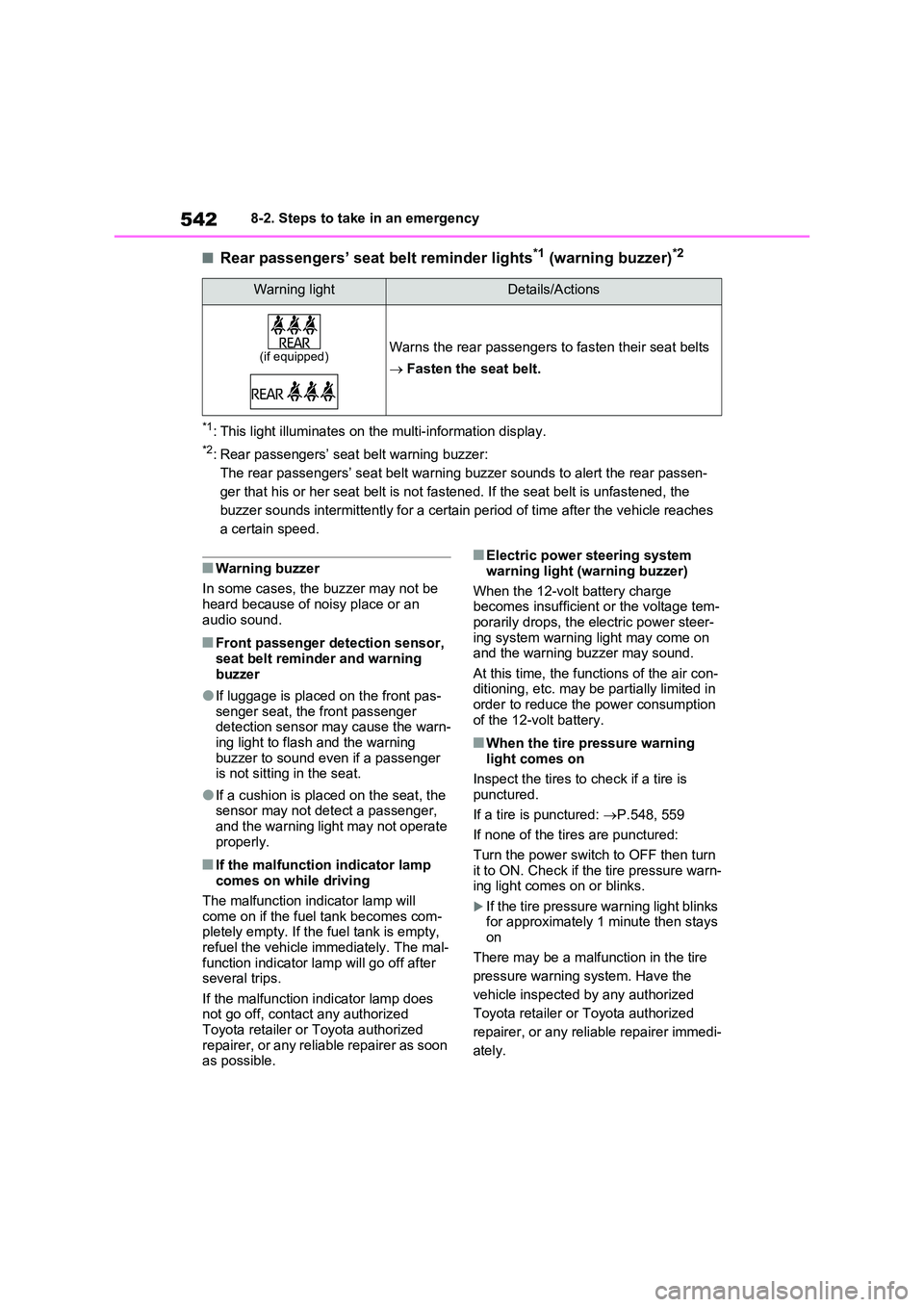

■Rear passengers’ seat belt reminder lights*1 (warning buzzer)*2
*1: This light illuminates on the multi-information display.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear passen-
ger that his or her seat belt is not fastened. If the seat belt is unfastened, the
buzzer sounds intermittently for a certain period of time after the vehicle reaches
a certain speed.
■Warning buzzer
In some cases, the buzzer may not be
heard because of noisy place or an audio sound.
■Front passenger detection sensor, seat belt reminder and warning
buzzer
●If luggage is placed on the front pas-
senger seat, the front passenger detection sensor may cause the warn-ing light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-pletely empty. If the fuel tank is empty,
refuel the vehicle immediately. The mal- function indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer as soon as possible.
■Electric power steering system
warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tem-
porarily drops, the electric power steer- ing system warning light may come on and the warning buzzer may sound.
At this time, the functions of the air con- ditioning, etc. may be partially limited in order to reduce the power consumption
of the 12-volt battery.
■When the tire pressure warning light comes on
Inspect the tires to check if a tire is
punctured.
If a tire is punctured: P.548, 559
If none of the tires are punctured:
Turn the power switch to OFF then turn it to ON. Check if the tire pressure warn-ing light comes on or blinks.
If the tire pressure warning light blinks for approximately 1 minute then stays on
There may be a malfunction in the tire
pressure warning system. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer immedi-
ately.
Warning lightDetails/Actions
(if equipped)Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
