240 Driving and Operating
.Both the camera and the
radar sensors are
functioning and not covered,
obstructed, or damaged.
.The Driver Attention System
(DAS) detects the driver's
head and eyes are directed
toward the road.
.The lane markings are clearly
visible and able to be
detected by the system.
Poor Conditions
Poor Conditions
Using Super Cruise
{Warning
To prevent serious injury or
death, only remove your
hands from the steering
wheel if the steering wheel
light bar,
Z, and\are
green. Super Cruise may not
begin steering immediately,
even when Super Cruise is
available and
]has been
pressed.
To engage:
.PressJto turn on ACC.
Make sure the white
\
indicator displays in the
instrument cluster. See
Adaptive Cruise Control
(Advanced) 0225.
.When Super Cruise is
available, the white
Zwill
display in the instrument
cluster.
.Press]. ACC will set the
speed at the current vehicle
speed. If ACC has a
previously set speed, it may
resume at that speed.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 241
When engaged and not
steering the vehicle, the
steering wheel light bar
flashes blue, and
Zwill be
blue. The driver is in control of
steering and Super Cruise is
not steering the vehicle.
When the vehicle is positioned
in the center of the lane, the
steering wheel light bar and
Z
display will turn green,
indicating Super Cruise is
steering the vehicle.
When Super Cruise controls
the steering, traffic and other
conditions and laws permit,
and it is safe to do so, your
hands can be taken off the
steering wheel.
Always pay attention to the
road and the operation of the
vehicle. Always monitor and be
attentive of surrounding
traffic, including vehicles that
may cross the road in front of
your vehicle. Super Cruise steering can be
overridden with manual
steering at any time. When
Super Cruise is engaged,
always be prepared to take
immediate action
—including
steering, accelerating, and
braking quickly, if necessary.
Super Cruise, when engaged,
will enable Forward Collision
System to Alert and Brake.
Steering Manually and
Changing Lanes
The vehicle can always be
manually steered, even with
Super Cruise engaged; for
example, when changing lanes.
When the steering wheel is
moved manually, the steering
wheel light bar pulses blue and
Zon the instrument cluster
turns blue to indicate Super
Cruise is not steering the
vehicle.
When ready to allow Super
Cruise to resume steering
again, position the vehicle in
the center of the lane, hold the steering wheel until the
steering wheel light bar turns
green, and then release the
steering wheel when it is safe
to do so.
{Warning
To help prevent crashes
before making a lane
change:
.Always check mirrors.
.Glance over your shoulder.
.Use the turn signals.
Super Cruise Lane Change
On Demand Lane Changes
Super Cruise can steer to
perform a single lane change
under certain conditions when
requested by the driver or
initiated by the Super Cruise
System.
To request a lane change: 1. Verify the lane next to your vehicle is clear and
conditions are safe to make
a lane change.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
242 Driving and Operating
2. Use the turn signal lever toactivate the turn signal in
the direction of the desired
lane change.
3. Return the turn signal lever to the neutral position after
the lane change. See Turn
and Lane-Change Signals
0146.
4. To cancel a lane change, return the turn signal lever
to the neutral position,
move the lever in the
opposite direction of the
lane change, or steer
manually at any time.
Automatic Lane Changes
Super Cruise System may
initiate a single lane change
when enabled through Vehicle
Personalization under
following conditions:
.The Super Cruise System
may initiate an automatic
lane change to the left to
pass a slower moving vehicle
ahead and a subsequent
lane change to right to
return to your original lane.
.Super Cruise System may
initiate an automatic lane
change to left or right when
current lane is ending ahead.
.To cancel a Super Cruise
lane change, move the turn
signal lever or steer manually
at any time..
If Super Cruise detects that
traffic is clear, Super Cruise
will steer the vehicle to
perform the lane change.
A message appears on the
Driver Information Center
(DIC) during the lane change to
provide more information on
the status of the lane change.
Super Cruise Lane Change
functionality is only available
on Super Cruise capable
Divided Roads.
Super Cruise Lane Change
may be disabled when a trailer
or other accessories (e.g. bike
rack, cargo tray, etc.) are
detected.
Do not use Super Cruise Lane
Change when towing a trailer. The Super Cruise Lane
Change feature can be
customized to be Off, On
Demand Lane Change, or On
Demand Lane Change &
Automatic Lane Change
through the vehicle
personalization menu. Touch
the Settings icon on the
infotainment home page.
Select "Vehicle" to display the
list of available options and
select "Super Cruise Lane
Change".
{Warning
Super Cruise Lane Change
may not detect a vehicle in
an adjacent lane. Always
supervise the driving task
and monitor traffic
conditions when using the
Super Cruise Lane Change
feature. Only request a lane
change when traffic
conditions are safe for a
lane change, and always be
ready to manually steer the
(Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 243
Warning (Continued)
vehicle. See“Steering
Manually and Changing
Lanes” listed previously in
this section.
Take Over Alert
{Warning
Super Cruise will not
maintain the vehicle’s speed
while the steering wheel
light bar is flashing red.
If the steering wheel light
bar flashes red, immediately
resume manual steering to
prevent serious injury or
death. If you do not resume
manual steering, the vehicle
will begin to slow in the
same lane and eventually
come to a complete stop on
the road.
Any time the steering wheel
light bar flashes red, resume
manual steering immediately. To begin steering manually,
hold the steering wheel firmly
(with both hands) using the
highlighted regions as shown
in the picture below.
The instrument cluster light
Z, will also turn red and a
message will display in the
Driver Information Center
(DIC). In addition, beeps will
sound, or the Safety Alert
Seat will vibrate.Touch the
Settings icon on the
infotainment home page.
Select “Vehicle” to display the
list of available options and
select “Collision/Detection Systems”. After you begin
steering manually, then Super
Cruise will disengage.
The red flashing steering
wheel light bar could occur
under any of the following
conditions:
.Lane markings are poor,
or visibility is limited.
.The Driver Attention System
(DAS) does not detect that
the driver's head and eyes
are directed toward
the road.
.ACC is canceled.
.The vehicle is on a tight
curve, or the lanes are too
wide, or the vehicle goes into
a curve too fast.
.The compatible road ends.
.The vehicle is approaching
an intersection controlled by
a traffic light, stop sign,
or other traffic control
device.
.A Super Cruise system fault
occurs.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
244 Driving and Operating
.Super Cruise is unable to
complete the lane change
maneuver.
Attention to the Road
{Warning
Super Cruise is a driver
assistance system and
cannot accurately detect or
predict all situations. Super
Cruise is not a crash
avoidance system. To
prevent serious injury or
death, you must supervise
the driving task and monitor
the road conditions. You
may need to respond to
traffic events by steering,
braking, or accelerating. See
Defensive Driving 0196.
Super Cruise also cannot
determine whether you are
awake, asleep, impaired,
or properly focused on safe
driving. The vehicle could
crash into other vehicles,
drive out of the lane, or drive (Continued)
Warning (Continued)
off the road. Complete
attention is always required
while driving, even while
using Super Cruise. Be
prepared to take over
steering or apply the brakes
at any time.
{Warning
To prevent serious injury or
death, be alert and pay
special attention when
passing highway exits,
entrances, and crossings
with Super Cruise, and be
ready to take control of the
vehicle when necessary.
Changes in lane markings
around exits and entrances
can momentarily cause
Super Cruise to not detect
the correct lane. If this
occurs, Super Cruise may
attempt steering inputs to
(Continued)
Warning (Continued)
bring the vehicle back into
the correct lane and, in rare
circumstances, could
over-correct and cause the
vehicle to momentarily cross
into a lane next to your
vehicle unless you manually
steer to maintain your lane
position.
The Driver Attention System
(DAS) on the steering column
continually monitors driver
head and eye position to
estimate driver attention to
the road. The camera does not
record or share pictures,
audio, or video.
Sunglasses, hats, or other
types of clothing that change
the shape of the head may
interfere with camera
performance. To improve
camera performance, raise or
lower the steering wheel,
or change the seat position.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 245
Pay close attention to the road ahead to avoid these three increasing alerts:First Alert
.If the steering wheel light bar flashes green, the system has detected
that your head and eyes may not be directed toward the road.
.The flashing will stop when the system detects that your head and eyes
appear to be directed toward the road.
Second Alert
.If the steering wheel light bar flashes green for too long, Super Cruise
will alert the driver to take control of steering immediately by flashing
the light bar red. Also, either beeps will sound or the Safety Alert Seat
will vibrate. Touch the Settings icon on the infotainment home page.
Select “Vehicle” to display the list of available options and select
“Collision/Detection Systems.”
.Take over steering, then Super Cruise will disengage.
.To re-engage Super Cruise, press]. See “Using Super Cruise”
previously in this section.
Third Alert
.If the steering wheel light bar flashes red for too long, a voice command
will tell you to take control of the vehicle.
.Take control of the steering immediately; ACC and Super Cruise will
disengage.
.A DIC message will indicate that Super Cruise is locked out. Super
Cruise cannot be re-engaged until the vehicle is turned off and back on.
.Continued failure to take over steering will cause the vehicle to brake to
a stop and OnStar will be called. The brake lamps and hazard warning
flashers will come on.
.Take control of the vehicle and continue driving.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
246 Driving and Operating
Stationary or Very
Slow-Moving Objects;
Cross-Traffic
{Warning
Super Cruise is not a crash
avoidance system and will
not steer or brake to avoid a
crash. Super Cruise does
not steer to prevent a crash
with stopped or slow-moving
vehicles. You must supervise
the driving task and may
need to steer and brake to
prevent a crash, especially in
stop-and-go traffic or when
a vehicle suddenly enters
your lane. Always pay
attention when using Super
Cruise. Failure to do so
could result in a crash
involving serious injury or
death.Curves in the Road
{Warning
The vehicle could drift out of
your lane of travel. To
prevent crashes, always be
ready to manually steer.
Super Cruise may not detect
your lane on curves in the
road. Super Cruise may not
detect the markings that
show your lane. You may not
have time to react to a
vehicle in the lane next to
your vehicle while on curves
in the road.
Super Cruise may operate
differently in sharp curves.
It may drift out of your lane of
travel if the curve is too sharp.
When entering a curve, Super
Cruise may not detect the lane
markings and may not adjust
the steering enough to stay in
your lane of travel. When this
happens, you will need to
steer the vehicle.
Super Cruise may detect
other lane markings that are
not in your lane and may or
may not steer appropriately to
maintain your lane.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

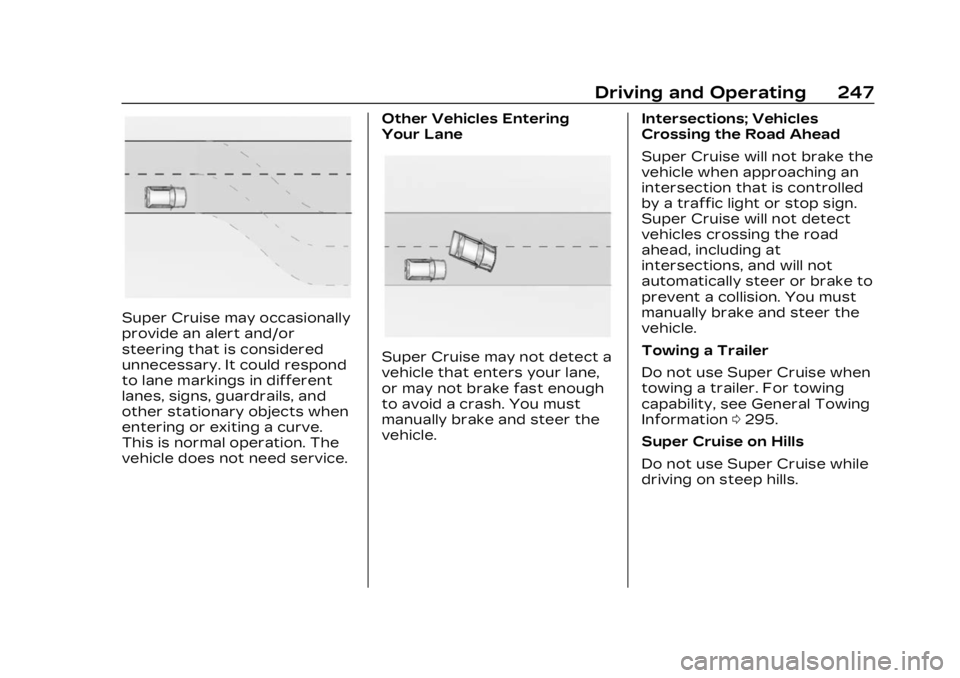

Driving and Operating 247
Super Cruise may occasionally
provide an alert and/or
steering that is considered
unnecessary. It could respond
to lane markings in different
lanes, signs, guardrails, and
other stationary objects when
entering or exiting a curve.
This is normal operation. The
vehicle does not need service.Other Vehicles Entering
Your Lane
Super Cruise may not detect a
vehicle that enters your lane,
or may not brake fast enough
to avoid a crash. You must
manually brake and steer the
vehicle.
Intersections; Vehicles
Crossing the Road Ahead
Super Cruise will not brake the
vehicle when approaching an
intersection that is controlled
by a traffic light or stop sign.
Super Cruise will not detect
vehicles crossing the road
ahead, including at
intersections, and will not
automatically steer or brake to
prevent a collision. You must
manually brake and steer the
vehicle.
Towing a Trailer
Do not use Super Cruise when
towing a trailer. For towing
capability, see General Towing
Information
0295.
Super Cruise on Hills
Do not use Super Cruise while
driving on steep hills.
