2023 CADILLAC LYRIC Owners Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
376 Service and Maintenance
Caution (Continued)
flushes, solvents, cleaners,
or lubricants that are not
approved by GM could
damage the vehicle,
requiring expensive repairs
that are not covered by the
vehicle warranty.
The Tire Rotation and
Required Services are the
responsibility of the vehicle
owner. It is recommended to
have your dealer perform
these services every
12 000 km/7,500 mi. Proper
vehicle maintenance helps to
keep the vehicle in good
working condition.
The Additional Required
Services are for vehicles that:
.Carry passengers and cargo
within recommended limits
on the Tire and Loading
Information label. See
Vehicle Load Limits 0202.
.Are driven on reasonable
road surfaces within legal
driving limits.
{Warning
Performing maintenance
work can be dangerous and
can cause serious injury.
Perform maintenance work
only if the required
information, proper tools,
and equipment are available.
If they are not, see your
dealer to have a trained
technician do the work. See
Doing Your Own Service
Work 0309.
Maintenance
Schedule
Rotate Tires and Perform
Required Services Every
12 000 km (7,500 mi)
.Rotate the tires. Rotating
the tires helps achieve a
more uniform wear. The first
rotation is the most important. Anytime you
notice unusual tire wear,
rotate the tires as soon as
possible, check for proper
tire inflation pressure, and
check for damage to tires or
wheels. If unusual wear
continues after a rotation,
check the wheel alignment.
See When It Is Time for New
Tires
0349 and
Wheel Replacement 0354.
.Perform the Multi-Point
Vehicle Inspection. See
Multi-Point Vehicle
Inspection (MPVI) 0377.
.Lubricate body components.
See Exterior Care 0364.
Additional Required
Services —Normal
Service
Every 36 000 km (22,500 mi)
Replace the passenger
compartment air filter. Or
every 24 months, whichever
comes first. More frequent
passenger compartment air
filter replacement may be

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 377
needed if driving in areas with
heavy traffic, poor air quality,
high dust levels,
or environmental allergens.
Passenger compartment air
filter replacement may also be
needed if there is reduced
airflow, window fogging,
or odors. Your GM dealer can
help determine when to
replace the filter.
Every 161 000 km
(100,000 mi)
Replace the hood and/or body
lift support gas struts. Or
every 10 years, whichever
comes first. See Gas Strut(s)
0321.
Every 240 000 km
(150,000 mi)
Drain and fill the coolant
circuits. Or every five years,
whichever comes first. See
Cooling System 0313.Severe Conditions
Requiring More Frequent
Maintenance*
.Mainly driven in heavy city
traffic in hot weather.
.Mainly driven in hilly or
mountainous terrain.
.Frequently towing a trailer.
.Used for high speed or
competitive driving.
.Used for taxi, police,
or delivery service.
Additional Required
Services —Severe Service
Every 72 000 km (45,000 mi)
.Change electric drive unit
fluid. See Recommended
Fluids and Lubricants 0379.
Owner Checks and
Services
Every Five Years
Replace the brake fluid every
five years. See Brake Fluid
0316. Every Seven Years
Replace the air conditioning
desiccant every seven years.
This service helps the
longevity and efficient
operation of the air
conditioning system. This
service can be complex. See
your dealer.
Multi-Point Vehicle
Inspection (MPVI)
A Multi Point Vehicle
Inspection (MPVI) completed
by a GM dealer technician is a
maintenance assessment of
your vehicle. The benefit of
the MPVI is to identify and
inform the customer of service
items that require immediate
attention and those that may
require attention in the future.
The technician will perform the
following checks on your
vehicle. For a complete list of
checks, inspections, and
services, see your dealer.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
378 Service and Maintenance
Some items may not apply to
your vehicle and/or region.
Diagnostics
.OnStar active, if equipped
.Service history/recall check
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and
connections
Systems, Fluids, and
Visible Leak Inspection
.Electric Drive Unit
.Drive axle
.Transfer case
.Power electronics cooling
system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth,
and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration
date, if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional
Inspections
.Seat belt components
.Accelerator pedal
.Passenger compartment air
filter, if equipped
.Hoses
.Shocks and struts
.Steering components
.Axle boots or driveshaft and
u-joints
.Compartment lift struts,
if equipped
.Floor mats secured, no
interference with pedals
.Horn
.Starter switch
Lubricate
.Chassis components
Owner Checks and
Services
.At least twice a year, have
underbody flushing service
performed. See "Underbody
Maintenance" in Exterior
Care 0364.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 379
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not
listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Electric Drive Unit DEXRON ULV Automatic Transmission Fluid.
Hydraulic Brake System GM approved DOT 4 Hydraulic Brake Fluid.
Key Lock Cylinders, Hood and Liftgate Hinges Multi-Purpose Lubricant, Superlube. See your dealer.
Vehicle Coolant Circuits Use only ACDelco Premix (50/50 mixture of de-ionized water and DEX-COOL Coolant). See your dealer.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
380 Service and Maintenance

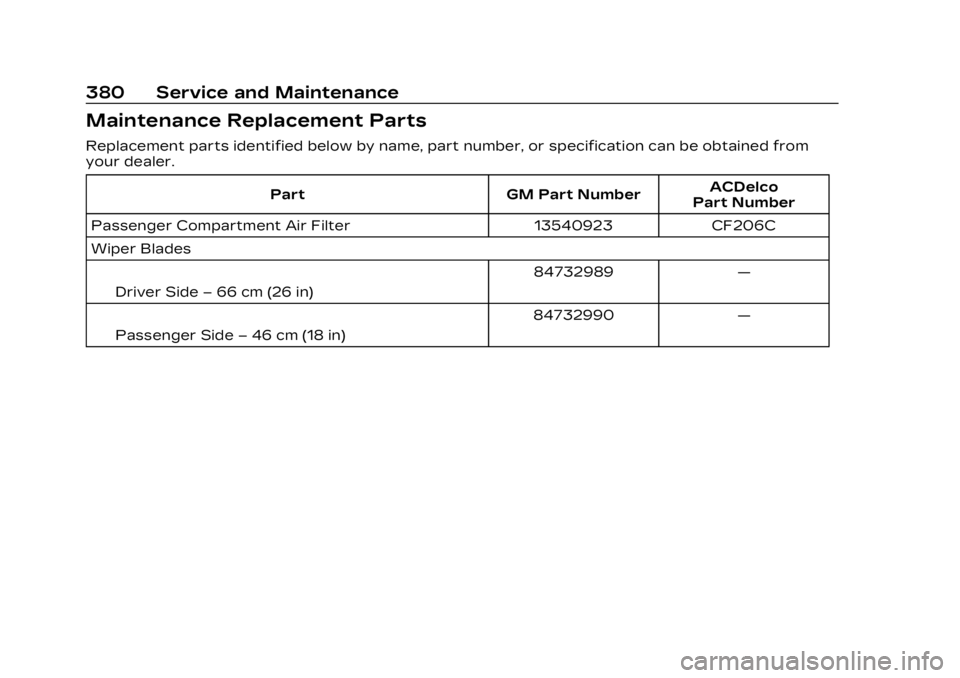

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from
your dealer.Part GM Part NumberACDelco
Part Number
Passenger Compartment Air Filter 13540923CF206C
Wiper Blades
IDriver Side –66 cm (26 in) 84732989
—
IPassenger Side –46 cm (18 in) 84732990
—

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Service and Maintenance 381

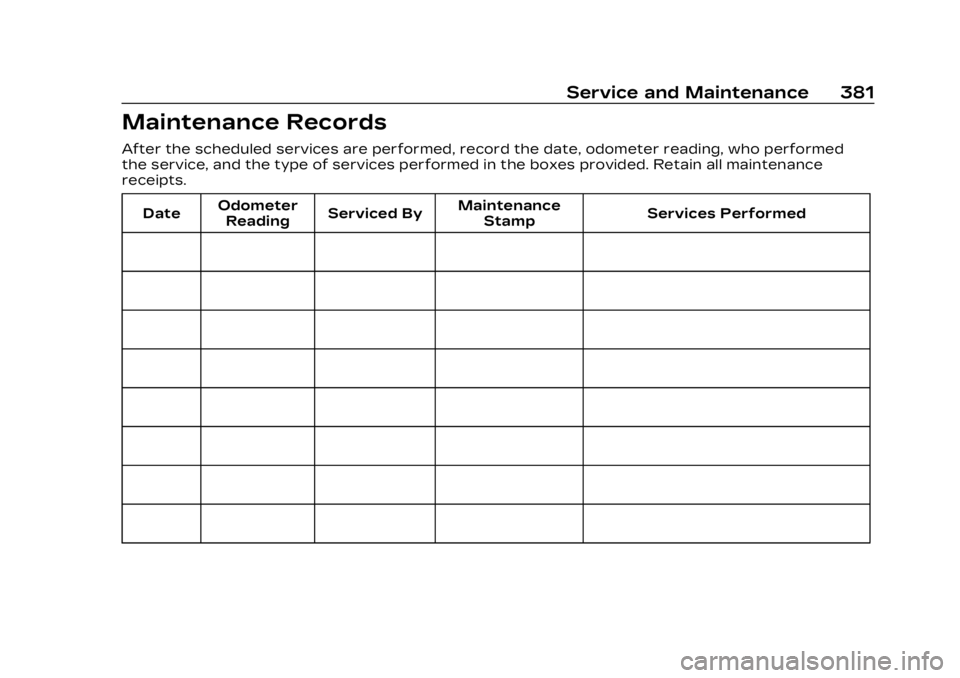

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed
the service, and the type of services performed in the boxes provided. Retain all maintenance
receipts.Date Odometer
Reading Serviced By Maintenance
Stamp Services Performed

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
382 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 382
Service Parts Identification . . . . . . . . . . . . . . 382
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . 383
Vehicle
Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the
front corner of the instrument
panel, on the driver side of the
vehicle. It can be seen through
the windshield from outside.
The Vehicle Identification
Number (VIN) also appears on
the Vehicle Certification label
and certificates of title and
registration.
Service Parts
Identification
There may be a large barcode
on the certification label on
the center pillar that you can
scan for the following
information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode
on this label, then you will find
this same information on a
label inside of the trunk.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Technical Data 383
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
Refer to Recommended Fluids and Lubricants0379 for more information.
Application Capacities Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant
charge type and amount, see the refrigerant label under the hood. See your dealer for more information.
Cooling Systems* 10.8 L 11.4 qt
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as
recommended in this manual. Recheck fluid level after filling.
*Cooling systems capacity values are based on the individual cooling system and its components.
