2022 HYUNDAI KONA EV Owners Manual

Foreword / Electric Vehicle System Overview
1-36

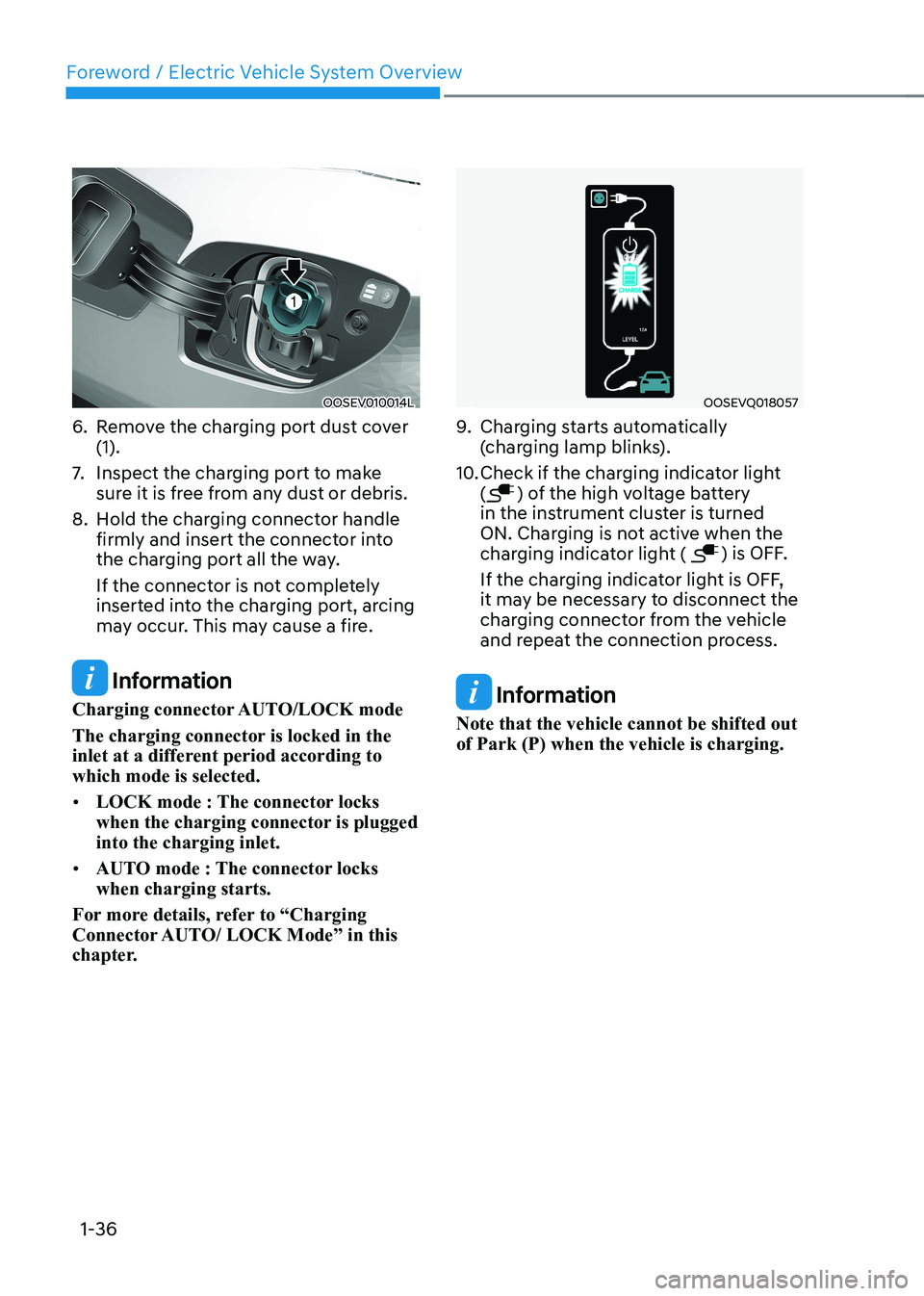

OOSEV010014L
6. Remove the charging port dust cover (1).
7. Inspect the charging port to make
sure it is free from any dust or debris.
8. Hold the charging connector handle firmly and insert the connector into
the charging port all the way.
If the connector is not completely
inserted into the charging port, arcing
may occur. This may cause a fire.
Information
Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to which mode is selected. • LOCK mode : The connector locks
when the charging connector is plugged into the charging inlet.
• AUTO mode : The connector locks when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
OOSEVQ018057
9. Charging starts automatically
(charging lamp blinks).
10. Check if the charging indicator light (
) of the high voltage battery
in the instrument cluster is turned
ON. Charging is not active when the
charging indicator light (
) is OFF.
If the charging indicator light is OFF,
it may be necessary to disconnect the
charging connector from the vehicle
and repeat the connection process.
Information
Note that the vehicle cannot be shifted out of Park (P) when the vehicle is charging.

01
1-37

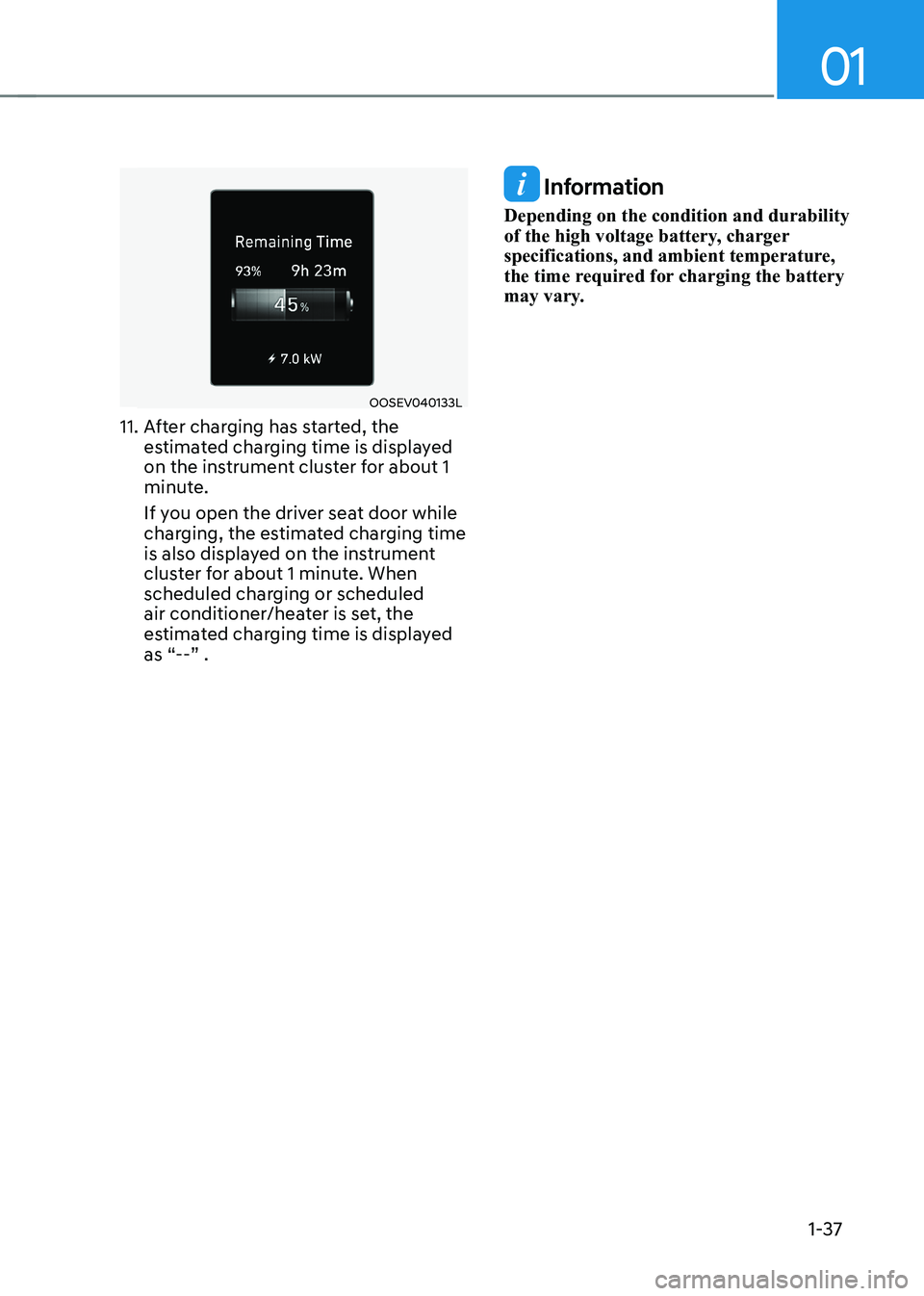

OOSEV040133L
11. After charging has started, the estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.

Foreword / Electric Vehicle System Overview
1-38

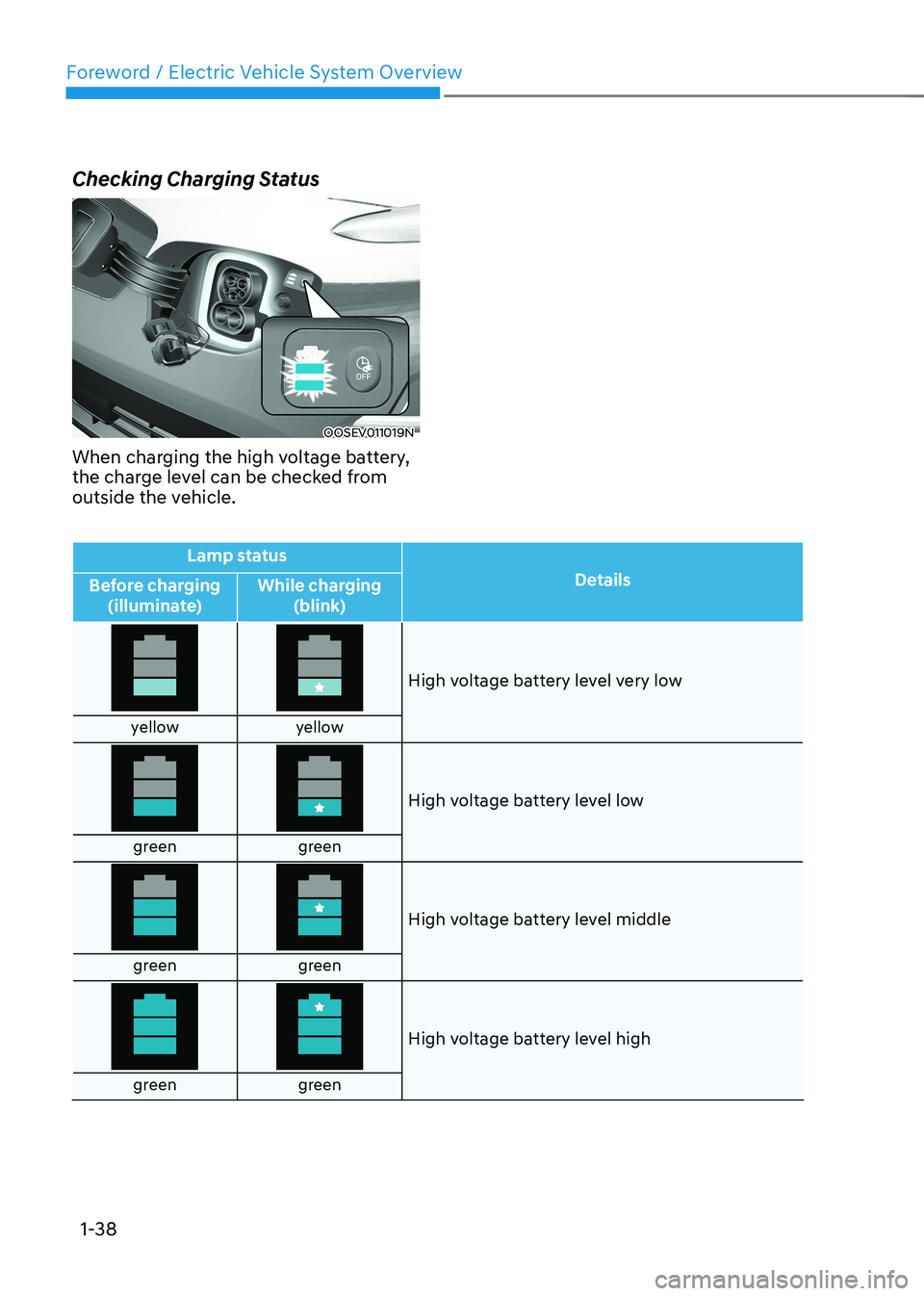

Checking Charging Status
OOSEV011019N
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
Lamp status Details
Before charging
(illuminate) While charging
(blink)
High voltage battery level very low
yellow yellow
High voltage battery level low
green green
High voltage battery level middle
green green
High voltage battery level high
green green

01
1-39
Charging Status Indicator Lamp for Portable Charger
Control Box IndicatorDetails
PLUG
(Green)On : Power on
Blink : Plug temperature sensor failure(Red)On : Plug high temperature protection
Blink : Plug high temperature warning
POWER
On : Power on
CHARGEBlink : Charging in power saving mode, only the CHARGE indicator is illuminated.
FA U LTBlink : Charging interruptedCharging current 12 A The charging current
changes (3 level) whenever
the button (1) is pressed
for 1 sec with the charger
plugged into an electrical
outlet but not the vehicle. Ã
Back of the control boxCharging current 10 ACharging current 18 A
VEHICLE
(Green) Charging connector plugged(Blue)Charging(Red)
Blink : Charging impossible

Foreword / Electric Vehicle System Overview
1-40
Charging Status Indicator Lamp for Portable ChargerNO Control Box Status / Diagnosis / Countermeasure NO Control Box Status / Diagnosis / Countermeasure1
• Charging connector plugged into
vehicle (Green ON)
• Plug temperature sensor failure
(Green blink)
• Plug high temperature protection
(Red blink)
• Plug high temperature warning (Red ON)
We recommend that you contact an
authorized HYUNDAI dealer. 2
- Charging connector plugged into
vehicle (Green ON)
3
- While charging • Charge indicator (Green blink)
• Vehicle indicator (Blue ON) 4
- Before plugging charging connector
into vehicle (Red blink)
• Abnormal temperature
• ICCB (In-Cable Control Box) failure
We recommend that you contact an
authorized HYUNDAI dealer.

01
1-41
NO Control Box Status / Diagnosis / Countermeasure NO Control Box Status / Diagnosis / Countermeasure5
- Plugged into vehicle (Red blink)• Diagnostic device failure
• Current leakage
• Abnormal temperature
We recommend that you contact an
authorized HYUNDAI dealer. 6
- After plugging charging connector into
vehicle (Red blink)
• Communication failure
We recommend that you contact an
authorized HYUNDAI dealer.
7
• Plug temperature sensor failure
(Green blink)
• Plug high temperature protection
(Red blink)
• Plug high temperature warning (Red ON)
We recommend that you contact an
authorized HYUNDAI dealer. 8
- Power saving mode
• 3 minutes after charging starts
(Green blink)
Charging Status Indicator Lamp for Portable Charger

Foreword / Electric Vehicle System Overview
1-42

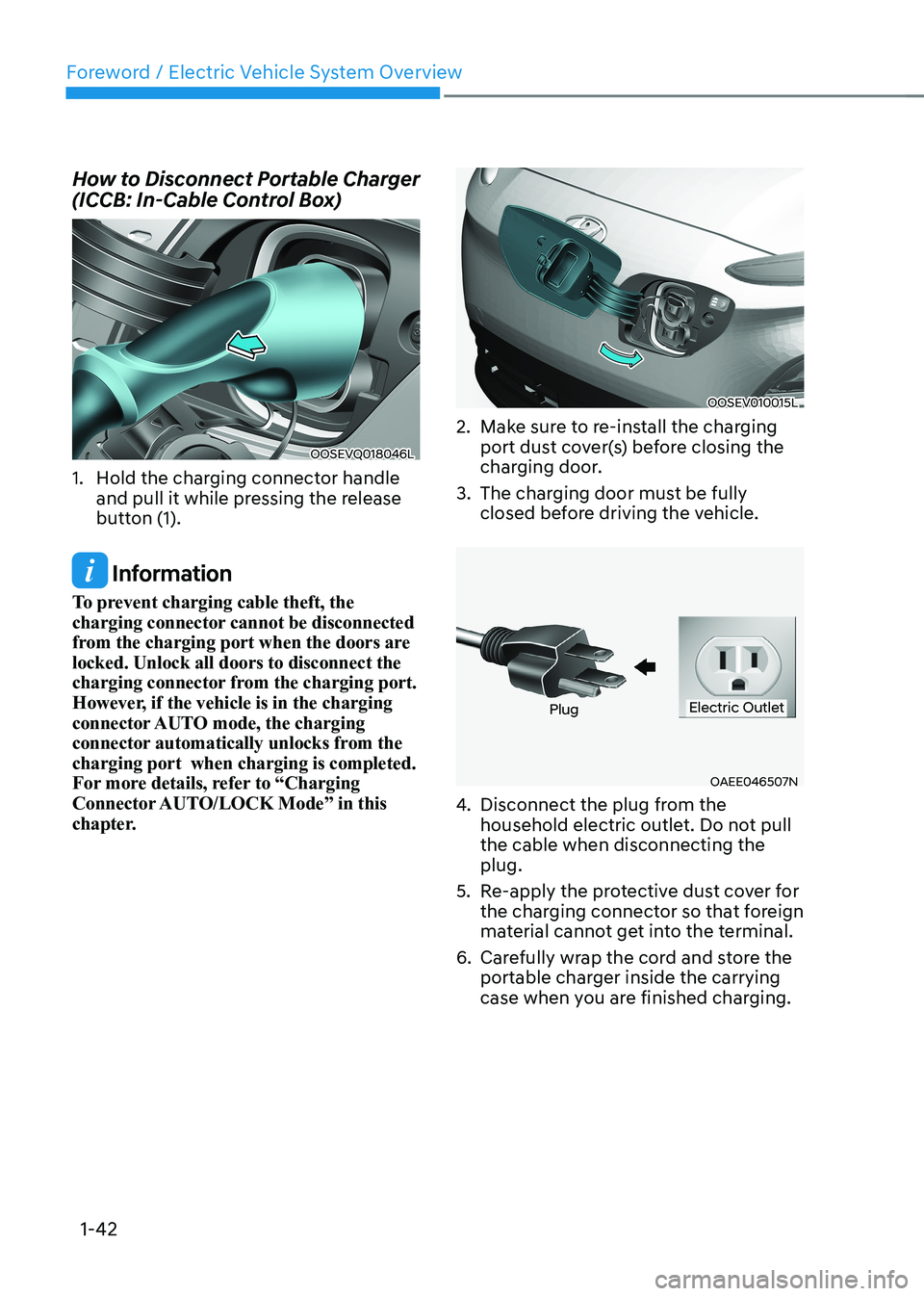

How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
OOSEVQ018046L
1. Hold the charging connector handle and pull it while pressing the release
button (1).
Information
To prevent charging cable theft, the
charging connector cannot be disconnected
from the charging port when the doors are
locked. Unlock all doors to disconnect the
charging connector from the charging port.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
charging port when charging is completed.
For more details, refer to “Charging
Connector AUTO/LOCK Mode” in this
chapter.
OOSEV010015L
2. Make sure to re-install the charging port dust cover(s) before closing the
charging door.
3. The charging door must be fully closed before driving the vehicle.
OAEE046507N
PlugElectric Outlet
4. Disconnect the plug from the
household electric outlet. Do not pull the cable when disconnecting the plug.
5. Re-apply the protective dust cover for the charging connector so that foreign
material cannot get into the terminal.
6. Carefully wrap the cord and store the portable charger inside the carrying
case when you are finished charging.

01
1-43

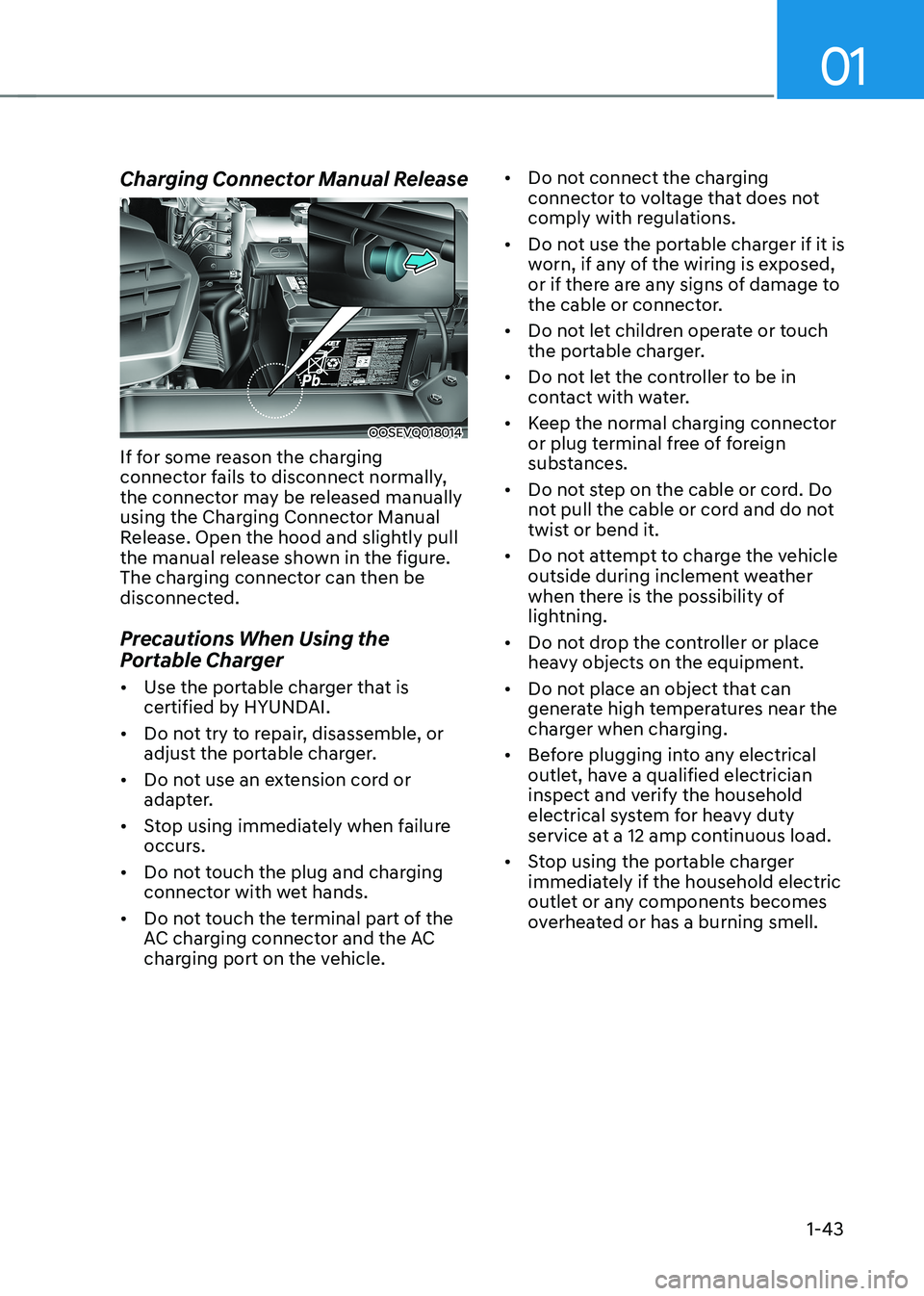

Charging Connector Manual Release
OOSEVQ018014
If for some reason the charging
connector fails to disconnect normally,
the connector may be released manually
using the Charging Connector Manual
Release. Open the hood and slightly pull
the manual release shown in the figure.
The charging connector can then be
disconnected.
Precautions When Using the
Portable Charger • Use the portable charger that is
certified by HYUNDAI.
• Do not try to repair, disassemble, or
adjust the portable charger.
• Do not use an extension cord or
adapter.
• Stop using immediately when failure
occurs.
• Do not touch the plug and charging
connector with wet hands.
• Do not touch the terminal part of the
AC charging connector and the AC
charging port on the vehicle. •
Do not connect the charging
connector to voltage that does not
comply with regulations.
• Do not use the portable charger if it is
worn, if any of the wiring is exposed,
or if there are any signs of damage to
the cable or connector.
• Do not let children operate or touch
the portable charger.
• Do not let the controller to be in
contact with water.
• Keep the normal charging connector
or plug terminal free of foreign
substances.
• Do not step on the cable or cord. Do
not pull the cable or cord and do not
twist or bend it.
• Do not attempt to charge the vehicle
outside during inclement weather
when there is the possibility of
lightning.
• Do not drop the controller or place
heavy objects on the equipment.
• Do not place an object that can
generate high temperatures near the
charger when charging.
• Before plugging into any electrical
outlet, have a qualified electrician
inspect and verify the household
electrical system for heavy duty
service at a 12 amp continuous load.
• Stop using the portable charger
immediately if the household electric
outlet or any components becomes
overheated or has a burning smell.
