2022 HYUNDAI ELANTRA N Owners Manual

08
8-17

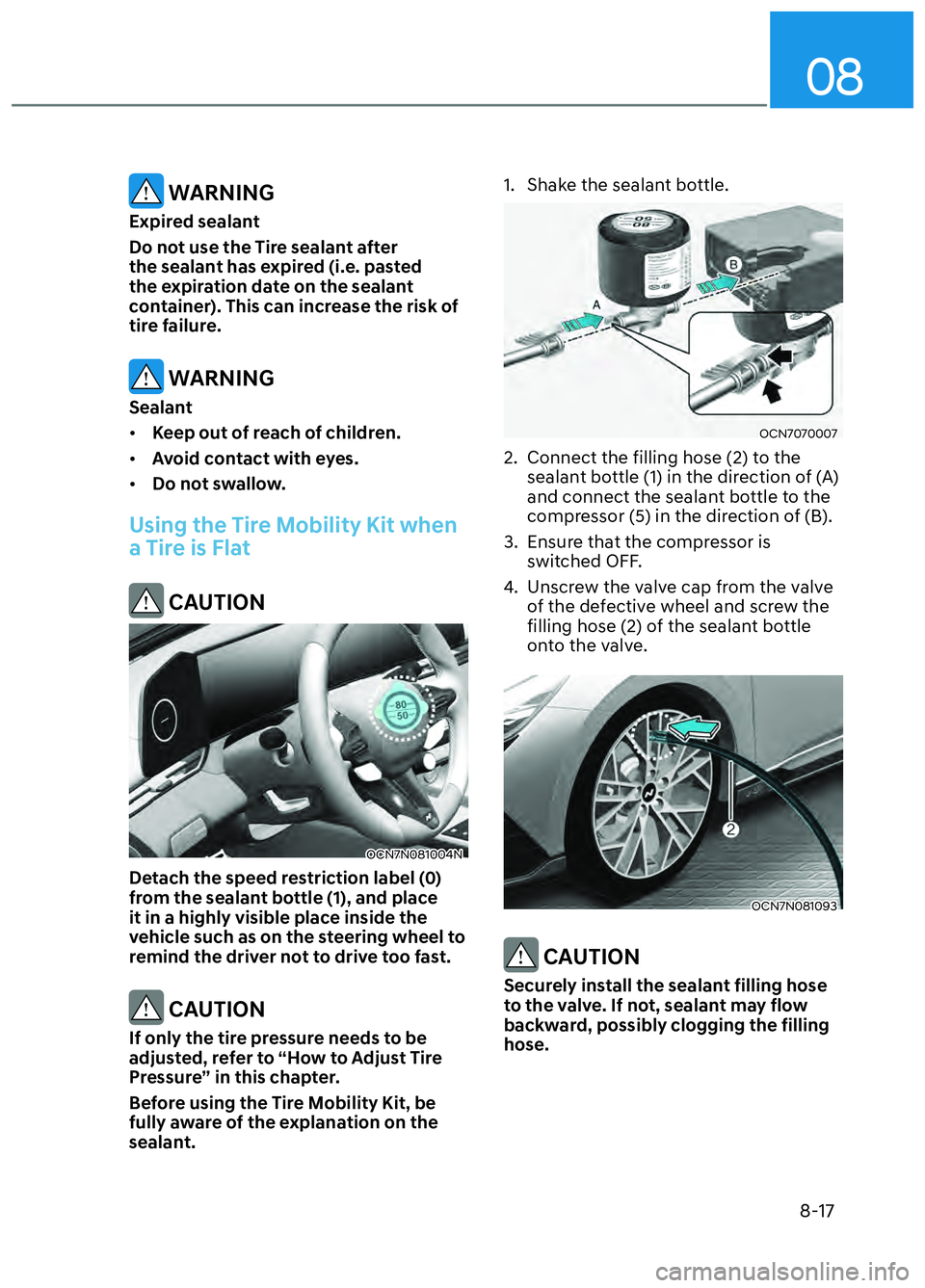

WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired (i.e. pasted
the expiration date on the sealant
container). This can increase the risk of
tire failure.
WARNING
Sealant
• Keep out of reach of children.
• Avoid contact with eyes.
• Do not swallow.
Using the Tire Mobility Kit when
a Tire is Flat
CAUTION
OCN7N081004NOCN7N081004N
Detach the speed restriction label (0)
from the sealant bottle (1), and place
it in a highly visible place inside the
vehicle such as on the steering wheel to
remind the driver not to drive too fast.
CAUTION
If only the tire pressure needs to be
adjusted, refer to “How to Adjust Tire
Pressure” in this chapter.
Before using the Tire Mobility Kit, be
fully aware of the explanation on the
sealant. 1. Shake the sealant bottle.
OCN7070007OCN7070007
2. Connect the filling hose (2) to the
sealant bottle (1) in the direction of (A)
and connect the sealant bottle to the
compressor (5) in the direction of (B).
3. Ensure that the compressor is switched OFF.
4. Unscrew the valve cap from the valve of the defective wheel and screw the
filling hose (2) of the sealant bottle
onto the valve.
OCN7N081093OCN7N081093
CAUTION
Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
CN7 N HMA 8.indd 8-17 2021-09-06  4:18:13

Emergency Situations8-18
OCN7N081005OCN7N081005
5. Plug the compressor power cord (4) into the vehicle power outlet.
NOTICE
Only use the front passenger side
power outlet when connecting the
power cord.
6. Set the Engine Start/Stop button to the ON position.
7. Switch on the compressor and let it run for approximately 5~7 minutes to
fill the sealant up to proper pressure.
(refer to the Tire and Wheels, chapter
2). The inflation pressure of the tire
after filling is unimportant and will be
checked/corrected later.
Be careful not to overinflate the tire
and stay away from the tire when
filling it.
CAUTION
Tire pressure
Do not attempt to drive your vehicle if
the tire pressure is below 29 psi (200
kPa). This could result in an accident
due to sudden tire failure. 8. Switch off the compressor.
9. Detach the hoses from the sealant
bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its storage
location in the vehicle.
WARNING
Carbon monoxide
Do not leave your vehicle running in
a poorly ventilated area for extended
periods of time. Carbon monoxide
poisoning and suffocation can occur.
OLMF064106OLMF064106
10. Immediately drive approximately 4~6
miles (7~10 km or, about 10min) to
evenly distribute the sealant in the
tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of the
side of the road.
Call for road side service or towing.
CN7 N HMA 8.indd 8-18 2021-09-06  4:18:13

08
8-19
OOSN081023OOSN081023
OCN7N081093OCN7N081093

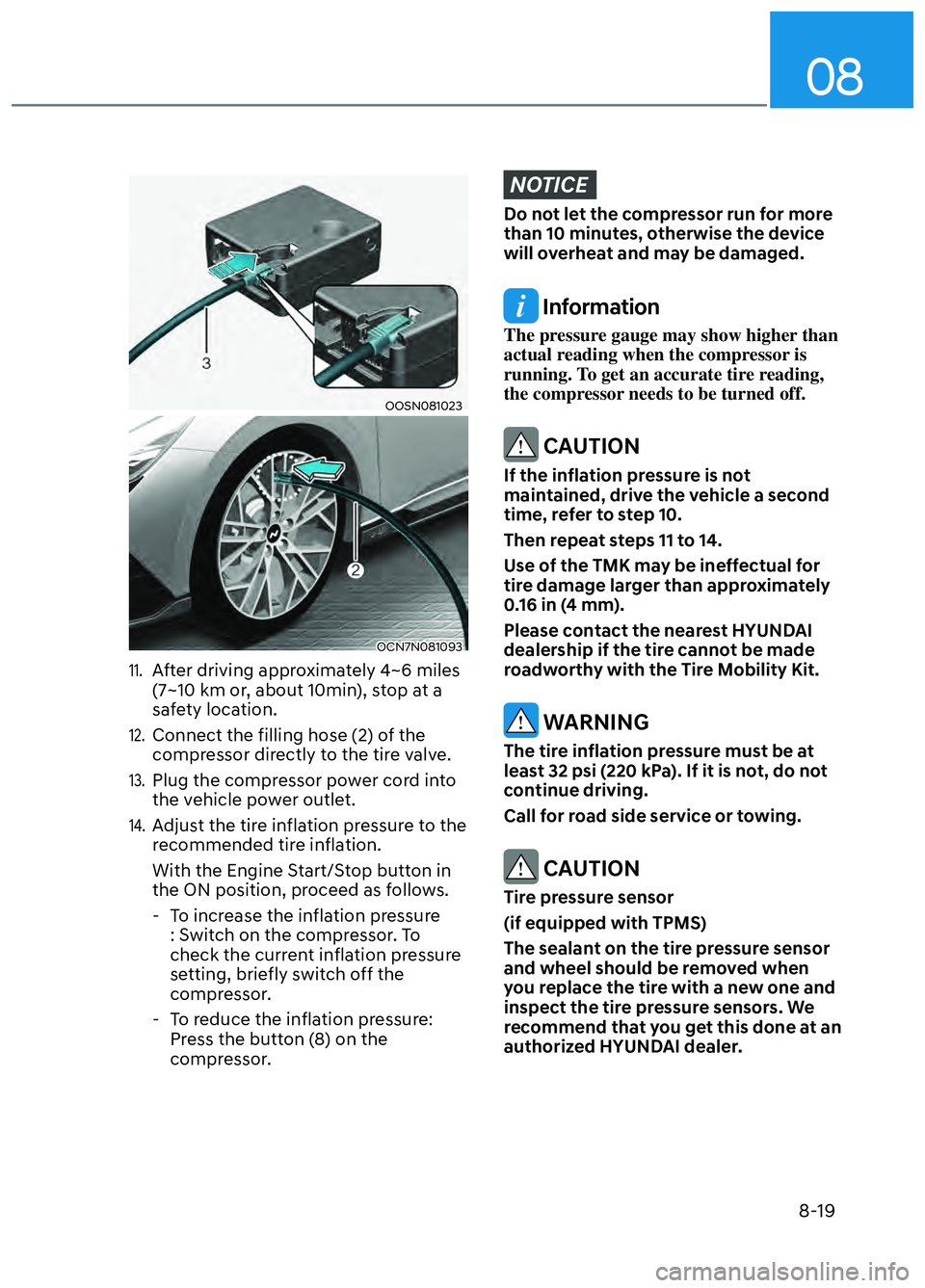

11. After driving approximately 4~6 miles
(7~10 km or, about 10min), stop at a
safety location.
12. Connect the filling hose (2) of the
compressor directly to the tire valve.
13. Plug the compressor power cord into
the vehicle power outlet.
14. Adjust the tire inflation pressure to the
recommended tire inflation.
With the Engine Start/Stop button in
the ON position, proceed as follows.
- To increase the inflation pressure
: Switch on the compressor. To
check the current inflation pressure
setting, briefly switch off the
compressor.

- To reduce the inflation pressure:
Press the button (8) on the
compressor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire reading,
the compressor needs to be turned off.
CAUTION
If the inflation pressure is not
maintained, drive the vehicle a second
time, refer to step 10.
Then repeat steps 11 to 14.
Use of the TMK may be ineffectual for
tire damage larger than approximately
0.16 in (4 mm).
Please contact the nearest HYUNDAI
dealership if the tire cannot be made
roadworthy with the Tire Mobility Kit.
WARNING
The tire inflation pressure must be at
least 32 psi (220 kPa). If it is not, do not
continue driving.
Call for road side service or towing.
CAUTION
Tire pressure sensor
(if equipped with TPMS)
The sealant on the tire pressure sensor
and wheel should be removed when
you replace the tire with a new one and
inspect the tire pressure sensors. We
recommend that you get this done at an
authorized HYUNDAI dealer.
CN7 N HMA 8.indd 8-19 2021-09-06  4:18:15

Emergency Situations8-20
Information
When reinstalling the repaired or replaced
tire and wheel on the vehicle, tighten the
wheel lug nut to 79~94 lbf·ft (11~13 kgf·m).
How to Adjust Tire Pressure
OOSN081023OOSN081023
OCN7N081093OCN7N081093
1. Park your vehicle in a safe location.
2. Connect the filling hose (2) of the compressor directly to the tire valve.
3. Plug the compressor power cord into the vehicle power outlet.
4. Adjust the tire inflation pressure to the recomended tire inflation.
With the Engine Start/Stop button ON,
proceed as follows.

- To increase the inflation pressure
: Switch on the compressor. To
check the current inflation pressure
setting, briefly switch off the
compressor.

- To reduce the inflation pressure:
Press the button (8) on the
compressor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire reading,
the compressor needs to be turned off.
CAUTION
Do not use the sealant when the tire
pressure only needs to be adjusted.
WARNING
The tire inflation pressure must be at
least 32 psi (220 kPa). If it is not, do not
continue driving.
Call for road side service or towing.
CN7 N HMA 8.indd 8-20 2021-09-06  4:18:15

08
8-21

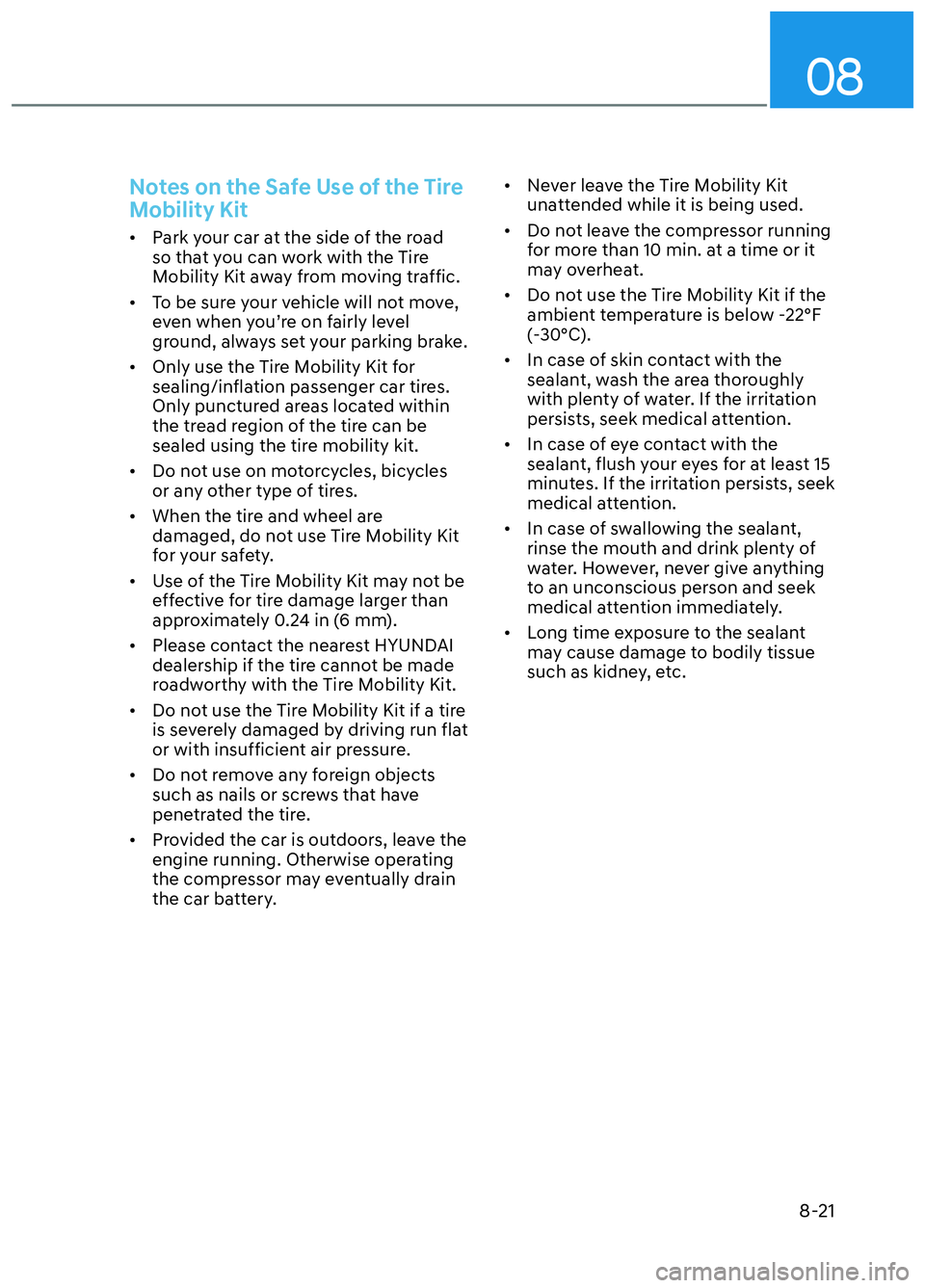

Notes on the Safe Use of the Tire
Mobility Kit
• Park your car at the side of the road so that you can work with the Tire
Mobility Kit away from moving traffic.
• To be sure your vehicle will not move, even when you’re on fairly level
ground, always set your parking brake.
• Only use the Tire Mobility Kit for sealing/inflation passenger car tires.
Only punctured areas located within
the tread region of the tire can be
sealed using the tire mobility kit.
• Do not use on motorcycles, bicycles or any other type of tires.
• When the tire and wheel are damaged, do not use Tire Mobility Kit
for your safety.
• Use of the Tire Mobility Kit may not be effective for tire damage larger than
approximately 0.24 in (6 mm).
• Please contact the nearest HYUNDAI dealership if the tire cannot be made
roadworthy with the Tire Mobility Kit.
• Do not use the Tire Mobility Kit if a tire is severely damaged by driving run flat
or with insufficient air pressure.
• Do not remove any foreign objects such as nails or screws that have
penetrated the tire.
• Provided the car is outdoors, leave the engine running. Otherwise operating
the compressor may eventually drain
the car battery. • Never leave the Tire Mobility Kit
unattended while it is being used.
• Do not leave the compressor running for more than 10 min. at a time or it
may overheat.
• Do not use the Tire Mobility Kit if the ambient temperature is below -22°F
(-30°C).
• In case of skin contact with the sealant, wash the area thoroughly
with plenty of water. If the irritation
persists, seek medical attention.
• In case of eye contact with the sealant, flush your eyes for at least 15
minutes. If the irritation persists, seek
medical attention.
• In case of swallowing the sealant, rinse the mouth and drink plenty of
water. However, never give anything
to an unconscious person and seek
medical attention immediately.
• Long time exposure to the sealant may cause damage to bodily tissue
such as kidney, etc.
CN7 N HMA 8.indd 8-21 2021-09-06  4:18:16

Emergency Situations8-22

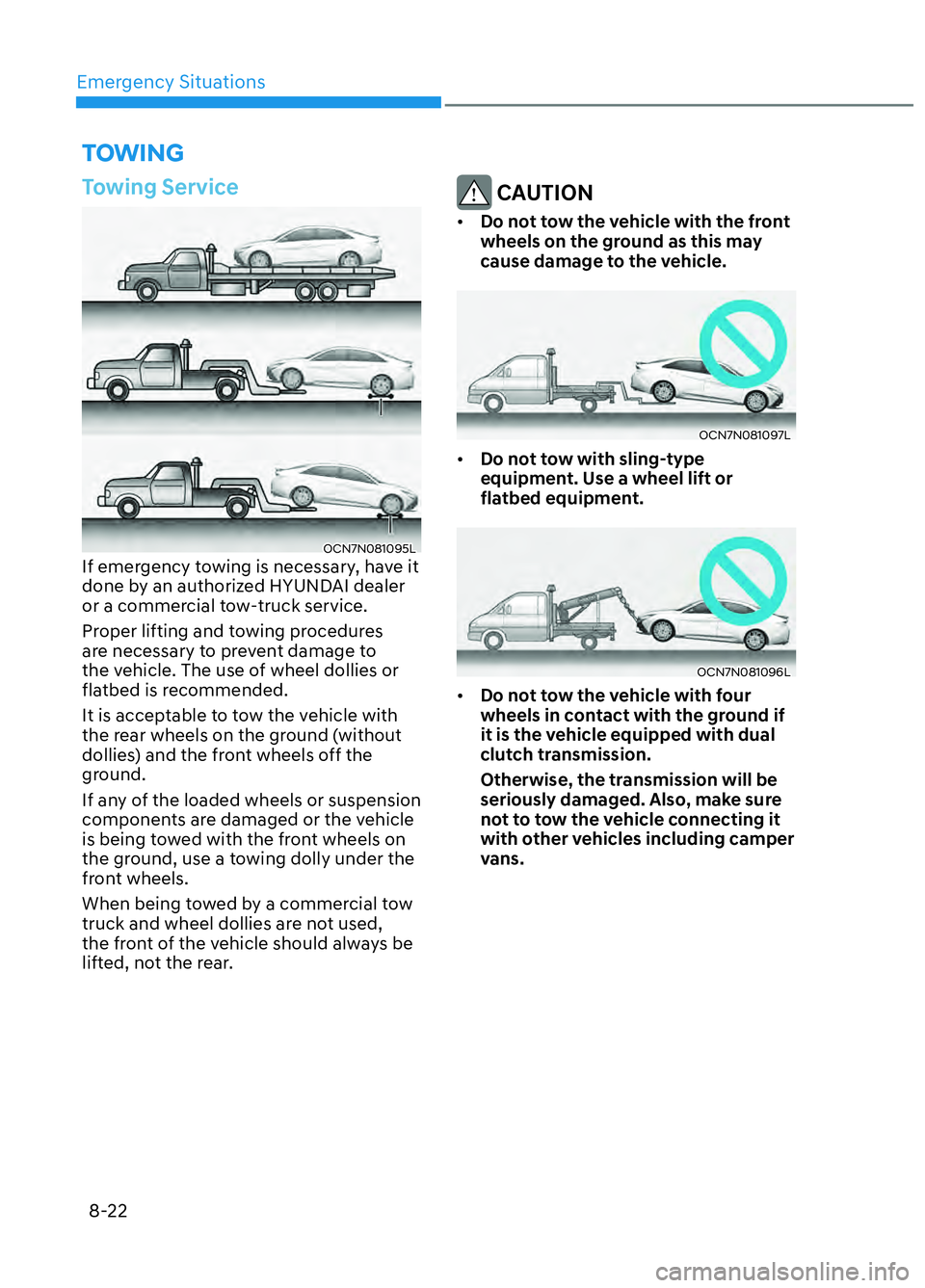

TOWING
Towing Service
OCN7N081095LOCN7N081095LIf emergency towing is necessary, have it
done by an authorized HYUNDAI dealer
or a commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
It is acceptable to tow the vehicle with
the rear wheels on the ground (without
dollies) and the front wheels off the
ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
CAUTION
• Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
OCN7N081097LOCN7N081097L
• Do not tow with sling-type
equipment. Use a wheel lift or
flatbed equipment.
OCN7N081096LOCN7N081096L
• Do not tow the vehicle with four
wheels in contact with the ground if
it is the vehicle equipped with dual
clutch transmission.
Otherwise, the transmission will be
seriously damaged. Also, make sure
not to tow the vehicle connecting it
with other vehicles including camper
vans.
CN7 N HMA 8.indd 8-22 2021-09-06  4:18:16

08
8-23
WARNING
If your vehicle is equipped with a
rollover sensor, set the Engine Start/
Stop button in the OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
OCN7N081098LOCN7N081098L
When towing your vehicle in an
emergency without wheel dollies:
1. Set the Engine Start/Stop button in the ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.
Emergency Towing
If towing is necessary, have it done by
an authorized HYUNDAI dealer or a
commercial tow truck service.
Removable Towing Hook
OCN7N081006NOCN7N081006N
1. Open the trunk, and remove the towing hook from the tool case.
OCN7N081007NOCN7N081007N
2. Remove the hole cover by pressing the lower part of the cover on the
bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.
CN7 N HMA 8.indd 8-23 2021-09-06  4:18:16

Emergency Situations8-24

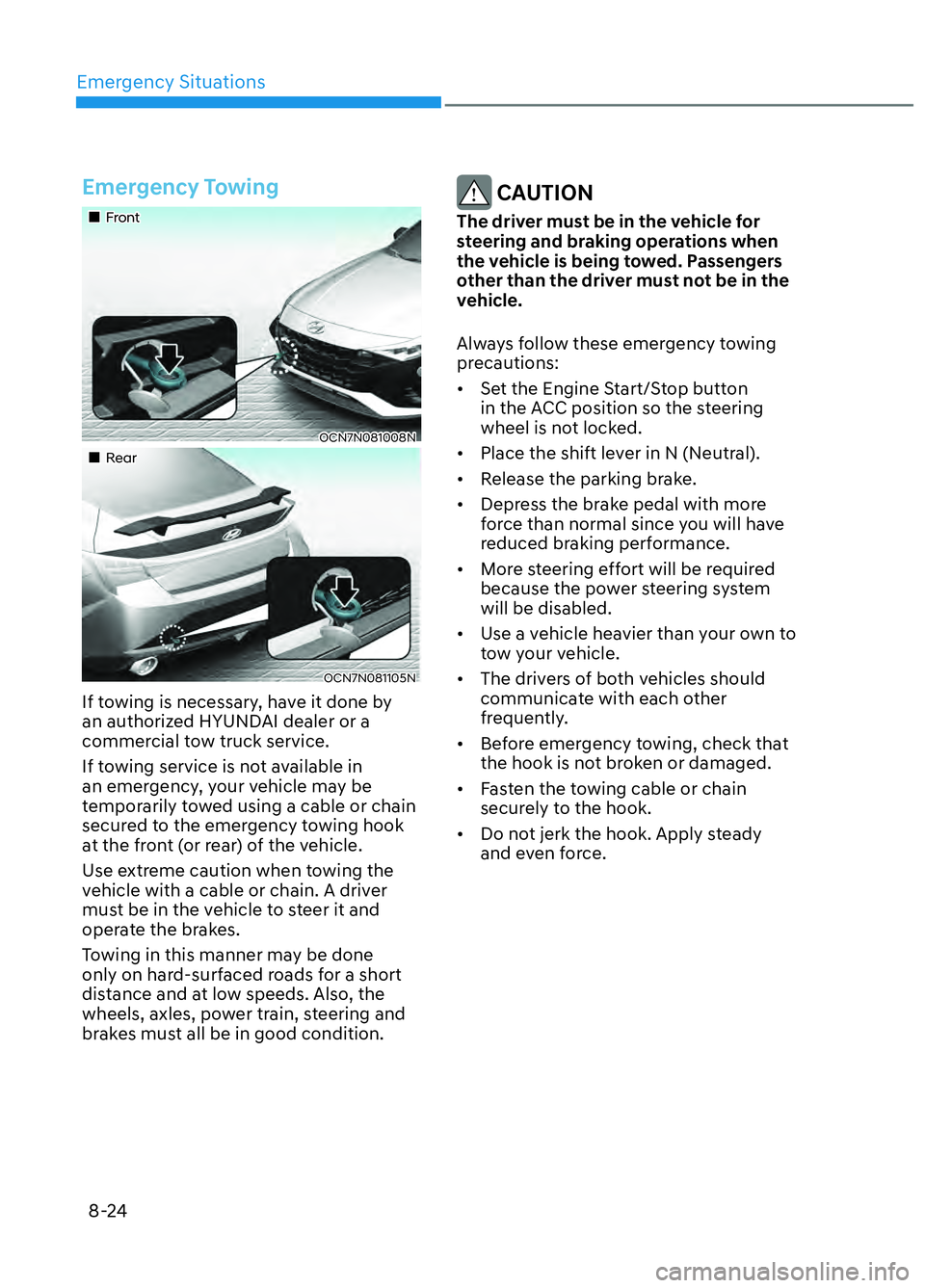

Emergency Towing
FrontFront
OCN7N081008NOCN7N081008N
RearRear
OCN7N081105NOCN7N081105N
If towing is necessary, have it done by
an authorized HYUNDAI dealer or a
commercial tow truck service.
If towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering and
brakes must all be in good condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:
• Set the Engine Start/Stop button in the ACC position so the steering
wheel is not locked.
• Place the shift lever in N (Neutral).
• Release the parking brake.
• Depress the brake pedal with more force than normal since you will have
reduced braking performance.
• More steering effort will be required because the power steering system
will be disabled.
• Use a vehicle heavier than your own to tow your vehicle.
• The drivers of both vehicles should communicate with each other
frequently.
• Before emergency towing, check that the hook is not broken or damaged.
• Fasten the towing cable or chain securely to the hook.
• Do not jerk the hook. Apply steady and even force.
CN7 N HMA 8.indd 8-24 2021-09-06  4:18:17
