2022 HYUNDAI ELANTRA N Owners Manual

05
5-71
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:
• Light from an oncoming or front vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.
• Headlamp of an oncoming or front vehicle is covered with dust, snow or
water.
• A front vehicle’s headlamps are off, but the fog lamps are on, etc.
• There is a lamp that has a similar shape as a vehicle’s lamp.
• Headlamps have been damaged or not repaired properly.
• Headlamps are not aimed properly.
• Driving on a narrow-curved road, rough road, uphill or downhill.
• Vehicle in front is partially visible on a crossroad or curved road.
• There is a traffic light, reflecting sign, flashing sign or mirror ahead.
• There is a temporary reflector or flash ahead (construction area).
• The road conditions are bad such as being wet, iced or covered with snow.
• A vehicle suddenly appears from a curve.
• The vehicle is tilted from a flat tire or is being towed.
• Light from an oncoming or front vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc. Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING
• At times, High Beam Assist may not
work properly High Beam Assist is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.
• When High Beam Assist does
not operate properly, change
the headlamp position manually
between high beam and low beam.
CN7 N HMA 5.indd 5-71 2021-09-06  3:06:35

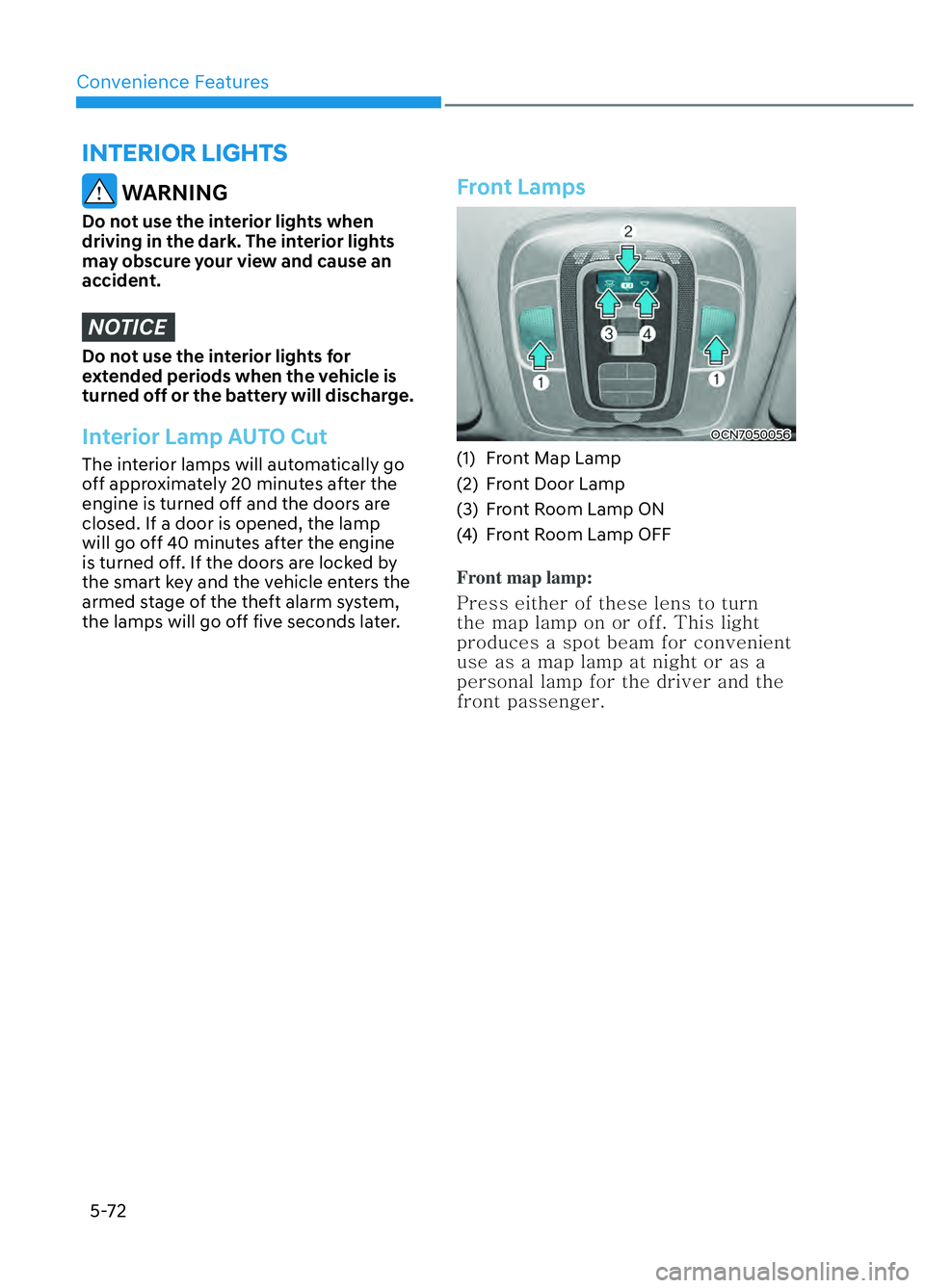

Convenience Features5-72
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO Cut
The interior lamps will automatically go
off approximately 20 minutes after the
engine is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the engine
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OCN7050056OCN7050056
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp ON
(4) Front Room Lamp OFF
Front map lamp:
1SFTT
FJUIFS
PG
UIFTF
MFOT
UP
UVSO

UIF
NBQ
MBNQ
PO
PS
PGG
5IJT
MJHIU

QSPEVDFT
B
TQPU
CFBN
GPS
DPOWFOJFOU

VTF
BT
B
NBQ
MBNQ
BU
OJHIU
PS
BT
B

QFSTPOBM
MBNQ
GPS
UIF
ESJWFS
BOE
UIF

GSPOU
QBTTFOHFS
INTERIOR LIGHTS
CN7 N HMA 5.indd 5-72 2021-09-06  3:06:35

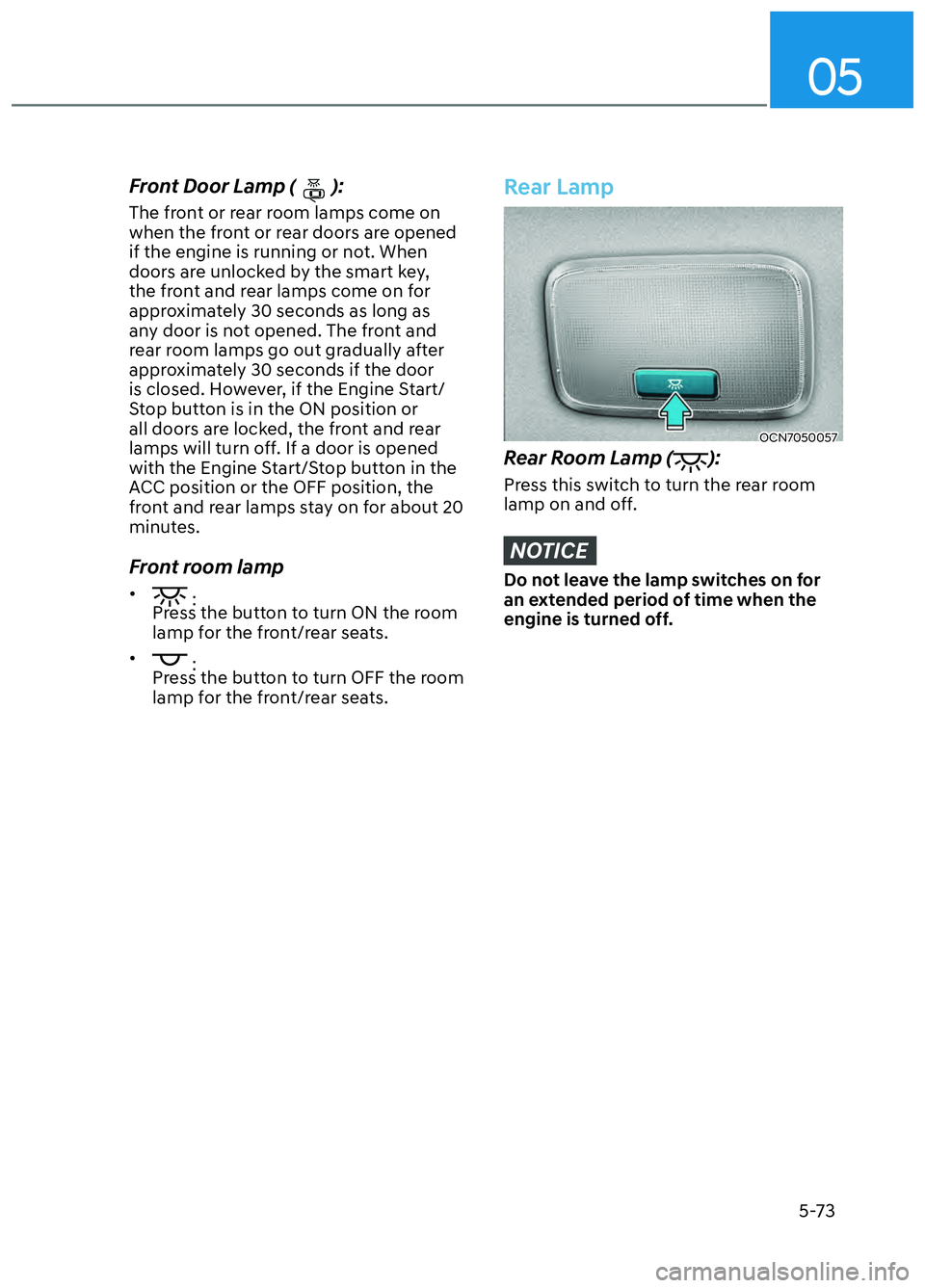

05
5-73
Front Door Lamp ():
The front or rear room lamps come on
when the front or rear doors are opened
if the engine is running or not. When
doors are unlocked by the smart key,
the front and rear lamps come on for
approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds if the door
is closed. However, if the Engine Start/
Stop button is in the ON position or
all doors are locked, the front and rear
lamps will turn off. If a door is opened
with the Engine Start/Stop button in the
ACC position or the OFF position, the
front and rear lamps stay on for about 20
minutes.
Front room lamp
• :
Press the button to turn ON the room
lamp for the front/rear seats.
•
:
Press the button to turn OFF the room
lamp for the front/rear seats.
Rear Lamp
OCN7050057OCN7050057
Rear Room Lamp ():
Press this switch to turn the rear room
lamp on and off.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
CN7 N HMA 5.indd 5-73 2021-09-06  3:06:36

Convenience Features5-74
Luggage Compartment Lamp
OCN7N051086NOCN7N051086N
The luggage compartment lamp comes
on when the trunk is opened.
NOTICE
The luggage compartment lamp comes
on as long as the trunk is open. To
prevent unnecessary battery system
drain, close the trunk securely after
using the luggage compartment.
Vanity Mirror Lamp (if equipped)
OCN7050058OCN7050058
Push the switch to turn the light on or off.
•
: The lamp will turn on if this button is pressed.
•
: The lamp will turn off if this button is pressed.
NOTICE
Always have the switch in the off
position when the vanity mirror lamp
is not in use. If the sunvisor is closed
without the lamp off, it may discharge
the battery or damage the sunvisor.
CN7 N HMA 5.indd 5-74 2021-09-06  3:06:36

05
5-75
Welcome System (if equipped)
Welcome light
OCN7N051054NOCN7N051054N
Door handle lamp (if equipped)
When all the doors (and trunk) are closed
and lock
ed, the door handle lamp will
come on for about 15 seconds if any of
the below is performed.
• When the door unlock button is pressed on the smart key.
• When the button of the outside door handle is pressed.
• When the vehicle is approached with the smart key in possession.
Headlamp and parking lamp
When the headlamp (lamp switch in the
headlamp or A
UTO position) is on and all
doors (and trunk) are locked and closed,
the headlamp and parking lamp will
come on for 15 seconds if/or any of the
below is performed.
• When the door unlock button is pressed on the smart key.
At this time, if you press the door lock or
unlock button, the headlamp and parking
lamp will turn off immediately. You can activate or deactivate the
Welcome Light from the User Settings
Mode on the LCD display. For more
details, refer to “LCD Display” in
chapter 4. If your vehicle is equipped
with additional navigation, please refer
to the infotainment system manual
separately supplied.
Interior lamp
When the interior lamp switch is in the
DOOR position and all doors (and trunk)
are closed and locked, the room lamp
will come on for 30 seconds if any of the
below is performed.
• When the door unlock button is
pressed on the smart key.
• When the button of the outside door handle is pressed.
At this time, if you press the door lock or
unlock button, the room lamp will turn
off immediately.
CN7 N HMA 5.indd 5-75 2021-09-06  3:06:36

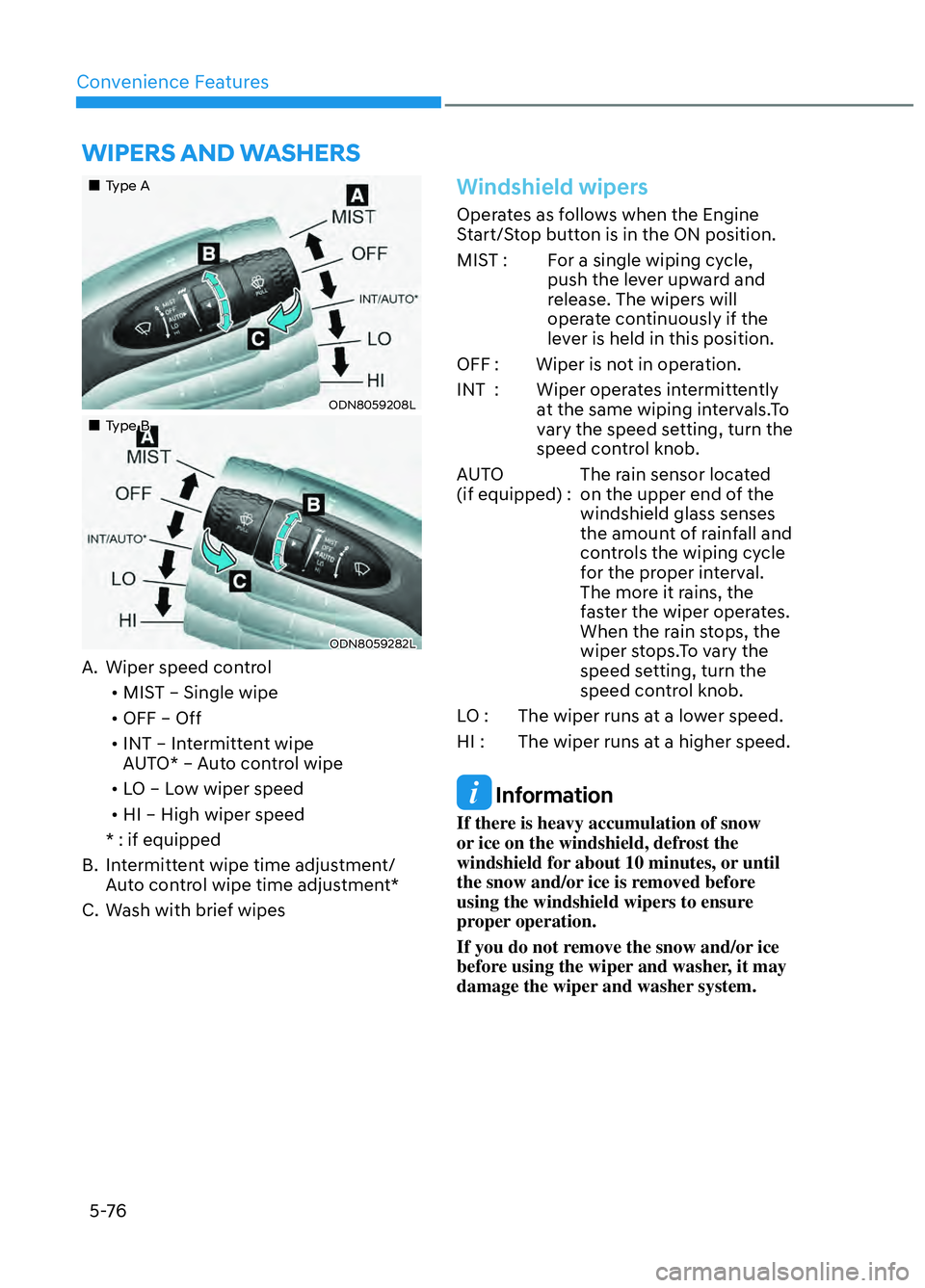

Convenience Features5-76
WIPERS AND WASHERS
Type AType A
ODN8059208LODN8059208L
Type BType B
ODN8059282LODN8059282L
A. Wiper speed control • MIST – Single wipe
• OFF – Off
• INT – Intermittent wipe AUTO* – Auto control wipe
• LO – Low wiper speed
• HI – High wiper speed
* : if equipped
B. Intermittent wipe time adjustment/ Auto control wipe time adjustment*
C. Wash with brief wipes
Windshield wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST : For a single wiping cycle, push the lever upward and
release. The wipers will
operate continuously if the
lever is held in this position.
OFF : Wiper is not in operation.
INT : Wiper operates intermittently at the same wiping intervals.To
vary the speed setting, turn the
speed control knob.
AUTO
(if equipped) : The rain sensor located
on the upper end of the
windshield glass senses
the amount of rainfall and
controls the wiping cycle
for the proper interval.
The more it rains, the
faster the wiper operates.
When the rain stops, the
wiper stops.To vary the
speed setting, turn the
speed control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
CN7 N HMA 5.indd 5-76 2021-09-06  3:06:37

05
5-77
Windshield Washers
ODN8059209KODN8059209K
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
CN7 N HMA 5.indd 5-77 2021-09-06  3:06:37

Convenience Features5-78
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
Type AType A
OCN7050100NOCN7050100N
Type BType B
OCN7050101NOCN7050101N
1. Fan speed control knob
2. Temperature control knob
3. Mode selection knob
4. Front windshield defroster position
5. Rear window defroster button
6. Air intake control button
7. A/C (Air conditioning) button
