2022 HYUNDAI ELANTRA N Owners Manual

Driving Your Vehicle6-8
Starting the engine
WARNING
• Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc.,
may interfere with your ability to use
the brake and accelerator pedals.
• Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.
• Wait until the engine rpm is normal.
The vehicle may suddenly move if
the brake pedal is released when the
rpm is high.
Information
• The engine will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.
• Even if the smart key is in the vehicle,
if it is far away from the driver, the
engine may not start.
• When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. If the smart key is not in the
vehicle, the “
” indicator will blink
and the warning "Key not in vehicle"
will come on and if all doors are closed,
the chime will also sound for about
5 seconds. Keep the smart key in the
vehicle when using the ACC position or
if the vehicle engine is ON. Vehicle with manual transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the shift lever is in neutral.
4. Depress the clutch and brake pedals.
5. Press the Engine Start/Stop button.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
Vehicle with dual clutch transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
Information
• Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine
speeds. (Aggressive accelerating and
decelerating should be avoided.)
• Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.
CN7 N HMA 6.indd 6-8 2021-09-14  9:42:19

06
6-9
NOTICE
To prevent damage to the vehicle:
• If the engine stalls while you are in
motion, do not attempt to move the
shift lever to the P (Park) position.
If traffic and road conditions permit,
you may put the shift lever in the N
(Neutral) position while the vehicle
is still moving and press the Engine
Start/Stop button in an attempt to
restart the engine.
• Do not push or tow your vehicle to
start the engine.
NOTICE
To prevent damage to the vehicle:
When the stop lamp switch fuse is
blown, you can't start the engine
normally. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the engine by
pressing and holding the Engine Start/
Stop button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp switch fuse is
blown.
For your safety always depress the
brake pedal before starting the engine.
OCN7N061250NOCN7N061250N
Information
If the smart key battery is weak or the
smart key does not work correctly, you
can start the engine by pressing the Engine
Start/Stop button with the smart key in
the direction of the picture above.
Turning off the engine
Vehicle with manual transmission:
1. Stop the vehicle and depress the
clut
ch and brake pedals at the same
time.
2. With the clutch and brake pedals depressed, put the shift lever in
neutral.
3. Press the Engine Start/Stop button to the off position and apply the parking
brake.
Vehicle with Dual clutch transmission:
1. Stop the vehicle and depress the br
ake pedal fully.
2. Make sure the gear is in P(Park).
3. Press the Engine Start/Stop button to the OFF position and apply the
parking brake.
CN7 N HMA 6.indd 6-9 2021-09-14  9:42:19

Driving Your Vehicle6-10
Remote start
OCN7060005OCN7060005
You can start the vehicle using the
Remote Start button of the smart key. To start the vehicle remotely:
1. Press the door lock button within 10 m
(32 feet) from the vehicle.
2. Press the remote start (
) button for
over 2 seconds within 4 seconds after
locking the doors. The hazard warning
lights will blink.
3. To turn off the remote start function, press the remote start (
) button
once.
• The remote start (
) button may not
operate if the smart key is not within
10 m (32 feet).
• The vehicle will not remotely start if the engine hood or trunk is opened.
• The vehicle must be in P (Park) for the remote start function to start.
• The engine turns off if you get in the vehicle without a registered smart key.
• The engine turns off if you do not get in the vehicle within 10 minutes after
remotely starting the vehicle.
• Do not idle the engine for a long period.
CN7 N HMA 6.indd 6-10 2021-09-14  9:42:20

06
6-11

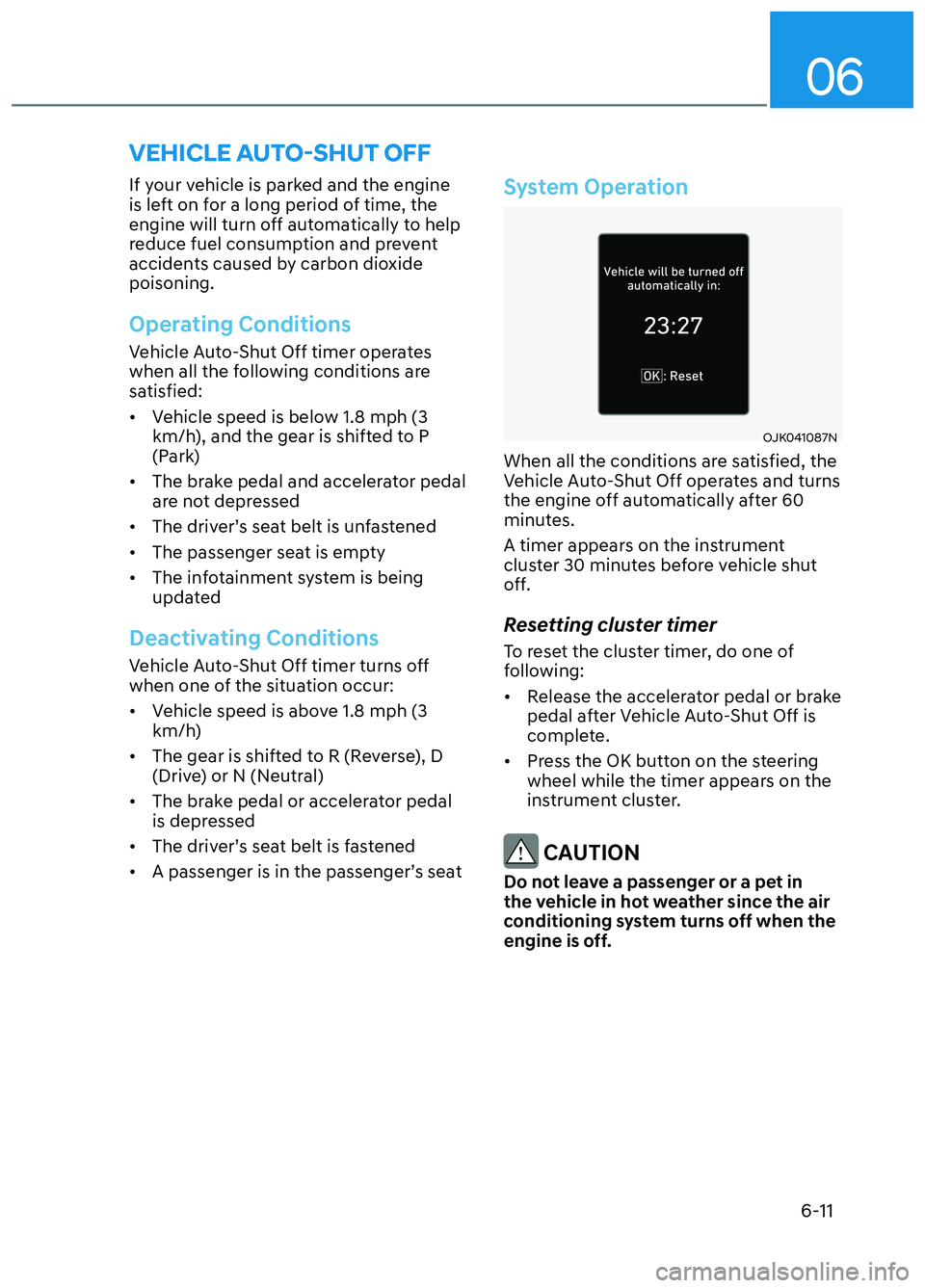

VEHICLE AUTO-SHUT OFF
If your vehicle is parked and the engine
is left on for a long period of time, the
engine will turn off automatically to help
reduce fuel consumption and prevent
accidents caused by carbon dioxide
poisoning.
Operating Conditions
Vehicle Auto-Shut Off timer operates
when all the following conditions are
satisfied:
• Vehicle speed is below 1.8 mph (3 km/h), and the gear is shifted to P
(Park)
• The brake pedal and accelerator pedal are not depressed
• The driver’s seat belt is unfastened
• The passenger seat is empty
• The infotainment system is being updated
Deactivating Conditions
Vehicle Auto-Shut Off timer turns off
when one of the situation occur:
• Vehicle speed is above 1.8 mph (3 km/h)
• The gear is shifted to R (Reverse), D (Drive) or N (Neutral)
• The brake pedal or accelerator pedal is depressed
• The driver’s seat belt is fastened
• A passenger is in the passenger’s seat
System Operation
OJK041087NOJK041087N
When all the conditions are satisfied, the
Vehicle Auto-Shut Off operates and turns
the engine off automatically after 60
minutes.
A timer appears on the instrument
cluster 30 minutes before vehicle shut
off.
Resetting cluster timer
To reset the cluster timer, do one of
following:
• Release the accelerator pedal or brake pedal after Vehicle Auto-Shut Off is
complete.
• Press the OK button on the steering wheel while the timer appears on the
instrument cluster.
CAUTION
Do not leave a passenger or a pet in
the vehicle in hot weather since the air
conditioning system turns off when the
engine is off.
CN7 N HMA 6.indd 6-11 2021-09-14  9:42:20

6-12
Driving Your Vehicle
OCN7N060001OCN7N060001

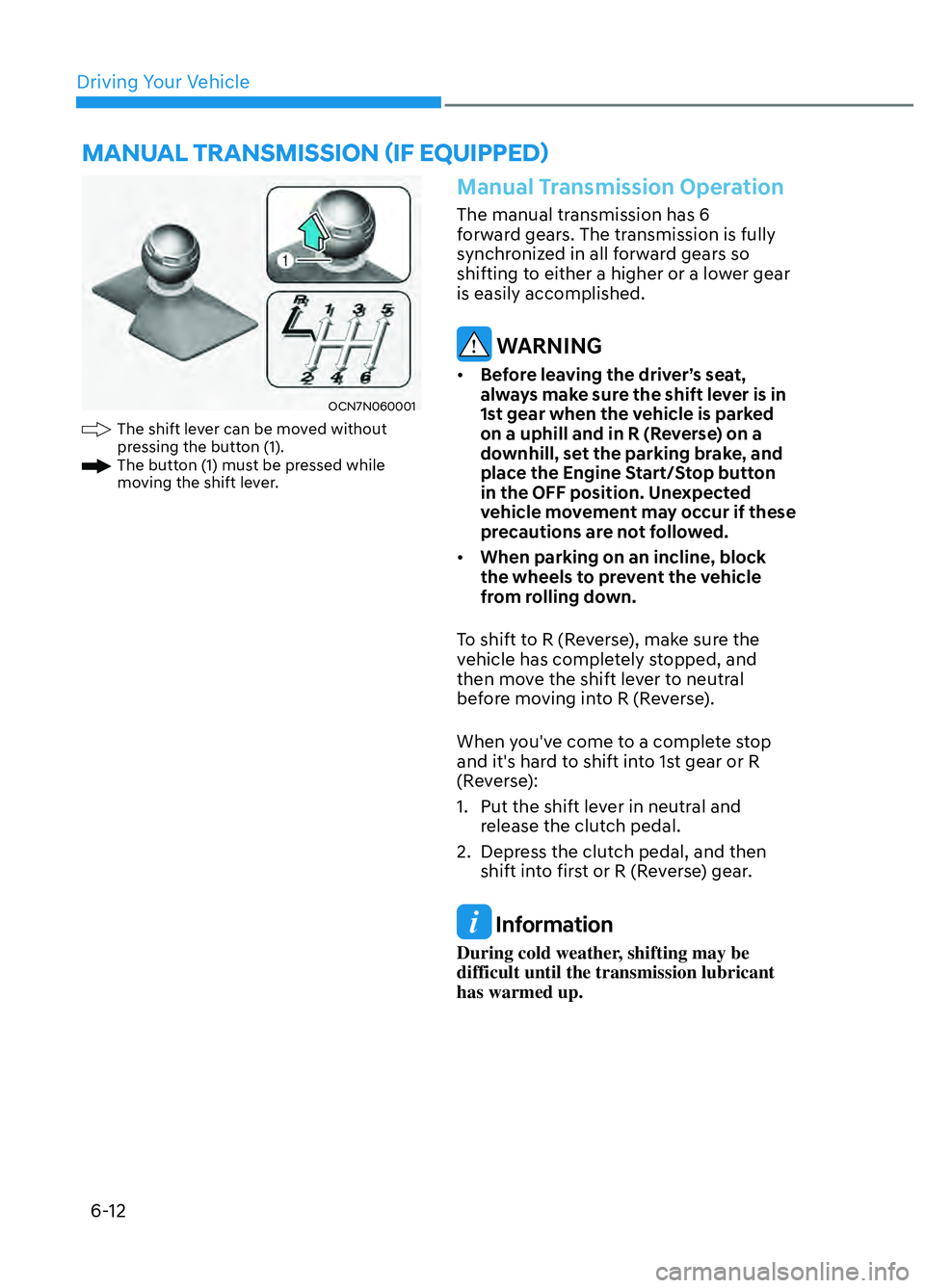

The shift lever can be moved without
pressing the button (1).
The button (1) must be pressed while
moving the shift lever.
Manual Transmission Operation
The manual transmission has 6
forward gears. The transmission is fully
synchronized in all forward gears so
shifting to either a higher or a lower gear
is easily accomplished.
WARNING
•
Before leaving the driver’s seat,
always make sure the shift lever is in
1st gear when the vehicle is parked
on a uphill and in R (Reverse) on a
downhill, set the parking brake, and
place the Engine Start/Stop button
in the OFF position. Unexpected
vehicle movement may occur if these
precautions are not followed.
• When parking on an incline, block
the wheels to prevent the vehicle
from rolling down.
To shift to R (Reverse), make sure the
vehicle has completely stopped, and
then move the shift lever to neutral
before moving into R (Reverse).
When you've come to a complete stop
and it's hard to shift into 1st gear or R
(Reverse):
1. Put the shift lever in neutral and release the clutch pedal.
2. Depress the clutch pedal, and then shift into first or R (Reverse) gear.
Information
During cold weather, shifting may be
difficult until the transmission lubricant
has warmed up.
MANUAL TRANSMISSION (IF EQUIPPED)
CN7 N HMA 6.indd 6-12 2021-09-14  9:42:20

06
6-13
Using the clutch
The clutch pedal should be depressed all
the way before: - Starting the engine
The engine will not start without
depressing the clutch pedal.
- Shifting into gear, up shifting to the next higher gear, or down shifting to
the next low gear.
When releasing the clutch pedal, release
it slowly. The clutch pedal should always
be fully released while driving.
NOTICE
To prevent unnecessary wear or
damage to the clutch:
• Do not rest your foot on the clutch
pedal while driving.
• Do not hold the vehicle with the
clutch on an incline, while waiting for
the traffic light, etc.
• Always depress the clutch pedal
down fully to prevent noise or
damage.
• Do not start with the 2nd (second)
gear engaged except when you start
on a slippery road.
• Do not drive with cargo loaded more
than the recommended loading
capacity.
• Make sure to depress the clutch
pedal until the engine starts
completely. If you release the clutch
pedal before the engine starts
completely, the engine may stop.
Downshifting
Down shift to a lower gear when slowing
down in heavy traffic or driving up a
steep hill to prevent high engine loads.
Also, downshifting reduces the chance
of stalling and helps to reaccelerate the
vehicle when you need to increase your
speed.
When the vehicle is going downhill,
downshifting helps maintain safe speed
by providing a load from the engine and
results in less wear on the brakes.
NOTICE
To prevent damage to the engine,
clutch and transmission:
• When downshifting from 5th
gear to 4th gear, be careful not to
inadvertently push the shift lever
sideways engaging the 2nd gear.
A drastic downshift may cause the
engine speed to increase to the point
the tachometer will enter the red-
zone and may cause engine damage.
• Do not downshift more than two
gears at a time or downshift the
gear when the engine is running at
high speed (5,000 RPM or higher).
Such downshifting may damage the
engine, clutch and the transmission.
CN7 N HMA 6.indd 6-13 2021-09-14  9:42:21

Driving Your Vehicle6-14
Good Driving Practices
• Never take the vehicle out of gear and coast down a hill. This is extremely
dangerous.
• Don't "ride" the brakes. This can cause the brakes and related parts to
overheat and malfunction.
• When you are driving down a long hill, slow down and shift to a lower gear.
Engine braking will help slow down
the vehicle.
• Slow down before shifting to a lower gear. This will help avoid over-revving
the engine, which can cause damage.
• Slow down when you encounter cross winds. This gives you much better
control of your vehicle.
• Be sure the vehicle is completely stopped before you shift into R
(Reverse) to prevent damage to the
transmission.
• Exercise extreme caution when driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident. WARNING
Do not use the engine brake (shifting
from a higher gear to lower gear)
rapidly on slippery roads. The vehicle
may slip causing an accident.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:
• ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.
• Avoid high speeds when cornering or
turning.
• Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
• The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
• Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
• In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.
• HYUNDAI recommends you follow all
posted speed limits.
CN7 N HMA 6.indd 6-14 2021-09-14  9:42:21

06
6-15
Rev Matching
The Rev Matching system automatically
helps synchronize engine rpm with the
optimal speed of the gearabout to be
engaged which reduces the impact of
clutch connection and improves gear
shift response.
Information
• Fully depress the clutch pedal. Without
the clutch pedal fully depressed, the
system may not respond correctly.
• The system does not operate when
backing up.
• Rev Matching controls the engine speed
up to the rev limit, but the function
cannot prevent over-revving caused by
shifting mistake.
Rev Matching activation
OCN7N071148LOCN7N071148L
1. Press REV button (ON/OFF)
• Press the REV button to turn on the
system. A message appears "Rev
Matching On" with a REV indicator on
the cluster LCD display.
• Press the REV button again to turn off the system. A message appears "Rev
Matching Off" and the REV indicator
disappears.
2. Select Drive Mode.
REV indicatorREV indicator
OCN7N061257NOCN7N061257N
DRIVE MODE buttonDRIVE MODE button
OCN7N061218OCN7N061218
CN7 N HMA 6.indd 6-15 2021-09-14  9:42:21
