2022 HYUNDAI ELANTRA N Owners Manual

Driving Your Vehicle6-48
NGS (N Grin Shift)
Controls engine / transmission to
maximum performance when pressing
NGS button on the steering wheel
remote control in situations where rapid
acceleration is required.
Functional description and
operating conditions
OCN7N061188 OCN7N061188
When NGS button is pressed:
• Automatically shifts to the lowest allowable gear (Automatic shifting is
not performed in manual shift mode)
• Turbo is in overboost mode (number can be added as well)
• N Grin Shift is available for 20 Seconds
• N Grin Shift can be reused 40 seconds later after using the function for 20
seconds
N Grin Shift will turn off during operation
or will not operate when:
• Changing Drive-mode during N Grin Shift operation
• Engine check light is on
• Transmission high temperature (overheating) lights on
• Transmission malfunction
• Shift lever is in P/ R/ N
• Using N Grin Shift within 40 seconds after using the function for 20
seconds
ActivatedActivatedNon-operatingNon-operating
OJSN040333OJSN040333OOSN061052NOOSN061052N
CAUTION
• The driver should hold the
responsibility to safely drive and
control the vehicle when using N
Grin Shift.
• Do not attempt dangerous driving
while using N Grin Shift.
• It is recommended to use after
vehicle break-in and continuous
use of N Grin Shift can overload
the vehicle components such as
transmission, engine and drive shaft.
CN7 N HMA 6.indd 6-48 2021-09-14  9:42:32

06
6-49
Vehicle Characteristic
The characteristic of each components varies according to which drive mode is
selected by pressing the N1 or N2 button on the steering wheel or the DRIVE MODE
button.
MT ComponentDRIVE MODE Button
ECO mode NORMAL mode SPORT mode
Engine &
Driving E

ngine
ECONORMAL SPORT
Rev matching OFFNORMAL SPORT
e-LSD*
1NORMAL NORMAL SPORT
Chassis Suspension
NORMALNORMAL SPORT
Steering NORMALNORMAL SPORT
ESC *
2NORMAL NORMALNORMAL
Sound Exhaust sound *3ECO NORMAL SPORT
MT Component N mode
REV Button
N mode CUSTOM mode
Engine &
Driving E

ngine
SPORT+ NORMAL / SPORT / SPORT+ SPORT+
Rev matching SPORT+ OFF / NORMAL / SPORT / SPORT+ SPORT+
e-LSD*
1SPORT NORMAL / SPORT Maintain
mode before
entering NGS
Chassis Suspension SPORT+ NORMAL / SPORT / SPORT+
Steering SPORT+ NORMAL / SPORT / SPORT+
ESC *
2SPORT NORMAL / SPORT / OFF
Sound Exhaust sound
*
3SPORT+ NORMAL / SPORT / SPORT+ SPORT+
*1 : Electronic Limited Slip Differential
*2 : Electronic Stability Control
*3 : The volume of the exhaust sound made by the exhaust gas flap (if equipped) changes
according to the mode selected. [Quietest] ECO/NORMAL mode < SPORT mode < N
mode [Loudest]
An exhaust crackle sound, to deliver emotional effect, is produced while driving
when the accelerator pedal is released right after being depressed. This exhaust
sound effect will be heard when SPORT+ is selected for the Sound component. To
urn it off, select NORMAL or SPORT for the Engine component in CUSTOM mode.
Please be aware and be mindful when using exhaust sound system in SPORT+ mode
as the pops and bangs can cause disturbance to your neighbors when using it in
a crowded public area, closed parking spaces, and/or residential area.We strongly
recommend to use it with consideration.
MT : Manual Transmission
CN7 N HMA 6.indd 6-49 2021-09-14  9:42:32

Driving Your Vehicle6-50
DCT Component DRIVE MODE Button
ECO mode NORMAL mode SPORT mode
Engine &
Driving E

ngine
ECONORMAL SPORT
Transmission*4ECO NORMAL SPORT
e-LSD*1NORMAL NORMAL SPORT
Chassis Suspension
NORMALNORMAL SPORT
Steering NORMALNORMAL SPORT
ESC *
2NORMAL NORMALNORMAL
Sound Exhaust sound *
3ECO NORMAL SPORT
DCT Component N mode
NGS Button
(N Grin Shift)
N mode CUSTOM mode
Engine &
Driving E

ngine
SPORT+ NORMAL / SPORT / SPORT+ SPORT+
Transmission*4SPORT+ NORMAL / SPORT / SPORT+ SPORT+
e-LSD*1SPORT NORMAL / SPORT Maintain mode
before entering NGS
Chassis Suspension SPORT+ NORMAL / SPORT / SPORT+
Steering SPORT+ NORMAL / SPORT / SPORT+
ESC *
2SPORT NORMAL / SPORT / OFF
Sound Exhaust sound
*
3SPORT+ NORMAL / SPORT / SPORT+ SPORT+
*1 : Electronic Limited Slip Differential
*2 : Electronic Stability Control
*3 : The volume of the exhaust sound made by the exhaust gas flap (if equipped) changes
according to the mode selected. [Quietest] ECO/NORMAL mode < SPORT mode < N
mode [Loudest]
An exhaust crackle sound, to deliver emotional effect, is produced while driving
when the accelerator pedal is released right after being depressed. This exhaust
sound effect will be heard when SPORT+ is selected for the Sound component. To
urn it off, select NORMAL or SPORT for the Engine component in CUSTOM mode.
Please be aware and be mindful when using exhaust sound system in SPORT+ mode
as the pops and bangs can cause disturbance to your neighbors when using it in
a crowded public area, closed parking spaces, and/or residential area.We strongly
recommend to use it with consideration.
*4 : Automatic creep start function can be turned ON / OFF in CUSTOM setup menu.
DCT : Dual Clutch Transmission
CN7 N HMA 6.indd 6-50
2021-09-14  9:42:32

06
6-51
CAUTION
Please note that using high
performance exhaust sound in a
crowded public area, closed parking
spaces, and/or residential area can
cause disturbance to your neighbors.
Performance Option Settings
OCN7N061219NOCN7N061219N
OCN7N061220NOCN7N061220N
1. You can performance option function from the Settings menu in the
infotainment system screen. : Touch
the N mode (1)→ Swipe the screen to
left (2)
OCN7N061221LOCN7N061221L
2. Touch the performance option (3).
Information
Items of Performance option may
differ depending on the transmission
specification.
PERFORMANCE OPTION (IF EQUIPPED)
CN7 N HMA 6.indd 6-51 2021-09-14  9:42:33

Driving Your Vehicle6-52
Launch Control
Launch Control provides maximum
acceleration on dry asphalt roads.
Launch Control not to be used on any
other surface. Excessive slip might occur
and harm your vehicle.
Prerequisite for activation
Launch Control gets ready to be
activated, when the following
prerequisites are satisfied.
• All doors, hood and trunk are closed.
• The vehicle is at a complete stop.
• No malfunction warning lights related to the engine and ESC (Electronic
Stability Control) is in Sport or Off
mode.
NOTICE
• Launch Control is intended for use
at a closed race track with dry road
surface and not intended for use on
public roads. It will not compensate
for driver’s who are inexperienced or
lack familiarity with the race track.
• Do not use Launch Control during
break-in period of the vehicle.
• Constant use of Launch Control can
put enormous stress on the vehicle
resulting in premature wear of
related components.
OCN7N061232NOCN7N061232N
1. Press the ‘Launch control’ tab.
2. Press the ‘< (Left)’ or ‘> (Right)’ to set
the engine RPM for launch control.
3. Press ‘Activate’ to enter Launch Control ready state.
4. Press ‘Reset RPM’ to reset engine RPM to default launch control engine
speed.
CN7 N HMA 6.indd 6-52 2021-09-14  9:42:35

06
6-53
Launch control on and off (For
Manual transmission)
1. Select N mode with ‘N’ button (N mode indicator will illuminate on
the cluster) or select SPORT+ for the
engine mode in CUSTOM mode.
2. Check that the ESC mode is ESC SPORT mode or ESC OFF. If not, press
ESC OFF button to set the ESC mode
to ESC SPORT mode or ESC OFF.
(Electronic Stability Control (ESC)
does not operate when ESC OFF.)
3. Select 'Performance Options → Launch Control' to set engine RPM from the
Infotainment system screen. After
setting RPM, press 'Activate’.
4. Align the steering wheel straight
5. Depress the clutch pedal.
6. Shift to 1st gear.
7. While depressing the clutch pedal with your left foot, quickly and fully
depress the accelerator pedal with
your right foot. Launch control will
be in the ready state. The message
'Launch Control Ready' will appear on
the cluster. If necessary, adjust engine
rpm with +/- switch on the steering
wheel.
8. A smooth, quick release of the clutch pedal within 8 seconds,
while maintaining full depression
of the accelerator pedal will initiate
launching of the vehicle. The message
'Launch Control Active' will appear on
the cluster.
9. Control will deactivate when the accelerator pedal is released.
Launch control on and off (For Dual
clutch transmission)
1. Select N mode with 'N' button (N-mode indicator lights up on
cluster) or select SPORT+ for the
engine mode in custom mode.
2. Check that the ESC mode is ESC SPORT or ESC OFF. If not, press
button to set the ESC mode to ESC
SPORT or ESC OFF.(Indicator lights on
the cluster)(Vehicle dynamic control
device does not operate when ESC
OFF.)
3. Put the transmission gear on 'D'(driving) or 'M' (manual mode)
position.(driver must shift by yourself
when manual mode is selected.)
4. In Launch Control tab of Navigation's Performance Options, select rpm
and press ‘Activate’ button.(N mode
→ Performance Option → Launch
Control) (button lights on when
activated)
5. Align the steering wheel straight.
6. Press brake pedal to maximum with your left foot.
7. When you press the brake pedal with your left foot and quickly press and
hold accelerator pedal with your right
foot, you are ready for launch control.
When it is ready, the text “Launch
Control Ready” is displayed. RPM
value can be adjusted with +/- switch
on the steering wheel.
8. Release your foot gently off the brake pedal within 8 seconds to launch
the vehicle, keeping accelerator
pedal fully pressed. Launch Control
is activated and the text“ Launch
Control Active” is displayed.
9. Launch control is deactivated when you release accelerator pedal.
CN7 N HMA 6.indd 6-53 2021-09-14  9:42:35

Driving Your Vehicle6-54
CAUTION (For Manual transmission)
• If you press the clutch pedal and the
accelerator pedal at the same time
and then release the accelerator
pedal, the launch control function is
released.
• To use the Launch Control again, you
must use the vehicle for at least 3
minutes (over 60 km/h) or for at least
after 5 minutes of cooling.
• If you do not start after 8 seconds by
stepping on the clutch pedal and the
accelerator pedal, the launch control
function is automatically released
and can be reused after cooling
down the vehicle
CAUTION (For Dual clutch
transmission)
• If you press the brake pedal and the
accelerator pedal at the same time
and then release the accelerator
pedal, the launch control function is
released.
• To use the Launch Control again, you
must use the vehicle for at least 2
minutes (over 60 km/h) or for at least
after 5 minutes of cooling.
• If you do not start after 8 seconds by
stepping on the clutch pedal and the
accelerator pedal ,the launch control
function is automatically released
and can be reused after cooling
down the vehicle.
CAUTION
Launch performance when using launch
control in vehicle is highly dependent
on the clutch connection technology,
tire friction and road conditions. In
other words, the use of the launch
control does not always guarantee
maximum launch performance.
CN7 N HMA 6.indd 6-54 2021-09-14  9:42:35

06
6-55

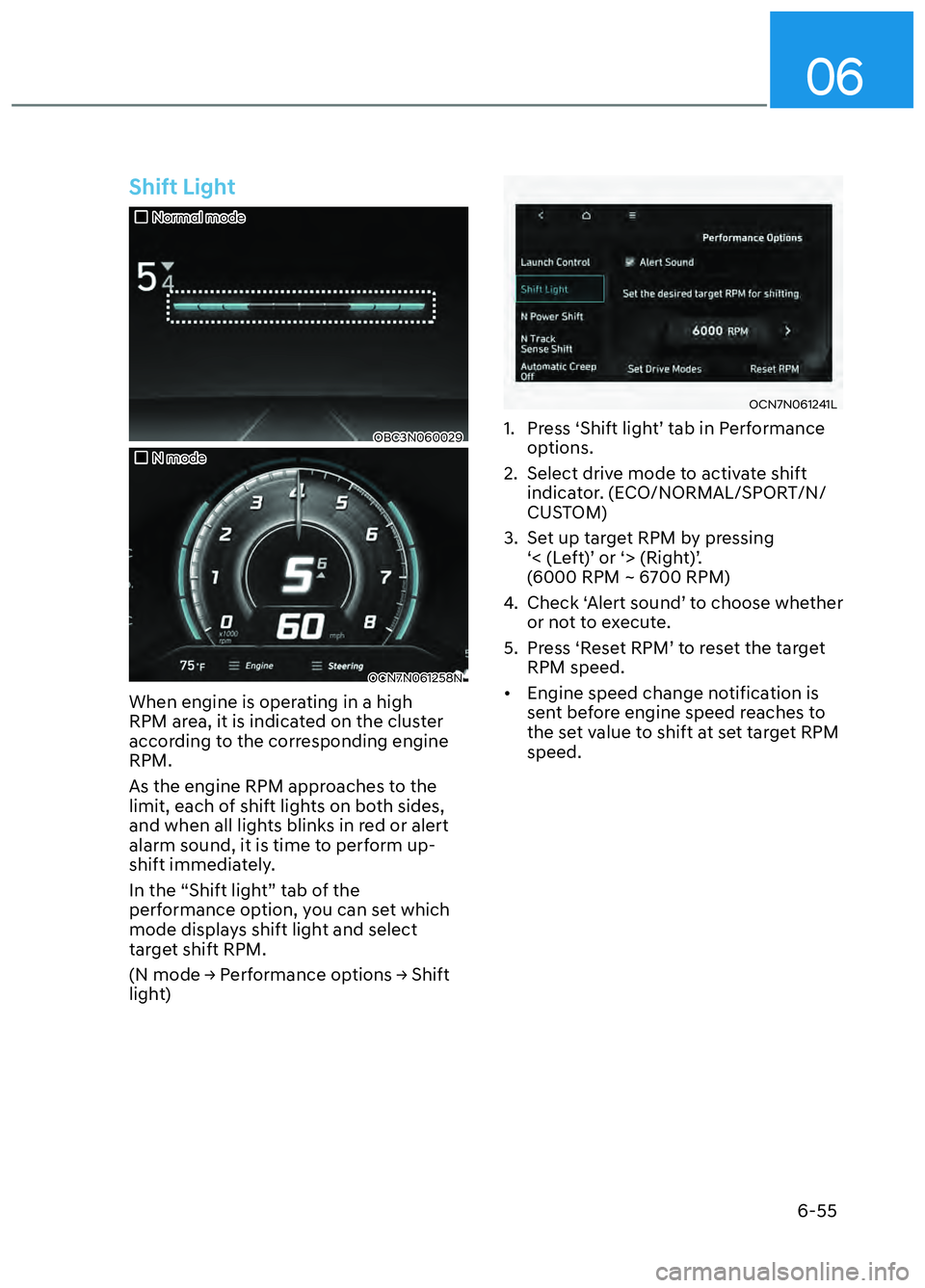

Shift Light
Normal modeNormal mode
OBC3N060029 OBC3N060029
N modeN mode
OCN7N061258NOCN7N061258N
When engine is operating in a high
RPM area, it is indicated on the cluster
according to the corresponding engine
RPM.
As the engine RPM approaches to the
limit, each of shift lights on both sides,
and when all lights blinks in red or alert
alarm sound, it is time to perform up-
shift immediately.
In the “Shift light” tab of the
performance option, you can set which
mode displays shift light and select
target shift RPM.
(N mode → Performance options → Shift
light)
OCN7N061241LOCN7N061241L
1. Press ‘Shift light’ tab in Performance options.
2. Select drive mode to activate shift indicator. (ECO/NORMAL/SPORT/N/
CUSTOM)
3. Set up target RPM by pressing ‘< (Left)’ or ‘> (Right)’.
(6000 RPM ~ 6700 RPM)
4. Check ‘Alert sound’ to choose whether or not to execute.
5. Press ‘Reset RPM’ to reset the target RPM speed.
• Engine speed change notification is sent before engine speed reaches to
the set value to shift at set target RPM
speed.
CN7 N HMA 6.indd 6-55 2021-09-14  9:42:35
