Instrument Cluster4-14
Charging System Warning
Light
This warning light illuminates:
• When there is a malfunction with either the alt
ernator or electrical
charging system
If there is a malfunction with either the
alternator
or electrical charging system:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there may
be a problem in the electrical charging
system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Engine Oil Level Warning
Light
The engine oil level warning light
illuminates when the engine oil level
should be checked.
If the warning light comes on, check the
engine oil level as soon as possible and
add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel. (Oil refill capacity :
approximately 0.6 ~ 1.0 ℓ)
Use only the specified engine oil. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
• If you travel approximately 30 ~ 60
miles (50 km ~100 km) after the engine
warms up, after adding the engine oil,
the warning light will go off.
• Cycle the ignition from OFF to ON 3
times within 10 seconds, the warning
light will go off immediately. However,
when you turn off the warning light
without adding the engine oil, the light
will come on again after traveling
approximately 30 ~ 60 miles (50 ~ 100
km) after the engine warms up.
NOTICE
If the light comes on continuously after
adding the engine oil and travelling
approximately 30 ~ 60 miles (50~100
km) after the engine warms up, have
the system checked by an authorized
HYUNDAI dealer.
Even if this light doesn’t come on after
the engine has started, the engine oil
level should be periodically checked
and topped up if required.
CN7 N HMA 4.indd 4-14 2021-09-14  9:32:37

04
4-15
Engine Oil Pressure Warning
Light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more
information, refer to "Engine Oil" in
chapter 9). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
NOTICE
• If the engine is not turned OFF
immediately after the Engine
Oil Pressure Warning Light is
illuminated, severe damage could
occur.
• If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is safe to do so.
2. Turn off the engine and check the oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the warning light stays on after the
engine has started, turn the
engine off immediately. In this
case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Low Fuel Level Warning Light
This warning light illuminates:
When the fuel tank is nearly empty. Add
fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below
“E(Empty)” can cause the engine to
misfire and damage the catalytic
converter (if equipped).
Master Warning Light
This warning light illuminates:
When there is a malfunction in operation
in an
y of the following systems:
- Forward Collision-Avoidance Assist system malfunction (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- High Beam Assist malfunction
- Lamp malfunction (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
- LED head lamp malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.
CN7 N HMA 4.indd 4-15 2021-09-14  9:32:37

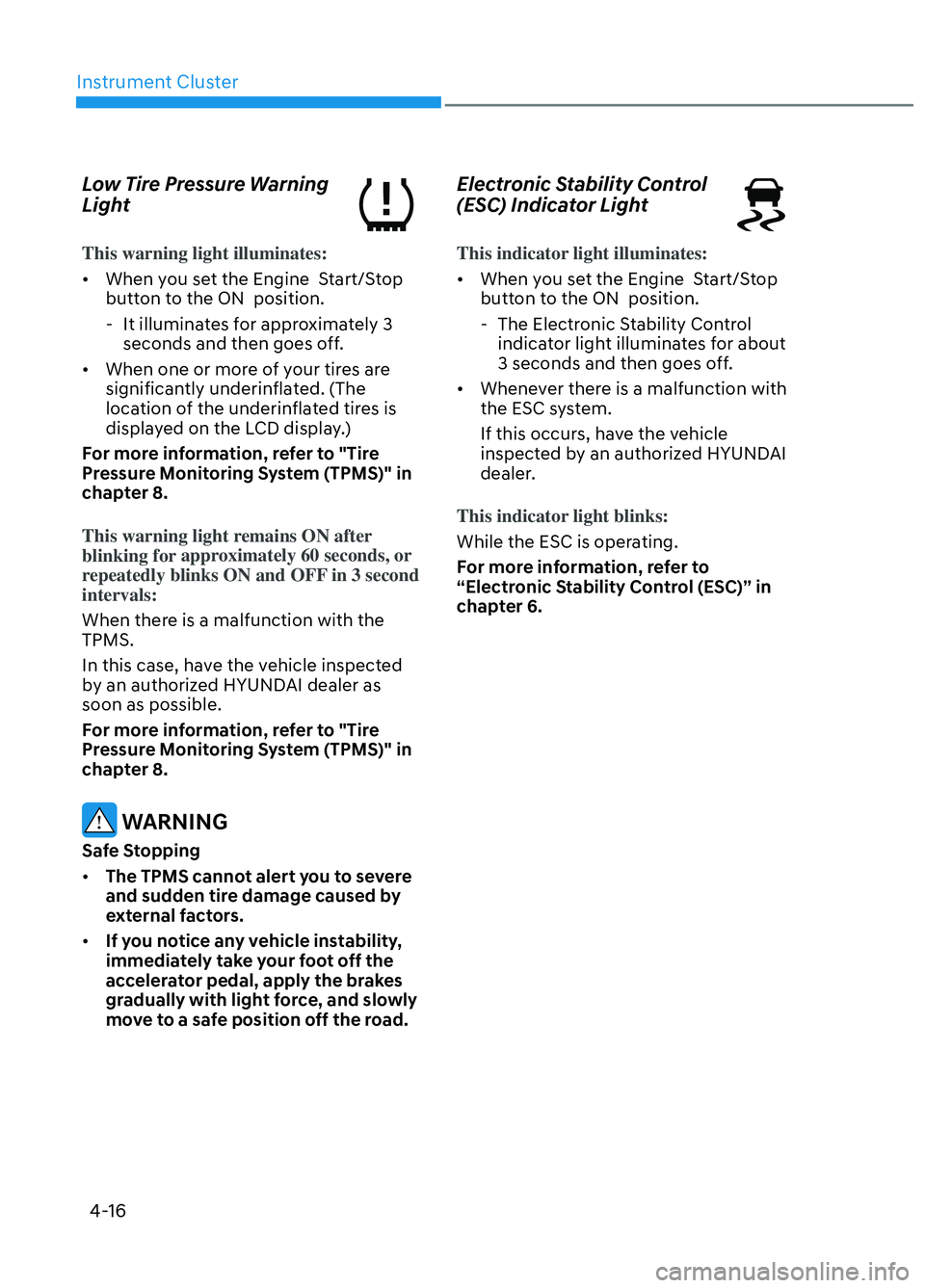

Instrument Cluster4-16
Low Tire Pressure Warning
Light
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- It illuminates for approximately 3 seconds and then goes off.
• When one or more of your tires are significantly underinflated. (The
location of the underinflated tires is
displayed on the LCD display.)
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
In this case, ha

ve the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
WARNING
Safe Stopping
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
• If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Electronic Stability Control
(ESC) Indicator Light
This indicator light illuminates:
• When you set the Engine Start/Stop
butt
on to the ON position.
- The Electronic Stability Control indicator light illuminates for about
3 seconds and then goes off.
• Whenever there is a malfunction with the ESC system.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
While the ESC is operating.
F
or more information, refer to
“Electronic Stability Control (ESC)” in
chapter 6.
CN7 N HMA 4.indd 4-16 2021-09-14  9:32:37

04
4-17
Electronic Stability Control
(ESC) OFF Indicator Light
This indicator light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- It illuminates for approximately 3 seconds and then goes off.
• When you deactivate the ESC system by pressing the ESC OFF button.
For more information, refer to
“Electronic Stability Control (ESC)” in
chapter 6.
Immobilizer Indicator Light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
E
ngine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
CN7 N HMA 4.indd 4-17 2021-09-14  9:32:37

Instrument Cluster4-18
Turn Signal Indicator Light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may be
a malfunction with the turn signal system.

- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
your vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “High Beam
Assist (HBA)” in chapter 5.
Exterior Light Warning Light
(if equipped)
This warning light illuminates:
• When one of the exterior bulbs (headlamp, DRL, turn signal lamp,
s

top lamp, etc) is not operating
properly. One of the bulbs may need
to be replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.
LED headlight warning light
(if equipped)
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- The LED headlight warning light illuminates for approximately 3
seconds and then goes off.
• Whenever there is a malfunction with the LED headlight.
If this occurs, have your vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.
High Beam Indicator Light
This indicator light illuminates:
• When the headlights are on and in the high beam position.
•

When the turn signal lever is pulled
into the Flash-to-Pass position.
Light ON Indicator Light
This indicator light illuminates:
When the tail lights or headlamps are on.
CN7 N HMA 4.indd 4-18 2021-09-14  9:32:37

04
4-19
Low Beam Indicator Light (if
equipped)
This indicator light illuminates:
• When the headlamps are on.
High Beam Assist indicator
light
This indicator light illuminates:
• When the High Beam is on with the light s
witch in the AUTO light position.
• If your vehicle detects oncoming or preceding vehicles, High Beam Assist
system will switch the high beam to
low beam automatically.
For more information, refer to "High
Beam Assist (HBA)" in chapter 5.
Forward Safety Warning
Light
This warning light illuminates:
• When you set the ignition switch or E
ngine Start/Stop button to the ON
position.
- It illuminates for approximately 3 seconds and then goes off.
• When there is a malfunction with Forward Collision-Avoidance Assist. In
this case, have your vehicle inspected
by an authorized dealer of HYUNDAI.
For more information, refer to "Forward
Collision-Avoidance Assist (FCA)" in
chapter 7.
Lane Safety Indicator Light
This indicator light illuminates:
• [Green] When you activate Lane K
eeping Assist by pressing the Lane
Safety button and all of the function
operating conditions are satisfied.
• [White] When Lane Keeping Assist operating conditions are not satisfied
or when the sensor does not detect
the lane line.
• [Yellow] When there is a malfunction with Lane Keeping Assist.
In this case, have your vehicle inspected
by an authorized HYUNDAI dealer.
For more information, refer to "Lane
Keeping Assist (LKA)" in chapter 7.
Cruise Indicator Light
This indicator light illuminates:
• When Cruise Control is enabled.
F
or more details, refer to “Cruise
Control (CC)” in chapter 6.
SPORT Mode Indicator Light
(if equipped)
This indicator light illuminates:
• When you select “SPORT” mode as driv
e mode.
For more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
CN7 N HMA 4.indd 4-19 2021-09-14  9:32:38

Instrument Cluster4-20

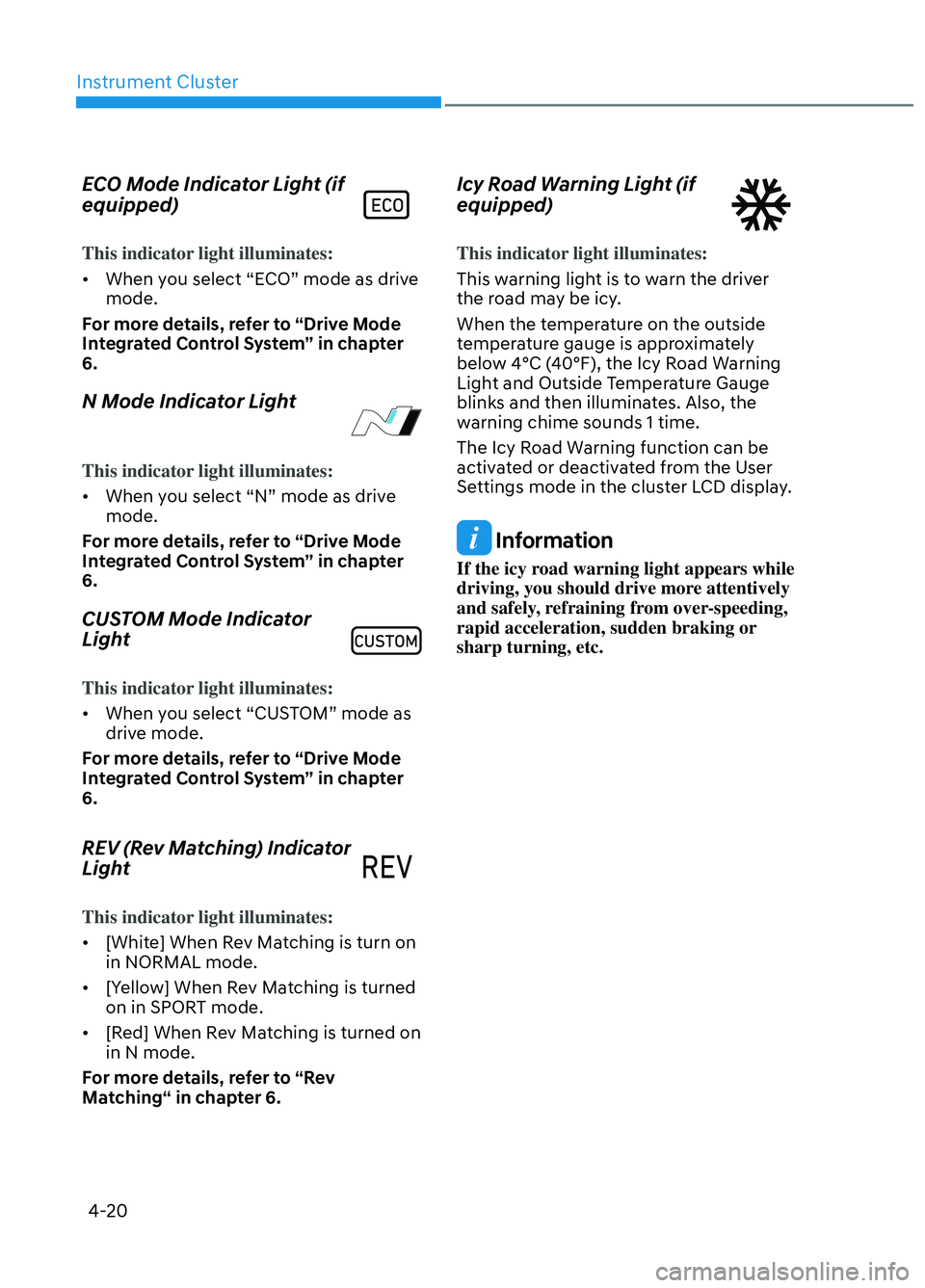

ECO Mode Indicator Light (if
equipped)
This indicator light illuminates:
• When you select “ECO” mode as drive mode.
F

or more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
N Mode Indicator Light
This indicator light illuminates:
• When you select “N” mode as drive mode.
F

or more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
CUSTOM Mode Indicator
Light
This indicator light illuminates:
• When you select “CUSTOM” mode as driv
e mode.
For more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
REV (Rev Matching) Indicator
Light
003500280039
This indicator light illuminates:
• [White] When Rev Matching is turn on in NORMAL mode.
•

[Yellow] When Rev Matching is turned
on in SPORT mode.
• [Red] When Rev Matching is turned on in N mode.
For more details, refer to “Rev
Matching“ in chapter 6.
Icy Road Warning Light (if
equipped)
This indicator light illuminates:
This warning light is to warn the driver
the r
oad may be icy.
When the temperature on the outside
temperature gauge is approximately
below 4°C (40°F), the Icy Road Warning
Light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
The Icy Road Warning function can be
activated or deactivated from the User
Settings mode in the cluster LCD display.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely, refraining from over-speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
CN7 N HMA 4.indd 4-20 2021-09-14  9:32:38

04
4-21
LCD Display Messages
Key not in vehicle (for smart key
system)
This warning message is displayed if the
smart key is not in the vehicle when you
open or close door in the ACC position or
ON position. The warning sound is heard
when you close door without a smart key
in vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected (for smart key
system)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START button with key (for
smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message “Key not detected”
is displayed.
At this time, the immobilizer indicator
light blinks.
Press START button again (for smart
key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Low Key Battery (for smart key
system)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Shift to P (for smart key system and
dual clutch transmission)
This warning message is displayed if you
try to turn off the engine without the
shift lever in P (Park) position.
At this time, the Engine Start/Stop button
turns to the ACC position (If you press
the Engine Start/Stop button once more,
it will turn to the ON position).
Press brake pedal to start engine (for
smart key system and dual clutch
transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Press clutch pedal to start engine
(for smart key system and manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START button again (for smart
key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
CN7 N HMA 4.indd 4-212021-09-14  9:32:38
