2022 HYUNDAI ELANTRA N Owners Manual

5-47
05
Side View Mirror Adjustment
OCN7N050001NOCN7N050001N
1. Press either the L (left side) or R (right side) button (1) to select the side view
mirror you would like to adjust.
2. Use the mirror adjustment control (2) to position the selected mirror up,
down, left or right.
3. After adjustment, put the button into neutral (center) position to prevent
inadvertent adjustment.
NOTICE
• The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
• Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OCN7N051022LOCN7N051022L
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards.

CN7 N HMA 5.indd 5-47 2021-09-06  3:06:20

5-48
Convenience Features
(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch (5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
WINDOWS
OCN7N050002NOCN7N050002N
CN7 N HMA 5.indd 5-48
2021-09-06  3:06:21

05
5-49
Power Windows
The Engine Start/Stop button must be
in the ON position to be able to raise
or lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 3 minutes after the Engine
Start/Stop button is in the ACC or OFF
position. However, if the front doors
are opened, the Power Windows will
not operate even within the 3 minutes
period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information
• In cold and wet climates, power
windows may not work properly due to
freezing conditions.
• While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately one inch. If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window (if equipped)
Pressing the power window switch
down momentarily to the second
detent position (6) completely lowers
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
CN7 N HMA 5.indd 5-49 2021-09-06  3:06:21

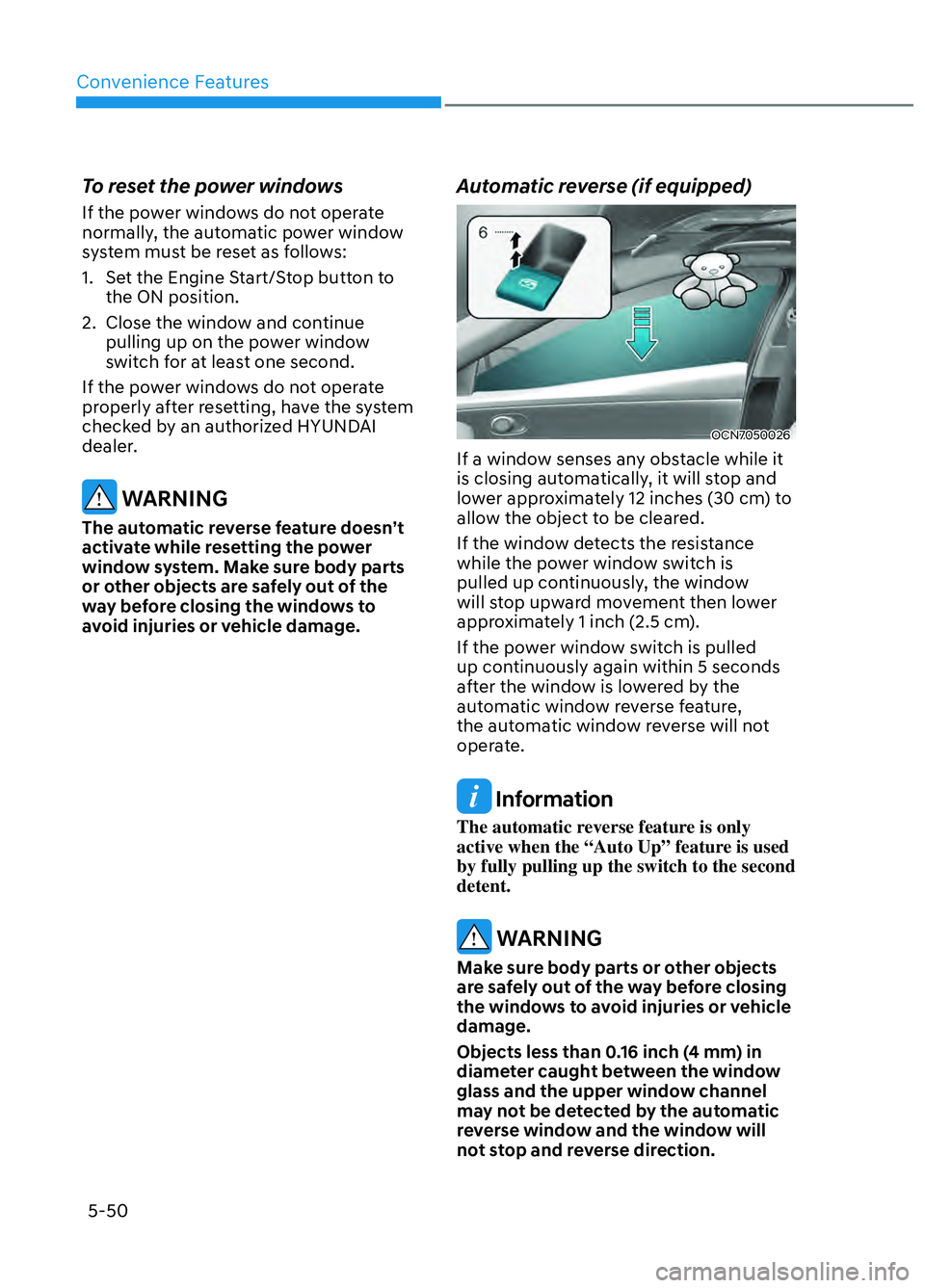

Convenience Features5-50
To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Set the Engine Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
Automatic reverse (if equipped)
OCN7050026OCN7050026
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 inch (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
CN7 N HMA 5.indd 5-50 2021-09-06  3:06:22

05
5-51
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock switch
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:
• The rear passenger control will not be able to operate the rear passenger
power window
• Note that the front passenger control is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
• NEVER leave the keys in your vehicle
with unsupervised children, when
the engine is running.
• NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselve s in
the windows, or otherwise injure
themselves or others.
• Always double check to make
sure arms, hands, head and other
obstructions are safely out of the
way before closing a window.
• Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.
• Do not extend your head, arms or
body outside the windows while
driving.
CN7 N HMA 5.indd 5-51 2021-09-06  3:06:22

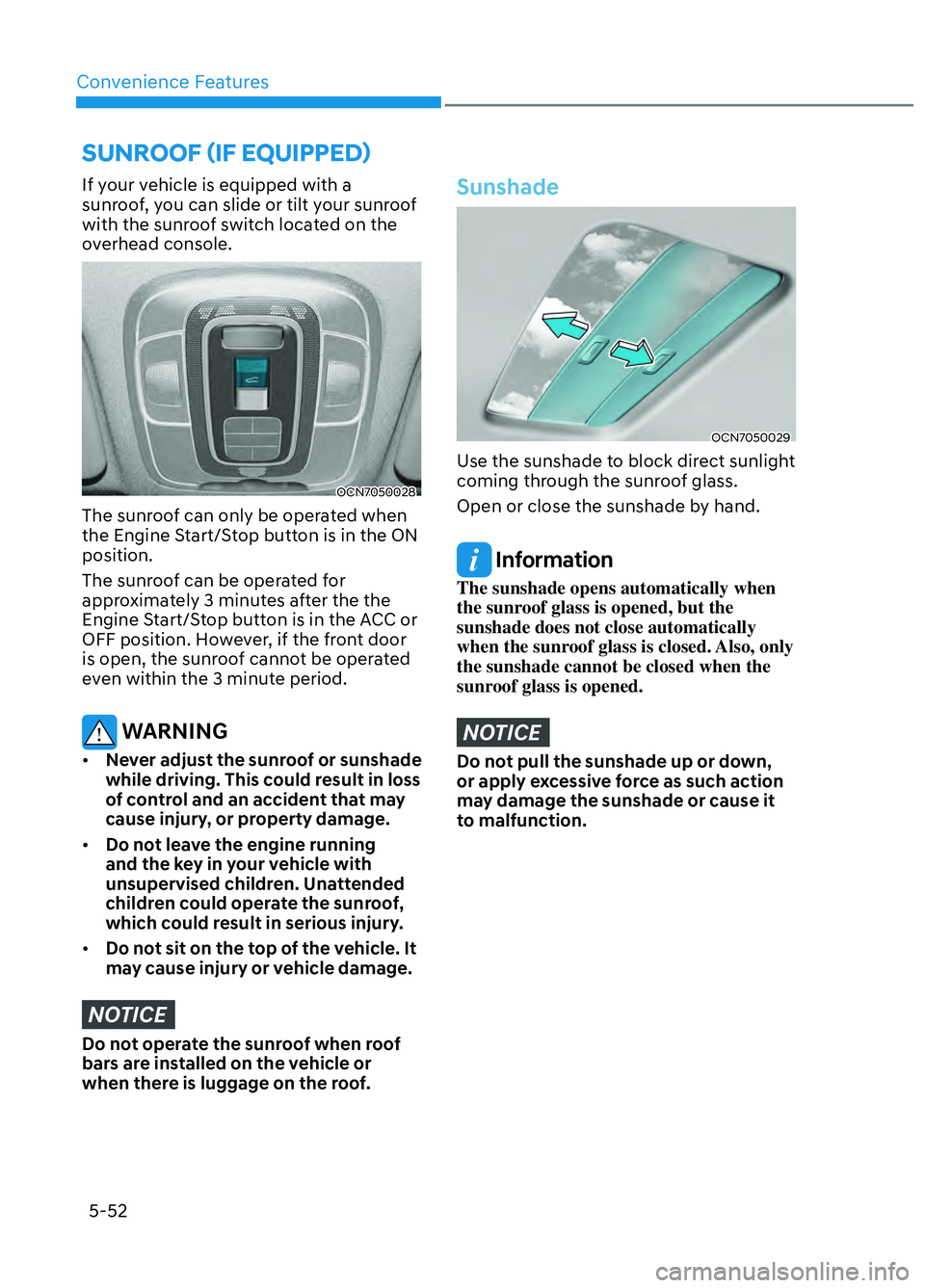

Convenience Features5-52
SUNROOF (IF EQUIPPED)
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
OCN7050028OCN7050028
The sunroof can only be operated when
the Engine Start/Stop button is in the ON
position.
The sunroof can be operated for
approximately 3 minutes after the the
Engine Start/Stop button is in the ACC or
OFF position. However, if the front door
is open, the sunroof cannot be operated
even within the 3 minute period.
WARNING
• Never adjust the sunroof or sunshade
while driving. This could result in loss
of control and an accident that may
cause injury, or property damage.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Sunshade
OCN7050029OCN7050029
Use the sunshade to block direct sunlight
coming through the sunroof glass.
Open or close the sunshade by hand.
Information
The sunshade opens automatically when
the sunroof glass is opened, but the
sunshade does not close automatically
when the sunroof glass is closed. Also, only
the sunshade cannot be closed when the
sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
CN7 N HMA 5.indd 5-52 2021-09-06  3:06:22

05
5-53
Tilt Open/Close
OCN7N051030L OCN7N051030L
• Push the sunroof switch upward, the sunroof glass tilts open.
• Push the sunroof switch forward when the sunroof glass is tilt opened, the
sunroof glass closes.
The sunroof glass tilts open or closes
while the switch is pushed.
Information
The sunroof glass cannot slide open and
tilt open at the same time. You cannot tilt
the sunroof glass open while the sunroof
glass is slide open. Also, you cannot slide
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open the
sunroof glass when the sunroof glass is
completely closed.
Slide Open/Close
OCN7N051031 OCN7N051031
• Push the sunroof switch rearward, the sunshade and sunroof glass slide
open.
Push the sunroof switch forward, only
the sunroof glass closes.
• Push the sunroof switch forward or rearward to the first detent position,
the sunroof glass moves until the
switch is released.
• Push the sunroof switch forward or rearward to the second detent
position, the sunroof glass operates
automatically (auto slide feature). To
stop the sunroof movement at any
point, push the sunroof switch in any
direction.
• The sunroof glass stops halfway (first detent position) before it is fully
opened. To fully open the sunroof
glass, push the sunroof switch
rearward once more. At this time, the
sunroof glass opens only while the
switch is pushed.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Information
To reduce wind noise while driving,
we recommend that you drive at the
recommended position (first detent
position) before the maximum slide open
position.
CN7 N HMA 5.indd 5-53 2021-09-06  3:06:23

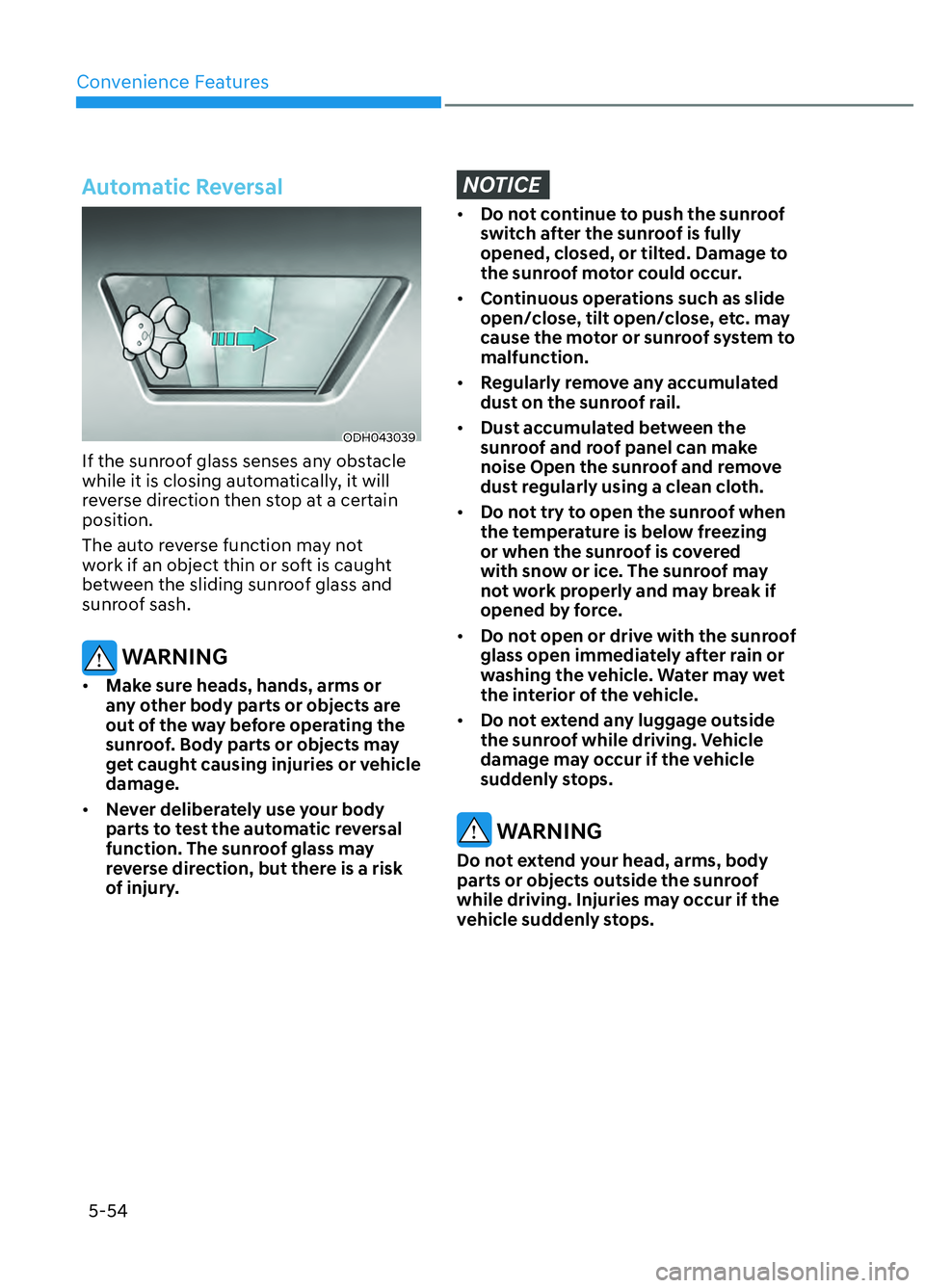

Convenience Features5-54
Automatic Reversal
ODH043039ODH043039
If the sunroof glass senses any obstacle
while it is closing automatically, it will
reverse direction then stop at a certain
position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass and
sunroof sash.
WARNING
• Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.
• Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.
NOTICE
• Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
• Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
• Regularly remove any accumulated
dust on the sunroof rail.
• Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.
• Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.
• Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.
• Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
CN7 N HMA 5.indd 5-54 2021-09-06  3:06:23
