2022 HYUNDAI ELANTRA N Owners Manual

Maintenance9-8

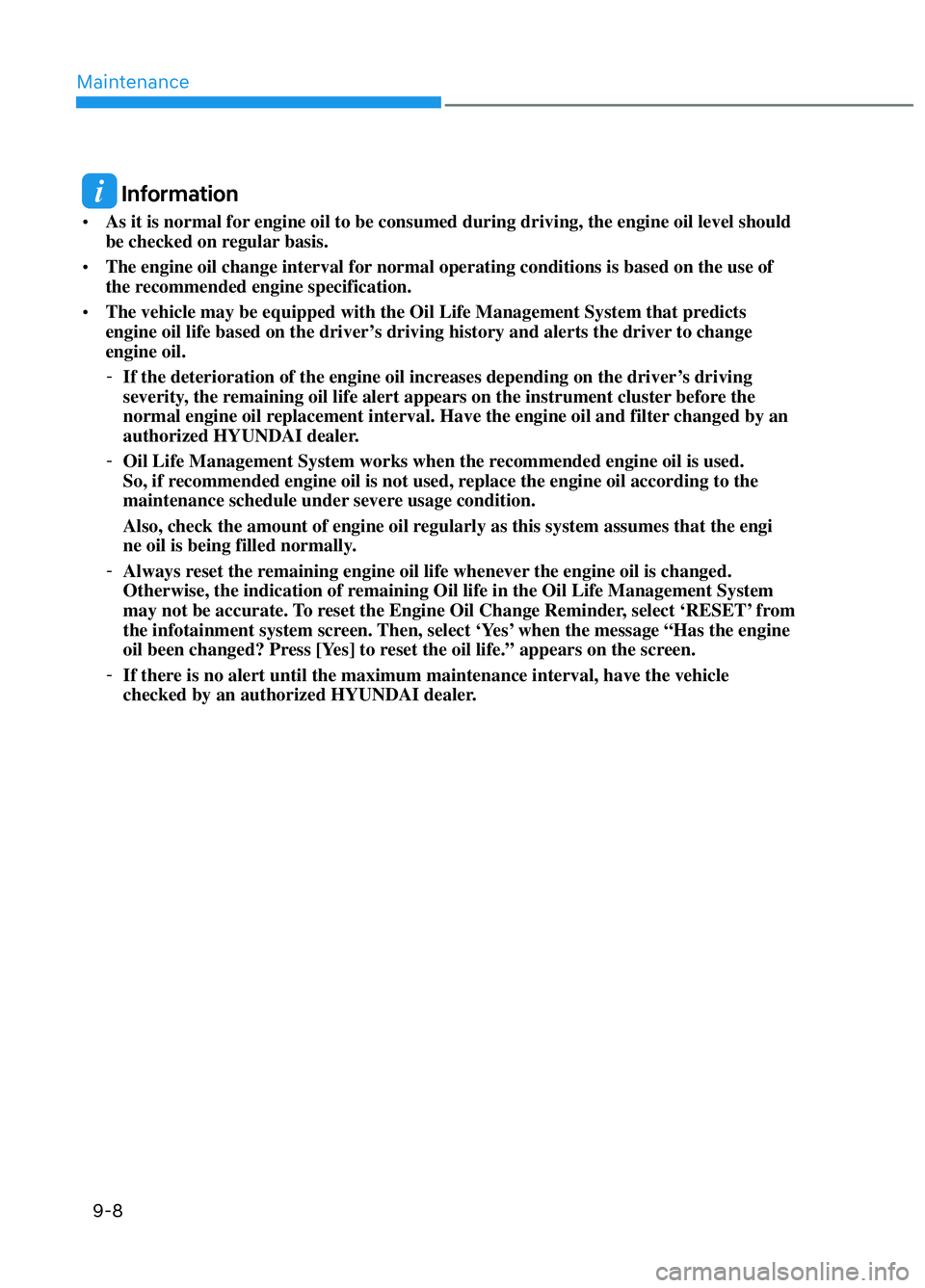

Information
• As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.
• The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification.
• The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition.
Also, check the amount of engine oil regularly as this system assumes that the engi
ne oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Engine Oil Change Reminder, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.
CN7 N HMA 9.indd 9-8 2021-09-08  9:30:14

09
9-9
Normal Maintenance Schedule
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Engine oil and engine oil filter
*
1
Replace 6,000 miles (10,000 km) or 12 months
Fuel additives *
2
Add every 6,000 miles (10,000 km) or 12 months
Air cleaner filter I I I R I I I R I I
Spark plugs Replace every 42,000 miles (70,000 km)
Rotate Tires (includes tread wear inspection and tire pressure
check) Rotate every 6,000 miles (10,000 km)
Cabin air filter Replace every 16,000 miles (25,000 km) or 12 months
Drive belts *
3
At first, inspect at 48,000 miles (78,000 km) or 72 months,
after that, inspect every 8,000 miles (13,000 km) or 12 months
Intercooler in/out hose, Air intake hose At first, Inspect at 5,000 mile (8,000 km) or 6 months
After that, Inspect every 20,000 mile(32,000 km) or 24 months
Valve clearance *
4
Inspect every 60,000 miles (90,000km) or 72 months.
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter
must be replaced at every 5,000 miles (8,000 km) or 6 months as indicated for severe maintenance condition.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*3 :
The drive belt should be replaced when cracks occur or tension is reduced excessively.
*4 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have the system inspected by an authorized
YUNDAI dealer.
CN7 N HMA 9.indd 9-9 2021-09-08  9:30:14

Maintenance9-10
Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vacuum hose
IIIIIIIIII
Engine coolant At first, replace at 120,000 miles (200,000 km) or 10 years
after that, replace every 24,000 miles (30,000 km) or 24 months
Battery condition IIIIIIIIII
Brake lines, hoses and connections IIIIIIIIII
Disc brakes and pads IIIIIIIIII
Steering gear rack, linkage and boots / lower arm ball joint,
upper arm ball joint IIIIIIIIII
Drive axle shafts and boots IIIII
Suspension mounting bolts IIIIIIIIII
Air conditioner refrigerant IIIIIIIIII
Air conditioner compressor IIIIIIIIII
Exhaust pipe and muffler IIIIIIIIII
Manual transmission fluid (if equipped)
*1
No Check, No Service required
Dual clutch transmission fluid (if equipped)
*1
II
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Manual transmission fluid/Dual clutch transmission fluid should be changed anytime they have been submerged in water.
CN7 N HMA 9.indd 9-10 2021-09-08  9:30:14

09
9-11
Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months
12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vapor hose, fuel filler cap and fuel tank IIIII
Fuel tank air filter *
1
IIIII
Fuel lines, hoses and connections I I I I I
Parking brake I I I I I
Brake fluid lnspect every 6,000 miles(10,000km) or 12 months,
Replace every 48,000 miles(80,000km) or 48 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting
problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI
dealer for details.
CN7 N HMA 9.indd 9-11 2021-09-08  9:30:15

Maintenance9-12
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance item Maintenance
operation Maintenance intervals Driving
condition
Engine oil and filter *
1R Every 3,000 miles (5,000 km)
or 6 months G,J,K,L
Air cleaner filter I Inspect more frequently
depending on the condition C, E
Spark plugs R Replace more frequently
depending on the condition A, B, F, G,
H, I, K
Steering gear rack, linkage
and boots IInspect more frequently
depending on the condition C, D, E, F, G
Disc brakes and pads, calipers
and rotors IInspect more frequently
depending on the condition C, D, E, G, H
Parking brake I Inspect more frequently
depending on the condition C, D, G, H
Drive axle shafts and boots I Inspect more frequently
depending on the condition C, D, E, F,
G, H, I, J
Cabin air filter R Replace more frequently
depending on the condition C, E, G
Manual transmission fluid
(if equipped) REvery 72,000 miles
(120,000 km) C, D, E, F,
G, H, I, J
Dual clutch transmission fluid
(if equipped) REvery 56,000 miles
(91,000 km) A, B, C, D,
E, F, G, H, I, J, K
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
CN7 N HMA 9.indd 9-12 2021-09-08  9:30:15

09
9-13

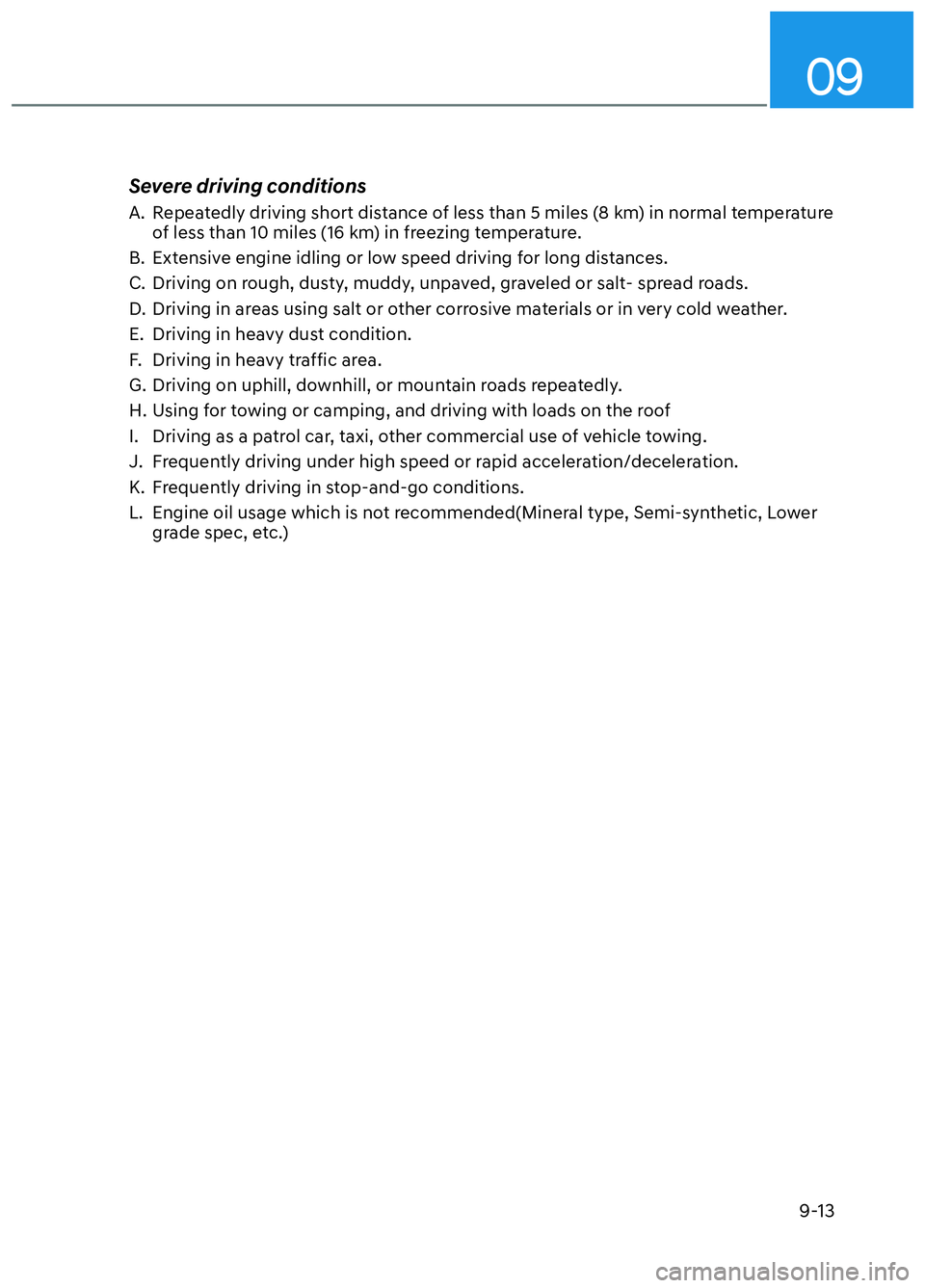

Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature of less than 10 miles (16 km) in freezing temperature.
B. Extensive engine idling or low speed driving for long distances.
C. Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.
D. Driving in areas using salt or other corrosive materials or in very cold weather.
E. Driving in heavy dust condition.
F. Driving in heavy traffic area.
G. Driving on uphill, downhill, or mountain roads repeatedly.
H. Using for towing or camping, and driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use of vehicle towing.
J. Frequently driving under high speed or rapid acceleration/deceleration.
K. Frequently driving in stop-and-go conditions.
L. Engine oil usage which is not recommended(Mineral type, Semi-synthetic, Lower grade spec, etc.)
CN7 N HMA 9.indd 9-13 2021-09-08  9:30:15

Maintenance9-14
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary. Drive
belts should be checked periodically
for proper tension and adjusted as
necessary.
Information
When you are inspecting the belt, turn the
engine off.
Fuel Filter
A clogged-up fuel filter may limit the
vehicle driving speed, damage the
emission system, and cause the hard
starting. When a considerable amount
of foreign substances are accumulated
in the fuel tank, the fuel filter should be
replaced.
Upon installing a new fuel filter, operate
the engine for several minutes, and
check the connections for any leakages.
Fuel filters should be installed by an
authorized HYUNDAI dealer.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
Have an authorized HYUNDAI dealer
replace any damaged or leaking parts
immediately.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Air Cleaner Filter
A genuine HYUNDAI air cleaner filter
is recommended when the filter is
replaced.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
WARNING
Do not disconnect and inspect spark
plugs when the engine is hot. You may
burn yourself.
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
CN7 N HMA 9.indd 9-14 2021-09-08  9:30:15

09
9-15
Engine Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Manual Transmission Fluid
(if equipped)
Manual transmission fluid should not be
checked under normal usage conditions.
Have the manual transmission fluid
changed by an authorized HYUNDAI
dealer according to the maintenance
schedule.
Dual clutch transmission fluid (if
equipped)
Dual clutch transmission fluid should
not be checked under normal usage
conditions.
Have the Dual clutch transmission fluid
is changed by an authorized HYUNDAI
dealer according to the maintenance
schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT
4 specification..
Parking Brake
Inspect the parking brake system
including the parking brake pedal and
cables.
Brake Discs, Pads, Calipers and
Rotors
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the engine
off, check for excessive freeplay in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
or damage.
Replace any damaged parts.
Drive Axle Shafts and Boots
Check the drive axle shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged parts
and, if necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
Engine Oil
CN7 N HMA 9.indd 9-152021-09-08  9:30:15
