2022 HYUNDAI ELANTRA N relay

05
5-33
STEERING WHEEL
Electric Power Steering (EPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Also, the steering effort becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s speed
decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
• If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer and have the system checked
as soon as possible.
• When an abnormality is detected
in the electric power steering
system, to prevent an accident, the
steering assist function may become
inoperative. At this time, the warning
light turns on or blinks on the cluster.
The steering wheel may become
difficult to control or operate. Have
your vehicle checked immediately,
after moving the vehicle to a safe
area.
Information
The following symptoms may occur during
normal vehicle operation:
• The steering effort may be high
immediately after setting the Engine
Start/Stop button to the ON position.
This happens as the system performs
the EPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the battery voltage is low, you
may have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.
• A click noise may be heard from the
EPS relay after the Engine Start/Stop
button is in the ON or OFF position.
• Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.
• When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.
• When an error is detected from the
EPS, the steering effort assist function
may become inoperative in order to
prevent fatal accidents. Instrument
cluster warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.
CN7 N HMA 5.indd 5-33 2021-09-06  3:06:16

Tires and Wheels ........................................................................\
.................. 9-33Tire Care ........................................................................\
.......................................... 9-34
Recommended Cold Tire Inflation Pressures ....................................................... 9-34
Check Tire Inflation Pressure ........................................................................\
......... 9-35
Tire Rotation ........................................................................\
................................... 9-35
Wheel Alignment and Tire Balance ....................................................................... 9-36
Tire Replacement ........................................................................\
........................... 9-37
Wheel Replacement ........................................................................\
....................... 9-38
Tire Traction ........................................................................\
.................................... 9-38
Tire Maintenance..................................................................\
.................................. 9-38
Tire Sidewall Labeling ........................................................................\
.................... 9-38
Tire Terminology and Definitions ........................................................................\
...9-41
All Season Tires ........................................................................\
...............................9-44
Summer Tires ........................................................................\
.................................9-44
Snow Tires......................................................................\
.........................................9-44
Radial-Ply Tires ........................................................................\
............................... 9-45
Low Aspect Ratio Tires ........................................................................\
................... 9-45
Fuses ...................................................................\
.......................................... 9-47Instrument Panel Fuse Replacement ....................................................................9-48
Engine Compartment Panel Fuse Replacement ..................................................9-49
Fuse/Relay Panel Description........................................................................\
........9-50
Light Bulbs ........................................................................\
............................9-58Headlamp, Position Lamp, Turn Signal Lamp and Daytime Running
Light Bulb Replacement ........................................................................\
................ 9-59
Side Repeater Lamp Replacement ...................................................................... 9-60
Rear Combination Lamp Bulb Replacement ....................................................... 9-60
High Mounted Stop Lamp Replacement .............................................................. 9-62
License Plate Light Bulb Replacement .................................................................9-63
Interior Light Bulb Replacement ........................................................................\
...9-63
Appearance Care ........................................................................\
.................9-65Exterior Care ........................................................................\
................................... 9-65
Interior Care ........................................................................\
.................................... 9-70
Emission Control System ........................................................................\
..... 9-73
California Perchlorate Notice ...................................................................... 9-76
9
CN7 N HMA 9.indd 9-22021-09-08  9:30:13

Maintenance9-50
OCN7N091025N
Fuse/Relay Panel Description
Instrument panel fuse panel
OCN7N091012NOCN7N091012N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
CN7 N HMA 9.indd 9-50 2021-09-08  9:30:26

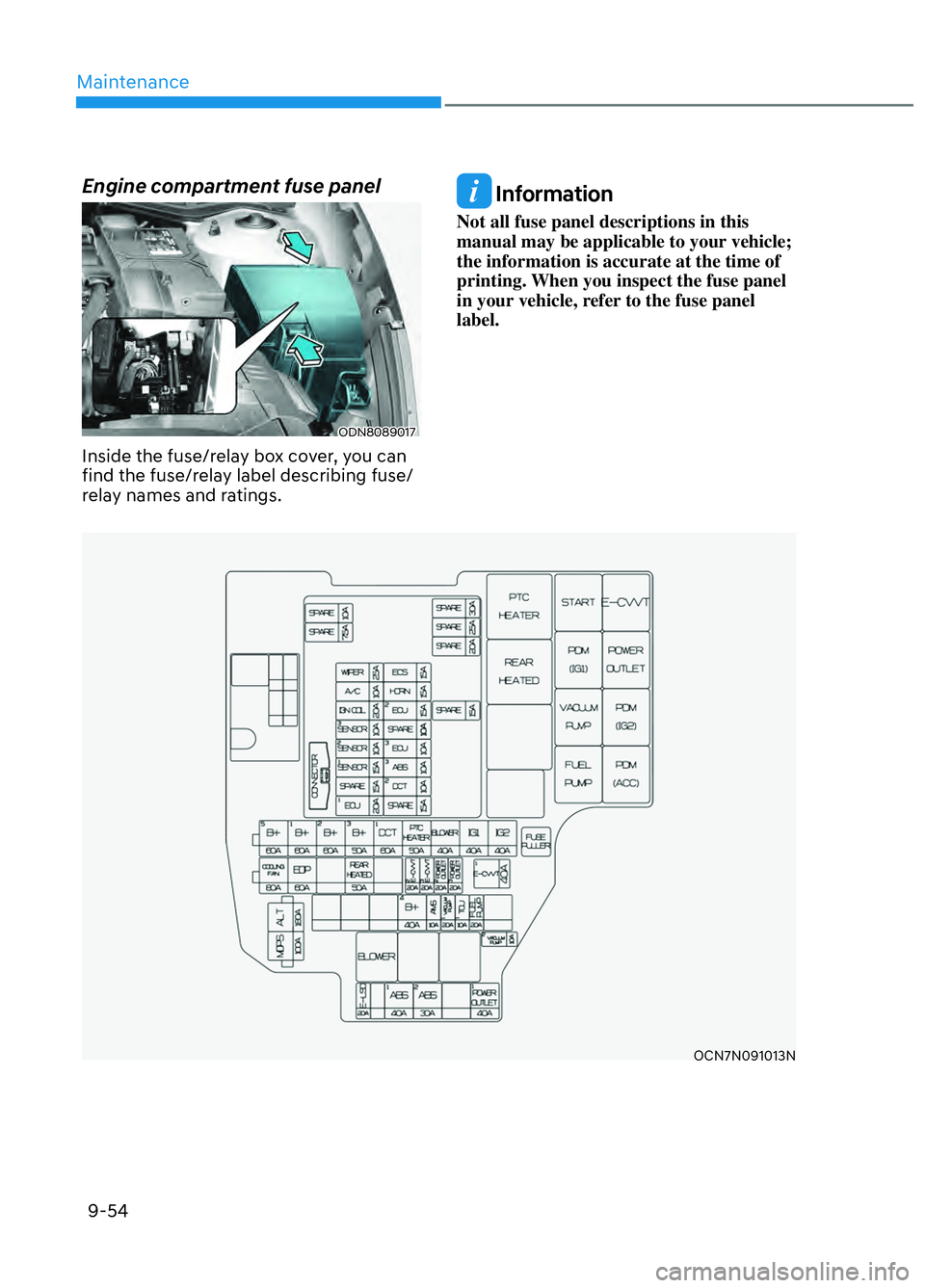

Maintenance9-54
OCN7N091013N
Engine compartment fuse panel
ODN8089017ODN8089017
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
CN7 N HMA 9.indd 9-54 2021-09-08  9:30:27

09
9-55
Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MIDI
FUSE
-3 ALT
180A[G4FM/G4FG/G4NA] Alternator, (Fuse - F33, F34,
F35, F37)
[G4FP] Alternator, (Fuse - F33, F34, F35, F37)
MDPS1 100A MDPS Unit
MIDI
FUSE-2 COOLING
FAN2 80A [G4FP] Cooling Fan Controller
EOP 60A Electronic Oil Pump
RR HTD 50A Rear Glass Heated
MIDI
FUSE-1 B+5
60APCB Block (Engine Control Relay, Fuse - F1, F2,
F3, F4, F6)
B+1 60A ICU Junction Block (IPS2/IPS5/IPS6/IPS7/IPS14)
B+2 60AICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10/
IPS13)
B+3 50AICU Junction Block (Fuse - F13, F14, F22, F23,
F32,F40, F41, Long Term Load Latch Relay)
BLOWER 40A BLOWER Motor, Multipurpose Check Connector
IG1 40A E/R Junction Block (RLY.4/6), Ignition Switch
IG2 40A E/R Junction Block (RLY.3/5), Ignition Switch
DCT1 60A TCU
PTC
HEATER 50A PTC HEATER
CN7 N HMA 9.indd 9-55
2021-09-08  9:30:27

Maintenance9-56
Engine compartment fuse panel
Type Fuse Name Fuse Rating Circuit Protected
FUSE POWER
OUTLET2 20
A Front Power Outlet
POWER
OUTLET3 20A Cigarette Lighter
VACUUM PUMP1 20A VACUUM PUMP, ESC
VACUUM PUMP2 10A Electronic Vacuum Pump
ECS 15A ECS Unit
E-LSD 20A LSD Control Module
E-CVVT3 20A ECM
E-CVVT2 20A ECM
E-CVVT1 40A E/R Junction Block (RLY.14)
DCT2 10A [G4FP] TCM
B+4 40AICU Junction Block (Fuse - F2, F25, F26, F34,
F43, F35 (IAU), F44, Power Window Relay)
AMS 10A Battery Sensor
TCU1 10A [M/T] Ignition Lock & Clutch Switch
FUEL PUMP 20A FUEL PUMP Motor
ABS1 40A ABS Control Module, ESP Control Module
ABS2 30AABS Control Module, ESP Control Module,
Multipurpose Check Connector
POWER
OUTLET1 40A E/R Junction Block (RLY.2)
WIPER 25A Wiper Motor
CN7 N HMA 9.indd 9-56
2021-09-08  9:30:27

09
9-57
Engine compartment fuse panel (PCB block) (Smartstream 2.5 GDI)
Type Fuse NameFuse Rating Circuit Protected
FUSE E
CS (15A)
15A ECS Unit
A/C 10A [G4FM] A/C Compressor
HORN 15A Horn, Horn Switch
IGN COIL 20A[G4FM/G4NA/G4FP] Ignition Coil #1~#4
[G4FG] Ignition Coil #1~#4
ECU3 10A PCM/ECM, [MT] IGN LOCK CLUTCH SW
SENSOR3 10A E/R Junction Block (RLY.8)
ECU2 15A PCM/ECM
SENSOR2 10A[G4FM] Oil Control Valve (Intake/Exhaust),
Variable Intake Solenoid Valve, Purge Control
Solenoid Valve, E/R Junction Block (RLY.1/11),
A/C Relay
[G4FG] Oil Control Valve (Intake/Exhaust),
Variable Intake Solenoid Valve, Purge Control
Solenoid Valve, E/R Junction Block (RLY.1/11)
[G4NA] Oil Control Valve (Intake/Exhaust),
Variable Intake Solenoid Valve, Purge Control
Solenoid Valve, Oil Pump Solenoid Valve, E/R
Junction Block (RLY.1/11)
[G4FP] Oil Control Valve (Intake/Exhaust),
Variable Intake Solenoid Valve, Purge Control
Solenoid Valve, RCV Control Solenoid Valve,
Cooling Fan Controller
[Theta 2 T-GDI] Oil Control Valve(Exhaust),
Electronic Water Pump, RCV, Cooling Fan, Purge
Control Solenoid Valve, A/C Comp RLY, Oil Level
Sensor, Canister Closing Valve, Active Exhaust
Valve
SENSOR1 15A Oxygen Sensor (UP/DOWN)
ABS3 10AABS Control Module, ESP Control Module,
Multipurpose Check Connector
ECU1 20A PCM/ECM
CN7 N HMA 9.indd 9-57
2021-09-08  9:30:28

I
I-5
Exterior Lights ........................................................................\
............................. 5-65
Battery Saver Function ........................................................................\
............. 5-68
Headlamp Delay Function ........................................................................\
....... 5-68
High Beam Operation ........................................................................\
............... 5-66
Lighting Control ........................................................................\
....................... 5-65
Turn Signals And Lane Change Signals ........................................................... 5-67
Exterior Overview (I) ........................................................................\
.................... 2-2
Exterior Overview (II) ........................................................................\
................... 2-3
F
Forward Collision–Avoidance Assist (FCA) (Front view camera only) .............. 7-2
Forward Collision-Avoidance Assist Malfunction and Limitations .................. 7-7
Forward Collision-Avoidance Assist Operation ................................................ 7-5
Forward Collision-Avoidance Assist Settings ................................................... 7-3
Fuel filler door ........................................................................\
............................. 5-63
Fuel Requirements ........................................................................\
......................... 1-5
Fuses ..................................................................\
.................................................. 9-47
Engine Compartment Panel Fuse Replacement ............................................... 9-49
Fuse/Relay Panel Description ........................................................................\
.. 9-50
Instrument Panel Fuse Replacement ................................................................ 9-48
G
Guide to Hyundai Genuine Parts ........................................................................\
... 1-3
H
Hazard Warning Flasher ........................................................................\
................ 8-2
High Beam Assist (HBA) ........................................................................\
........... 5-69
Detecting Sensor ........................................................................\
...................... 5-69
High Beam Assist Malfunction and Limitations .............................................. 5-70
High Beam Assist Operation ........................................................................\
.... 5-69
High Beam Assist Settings ........................................................................\
....... 5-69
Hood ...................................................................\
................................................. 5-56
How to Use This Manual ........................................................................\
............... 1-4
Hyundai Motor America ........................................................................\
................ 1-2
CN7 N HMA Index.indd I-52021-09-08  11:16:48
