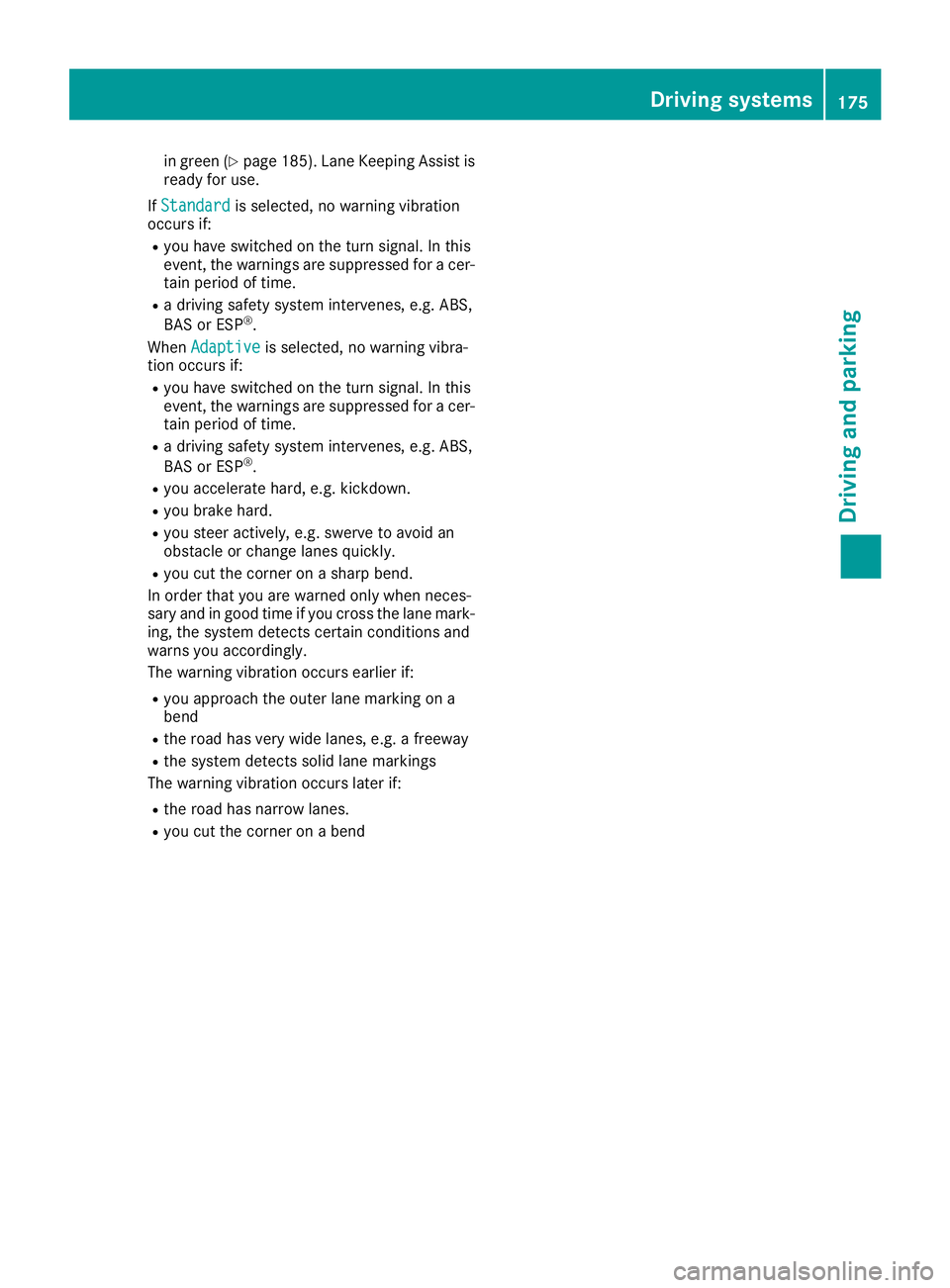

in green (Ypage 185). Lane KeepingAssist is
ready for use.
If Standard
is selected, no warnin gvibration
occurs if:
Ryou have switched on the turn signal. In this
event, the warnings are suppressed for acer-
tain period of time.
Rad rivings afetysystem intervenes ,e.g. ABS,
BA SorE SP®.
When Adaptive
is selected, no warnin gvibra-
tion occurs if:
Ryou have switched on the turn signal. In this
event, the warnings are suppressed for acer-
tain period of time.
Rad rivings afetysystem intervenes ,e.g. ABS,
BA SorE SP®.
Ryou accelerateh ard, e.g. kickdown.
Ryou brakehard.
Ryou steer actively, e.g. swervetoa void an
obstacle or change lanes quickly.
Ryou cut the corner on asharp bend.
In order that you are warne donly when neces-
sary and in good tim eifyou cross the lane mark-
ing, the system detect scertain condition sand
warns you accordingly.
The warnin gvibration occurs earlier if:
Ryou approacht he outer lane marking on a
bend
Rthe road has very wide lanes, e.g. afreeway
Rthe system detect ssolid lane markings
The warnin gvibration occurs later if:
Rthe road has narrow lanes.
Ryou cut the corner on abend
Driving systems175
Driving and parking
Z

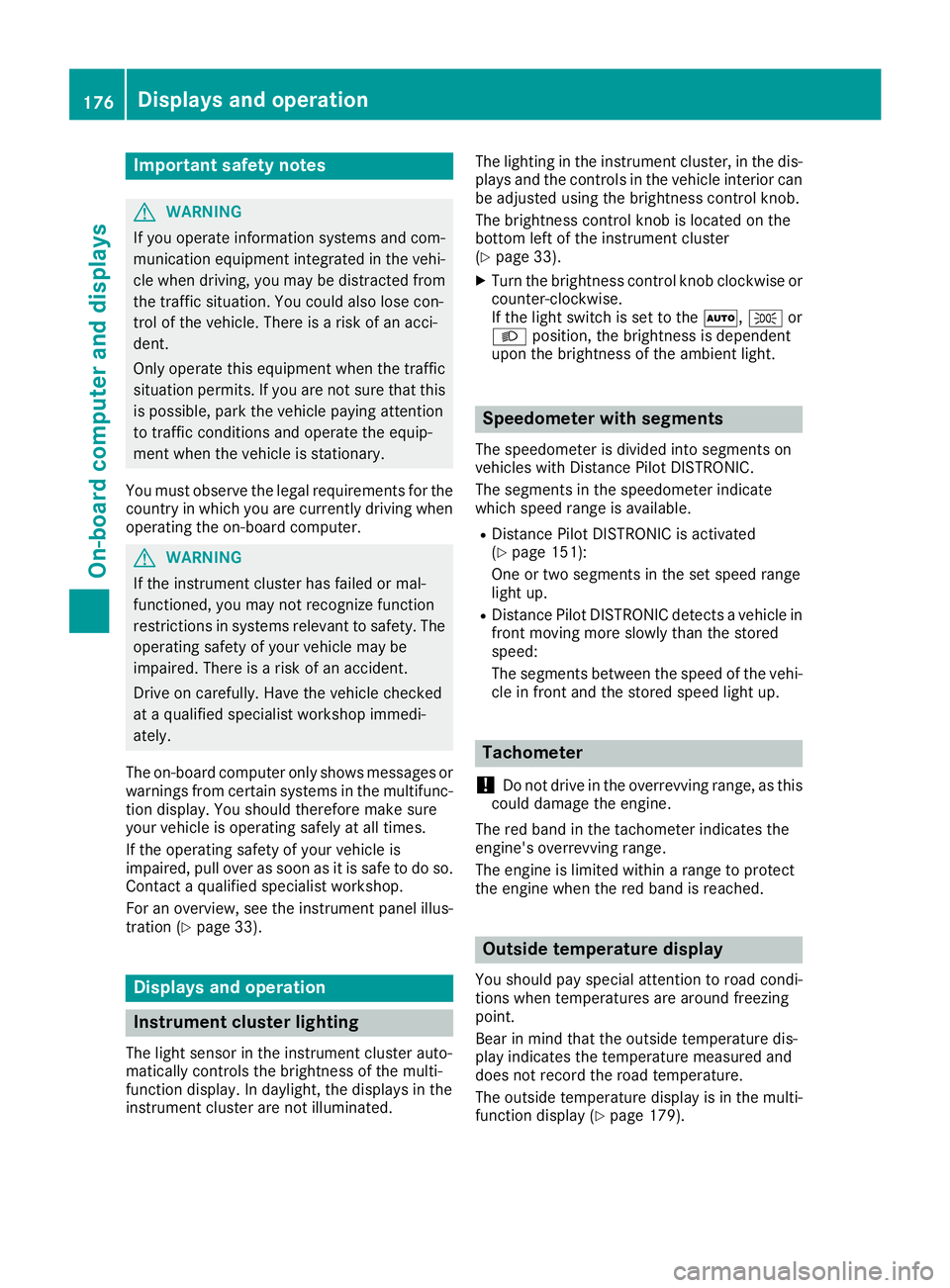

Important safety notes
GWARNING
If you operate information systems and com-
munication equipmen tintegrate dinthevehi-
cle when driving ,you may be distracte dfrom
th et raffic situation .You could also lose con-
trol of th evehicle. Ther eisariskofana cci-
dent.
Only operate this equipmen twhen th etraffic
situation permits. If you are no tsuret hatthis
is possible ,park th evehicl epayin gattention
to traffic condition sand operate th eequip-
men twhen th evehicl eiss tationary.
You must observ ethe legal requirements for th e
country in whic hyou are currentl ydriving when
operating th eon-bo ard computer.
GWARNIN G
If th einstrumen tcluste rhas faile dormal-
functioned, you may no trecognize function
restriction sinsystems relevan ttosafety. The
operating safet yofyour vehicl emay be
impaired .Ther eisar iskofana ccident.
Drive on carefully. Hav ethe vehicl echecked
at aq ualified specialist workshop immedi-
ately.
The on-board computer only shows message sor
warning sfromc ertai nsystems in th emultifunc-
tion display. You should therefor emakes ure
your vehicl eisoperating safely at all times .
If th eoperating safet yofyour vehicl eis
impaired ,pull ove rassoonasitiss afetodos o.
Contac taqualified specialist workshop.
Fo rano verview, see th einstrumen tpanel illus-
tration (
Ypage 33).
Display sand operation
Instrumen tcluster lighting
The ligh tsensor in th einstrumen tcluste rauto -
matically control sthe brightness of th emulti-
function display. In daylight, th edisplays in th e
instrumen tcluste rare no tilluminated. The lighting in th
einstrumen tcluster, in th edis-
plays and th econtrols in thevehicl einterior can
be adjusted usin gthe brightness control knob.
The brightness control knob is locate donthe
botto mleftoft heinstrumen tcluste r
(
Ypage 33).
XTurn th ebrightness control knob clockwise or
counter-clockwise.
If th eligh tswitch is set to th eÃ, Tor
L position ,the brightness is dependen t
upon th ebrightness of th eambien tlight.
Speedometer with segments
The speedometer is divided int osegments on
vehicles wit hDistance Pilot DISTRONIC.
The segments in th espeedometer indicat e
whic hspee drange is available.
RDistanc ePilot DISTRONI Cisactivated
(Ypage 151):
On eort wo segments in th eset spee drange
ligh tup.
RDistanc ePilot DISTRONI Cdetects avehicl ein
fron tmoving mor eslowly than th estored
speed:
The segments between th espee doft hevehi-
cle in fron tand th estoreds pee dligh tup.
Tachometer
!
Do no tdriveint heoverrevving range, as this
could damag ethe engine.
The red ban dinthetachometer indicates th e
engine's overrevving range.
The engin eislimite dwithin arange to protect
th ee nginew hen th ered ban disreached.
Outsidet emperatur edisplay
You should pay special attention to road condi-
tion swhen temperatures are aroun dfreezing
point.
Bea rinm indt hatthe outside temperature dis-
play indicates th etem perature measured and
does no trecord th eroad temperature.
The outside temperature display is in th emulti-
function display (
Ypage 179).
176Displaysand operation
On-boardc omputer and displays

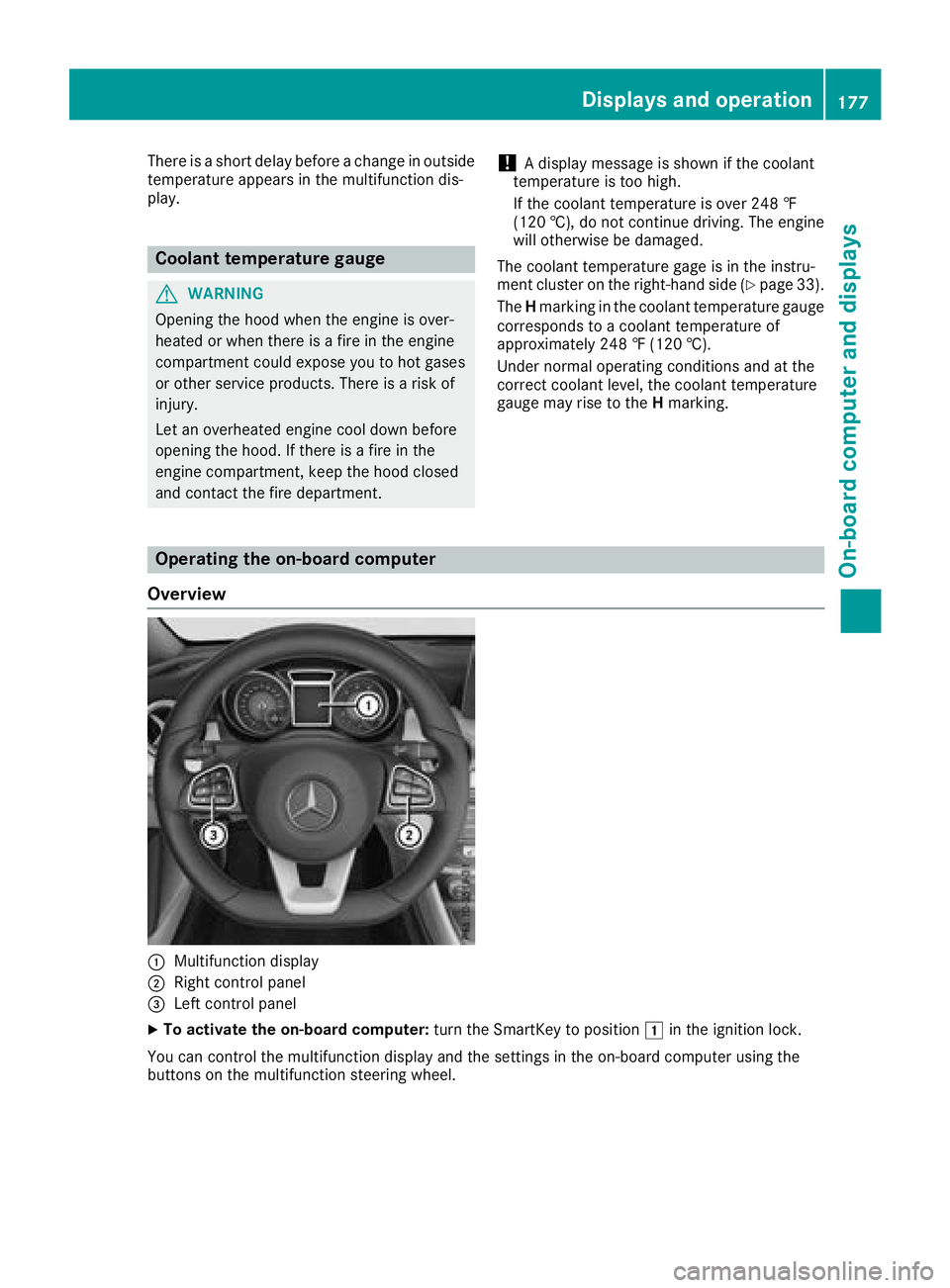

There isashort delay before achange in outside
temperature appears in the multifunction dis-
play.
Coolant temperature gauge
GWARNING
Opening the hood when the engine is over-
heated or when there is afire in the engine
compartment could expose you to hot gases
or other service products. There is arisk of
injury.
Let an overheated engine cool down before
opening the hood. If there is afire in the
engine compartment,k eep the hood closed
and contact the fire department.
!Ad isplay message is shown if the coolant
temperature is too high.
If the coolant temperature is over 248 ‡
(120 †), do not continue driving. The engine
will otherwise be damaged.
The coolant temperature gage is in the instru-
ment cluster on the right-hand side (
Ypage 33).
The Hmarking in the coolant temperature gauge
corresponds to acoolant temperature of
approximately 248 ‡(120 †).
Under normal operating conditions and at the
correctc oolant level, the coolant temperature
gauge may rise to the Hmarking.
Operating the on-board computer
Overview
:Multifunction display
;Right control panel
=Left control panel
XTo activatet he on-board computer: turn the SmartKey to position 1in the ignition lock.
You can control the multifunction display and the settings in the on-board computer using the
button sonthe multifunction steerin gwheel.
Displays and operation177
On-board computer and displays
Z

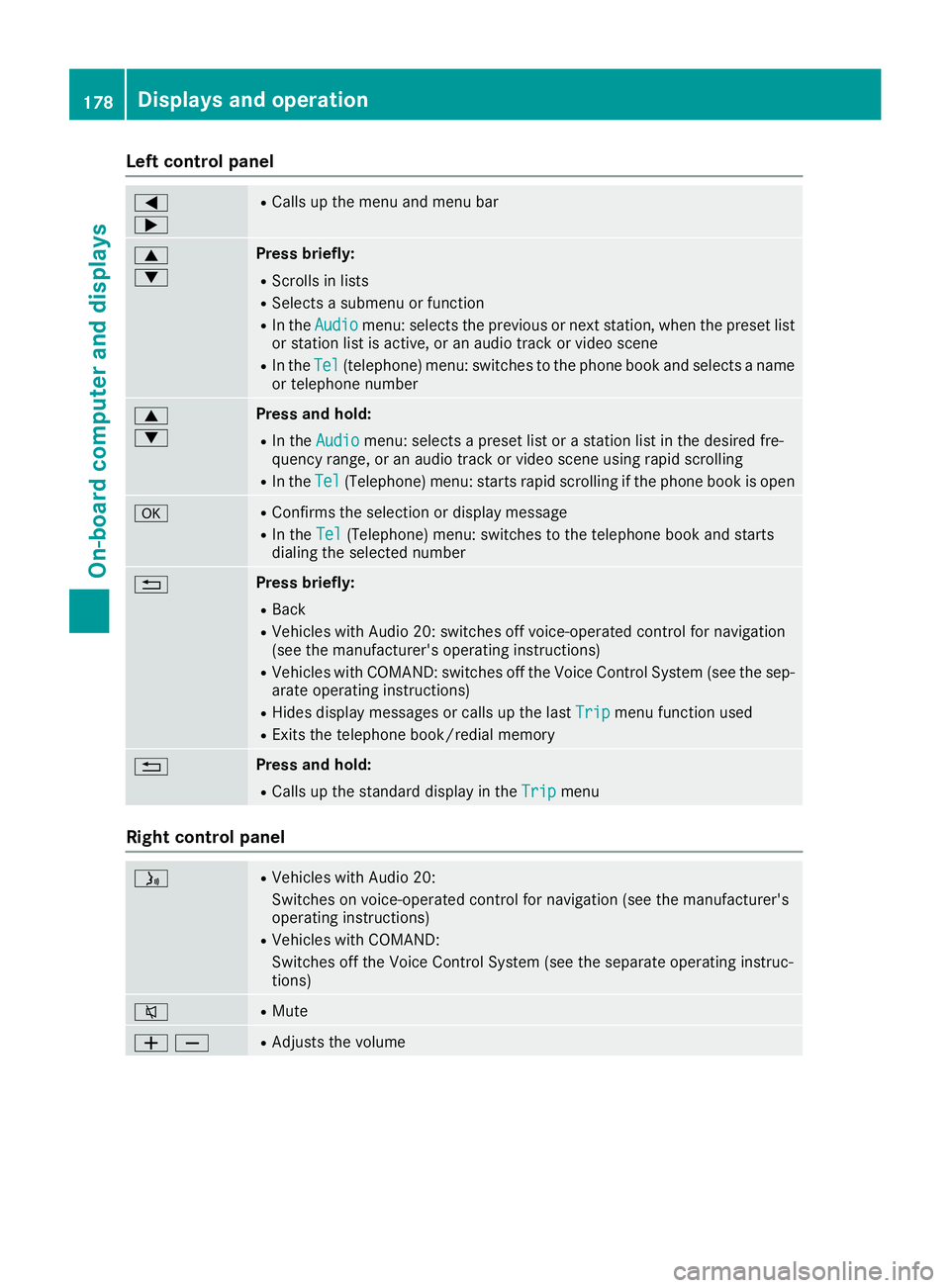

Left control panel
=
;RCalls up themenua nd menub ar
9
:Press briefly:
RScrolls in lists
RSelectsasubmenu or function
RIn the Audiomenu: selects th eprevious or nex tstation, when th epreset list
or statio nlist is active, or an audio track or video scene
RIn the Tel(telephone) menu: switche stothephoneb ook and selects aname
or telephonen umber
9
:Press and hold:
RIn theAudiomenu: selects apreset list or astatio nlist in th edesired fre-
quency range, or an audio track or video scene usingr apid scrolling
RIn theTel(Telephone) menu: startsr apid scrollingifthephoneb ook is open
aRConfirmst heselectio nordisplay message
RIn the Tel(Telephone) menu: switche stothetelephoneb ook and starts
dialingt heselected number
%Press briefly:
RBack
RVehicles with Audio 20 :switche soff voice-operated control for navigation
(see th emanufacturer' soperatin ginstructions)
RVehicles with COMAND:s witchesoff th eVoiceC ontrol System (see th esep-
arateo peratin ginstructions)
RHide sdisplay messages or calls up th elast Tripmenuf unction used
RExits th etelephoneb ook/redial memory
%Press and hold:
RCalls up thestandar ddisplay in the Tripmenu
Rightcontrol panel
óRVehicles with Audio 20:
Switche sonvoice-operated control for navigation (see th emanufacturer's
operatin ginstructions)
RVehicles with COMAND:
Switche soff th eVoiceC ontrol System (see th eseparate operatin ginstruc-
tions)
8RMute
WXRAdjusts the volume
178Displays and operation
On-board computer and displays

~RRejects or endsacall
RExit sthe telephon ebook/redial memory
6RMakes or accept sacall
RSwitches to th eredial memory

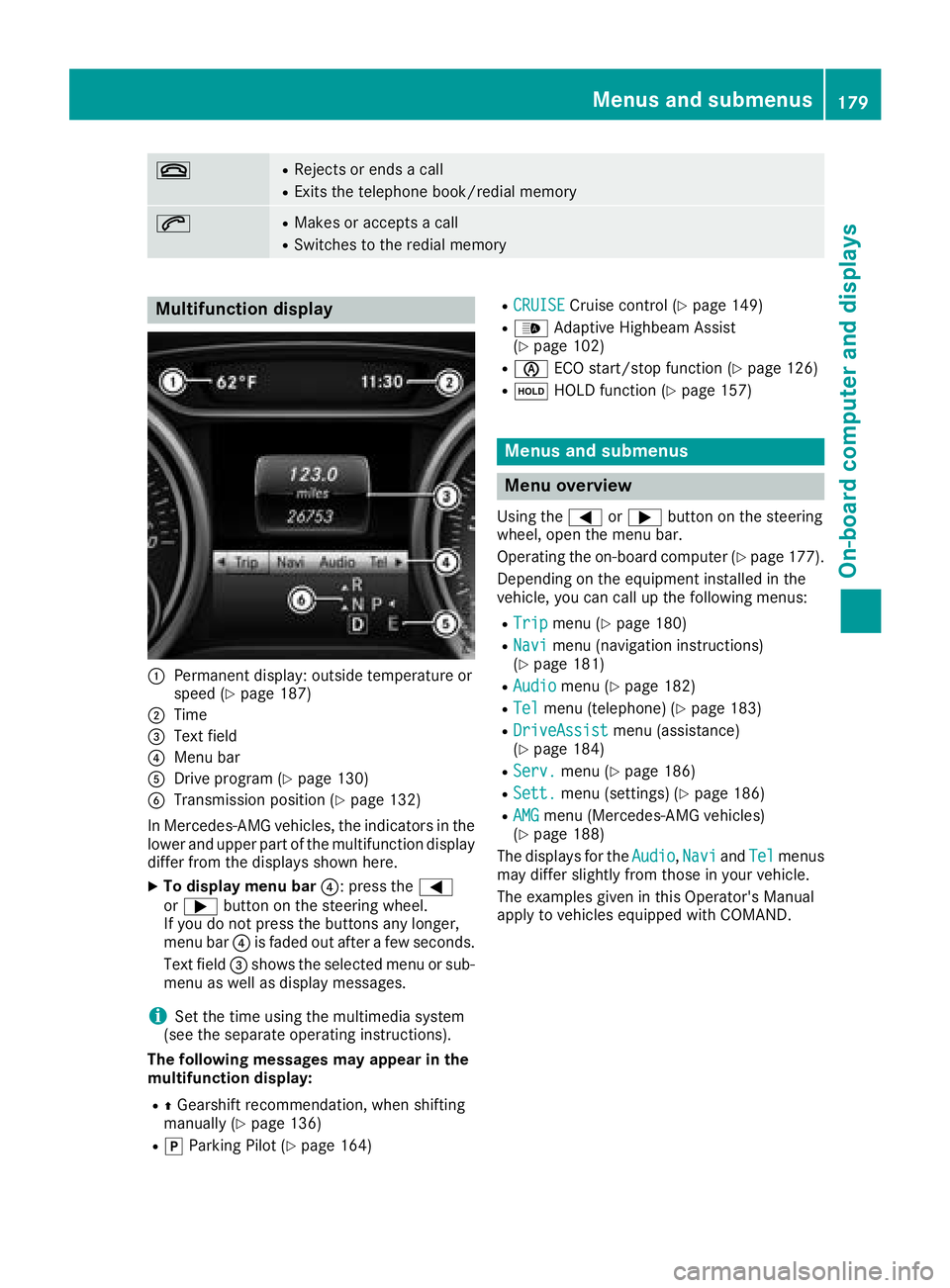

Multifunction display
:Permanen tdisplay: outside temperature or
spee d(Ypage 187)
;Time
=Textfield
?Men ubar
ADrive program (Ypage 130)
BTransmissionposition (Ypage 132)
In Mercedes-AM Gvehicles, th eindicators in th e
lower and upper part of th emultifunction display
differ from th edisplays shown here.
XTo displa ymenub ar?:p ress th e=
or ; buttonont hesteering wheel.
If you do no tpress th ebuttons any longer ,
men ubar? is fade dout after afew seconds.
Tex tfield =shows th eselected men uorsub-
men uasw ell as display messages.
iSetthe time usin gthe multimedia system
(see th eseparat eoperating instructions).
Th ef ollowing messages ma yappearint he
multifunction display:
RZ Gearshif trecommendation ,when shifting
manually (Ypage 136)
RjParking Pilot (Ypage 164)
RCRUISECruisecontro l(Ypage 149)
R_ Adaptive Highbeam Assist
(Ypage 102)
Rè ECO start/sto pfunction (Ypage 126)
RëHOLD function (Ypage 157)
Menusand submenus
Menu overview
Using th e= or; buttonont hesteering
wheel, open th emenub ar.
Operating th eon-bo ard computer (
Ypage 177).
Dependin gontheequipmen tinstalled in th e
vehicle, you can call up th efollowin gmenus:
RTri pmen u(Ypage 180)
RNavimen u(navigation instructions)
(Ypage 181)
RAudiomen u(Ypage 182)
RTelmenu(telephone) (Ypage 183)
RDriveAssistmenu(assistance)
(Ypage 184)
RServ.men u(Ypage 186)
RSett.menu(settings) (Ypage 186)
RAMGmenu(Mercedes-AM Gvehicles)
(Ypage 188)
The displays for th eAudio
,Nav iand Telmenus
may differ slightly from those in your vehicle.
The examples given in this Operator's Manual
apply to vehicles equipped wit hCOMAND .
Menusa nd submenus179
On-boardcomputer and displays
Z

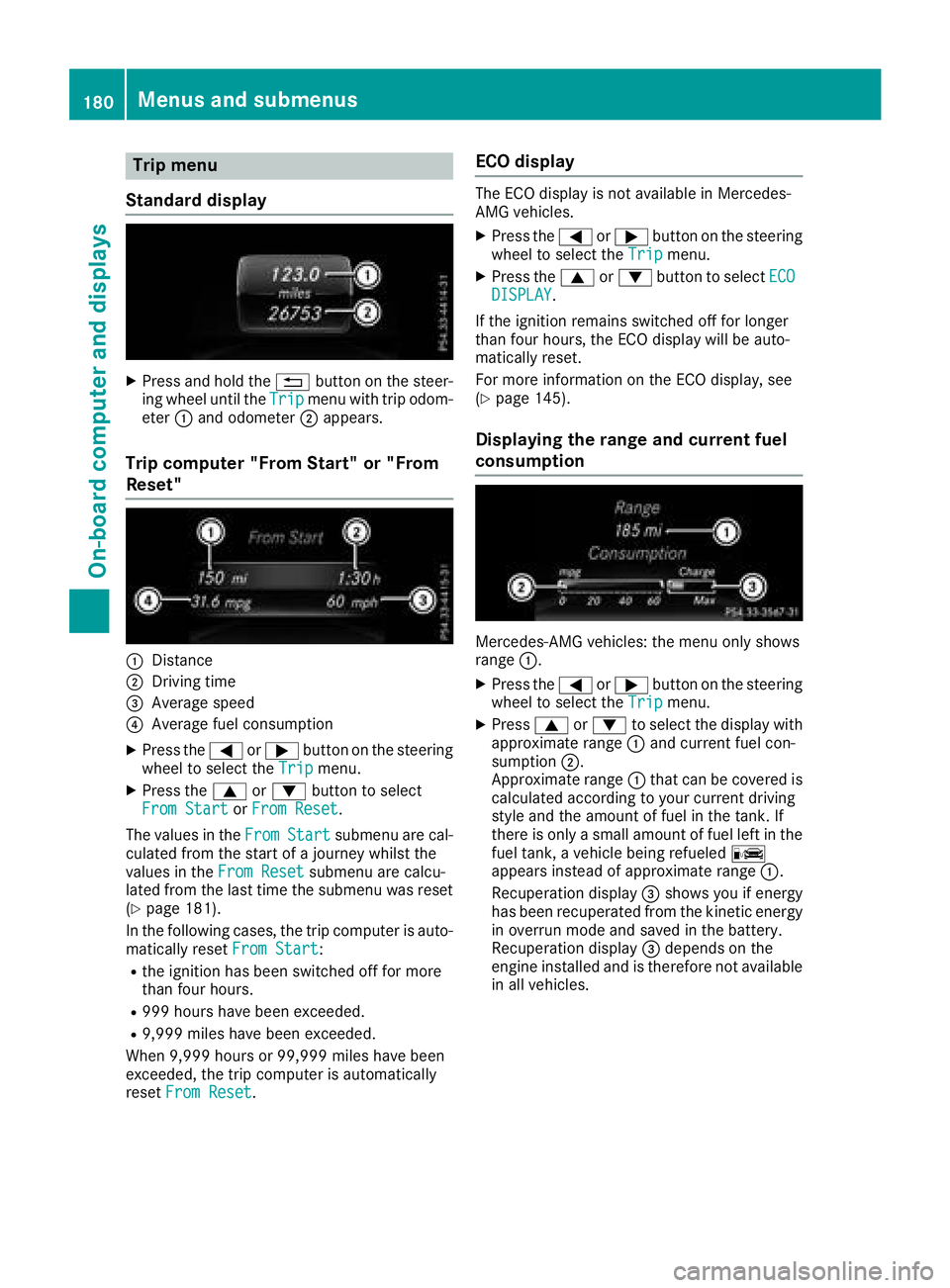

Trip menu
Standard display
XPress and hol dthe % button on the steer-
ing whee lunti lthe Tripmenu with trip odom-
eter :and odometer ;appears.
Trip computer" From Start" or "From
Reset"
:Distance
;Driving time
=Averag espeed
?Averag efuelconsumption
XPress the =or; button on the steering
whee ltoselect the Tripmenu.
XPress the 9or: button to select
FromS tartorFromR eset.
The values in the From
Startsubmenu arecal-
culate dfromt he start of ajourney whilst the
values in the FromReset
submenu ar ecalcu-
lated fromt he last time the submenu wa sreset
(
Ypage 181).
In the following cases, the trip compute risauto-
maticall yreset FromS tart
:
Rthe ignition hasb eens witched off for more
thanf ourh ours.
R999 hours have been exceeded.
R9,999 miles have been exceeded.
When 9,999 hours or 99,999 miles have been
exceeded ,the trip compute risautomatically
reset FromR eset
.
ECOd isplay
The ECO displa yisnot availabl einMercedes-
AMG vehicles.
XPress the =or; button on the steering
whee ltoselect the Tripmenu.
XPress the 9or: button to select ECODISPLAY.
If the ignition remains switched off for longer
thanf ourh ours, the ECO displa ywillbea uto-
maticall yreset.
For mor einformatio nonthe ECO display, see
(
Ypage 145).
Displaying the rangea nd currentfuel
consumption
Mercedes-AMG vehicles: the menu onl yshows
range :.
XPress the =or; button on the steering
whee ltoselect the Tripmenu.
XPress9or: to select the displa ywith
approximate range :and current fuel con-
sumption ;.
Approximate range :thatc an be covered is
calculate daccording to your current driving
style and the amount of fuel in the tank. If
there is onl yasmall amount of fuel left in the
fuel tank, avehicl ebeing refueled C
appear sinstea dofa pproximate range :.
Recuperatio ndisplay =shows yo uifenergy
hasb eenr ecuperated fromt he kinetic energy
in overrunm odea nd saved in the battery.
Recuperatio ndisplay =depends on the
engine installe dand is therefore not available
in al lvehicles.
180Menus and submenus
On-board computer and displays

Digital speedometer
XPress the= or; buttononthesteerin g
whee ltos elec tthe Tri pmenu.
XPress th e9 or: buttontos electthe
digita lspeedometer ;.
Ag ear shift recommendation :Zcan also
follow .
Observ ethe information on gearshift recom -
mendation :when shiftin gmanually
(
Ypage 136).
Mercedes-AMG vehicles :agearshift recom -
mendation is shown in th estatu sbar of th e
multifunction display and no tinthedigita l
speedometer display.
Resetting value s
XPress the= or; buttononthesteerin g
whee ltos elec tthe Tri pmenu.
XPress th e9 or: buttontos electthe
function that you wish to reset .
XPressato confirm .
XPress:to selec tYesand press ato
confirm .
You can reset th evalues of th efollowin gfunc-
tions:
RTrip odometer
R"From Start "tripc om pute r
R"From Reset" trip compute r
RECOd isplay
If you reset th evalues in th eECO display, th e
values in th e"From Start "tripc om pute rare also
reset .Ifyou reset th evalues in th e"From Start "
trip computer, th evalues in th eECO display are
also reset .
Navigation syste mmenu
Displaying navigation instructions
In th eNav imenu, th emultifunction display
shows navigation instructions.
You can fin dfurther information on navigation in
th es eparat emultimedia system operatin g
instructions.
XSwitc hont hemultimedia system (se esepa-
rat eo peratin ginstructions) .
XPress the= or; buttononthesteerin g
whee ltos elec tthe Nav imenu.
Route guidance not active
:Direction of trave l
;Currentroa d
Route guidance active
No change of direction announced
:Distanc etodestination
;Distanc etothenext chang eofdirection
=Curren troa d
?"Follow th eroad's course" symbol
Menus an dsubmenus181
On-board computera nd displays
Z

Change of direction without lane recom-
mendation
:Road intowhicht hechange of direction
leads
;Distance to change of direction and visual
distanc edisplay
=Change-of-direction symbol
When achange of direction is to be made, you
will see symbol =for th echange of direction
and distanc egraphic ;.The distanc eindicator
shortens towards th etop of th edisplay as you
approach th epointoft heannounced change of
direction.T he change of direction start sonce
th ed istanc edisplay reaches zero.
Change of direction announced with a
lane recommendation
:Road int owhicht hechange of direction
leads
;Distance to change of direction and visual
distanc edisplay
=Lanes no trecommended
?Recommende dlane and new lane durin ga
change of direction
AChange-of-direction symbol
On multilane roads ,new lane recommendations
can be displayedf or thenextc hange of direction
if th edigital map support sthisd ata. During the
change of direction,n ew lanesmay be added.
Lanen otrecommended =:you will no tbeable
to completet henex tchange of direction if you
stay in this lane.
Recommende dlane and new lane durin ga
change of direction ?:inthisl ane you will be
able to completet henex ttwo changes of direc-
tio nw ithout changingl ane.
Other status indicators of th enaviga-
tion system
The navigation system displays additional infor-
mation and th evehicle status.
Possible displays:
RNew Route...or Calculating Route
An ew rout eiscalculated.
RRoadN ot Mapped
The vehicle position is inside th earea of the
digital map but th eroad is no trecognized, e.g.
newly built streets, car park sorprivate land.
RNo Route
No rout ecoul dbec alculate dtotheselected
destination.
RO
You have reached th edestination or an inter-
mediate destination.
Audio menu
Selecting aradio station
:Activ estatio nlist
;Statio nfrequency with memory position
The multifunction display showss tation ;with
statio nfrequency or statio nname. The preset
position is only displayeda longwith station ;if
this has been stored.
XSwitch on th emultimedia system and select
Radio (see th eseparate operatin ginstruc-
tions).
XPres sthe = or; button on th esteering
wheel to selectt heAudiomenu.
182Menusa nd submenus
On-boardc omputer and displays
