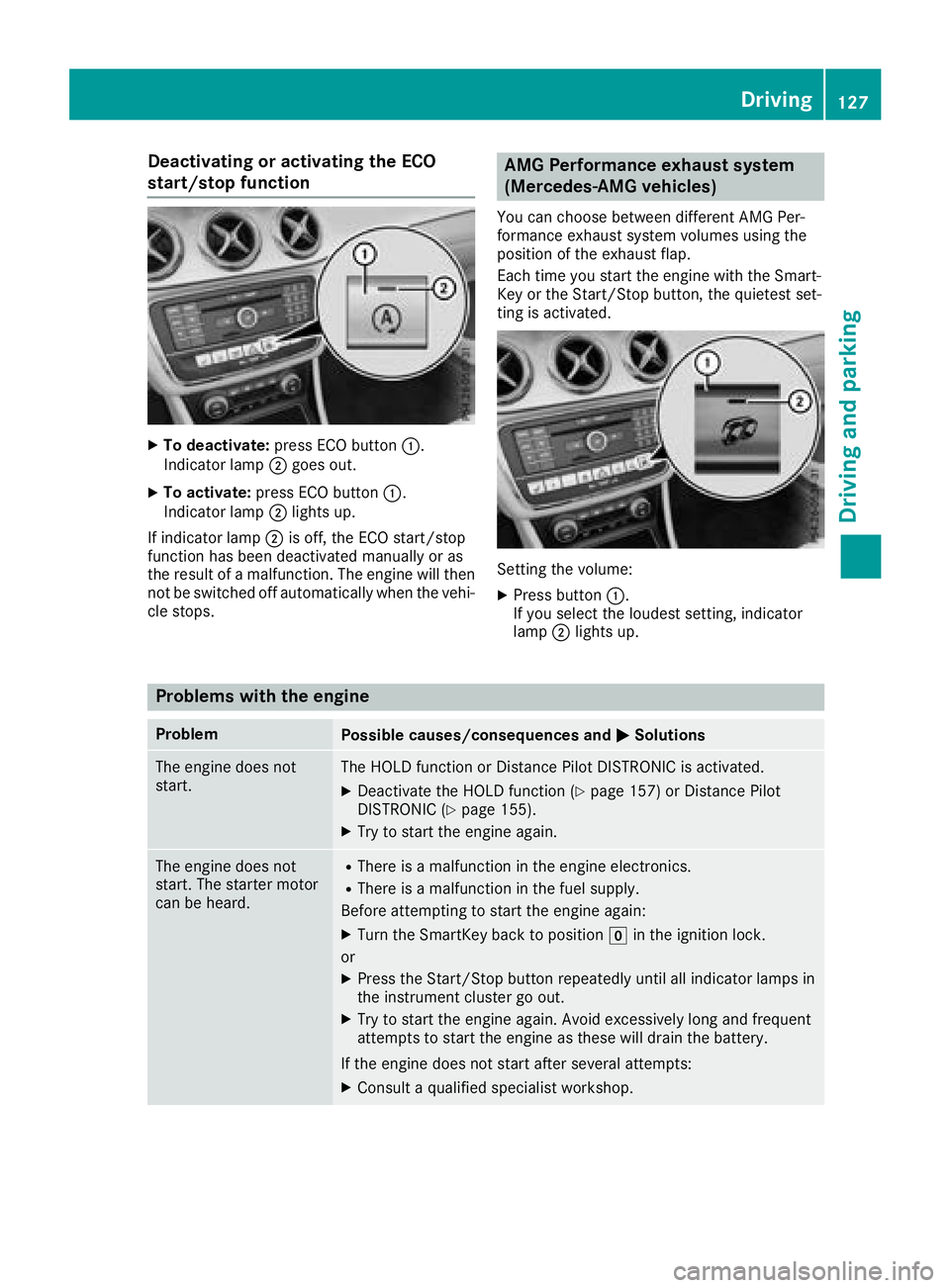

Deactivating or activating theECO
start/stop function
XTo deactivate :press EC Obutto n:.
Indicator lamp ;goe sout.
XTo activate :press EC Obutto n:.
Indicator lamp ;lights up.
If indicator lamp ;is off, th eECO start/sto p
function has bee ndeactivated manually or as
th er esult of amalfunction .The engin ewill then
no tbes witched of fautomatically when th evehi-
cl es tops .
AMG Performance exhaust syste m
(Mercedes-AMG vehicles )
You can choosebetween differen tAMG Per-
formanc eexhaus tsystem volume susingthe
position of th eexhaus tflap .
Each time you start th eenginew itht he Smart -
Key or th eStart/Sto pbutton, th equietest set -
ting is activated.
Settin gthe volume :
XPress butto n:.
If you selec tthe loudest setting ,ind icator
lamp ;lights up.
Problem switht he engin e
ProblemPossible causes/consequences an dMSolutions
The engin edoesn ot
start .The HOLD function or Distanc ePilotD ISTR ONIC is activated.
XDeactivat ethe HOLD function (Ypage 157) or Distanc ePilot
DISTRONIC (Ypage 155).
XTryt os tart th eenginea gain .
The engin edoesn ot
start .The starter moto r
can be heard.RThere is amalfunction in th eenginee lectronics.
RThere is amalfunction in th efuelsupply.
Before attemptin gtostart th eenginea gain :
XTurnthe SmartKey bac ktoposition gin th eignition lock.
or
XPress th eStart/Sto pbutto nrepeatedly until all indicator lamp sin
th ei nstrument cluster go out .
XTryt os tart th eenginea gain .Avoid excessivel ylon ga nd frequent
attempt stostart th eengineast hese will drain th ebattery.
If th eengined oesn otstart after severa lattempts:
XConsult aqualified specialis tworkshop .
Driving127
Driving an dpark ing
Z

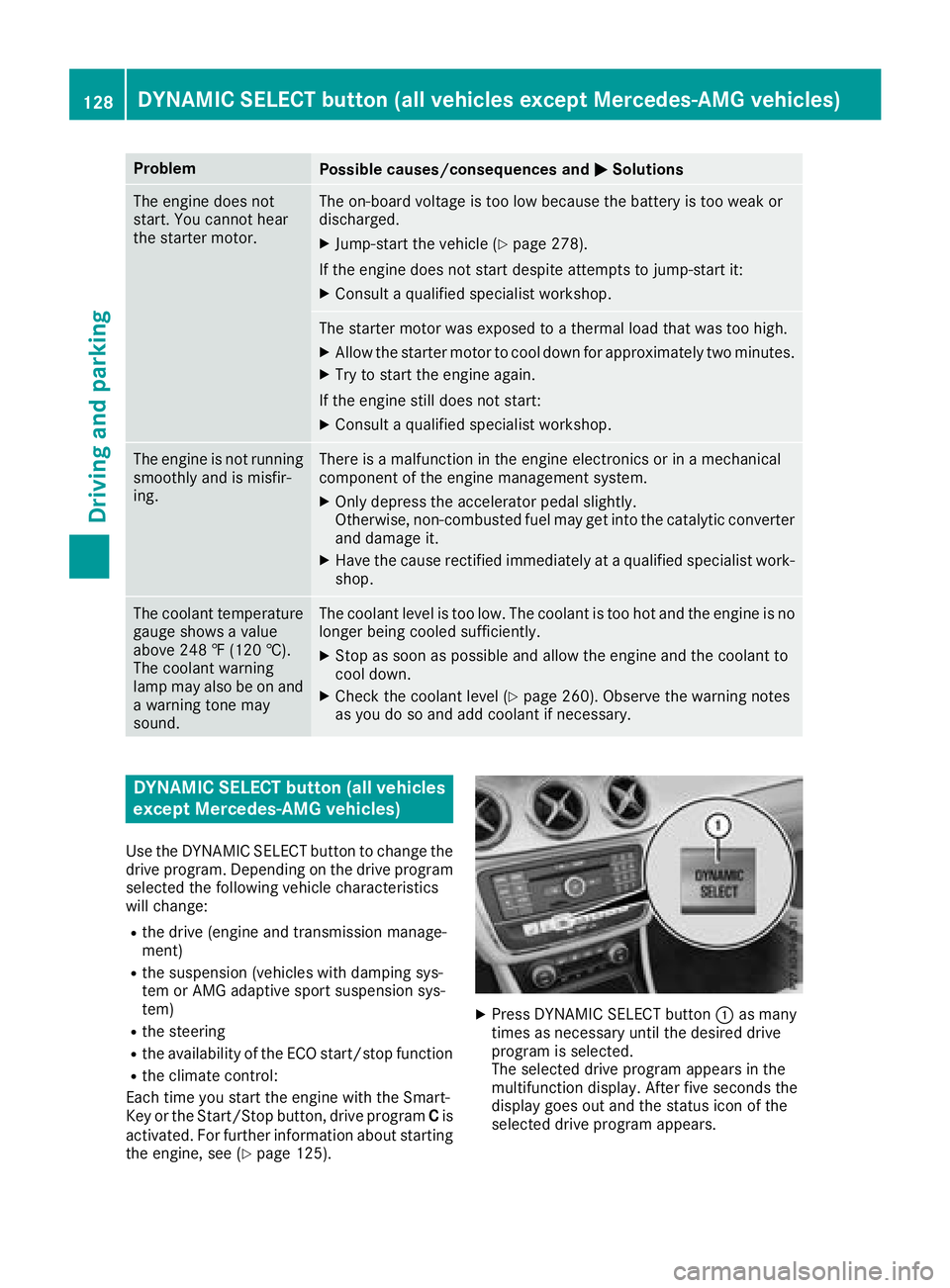

ProblemPossible causes/consequences andMSolutions
The engine does not
start. You cannot hear
the starter motor.The on-board voltage is too low because the battery is too weak or
discharged.
XJump-start the vehicle (Ypage 278).
If the engine does not start despite attempt stojump-start it:
XConsult aqualified specialist workshop.
The starter motor was exposed to athermal load that was too high.
XAllow the starter motor to cool down for approximately two minutes.
XTry to start the engine again.
If the engine still does not start:
XConsult aqualified specialist workshop.
The engine is not running
smoothly and is misfir-
ing.There is amalfunction in the engine electronics or in amechanical
componentoft he engine management system.
XOnly depress the accelerator pedal slightly.
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it.
XHave the cause rectified immediately at aqualified specialist work-
shop.
The coolant temperature
gauge shows avalue
above 248 ‡(120 †).
The coolant warning
lamp may also be on and
aw arning tone may
sound.The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant to
cool down.
XCheck the coolant level (Ypage 260). Observe the warning notes
as you do so and add coolant if necessary.
DYNAMIC SELECTb utton (all vehicles
except Mercedes-AMG vehicles)
Use the DYNAMIC SELECT button to change the
drive program. Depending on the drive program
selected the following vehicle characteristics
will change:
Rthe drive (engine and transmission manage-
ment)
Rthe suspension (vehicles with damping sys-
tem or AMG adaptive sport suspension sys-
tem)
Rthe steering
Rthe availability of the ECO start/stop function
Rthe climate control:
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program Cis
activated. For further information about starting
the engine, see (
Ypage 125).
XPress DYNAMIC SELECT button :as many
times as necessary until the desired drive
program is selected.
The selected drive program appears in the
multifunction display.A fter five seconds the
display goes out and the status icon of the
selected drive program appears.
128DYNAMIC SELECT button (all vehicles except Mercedes-AMG vehicles)
Driving and parking

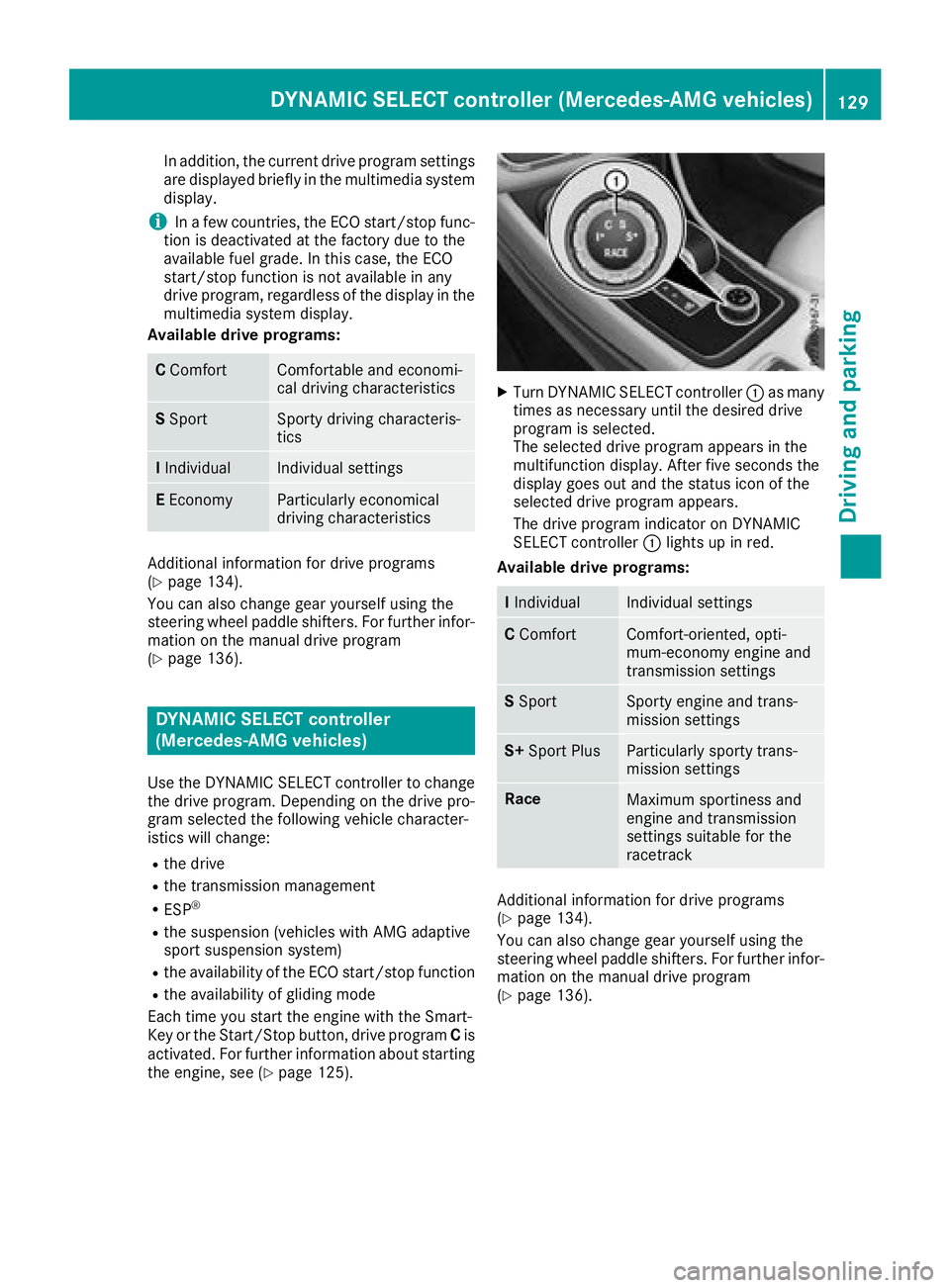

In addition, the current drive program settings
are displayedbrieflyint he multimedia system
display.
iIn af ew countries, the ECO start/stop func-
tion is deactivated at the factory due to the
available fuel grade.Int his case, the ECO
start/stop function is not available in any
drive program, regardless of the display in the
multimedia system display.
Available drive programs:
C ComfortComfortable and economi-
cal driving characteristics
SSportSporty driving characteris-
tics
IIndividualIndividual settings
E EconomyParticularly economical
driving characteristics
Additional information for drive programs
(Ypage 134).
You can also change gear yourself using the
steering wheel paddle shifters. For further infor- mation on the manua ldrive program
(
Ypage 136).
DYNAMIC SELECT controller
(Mercedes-AMG vehicles)
Use the DYNAMIC SELECT controller to change
the drive program. Depending on the drive pro-
gram selected the following vehicle character-
istics willc hange:
Rthe drive
Rthe transmission management
RESP®
Rthe suspension (vehicles with AMG adaptive
sport suspension system)
Rthe availability of the ECO start/stop function
Rthe availability of gliding mode
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program Cis
activated. For further information abouts tarting
the engine, see (
Ypage 125).
XTurn DYNAMIC SELECT controller :as many
times as necessary until the desiredd rive
program is selected.
The selected drive program appears in the
multifunction display. After five seconds the
display goes out and the status icon of the
selected drive program appears.
The drive program indicator on DYNAMIC
SELECT controller :lights up in red.
Available drive programs:
I IndividualIndividual settings
C ComfortComfort-oriented, opti-
mum-economy engine and
transmission settings
SSportSporty engine and trans-
missions ettings
S+Sport PlusParticularly sporty trans-
missions ettings
RaceMaximums portiness and
engine and transmission
settings suitable for the
racetrack
Additional information for drive programs
(Ypage 134).
You can also change gear yourself using the
steering wheel paddle shifters. For further infor- mation on the manua ldrive program
(
Ypage 136).
DYNAMIC SELECTc ontroller( Mercedes-AMG vehicles)129
Driving and parking
Z

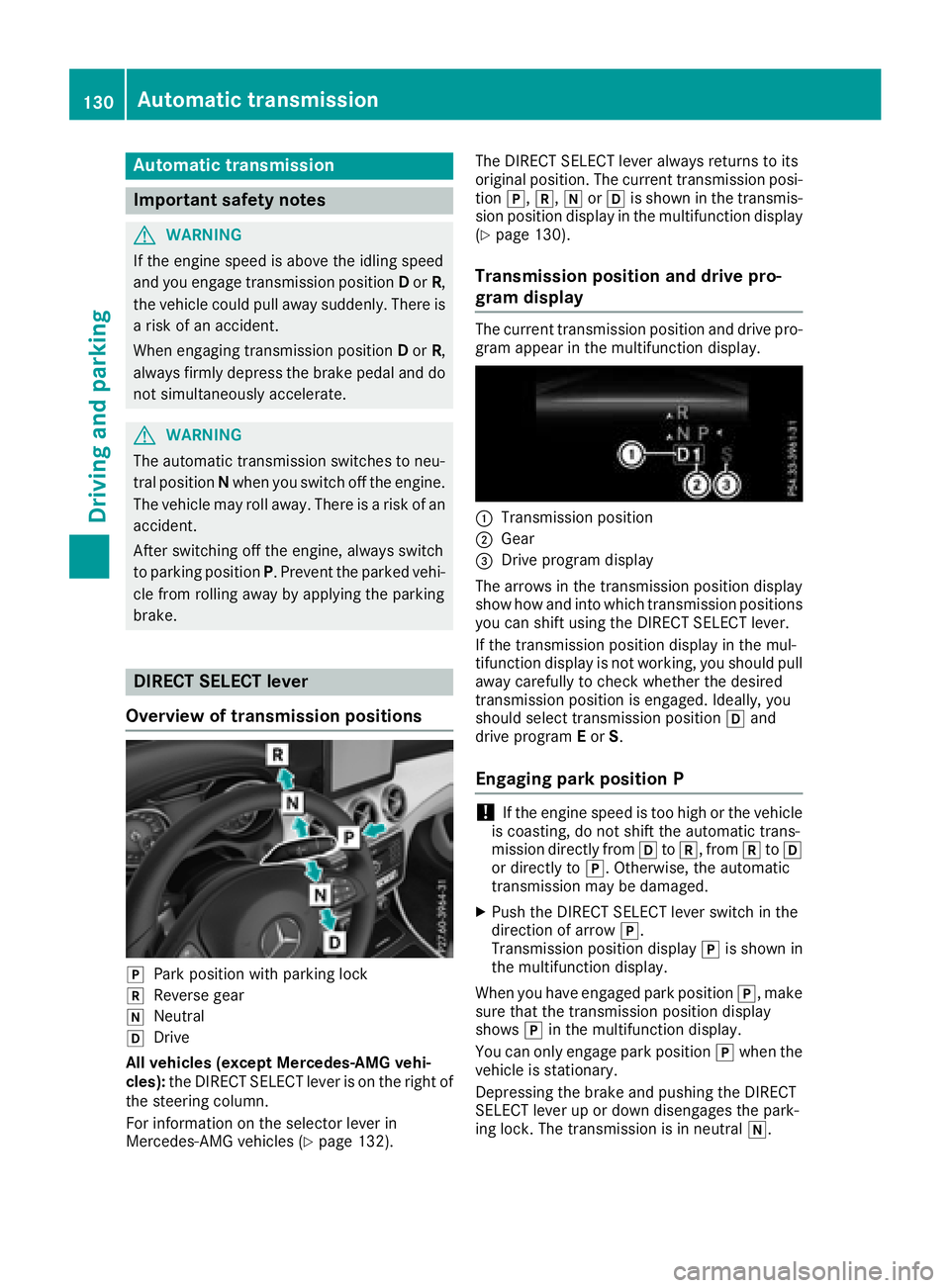

Automa tict rans mi ssion
Import ant safety notes
GWARNIN G
If th eengines pee disa bovethe idlin gspee d
and you engage transmission position Dor R,
th ev ehicl ecould pull away suddenly. There is
ar iskofana ccident.
When engagin gtransmission position Dor R,
always firmly depress th ebrak epedal and do
no tsimultaneously accelerate .
GWARNING
The automatic transmission switches to neu-
tral position Nwhen you switch off th eengine.
The vehicl emay rol laway. There is ariskofa n
accident.
Afte rswitching off th eengine, always switch
to parking position P.Preven tthe parked vehi-
cle from rollin gaway by applyin gthe parking
brake.
DIRECT SELECT lever
Overview oftrans mission positions
jPark position wit hparking loc k
kReverse gear
iNeutral
hDrive
All vehicles (excep tMercedes-AMG vehi-
cles): theD IRECT SELECT lever is on th eright of
th es teering column .
Fo rinformation on th eselector lever in
Mercedes-AM Gvehicles (
Ypage 132). The DIRECT SELECT lever always return
stoits
original position .The curren ttransmission posi-
tion j,k, iorh is shown in th etransmis -
sion position display in th emultifunction display
(
Ypage 130).
Trans mission position and drive pr o-
gram display
The curren ttransmission position and drive pro -
gram appear in th emultifunction display.
:Transmission position
;Gear
=Drive program display
The arrows in th etransmission position display
sho whow and int owhichtransmission position s
you can shif tusin gthe DIRECT SELECT lever.
If th etransmission position display in th emul-
tifunction display is no tworking ,you should pull
away carefully to chec kwhether th edesired
transmission position is engaged. Ideally, you
should select transmission position hand
drive program Eor S.
Engaging pa rkposition P
!If th eengines pee dist oohigh or th evehicl e
is coasting ,donotshif tthe automatic trans -
mission directl yfrom h tok,f rom k toh
or directl ytoj.O therwise ,the automatic
transmission may be damaged.
XPush th eDIRECT SELECT lever switch in th e
direction of arrow j.
Transmission position display jis shown in
th em ultifunction display.
When you hav eengage dpark position j,make
sur ethatthe transmission position display
shows jin th emultifunction display.
You can only engage park position jwhen th e
vehicl eisstationary.
Depressing th ebrak eand pushing th eDIRECT
SELECT lever up or down disengages th epark -
ing lock. The transmission is in neutral i.
130Automatic transmission
Driving andparking

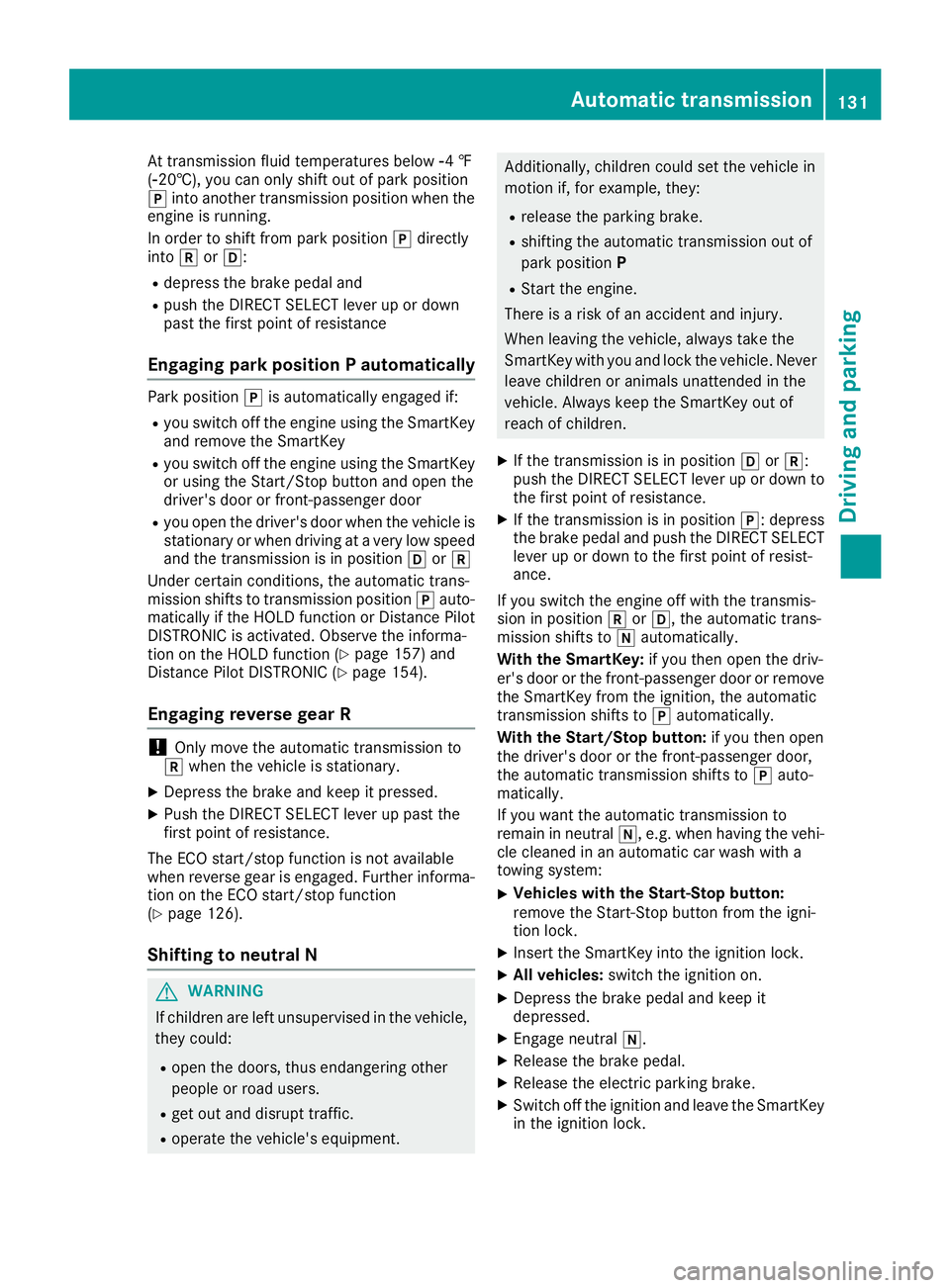

At transmission fluid temperaturesbelow Ò4‡
( Ò20 †),y oucan onlys hift outofp arkp osition
j into another transmission positio nwhent he
engine is running.
In order to shift from park position jdirectly
into korh:
Rdepress the brake peda land
Rpush the DIRECT SELECTl ever up or down
past the first point of resistance
Engagin gpark position Pautomatically
Park position jis automaticall yengaged if:
Ryous witch off the engine using the SmartKey
and remove the SmartKey
Ryo us witch off the engine using the SmartKey
or using the Start/Stop button and open the
driver's door or front-passenger door
Ryo uo pent he driver's door when the vehicl eis
stationar yorwhend riving at averyl ow speed
and the transmission is in position hork
Unde rcertain conditions, the automatic trans-
mission shifts to transmission position jauto-
maticall yifthe HOLD functio norDistance Pilot
DISTRONICi sactivated.O bservethe informa-
tio nont he HOLD functio n(
Ypage 157)and
Distance Pilo tDISTRONIC(Ypage 154).
Engagin grevers egearR
!Onlym ove the automatic transmission to
k when the vehicl eisstationary.
XDepres sthe brake and kee pitpressed.
XPush the DIRECT SELECTl ever up past the
first point of resistance.
The ECO start/stopf unctio nisn ot available
when revers egearise ngaged .Further informa-
tio nont he ECO start/stopf unction
(
Ypage 126).
Shiftin gtoneutral N
GWARNING
If children ar eleftu nsupervised in the vehicle,
they could:
Ropen the doors,t husendangering other
people or roadu sers.
Rget outa nd disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicl ein
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission outo f
park position P
RStartthe engine.
There is ariskofana ccident and injury.
Whe nleavi ng the vehicle, always take the
SmartKeyw ithy ou and lock the vehicle. Never
leav echildren or animals unattended in the
vehicle. Alway skeept he SmartKeyo utof
reach of children.
XIf the transmission is in position hork:
push the DIRECT SELECTl ever up or down to
the first point of resistance.
XIf the transmission is in position j:depress
the brake peda land push the DIRECT SELECT
lever up or down to the first point of resist-
ance.
If yo uswitch the engine off with the transmis-
sion in position korh,t he automatic trans-
mission shifts to iautomatically.
With the SmartKey: if youthen open the driv-
er' sd oorort he front-passenger door or remove
the SmartKeyf rom the ignition, the automatic
transmission shifts to jautomatically.
With the Start/Stopb utton:if youthen open
the driver's door or the front-passenger door,
the automatic transmission shifts to jauto-
matically.
If yo uwantthe automatic transmission to
remai ninneutral i,e.g.w he
n
h aving the vehi-
cle cleane dinanautomatic car wash with a
towing system:
XVehicles with the Start-Stop button:
remove the Start-Stop button from the igni-
tio nlock.
XInsert the SmartKeyi nto the ignition lock.
XAllv eh icles: switch the ignition on.
XDepres sthe brake peda land kee pit
depressed.
XEngage neutral i.
XReleasethe brake pedal.
XReleas ethe electri cparking brake.
XSwitch off the ignition and leav ethe SmartKey
in the ignition lock.
Automatict ransmission131
Driving andparking
Z

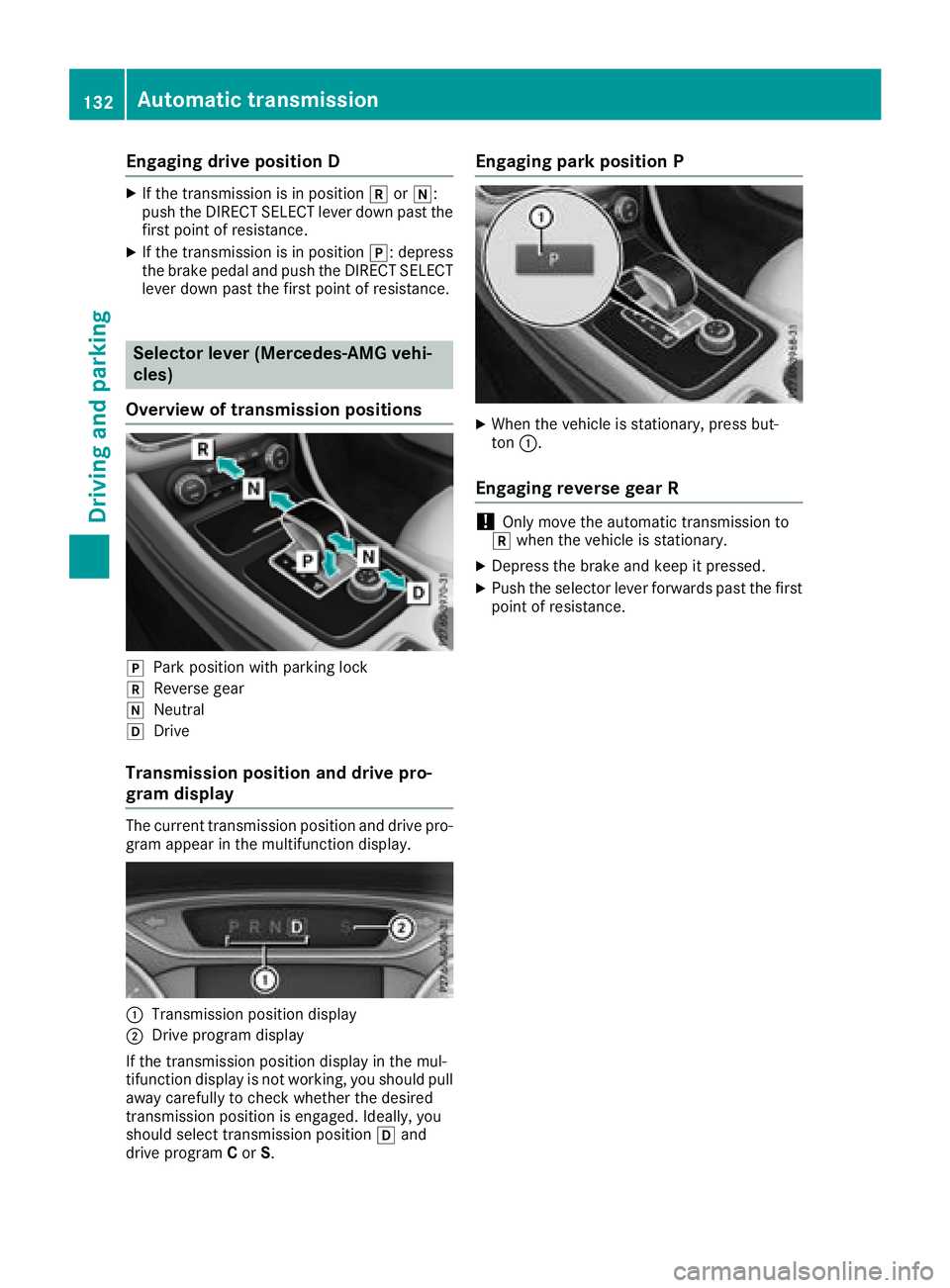

Engaging drive position D
XIf thetransmission is in position kori:
push th eDIRECT SELECT leve rdown past the
first pointofr esistance.
XIf thetransmission is in position j:depress
th eb rak epedal and push th eDIRECT SELECT
leve rdown past th efirst pointofr esistance.
Selector lever (Mercedes-AMG vehi-
cles)
Overview of transmission positions
jPark position with parking lock
kReverse gear
iNeutral
hDrive
Transmission position and drive pro-
gram display
The curren ttransmission position and driv epro-
gram appear in th emultifunction display.
:Transmission position display
;Drive program display
If th etransmission position display in th emul-
tifunctio ndisplay is no tworking ,you shouldp ull
away carefully to check whether th edesired
transmission position is engaged. Ideally, you
should selectt ransmission position hand
driv eprogram Cor S.
Engaging park position P
XWhen th evehicle is stationary, pres sbut-
ton :.
Engaging revers egear R
!Only mov ethe automatic transmission to
k when th evehicle is stationary.
XDepres sthe brak eand keep it pressed.
XPush th eselecto rleve rforwards past th efirst
pointofr esistance.
132Automatic transmission
Driving and parking

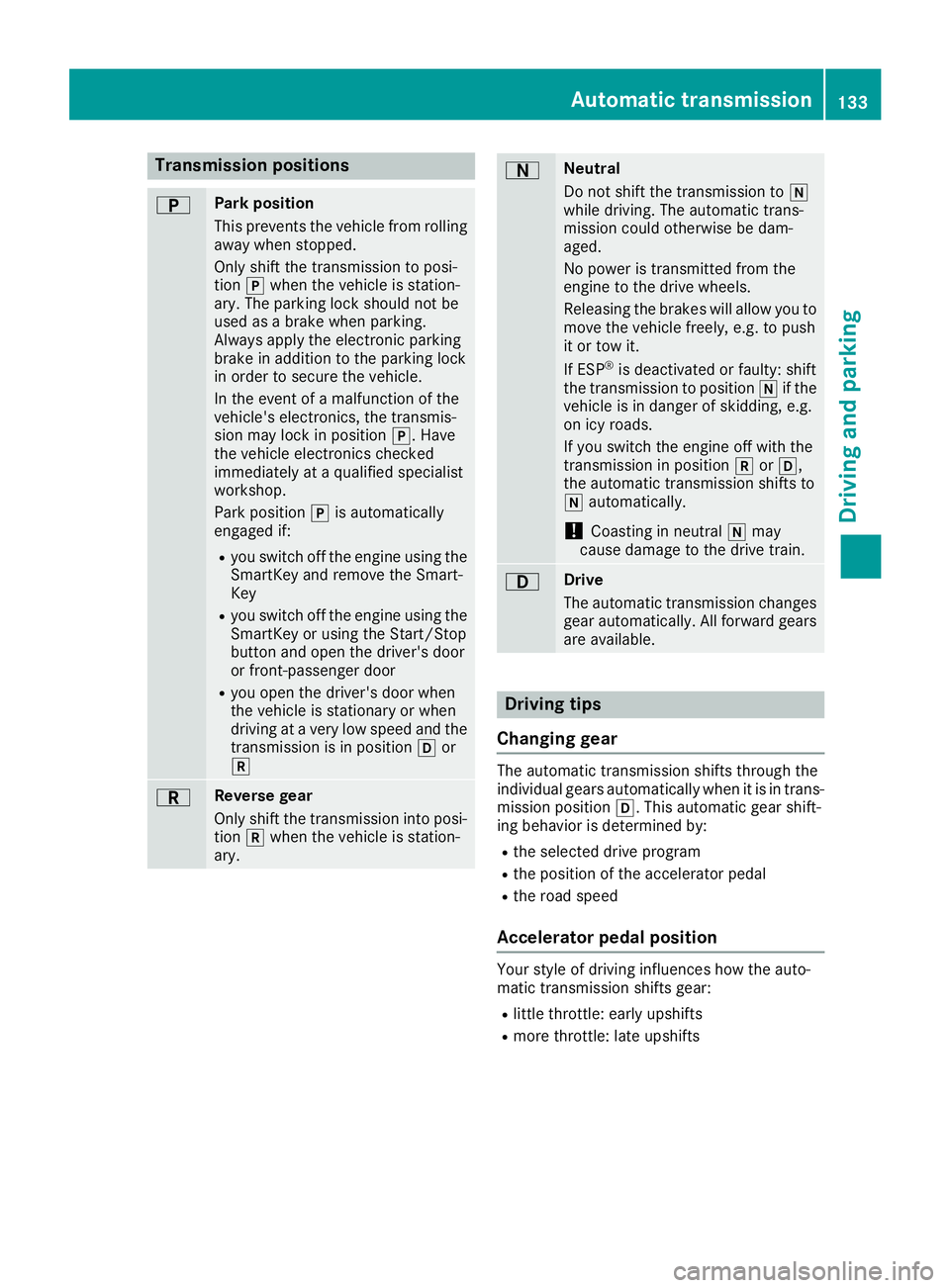

Transmission positions
BPark position
Thisprevents the vehicl efromr olling
away when stopped.
Onlys hift the transmission to posi-
tion jwhen the vehicl eisstation-
ary. The parkin gloc ks houl dnot be
used as abrake when parking.
Alway sapply the electronic parking
brake in additio ntothe parkin gloc k
in order to secur ethe vehicle.
In the event of amalfunctio nofthe
vehicle's electronics ,the transmis-
sion mayl ockinp osition j.H ave
the vehicl eelectronics checked
immediatel yataqualified specialist
workshop.
Park position jis automatically
engaged if:
Ryo us witch off the engine using the
SmartKeya nd remove the Smart-
Key
Ryo us witch off the engine using the
SmartKeyoru sing the Start/Stop
button and open the driver's door
or front-passenge rdoor
Ryouo pent he driver's door when
the vehicl eisstationar yorwhen
drivin gatav eryl ow spee dand the
transmission is in position hor
k
CRevers egear
Onlys hift the transmission into posi-
tion kwhen the vehicl eisstation-
ary.
ANeutral
Do not shift the transmission to i
whil edriving. The automatic trans-
mission could otherwis ebedam-
aged.
No powe ristransmitted fromt he
engine to the drive wheels.
Releasing the brakes will allo wyouto
mov ethe vehicl efreely, e.g .topush
it or tow it.
If ESP
®is deactivated or faulty: shift
the transmission to position iif the
vehicl eisind angerofs kidding,e.g.
on icy roads.
If yo uswitch the engine off with the
transmission in position korh,
the automatic transmission shifts to
i automatically.
!Coasting in neutral imay
cause damage to the drive train.
7Drive
The automatic transmission changes
gear automatically. All forward gears
ar ea vailable.
Driving tips
Changin ggear
The automatic transmission shifts throug hthe
individual gear sautomaticall ywhenitisint rans-
mission position h.Thisa utomatic gear shift-
ing behavio risdetermine dby:
Rthe selecte ddrive program
Rthe positio nofthe accelerator pedal
Rthe roa dspeed
Accelerator peda lposition
Your style of drivin ginfluences how the auto-
matic transmission shifts gear:
Rlittle throttle :early upshifts
Rmor ethrottle :lat eu pshifts
Automati ctransmission133
Driving an dparking
Z

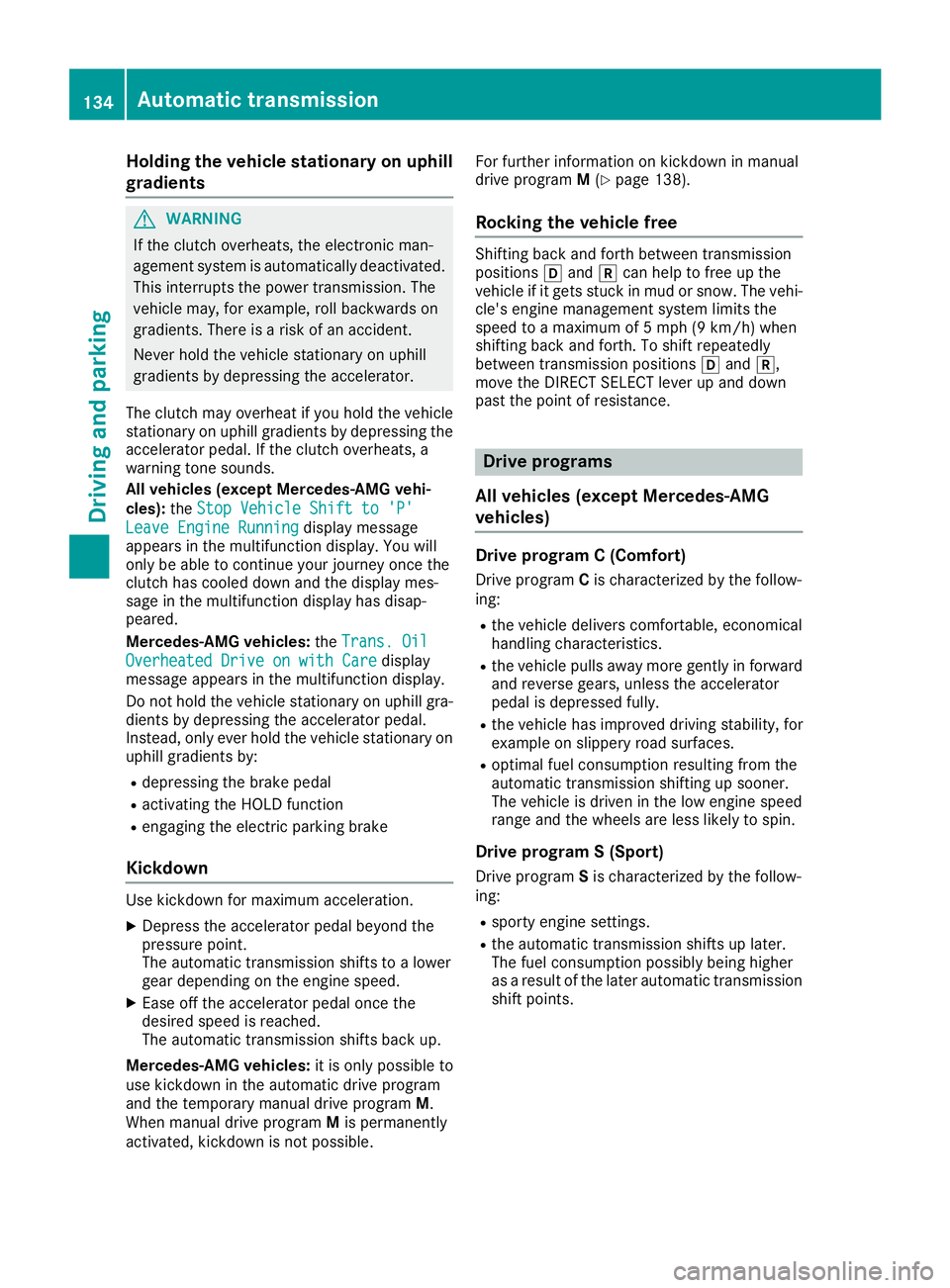

Holding the vehicle stationary on uphill
gradients
GWARNING
If the clutch overheats, the electronic man-
agement system is automatically deactivated. This interrupts the power transmission. The
vehiclem ay,for example, roll backwards on
gradients. There is arisk of an accident.
Never hold the vehicles tationary on uphill
gradients by depressing the accelerator.
The clutch may overheat if you hold the vehicle
stationary on uphill gradients by depressing the
accelerator pedal. If the clutch overheats, a
warning tone sounds.
All vehicle s(except Mercedes-AMG vehi-
cles): theStop Vehicle Shift to 'P'
Leave Engine Runningdisplay message
appears in the multifunction display .You will
only be abl etocontinue you rjourney once the
clutch has cooledd ownand the display mes-
sage in the multifunction display has disap-
peared.
Mercedes-AMG vehicles: theTrans. Oil
Overheated Drive on with Caredisplay
message appears in the multifunction display.
Do not hold the vehicles tationary on uphill gra-
dients by depressing the accelerator pedal.
Instead, only ever hold the vehicles tationary on
uphill gradients by:
Rdepressing the brake pedal
Ractivating the HOLD function
Rengaging the electric parking brake
Kickdown
Use kickdown for maximu macceleration.
XDepress the accelerator pedalb eyond the
pressure point.
The automatic transmission shifts to alower
geard epending on the engine speed.
XEase off the accelerator pedalo nce the
desired speedisr eached.
The automatic transmission shifts back up.
Mercedes-AMG vehicles: it is only possible to
use kickdown in the automatic drive program
and the temporary manua ldrive program M.
When manua ldrive program Mis permanently
activated, kickdown is not possible. For further information on kickdown in manual
drive program
M(
Ypag e138).
Rocking the vehicle free
Shifting back and forth between transmission
positions hand kcan help to free up the
vehicleifitg ets stuck in mud or snow. The vehi-
cle's engine management system limits the
speedtoam aximumof5m ph (9 km/h) when
shifting back and forth. To shift repeatedly
between transmission positions hand k,
move the DIRECT SELECT leverupa nd down
pastt he point of resistance.
Drive programs
Al lv ehicle s(except Mercedes-AMG
vehicles)
Drive program C(Comfort)
Drive program Cis characterized by the follow-
ing:
Rthe vehicled elivers comfortable, economical
handling characteristics.
Rthe vehiclep ulls awaymore gently in forward
and reverse gears, unless the accelerator
pedalisd epressed fully.
Rthe vehicleh as improved driving stability,f or
exampl eonslippery road surfaces.
Roptimalf uel consumption resulting from the
automatic transmission shifting up sooner.
The vehicleisd riveninthe low engine speed
range and the wheels are less likelytos pin.
Drive programS(Sport)
Drive program Sis characterized by the follow-
ing:
Rsporty engine settings.
Rthe automatic transmission shifts up later.
The fuel consumption possibly being higher
as aresult of the later automatic transmission
shift points.
134Automatic transmission
Driving and parking
