2018 MERCEDES-BENZ CLA COUPE Owner's Manual

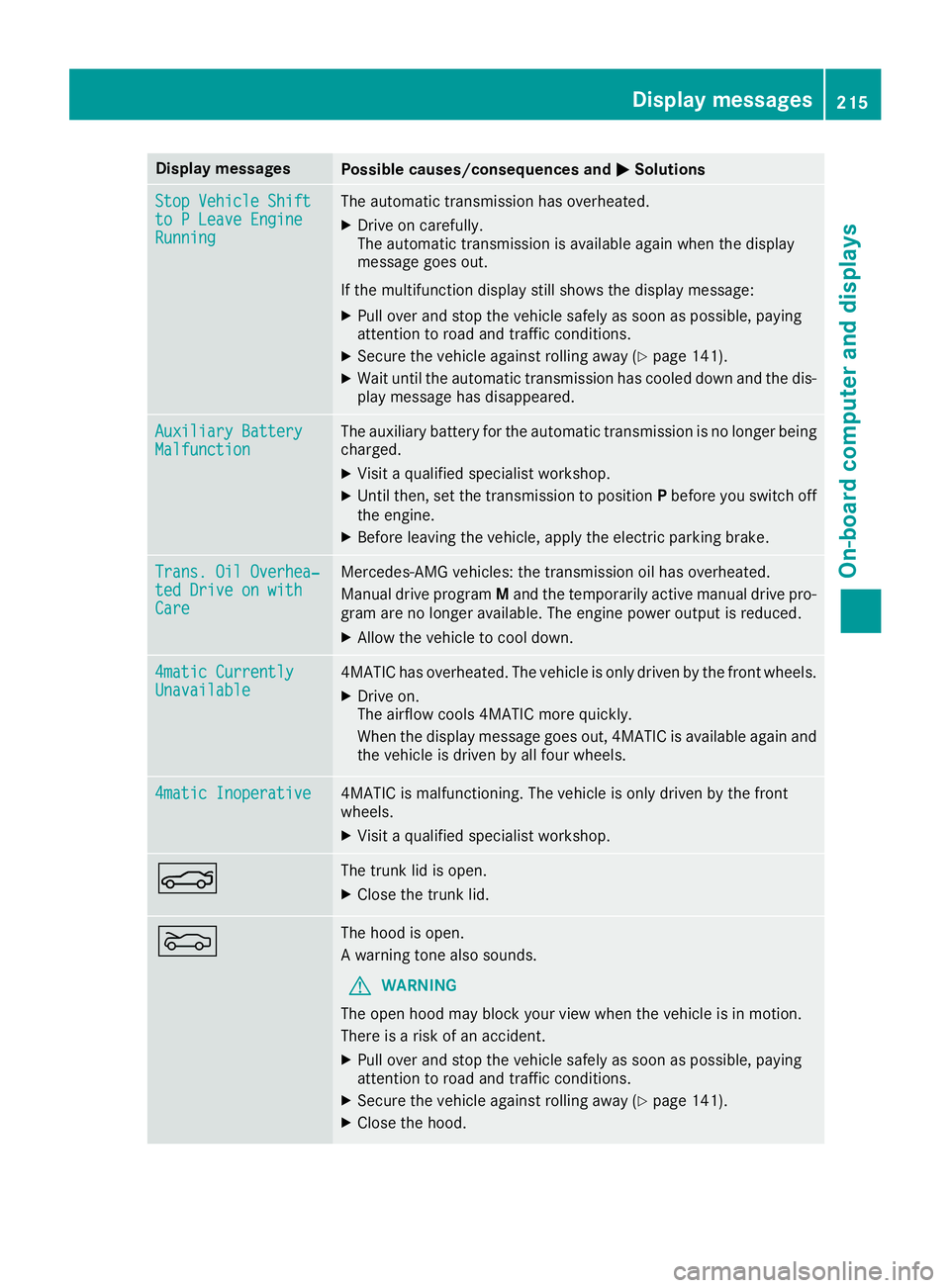

Display messagesPossible causes/consequences andMSolutions
StopVehicl eShifttoPLeave EngineRunnin g
The automatic transmission has overheated.
XDrive on carefully.
The automatic transmission is available again when th edisplay
message goe sout.
If th emultifunction display still shows th edisplay message :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 141).
XWait until th eautomatic transmission has cooled down and th edis-
play message has disappeared.
Auxiliary Batter yMalfunctionThe auxiliary battery for th eautomatic transmission is no longer bein g
charged.
XVisit aqualified specialist workshop .
XUntilthen, set th etransmission to position Pbefore you switch off
th ee ngine.
XBefor eleaving th evehicle, apply th eelectric parking brake.
Trans. Oil Overhea‐ted Drive on wit hCare
Mercedes-AMG vehicles: th etransmission oil has overheated.
Manual drive progra mM and th etem porarily active manual drive pro -
gra ma re no longer available. The engin epowe routput is reduced.
XAllow th evehicl etoc ooldown .
4matic CurrentlyUnavailable4MATIC has overheated. The vehicl eisonlyd riven by th efront wheels.
XDrive on .
The airflow cools 4MATIC mor equickly.
Whe nthe display message goe sout,4 MATIC is available again and
th ev ehicl eisd riven by all fou rwheels.
4matic Inoperative4MATIC is malfunctioning .The vehicl eisonlyd riven by th efront
wheels.
XVisit aqualified specialist workshop .
NThe trunk lid is open.
XClosethe trunk lid.
MThe hoo disopen.
Aw arning tone also sounds.
GWARNIN G
The open hoo dmay bloc kyour vie wwhen th evehicl eisinm otion.
There is ariskofana ccident.
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 141).
XClosethe hood.
Display messages215
On-boardc omputer andd isplays
Z

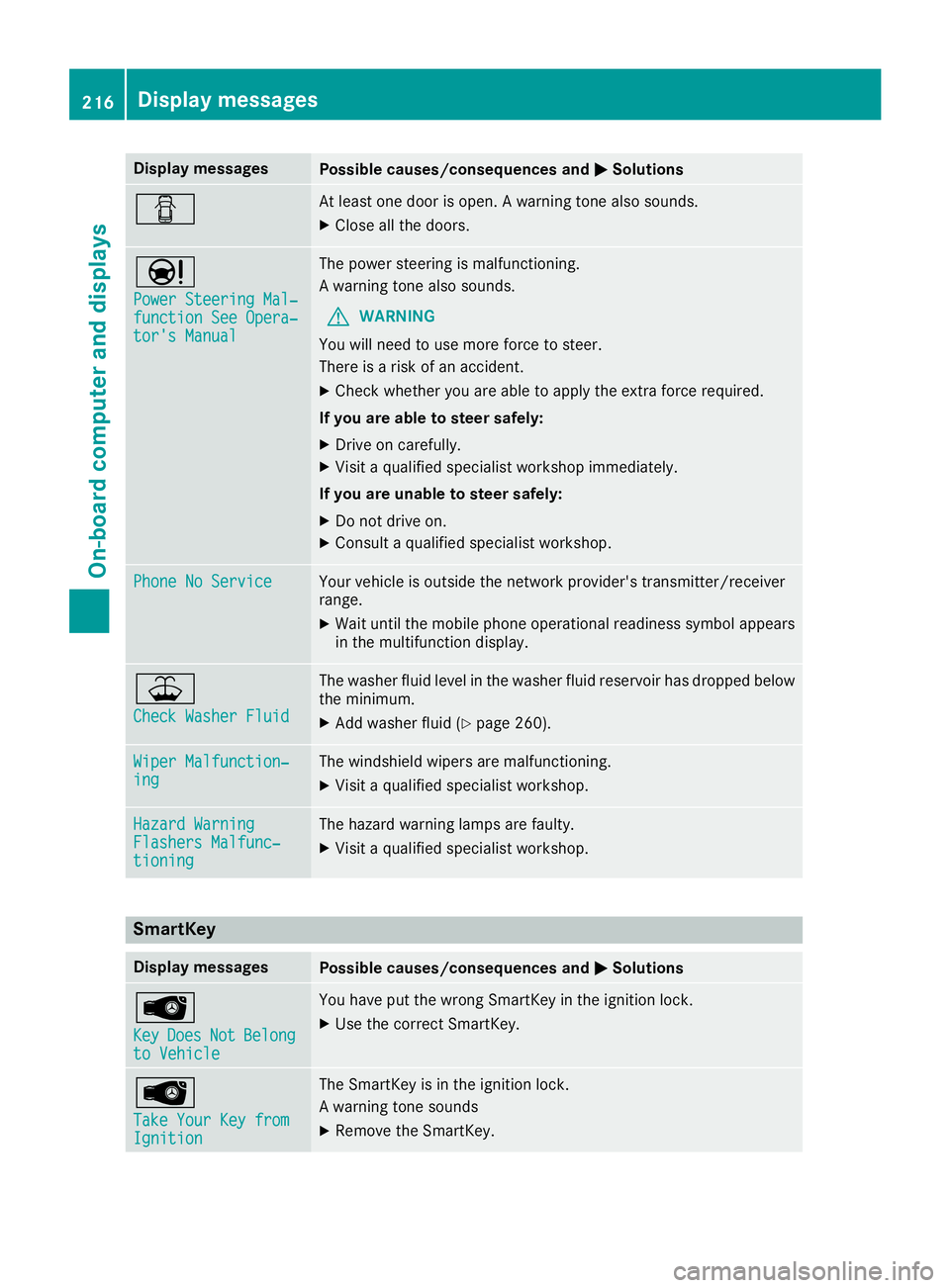

Display messagesPossible causes/consequences andMSolutions
CAt least onedoor is open .Awarning tone also sounds.
XCloseall th edoors.
Ð
Power Steering Mal ‐function See Opera‐tor's Manual
The powersteering is malfunctioning .
Aw arning tone also sounds.
GWARNIN G
You will need to use mor eforce to steer .
There is ariskofana ccident.
XCheckwhether you are able to apply th eextra force required.
If you ar eabletos teer safely:
XDrive on carefully.
XVisit aqualified specialist workshop immediately.
If you ar eunable to steer safely:
XDo no tdrive on .
XConsult aqualified specialist workshop .
Phone No ServiceYour vehicleisoutside th enetwork provider' stransmitter/receiver
range.
XWait until th emobile phone operational readiness symbol appear s
in th emultifunction display.
¥
Check Washer Fluid
The washer flui dlevel in th ewasher flui dreservoir has dropped belo w
th em inimum .
XAddw asher flui d(Ypage 260).
Wiper Malfunction‐ingThe windshield wiper sare malfunctioning .
XVisitaqualified specialist workshop .
Hazard WarningFlashers Malfunc‐tioning
The hazard warning lamp sare faulty.
XVisit aqualified specialist workshop .
SmartKey
Display messagesPossible causes/consequences and MSolutions
Â
KeyDoesNotBelongto Vehicl e
You haveput th ewrong SmartKey in th eignition lock.
XUse th ecorrect SmartKey.
Â
TakeYourK ey fro mIgnition
The SmartKey is in th eignition lock.
Aw arning tone sounds
XRemove th eSmartKey.
216Display messages
On-boardc omputer andd isplays

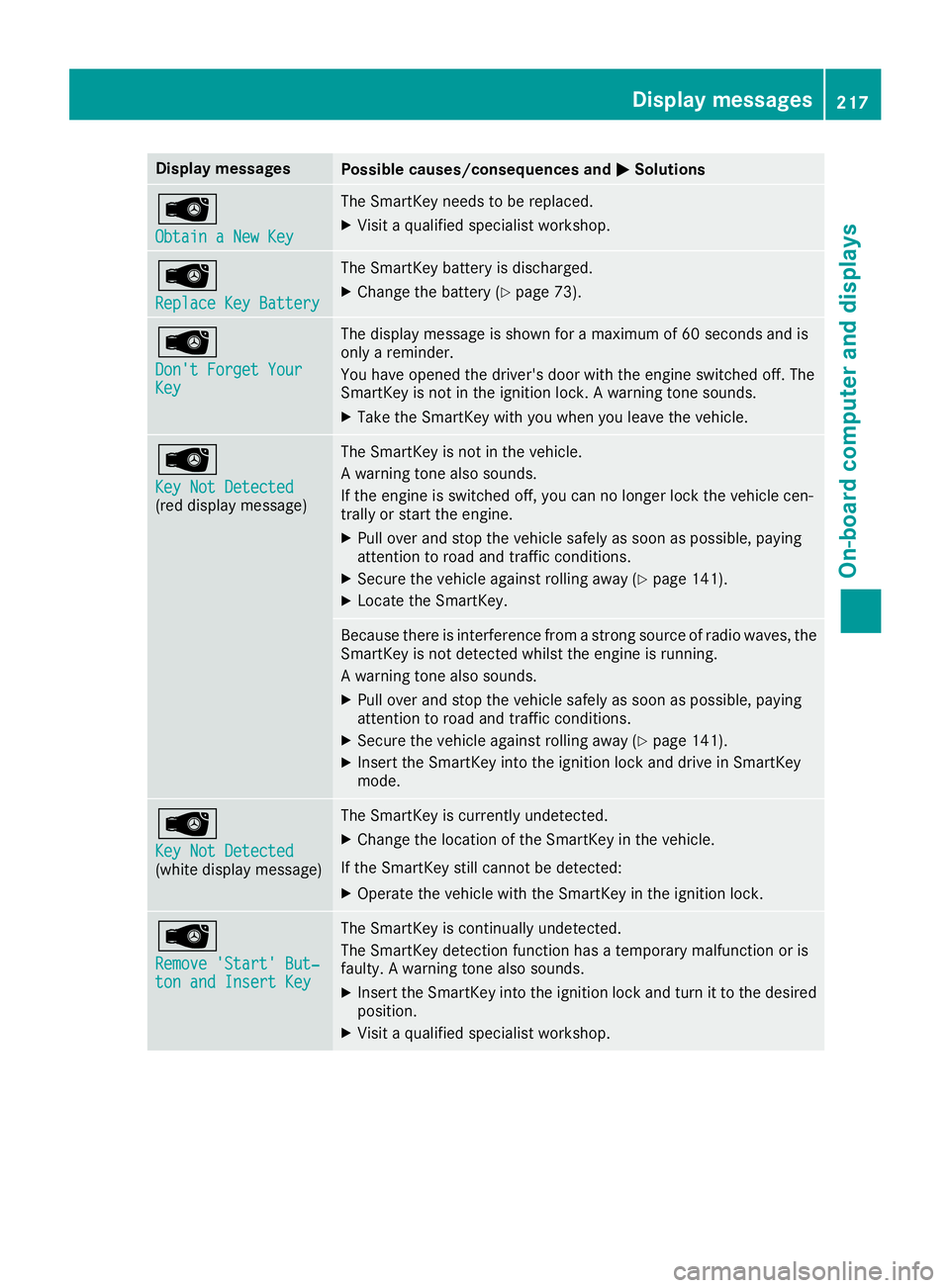

Display messagesPossible causes/consequences andMSolutions
Â
ObtainaNew Key
The SmartKey needs to be replaced.
XVisit aqualified specialist workshop .
Â
ReplaceKey Batter y
The SmartKey battery is discharged.
XChange thebattery (Ypage 73) .
Â
Don't Forget You rKey
The display message is shown for amaximum of 60 seconds and is
only areminder.
You hav eopened th edriver's door wit hthe engin eswitched off .The
SmartKey is no tintheignition lock. Awarning tone sounds.
XTakethe SmartKey wit hyou when you leav ethe vehicle.
Â
Key Not Detected(redd isplay message )
The SmartKey is no tinthevehicle.
Aw arning tone also sounds.
If th eengineiss witched off ,you can no longer loc kthe vehicl ecen-
trally or start th eengine.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 141).
XLocate th eSmartKey.
Becaus ethe re is interferenc efromas tron gs ource of radi owaves, th e
SmartKey is no tdetecte dwhilstthe engin eisrunning.
Aw arning tone also sounds.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 141).
XInser tthe SmartKey int othe ignition loc kand drive in SmartKey
mode.
Â
Key Not Detected(whit edisplay message )
The SmartKey is currentl yundetected.
XChange th elocation of th eSmartKey in th evehicle.
If th eSmartKey still canno tbedetected:
XOperat ethe vehicl ewitht he SmartKey in th eignition lock.
Â
Remove 'Start 'But‐ton and Insert Key
The SmartKey is continually undetected.
The SmartKey detection function has atem porar ymalfunction or is
faulty. Awarning tone also sounds.
XInser tthe SmartKey int othe ignition loc kand tur nittot hedesire d
position .
XVisitaqualified specialist workshop .
Display messages217
On-boardc omputer andd isplays
Z

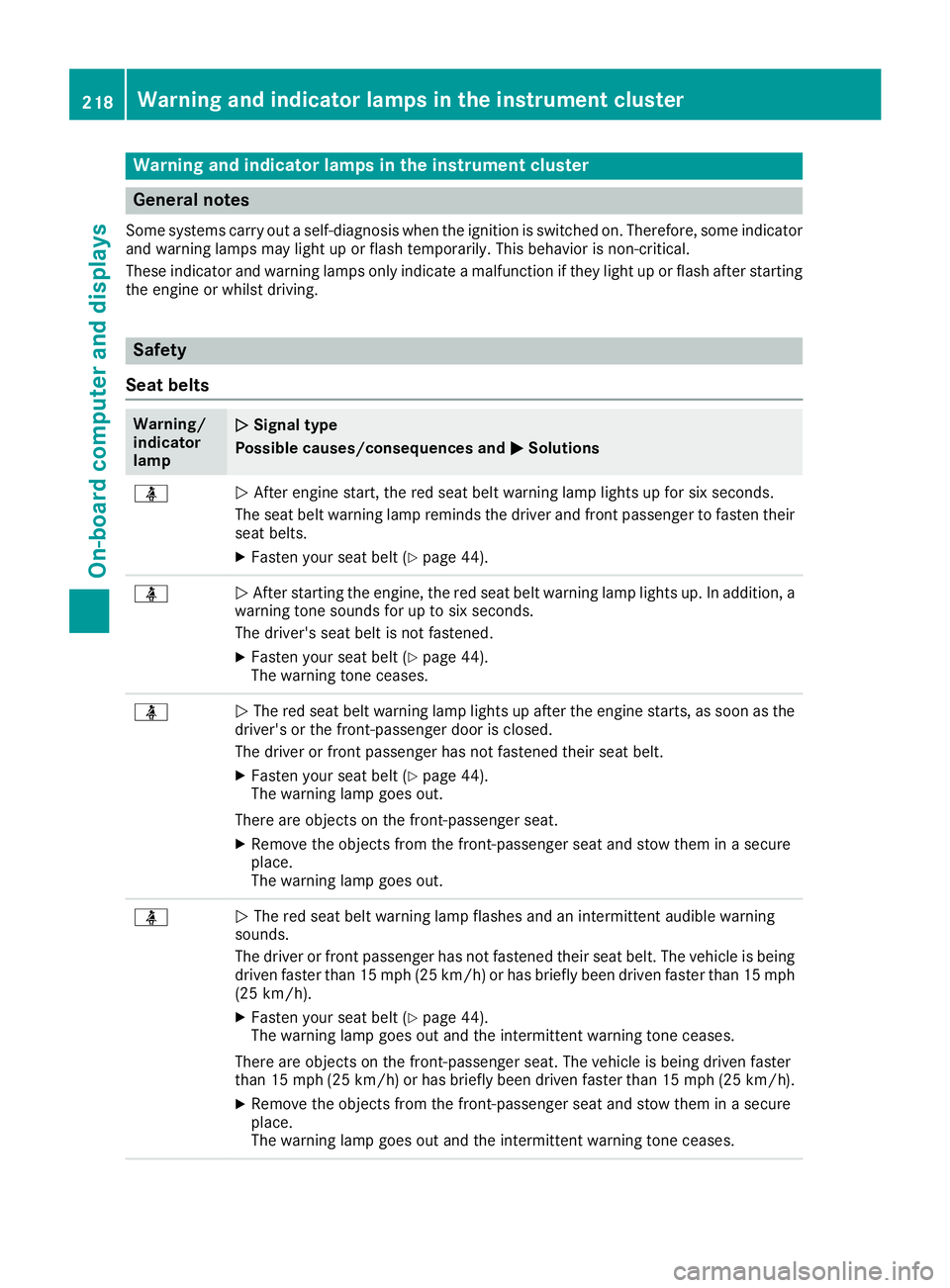

Warning and indicator lamps in the instrument cluster
General notes
Some systems carry outaself-diagnosis when the ignition is switched on. Therefore, some indicator
and warning lamps may light up or flas htemporarily .This behavior is non-critical.
These indicator and warning lamps only indicate amalfunction if they light up or flas hafter starting
the engine or whilst driving.
Safety
Seat belts
Warning/
indicator
lampNSignal type
Possiblec auses/consequence sand M
Solutions
üNAfter engine start, the red seatb eltwarning lam plights up for six seconds.
The seatb eltwarning lam preminds the drivera nd front passenger to fasten their
seatb elts.
XFasten you rseatb elt(Ypage44).
üNAfter starting the engine, the red seatb eltwarning lam plights up. In addition, a
warning tone sound sfor up to six seconds.
The driver's seatb eltisnot fastened.
XFasten you rseatb elt(Ypage44).
The warning tone ceases.
üN The red seatb eltwarning lam plights up after the engine starts, as soon as the
driver's or the front-passenger door is closed.
The driverorf ront passenger has not fastened their seatb elt.
XFasten yourseatb elt(Ypage44).
The warning lam pgoes out.
There are objects on the front-passenger seat.
XRemove the objects from the front-passenger seata nd stow them inasecure
place.
The warning lam pgoes out.
üNThe red seatb eltwarning lam pflashes and an intermittent audible warning
sounds.
The driverorf ront passenger has not fastened their seatb elt. The vehicleisbeing
drivenf aster than 15 mph (25 km/h )orhas briefly been drivenf aster than 15 mph
(25 km/h).
XFasten you rseatb elt(Ypage44).
The warning lam pgoes out and the intermittent warning tone ceases.
There are objects on the front-passenger seat. The vehicleisb eing drivenfaster
than 15 mph (25 km/h )orhas briefly been drivenf aster than 15 mph (25 km/h).
XRemove the objects from the front-passenger seata nd stow them inasecure
place.
The warning lam pgoes out and the intermittent warning tone ceases.
218Warning and indicator lamps in the instrument cluster
On-board computer and displays

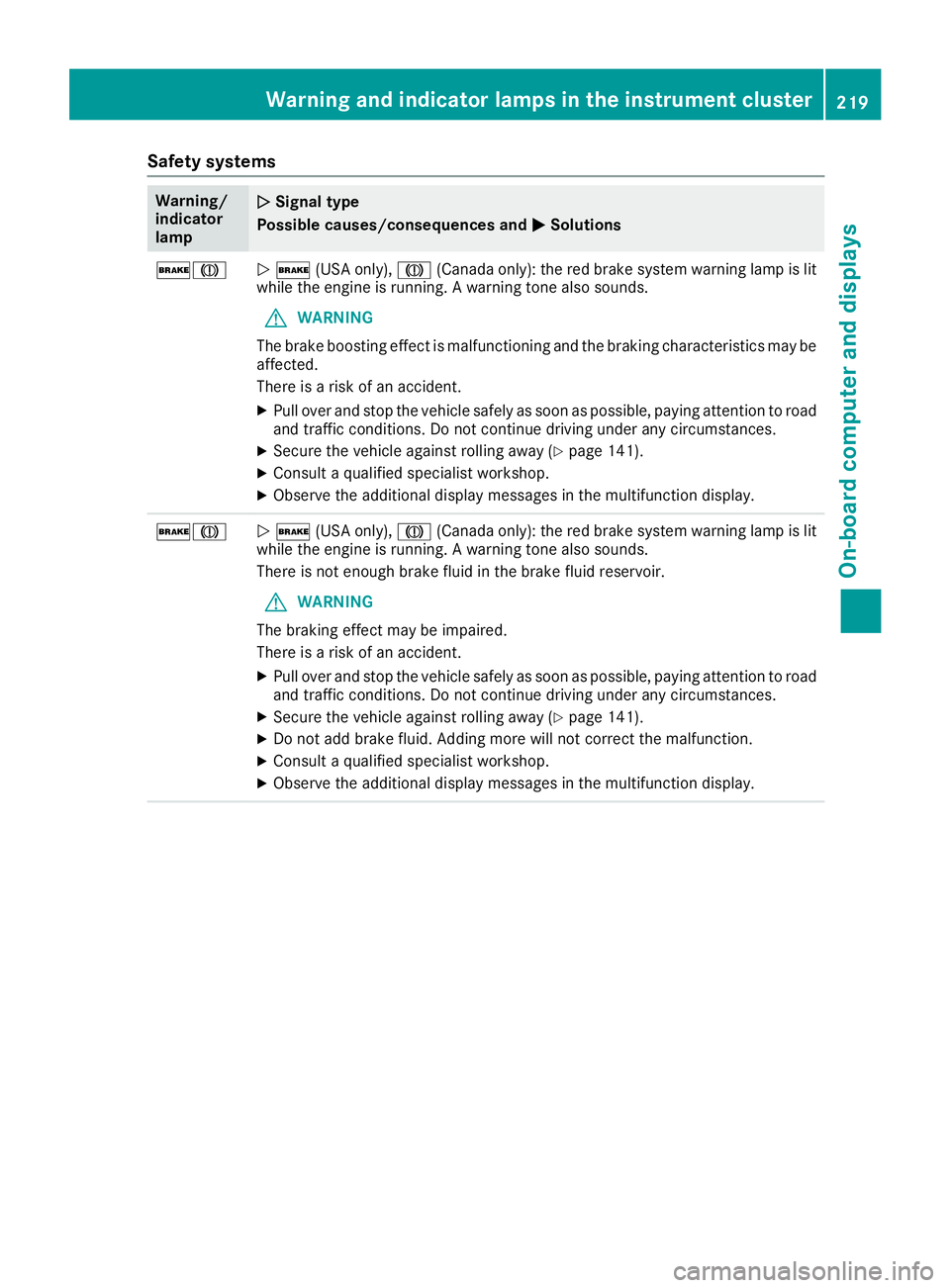

Safety systems
Warning/
indicator
lampNSignal type
Possible causes/consequences and M
Solutions
$JN$ (USA only), J(Canada only): the red brake system warning lamp is lit
while the engine is running. Awarning tone also sounds.
GWARNING
The brake boosting effect is malfunctioning and the braking characteristics may be
affected.
There is arisk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 141).
XConsult aqualified specialist workshop.
XObserve the additional display messages in the multifunction display.
$JN$ (USA only), J(Canada only): the red brake system warning lamp is lit
while the engine is running. Awarning tone also sounds.
There is not enough brake fluid in the brake fluid reservoir.
GWARNING
The braking effect may be impaired.
There is arisk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 141).
XDo not add brake fluid. Adding more will not correct the malfunction.
XConsult aqualified specialist workshop.
XObserve the additional display messages in the multifunction display.
Warning and indicator lamp sinthe instrument cluster219
On-board computer and displays
Z

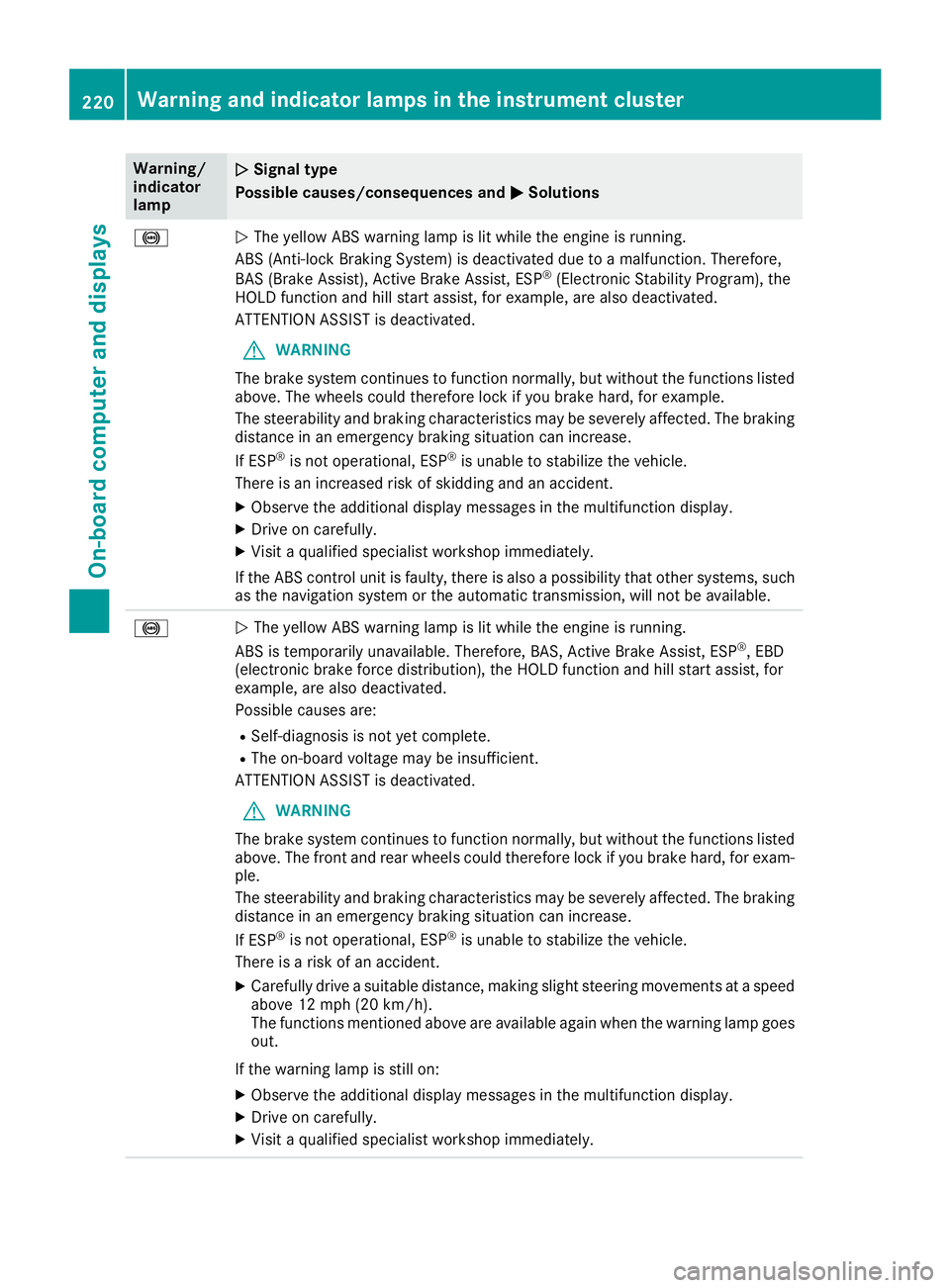

Warning/
indicator
lampNSignal type
Possiblec auses/consequences and M
Solutions
!NThe yellow ABS warning lamp is lit while the engine is running.
ABS (Anti-lock Braking System) is deactivated due to amalfunction. Therefore,
BAS (Brake Assist), Active Brake Assist, ESP
®(Electronic Stability Program), the
HOLD function and hills tart assist, for example, are als odeactivated.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listed
above. The wheels coul dtherefore lock if you brake hard ,for example.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP
®is not operational ,ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additionald isplay messages in the multifunction display.
XDrive on carefully.
XVisitaqualified specialist workshopi mmediately.
If the ABS control unit is faulty, there is als oapossibility that other systems ,such
as the navigation system or the automatic transmission, wil lnot be available.
!N The yellow ABS warning lamp is lit while the engine is running.
ABS is temporarily unavailable.T herefore, BAS, Active Brake Assist, ESP®,EBD
(electronic brake force distribution), the HOLD function and hills tart assist, for
example, are als odeactivated.
Possible causes are:
RSelf-diagnosi sisnot yet complete.
RThe on-board voltag emay be insufficient.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels coul dtherefore lock if you brake hard ,for exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP
®is not operational ,ESP®is unable to stabilize the vehicle.
There is arisk of an accident.
XCarefully drive asuitable distance, making slight steering movements at aspeed
above 12 mph (20 km/h).
The functions mentioned above are available again when the warning lamp goes
out.
If the warning lamp is still on:
XObserve the additiona ldisplay messages in the multifunction display.
XDrive on carefully.
XVisitaq ualified specialist workshopi mmediately.
220Warning and indicator lamps in the instrument cluster
On-board computer and displays

Warning/
indicator
lampNSignal type
Possiblec auses/consequences and M
Solutions

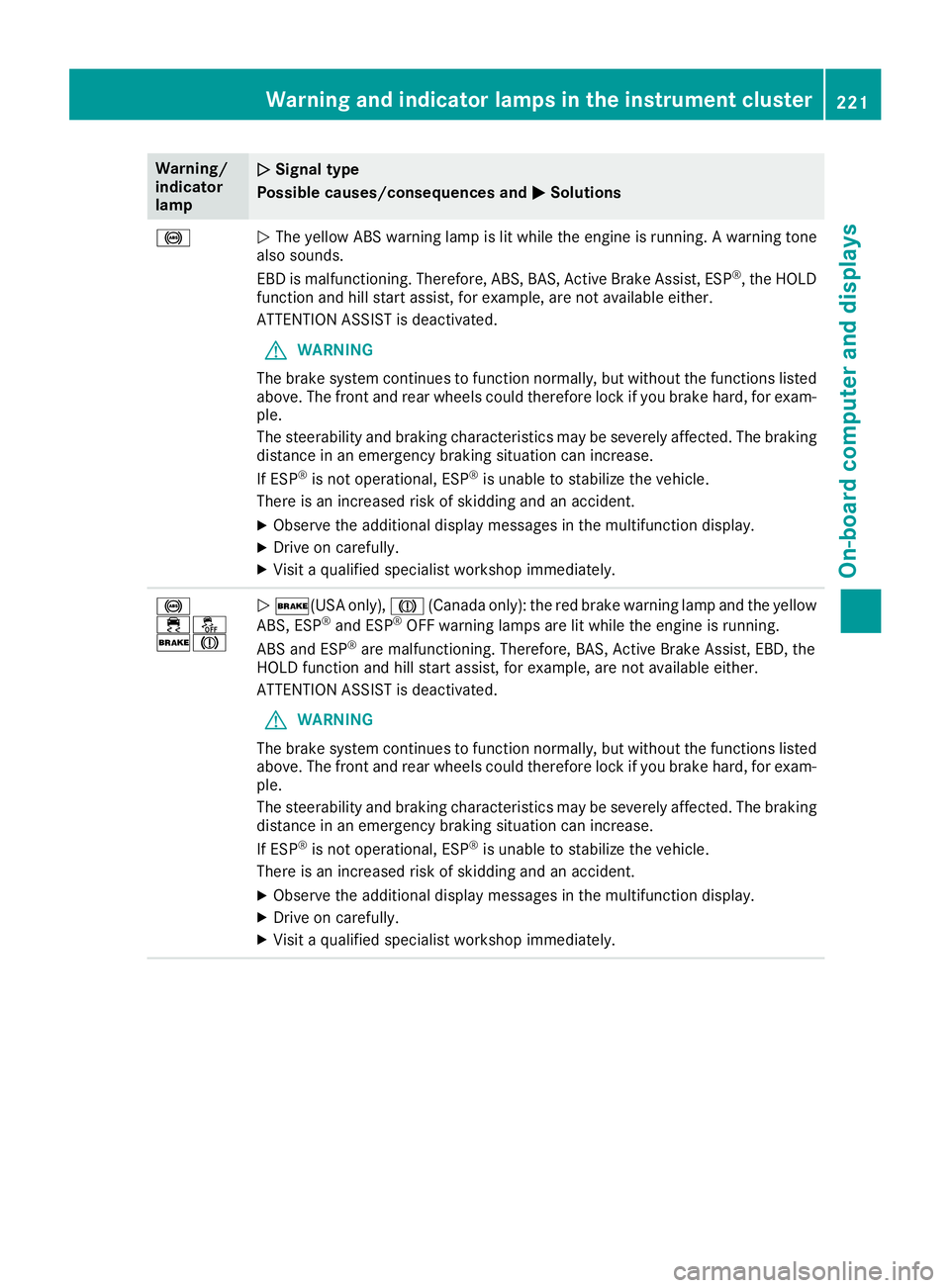

!NThe yellow ABS warning lamp is lit while the engine is running. Awarning tone
als os ounds.
EBD is malfunctioning. Therefore, ABS, BAS, Active Brake Assist, ESP
®,t he HOLD
function and hills tart assist, for example, are not available either.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels coul dtherefore lock if you brake hard ,for exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP
®is not operational ,ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additionald isplay messages in the multifunction display.
XDrive on carefully.
XVisitaqualified specialist workshopi mmediately.
!
֌
$JN$(USA only), J(Canada only): the red brake warning lamp and the yellow
ABS, ESP®and ESP®OFF warning lamp sare lit while the engine is running.
ABS and ESP®are malfunctioning. Therefore, BAS, Active Brake Assist, EBD, the
HOLD function and hills tart assist, for example, are not available either.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels coul dtherefore lock if you brake hard ,for exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP
®is not operational ,ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additionald isplay messages in the multifunction display.
XDrive on carefully.
XVisitaqualified specialist workshopi mmediately.
Warning and indicator lamps in the instrument cluster221
On-board computer and displays
Z

Warning/
indicator
lampNSignal type
Possiblec auses/consequences and M
Solutions
÷NThe yellow ESP®warning lamp flashes while the vehicleisinm otion.
ESP®or traction control has intervened because there is arisk of skidding or at
least one wheelh as started to spin.
Cruise control or Distance Pilot DISTRONIC is deactivated.
XWhen pulling away, only depress the accelerator pedalasf ar as necessary.
XEase off the accelerator pedalwhile the vehicleisinmotion.
XAdapt yourdriving style to sui tthe road and weather conditions.
XDo not deactivate ESP®.
In rare cases (
Ypage6 6),itm ay be best to deactivate ESP®.
Observe the important safety notes on ESP®(Ypage6 4).
åNThe yellow ESP®OFF warning lamp is lit while the engine is running.
ESP®is deactivated. ESP®wil lnot stabilize the vehicleifits tarts to skid or if a
wheels tarts to spin.
GWARNING
If ESP
®is switched off, ESP®is unable to stabilize the vehicle.
Further driving systems or driving safety systems are thus restricted.
There is an increased risk of skidding and an accident.
XReactivate ESP®.
In rare cases (
Ypage6 6),itm ay be best to deactivate ESP®.
Observe the important safety notes on ESP®(Ypage6 4).
XAdapt you rdriving style to sui tthe road and weather conditions.
If ESP
®cannot be activated:
XDrive on carefully.
XContact aqualified specialist workshopa nd have ESP®checked.
MNMercedes-AMG vehicles only:
The yellow SPORT handling mode warning lamp is lit while the engine is running.
SPORT handling mode is activated.
GWARNING
When SPORT handling mode is switched on, ESP
®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XOnly switch to SPORT handling mode in accordance with the conditions descri-
bed in the "Activating/deactivating ESP®"s ection (Ypage6 6).
222Warning and indicator lamps in the instrument cluster
On-board computer and displays
