2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

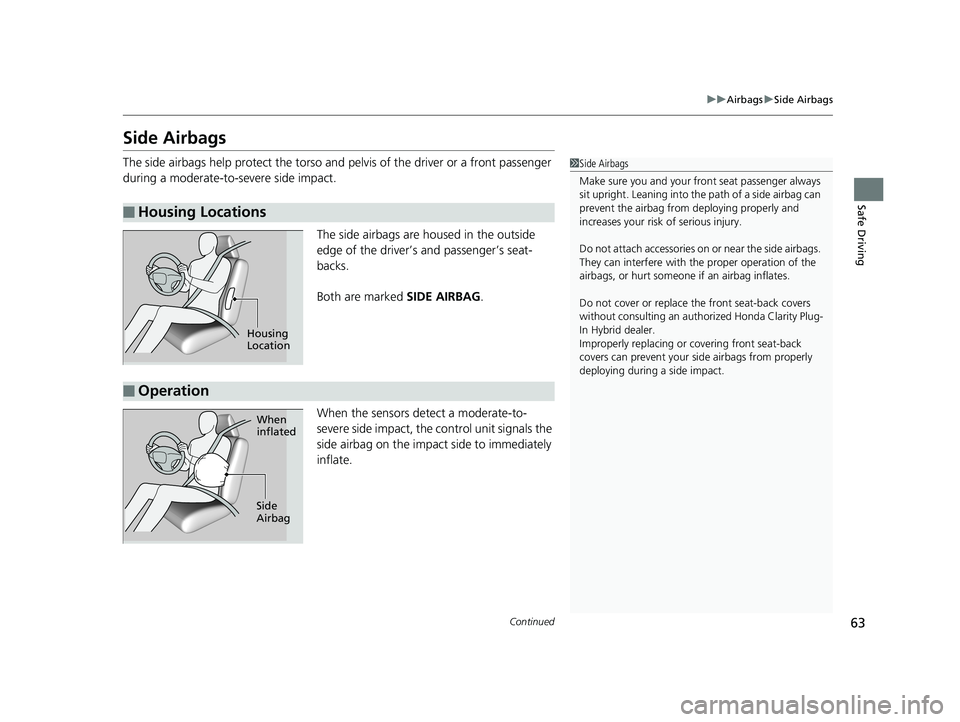

63 uu Airbags u Side Airbags
Continued
Safe Driving
Side Airbags The side airbags help protect the torso and pelvis of the driver or a front passenger
during a moderate-to-severe side impact.
The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.
Both are marked SIDE AIRBAG .
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.■ Housing Locations 1 Side Airbags
Make sure you and your front seat passenger always
sit upright. Leaning into the path of a side airbag can
prevent the airbag from deploying properly and
increases your risk of serious injury.
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
Do not cover or replace the front seat-back covers
without consulting an author ized Honda Clarity Plug-
In Hybrid dealer.
Improperly replac ing or covering front seat-back
covers can prevent your si de airbags from properly
deploying during a side impact.Housing
Location
■ Operation When
inflated
Side
Airbag18 CLARITY PHEV CSS-31TRW6000.book 63 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

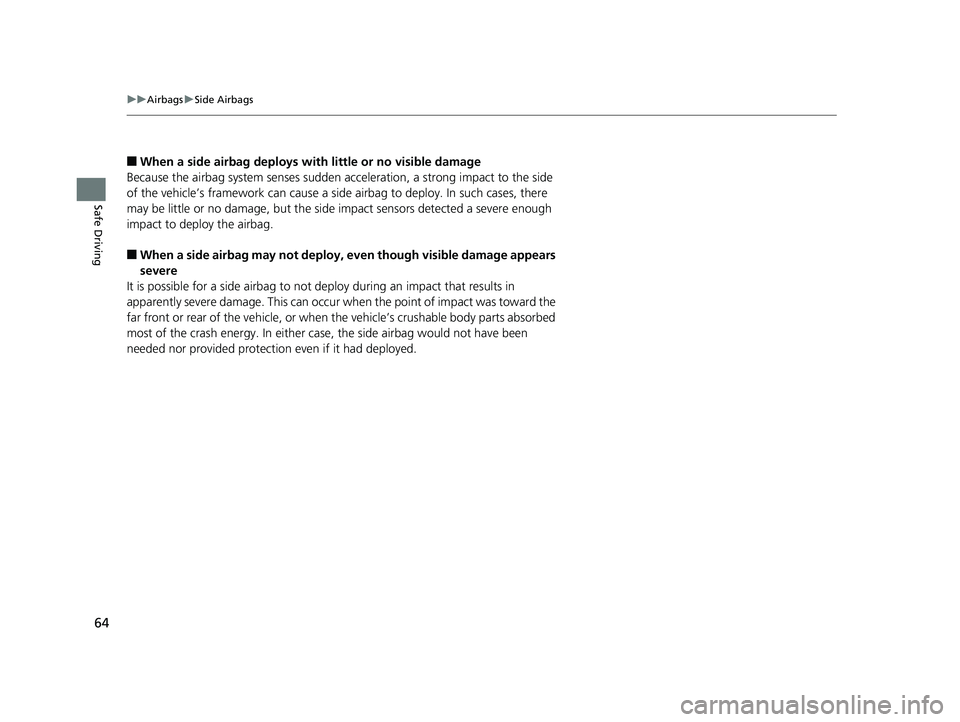

64 uu Airbags u Side Airbags
Safe Driving ■ When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■ When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag wo uld not have been
needed nor provided protection even if it had deployed.18 CLARITY PHEV CSS-31TRW6000.book 64 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

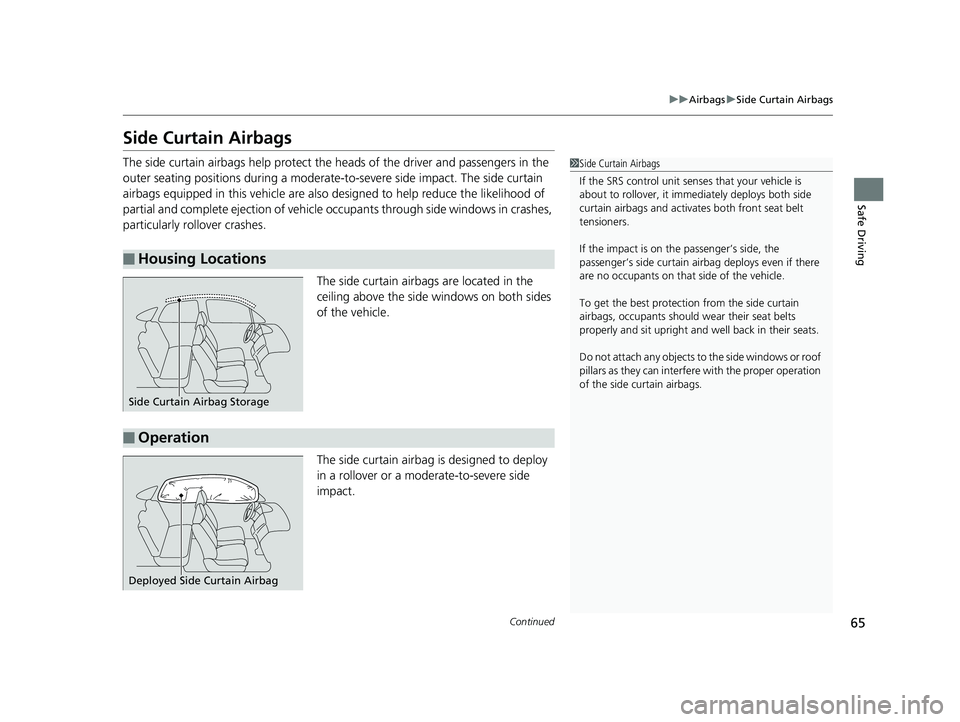

65 uu Airbags u Side Curtain Airbags
Continued
Safe Driving
Side Curtain Airbags The side curtain airbags help protect the heads of the driver and passengers in the
outer seating positions during a moderate-to -severe side impact. The side curtain
airbags equipped in this vehicle are also de signed to help reduce the likelihood of
partial and complete ejection of vehicle occupants through side windows in crashes,
particularly rollover crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.■ Housing Locations 1 Side Curtain Airbags
If the SRS control unit sens es that your vehicle is
about to rollover, it imme diately deploy s both side
curtain airbags and activates both front seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airb ag deploys even if there
are no occupants on that side of the vehicle.
To get the best protecti on from the side curtain
airbags, occupants should wear their seat belts
properly and sit upr ight and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■ Operation
Deployed Side Curtain Airbag18 CLARITY PHEV CSS-31TRW6000.book 65 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

uu Airbags u Airbag System Indicators
66
Safe Driving ■ When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the driver information interface.
■ When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by an authorized Honda Cl arity Plug-In Hybrid dealer as soon as
possible. If you don’t, your airbags and se at belt tensioners may not work properly
when they are needed.■ Supplemental Restraint System (SRS) Indicator 1 Supplemental Restraint Sy stem (SRS) Indicator
3
WARNING Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicl e checked by an
authorized Honda Clar ity Plug-In Hybrid
dealer as soon as possible if the SRS
indicator alerts you to a possible problem.18 CLARITY PHEV CSS-31TRW6000.book 66 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

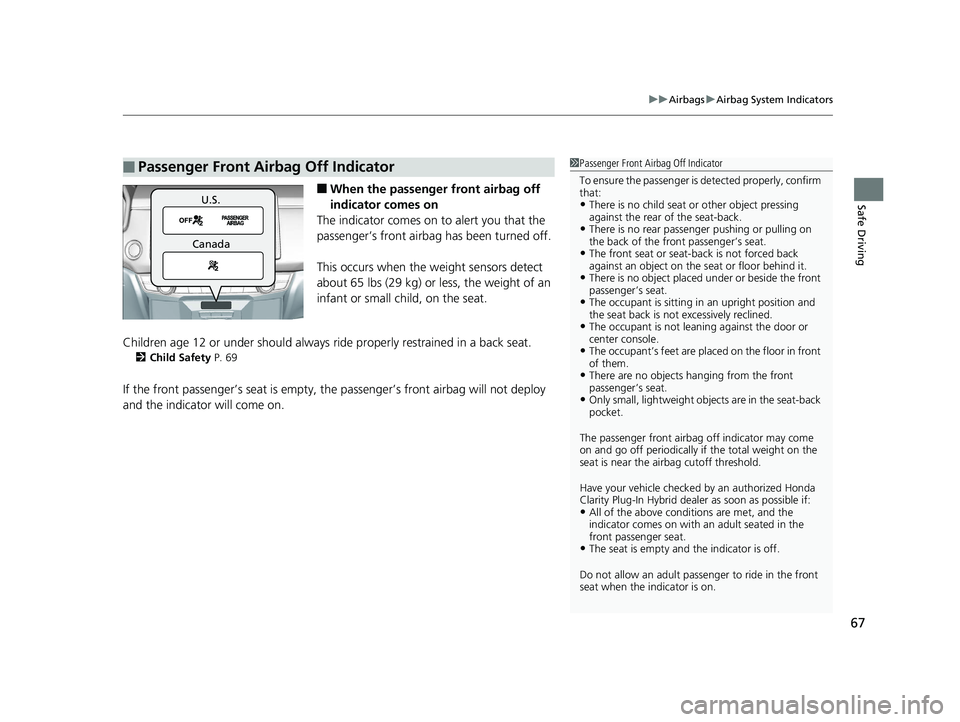

67 uu Airbags u Airbag System Indicators
Safe Driving
■ When the passenger front airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the weight sensors detect
about 65 lbs (29 kg) or less, the weight of an
infant or small child, on the seat.
Children age 12 or under shou ld always ride properly restrained in a back seat.2 Child Safety P. 69
If the front passenger’s seat is empty, th e passenger’s front airb ag will not deploy
and the indicator will come on.■ Passenger Front Airbag Off Indicator 1 Passenger Front Airbag Off Indicator
To ensure the passenger is detected properly, confirm
that:
• There is no child seat or other object pressing
against the rear of the seat-back.
• There is no rear passenger pushing or pulling on
the back of the front passenger’s seat.
• The front seat or seat-b ack is not forced back
against an object on the s eat or floor behind it.
• There is no object placed under or beside the front
passenger’s seat.
• The occupant is sitting in an upright position and
the seat back is not excessively reclined.
• The occupant is not leaning against the door or
center console.
• The occupant’s feet are plac ed on the floor in front
of them.
• There are no objects ha nging from the front
passenger’s seat.
• Only small, lightweight objects are in the seat-back
pocket.
The passenger front airbag off indicator may come
on and go off periodically if the total weight on the
seat is near the airbag cutoff threshold.
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid deal er as soon as possible if:
• All of the above conditions are met, and the
indicator comes on with an adult seated in the
front passenger seat.
• The seat is empty and the indicator is off.
Do not allow an adult passe nger to ride in the front
seat when the indicator is on.U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 67 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

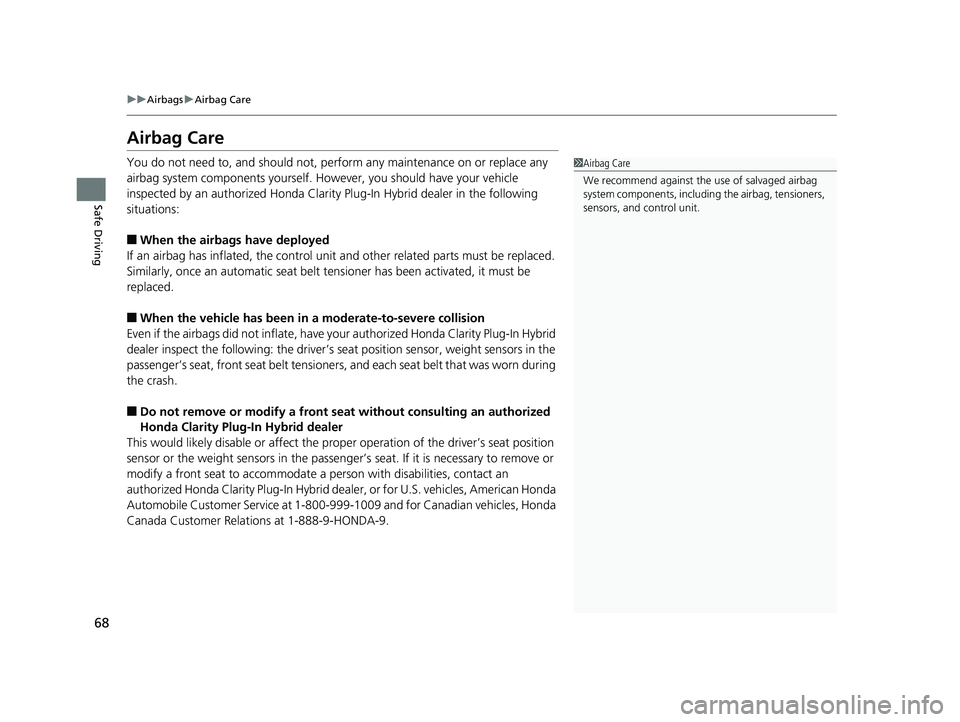

68 uu Airbags u Airbag Care
Safe Driving Airbag Care You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by an authorized Honda Clarity Plug-In Hybrid dealer in the following
situations:
■ When the airbags have deployed
If an airbag has inflated, th e control unit and other related parts must be replaced.
Similarly, once an automatic seat belt te nsioner has been activated, it must be
replaced.
■ When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have y our authorized Honda Clarity Plug-In Hybrid
dealer inspect the following: the driver’s seat position sensor, weight sensors in the
passenger’s seat, front seat belt tensioners , and each seat belt that was worn during
the crash.
■ Do not remove or modify a front seat without cons ulting an authorized
Honda Clarity Plug-In Hybrid dealer
This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenger ’s seat. If it is necessary to remove or
modify a front seat to accommodate a person with disabilities, contact an
authorized Honda Clarity Plug-In Hybrid deal er, or for U.S. vehicles, American Honda
Automobile Customer Service at 1-800-999-1009 and for Canadian vehicles, Honda
Canada Customer Relations at 1-888-9-HONDA-9. 1 Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.18 CLARITY PHEV CSS-31TRW6000.book 68 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

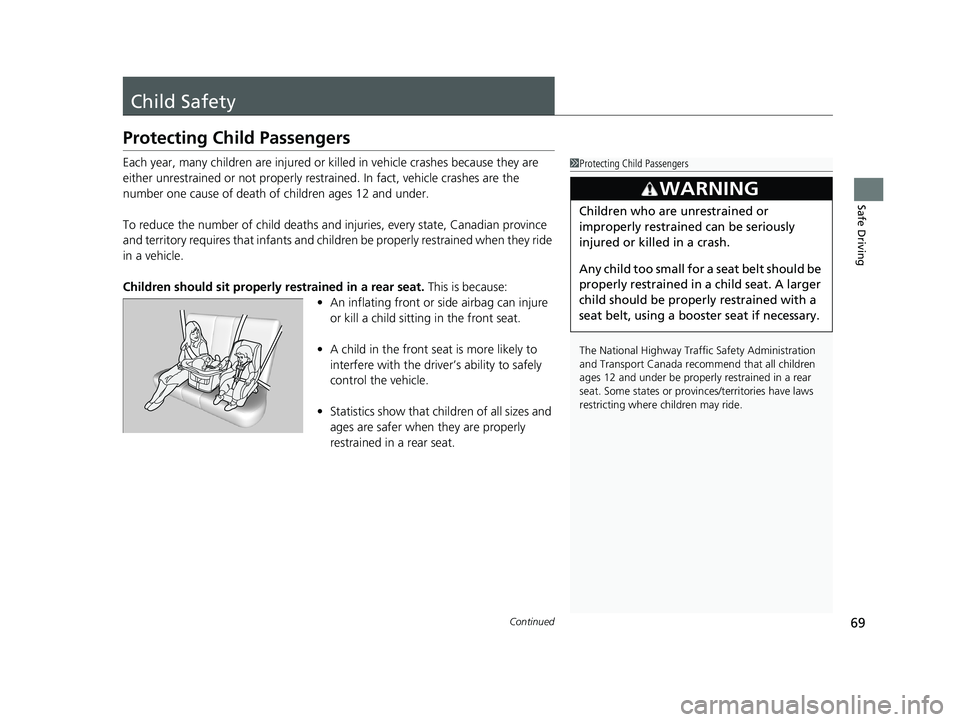

69Continued
Safe Driving
Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly res trained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and childre n be properly restrained when they ride
in a vehicle.
Children should sit properly restrained in a rear seat. This is because:
• An inflating front or side airbag can injure
or kill a child sitting in the front seat.
• A child in the front seat is more likely to
interfere with the driver’s ability to safely
control the vehicle.
• Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat. 1 Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada reco mmend that all children
ages 12 and under be properl y restrained in a rear
seat. Some states or provin ces/territories have laws
restricting where ch ildren may ride.3
WARNING Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be proper ly restrained with a
seat belt, using a booster seat if necessary.18 CLARITY PHEV CSS-31TRW6000.book 69 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

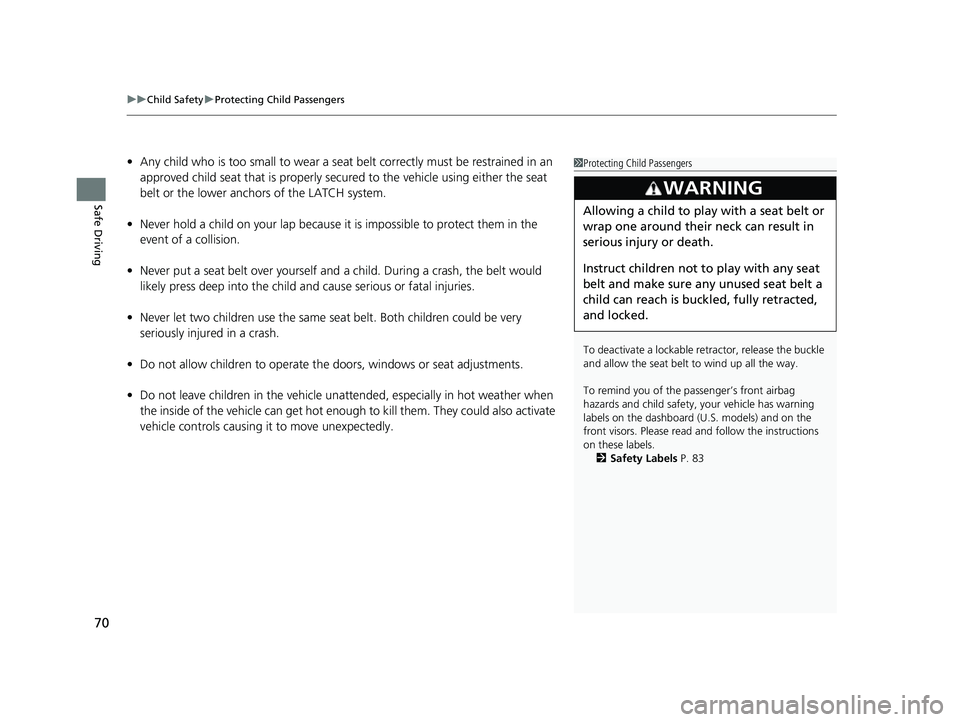

uu Child Safety u Protecting Child Passengers
70
Safe Driving • Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secu red to the vehicle using either the seat
belt or the lower anchor s of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly. 1 Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.
2 Safety Labels P. 833
WARNING Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.18 CLARITY PHEV CSS-31TRW6000.book 70 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分
