2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

279uu Audio System Basic Operation u Apple CarPlay
Features

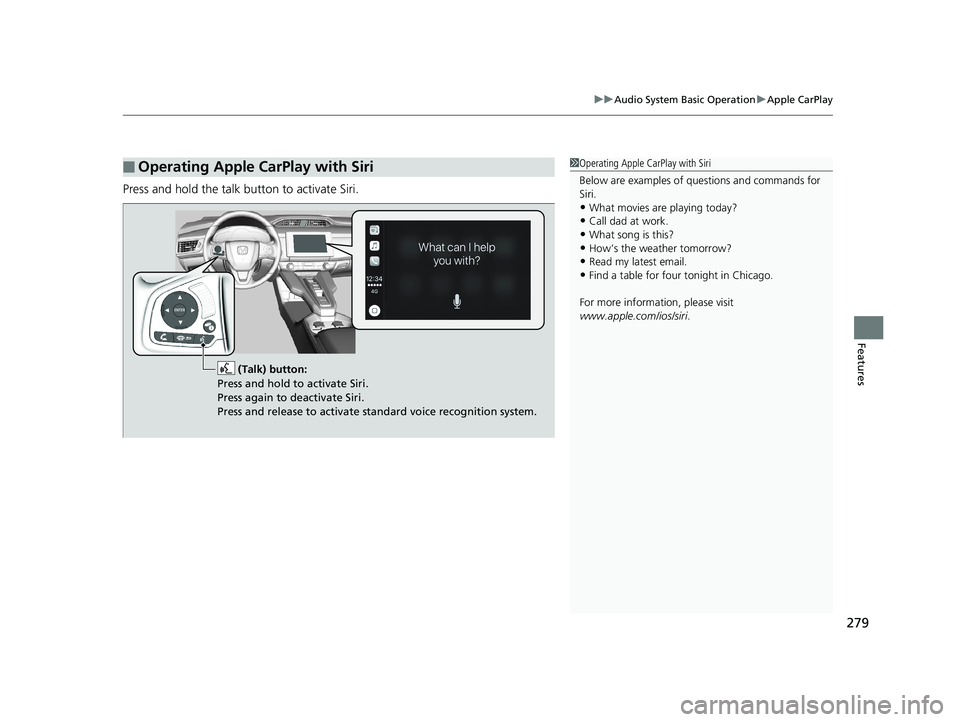

Press and hold the talk bu tton to activate Siri.
■ Operating Apple CarPlay with Siri 1 Operating Apple CarPlay with Siri
Below are examples of questions and commands for
Siri.
• What movies are playing today?
• Call dad at work.
• What song is this?
• How’s the weather tomorrow?
• Read my latest email.
• Find a table for four tonight in Chicago.
For more information, please visit
www.apple.com/ios/siri .
(Talk) button:
Press and hold to activate Siri.
Press again to deactivate Siri.
Press and release to activate standard voice recognition system.18 CLARITY PHEV CSS-31TRW6000.book 279 ページ ２０１７年８月３１日　木曜日　午後２時４９分

280 uu Audio System Basic Operation u Android Auto

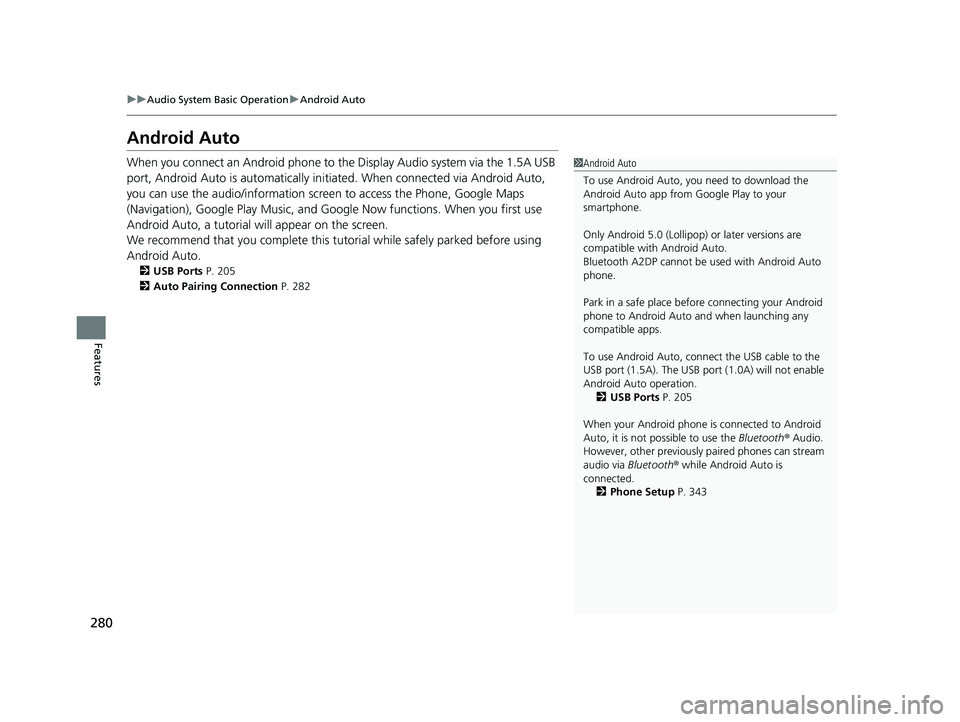

Features Android Auto When you connect an Android phone to the Display Audio system via the 1.5A USB
port, Android Auto is automatically initiated. When connected via Android Auto,
you can use the audio/information screen to access the Phone, Google Maps
(Navigation), Google Play Music, and Google Now functions. When you first use
Android Auto, a tutorial w ill appear on the screen.
We recommend that you complete this tuto rial while safely parked before using
Android Auto. 2 USB Ports P. 205
2 Auto Pairing Connection P. 282 1 Android Auto
To use Android Auto, you need to download the
Android Auto app from Google Play to your
smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used with Android Auto
phone.
Park in a safe place befo re connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
USB port (1.5A). The USB port (1.0A) will not enable
Android Auto operation.
2 USB Ports P. 205
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth ® Audio.
However, other previously paired phones can stream
audio via Bluetooth ® while Android Auto is
connected.
2 Phone Setup P. 34318 CLARITY PHEV CSS-31TRW6000.book 280 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
281uu Audio System Basic Operation u Android Auto
Features

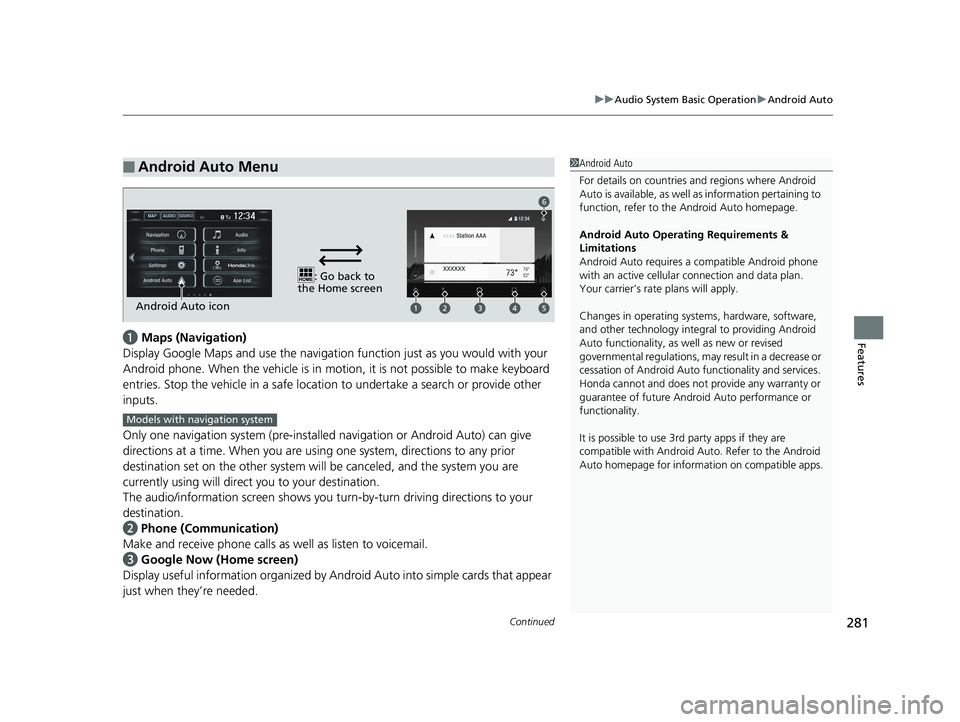

a Maps (Navigation)
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe locati on to undertake a search or provide other
inputs.
Only one navigation system (pre-installed navigation or Android Auto) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
The audio/information screen shows you turn-by-turn dr iving directions to your
destination.
b Phone (Communication)
Make and receive phone calls as well as listen to voicemail.
c Google Now (Home screen)
Display useful information organized by Android Auto into simple cards that appear
just when they’re needed.■ Android Auto Menu 1 Android Auto
For details on c ountries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.
Android Auto Operating Requirements &
Limitations
Android Auto requires a compatible Android phone
with an active cellular connection and data plan.
Your carrier’s rate plans will apply.
Changes in operating system s, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not pr ovide any warranty or
guarantee of future Android Auto performance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for informat ion on compatible apps.: Go back to
the Home screen
Android Auto icon 6
Models with navigation system18 CLARITY PHEV CSS-31TRW6000.book 281 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Android Auto
282

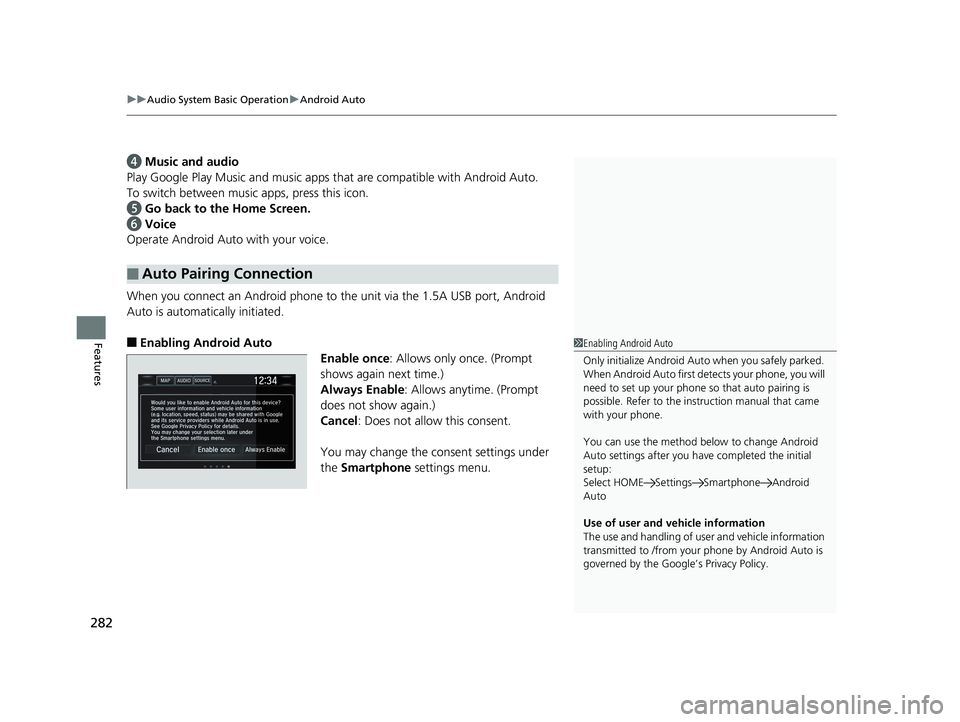

Features d Music and audio
Play Google Play Music and music apps that are compat ible with Android Auto.
To switch between music apps, press this icon.
e Go back to the Home Screen.
f Voice
Operate Android Auto with your voice.
When you connect an Android phone to the unit via the 1.5A USB port, Android
Auto is automatically initiated.
■ Enabling Android Auto
Enable once : Allows only once. (Prompt
shows again next time.)
Always Enable : Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under
the Smartphone settings menu.■ Auto Pairing Connection 1 Enabling Android Auto
Only initialize Android Auto when you safely parked.
When Android Auto first detects your phone, you will
need to set up your phone so that auto pairing is
possible. Refer to the inst ruction manual that came
with your phone.
You can use the method below to change Android
Auto settings after you ha ve completed the initial
setup:
Select HOME Settings Smartphone Android
Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to /from your phone by Android Auto is
governed by the Google’s Privacy Policy.18 CLARITY PHEV CSS-31TRW6000.book 282 ページ ２０１７年８月３１日　木曜日　午後２時４９分

283uu Audio System Basic Operation u Android Auto
Features

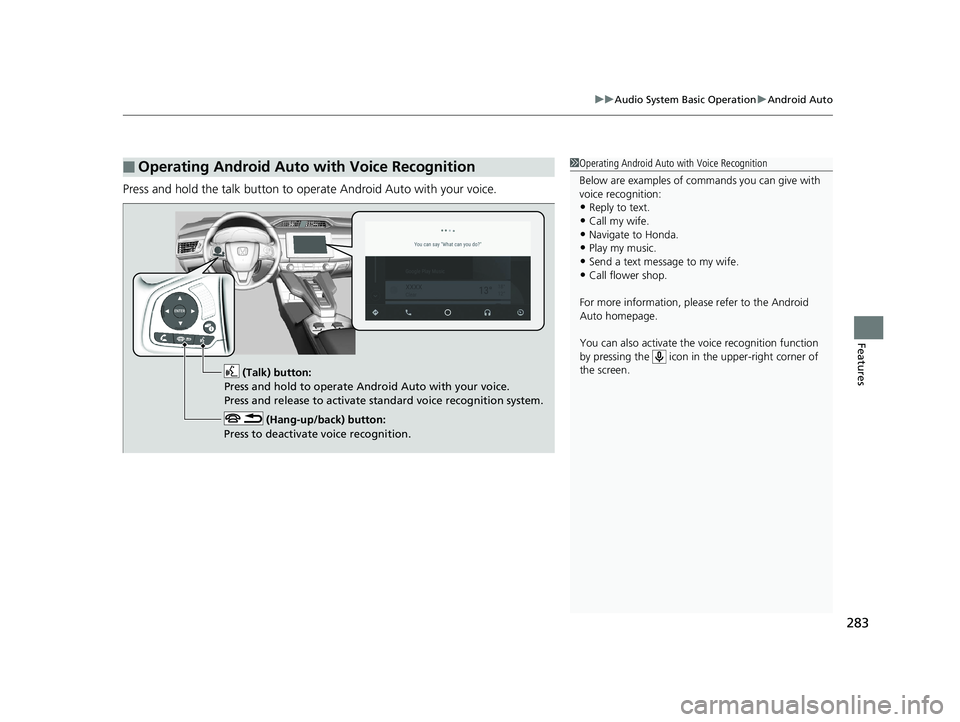

Press and hold the talk button to operate Android Auto with your voice.
■ Operating Android Auto with Voice Recognition 1 Operating Android Auto with Voice Recognition
Below are examples of co mmands you can give with
voice recognition:
• Reply to text.
• Call my wife.
• Navigate to Honda.
• Play my music.
• Send a text message to my wife.
• Call flower shop.
For more information, please refer to the Android
Auto homepage.
You can also activate the voice recognition function
by pressing the icon in the upper-right corner of
the screen.
(Talk) button:
Press and hold to operate Android Auto with your voice.
Press and release to activate standard voice recognition system.
(Hang-up/back) button:
Press to deactivate voice recognition.18 CLARITY PHEV CSS-31TRW6000.book 283 ページ ２０１７年８月３１日　木曜日　午後２時４９分

284

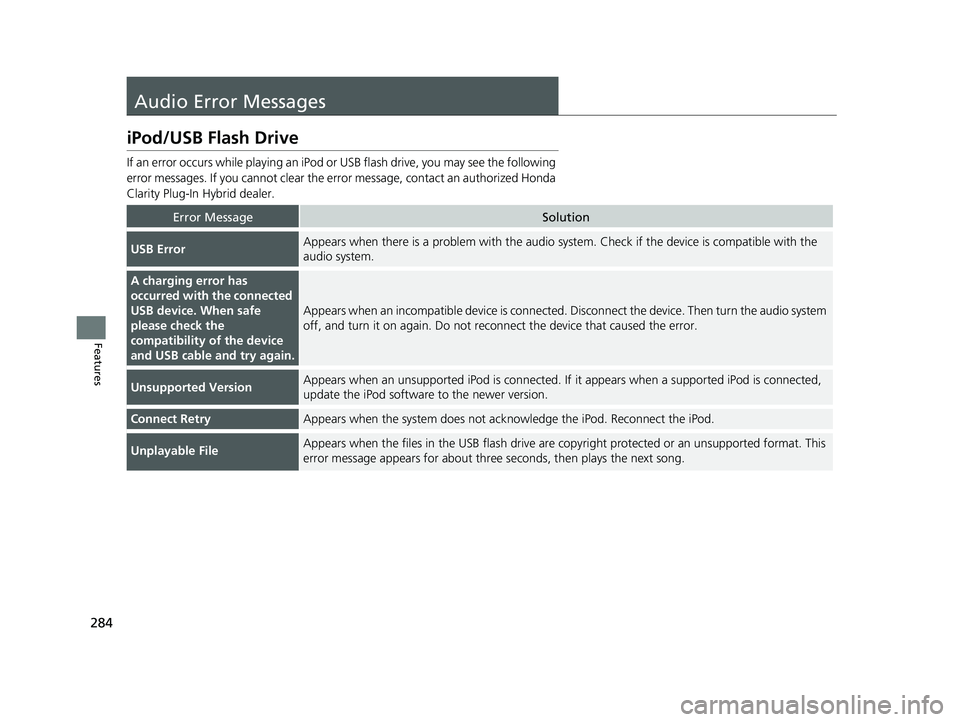

Features Audio Error Messages iPod/USB Flash Drive If an error occurs while play ing an iPod or USB flash driv e, you may see the following
error messages. If you cannot clear the erro r message, contact an authorized Honda
Clarity Plug-In Hybrid dealer.
Error Message Solution
USB Error Appears when there is a problem with the audio system. Check if the device is compatible with the
audio system.
A charging error has
occurred with the connected
USB device. When safe
please check the
compatibility of the device
and USB cable and try again. Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
Unsupported Version Appears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect Retry Appears when the system does not ac knowledge the iPod. Reconnect the iPod.
Unplayable File Appears when the files in the USB flash drive are co pyright protected or an unsupported format. This
error message appears for about three seconds, then plays the next song.18 CLARITY PHEV CSS-31TRW6000.book 284 ページ ２０１７年８月３１日　木曜日　午後２時４９分

285uu Audio Error Messages u iPod/USB Flash Drive
Features

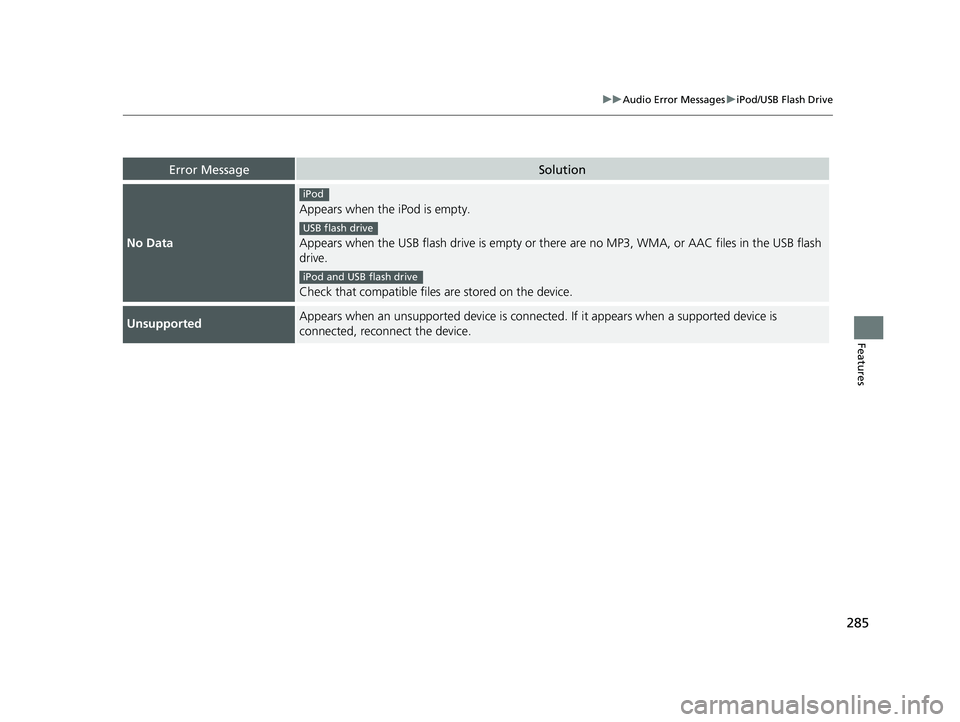

Error Message Solution
No Data Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
Unsupported Appears when an unsupported device is connected . If it appears when a supported device is
connected, reconnect the device. iPod
USB flash drive
iPod and USB flash drive18 CLARITY PHEV CSS-31TRW6000.book 285 ページ ２０１７年８月３１日　木曜日　午後２時４９分

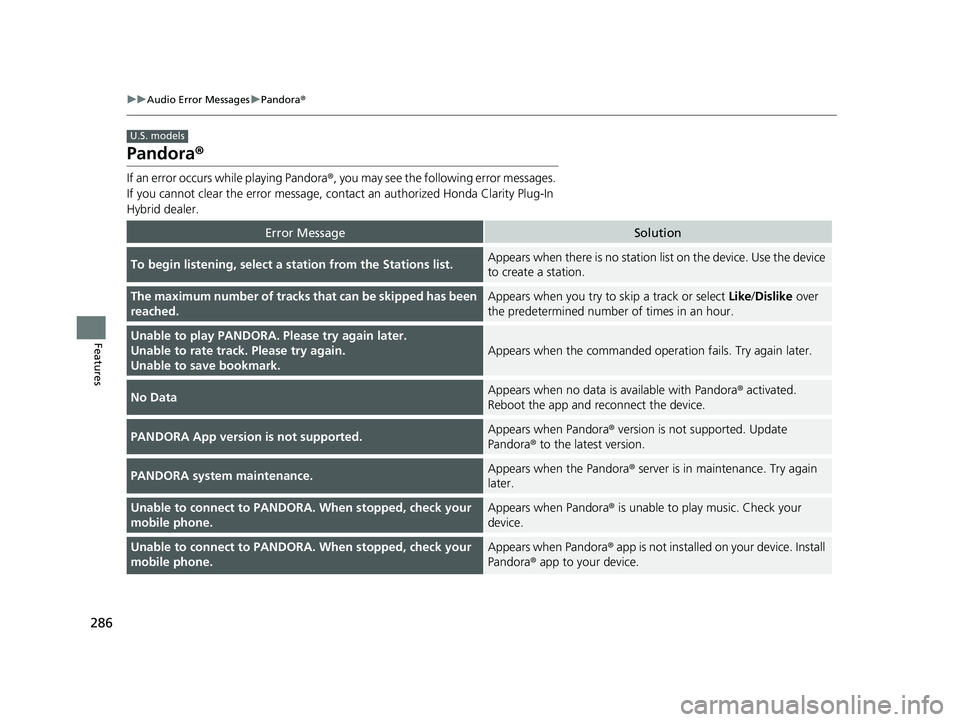

286 uu Audio Error Messages u Pandora ®
Features Pandora ®If an error occurs while playing Pandora ® , you may see the following error messages.
If you cannot clear the error message, cont act an authorized Honda Clarity Plug-In
Hybrid dealer.
Error Message Solution
To begin listening, select a station from the Stations list. Appears when there is no station list on the device. Use the device
to create a station.
The maximum number of tracks th at can be skipped has been
reached. Appears when you try to skip a track or select Like / Dislike over
the predetermined number of times in an hour.
Unable to play PANDORA. Please try again later.
Unable to rate trac k. Please try again.
Unable to save bookmark. Appears when the commanded op eration fails. Try again later.
No Data Appears when no data is available with Pandora ® activated.
Reboot the app and reconnect the device.
PANDORA App version is not supported. Appears when Pandora ® version is not supported. Update
Pandora ® to the latest version.
PANDORA system maintenance. Appears when the Pandora ® server is in maintenance. Try again
later.
Unable to connect to PANDORA. When stopped, check your
mobile phone. Appears when Pandora ® is unable to play music. Check your
device.
Unable to connect to PANDORA. When stopped, check your
mobile phone. Appears when Pandora ® app is not installed on your device. Install
Pandora ® app to your device.U.S. models18 CLARITY PHEV CSS-31TRW6000.book 286 ページ ２０１７年８月３１日　木曜日　午後２時４９分
