2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

447Continued
Driving

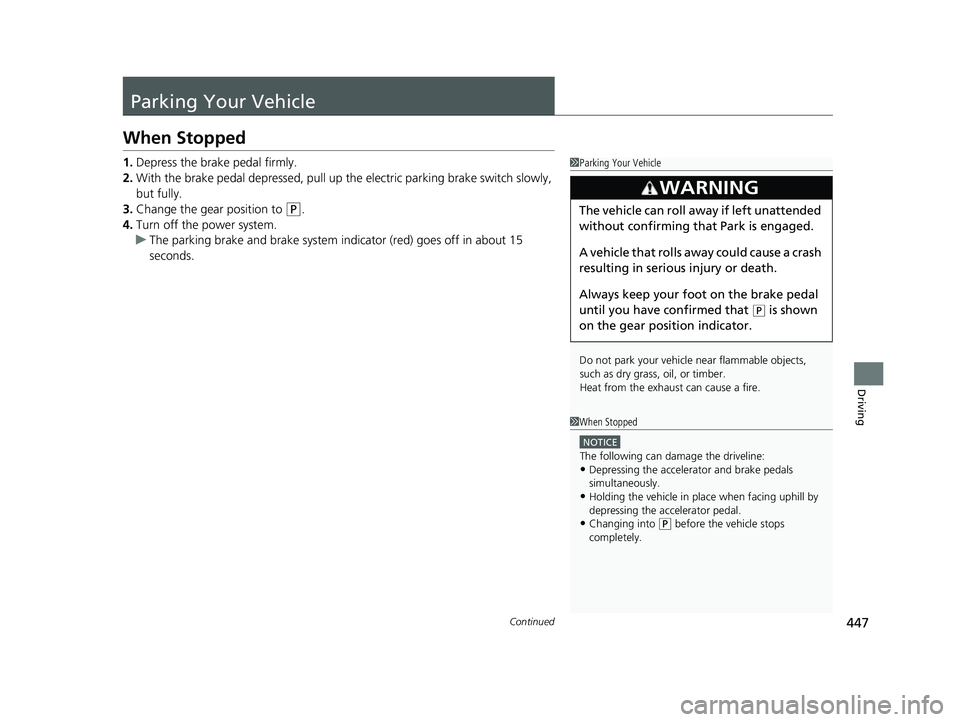

Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly.
2. With the brake pedal depresse d, pull up the electric pa rking brake switch slowly,
but fully.
3. Change the gear position to ( P
.
4. Turn off the power system.
u The parking brake and brake system indi cator (red) goes off in about 15
seconds. 1 Parking Your Vehicle
Do not park your vehicle near flammabl e objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
3
WARNING The vehicle can roll aw ay if left unattended
without confirming th at Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that ( P
is shown
on the gear position indicator.
1 When Stopped NOTICE
The following can damage the driveline:
• Depressing the accelera tor and brake pedals
simultaneously.
• Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
• Changing into ( P
before the vehicle stops
completely.18 CLARITY PHEV CSS-31TRW6000.book 447 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Parking Your Vehicle u When Stopped
448

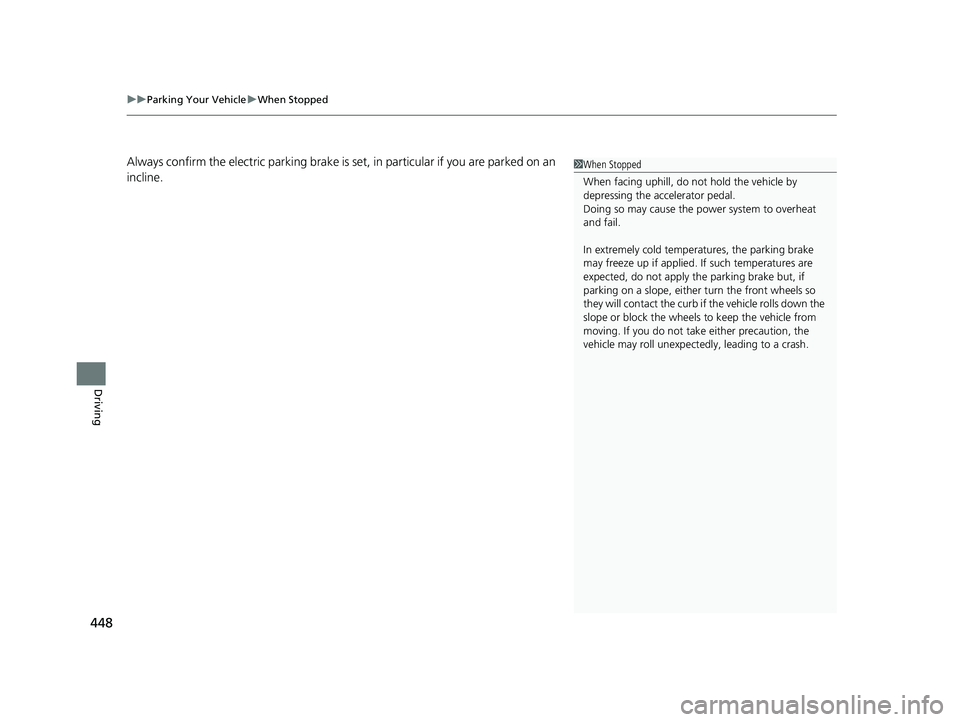

Driving Always confirm the electric parking brake is se t, in particular if you are parked on an
incline. 1 When Stopped
When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.
In extremely cold temper atures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.18 CLARITY PHEV CSS-31TRW6000.book 448 ページ ２０１７年８月３１日　木曜日　午後２時４９分

449Continued
Driving

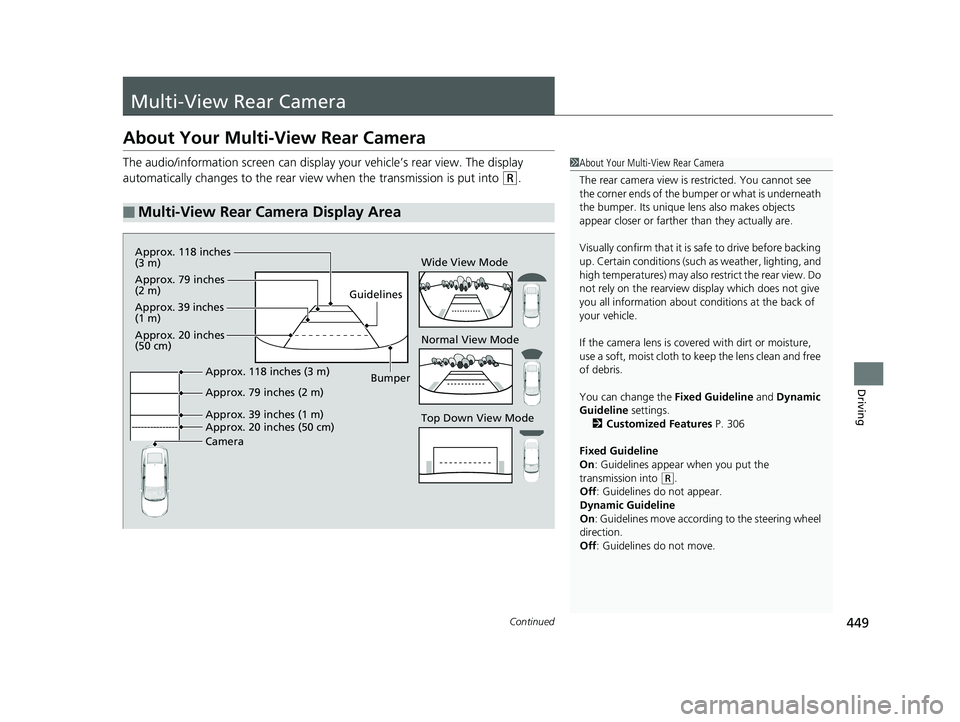

Multi-View Rear Camera About Your Multi-View Rear Camera The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into ( R
.
■ Multi-View Rear Camera Display Area 1 About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also re strict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 306
Fixed Guideline
On : Guidelines appear when you put the
transmission into ( R
.
Off : Guidelines do not appear.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.Top Down View ModeNormal View ModeWide View Mode
Guidelines
Bumper
CameraApprox. 20 inches (50 cm)Approx. 39 inches (1 m)Approx. 79 inches (2 m)Approx. 118 inches (3 m)Approx. 118 inches
(3 m)
Approx. 79 inches
(2 m)
Approx. 39 inches
(1 m)
Approx. 20 inches
(50 cm)18 CLARITY PHEV CSS-31TRW6000.book 449 ページ ２０１７年８月３１日　木曜日　午後２時４９分

450 uu Multi-View Rear Camera u About Your Multi-View Rear Camera

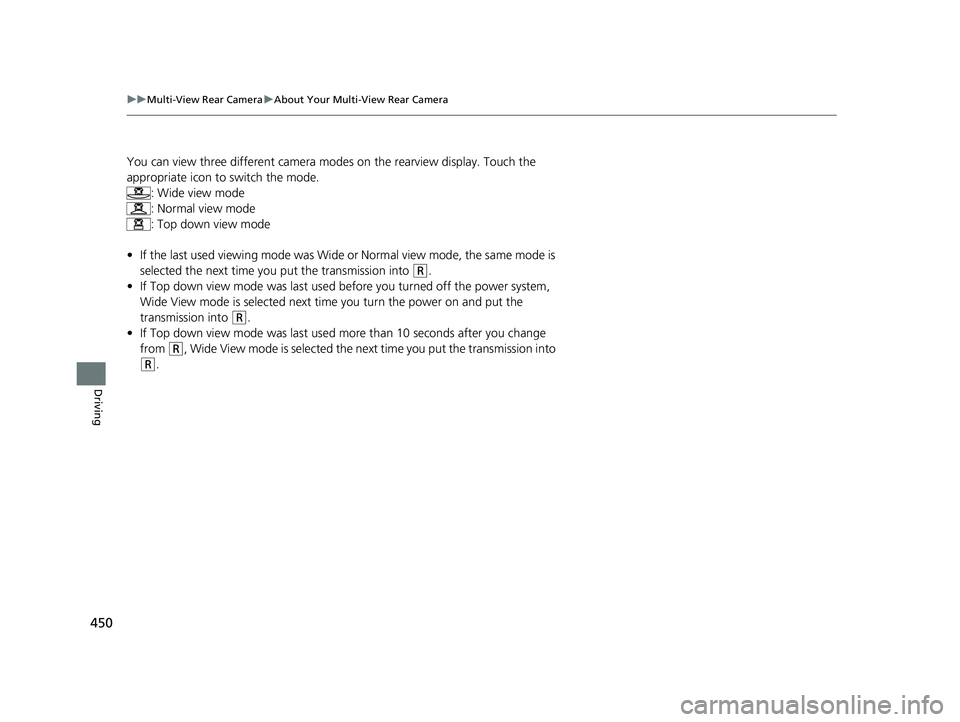

Driving You can view three different camera mode s on the rearview display. Touch the
appropriate icon to switch the mode.
: Wide view mode
: Normal view mode
: Top down view mode
• If the last used viewing mo de was Wide or Normal view mode, the same mode is
selected the next time you put the transmission into ( R
.
• If Top down view mode was last used before you turned off the power system,
Wide View mode is selected next ti me you turn the power on and put the
transmission into ( R
.
• If Top down view mode was last used more than 10 second s after you change
from ( R
, Wide View mode is selected the ne xt time you put the transmission into
( R
.18 CLARITY PHEV CSS-31TRW6000.book 450 ページ ２０１７年８月３１日　木曜日　午後２時４９分

451
Driving

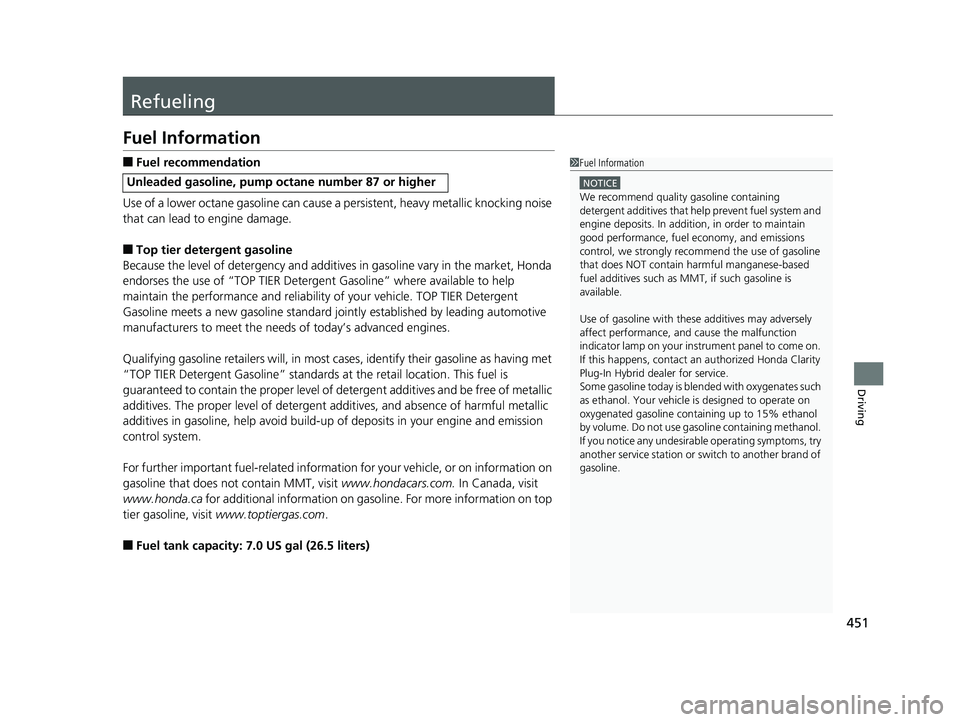

Refueling Fuel Information ■ Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■ Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jo intly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gaso line. For more information on top
tier gasoline, visit www.toptiergas.com .
■ Fuel tank capacity: 7.0 US gal (26.5 liters)Unleaded gasoline, pump octane number 87 or higher 1 Fuel Information NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact an authorized Honda Clarity
Plug-In Hybrid dealer for service.
Some gasoline today is ble nded with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.18 CLARITY PHEV CSS-31TRW6000.book 451 ページ ２０１７年８月３１日　木曜日　午後２時４９分

452 uu Refueling u How to Refuel

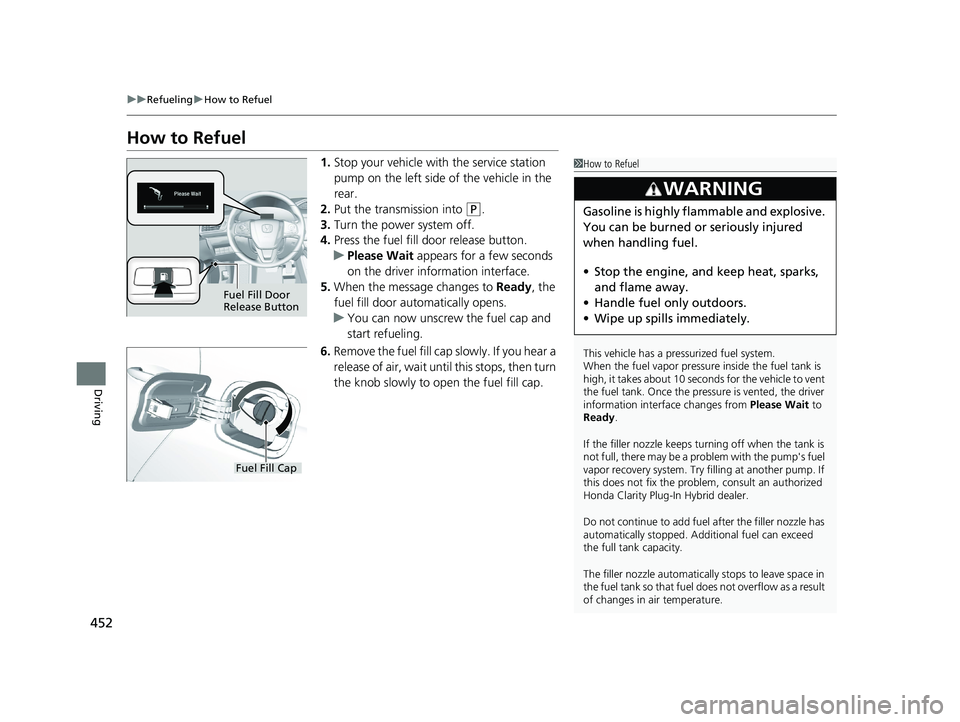

Driving How to Refuel 1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Put the transmission into ( P
.
3. Turn the power system off.
4. Press the fuel fill door release button.
u Please Wait appears for a few seconds
on the driver information interface.
5. When the message changes to Ready , the
fuel fill door automatically opens.
u You can now unscrew the fuel cap and
start refueling.
6. Remove the fuel fill cap slowly. If you hear a
release of air, wait unt il this stops, then turn
the knob slowly to open the fuel fill cap. 1 How to Refuel
This vehicle has a pressurized fuel system.
When the fuel vapor pressure inside the fuel tank is
high, it takes about 10 seconds for the vehicle to vent
the fuel tank. Once the pressure is vented, the driver
information interface changes from Please Wait to
Ready .
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump's fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult an authorized
Honda Clarity Plug-In Hybrid dealer.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.3
WARNING Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Fuel Fill Door
Release Button
Fuel Fill Cap18 CLARITY PHEV CSS-31TRW6000.book 452 ページ ２０１７年８月３１日　木曜日　午後２時４９分

453 uu Refueling u How to Refuel
Driving

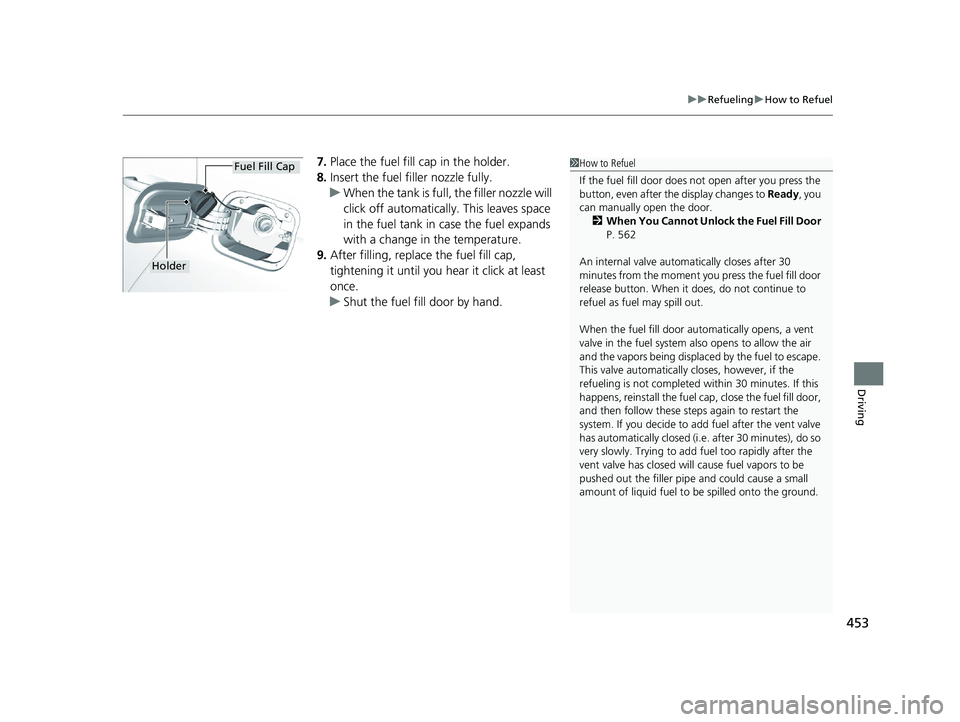

7. Place the fuel fill cap in the holder.
8. Insert the fuel filler nozzle fully.
u When the tank is full, the filler nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
9. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand. 1 How to Refuel
If the fuel fill door does not open after you press the
button, even after th e display changes to Ready , you
can manually open the door.
2 When You Cannot Unlock the Fuel Fill Door
P. 562
An internal valve automatically closes after 30
minutes from the moment y ou press the fuel fill door
release button. When it does, do not continue to
refuel as fuel may spill out.
When the fuel fill door auto matically opens, a vent
valve in the fuel system also opens to allow the air
and the vapors being displace d by the fuel to escape.
This valve automatically closes, however, if the
refueling is not completed within 30 minutes. If this
happens, reinstall the fuel cap, close the fuel fill door,
and then follow these steps again to restart the
system. If you decide to a dd fuel after the vent valve
has automatically closed (i .e. after 30 minutes), do so
very slowly. Trying to add fuel too rapidly after the
vent valve has closed will cause fuel vapors to be
pushed out the filler pipe and could cause a small
amount of liquid fuel to be spilled onto the ground.Holder Fuel Fill Cap18 CLARITY PHEV CSS-31TRW6000.book 453 ページ ２０１７年８月３１日　木曜日　午後２時４９分

454

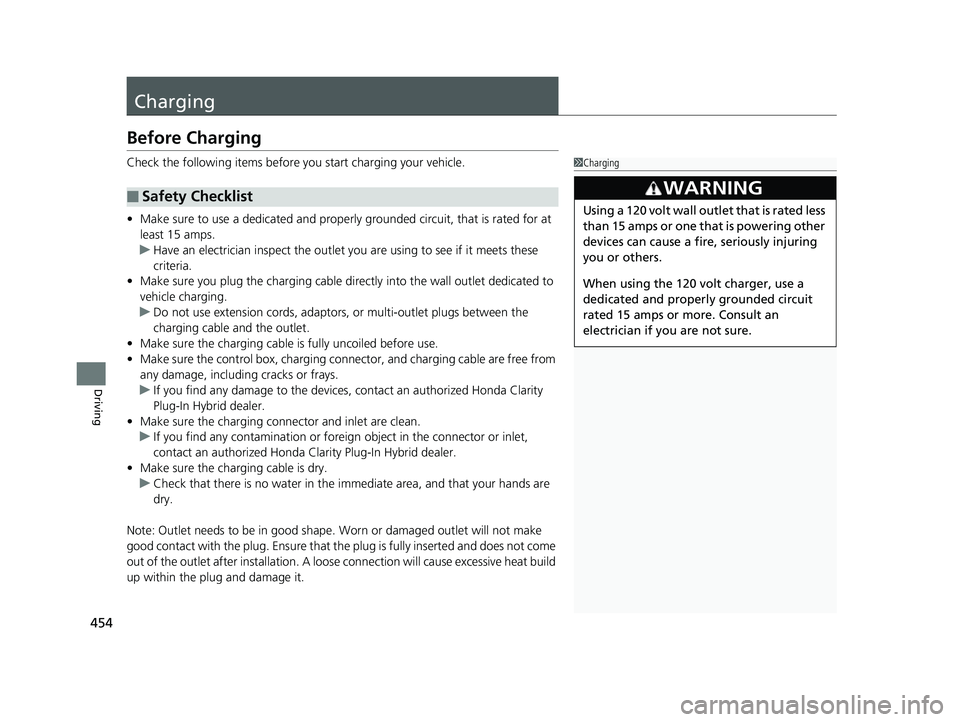

Driving Charging Before Charging Check the following items before you start charging your vehicle.
• Make sure to use a dedicated and properly grounded circuit, that is rated for at
least 15 amps.
u Have an electrician inspect the outlet you are using to see if it meets these
criteria.
• Make sure you plug the charging cable dire ctly into the wall outlet dedicated to
vehicle charging.
u Do not use extension cords, adaptors , or multi-outlet plugs between the
charging cable and the outlet.
• Make sure the charging cable is fully uncoiled before use.
• Make sure the control box, charging connec tor, and charging cable are free from
any damage, including cracks or frays.
u If you find any damage to the devices, contact an authorized Honda Clarity
Plug-In Hybrid dealer.
• Make sure the charging conn ector and inlet are clean.
u If you find any contamination or foreig n object in the connector or inlet,
contact an authorized Honda Clarity Plug-In Hybrid dealer.
• Make sure the charging cable is dry.
u Check that there is no water in the i mmediate area, and that your hands are
dry.
Note: Outlet needs to be in good shape. Worn or damaged outlet will not make
good contact with the plug. Ensure that the plug is fully inserted and does not come
out of the outlet after installation. A loose connection will cause excessive heat build
up within the plug and damage it.■ Safety Checklist 1 Charging
3
WARNING Using a 120 volt wall outlet that is rated less
than 15 amps or one that is powering other
devices can cause a fire, seriously injuring
you or others.
When using the 120 volt charger, use a
dedicated and properly grounded circuit
rated 15 amps or more. Consult an
electrician if yo u are not sure.18 CLARITY PHEV CSS-31TRW6000.book 454 ページ ２０１７年８月３１日　木曜日　午後２時４９分
