2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

Continued
527uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected
7. Press the inflator switch to turn on the
compressor.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the air pressure reaches 36 psi (250
kPa), turn off the kit.
u To check the pressure, occasionally turn
off the compressor, and read the
gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).ON
OFFPressure Gauge 1 Injecting Sealant and Air
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See an authorized Honda Clarity Plug-In Hybrid
dealer for a replacement sealant bottle and proper
disposal of an empty bottle.Sealant/Air
Hose
Valve Stem18 CLARITY PHEV CSS-31TRW6000.book 527 ページ ２０１７年８月３１日　木曜日　午後２時４９分

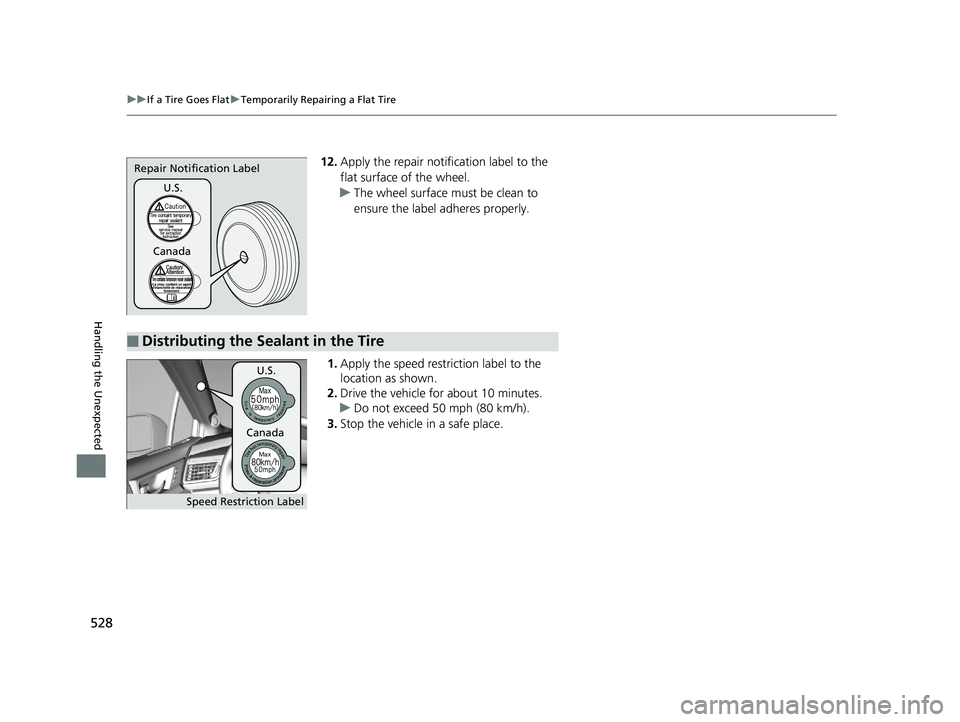

528 uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected 12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.Repair Notification Label
U.S.
Canada
■ Distributing the Sealant in the Tire
Speed Restriction Label U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 528 ページ ２０１７年８月３１日　木曜日　午後２時４９分

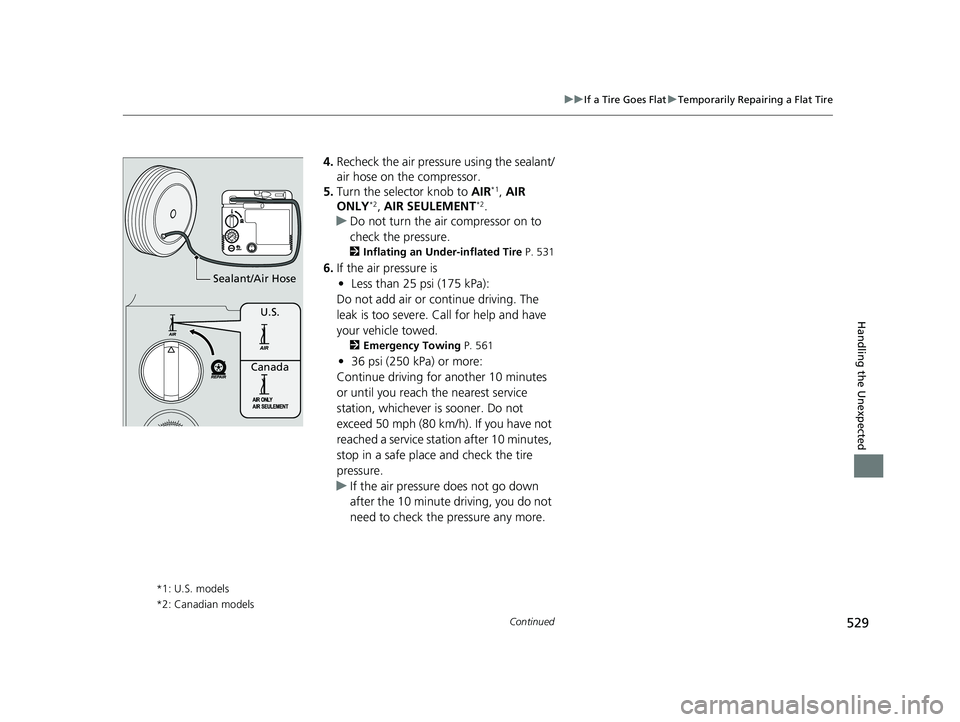

529uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Continued
Handling the Unexpected
4. Recheck the air pressure using the sealant/
air hose on the compressor.
5. Turn the selector knob to AIR *1
, AIR
ONLY *2
, AIR SEULEMENT *2
.
u Do not turn the air compressor on to
check the pressure. 2 Inflating an Under-inflated Tire P. 531
6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed. 2 Emergency Towing P. 561
• 36 psi (250 kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.
u If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.
*1: U.S. models
*2: Canadian models U.S.
CanadaSealant/Air Hose18 CLARITY PHEV CSS-31TRW6000.book 529 ページ ２０１７年８月３１日　木曜日　午後２時４９分

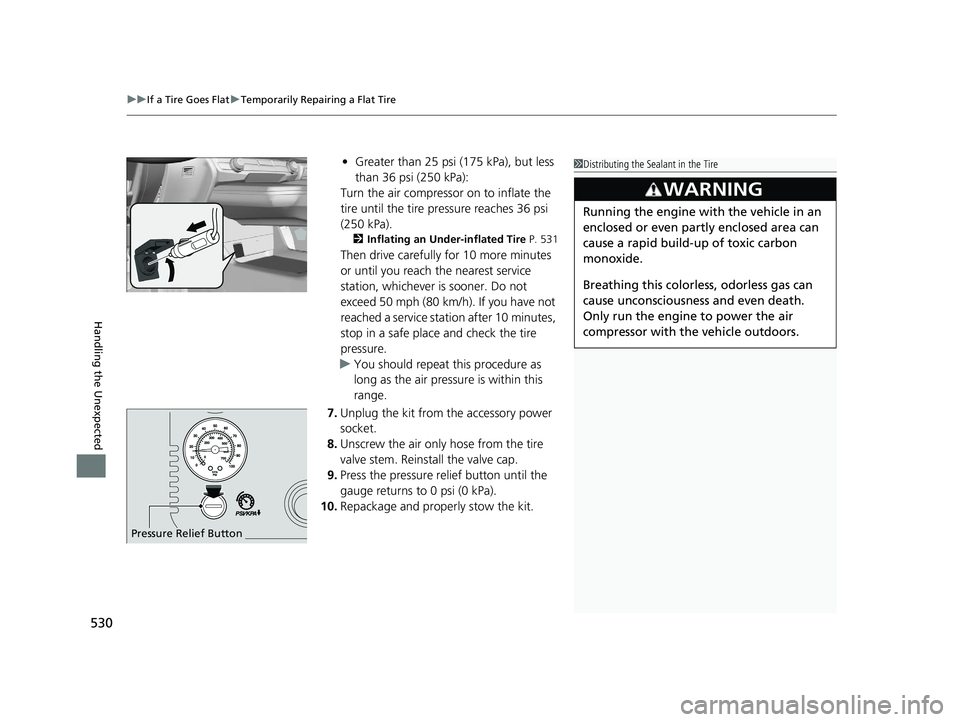

uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
530
Handling the Unexpected • Greater than 25 psi (175 kPa), but less
than 36 psi (250 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 36 psi
(250 kPa). 2 Inflating an Under-inflated Tire P. 531
Then drive carefully for 10 more minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.
u You should repeat this procedure as
long as the air pressure is within this
range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button 1 Distributing the Sealant in the Tire
3
WARNING Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.18 CLARITY PHEV CSS-31TRW6000.book 530 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

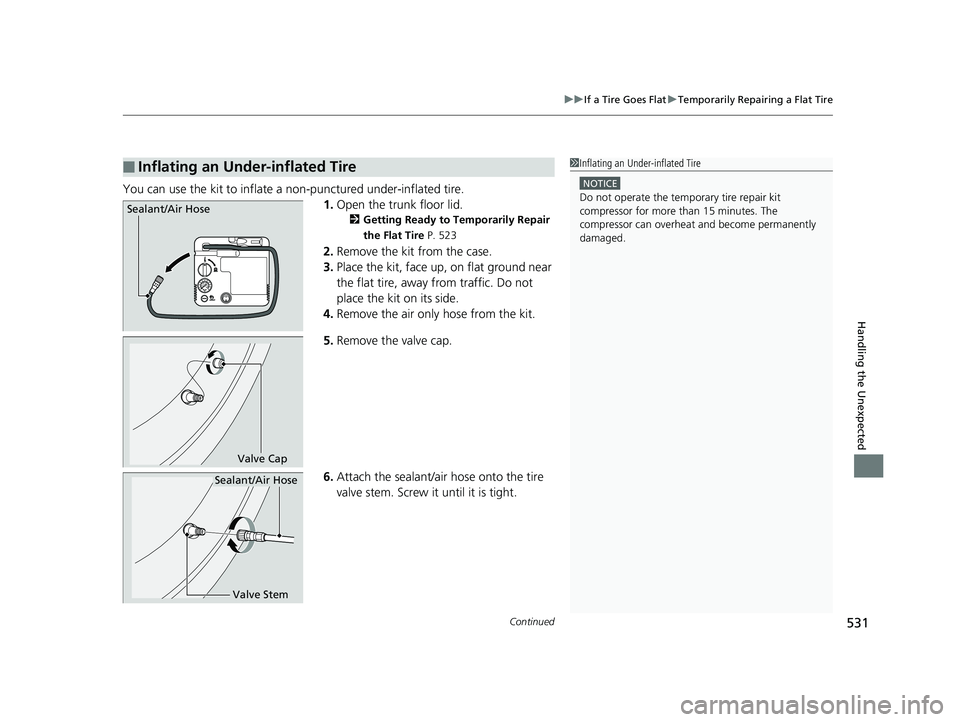

531uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1. Open the trunk floor lid. 2 Getting Ready to Temporarily Repair
the Flat Tire P. 523
2. Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the air only hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.■ Inflating an Under-inflated Tire 1 Inflating an Under-inflated Tire NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Valve StemSealant/Air Hose18 CLARITY PHEV CSS-31TRW6000.book 531 ページ ２０１７年８月３１日　木曜日　午後２時４９分

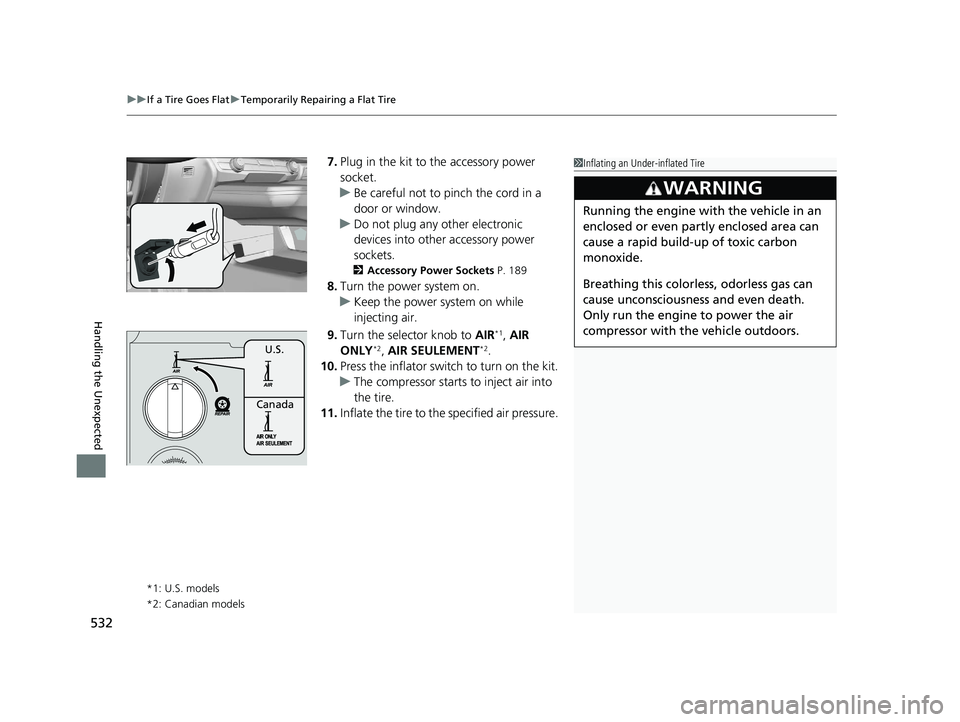

uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
532
Handling the Unexpected 7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets. 2 Accessory Power Sockets P. 189
8. Turn the power system on.
u Keep the power system on while
injecting air.
9. Turn the selector knob to AIR *1
, AIR
ONLY *2
, AIR SEULEMENT *2
.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models 1 Inflating an Under-inflated Tire
3
WARNING Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 532 ページ ２０１７年８月３１日　木曜日　午後２時４９分

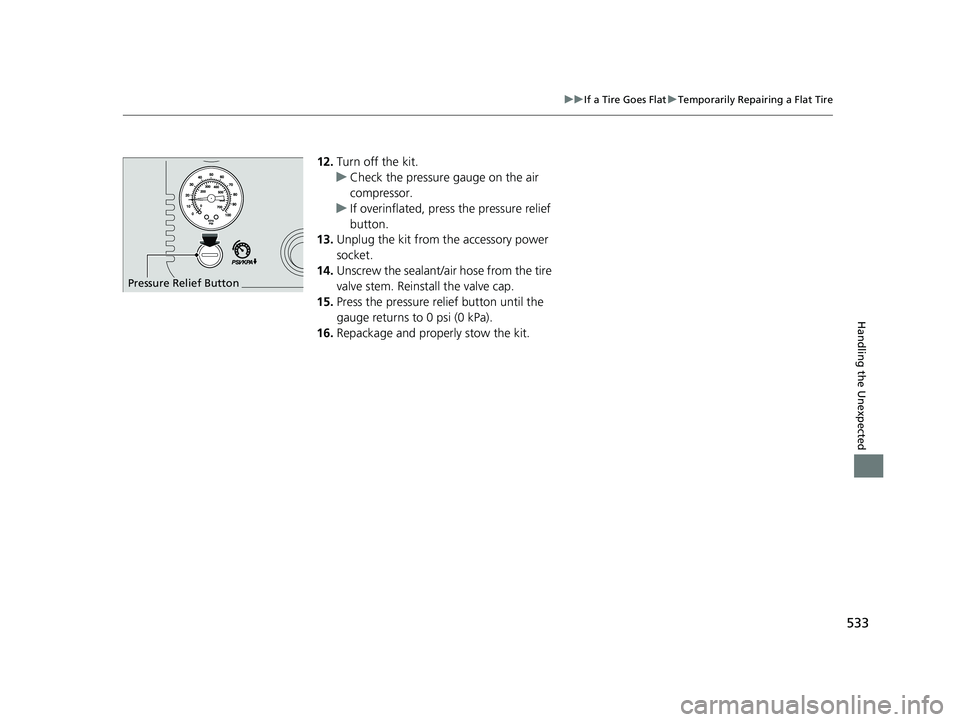

533uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.Pressure Relief Button18 CLARITY PHEV CSS-31TRW6000.book 533 ページ ２０１７年８月３１日　木曜日　午後２時４９分

534
Handling the Unexpected Handling of the Jack Your vehicle has jacking points as shown.
When replacing your tires, consult an authorized Ho nda Clarity Plug-In Hybrid
dealer.
Jacking Points18 CLARITY PHEV CSS-31TRW6000.book 534 ページ ２０１７年８月３１日　木曜日　午後２時４９分
