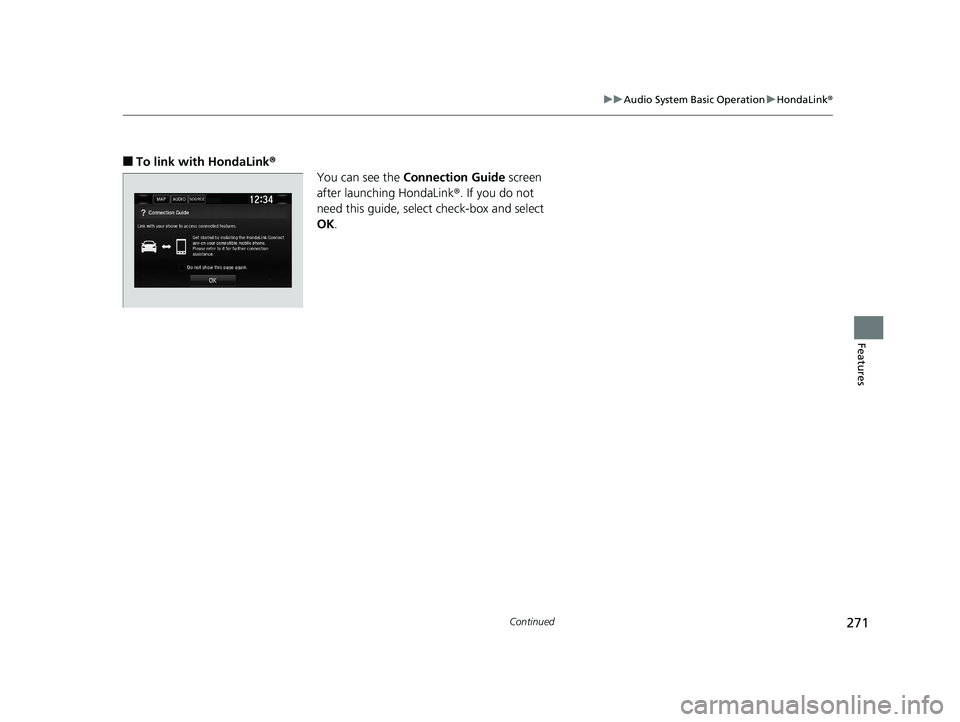

271uu Audio System Basic Operation u HondaLink ®
Continued
Features
■ To link with HondaLink ®
You can see the Connection Guide screen
after launching HondaLink ® . If you do not
need this guide, select check-box and select
OK .18 CLARITY PHEV CSS-31TRW6000.book 271 ページ ２０１７年８月３１日　木曜日　午後２時４９分

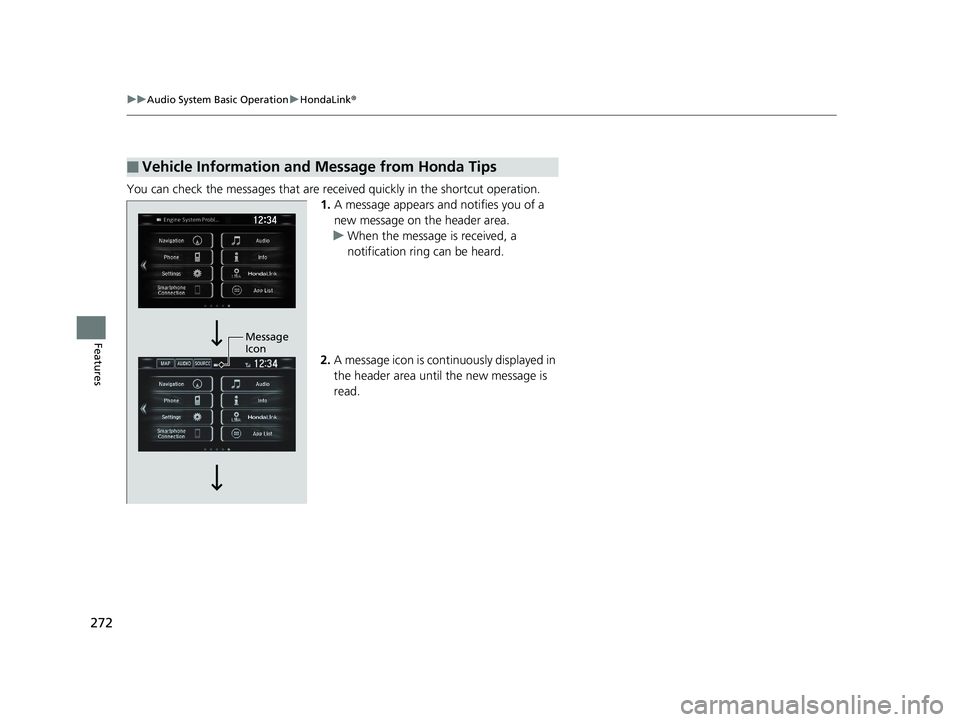

272 uu Audio System Basic Operation u HondaLink ®
Features You can check the messages that are rece ived quickly in the shortcut operation.
1. A message appears and notifies you of a
new message on the header area.
u When the message is received, a
notification ring can be heard.
2. A message icon is continuously displayed in
the header area until the new message is
read.■ Vehicle Information and Message from Honda Tips
Message
Icon18 CLARITY PHEV CSS-31TRW6000.book 272 ページ ２０１７年８月３１日　木曜日　午後２時４９分

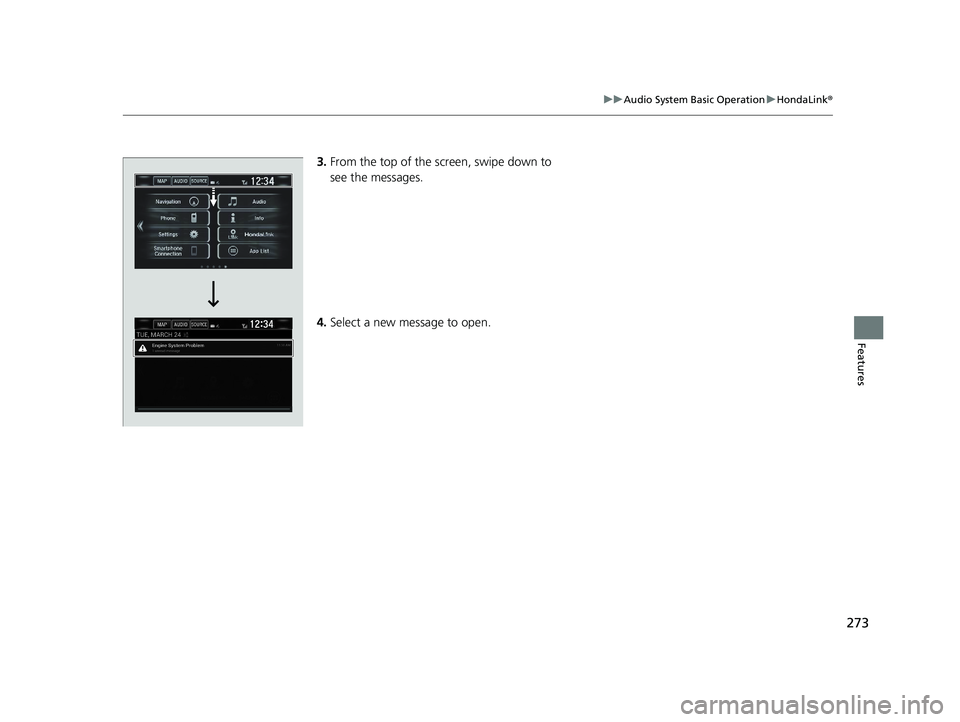

273uu Audio System Basic Operation u HondaLink ®
Features
3. From the top of the screen, swipe down to
see the messages.
4. Select a new message to open.18 CLARITY PHEV CSS-31TRW6000.book 273 ページ ２０１７年８月３１日　木曜日　午後２時４９分

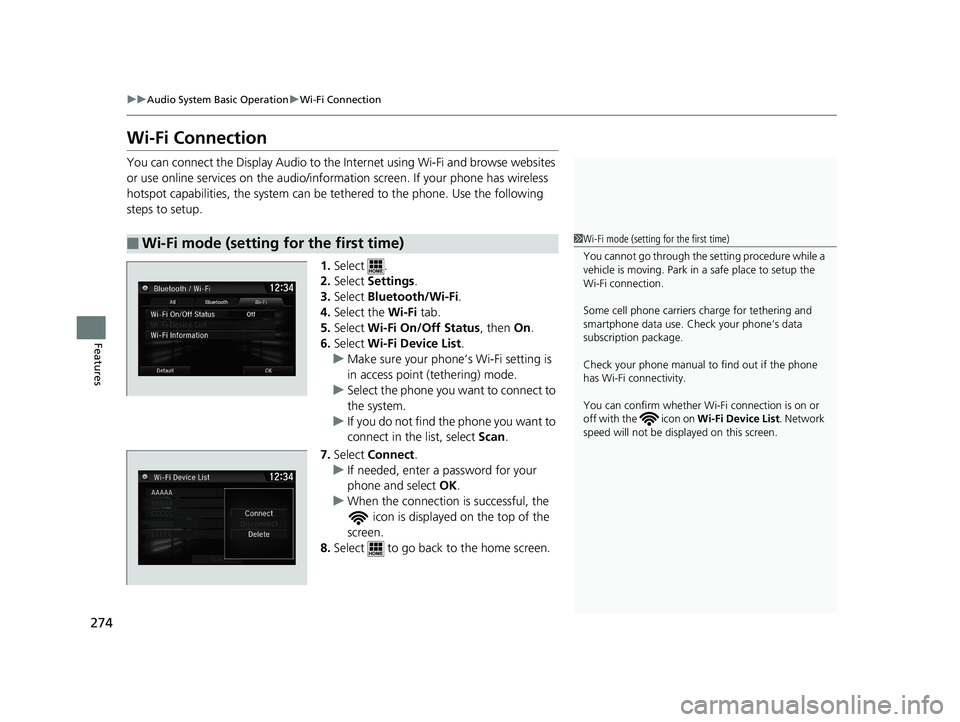

274 uu Audio System Basic Operation u Wi-Fi Connection
Features Wi-Fi Connection You can connect the Display Audio to the Internet using Wi-Fi and browse websites
or use online services on the audio/information screen. If your phone has wireless
hotspot capabilities, the system can be te thered to the phone. Use the following
steps to setup.
1. Select .
2. Select Settings .
3. Select Bluetooth/Wi-Fi .
4. Select the Wi-Fi tab.
5. Select Wi-Fi On/Off Status , then On .
6. Select Wi-Fi Device List .
u Make sure your phone’s Wi-Fi setting is
in access point (tethering) mode.
u Select the phone you want to connect to
the system.
u If you do not find the phone you want to
connect in the list, select Scan .
7. Select Connect .
u If needed, enter a password for your
phone and select OK .
u When the connection is successful, the
icon is displayed on the top of the
screen.
8. Select to go back to the home screen.■ Wi-Fi mode (setting for the first time) 1 Wi-Fi mode (setting for the first time)
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to setup the
Wi-Fi connection.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi -Fi connection is on or
off with the icon on Wi-Fi Device List . Network
speed will not be displayed on this screen.
12 ‰ 34AAAAA
BBBBB
CCCCC
DDDDD
EEEEE18 CLARITY PHEV CSS-31TRW6000.book 274 ページ ２０１７年８月３１日　木曜日　午後２時４９分

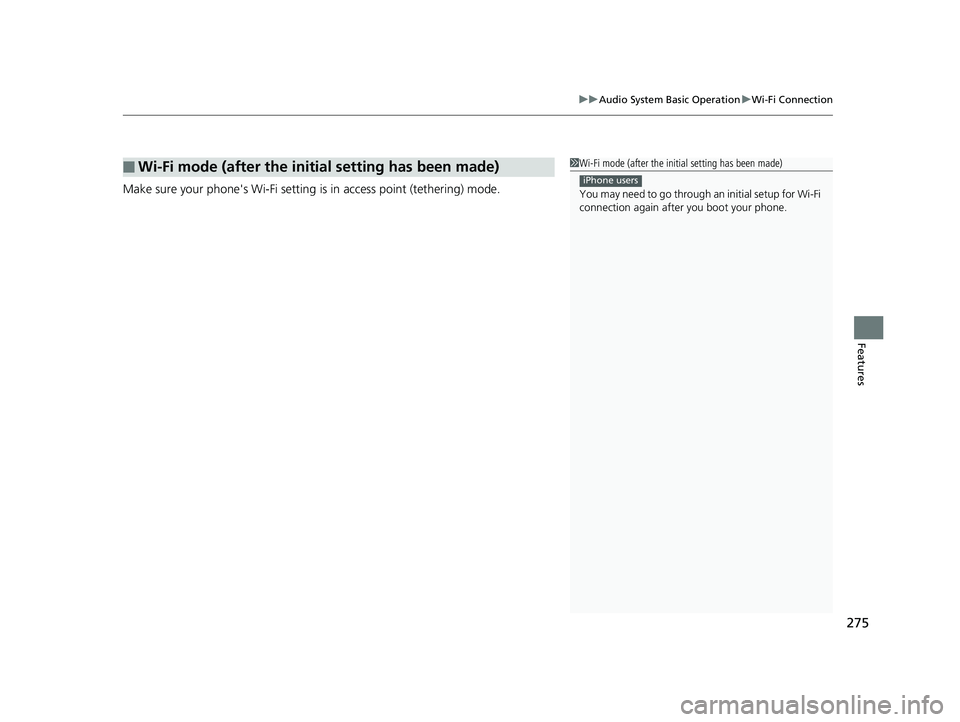

275uu Audio System Basic Operation u Wi-Fi Connection
Features
Make sure your phone's Wi-Fi setting is in access point (tethering) mode.
■ Wi-Fi mode (after the init ial setting has been made) 1 Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi-Fi
connection again afte r you boot your phone.iPhone users18 CLARITY PHEV CSS-31TRW6000.book 275 ページ ２０１７年８月３１日　木曜日　午後２時４９分

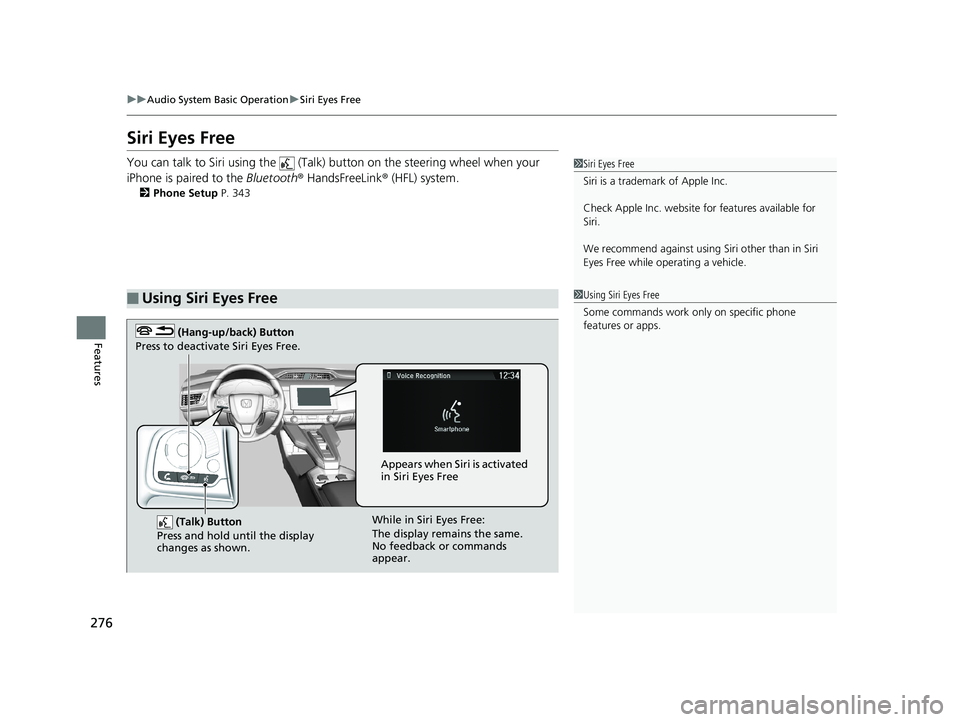

276 uu Audio System Basic Operation u Siri Eyes Free
Features Siri Eyes Free You can talk to Siri using the (Talk) button on the steering wheel when your
iPhone is paired to the Bluetooth ® HandsFreeLink ® (HFL) system.2 Phone Setup P. 343
■ Using Siri Eyes Free 1 Siri Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
We recommend against using Si ri other than in Siri
Eyes Free while operating a vehicle.
1 Using Siri Eyes Free
Some commands work only on specific phone
features or apps.
(Talk) Button
Press and hold until the display
changes as shown. (Hang-up/back) Button
Press to deactivate Siri Eyes Free.
While in Siri Eyes Free:
The display remains the same.
No feedback or commands
appear. Appears when Siri is activated
in Siri Eyes Free18 CLARITY PHEV CSS-31TRW6000.book 276 ページ ２０１７年８月３１日　木曜日　午後２時４９分

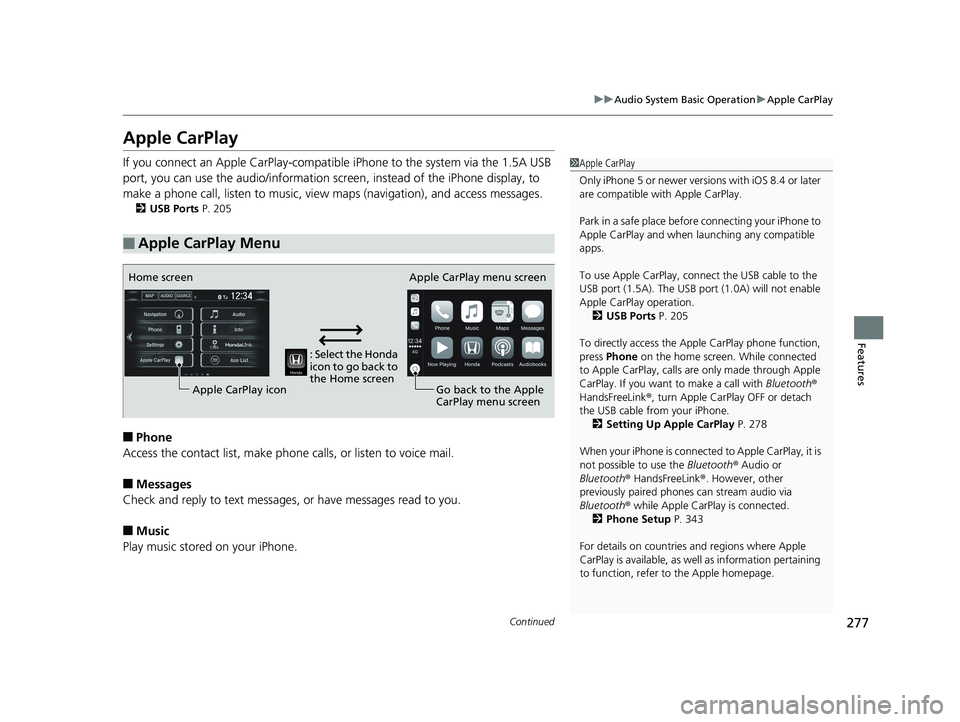

277uu Audio System Basic Operation u Apple CarPlay
Continued
Features
Apple CarPlay If you connect an Apple CarPlay-compatible iPhone to the system via the 1.5A USB
port, you can use the audio/information scr een, instead of the iPhone display, to
make a phone call, listen to music, view maps (navigation), and access messages.2 USB Ports P. 205
■ Phone
Access the contact list, make phone ca lls, or listen to voice mail.
■ Messages
Check and reply to text messages, or have messages read to you.
■ Music
Play music stored on your iPhone.■ Apple CarPlay Menu 1 Apple CarPlay
Only iPhone 5 or newer versi ons with iOS 8.4 or later
are compatible with Apple CarPlay.
Park in a safe place before connecting your iPhone to
Apple CarPlay and when launching any compatible
apps.
To use Apple CarPlay, connect the USB cable to the
USB port (1.5A). The USB port (1.0A) will not enable
Apple CarPla y operation.
2 USB Ports P. 205
To directly access the Appl e CarPlay phone function,
press Phone on the home screen. While connected
to Apple CarPlay, calls are only made through Apple
CarPlay. If you want to make a call with Bluetooth ®
HandsFreeLink ® , turn Apple CarPlay OFF or detach
the USB cable from your iPhone.
2 Setting Up Apple CarPlay P. 278
When your iPhone is connected to Apple CarPlay, it is
not possible to use the Bluetooth ® Audio or
Bluetooth ® HandsFreeLink ® . However, other
previously paired phones can stream audio via
Bluetooth ® while Apple CarPlay is connected.
2 Phone Setup P. 343
For details on c ountries and regions where Apple
CarPlay is available, as well as information pertaining
to function, refer to the Apple homepage.: Select the Honda
icon to go back to
the Home screenHome screen
Apple CarPlay icon Apple CarPlay menu screen
Go back to the Apple
CarPlay menu screen18 CLARITY PHEV CSS-31TRW6000.book 277 ページ ２０１７年８月３１日　木曜日　午後２時４９分

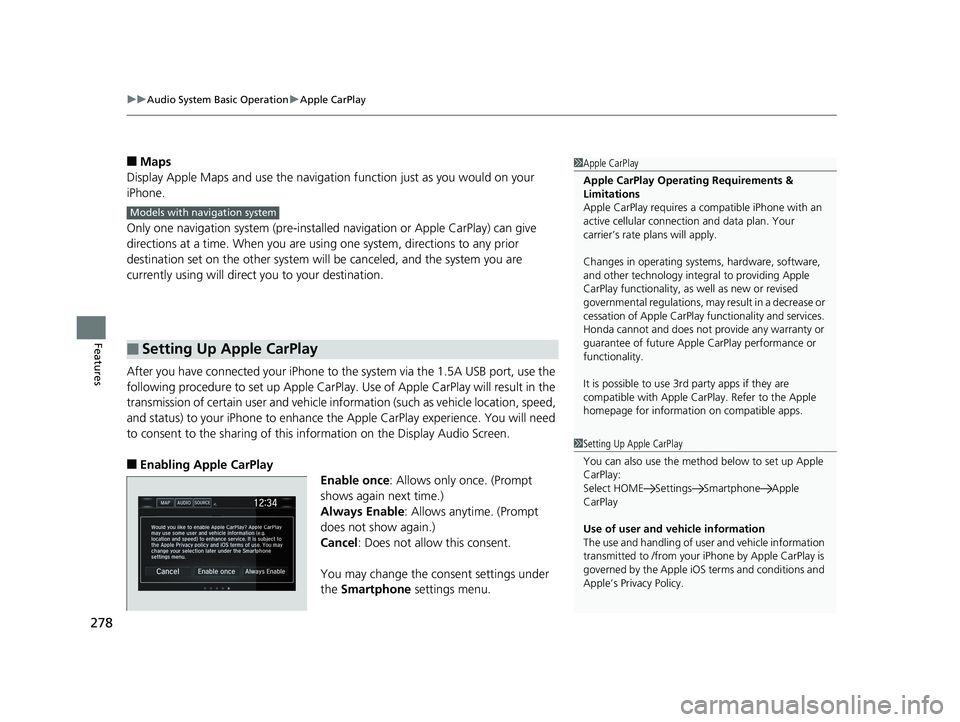

uu Audio System Basic Operation u Apple CarPlay
278
Features ■ Maps
Display Apple Maps and use the navigation function just as you would on your
iPhone.
Only one navigation system (pre-installed navigation or Apple CarPlay) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system wi ll be canceled, and the system you are
currently using will direct you to your destination.
After you have connected your iPhone to the system via the 1.5A USB port, use the
following procedure to set up Apple CarPlay. Use of Apple CarPlay will result in the
transmission of certain user and vehicle information (such as vehicle location, speed,
and status) to your iPhone to enhance th e Apple CarPlay experience. You will need
to consent to the sharing of this information on the Display Audio Screen.
■ Enabling Apple CarPlay
Enable once : Allows only once. (Prompt
shows again next time.)
Always Enable : Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under
the Smartphone settings menu.■ Setting Up Apple CarPlay 1 Apple CarPlay
Apple CarPlay Operating Requirements &
Limitations
Apple CarPlay requi res a compatible iPhone with an
active cellular connecti on and data plan. Your
carrier’s rate plans will apply.
Changes in operating system s, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Honda cannot and does not pr ovide any warranty or
guarantee of future Appl e CarPlay perf ormance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.Models with navigation system
1 Setting Up Apple CarPlay
You can also use the method below to set up Apple
CarPlay:
Select HOME Settings Smartphone Apple
CarPlay
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to /from your iPhone by Appl e CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.18 CLARITY PHEV CSS-31TRW6000.book 278 ページ ２０１７年８月３１日　木曜日　午後２時４９分
