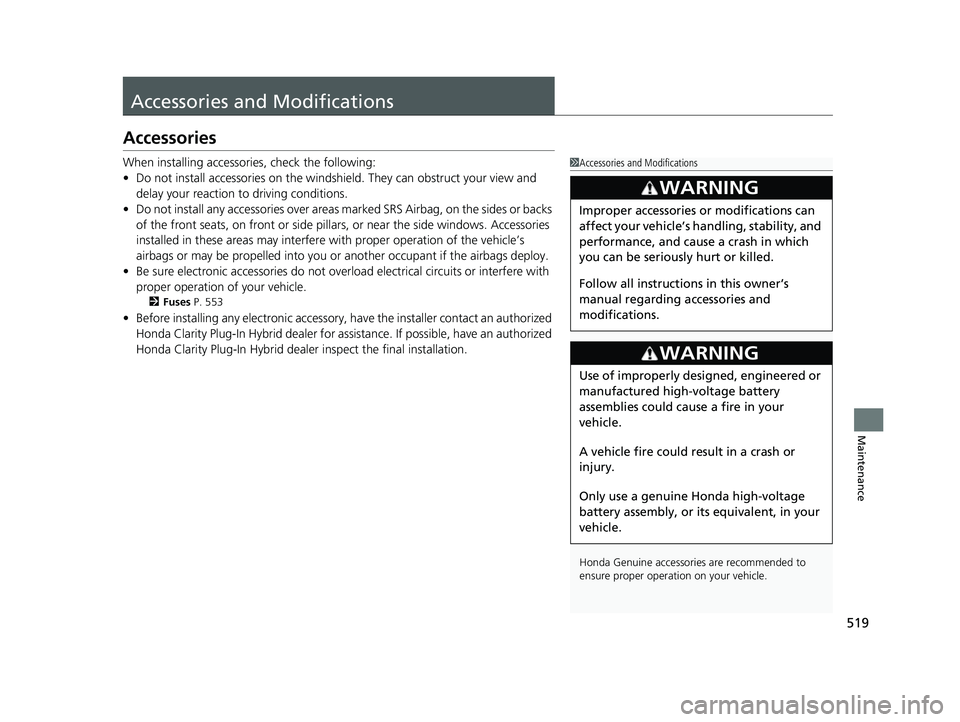

Accessories and Modifications Accessories When installing accessori es, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows. Accessories
installed in these areas may interfere wi th proper operation of the vehicle’s
airbags or may be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle. 2 Fuses P. 553
• Before installing any electronic accessory, have the installer contact an authorized
Honda Clarity Plug-In Hybrid dealer for assi stance. If possible, have an authorized
Honda Clarity Plug-In Hybrid dealer inspect the final installation. 1 Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.3
WARNING Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3
WARNING Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or it s equivalent, in your
vehicle.18 CLARITY PHEV CSS-31TRW6000.book 519 ページ ２０１７年８月３１日　木曜日　午後２時４９分

520 uu Accessories and Modifications u Modifications

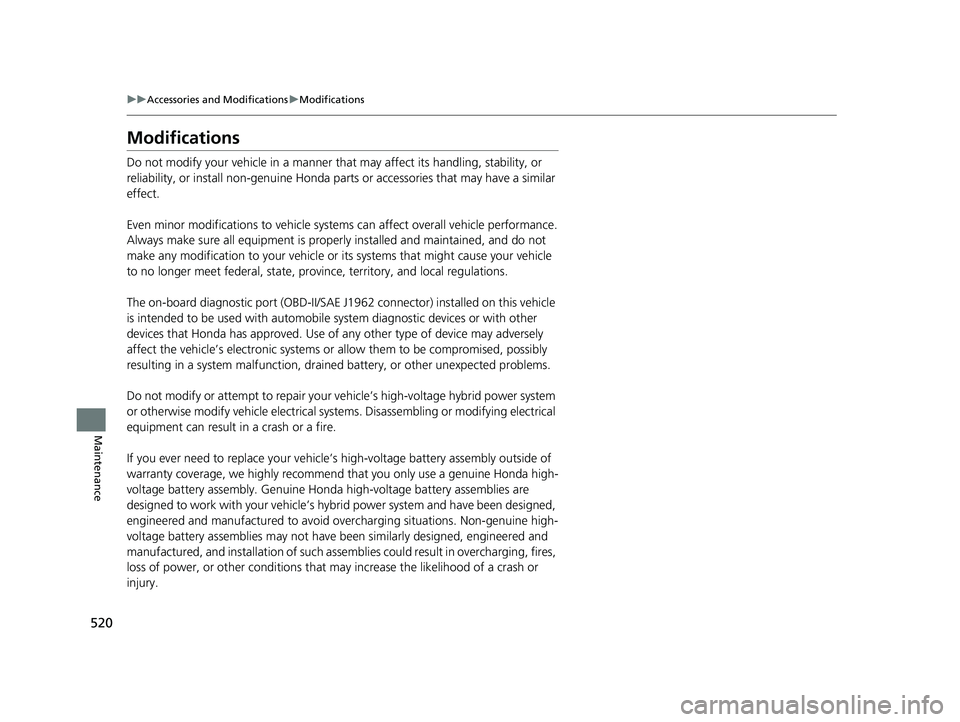

Maintenance Modifications Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Hond a high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid ov ercharging situations. Non-genuine high-
voltage battery assemblies may not have be en similarly designed, engineered and
manufactured, and installation of such assemb lies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury. 18 CLARITY PHEV CSS-31TRW6000.book 520 ページ ２０１７年８月３１日　木曜日　午後２時４９分

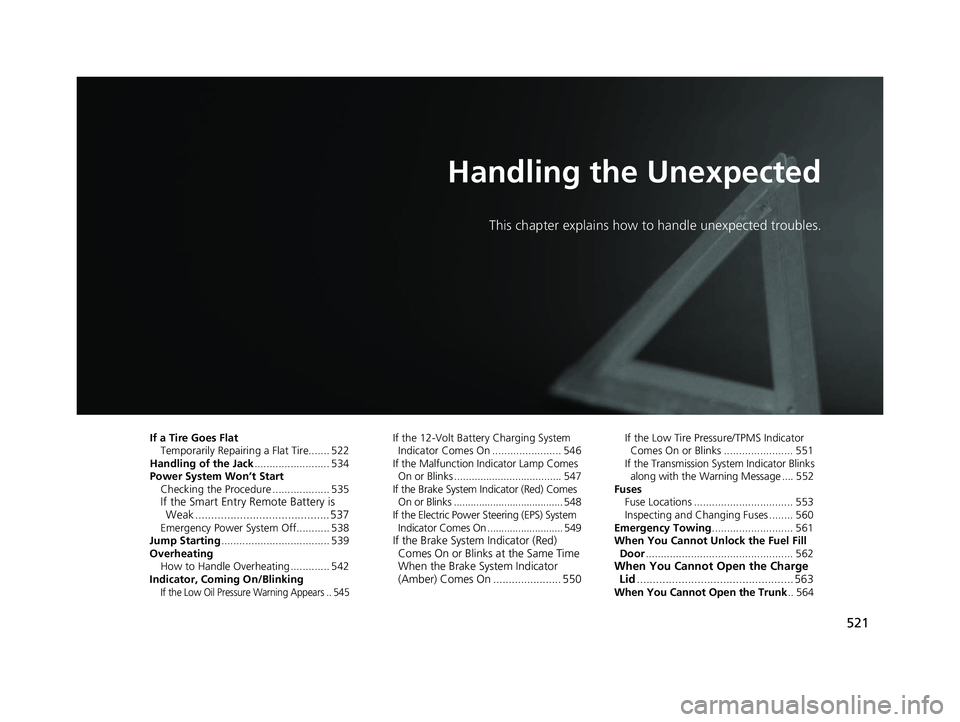

521Handling the Unexpected This chapter explains how to handle unexpected troubles.
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 522
Handling of the Jack ......................... 534
Power System Won’t Start
Checking the Procedure ................... 535
If the Smart Entry Remote Battery is
Weak .......................................... 537
Emergency Power System Off........... 538
Jump Starting .................................... 539
Overheating
How to Handle Overheating ............. 542
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears .. 545 If the 12-Volt Battery Charging System
Indicator Comes On ....................... 546
If the Malfunction Indicator Lamp Comes
On or Blinks ..................................... 547
If the Brake System Indicator (Red) Comes
On or Blinks ....................................... 548
If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 549
If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 550 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 551
If the Transmission System Indicator Blinks
along with the Warning Message .... 552
Fuses
Fuse Locations ................................. 553
Inspecting and Changing Fuses ........ 560
Emergency Towing ........................... 561
When You Cannot Unlock the Fuel Fill
Door ................................................. 562
When You Cannot Open the Charge
Lid ................................................. 563
When You Cannot Open the Trunk .. 56418 CLARITY PHEV CSS-31TRW6000.book 521 ページ ２０１７年８月３１日　木曜日　午後２時４９分

522

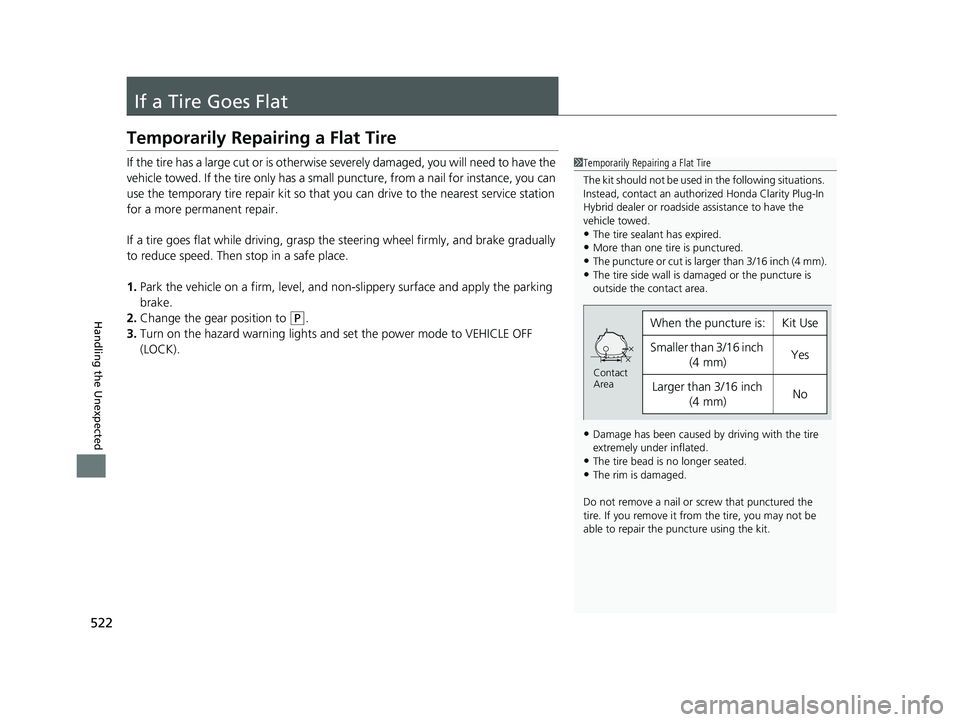

Handling the Unexpected If a Tire Goes Flat Temporarily Repairing a Flat Tire If the tire has a large cut or is otherwise se verely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Change the gear position to ( P
.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK). 1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Honda Clarity Plug-In
Hybrid dealer or roadside assistance to have the
vehicle towed.
• The tire sealant has expired.
• More than one tire is punctured.
• The puncture or cut is larger than 3/16 inch (4 mm).
• The tire side wall is da maged or the puncture is
outside the contact area.
• Damage has been caused by driving with the tire
extremely under inflated.
• The tire bead is no longer seated.
• The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.When the puncture is: Kit Use
Smaller than 3/16 inch
(4 mm) Yes
Larger than 3/16 inch
(4 mm) NoContact
Area18 CLARITY PHEV CSS-31TRW6000.book 522 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
523uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected

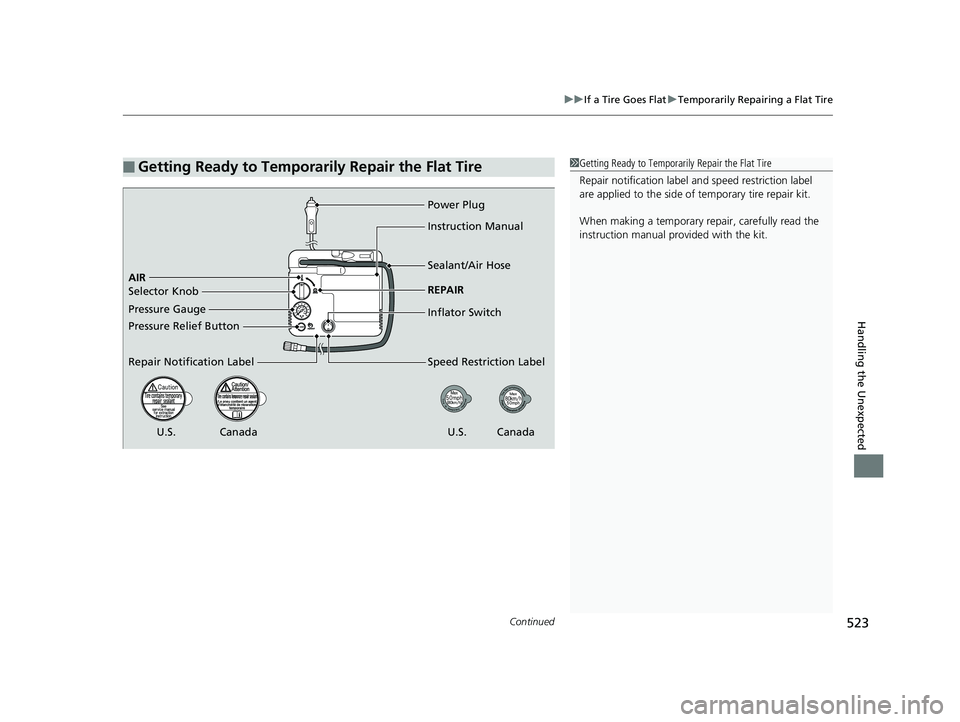

■ Getting Ready to Temporarily Repair the Flat Tire 1 Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Pressure GaugeAIR Power Plug
Pressure Relief Button
Repair Notification Label Instruction Manual
Sealant/Air Hose
REPAIR
Inflator Switch
Speed Restriction LabelSelector Knob
U.S. Canada U.S. Canada18 CLARITY PHEV CSS-31TRW6000.book 523 ページ ２０１７年８月３１日　木曜日　午後２時４９分

524 uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire

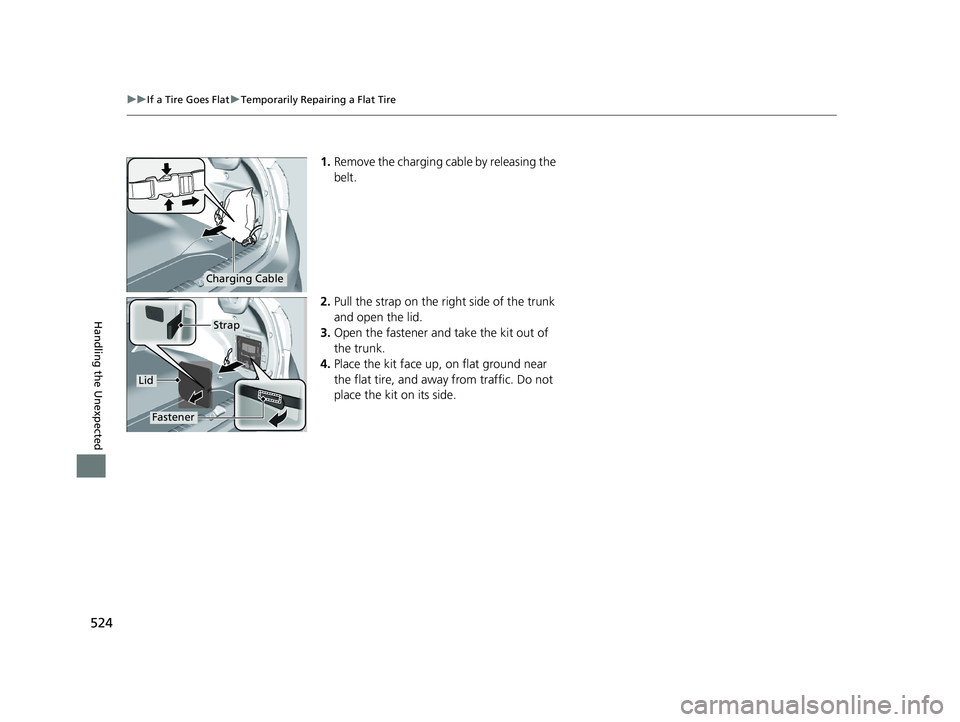

Handling the Unexpected 1. Remove the charging cable by releasing the
belt.
2. Pull the strap on the right side of the trunk
and open the lid.
3. Open the fastener and take the kit out of
the trunk.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.Charging Cable
Fastener Strap
Lid18 CLARITY PHEV CSS-31TRW6000.book 524 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
525uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
Handling the Unexpected

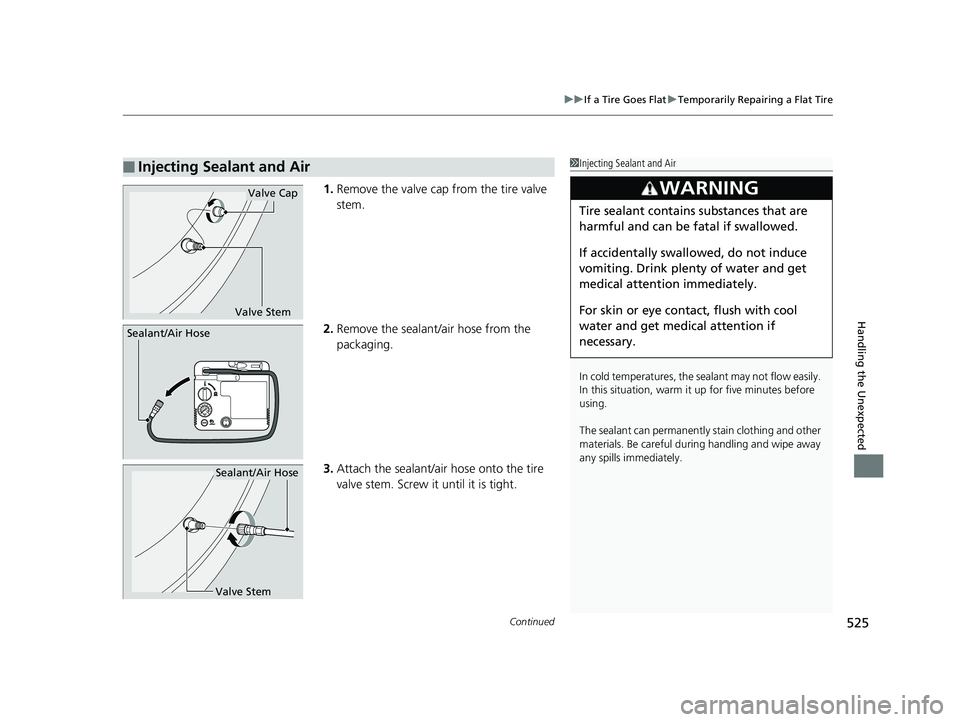

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.■ Injecting Sealant and Air 1 Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.3
WARNING Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.Valve Stem Valve Cap
Sealant/Air Hose
Valve Stem Sealant/Air Hose18 CLARITY PHEV CSS-31TRW6000.book 525 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu If a Tire Goes Flat u Temporarily Repairing a Flat Tire
526

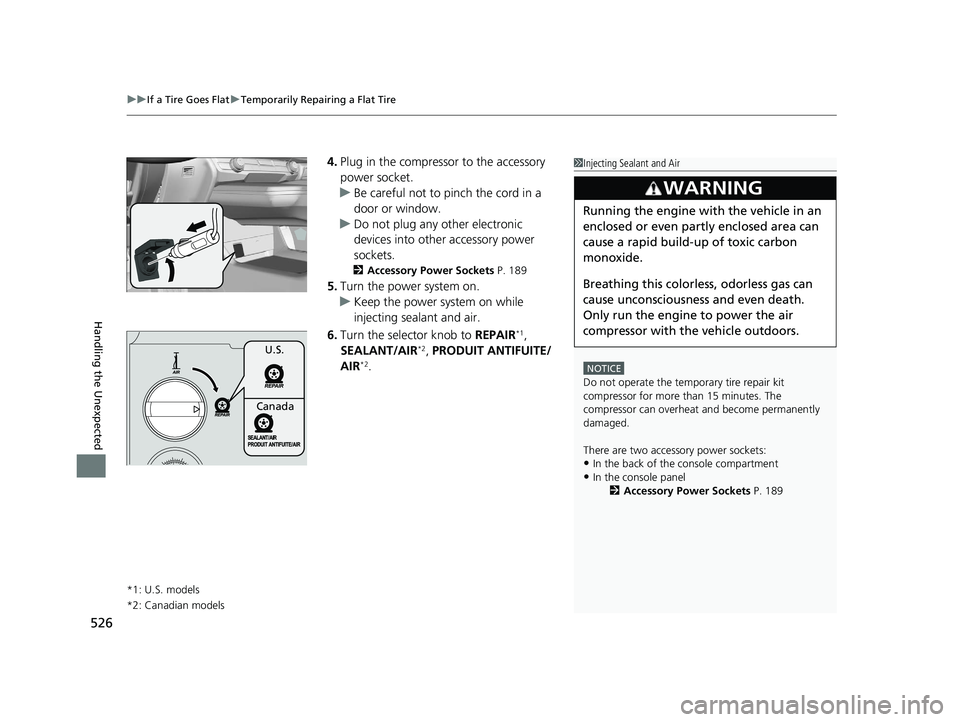

Handling the Unexpected 4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets. 2 Accessory Power Sockets P. 189
5. Turn the power system on.
u Keep the power system on while
injecting sealant and air.
6. Turn the selector knob to REPAIR *1
,
SEALANT/AIR *2
, PRODUIT ANTIFUITE/
AIR *2
.
*1: U.S. models
*2: Canadian models 1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
• In the back of the console compartment
• In the console panel
2 Accessory Power Sockets P. 1893
WARNING Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 526 ページ ２０１７年８月３１日　木曜日　午後２時４９分
