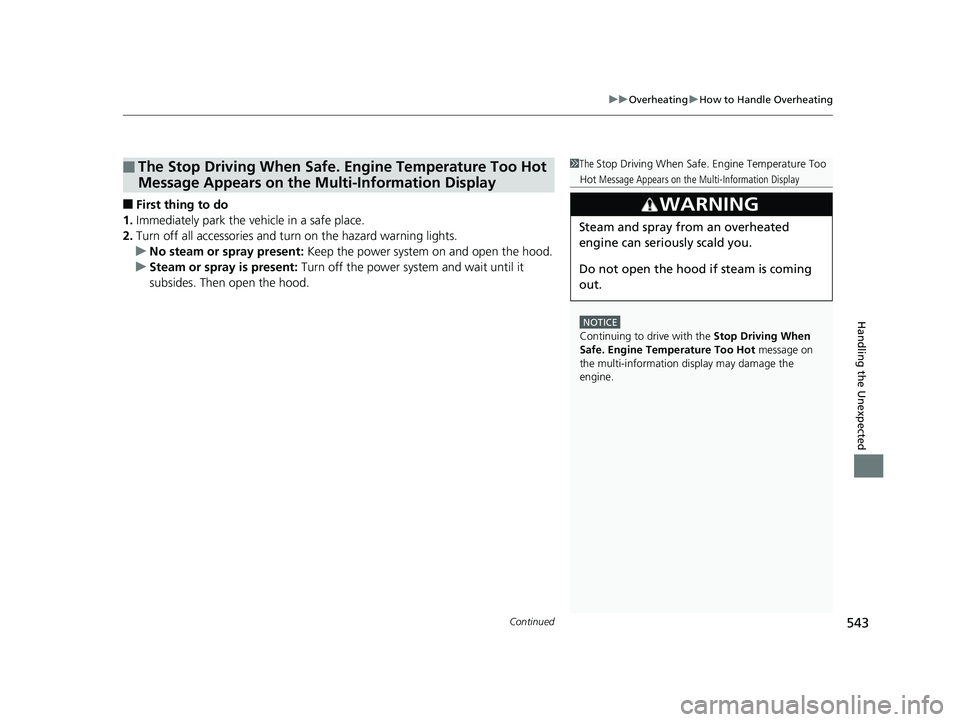

543uu Overheating u How to Handle Overheating
Handling the Unexpected
■ First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.
■ The Stop Driving When Safe. Engine Temperature Too Hot
Message Appears on the Multi-Information Display 1 The Stop Driving When Safe. Engine Temperature Too
Hot Message Appears on the Multi-Information Display
NOTICE
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.
3
WARNING Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.18 CLARITY PHEV CSS-31TRW6000.book 543 ページ ２０１７年８月３１日　木曜日　午後２時４９分

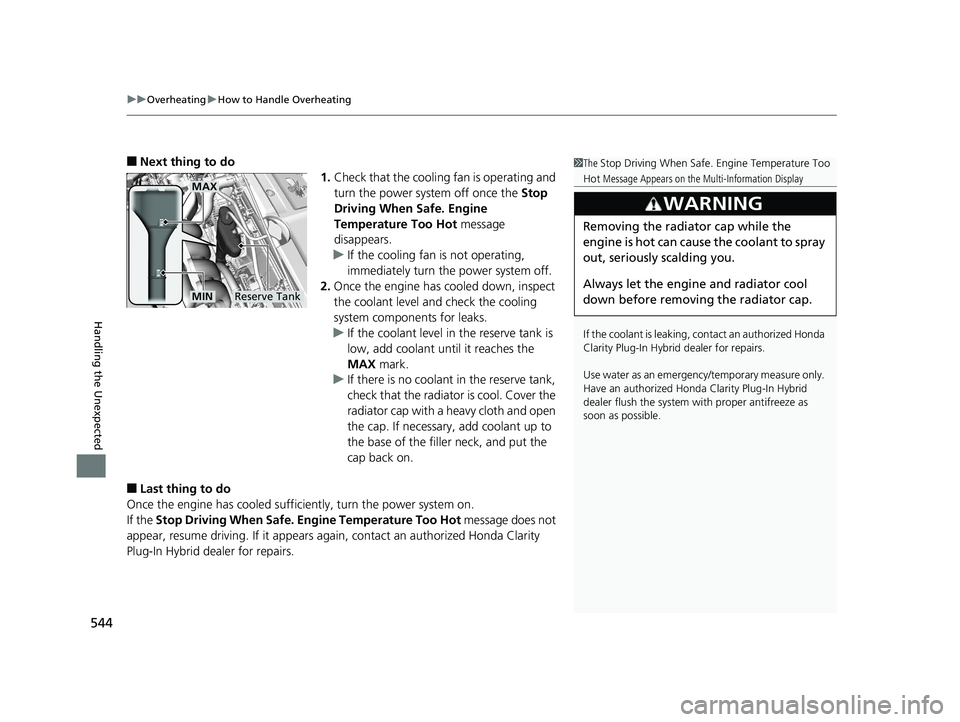

uu Overheating u How to Handle Overheating
544
Handling the Unexpected ■ Next thing to do
1. Check that the cooling fan is operating and
turn the power system off once the Stop
Driving When Safe. Engine
Temperature Too Hot message
disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■ Last thing to do
Once the engine has cooled sufficiently, turn the power system on.
If the Stop Driving When Safe. Engine Temperature Too Hot message does not
appear, resume driving. If it appears ag ain, contact an auth orized Honda Clarity
Plug-In Hybrid dealer for repairs. 1 The Stop Driving When Safe. Engine Temperature Too
Hot Message Appears on the Multi-Information Display
If the coolant is leaking, contact an authorized Honda
Clarity Plug-In Hybrid dealer for repairs.
Use water as an emergency/temporary measure only.
Have an authorized Honda Clarity Plug- In Hybrid
dealer flush the system wi th proper antifreeze as
soon as possible.3
WARNING Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Reserve TankMAX
MIN18 CLARITY PHEV CSS-31TRW6000.book 544 ページ ２０１７年８月３１日　木曜日　午後２時４９分

545
Handling the Unexpected

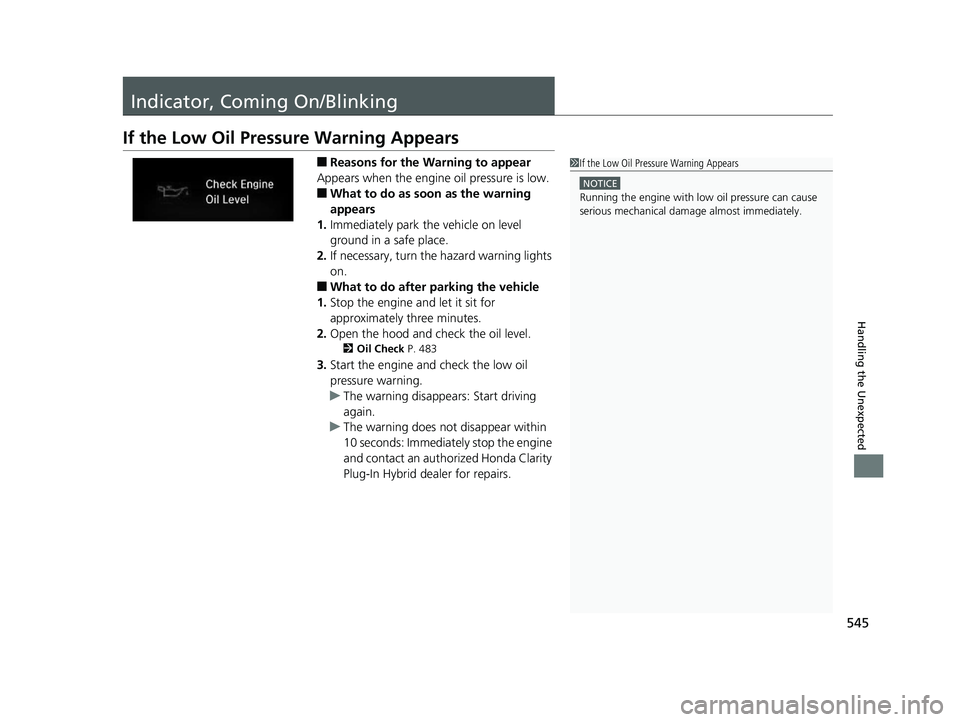

Indicator, Coming On/Blinking If the Low Oil Pressu re Warning Appears ■ Reasons for the Warning to appear
Appears when the engine oil pressure is low.
■ What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■ What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.2 Oil Check P. 483
3. Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact an authorized Honda Clarity
Plug-In Hybrid dealer for repairs. 1 If the Low Oil Pressure Warning Appears NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.18 CLARITY PHEV CSS-31TRW6000.book 545 ページ ２０１７年８月３１日　木曜日　午後２時４９分

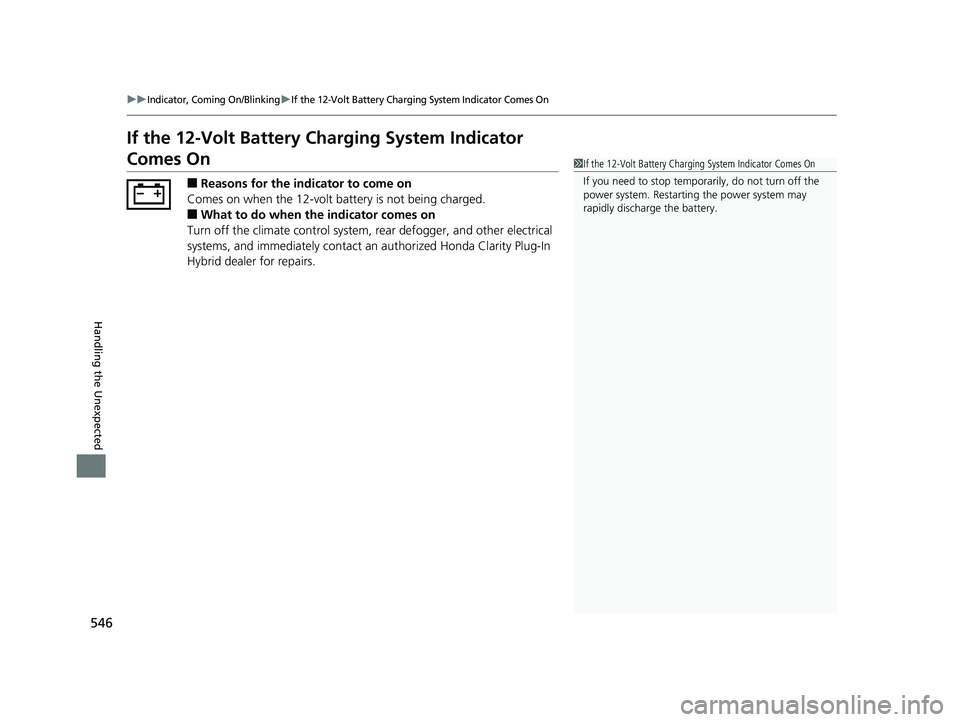

546 uu Indicator, Coming On/Blinking u If the 12-Volt Battery Charging System Indicator Comes On
Handling the Unexpected If the 12-Volt Battery Charging System Indicator
Comes On ■ Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■ What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact an authorized Honda Clarity Plug-In
Hybrid dealer for repairs. 1 If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.18 CLARITY PHEV CSS-31TRW6000.book 546 ページ ２０１７年８月３１日　木曜日　午後２時４９分

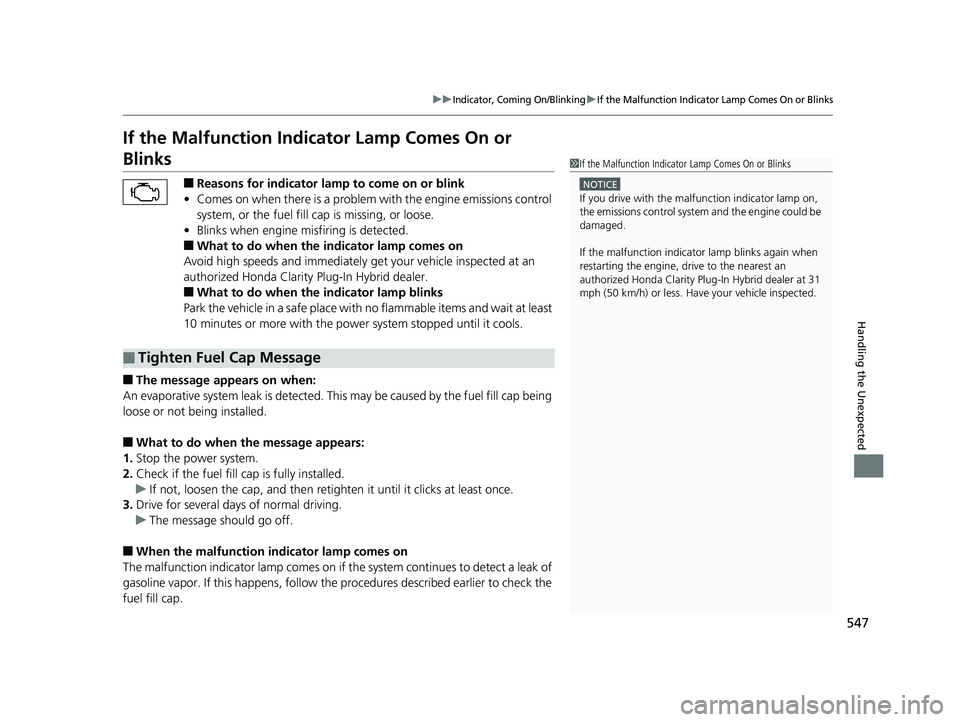

547uu Indicator, Coming On/Blinking u If the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indica tor Lamp Comes On or
Blinks ■ Reasons for indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■ What to do when the indicator lamp comes on
Avoid high speeds and immediately ge t your vehicle inspected at an
authorized Honda Clarity Plug-In Hybrid dealer.
■ What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the power system stopped until it cools.
■ The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■ What to do when the message appears:
1. Stop the power system.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■ When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, follow th e procedures described earlier to check the
fuel fill cap.■ Tighten Fuel Cap Message 1 If the Malfunction Indicato r Lamp Comes On or BlinksNOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest an
authorized Honda Clarity Plug- In Hybrid dealer at 31
mph (50 km/h) or less. Have your vehicle inspected.18 CLARITY PHEV CSS-31TRW6000.book 547 ページ ２０１７年８月３１日　木曜日　午後２時４９分

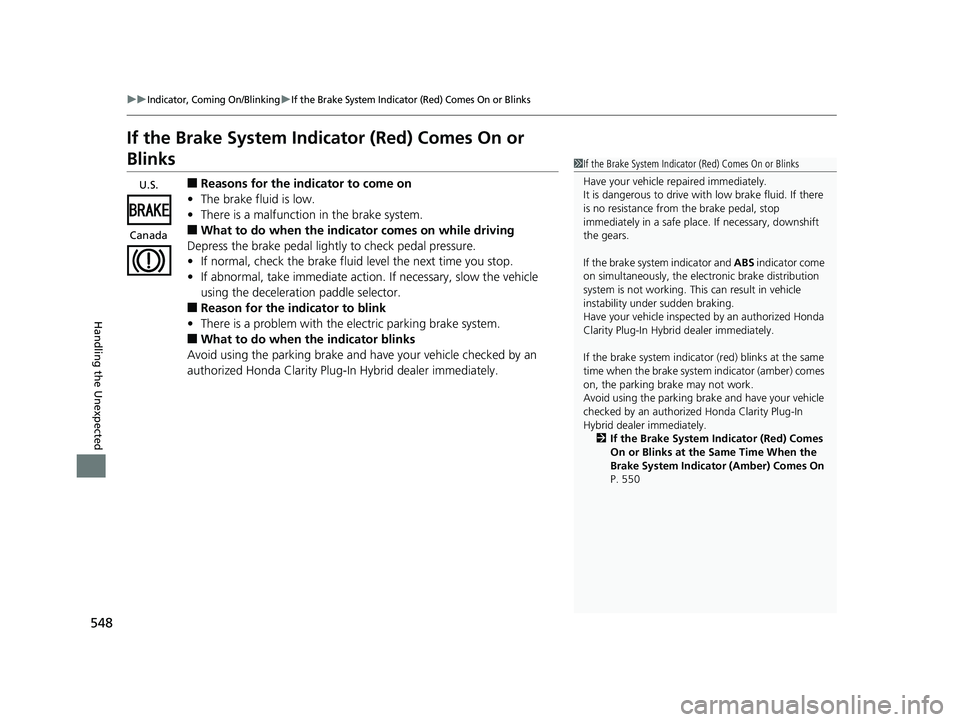

548 uu Indicator, Coming On/Blinking u If the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected If the Brake System Indicator (Red) Comes On or
Blinks ■ Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■ What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, slow the vehicle
using the deceleration paddle selector.
■ Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■ What to do when the indicator blinks
Avoid using the parking brake and ha ve your vehicle checked by an
authorized Honda Clarity Plug-I n Hybrid dealer immediately. 1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspected by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by an authorized Honda Clarity Plug-In
Hybrid dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 550U.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 548 ページ ２０１７年８月３１日　木曜日　午後２時４９分

549uu Indicator, Coming On/Blinking u If the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On ■ Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator peda l repeatedly to increase the motor
speed while the motor is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
• Comes on when the EPS steering angle center point memory is lost.
This could be due to a number of problems including: battery
disconnection, main fuse blow, low battery causing the reset of the
EPS system, wire damage to EPS ha rness. Vehicle Stability Assist
(VSA ® ), VSA ® OFF, Collision Mitigation Braking System TM
(CMBS TM
),
and low tire pressure/TPMS indicato rs come on along with a message
in the driver information interface.
■ What to do when th e indicator comes on
• Stop the vehicle in a safe place, turn off the power system, and turn
on the power system again.
If the indicator re-appears and stay s on, immediately have your vehicle
inspected by an authorized Hond a Clarity Plug-In Hybrid dealer.
• If VSA ® indicator, VSA ® OFF indicator, CMBS TM
indicator, and low tire
pressure/TPMS indicator come on al ong with a message in the driver
information interface, you need to calibrate the VSA and EPS systems.
Drive a short distance at more than 12 mph (20 km/h) to calibrate the
VSA and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and turn on the po wer system, then repeat the above
operation.
If the indicators still come on and stay on, immediately have your
vehicle inspected by an authorized Honda Clarity Plug-I n Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 549 ページ ２０１７年８月３１日　木曜日　午後２時４９分

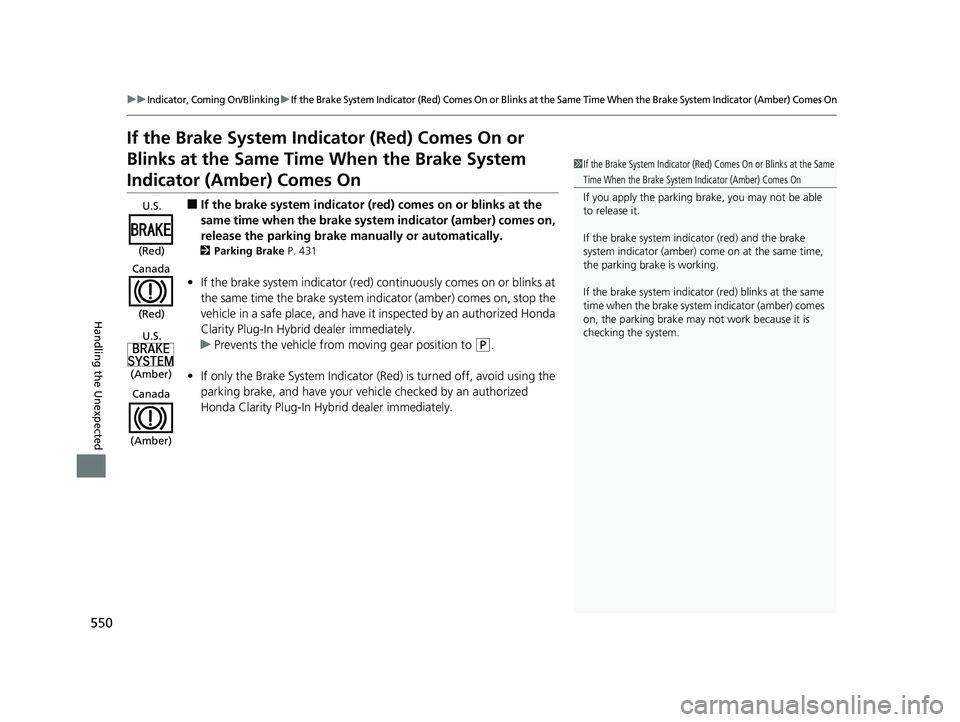

550 uu Indicator, Coming On/Blinking u If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On ■ If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (a mber) comes on,
release the parking brake manually or automatically. 2 Parking Brake P. 431
• If the brake system indicator (red) co ntinuously comes on or blinks at
the same time the brake system indicator (amber) comes on, stop the
vehicle in a safe place, and have it inspected by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.
u Prevents the vehicle from moving gear position to ( P
.
• If only the Brake System Indicator (R ed) is turned off, avoid using the
parking brake, and have your vehi cle checked by an authorized
Honda Clarity Plug-In Hybr id dealer immediately. 1 If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.U.S.
Canada
U.S.
Canada (Red)
(Red)
(Amber)
(Amber)18 CLARITY PHEV CSS-31TRW6000.book 550 ページ ２０１７年８月３１日　木曜日　午後２時４９分
