2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

255uu Audio System Basic Operation u Playing an iPod
Continued
Features
Playing an iPod Connect the iPod using your USB connector to the USB port, then select the iPod
mode. 2 USB Ports P. 205
*1:Some or all of the lists may not be displayed. VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous
display. Song Icons
Select or to change songs.
Select and hold to move rapidly
within a song./AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon *1
Displays/hides the detailed
information. (Menu) Icon
Select to display the menu items.
Cover Art Audio/Information Screen
Play/Pause Icon Driver Information Interface18 CLARITY PHEV CSS-31TRW6000.book 255 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Playing an iPod
256

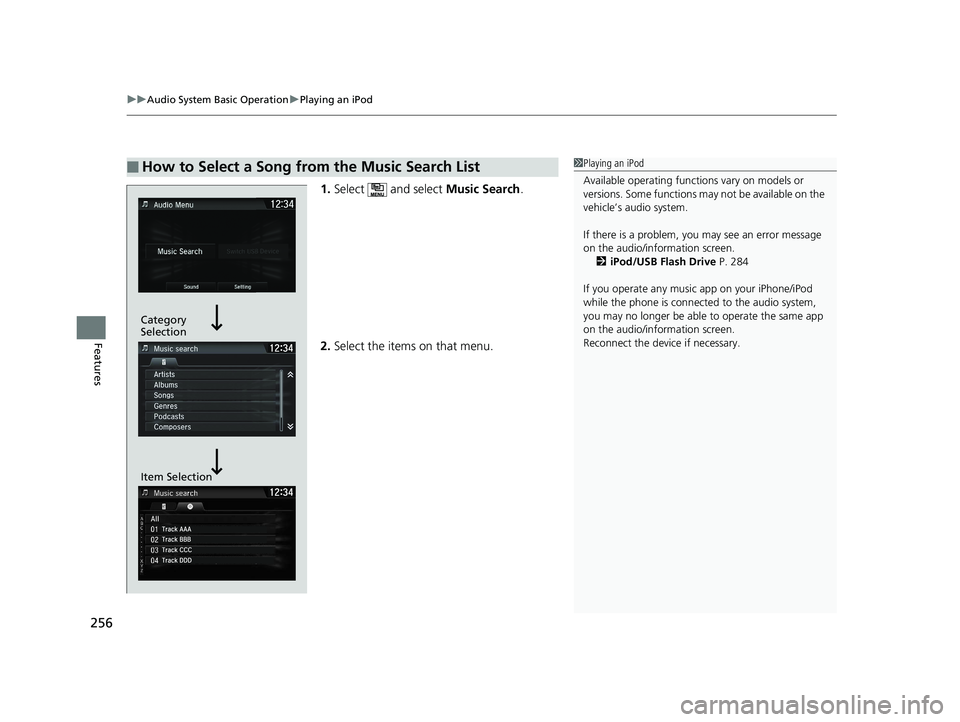

Features 1. Select and select Music Search .
2. Select the items on that menu.■ How to Select a Song from the Music Search List 1 Playing an iPod
Available operating functi ons vary on models or
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 284
If you operate any musi c app on your iPhone/iPod
while the phone is connected to the audio system,
you may no longer be able to operate the same app
on the audio/information screen.
Reconnect the devi ce if necessary.Category
Selection
Item Selection18 CLARITY PHEV CSS-31TRW6000.book 256 ページ ２０１７年８月３１日　木曜日　午後２時４９分

257uu Audio System Basic Operation u Playing an iPod
Features

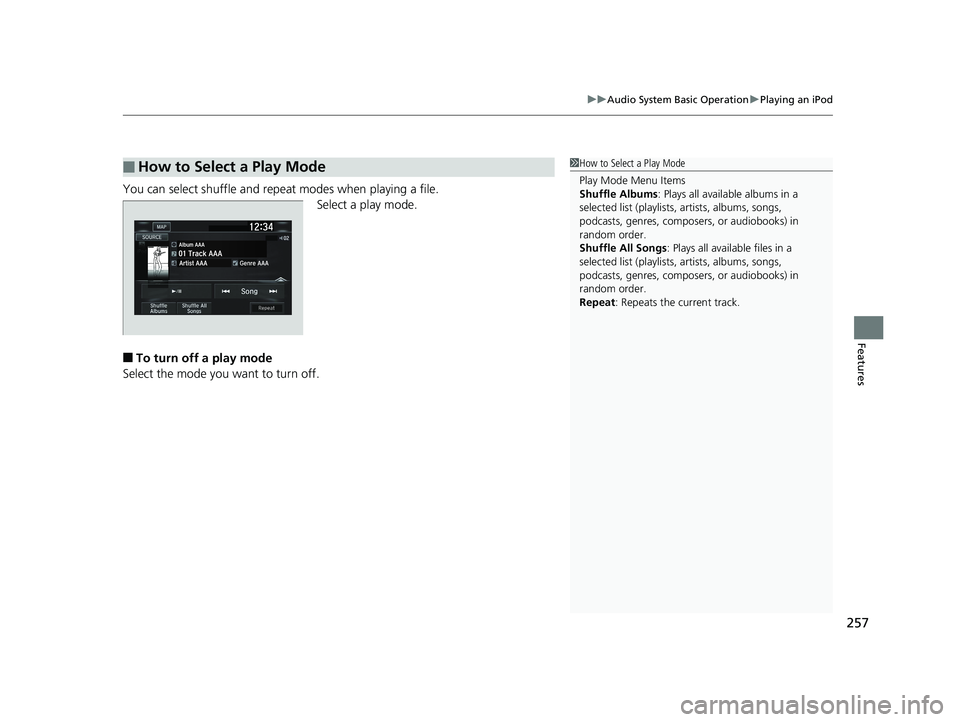

You can select shuffle and repeat modes when playing a file.
Select a play mode.
■ To turn off a play mode
Select the mode you want to turn off.■ How to Select a Play Mode 1 How to Select a Play Mode
Play Mode Menu Items
Shuffle Albums : Plays all available albums in a
selected list (playlists, artists, albums, songs,
podcasts, genres, composers, or audiobooks) in
random order.
Shuffle All Songs : Plays all available files in a
selected list (playlists, artists, albums, songs,
podcasts, genres, composers, or audiobooks) in
random order.
Repeat : Repeats the current track.18 CLARITY PHEV CSS-31TRW6000.book 257 ページ ２０１７年８月３１日　木曜日　午後２時４９分

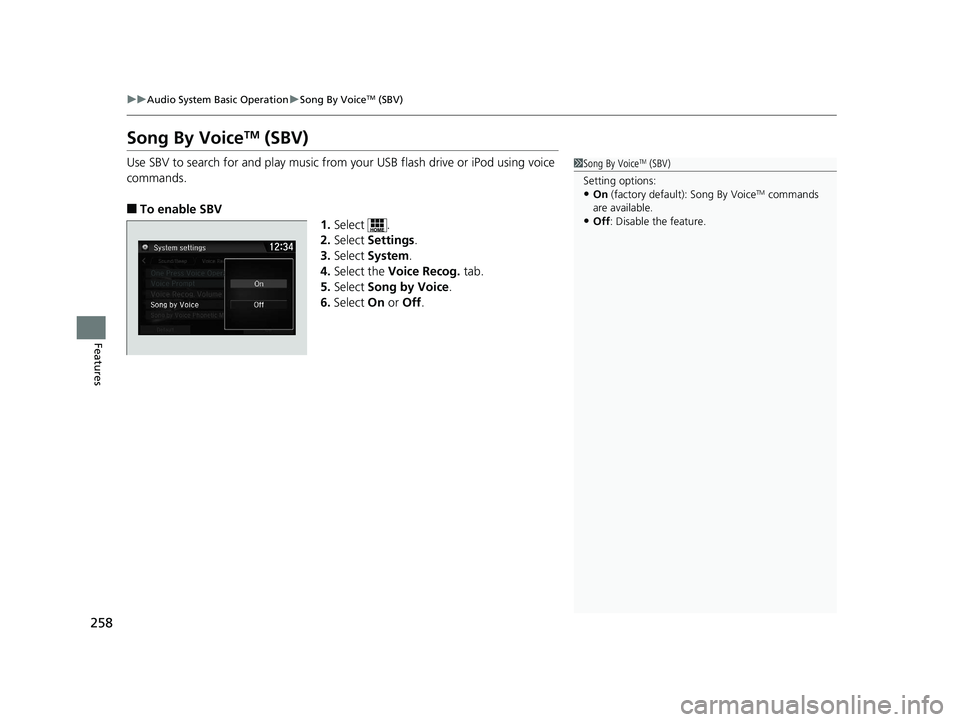

258 uu Audio System Basic Operation u Song By Voice TM
(SBV)
Features Song By Voice TM
(SBV)Use SBV to search for and play music from your USB flash drive or iPod using voice
commands.
■ To enable SBV
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog. tab.
5. Select Song by Voice .
6. Select On or Off . 1 Song By Voice TM
(SBV)
Setting options:
• On (factory default): Song By Voice TM
commands
are available.
• Off : Disable the feature.18 CLARITY PHEV CSS-31TRW6000.book 258 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
259uu Audio System Basic Operation u Song By Voice TM
(SBV)
Features

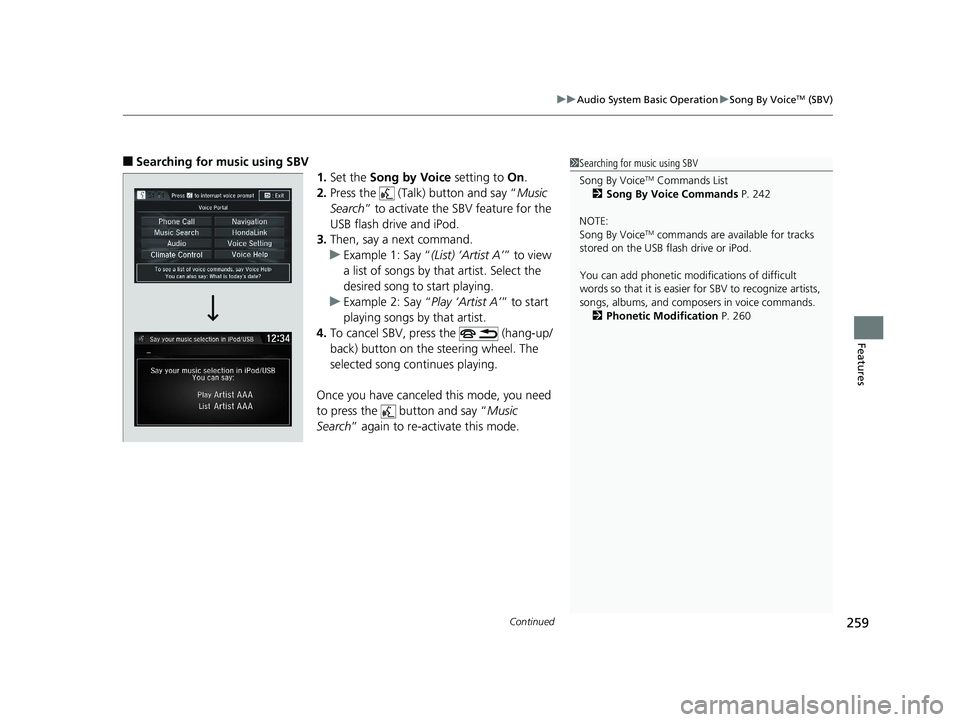

■ Searching for music using SBV
1. Set the Song by Voice setting to On .
2. Press the (Talk) button and say “ Music
Search ” to activate the SBV feature for the
USB flash drive and iPod.
3. Then, say a next command.
u Example 1: Say “ (List) ‘Artist A’ ” to view
a list of songs by th at artist. Select the
desired song to start playing.
u Example 2: Say “ Play ‘Artist A’ ” to start
playing songs by that artist.
4. To cancel SBV, press the (hang-up/
back) button on the steering wheel. The
selected song continues playing.
Once you have canceled this mode, you need
to press the button and say “ Music
Search ” again to re-activate this mode. 1 Searching for music using SBV
Song By Voice TM
Commands List
2 Song By Voice Commands P. 242
NOTE:
Song By Voice TM
commands are available for tracks
stored on the USB flash drive or iPod.
You can add phonetic modi fications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands.
2 Phonetic Modification P. 26018 CLARITY PHEV CSS-31TRW6000.book 259 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Song By Voice TM
(SBV)
260

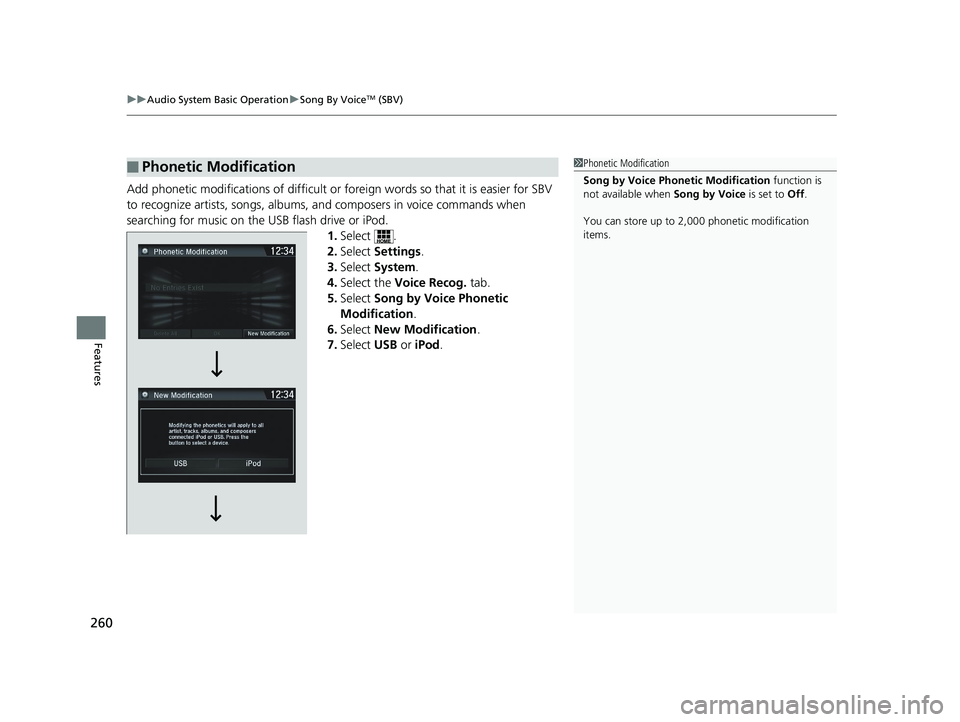

Features Add phonetic modifications of difficult or fo reign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the USB flash drive or iPod.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog. tab.
5. Select Song by Voice Phonetic
Modification .
6. Select New Modification .
7. Select USB or iPod .■ Phonetic Modification 1 Phonetic Modification
Song by Voice Phonetic Modification function is
not available when Song by Voice is set to Off .
You can store up to 2, 000 phonetic modification
items.18 CLARITY PHEV CSS-31TRW6000.book 260 ページ ２０１７年８月３１日　木曜日　午後２時４９分

261uu Audio System Basic Operation u Song By Voice TM
(SBV)
Features

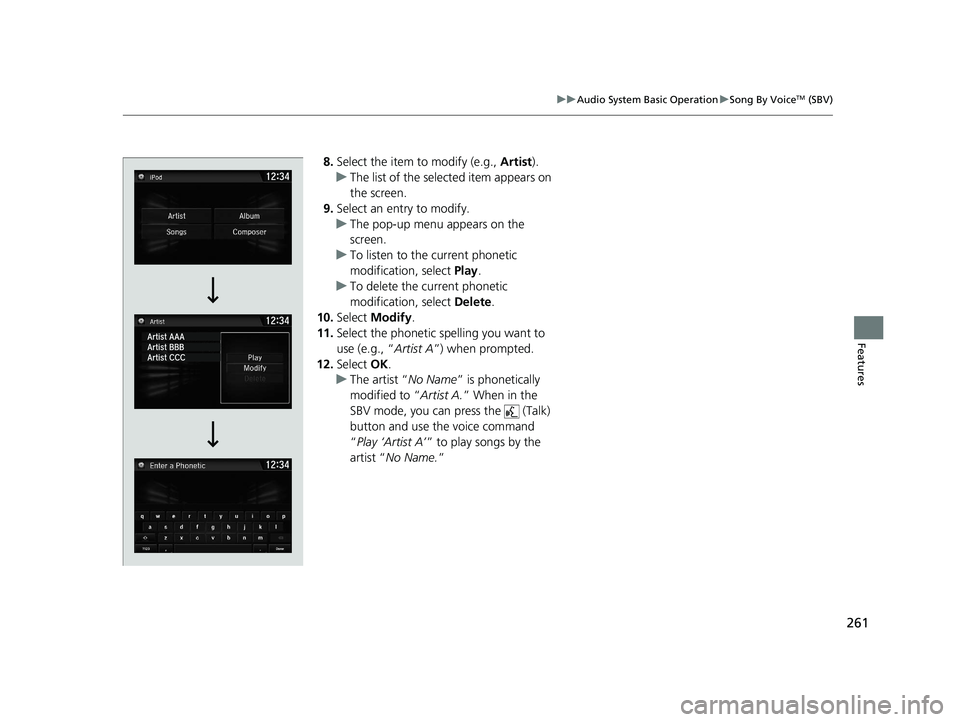

8. Select the item to modify (e.g., Artist ).
u The list of the selected item appears on
the screen.
9. Select an entry to modify.
u The pop-up menu appears on the
screen.
u To listen to the current phonetic
modification, select Play .
u To delete the current phonetic
modification, select Delete .
10. Select Modify .
11. Select the phonetic spelling you want to
use (e.g., “ Artist A ”) when prompted.
12. Select OK .
u The artist “ No Name ” is phonetically
modified to “ Artist A. ” When in the
SBV mode, you can press the (Talk)
button and use the voice command
“ Play ‘Artist A’ ” to play songs by the
artist “ No Name. ”18 CLARITY PHEV CSS-31TRW6000.book 261 ページ ２０１７年８月３１日　木曜日　午後２時４９分

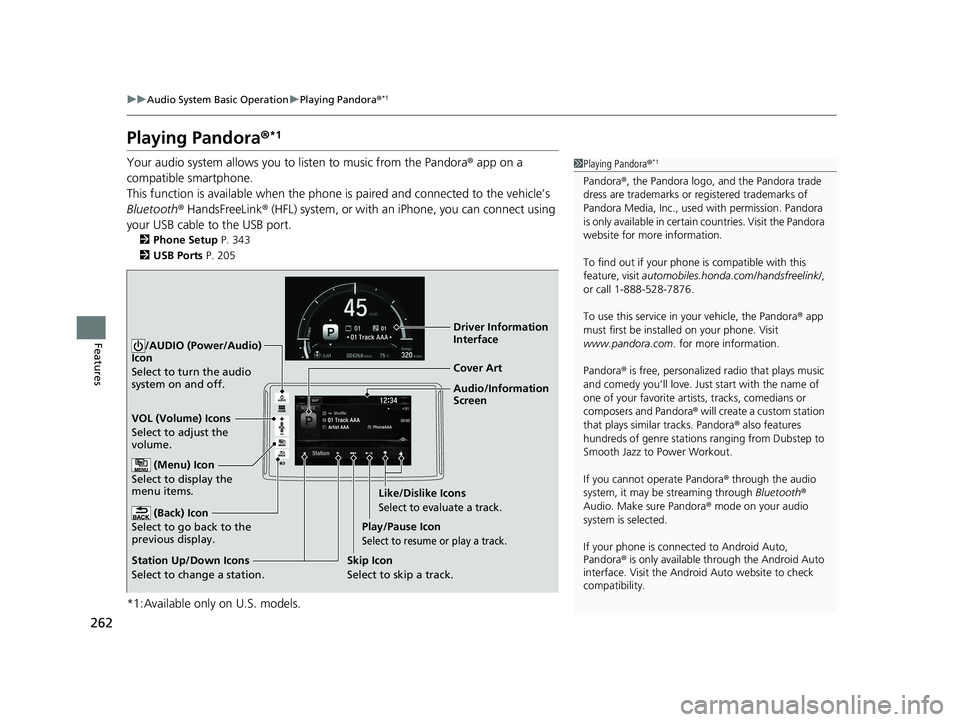

262 uu Audio System Basic Operation u Playing Pandora ® *1
Features Playing Pandora ® *1
Your audio system allows you to listen to music from the Pandora ® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port. 2 Phone Setup P. 343
2 USB Ports P. 205
*1:Available only on U.S. models. 1 Playing Pandora ® *1
Pandora ® , the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is only available in certai n countries. Visit the Pandora
website for more information.
To find out if your phone is compatible with this
feature, visit automobiles.honda.com /handsfreelink/ ,
or call 1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
Pandora ® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite arti sts, tracks, comedians or
composers and Pandora ® will create a custom station
that plays similar tracks. Pandora ® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth ®
Audio. Make sure Pandora ® mode on your audio
system is selected.
If your phone is connec ted to Android Auto,
Pandora ® is only available th rough the Android Auto
interface. Visit the Android Auto website to check
compatibility.Audio/Information
ScreenCover Art
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display. /AUDIO (Power/Audio)
Icon
Select to turn the audio
system on and off.
(Menu) Icon
Select to display the
menu items.
Play/Pause Icon
Select to resume or play a track.
Station Up/Down Icons
Select to change a station. Skip Icon
Select to skip a track. Like/Dislike Icons
Select to evaluate a track. Driver Information
Interface18 CLARITY PHEV CSS-31TRW6000.book 262 ページ ２０１７年８月３１日　木曜日　午後２時４９分
