2018 HONDA CLARITY PLUG IN HYBRID Owners Manual

335Continued
Features
Bluetooth ® HandsFreeLink ®Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.

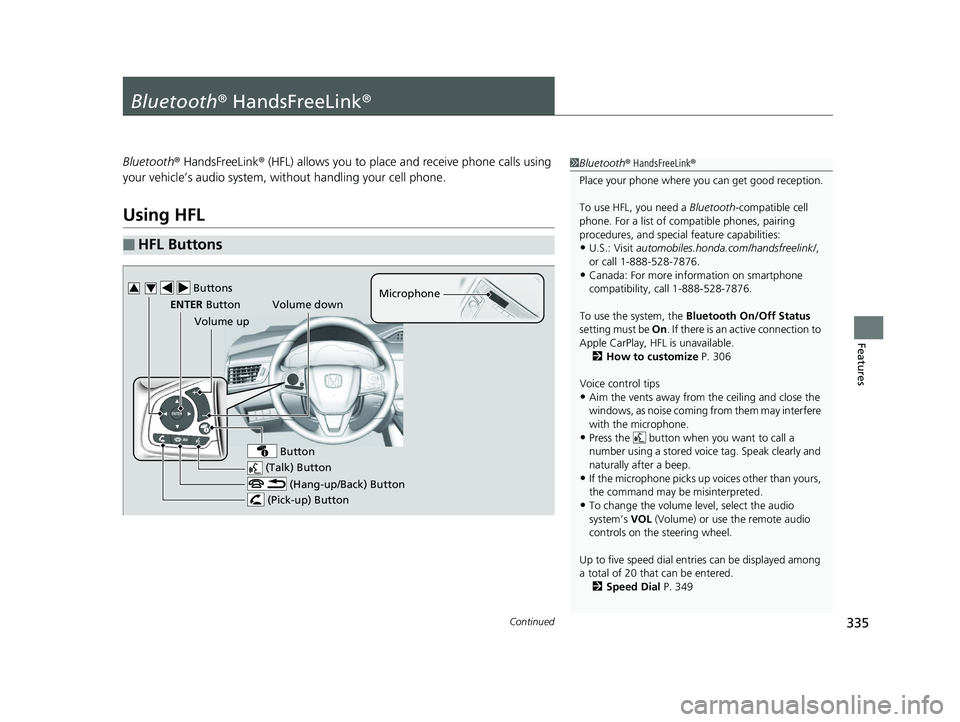

Using HFL ■ HFL Buttons 1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth -compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit automobiles.honda.com /handsfreelink/ ,
or call 1-888-528-7876.
• Canada: For more info rmation on smartphone
compatibility, call 1-888-528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On . If there is an active connection to
Apple CarPlay, H FL is unavailable.
2 How to customize P. 306
Voice control tips
• Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
• Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
• If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial en tries can be displayed among
a total of 20 that can be entered.
2 Speed Dial P. 349 (Talk) ButtonVolume up Microphone
(Hang-up/Back) Button
(Pick-up) ButtonENTER Button
Button Buttons3 4
Volume down18 CLARITY PHEV CSS-31TRW6000.book 335 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Bluetooth ® HandsFreeLink ® u Using HFL

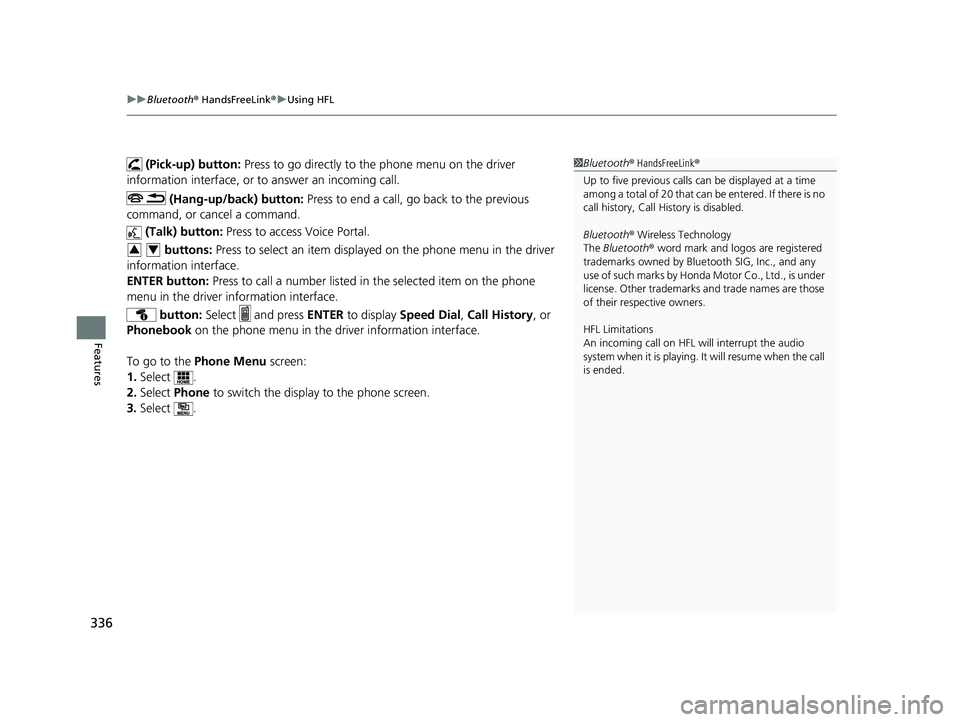

336
Features (Pick-up) button: Press to go directly to the phone menu on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to access Voice Portal.
buttons: Press to select an item displayed on the phone menu in the driver
information interface.
ENTER button: Press to call a number listed in the selected item on the phone
menu in the driver information interface.
button: Select and press ENTER to display Speed Dial , Call History , or
Phonebook on the phone menu in the driver information interface.
To go to the Phone Menu screen:
1. Select .
2. Select Phone to switch the displa y to the phone screen.
3. Select . 1 Bluetooth ® HandsFreeLink ®
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s te m wh e n it is p la y i n g . It wi ll re s u m e w h en t h e c a l l
is ended.3 418 CLARITY PHEV CSS-31TRW6000.book 336 ページ ２０１７年８月３１日　木曜日　午後２時４９分

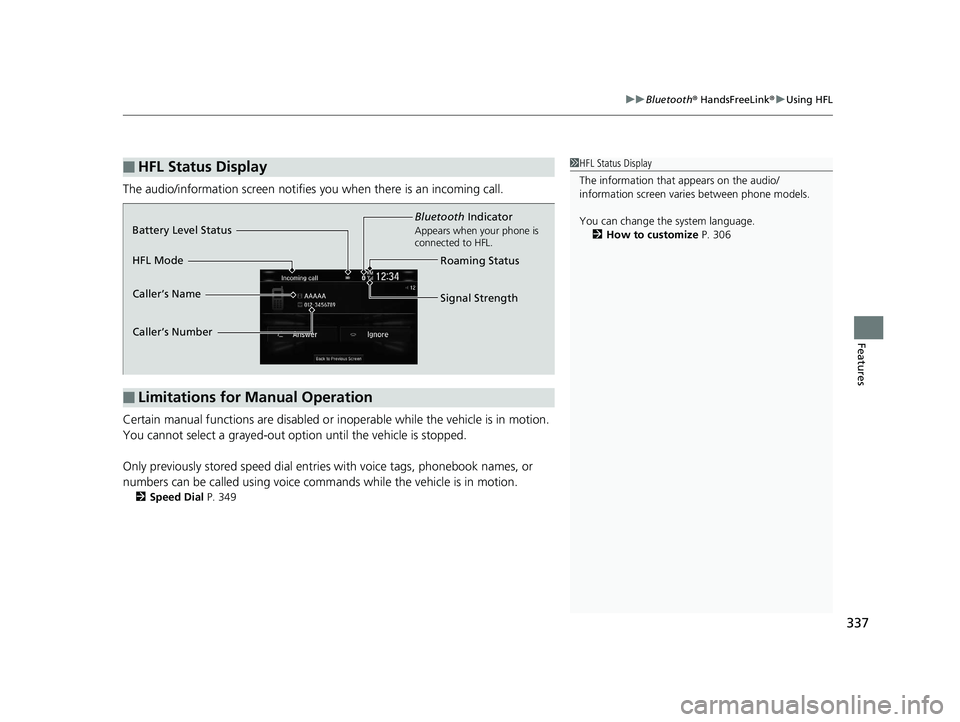

337uu Bluetooth ® HandsFreeLink ® u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 349■ HFL Status Display 1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language.
2 How to customize P. 306
■ Limitations for Manual Operation Bluetooth IndicatorAppears when your phone is
connected to HFL.
Signal StrengthHFL ModeBattery Level Status
Caller’s Name
Caller’s Number Roaming Status18 CLARITY PHEV CSS-31TRW6000.book 337 ページ ２０１７年８月３１日　木曜日　午後２時４９分

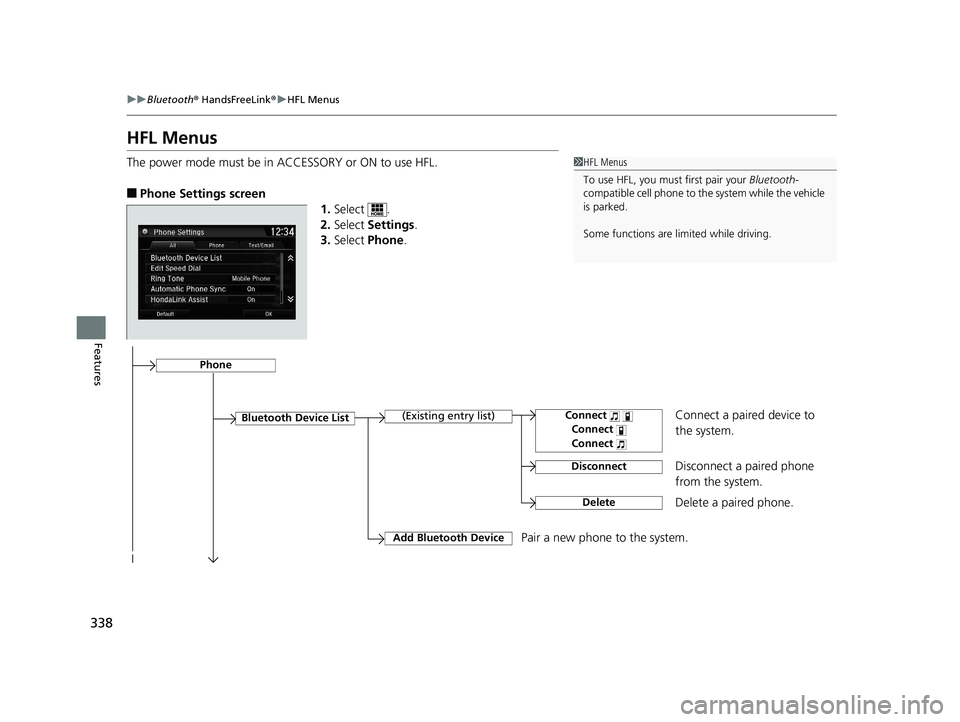

338 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features HFL Menus The power mode must be in ACCESSORY or ON to use HFL.
■ Phone Settings screen
1. Select .
2. Select Settings .
3. Select Phone . 1 HFL Menus
To use HFL, you must first pair your Bluetooth -
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.Bluetooth Device List (Existing entry list)
Disconnect
Delete
Delete a paired phone.
Add Bluetooth Device
Pair a new phone to the system.Phone
Connect a paired device to
the system.Connect
Connect
Connect 18 CLARITY PHEV CSS-31TRW6000.book 338 ページ ２０１７年８月３１日　木曜日　午後２時４９分

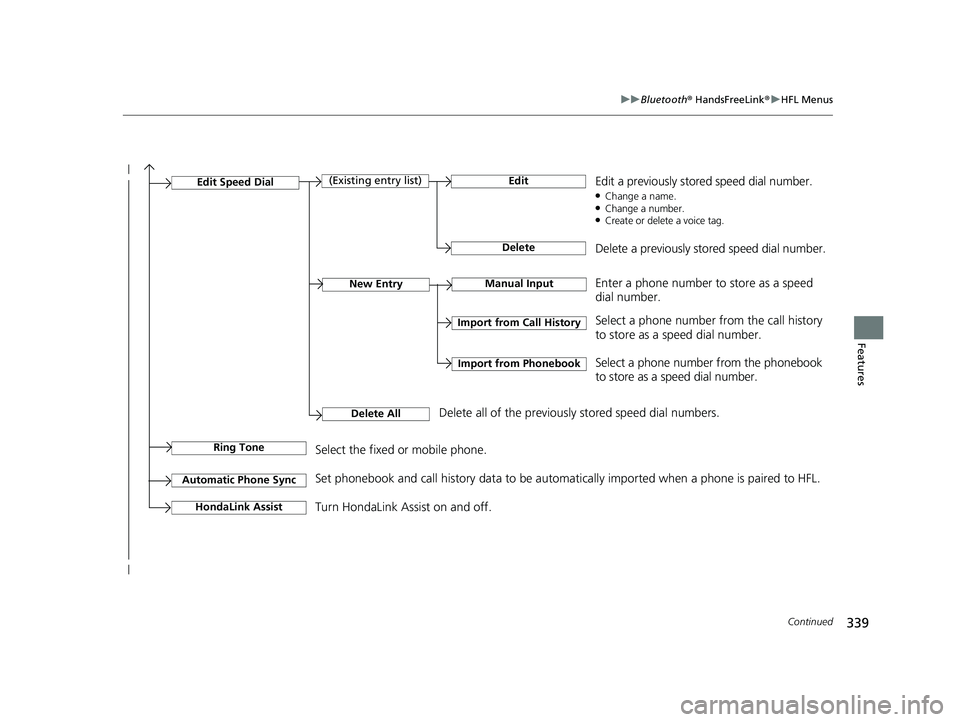

339uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features
Manual Input
New Entry
Import from Call History
Import from Phonebook Edit
Delete(Existing entry list)
Edit Speed Dial
Delete All Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers. Select a phone number from the phonebook
to store as a speed dial number.Edit a previously stored speed dial number. ●
Change a name. ●
Change a number. ●
Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring Tone
Select the fixed or mobile phone.Automatic Phone Sync
Set phonebook and call history data to be automa tically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist18 CLARITY PHEV CSS-31TRW6000.book 339 ページ ２０１７年８月３１日　木曜日　午後２時４９分

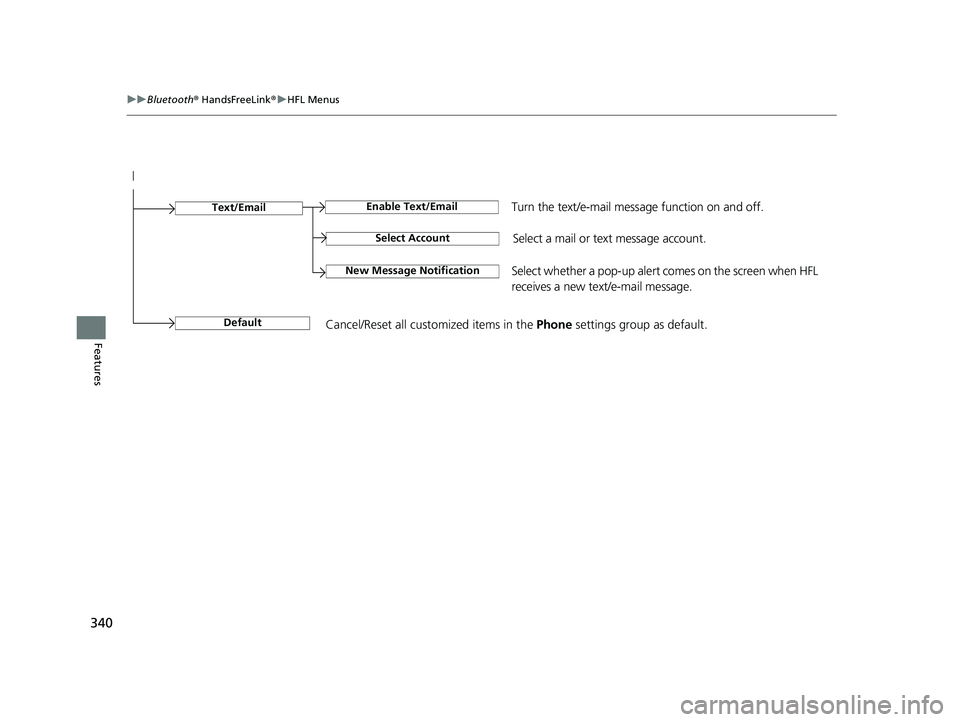

340 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features Select AccountEnable Text/Email
Text/Email
New Message Notification
Select whether a pop-up alert co mes on the screen when HFL
receives a new text/e-mail message.Turn the text/e-mail message function on and off.
Select a mail or te xt message account.
Default
Cancel/Reset all customized items in the Phone settings group as default.18 CLARITY PHEV CSS-31TRW6000.book 340 ページ ２０１７年８月３１日　木曜日　午後２時４９分

341uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features
■ Phone Menu screen
1. Select .
2. Select Phone .
3. Select .
Select a phone number from the call history to
store as a speed dial number.Speed Dial
Manual InputNew Entry
Import from Call History
Import from Phonebook
Select a phone number from the phonebook
to store as a speed dial number.Enter a phone number to store as a speed
dial number.(Existing entry list)
Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.Manual InputNew Entry
Import from Call History
Import from Phonebook
Select a phone number from the phonebook
to store as a speed dial number.Enter a phone number to store as a speed
dial number.(Existing entry list)
Dial the selected number in the speed dial list.Edit Speed Dial18 CLARITY PHEV CSS-31TRW6000.book 341 ページ ２０１７年８月３１日　木曜日　午後２時４９分

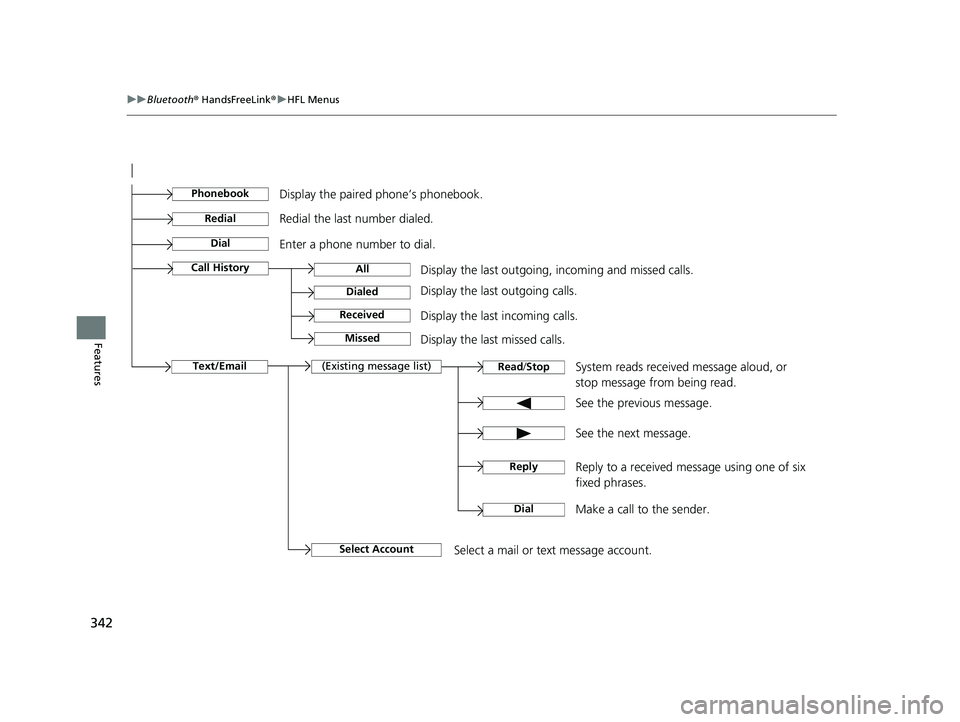

342 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features See the previous message.Text/Email
Read / Stop(Existing message list)
See the next message.System reads received message aloud, or
stop message from being read.
Select Account
Select a mail or text message account. Reply to a received message using one of six
fixed phrases. Dial
Make a call to the sender.ReplyDisplay the last outgoing, incoming and missed calls.Call History
All
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.Missed
Display the last missed calls.DialRedial
Enter a phone number to dial.Redial the last number dialed.Phonebook
Display the paired phone’s phonebook.18 CLARITY PHEV CSS-31TRW6000.book 342 ページ ２０１７年８月３１日　木曜日　午後２時４９分
