215uu Audio System Basic Operation u Audio/Information Screen
Features

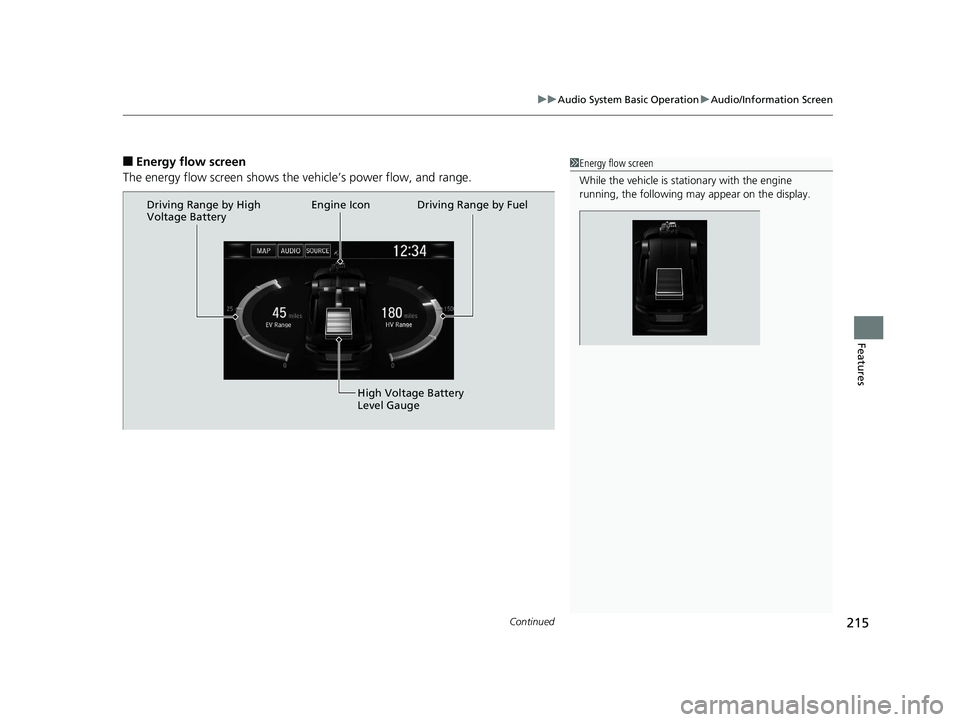

■ Energy flow screen
The energy flow screen shows th e vehicle’s power flow, and range. 1 Energy flow screen
While the vehicle is stat ionary with the engine
running, the following may appear on the display.
Driving Range by Fuel
High Voltage Battery
Level GaugeEngine IconDriving Range by High
Voltage Battery18 CLARITY PHEV CSS-31TRW6000.book 215 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Audio/Information Screen
216

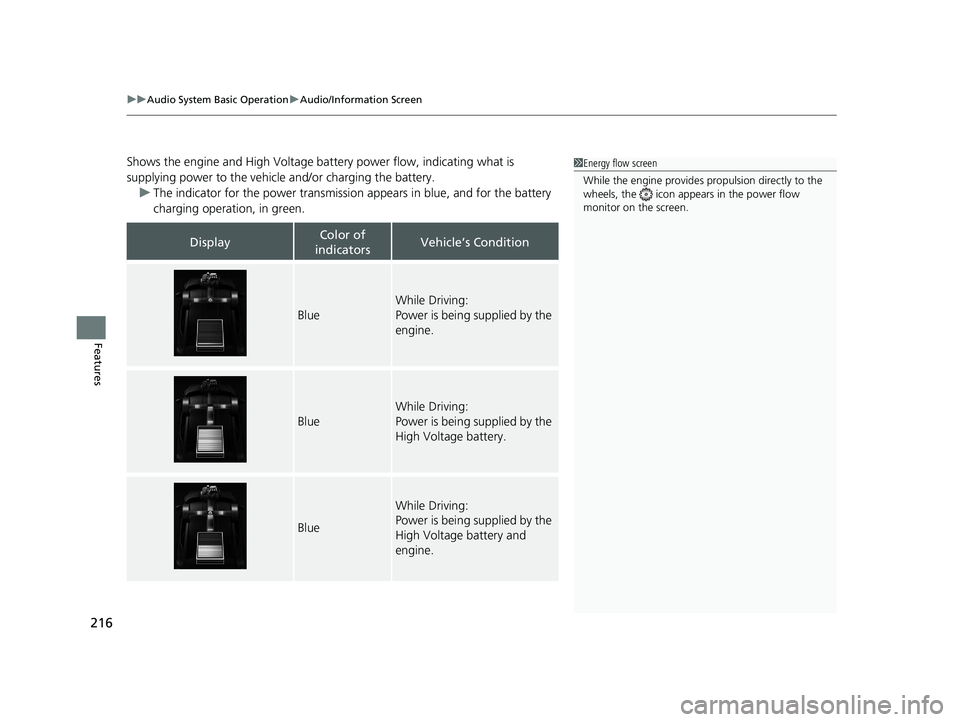

Features Shows the engine and High Voltage battery power flow, indicating what is
supplying power to the vehicle and/or charging the battery.
u The indicator for the power transmission appears in blue, and for the battery
charging operation, in green.
Display Color of
indicators Vehicle’s Condition
Blue While Driving:
Power is being supplied by the
engine.
Blue While Driving:
Power is being supplied by the
High Voltage battery.
Blue While Driving:
Power is being supplied by the
High Voltage battery and
engine. 1 Energy flow screen
While the engine provides propulsion directly to the
wheels, the icon appears in the power flow
monitor on the screen.18 CLARITY PHEV CSS-31TRW6000.book 216 ページ ２０１７年８月３１日　木曜日　午後２時４９分

217uu Audio System Basic Operation u Audio/Information Screen
Continued
Features
Display Color of
indicators Vehicle’s Condition

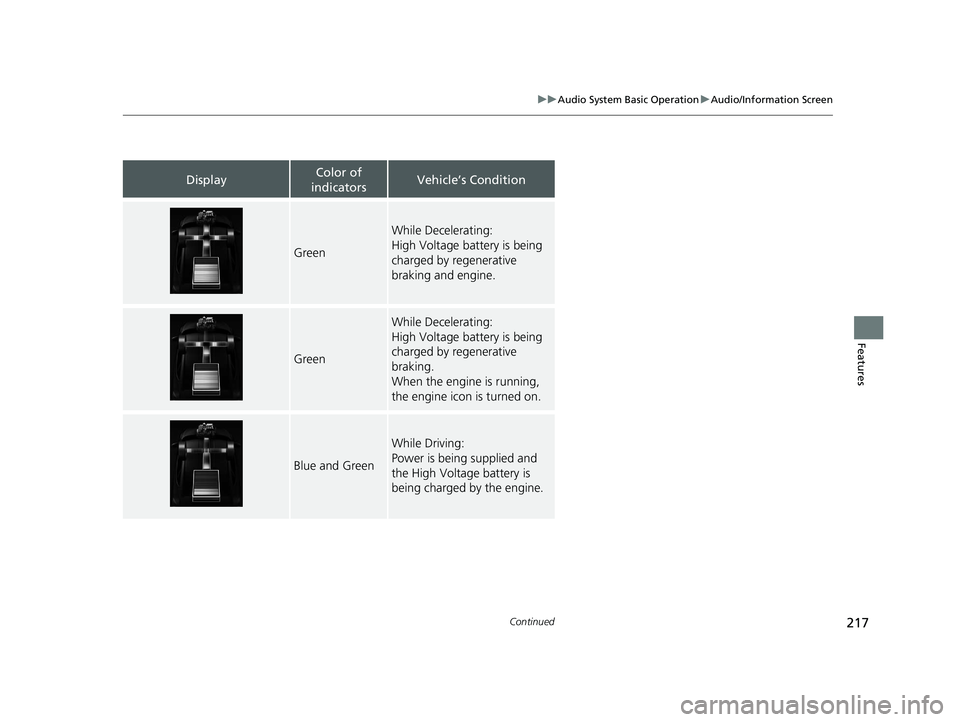

Green While Decelerating:
High Voltage battery is being
charged by regenerative
braking and engine.
Green While Decelerating:
High Voltage battery is being
charged by regenerative
braking.
When the engine is running,
the engine icon is turned on.
Blue and Green While Driving:
Power is being supplied and
the High Voltage battery is
being charged by the engine.18 CLARITY PHEV CSS-31TRW6000.book 217 ページ ２０１７年８月３１日　木曜日　午後２時４９分

218 uu Audio System Basic Operation u Audio/Information Screen
Features Display Color of
indicators Vehicle’s Condition

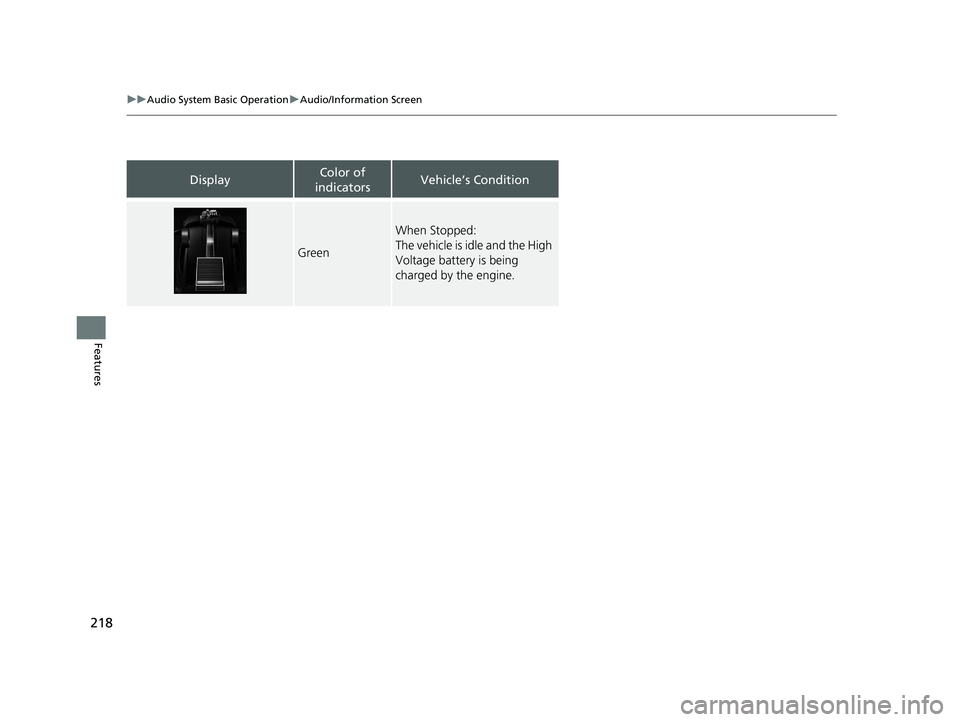

Green When Stopped:
The vehicle is idle and the High
Voltage battery is being
charged by the engine.18 CLARITY PHEV CSS-31TRW6000.book 218 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
219uu Audio System Basic Operation u Audio/Information Screen
Features
1. Select .
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK .
u The screen will return to the home
screen.

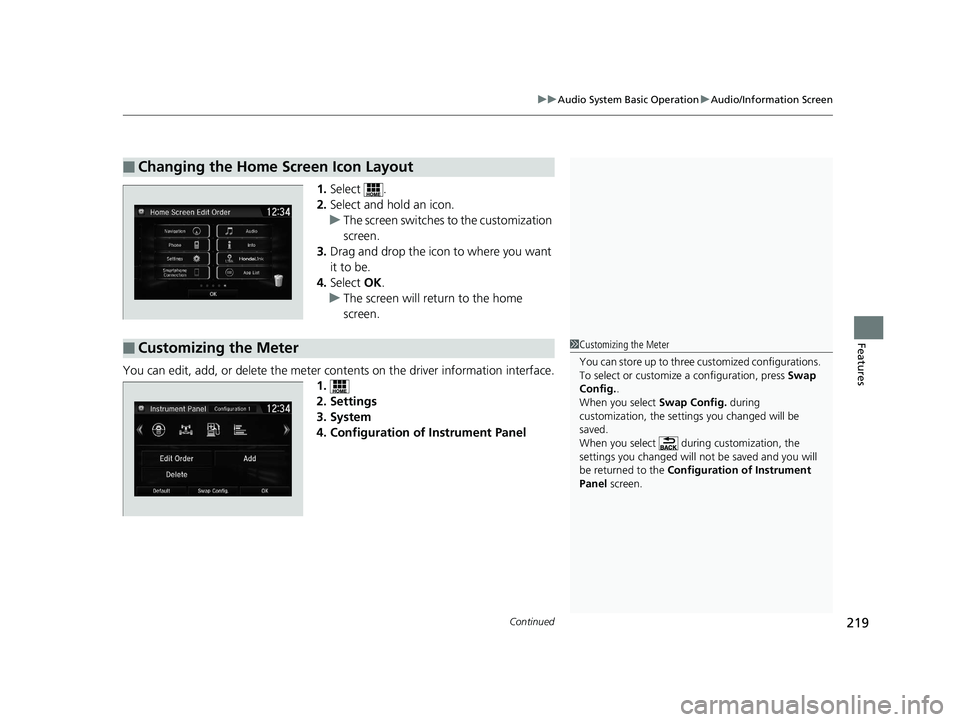

You can edit, add, or delete the meter cont ents on the driver information interface.
1.
2. Settings
3. System
4. Configuration of Instrument Panel■ Changing the Home Screen Icon Layout
■ Customizing the Meter 1 Customizing the Meter
You can store up to three cu stomized configurations.
To select or customize a configuration, press Swap
Config. .
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you select during customization, the
settings you changed will not be saved and you will
be returned to the Configuration of Instrument
Panel screen.18 CLARITY PHEV CSS-31TRW6000.book 219 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Audio/Information Screen
220

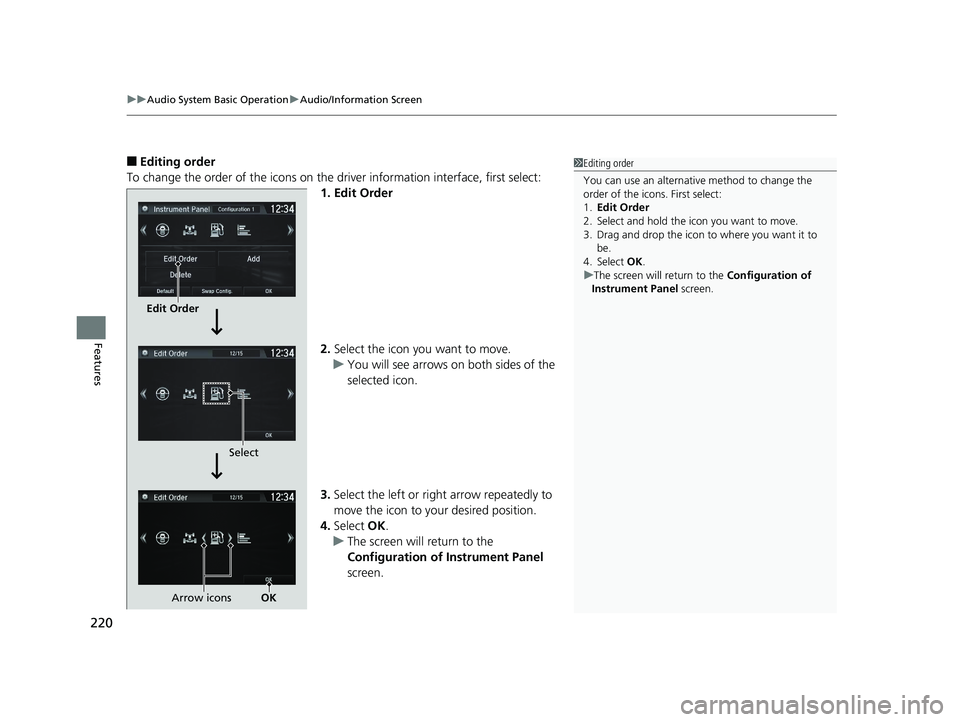

Features ■ Editing order
To change the order of the icons on the driver information interface, first select:
1. Edit Order
2. Select the icon you want to move.
u You will see arrows on both sides of the
selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK .
u The screen will return to the
Configuration of Instrument Panel
screen. 1 Editing order
You can use an alternative method to change the
order of the icons. First select:
1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to
be.
4. Select OK .
u The screen will return to the Configuration of
Instrument Panel screen.
Edit Order
Select
Arrow icons OK18 CLARITY PHEV CSS-31TRW6000.book 220 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
221uu Audio System Basic Operation u Audio/Information Screen
Features

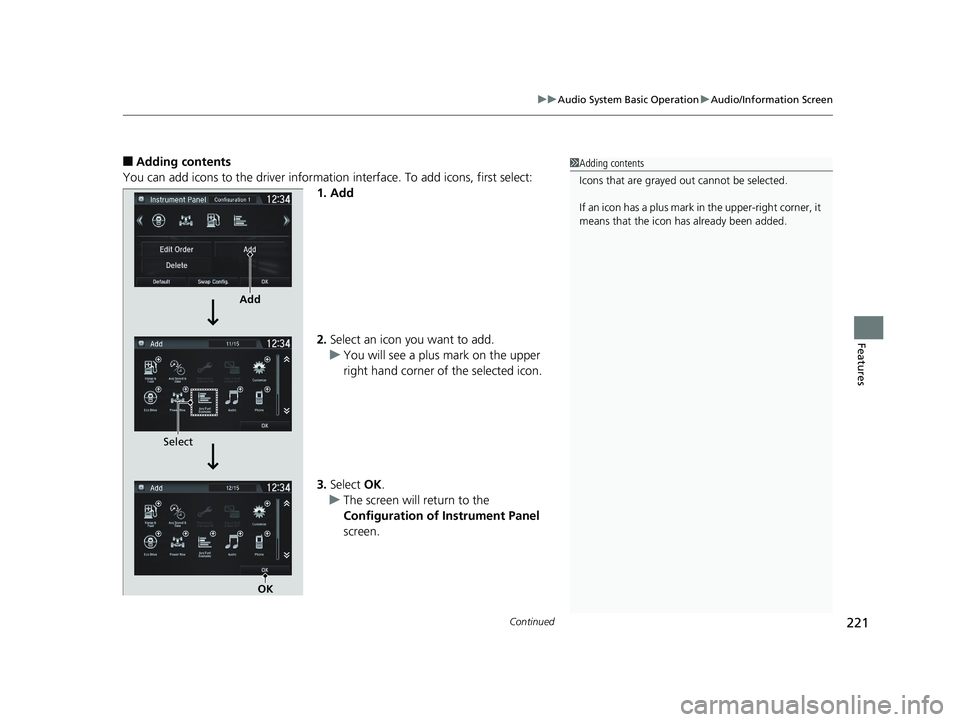

■ Adding contents
You can add icons to the driver informatio n interface. To add icons, first select:
1. Add
2. Select an icon you want to add.
u You will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK .
u The screen will return to the
Configuration of Instrument Panel
screen. 1 Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon ha s already been added.
Add
Select
OK18 CLARITY PHEV CSS-31TRW6000.book 221 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Audio/Information Screen
222

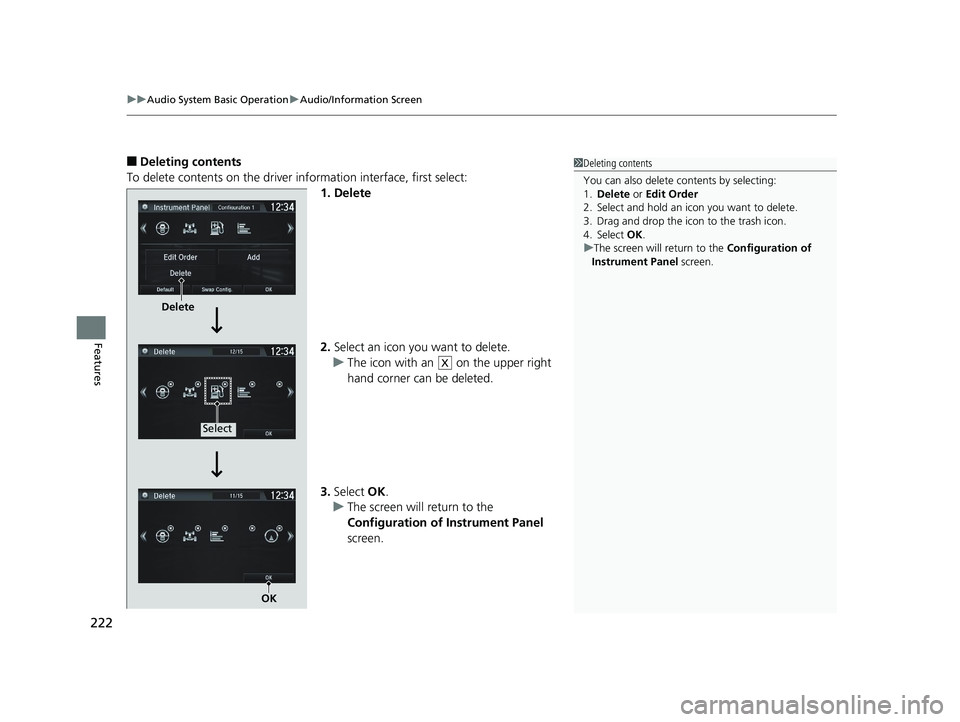

Features ■ Deleting contents
To delete contents on the driver information interface, first select:
1. Delete
2. Select an icon you want to delete.
u The icon with an on the upper right
hand corner can be deleted.
3. Select OK .
u The screen will return to the
Configuration of Instrument Panel
screen. 1 Deleting contents
You can also delete c ontents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK .
u The screen will return to the Configuration of
Instrument Panel screen.
Delete
Select
