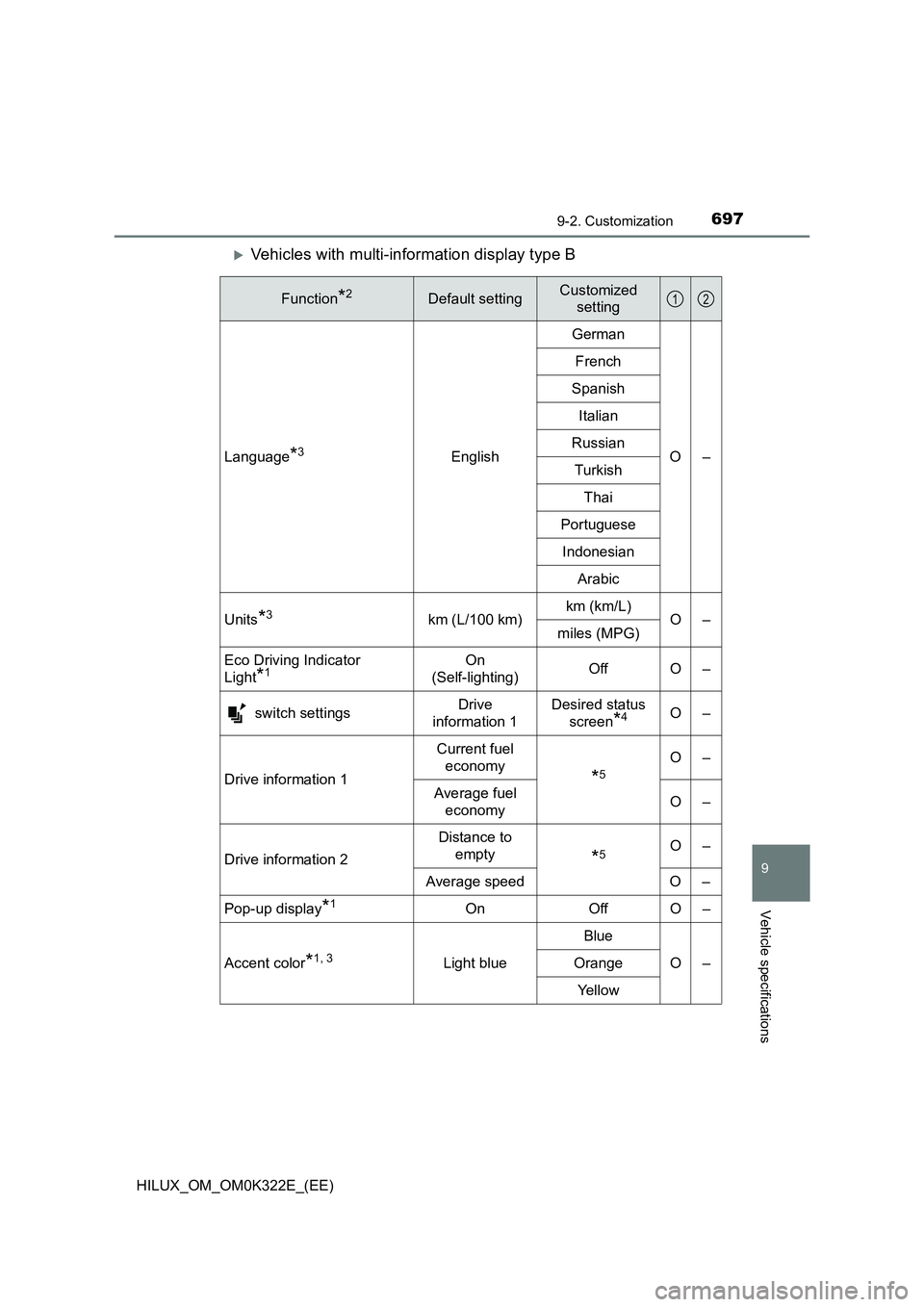

6979-2. Customization
HILUX_OM_OM0K322E_(EE)
9
Vehicle specifications
Vehicles with multi-information display type B
Function*2Default settingCustomized
setting
Language*3English
German
O–
French
Spanish
Italian
Russian
Turkish
Thai
Portuguese
Indonesian
Arabic
Units*3km (L/100 km) km (km/L) O–miles (MPG)
Eco Driving Indicator
Light*1On
(Self-lighting) Off O –
switch settings Drive
information 1
Desired status
screen*4O–
Drive information 1
Current fuel
economy*5
O–
Average fuel
economy O–
Drive information 2
Distance to
empty*5O–
Average speed O –
Pop-up display*1On Off O –
Accent color*1, 3Light blue
Blue
O– Orange
Ye l l o w
12

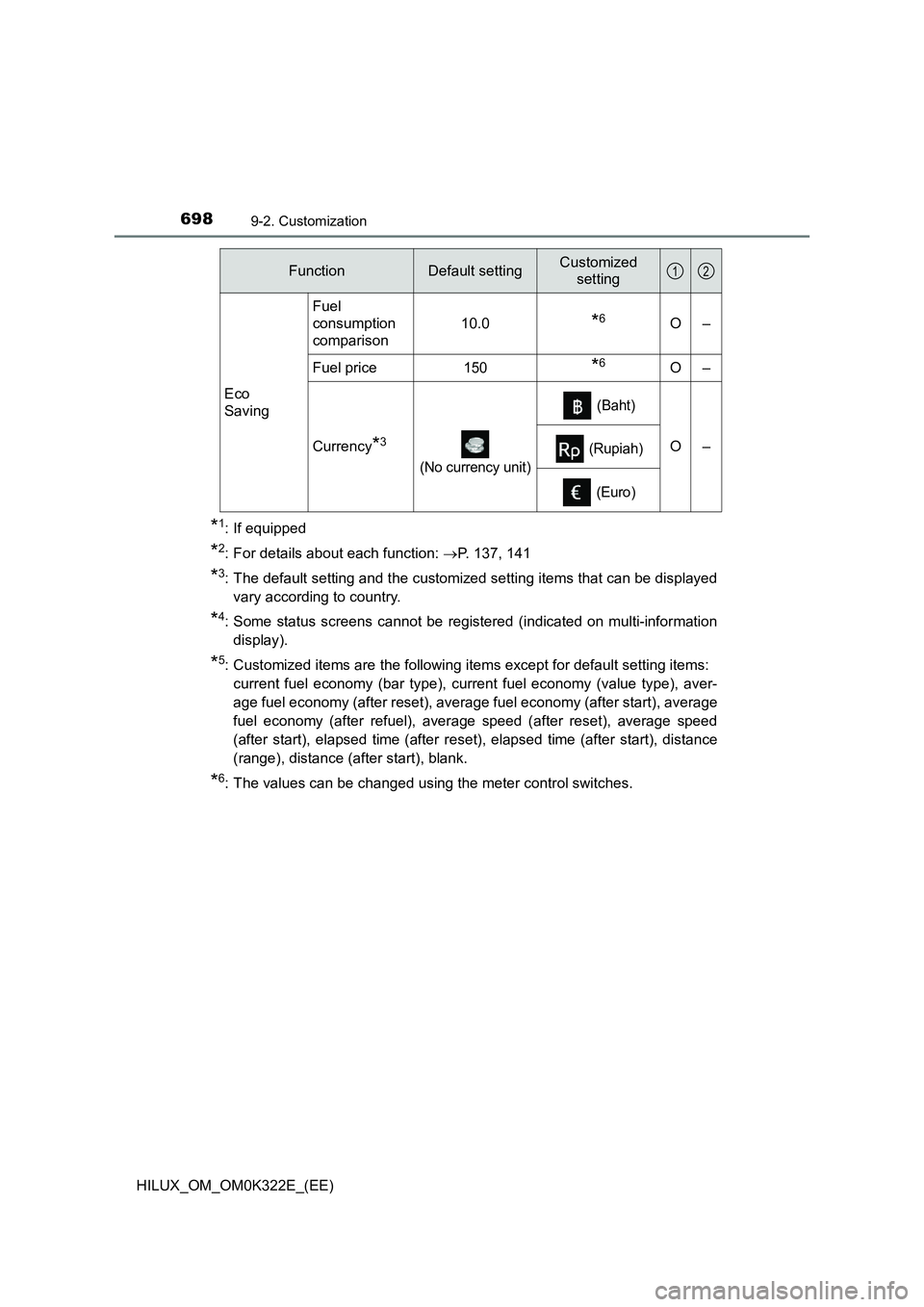

6989-2. Customization
HILUX_OM_OM0K322E_(EE)
*1: If equipped
*2: For details about each function: P. 137, 141
*3: The default setting and the customized setting items that can be displayed
vary according to country.
*4: Some status screens cannot be registered (indicated on multi-information
display).
*5: Customized items are the following items except for default setting items:
current fuel economy (bar type), curr ent fuel economy (value type), aver-
age fuel economy (after reset), average fuel economy (after start), average
fuel economy (after refuel), average speed (after reset), average speed
(after start), elapsed time (after reset), elapsed time (after start), distance
(range), distance (after start), blank.
*6: The values can be changed using the meter control switches.
FunctionDefault settingCustomized
setting
Eco
Saving
Fuel
consumption
comparison
10.0*6O–
Fuel price150*6O–
Currency*3
(No currency unit)
(Baht)
O– (Rupiah)
(Euro)
12

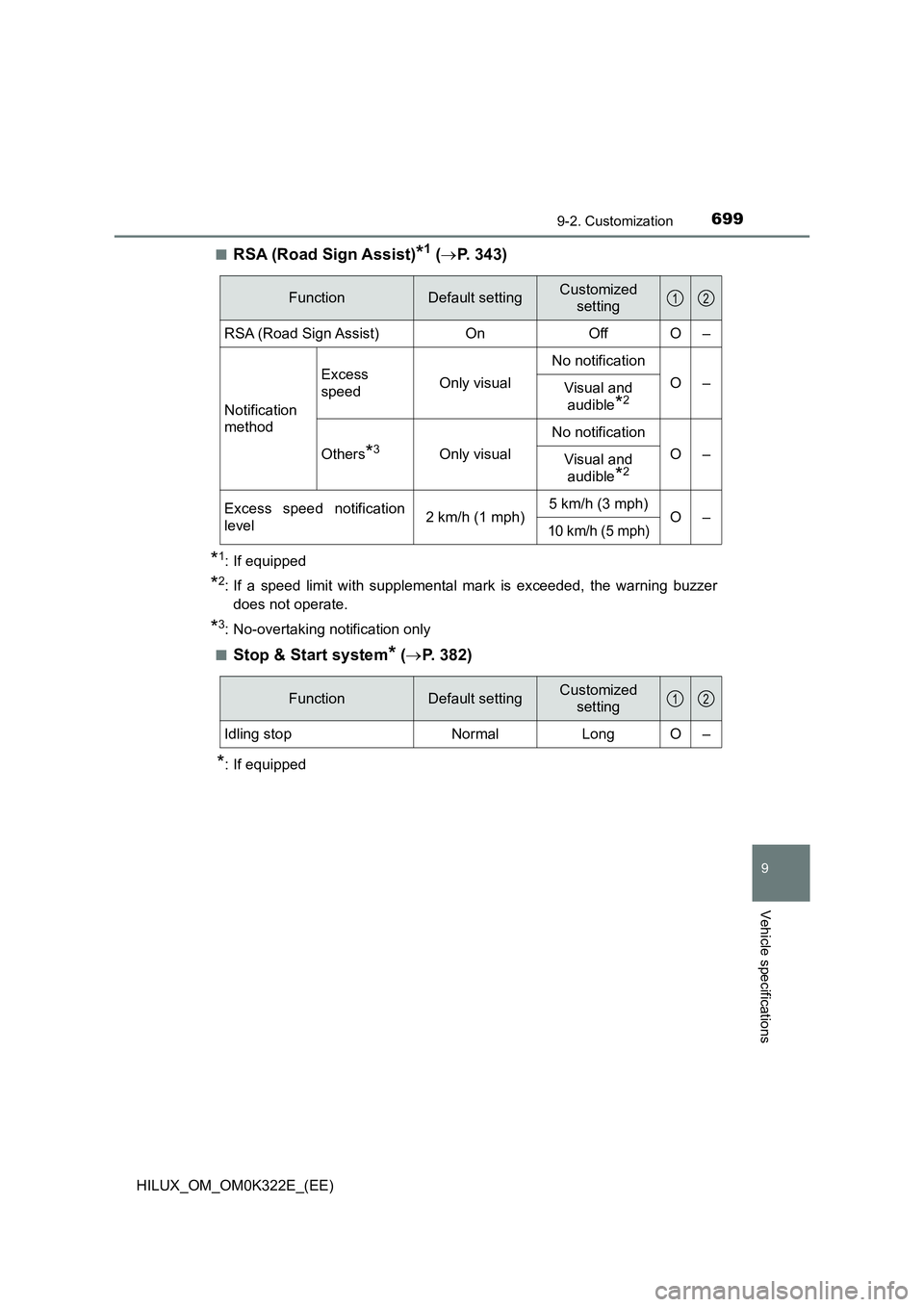

6999-2. Customization
HILUX_OM_OM0K322E_(EE)
9
Vehicle specifications
■RSA (Road Sign Assist)*1 (P. 343)
*1: If equipped
*2: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate.
*3: No-overtaking notification only
■Stop & Start system* ( P. 382)
*: If equipped
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)OnOffO–
Notification
method
Excess
speedOnly visual
No notification
O–Visual and
audible*2
Others*3Only visual
No notification
O–Visual and
audible*2
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)O–10 km/h (5 mph)
12
FunctionDefault settingCustomized
setting
Idling stopNormalLongO–
12

7009-2. Customization
HILUX_OM_OM0K322E_(EE)
■Door lock (P. 177)
*1: If equipped
*2: Setting that can be changed manually (P. 178) or at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
■Smart entry & start system* (P. 184)
*: If equipped
■Automatic light control system* (P. 292)
*: If equipped
FunctionDefault settingCustomized
setting
Speed linked door locking
function*1OnOff–O*2
Driver’s door linked door
unlocking function*1OffOn–O*2
12
FunctionDefault settingCustomized
setting
Smart entry & start systemOnOff–O
Operational signal
(buzzer)*Level 7Off–OLevel 1 to 6
12
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2–O
12

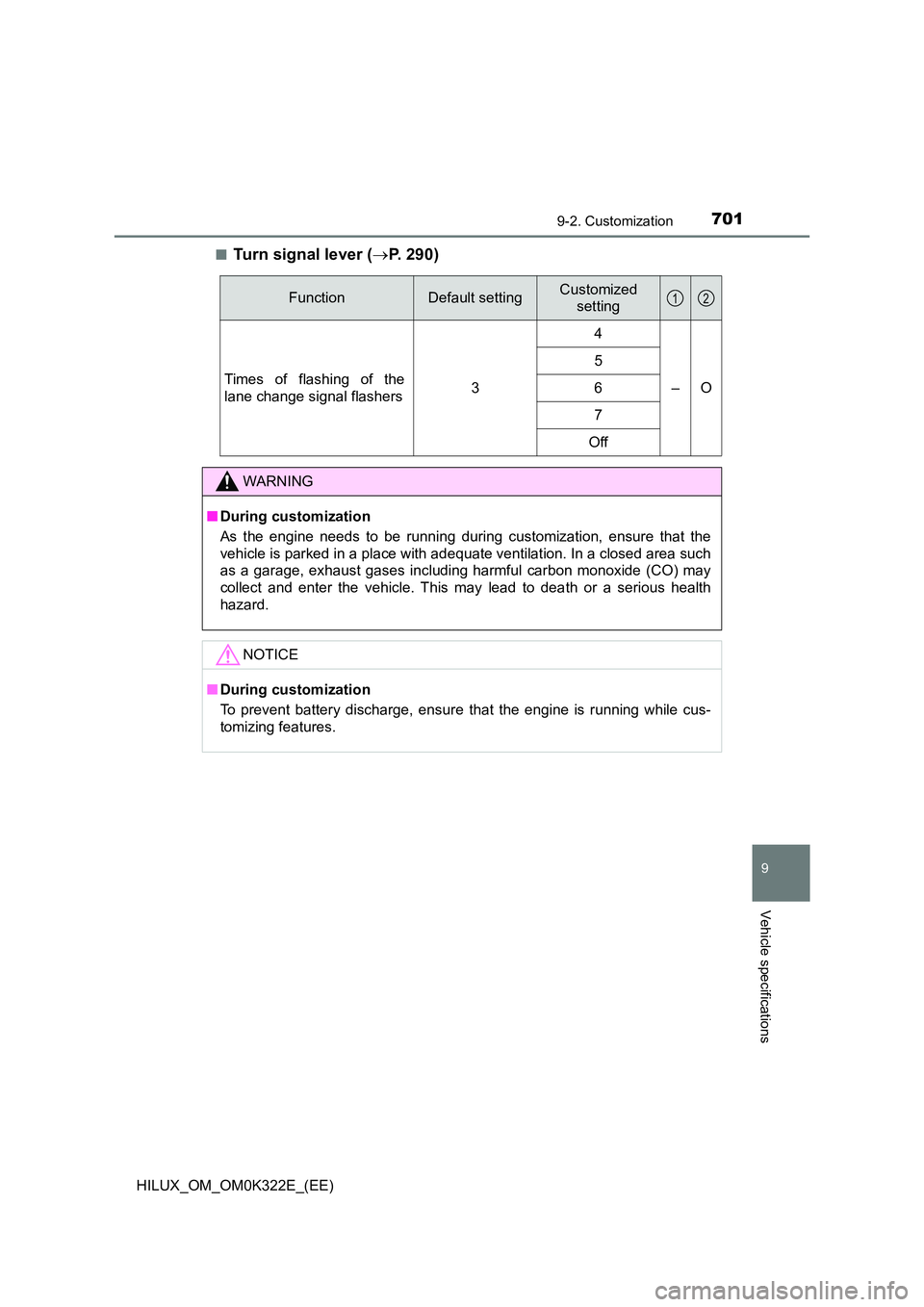

7019-2. Customization
HILUX_OM_OM0K322E_(EE)
9
Vehicle specifications
■Turn signal lever (P. 290)
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flashers3
4
–O
5
6
7
Off
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
12

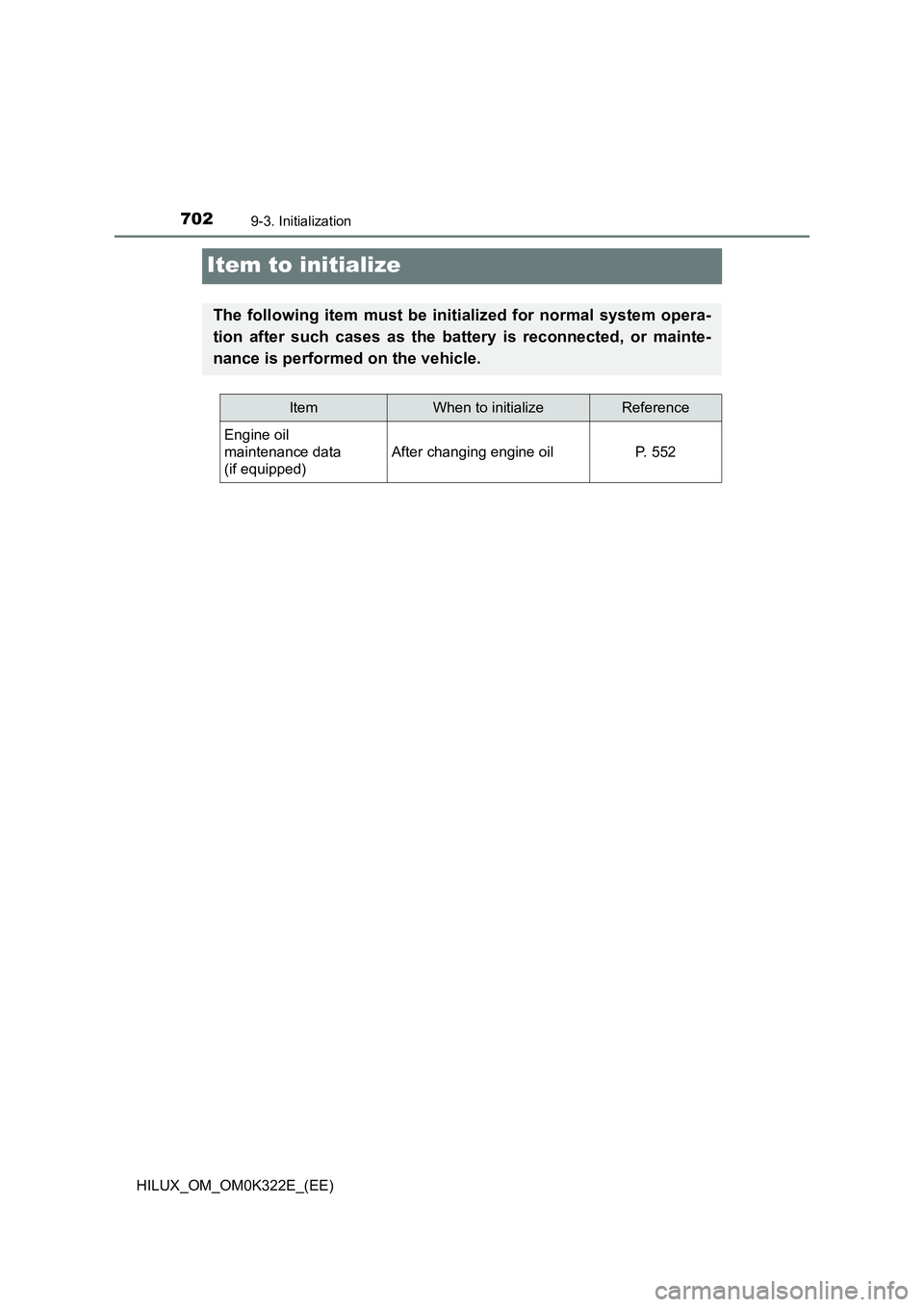

7029-3. Initialization
HILUX_OM_OM0K322E_(EE)
Item to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil
maintenance data
(if equipped)
After changing engine oilP. 552

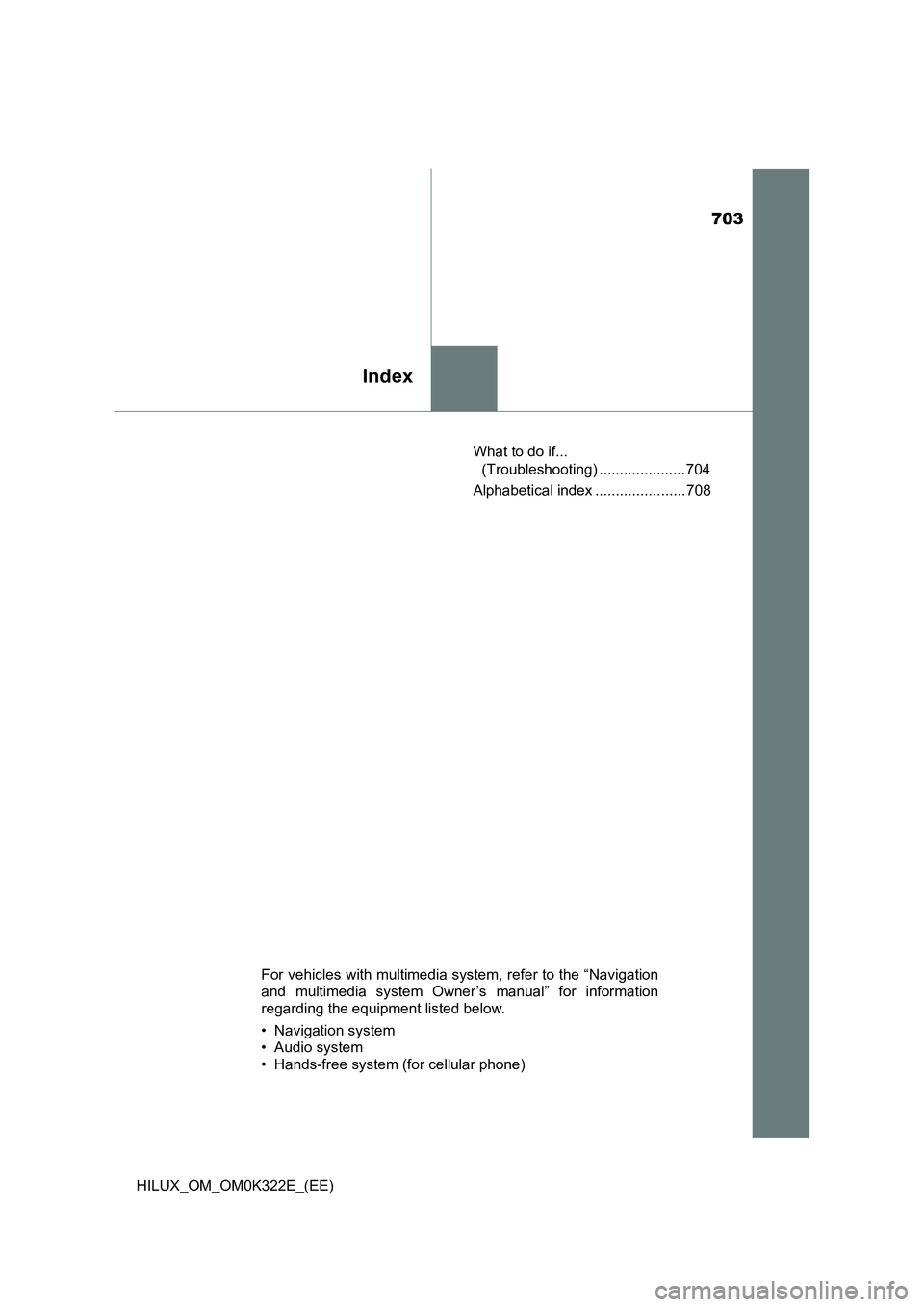

703
Index
HILUX_OM_OM0K322E_(EE)
What to do if...
(Troubleshooting) ..................... 704
Alphabetical index ...................... 708
For vehicles with multimedia system, refer to the “Navigation
and multimedia system Owner’s manual” for information
regarding the equipment listed below.
• Navigation system
• Audio system
• Hands-free system (for cellular phone)

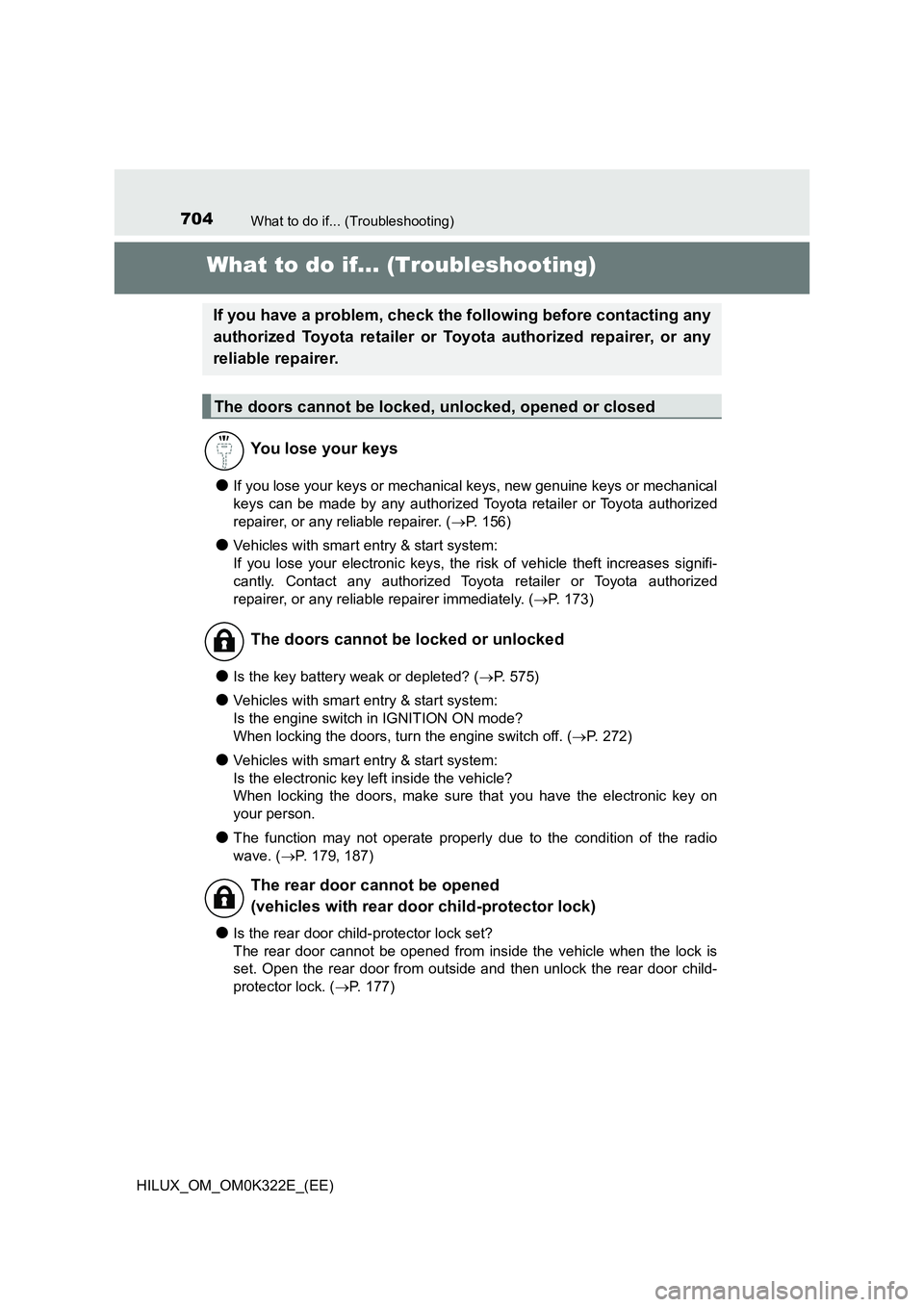

704What to do if... (Troubleshooting)
HILUX_OM_OM0K322E_(EE)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. ( P. 156)
●Vehicles with smart entry & start system:
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. ( P. 173)
●Is the key battery weak or depleted? (P. 575)
●Vehicles with smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 272)
●Vehicles with smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 179, 187)
●Is the rear door child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the rear door child-
protector lock. ( P. 177)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
(vehicles with rear door child-protector lock)
