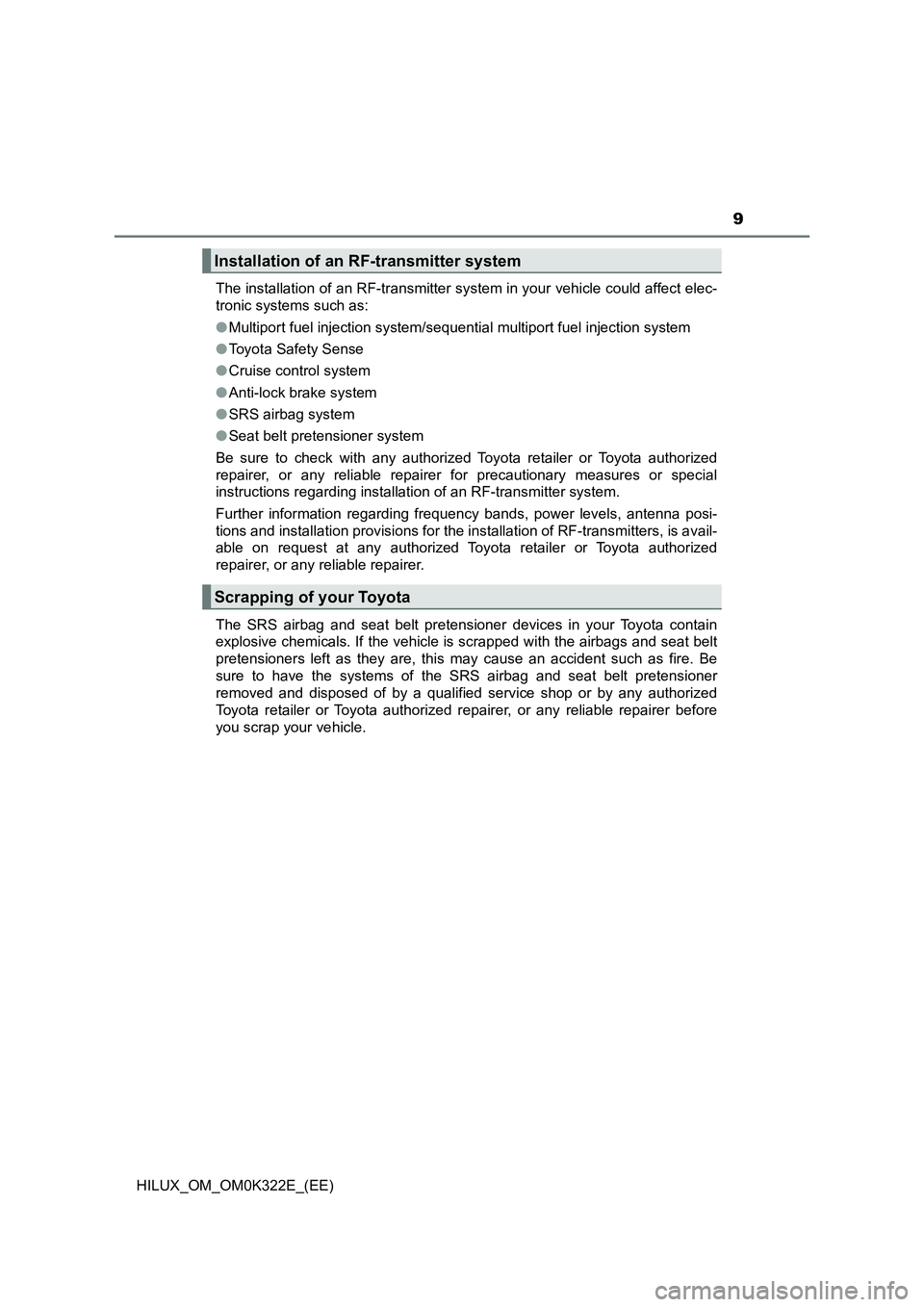

The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer before
you scrap your vehicle.
Installation of an RF-transmitter system
Scrapping of your Toyota

10
HILUX_OM_OM0K322E_(EE)
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

11
HILUX_OM_OM0K322E_(EE)
Check the model code to see what type of model your vehicle is.
Basic code
TGN16: Models with 2TR-FE engine
GUN16: Models with 1GD-FTV engine
GUN15: Models with 2GD-FTV engine
KUN15: Models with 2KD-FTV engine
Driving system
2: 4WD models
3: Pre Runner (2WD models)
Cab type
B: Single-cab
C: Smart-cab
D: Double-cab
Made in
N: South Africa
T: Thailand
Checking your vehicle’s model
G U N 1 2 5 – D T T H W
3
1
42576
1
2
3
4

12
HILUX_OM_OM0K322E_(EE)

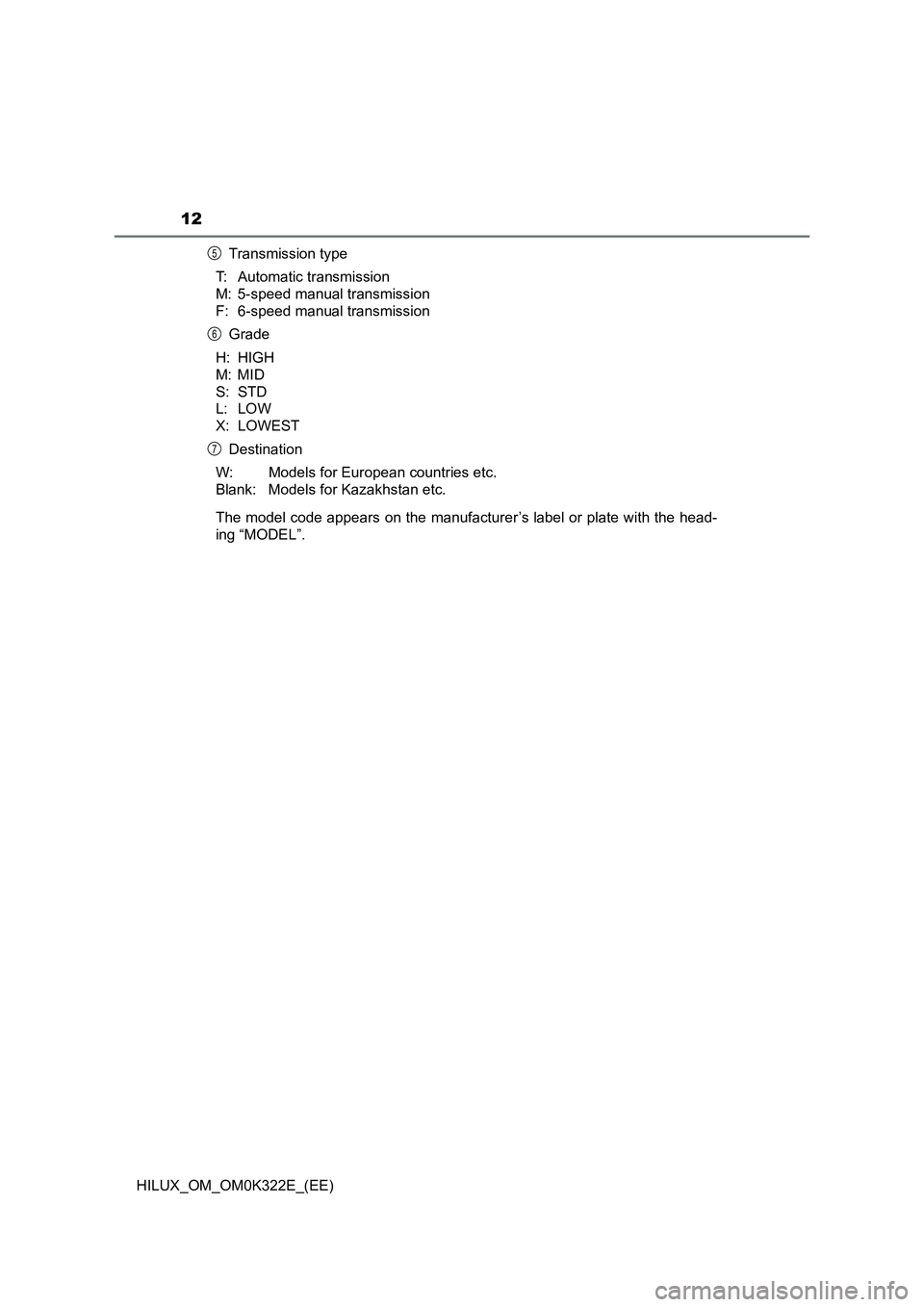

Transmission type
T: Automatic transmission
M: 5-speed manual transmission
F: 6-speed manual transmission
Grade
H: HIGH
M: MID
S: STD
L: LOW
X: LOWEST
Destination
W: Models for European countries etc.
Blank: Models for Kazakhstan etc.
The model code appears on the manufacturer’s label or plate with the head-
ing “MODEL”.
5
6
7

13
HILUX_OM_OM0K322E_(EE)

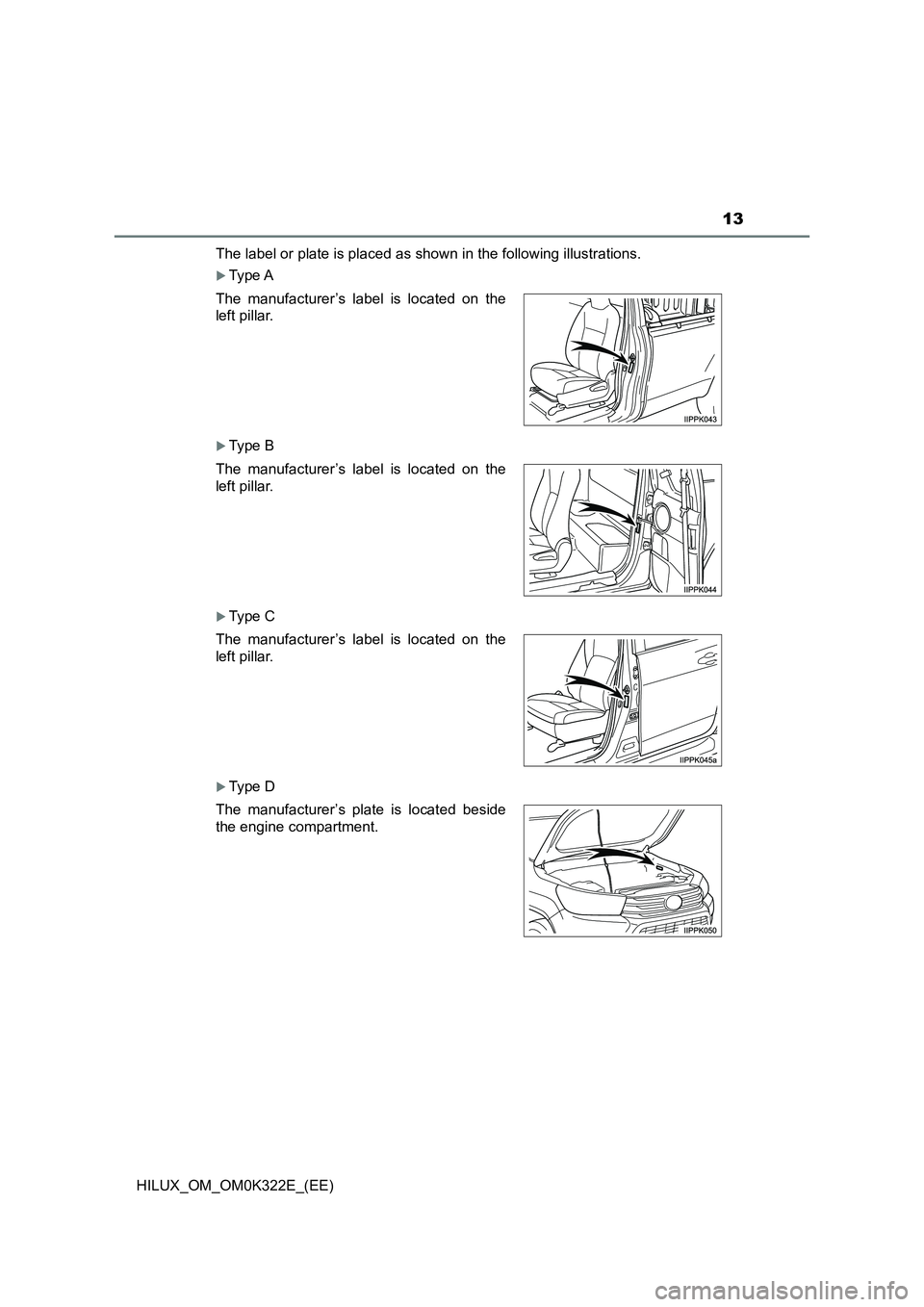

The label or plate is placed as shown in the following illustrations.
Type A
Type B
Type C
Type D
The manufacturer’s label is located on the
left pillar.
The manufacturer’s label is located on the
left pillar.
The manufacturer’s label is located on the
left pillar.
The manufacturer’s plate is located beside
the engine compartment.

14
HILUX_OM_OM0K322E_(EE)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

15
HILUX_OM_OM0K322E_(EE)

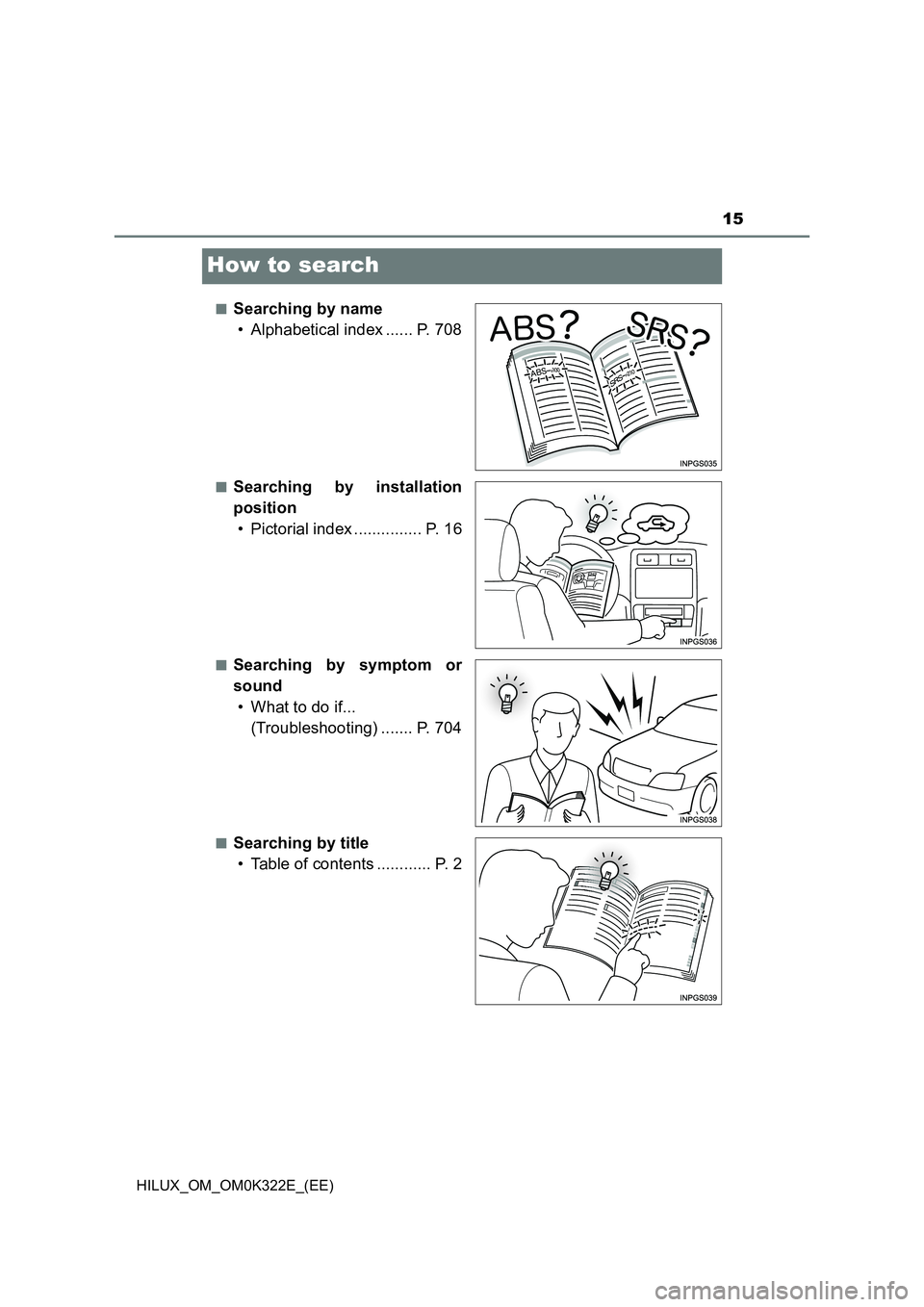

How to search
■Searching by name
• Alphabetical index ...... P. 708
■Searching by installation
position
• Pictorial index ............... P. 16
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 704
■Searching by title
• Table of contents ............ P. 2

16Pictorial index
HILUX_OM_OM0K322E_(EE)
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 583)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Access panels (smart-cab models only) . . . . . . . . . . . . . . . P. 180
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 232
Locking/unlocking by using the mechanical key*1 . . . . . . . . . P. 644
Warning lights*1/warning messages*1 . . . . . . . . . . . . . . P. 176, 614
Ta i l g a t e*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Defogging the mirrors*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 493, 502
1
2
3
