2017 TOYOTA HILUX Owners Manual (in English)

665
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*1: Except for Russia, EURO VI model*3 for Ukraine and Israel, and EURO
V and VI models*3 for Turkey
*2: For Russia, EURO VI model*3 for Ukraine and Israel, and EURO V and
VI models*3 for Turkey
*3: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*4: Except for EURO VI model*3 for Israel, and EURO V and VI models*3 for
Turkey
*5: For EURO VI model*3 for Israel, and EURO V and VI models*3 for Tur-
key
*6: The model code is indicated on the manufacturer’s plate or label.
( P. 666)
*7: Without rear seat cushion
*8: With rear seat cushion
*9: Except for EURO VI model*3 for Israel, and EURO V model*3 for Turkey
*10: For EURO VI model*3 for Israel, and EURO V model*3 for Turkey
*11: Except for EURO V and VI models*3 for Turkey
*12: For EURO V and VI models*3 for Turkey

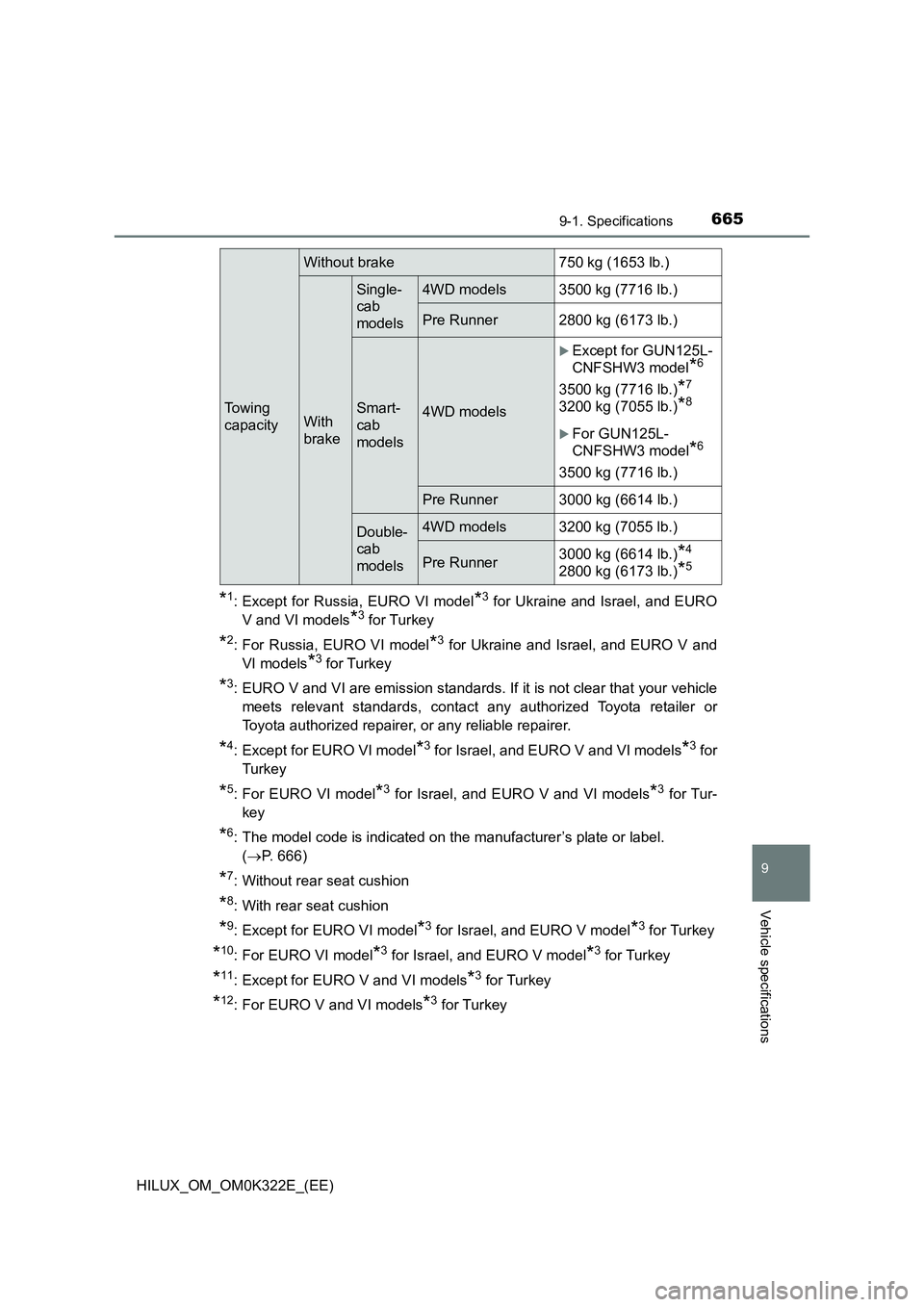

To w i n g
capacity
Without brake 750 kg (1653 lb.)
With
brake
Single-
cab
models
4WD models 3500 kg (7716 lb.)
Pre Runner 2800 kg (6173 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSHW3 model*6
3500 kg (7716 lb.)*7
3200 kg (7055 lb.)*8
For GUN125L-
CNFSHW3 model*6
3500 kg (7716 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD models 3200 kg (7055 lb.)
Pre Runner 3000 kg (6614 lb.)*4
2800 kg (6173 lb.)*5

6669-1. Specifications
HILUX_OM_OM0K322E_(EE)

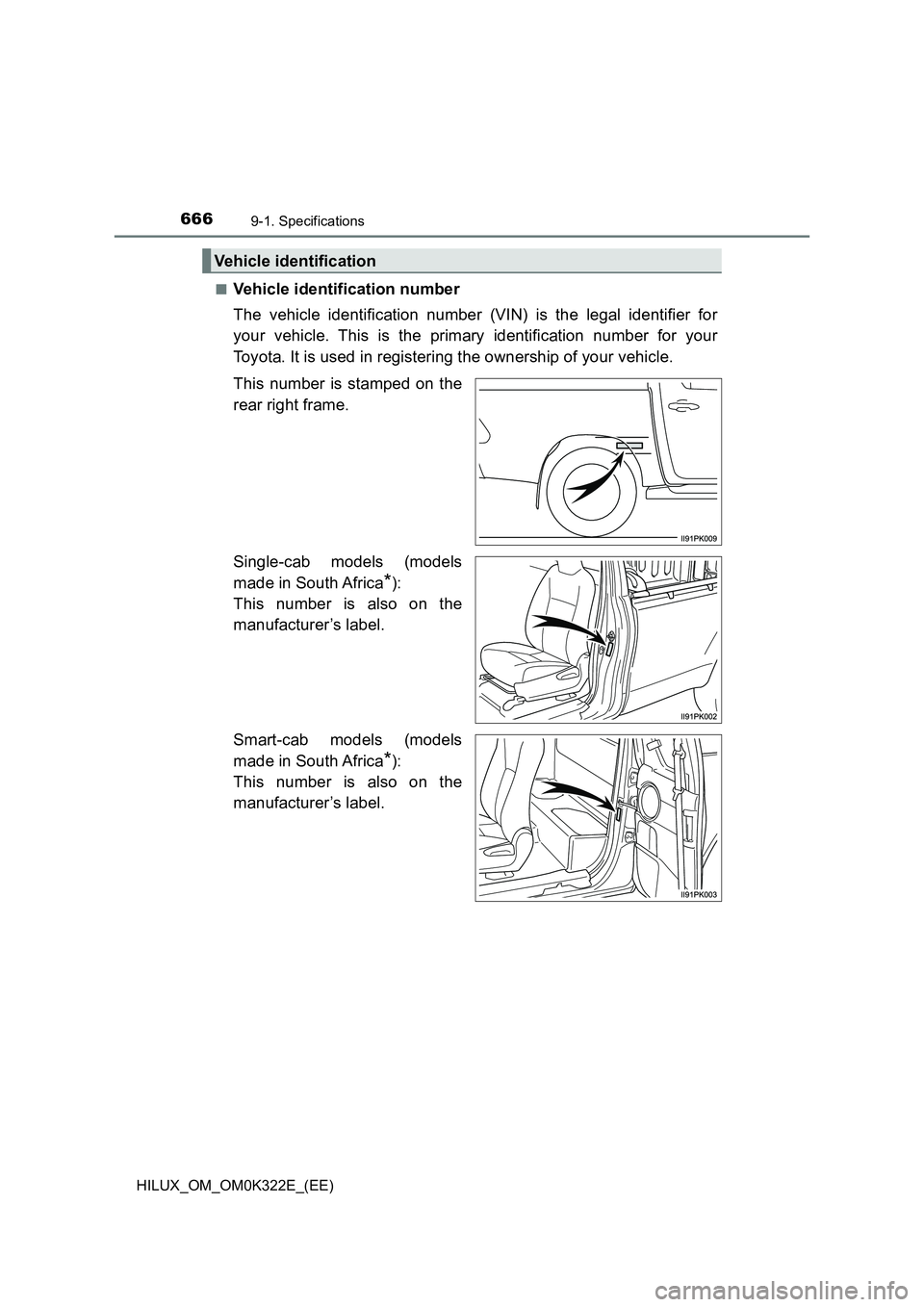

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Smart-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Vehicle identification

667
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)

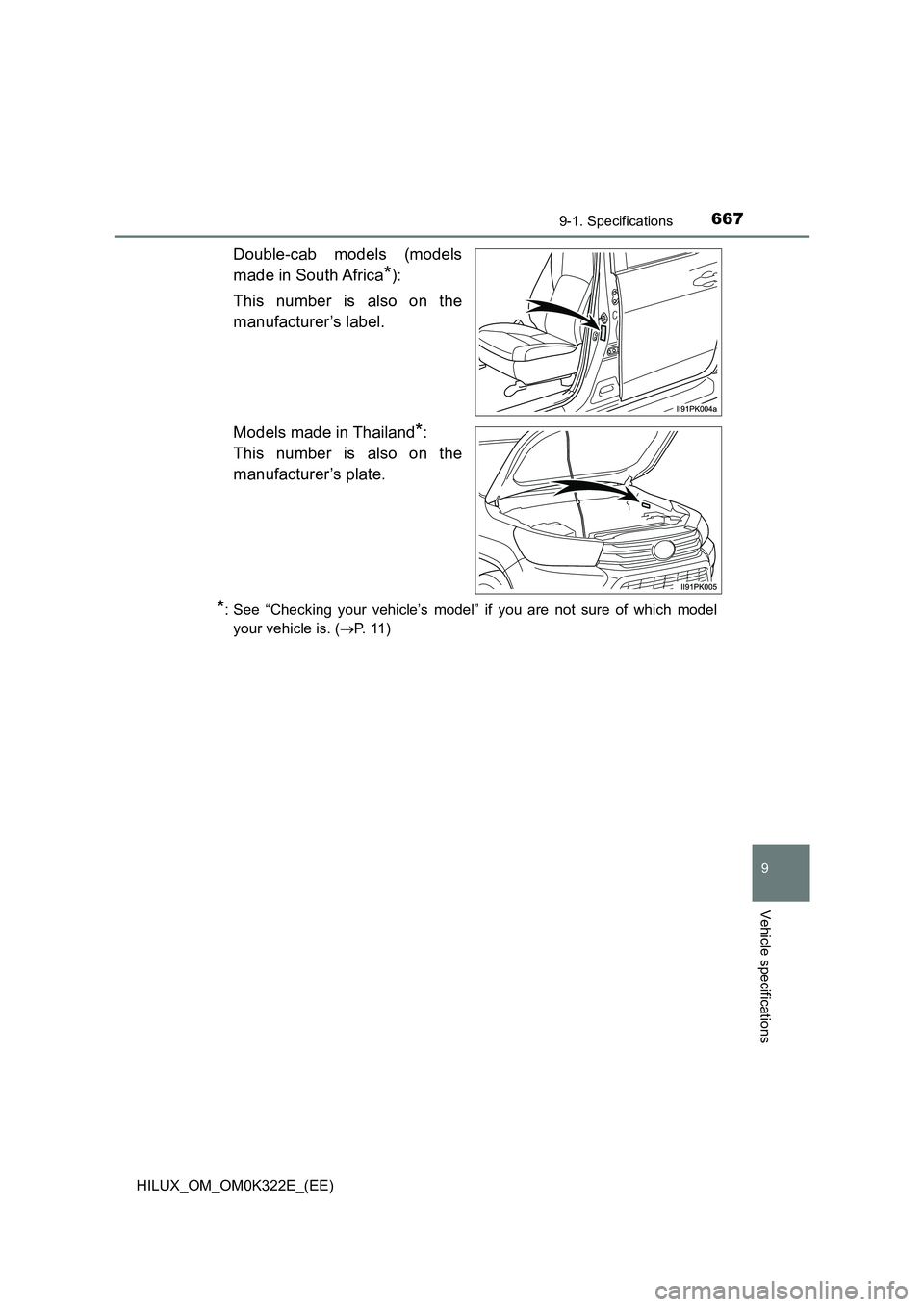

Double-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )

6689-1. Specifications
HILUX_OM_OM0K322E_(EE)

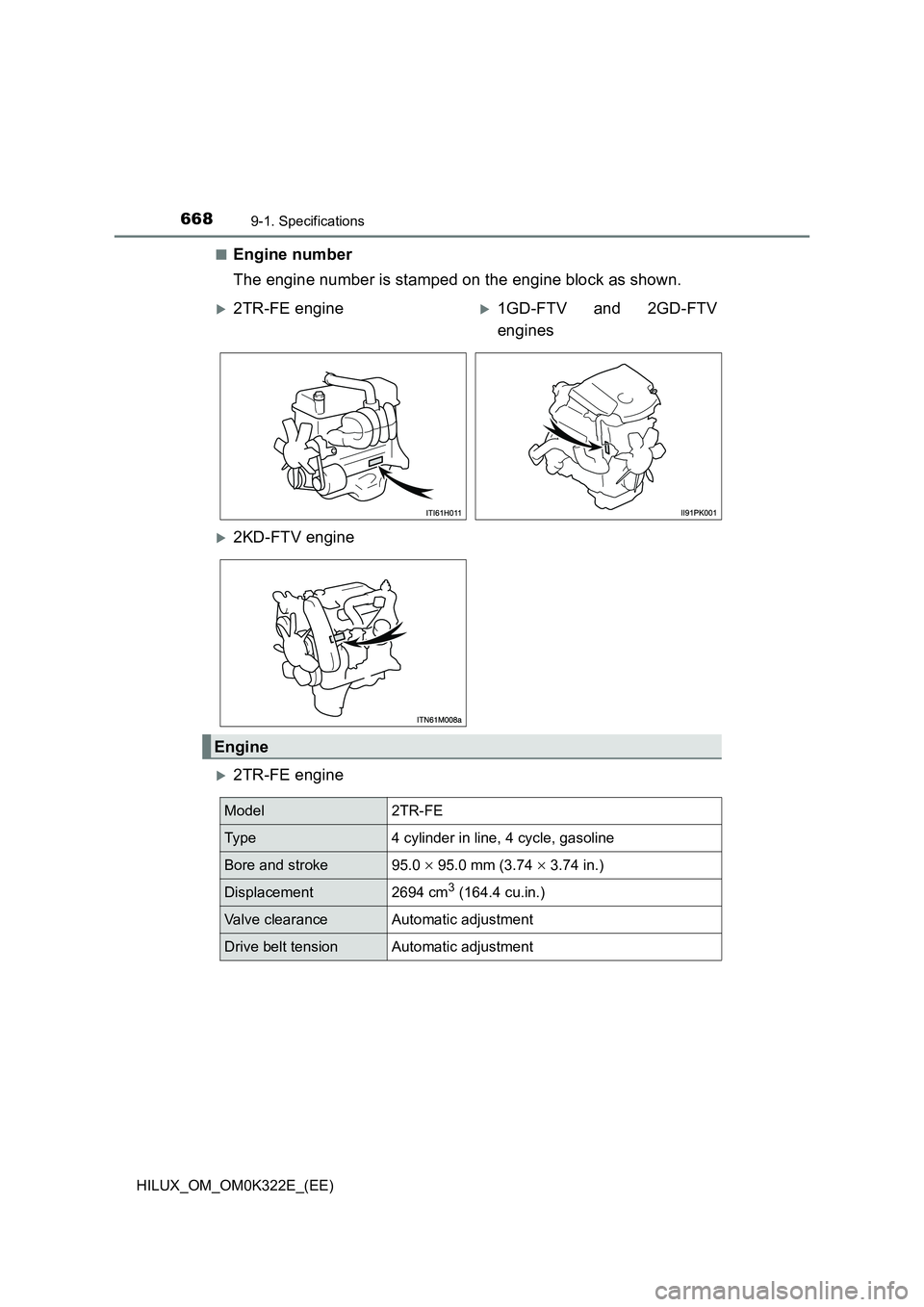

■Engine number
The engine number is stamped on the engine block as shown.
2TR-FE engine
2TR-FE engine1GD-FTV and 2GD-FTV
engines
2KD-FTV engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

669
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)

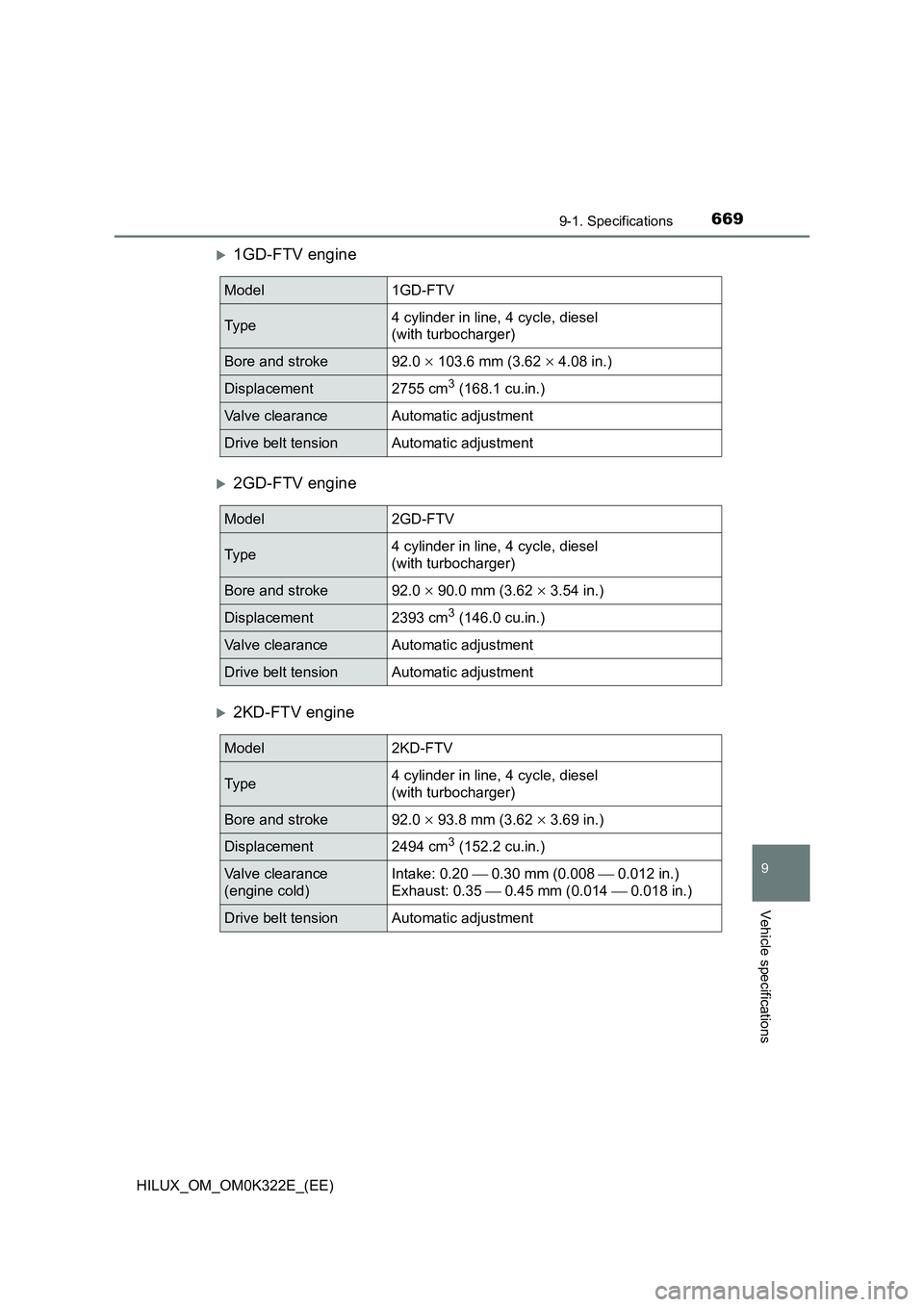

1GD-FTV engine
2GD-FTV engine
2KD-FTV engine
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  93.8 mm (3.62  3.69 in.)
Displacement2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)
Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment

6709-1. Specifications
HILUX_OM_OM0K322E_(EE)

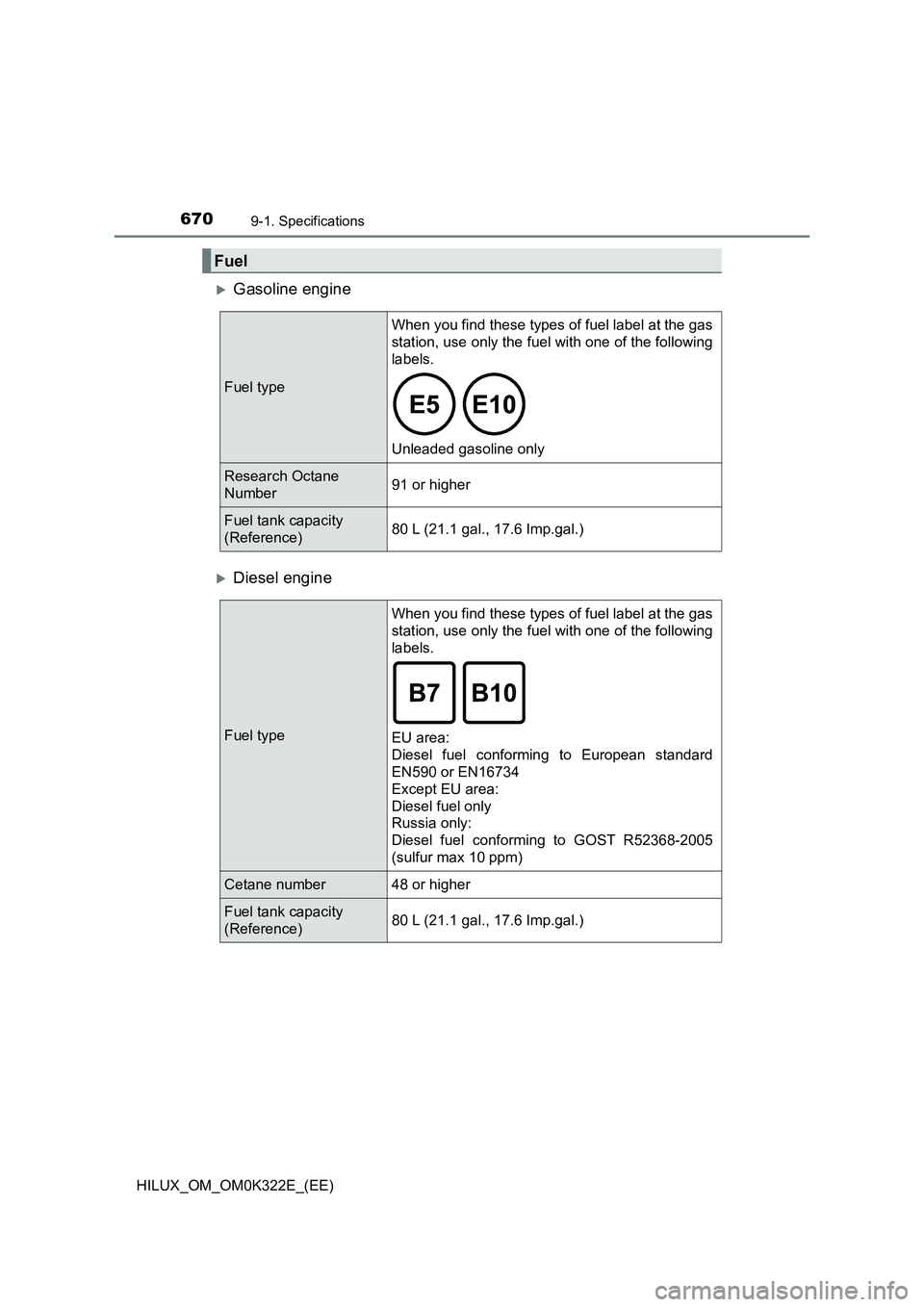

Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area:
Diesel fuel only
Russia only:
Diesel fuel conforming to GOST R52368-2005
(sulfur max 10 ppm)
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

671
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
2TR-FE engine (except for EURO V models*1)
*1: EURO V is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  Reference*2)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated
before next oil change

6729-1. Specifications
HILUX_OM_OM0K322E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2
