2017 TOYOTA HILUX Owners Manual (in English)

689
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
16 inch tires
17 inch tires (type A)

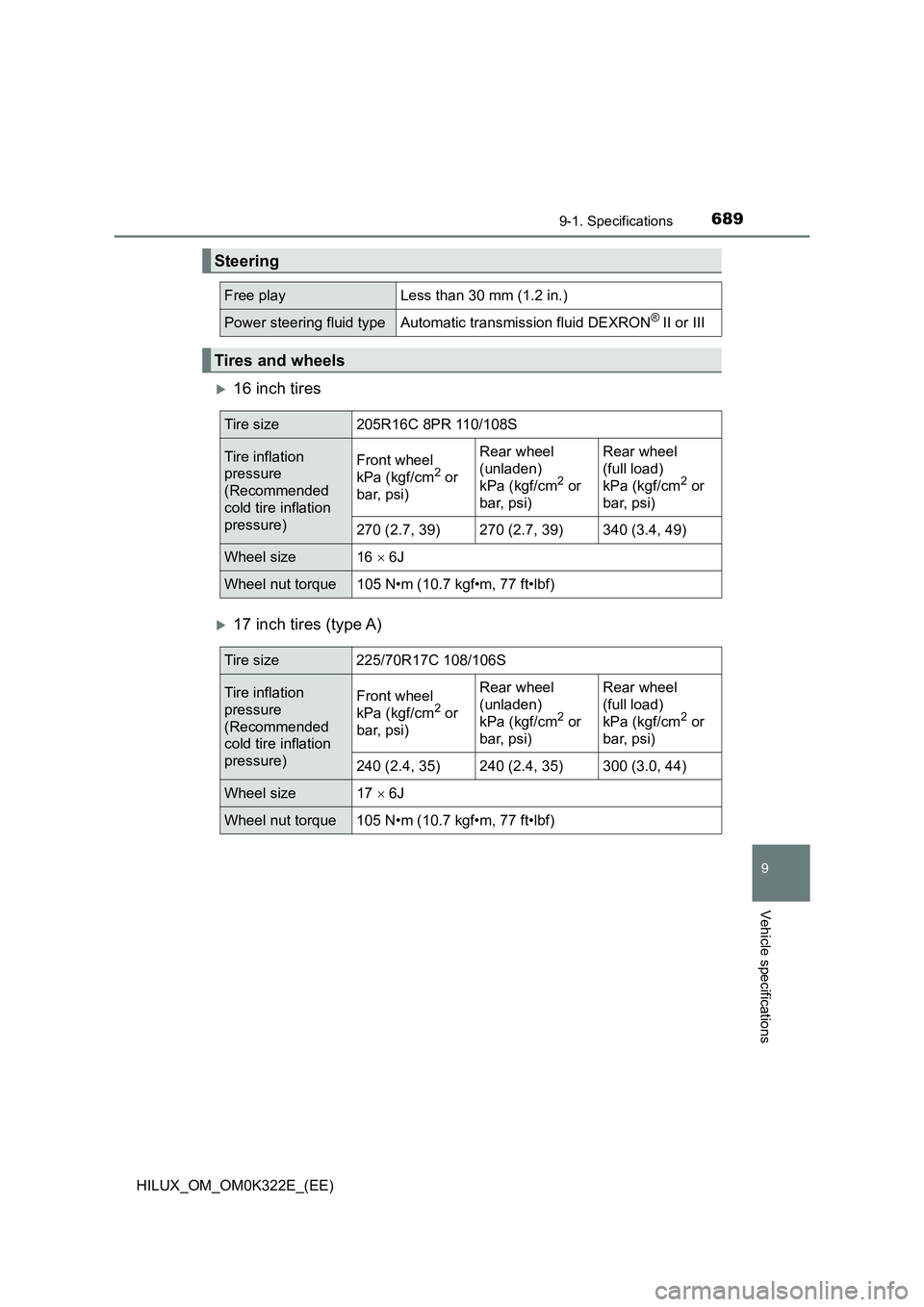

Steering
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire size205R16C 8PR 110/108S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
270 (2.7, 39)270 (2.7, 39)340 (3.4, 49)
Wheel size16  6J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 225/70R17C 108/106S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
240 (2.4, 35)240 (2.4, 35)300 (3.0, 44)
Wheel size17  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)

6909-1. Specifications
HILUX_OM_OM0K322E_(EE)

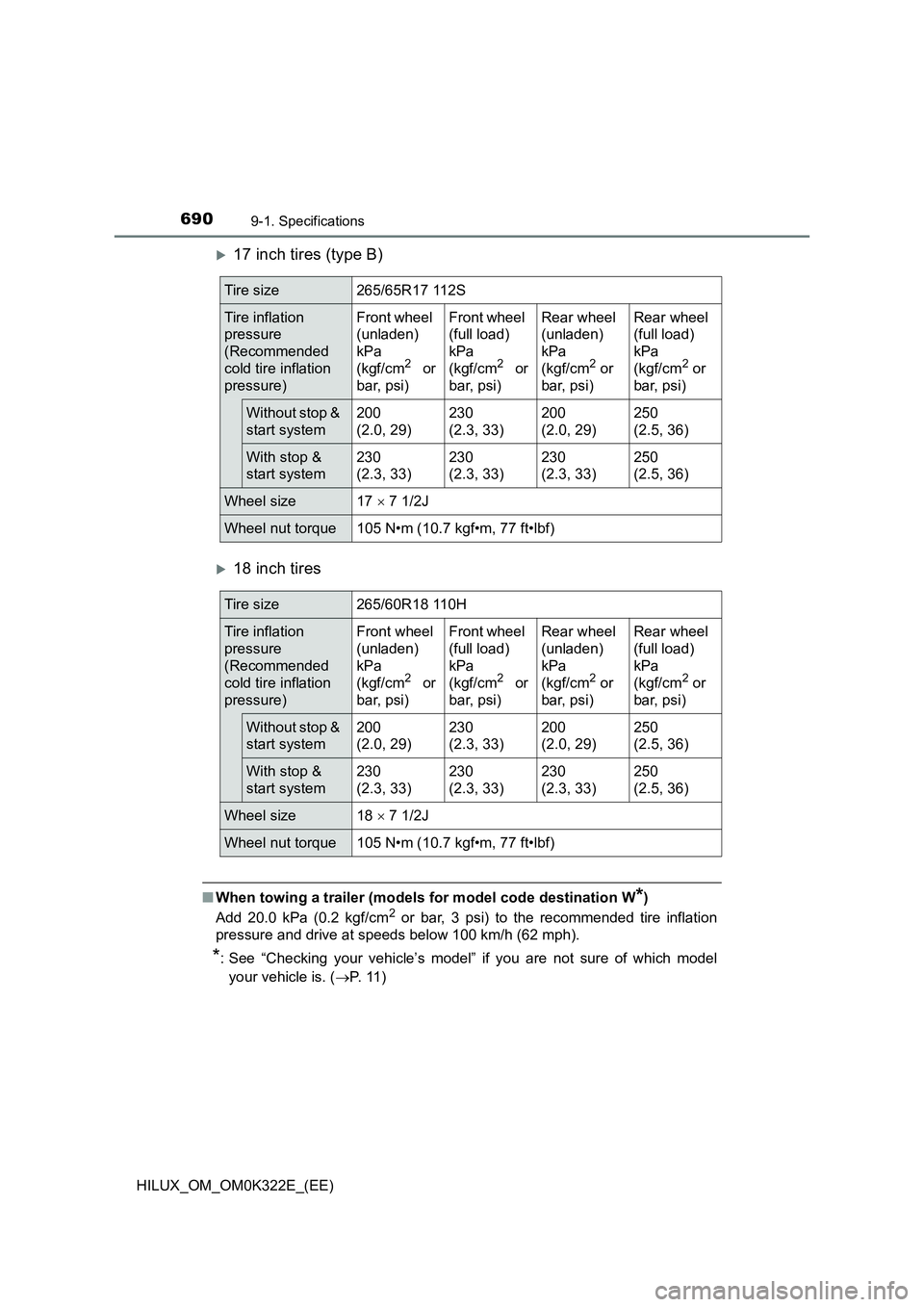

17 inch tires (type B)
18 inch tires
■When towing a trailer (models for model code destination W*)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 11 )
Tire size265/65R17 112S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Without stop &
start system
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
With stop &
start system
230
(2.3, 33)
230
(2.3, 33)
230
(2.3, 33)
250
(2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size265/60R18 110H
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Without stop &
start system
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
With stop &
start system
230
(2.3, 33)
230
(2.3, 33)
230
(2.3, 33)
250
(2.5, 36)
Wheel size18  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)

691
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*1: If equipped
*2: The wattage differs depending on the specification. When replacing, use a
light bulb with the same wattage as the original bulb.

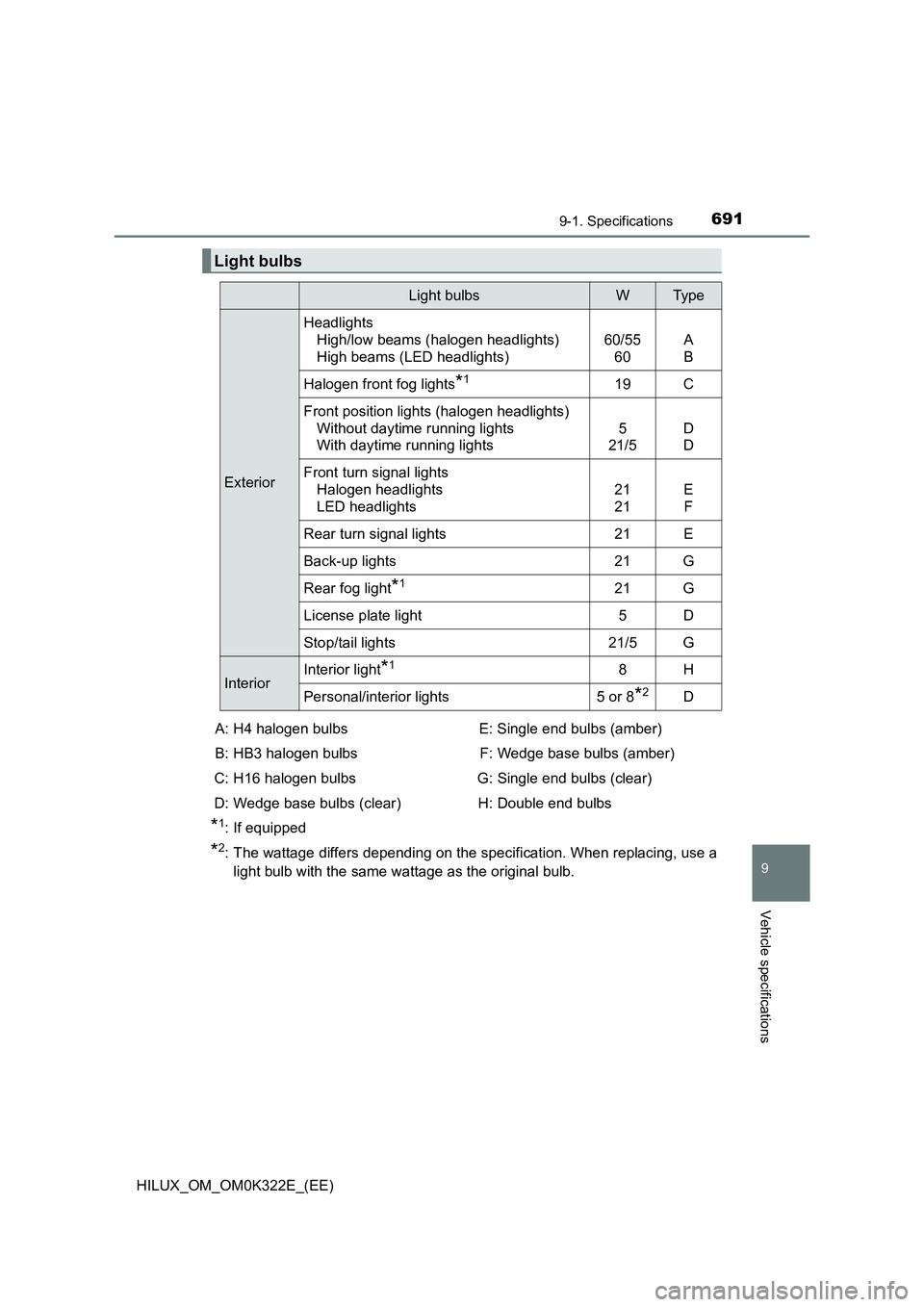

Light bulbs
Light bulbsWTyp e
Exterior
Headlights
High/low beams (halogen headlights)
High beams (LED headlights)
60/55
60
A
B
Halogen front fog lights*119 C
Front position lights (halogen headlights)
Without daytime running lights
With daytime running lights
5
21/5
D
D
Front turn signal lights
Halogen headlights
LED headlights
21
21
E
F
Rear turn signal lights 21 E
Back-up lights 21 G
Rear fog light*121 G
License plate light 5 D
Stop/tail lights 21/5 G
Interior Interior light*18H
Personal/interior lights 5 or 8*2D
A: H4 halogen bulbs
B: HB3 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (clear)
E: Single end bulbs (amber)
F: Wedge base bulbs (amber)
G: Single end bulbs (clear)
H: Double end bulbs

6929-1. Specifications
HILUX_OM_OM0K322E_(EE)

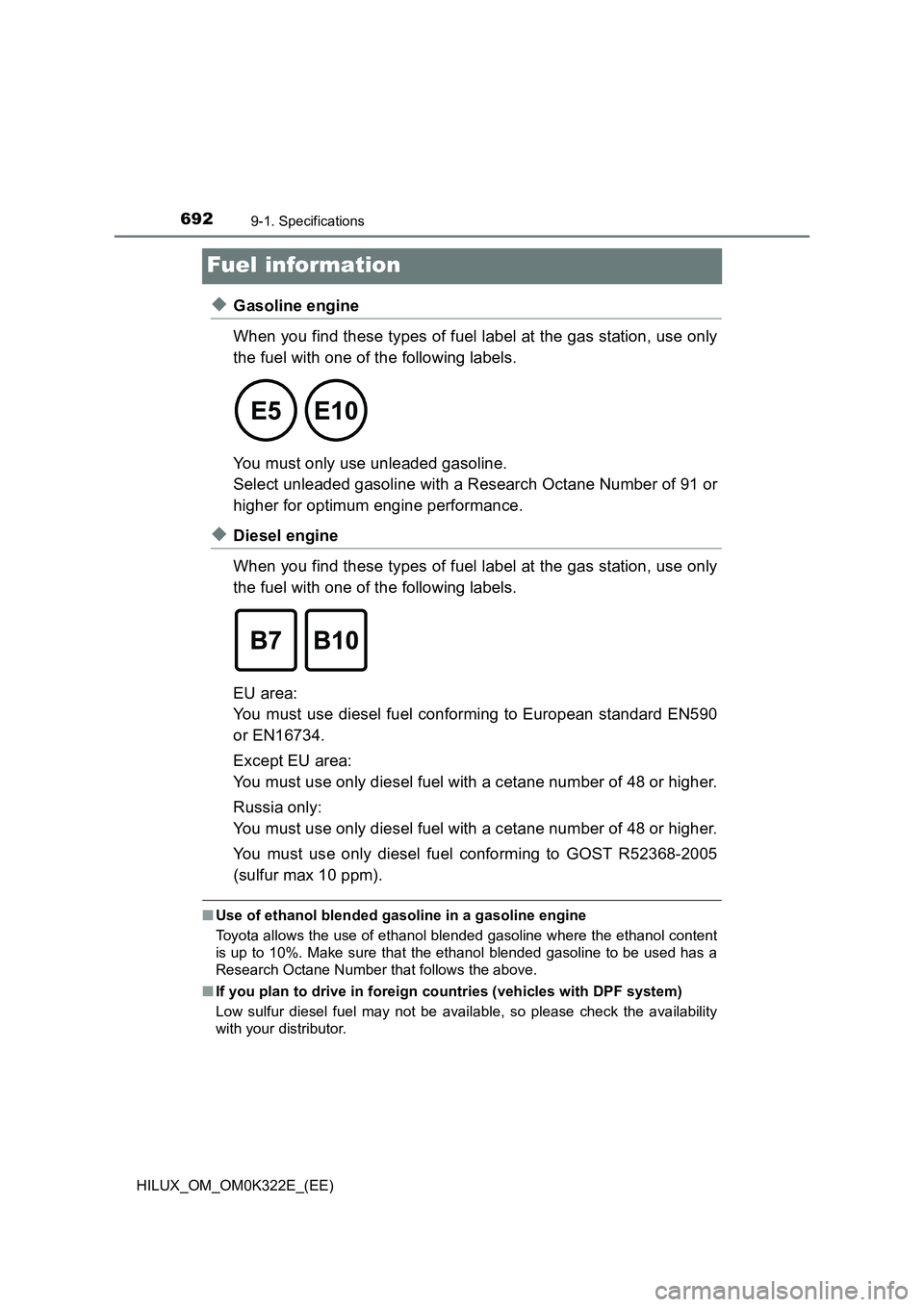

Fuel information
◆Gasoline engine
When you find these types of fuel label at the gas station, use only
the fuel with one of the following labels.

You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 91 or
higher for optimum engine performance.
◆Diesel engine
When you find these types of fuel label at the gas station, use only
the fuel with one of the following labels.

EU area:
You must use diesel fuel conforming to European standard EN590
or EN16734.
Except EU area:
You must use only diesel fuel with a cetane number of 48 or higher.
Russia only:
You must use only diesel fuel with a cetane number of 48 or higher.
You must use only diesel fuel conforming to GOST R52368-2005
(sulfur max 10 ppm).
■ Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (vehicles with DPF system)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.

693
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)

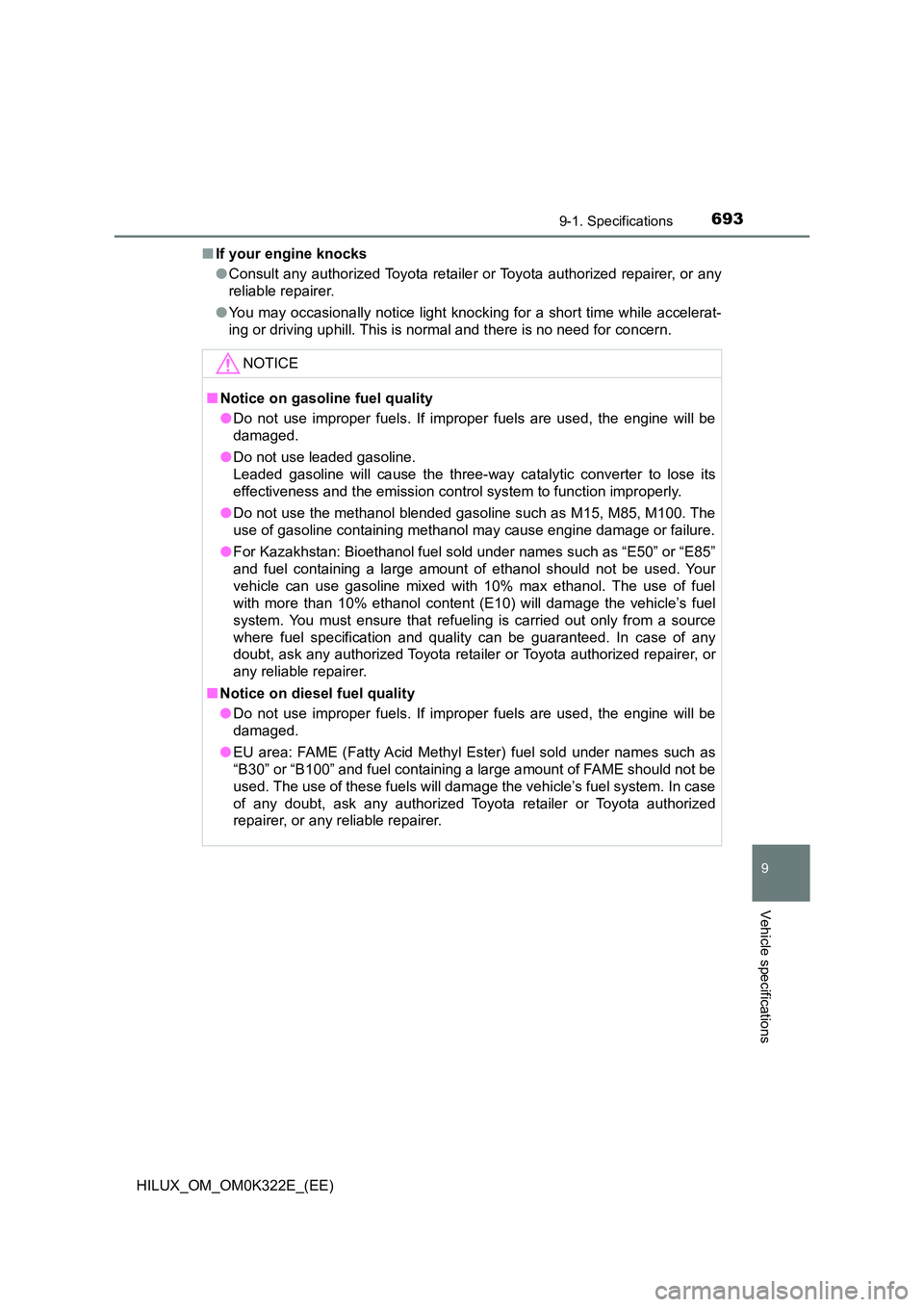

■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on gasoline fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.
● For Kazakhstan: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
■ Notice on diesel fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

6949-1. Specifications
HILUX_OM_OM0K322E_(EE)

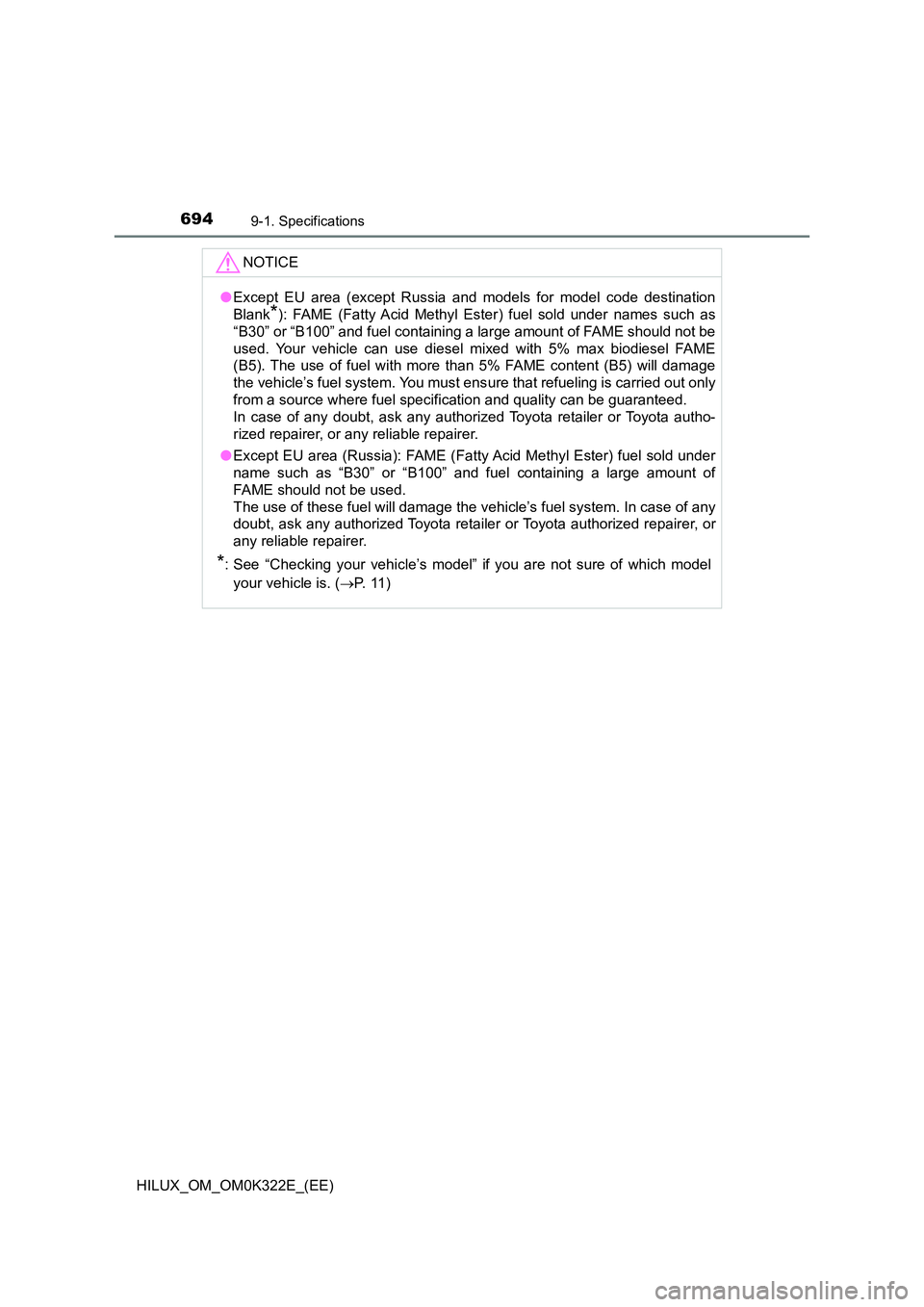

NOTICE
●Except EU area (except Russia and models for model code destination
Blank*): FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. Your vehicle can use diesel mixed with 5% max biodiesel FAME
(B5). The use of fuel with more than 5% FAME content (B5) will damage
the vehicle’s fuel system. You must ens ure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed.
In case of any doubt, ask any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under
name such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used.
The use of these fuel will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )

6959-2. Customization
HILUX_OM_OM0K322E_(EE)
9
Vehicle specifications

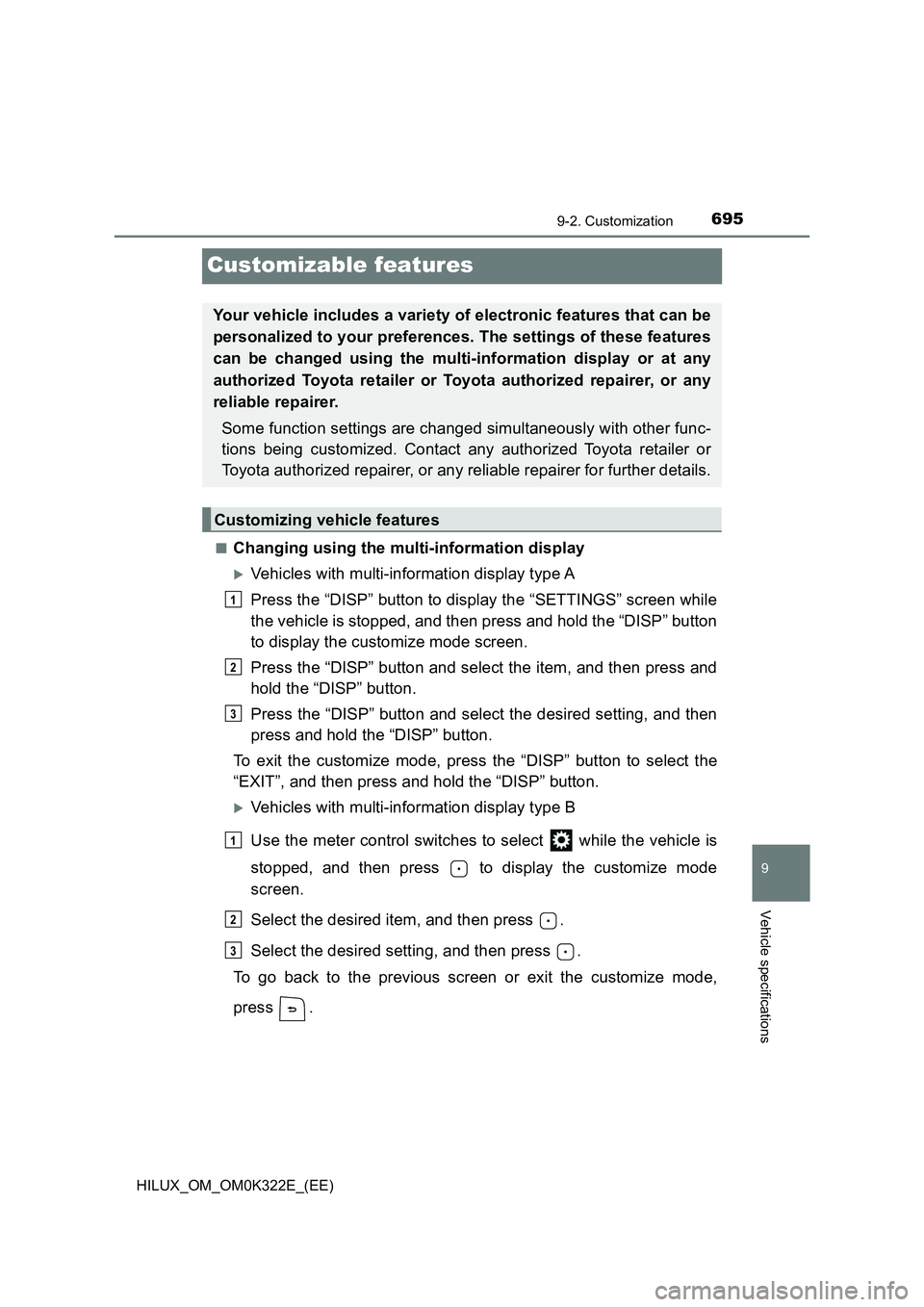

Customizable features
■Changing using the multi-information display
Vehicles with multi-information display type A
Press the “DISP” button to display the “SETTINGS” screen while
the vehicle is stopped, and then press and hold the “DISP” button
to display the customize mode screen.
Press the “DISP” button and select the item, and then press and
hold the “DISP” button.
Press the “DISP” button and select the desired setting, and then
press and hold the “DISP” button.
To exit the customize mode, press the “DISP” button to select the
“EXIT”, and then press and hold the “DISP” button.
Vehicles with multi-information display type B
Use the meter control switches to select while the vehicle is
stopped, and then press to display the customize mode
screen.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display or at any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
1
2
3

6969-2. Customization
HILUX_OM_OM0K322E_(EE)

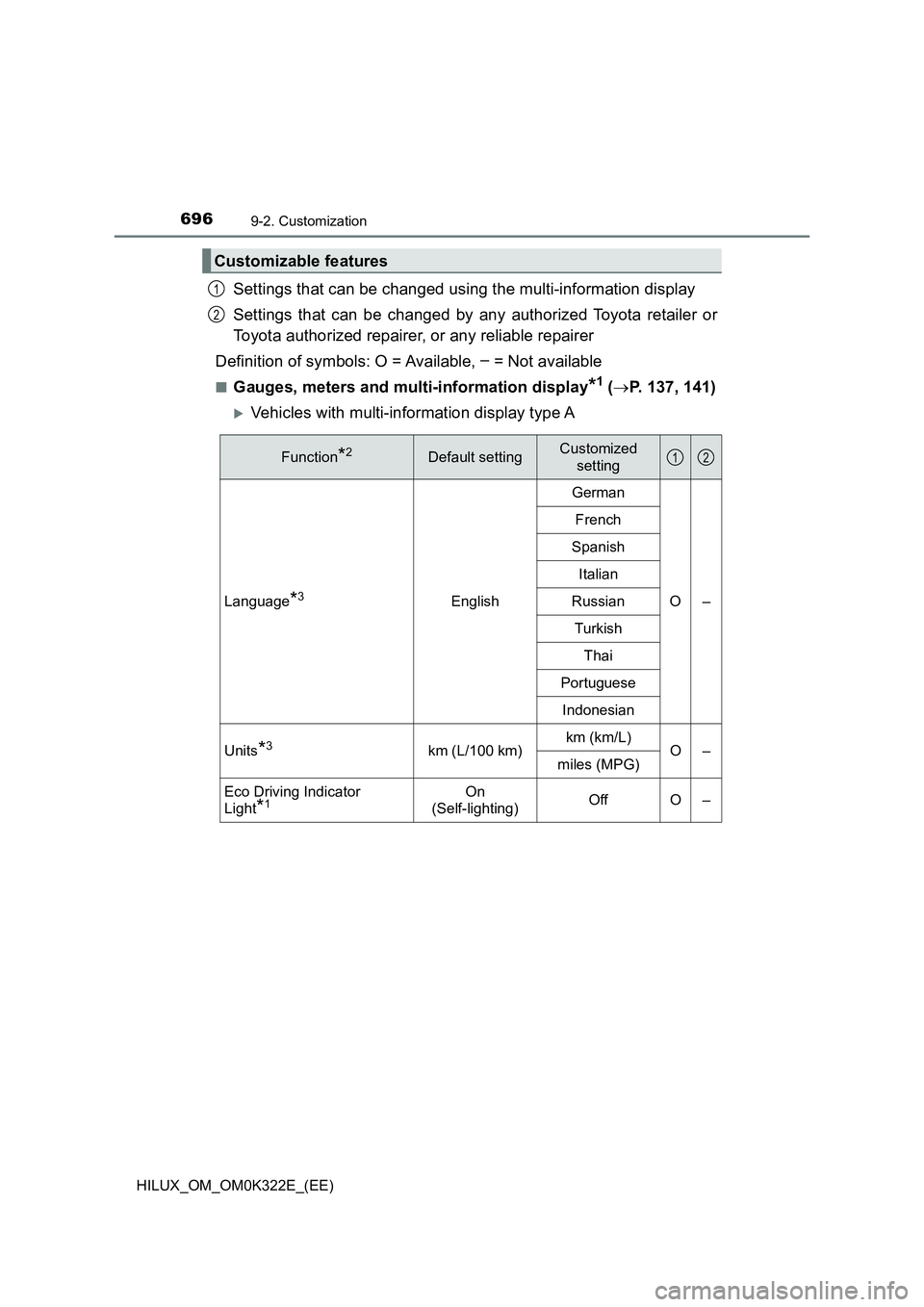

Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
■Gauges, meters and multi-information display*1 ( P. 137, 141)
Vehicles with multi-information display type A
Customizable features
1
2
Function*2Default settingCustomized
setting
Language*3English
German
O–
French
Spanish
Italian
Russian
Turkish
Thai
Portuguese
Indonesian
Units*3km (L/100 km) km (km/L) O–miles (MPG)
Eco Driving Indicator
Light*1On
(Self-lighting) Off O –
