2017 TOYOTA HILUX Owners Manual (in English)

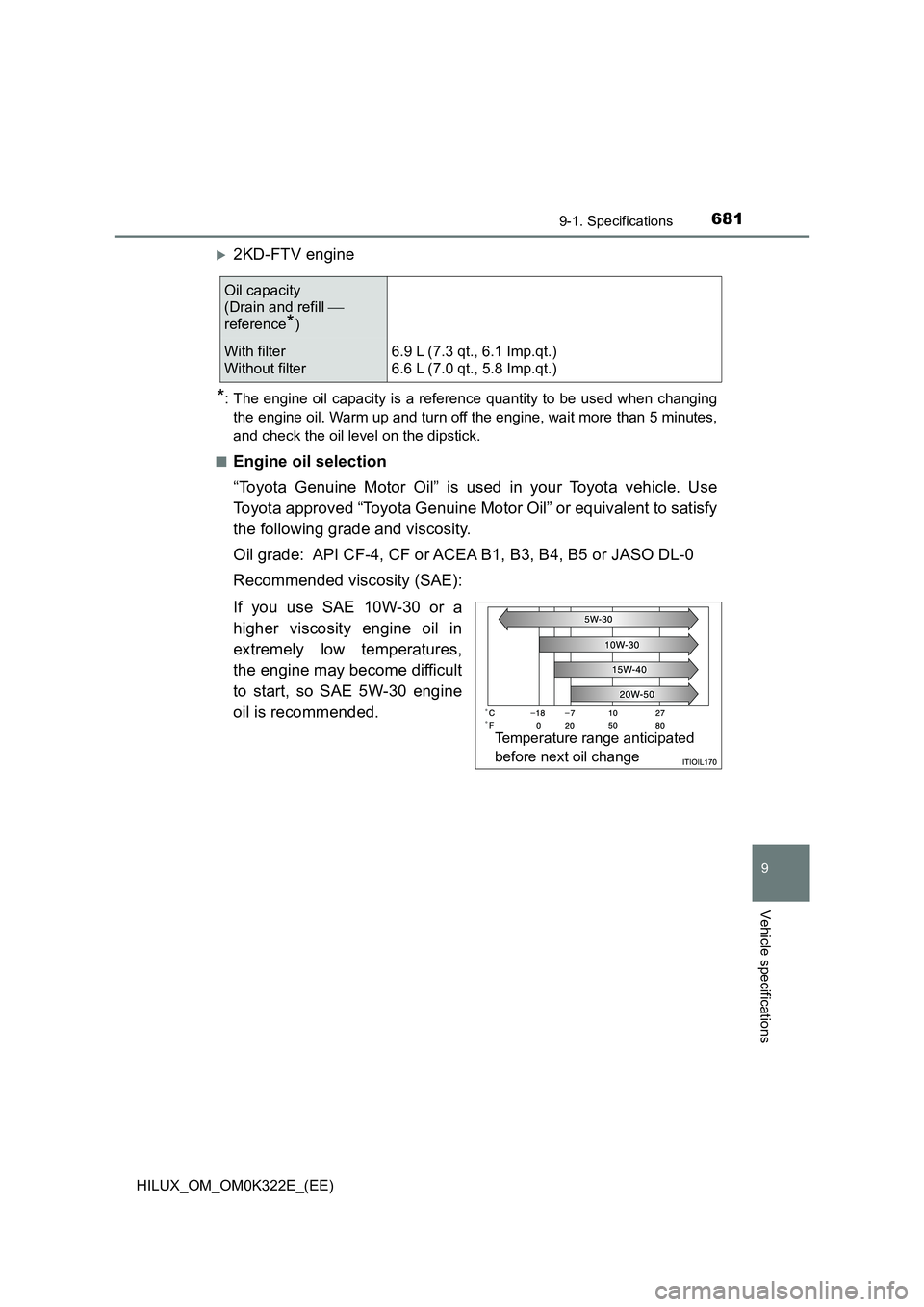

681
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
2KD-FTV engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B1, B3, B4, B5 or JASO DL-0
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil capacity
(Drain and refill 
reference*)
With filter
Without filter
6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
Temperature range anticipated
before next oil change

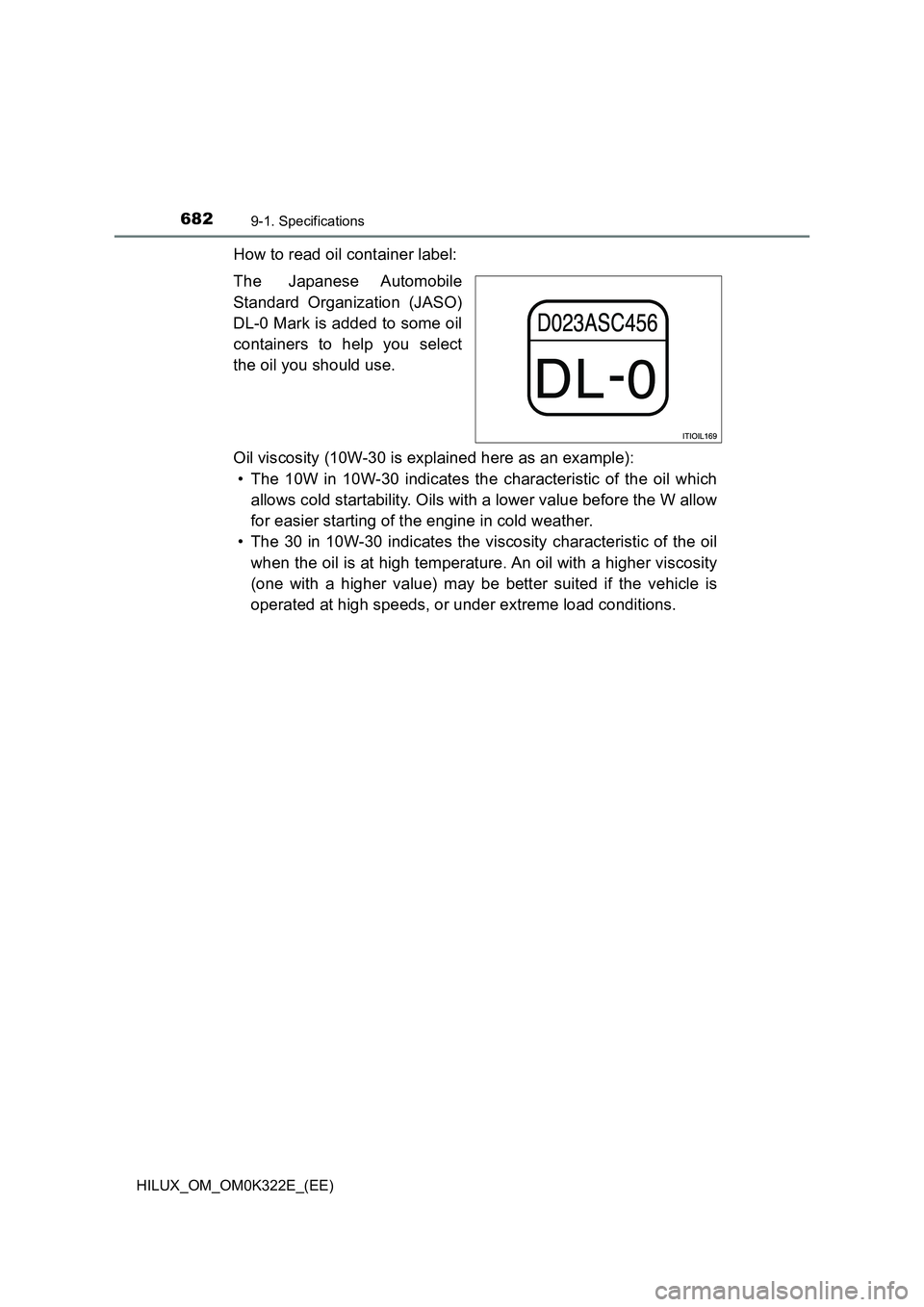

6829-1. Specifications
HILUX_OM_OM0K322E_(EE)
How to read oil container label:
The Japanese Automobile
Standard Organization (JASO)
DL-0 Mark is added to some oil
containers to help you select
the oil you should use.
Oil viscosity (10W-30 is explained here as an example):
• The 10W in 10W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 10W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

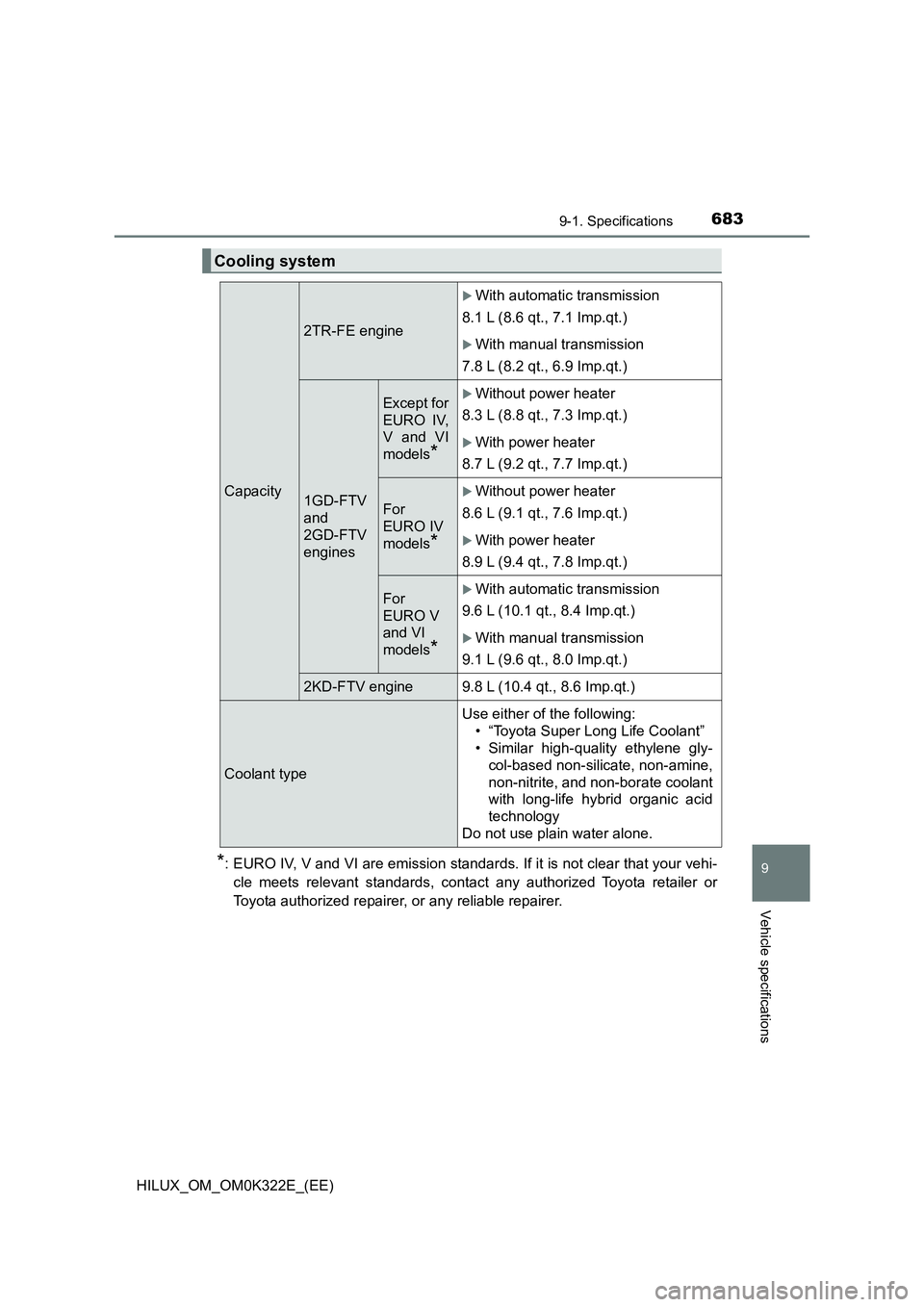

683
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*: EURO IV, V and VI are emission standards. If it is not clear that your vehi-
cle meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity
2TR-FE engine
With automatic transmission
8.1 L (8.6 qt., 7.1 Imp.qt.)
With manual transmission
7.8 L (8.2 qt., 6.9 Imp.qt.)
1GD-FTV
and
2GD-FTV
engines
Except for
EURO IV,
V and VI
models*
Without power heater
8.3 L (8.8 qt., 7.3 Imp.qt.)
With power heater
8.7 L (9.2 qt., 7.7 Imp.qt.)
For
EURO IV
models*
Without power heater
8.6 L (9.1 qt., 7.6 Imp.qt.)
With power heater
8.9 L (9.4 qt., 7.8 Imp.qt.)
For
EURO V
and VI
models*
With automatic transmission
9.6 L (10.1 qt., 8.4 Imp.qt.)
With manual transmission
9.1 L (9.6 qt., 8.0 Imp.qt.)
2KD-FTV engine9.8 L (10.4 qt., 8.6 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate coolant
with long-life hybrid organic acid
technology
Do not use plain water alone.

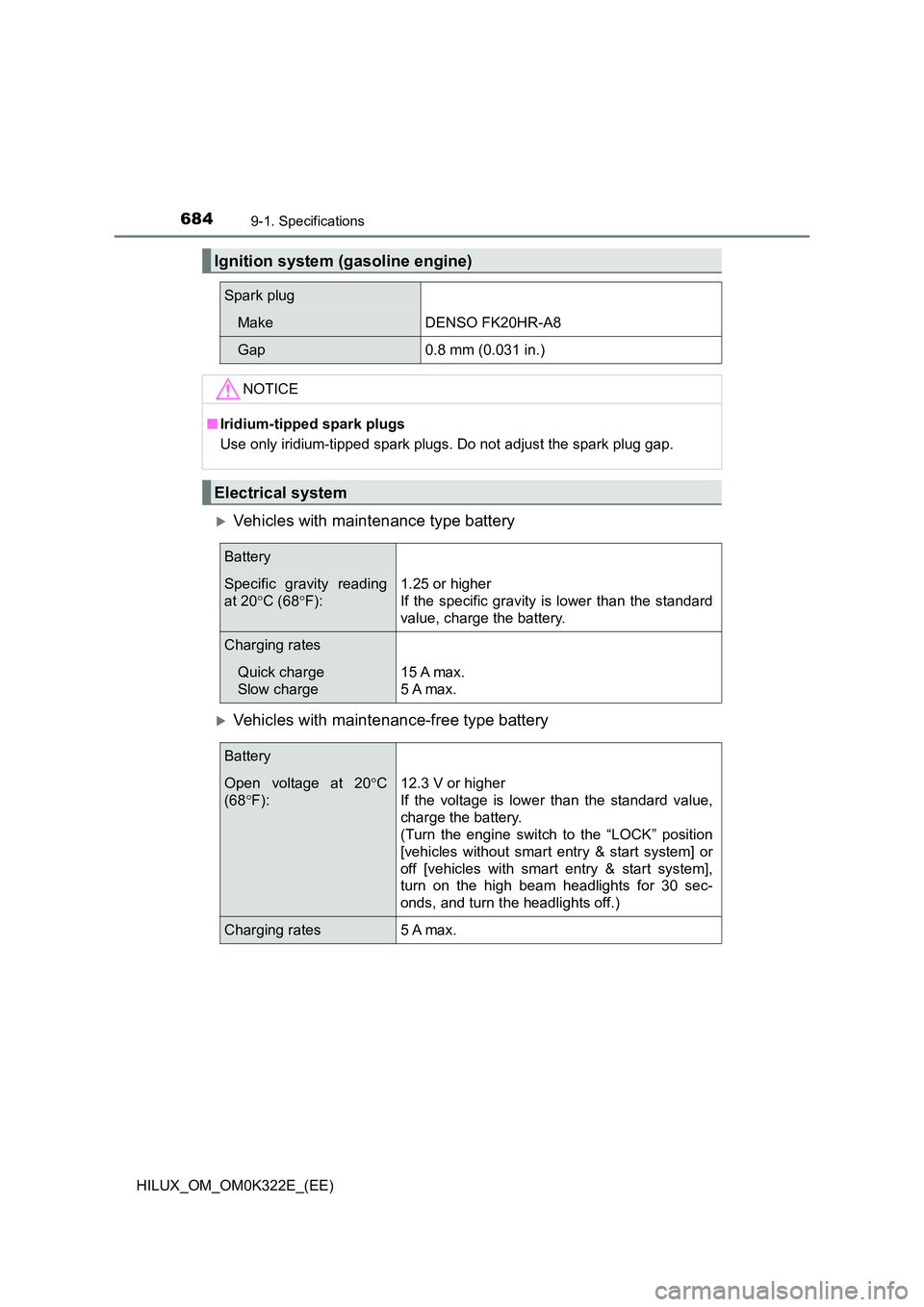

6849-1. Specifications
HILUX_OM_OM0K322E_(EE)
Vehicles with maintenance type battery
Vehicles with maintenance-free type battery
Ignition system (gasoline engine)
Spark plug
MakeDENSO FK20HR-A8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Specific gravity reading
at 20 C (68F):
1.25 or higher
If the specific gravity is lower than the standard
value, charge the battery.
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Battery
Open voltage at 20 C
(68 F):
12.3 V or higher
If the voltage is lower than the standard value,
charge the battery.
(Turn the engine switch to the “LOCK” position
[vehicles without smart entry & start system] or
off [vehicles with smart entry & start system],
turn on the high beam headlights for 30 sec-
onds, and turn the headlights off.)
Charging rates 5 A max.

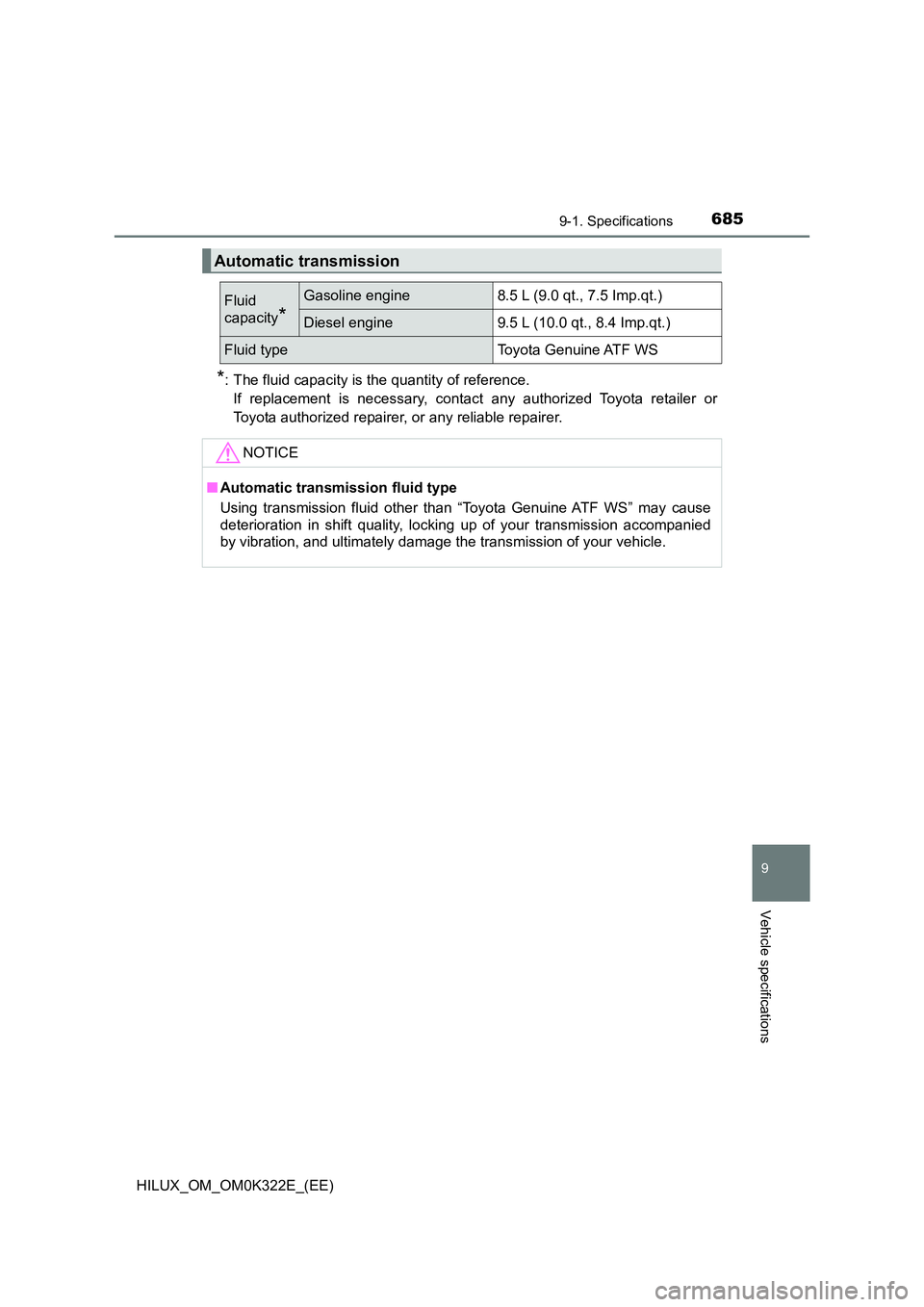

685
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Automatic transmission
Fluid
capacity*
Gasoline engine8.5 L (9.0 qt., 7.5 Imp.qt.)
Diesel engine9.5 L (10.0 qt., 8.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

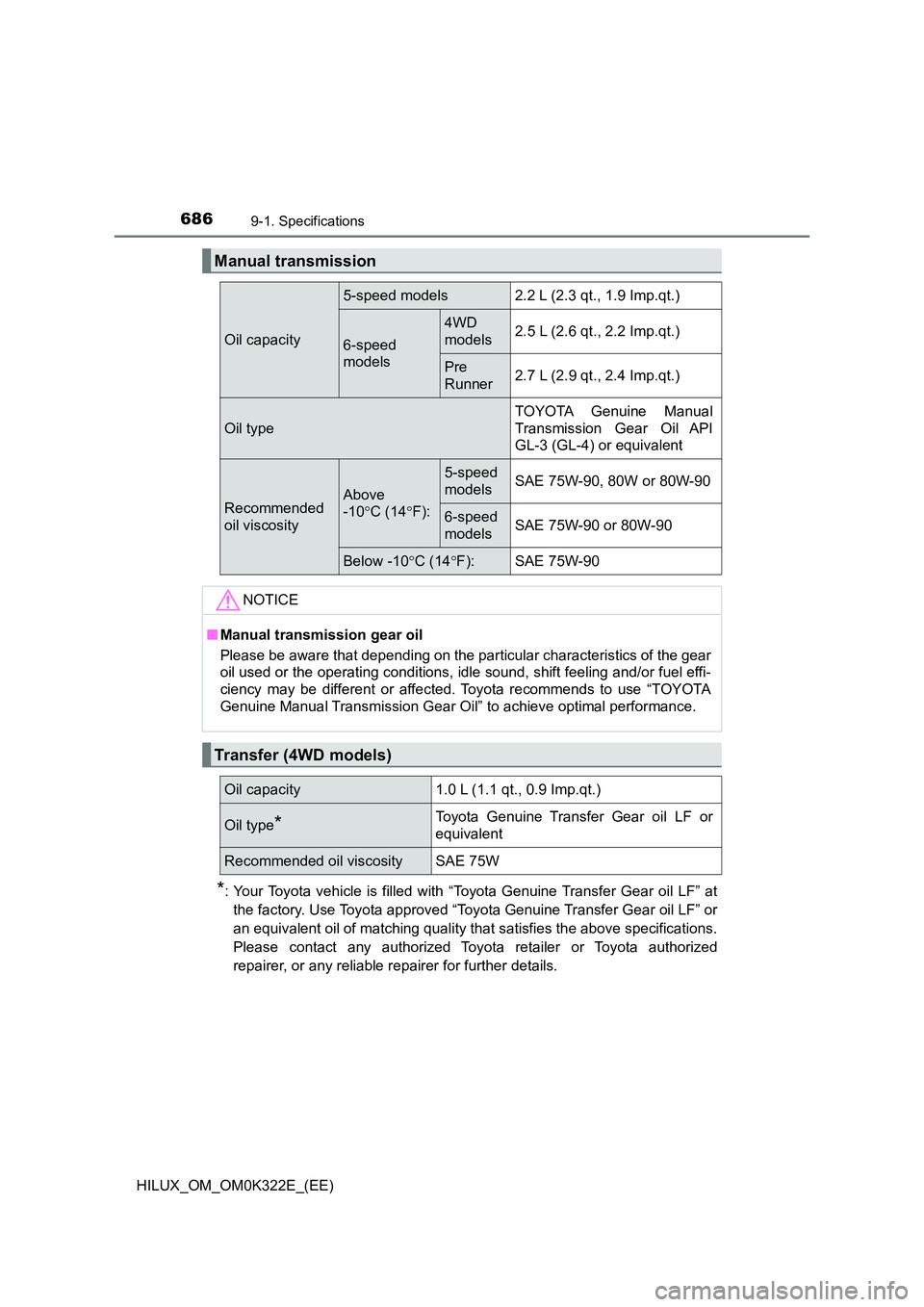

6869-1. Specifications
HILUX_OM_OM0K322E_(EE)
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent oil of matching quality that satisfies the above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
Manual transmission
Oil capacity
5-speed models 2.2 L (2.3 qt., 1.9 Imp.qt.)
6-speed
models
4WD
models 2.5 L (2.6 qt., 2.2 Imp.qt.)
Pre
Runner 2.7 L (2.9 qt., 2.4 Imp.qt.)
Oil type
TOYOTA Genuine Manual
Transmission Gear Oil API
GL-3 (GL-4) or equivalent
Recommended
oil viscosity
Above
-10 C (14F):
5-speed
models SAE 75W-90, 80W or 80W-90
6-speed
models SAE 75W-90 or 80W-90
Below -10 C (14F): SAE 75W-90
NOTICE
■Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.
Transfer (4WD models)
Oil capacity1.0 L (1.1 qt., 0.9 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscositySAE 75W

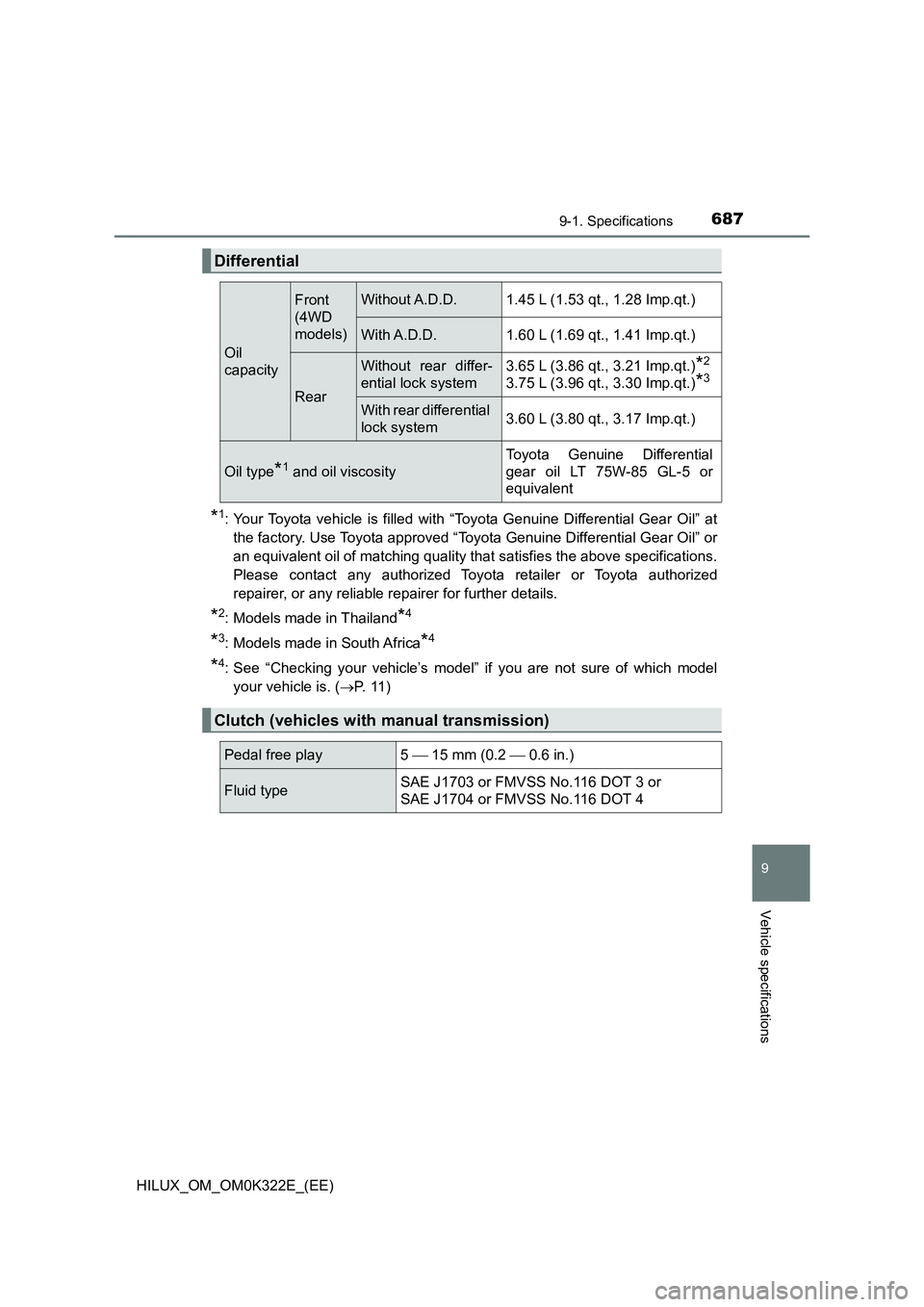

687
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*1: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality that satisfies the above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
*2: Models made in Thailand*4
*3: Models made in South Africa*4
*4: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )
Differential
Oil
capacity
Front
(4WD
models)
Without A.D.D.1.45 L (1.53 qt., 1.28 Imp.qt.)
With A.D.D.1.60 L (1.69 qt., 1.41 Imp.qt.)
Rear
Without rear differ-
ential lock system
3.65 L (3.86 qt., 3.21 Imp.qt.)*2
3.75 L (3.96 qt., 3.30 Imp.qt.)*3
With rear differential
lock system3.60 L (3.80 qt., 3.17 Imp.qt.)
Oil type*1 and oil viscosity
Toyota Genuine Differential
gear oil LT 75W-85 GL-5 or
equivalent
Clutch (vehicles with manual transmission)
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

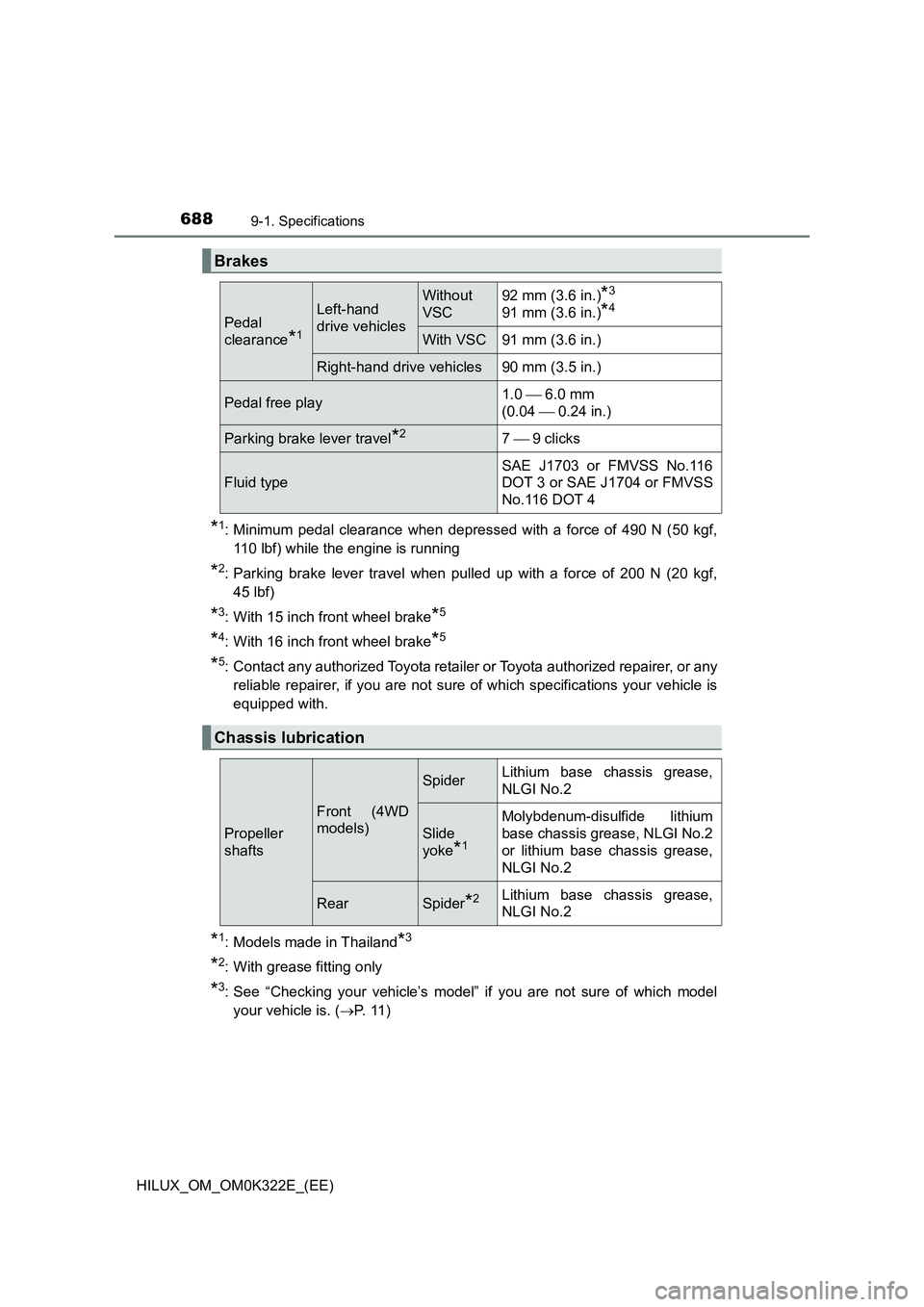

6889-1. Specifications
HILUX_OM_OM0K322E_(EE)
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf,
45 lbf)
*3: With 15 inch front wheel brake*5
*4: With 16 inch front wheel brake*5
*5: Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer, if you are not sure of which specifications your vehicle is
equipped with.
*1: Models made in Thailand*3
*2: With grease fitting only
*3: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )
Brakes
Pedal
clearance*1
Left-hand
drive vehicles
Without
VSC
92 mm (3.6 in.)*3
91 mm (3.6 in.)*4
With VSC91 mm (3.6 in.)
Right-hand drive vehicles90 mm (3.5 in.)
Pedal free play1.0  6.0 mm
(0.04  0.24 in.)
Parking brake lever travel*27 9 clicks
Fluid type
SAE J1703 or FMVSS No.116
DOT 3 or SAE J1704 or FMVSS
No.116 DOT 4
Chassis lubrication
Propeller
shafts
Front (4WD
models)
SpiderLithium base chassis grease,
NLGI No.2
Slide
yoke*1
Molybdenum-disulfide lithium
base chassis grease, NLGI No.2
or lithium base chassis grease,
NLGI No.2
RearSpider*2Lithium base chassis grease,
NLGI No.2
