2017 TOYOTA HILUX Owners Manual (in English)

1773-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K322E_(EE)
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without smart entry & start system (vehicles with power door
lock system): The driver’s door cannot be locked if either of the door is
open and the key is in the engine switch.
Vehicles with smart entry & start system: The door cannot be locked if
the engine switch is in ACCESSORY or IGNITION ON mode, or the
electronic key is left inside the vehicle.
However, the key may not be detected correctly and the door may be
locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or canceled:
Locking the front doors from the outside without a key
Rear door child-protector lock (double-cab models only)
1
2
1
2
Automatic door locking and unlocking systems (if equipped)
FunctionOperation
Speed linked door lock-
ing function
All the doors are locked when the vehicle speed
is approximately 20 km/h (12 mph) or higher.
(Vehicles without impact detection door lock
release system: Even if the vehicle is subject to
a strong impact, all the doors will not be
unlocked automatically.)
Driver’s door linked door
unlocking function
All the doors are unlocked when the driver’s
door is opened within approximately 45 seconds
after turning the engine switch off.

1783-2. Opening, closing and locking the doors
HILUX_OM_OM0K322E_(EE)

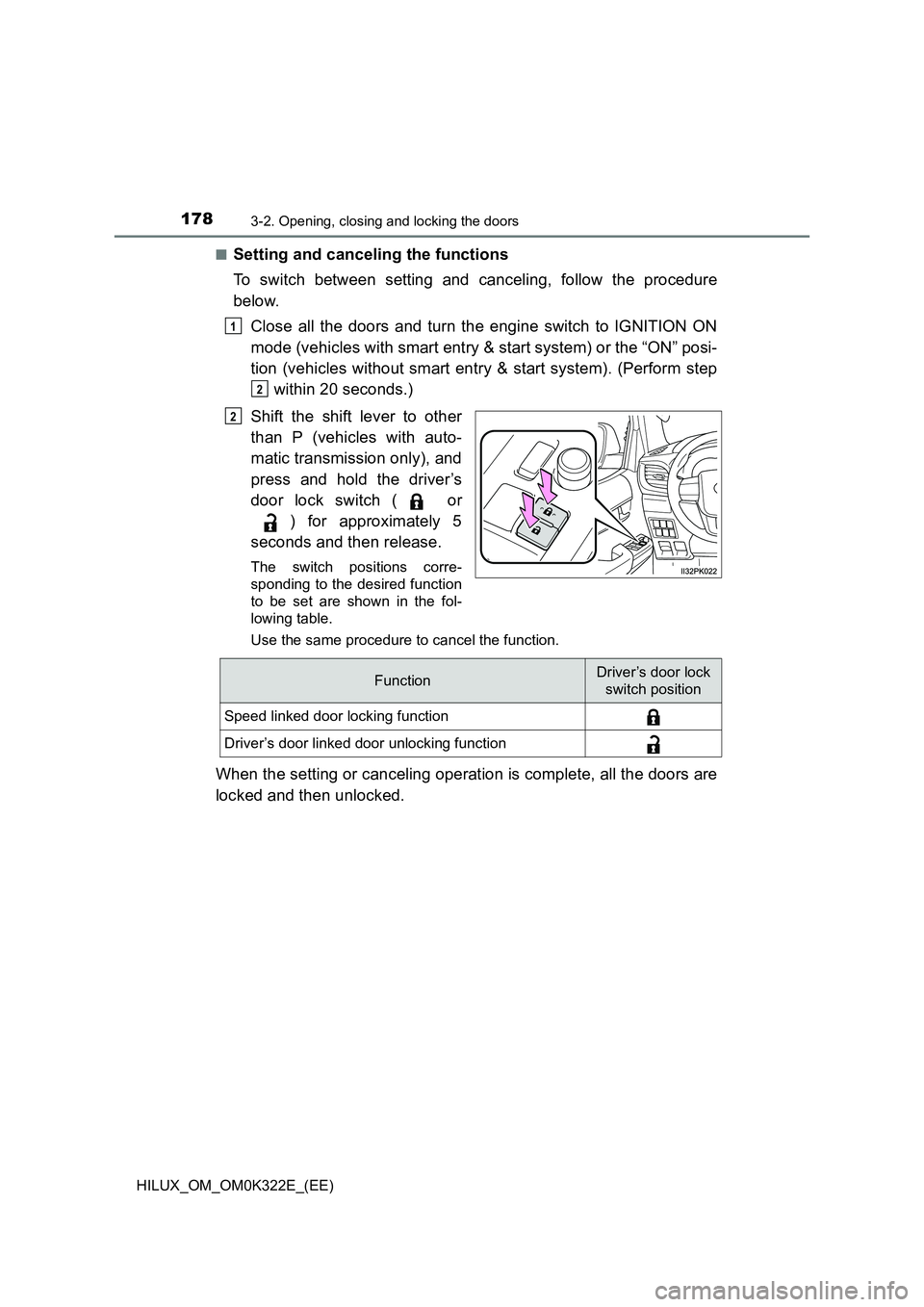

■Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below.
Close all the doors and turn the engine switch to IGNITION ON
mode (vehicles with smart entry & start system) or the “ON” posi-
tion (vehicles without smart entry & start system). (Perform step
within 20 seconds.)
Shift the shift lever to other
than P (vehicles with auto-
matic transmission only), and
press and hold the driver’s
door lock switch ( or
) for approximately 5
seconds and then release.
The switch positions corre-
sponding to the desired function
to be set are shown in the fol-
lowing table.
Use the same procedure to cancel the function.
When the setting or canceling operation is complete, all the doors are
locked and then unlocked.
1
2
2
FunctionDriver’s door lock
switch position
Speed linked door locking function
Driver’s door linked door unlocking function

1793-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K322E_(EE)

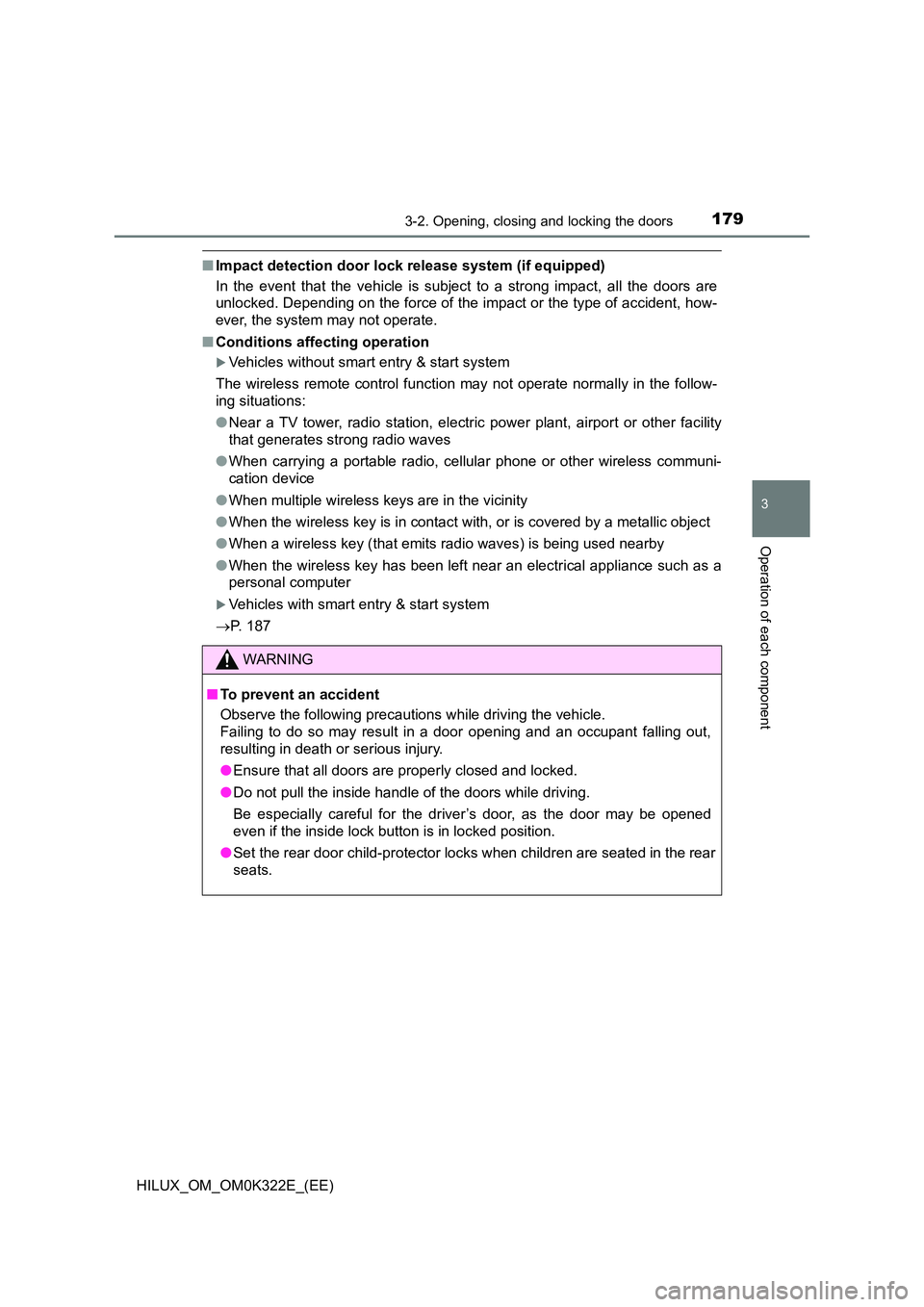

■Impact detection door lock release system (if equipped)
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
Vehicles with smart entry & start system
 P. 187
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

1803-2. Opening, closing and locking the doors
HILUX_OM_OM0K322E_(EE)

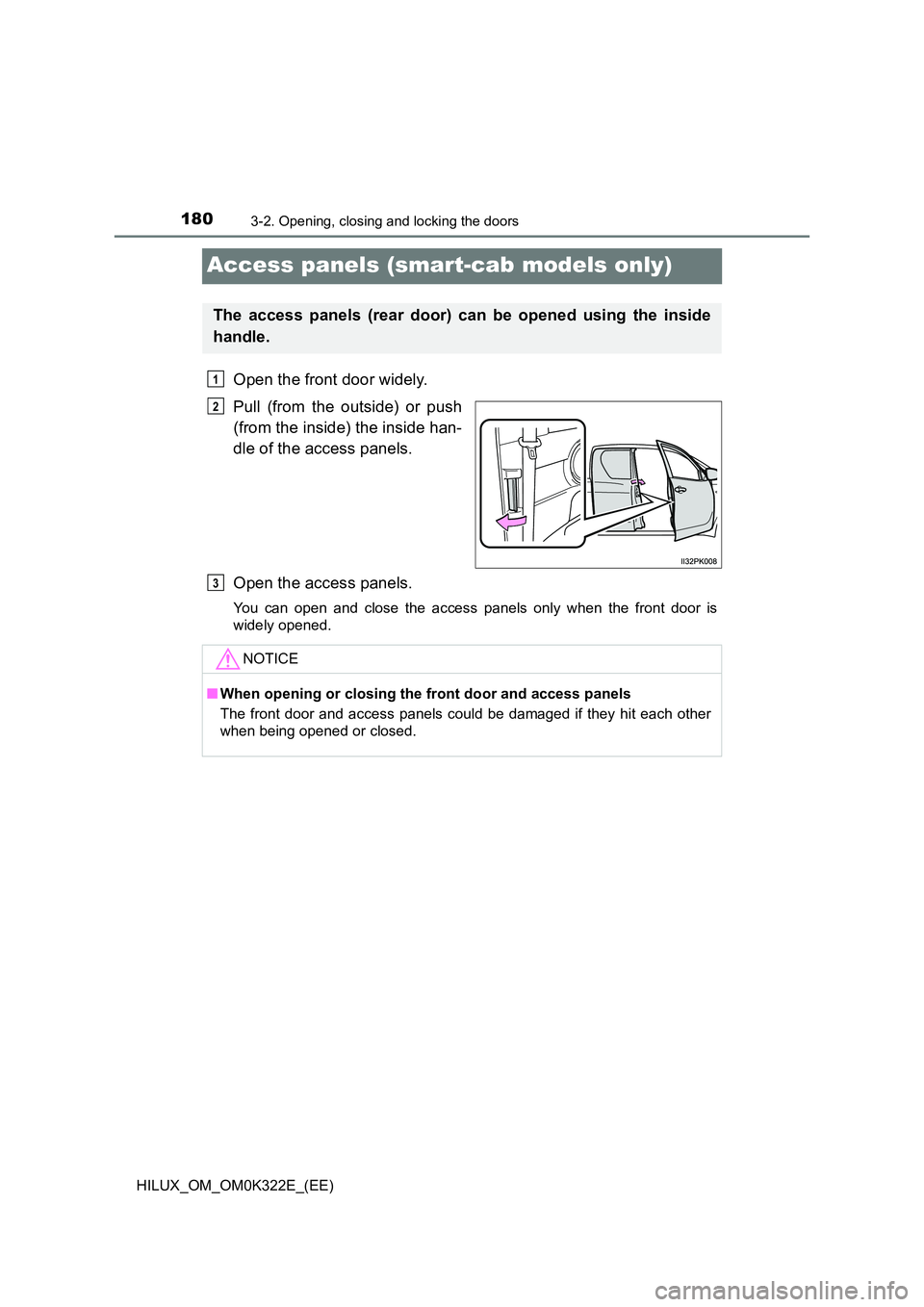

Access panels (smart-cab models only)
Open the front door widely.
Pull (from the outside) or push
(from the inside) the inside han-
dle of the access panels.
Open the access panels.
You can open and close the access panels only when the front door is
widely opened.
The access panels (rear door) can be opened using the inside
handle.
1
2
NOTICE
■ When opening or closing the front door and access panels
The front door and access panels could be damaged if they hit each other
when being opened or closed.
3

181
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K322E_(EE)

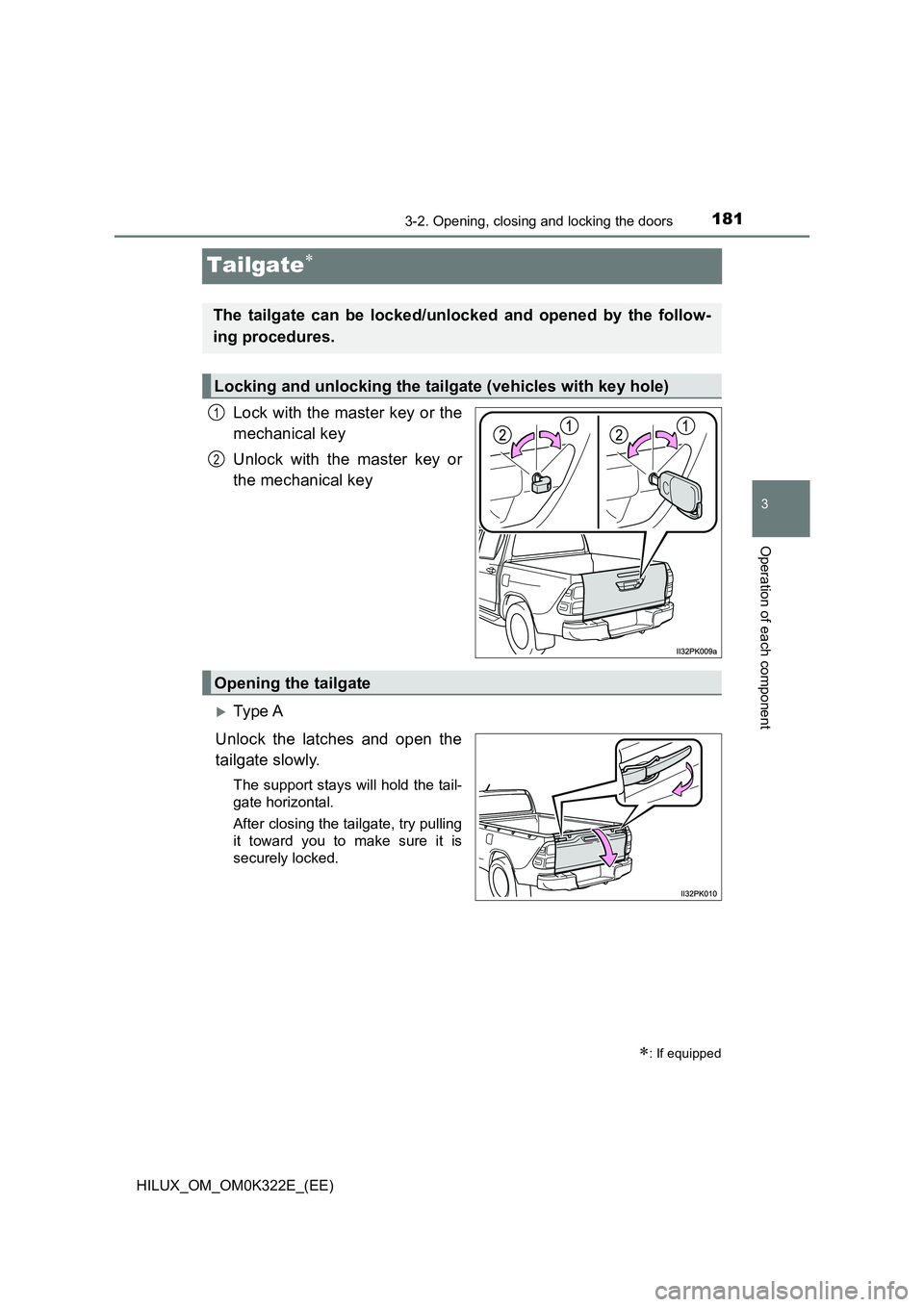

Tailgate
Lock with the master key or the
mechanical key
Unlock with the master key or
the mechanical key
Ty pe A
Unlock the latches and open the
tailgate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate

1823-2. Opening, closing and locking the doors
HILUX_OM_OM0K322E_(EE)

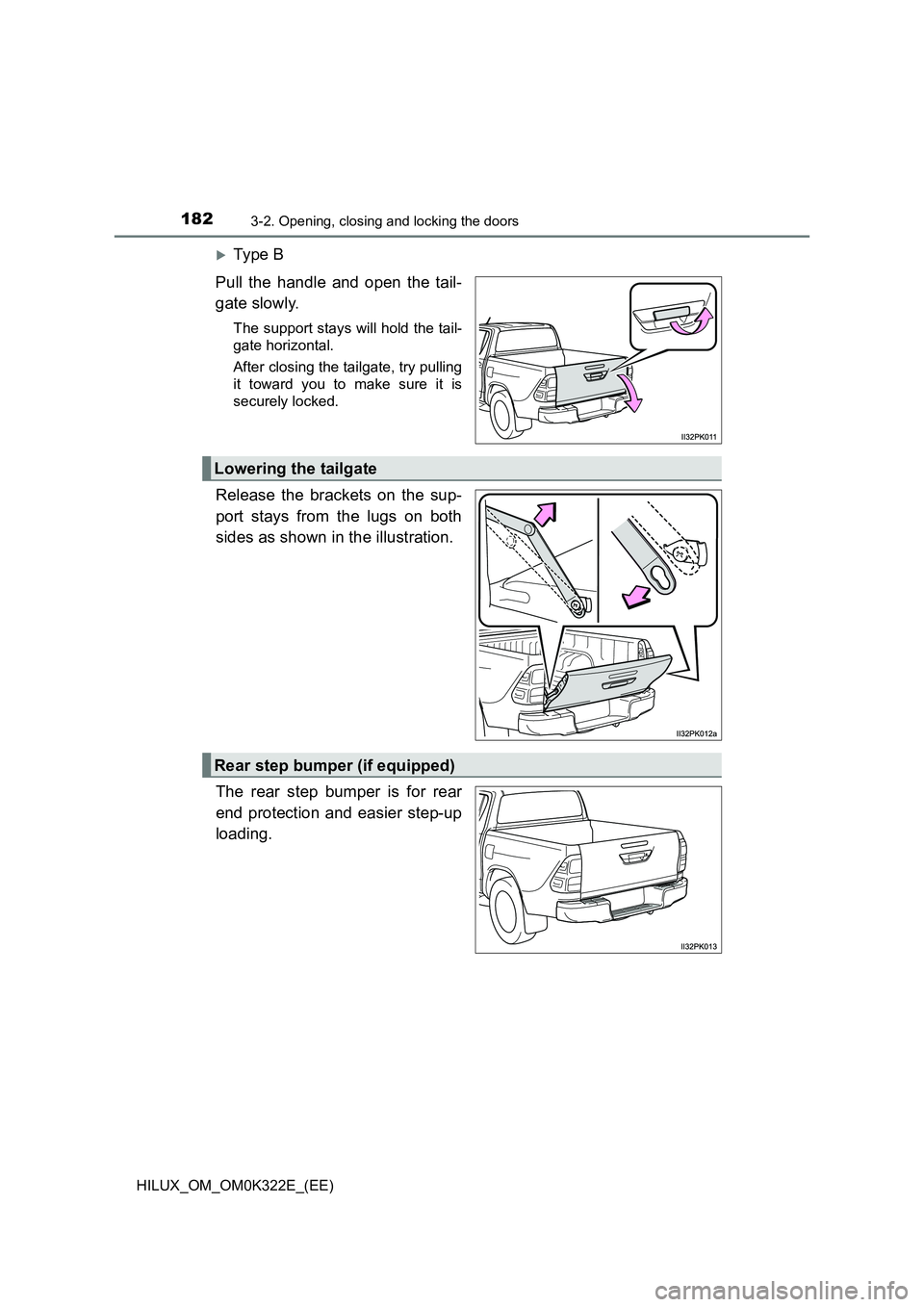

Ty pe B
Pull the handle and open the tail-
gate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port stays from the lugs on both
sides as shown in the illustration.
The rear step bumper is for rear
end protection and easier step-up
loading.
Lowering the tailgate
Rear step bumper (if equipped)

1833-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K322E_(EE)

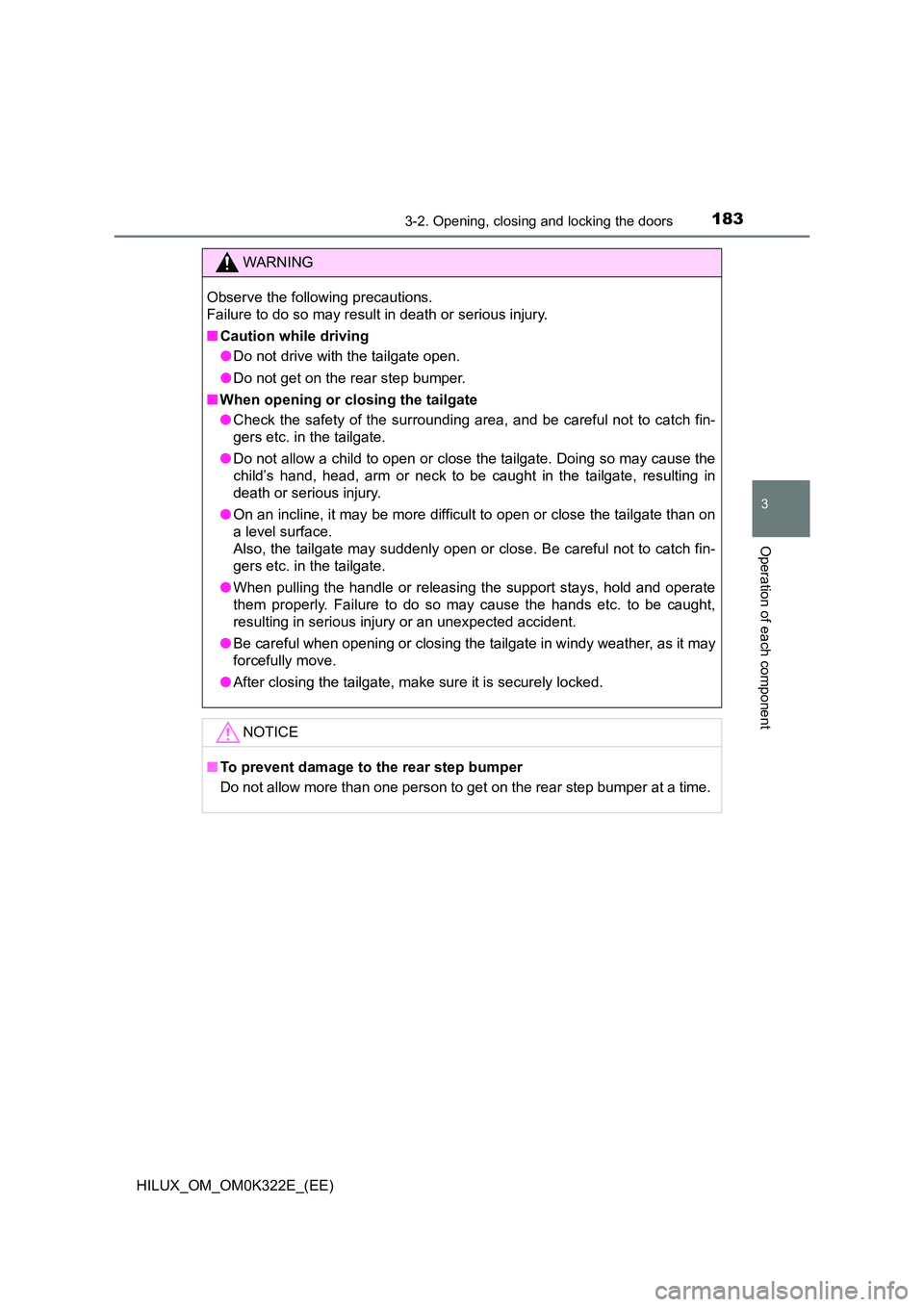

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Caution while driving
● Do not drive with the tailgate open.
● Do not get on the rear step bumper.
■ When opening or closing the tailgate
● Check the safety of the surrounding area, and be careful not to catch fin-
gers etc. in the tailgate.
● Do not allow a child to open or close the tailgate. Doing so may cause the
child’s hand, head, arm or neck to be caught in the tailgate, resulting in
death or serious injury.
● On an incline, it may be more difficult to open or close the tailgate than on
a level surface.
Also, the tailgate may suddenly open or close. Be careful not to catch fin-
gers etc. in the tailgate.
● When pulling the handle or releasing the support stays, hold and operate
them properly. Failure to do so may cause the hands etc. to be caught,
resulting in serious injury or an unexpected accident.
● Be careful when opening or closing the tailgate in windy weather, as it may
forcefully move.
● After closing the tailgate, make sure it is securely locked.
NOTICE
■To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.

1843-2. Opening, closing and locking the doors
HILUX_OM_OM0K322E_(EE)

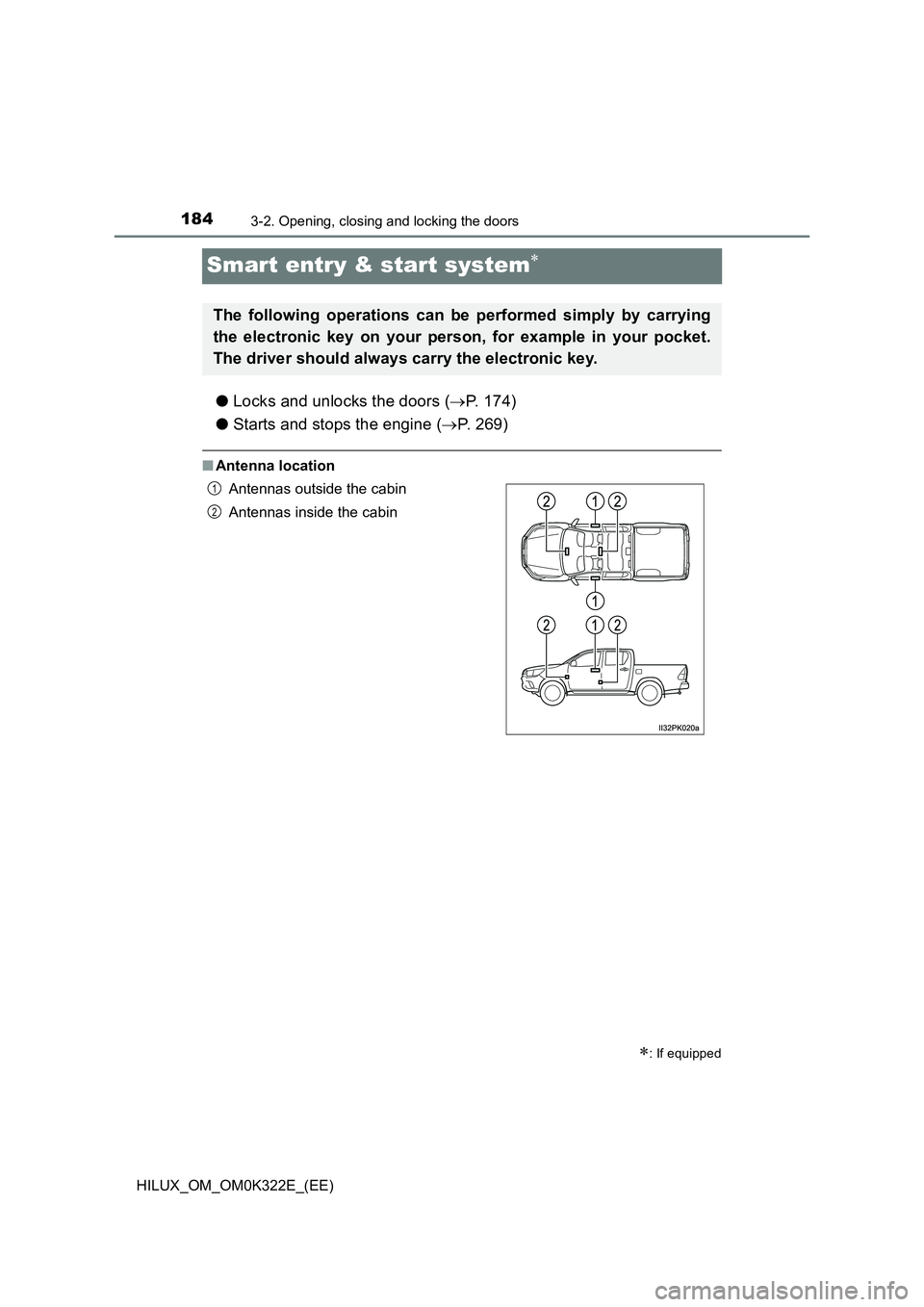

Smart entry & start system
●Locks and unlocks the doors (P. 174)
● Starts and stops the engine (P. 269)
■Antenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
1
2
